Brother DCP-1200 MFC9600 MFC9750 MFC9850 MFC9870 Parts

Please call for parts assistance

Please call for help. There are two sections, based on which model

List 1 (MAIN FRAME) - MFC9750 / MFC9850 / MFC9870 1 UL9311001 MAIN MOTOR ASSY 2 087320616 TAPTITE, CUP S M3X6 3 LJ4069001 SOLENOID 4 000300415 SCREW, BIND M3X4 5 UL8984001 FRONT COVER LINK 6 UL9099001 TONER SENSOR (LED) PCB 7 087320616 TAPTITE, CUP S M3X6 8 LE1166001 THERMISTOR FILM 9 LG2423001 IN CASING TEMPERATURE THERMISTOR 10 LJ4745001 FAN 11 UL9104001 TONER SENSOR (RECEIVER) PCB 12 LG2438001 PAPER EJECTION SENSOR PCB 13 087320616 TAPTITE, CUP S M3X6 14 UL8507001 RUBBER FOOT 15 LJ8031001 2ND CASSETTE RELAY PCB 16 085411215 TAPTITE, BIND B M4X12 17 UL8970001 SOLENOID RELEASE SPRING

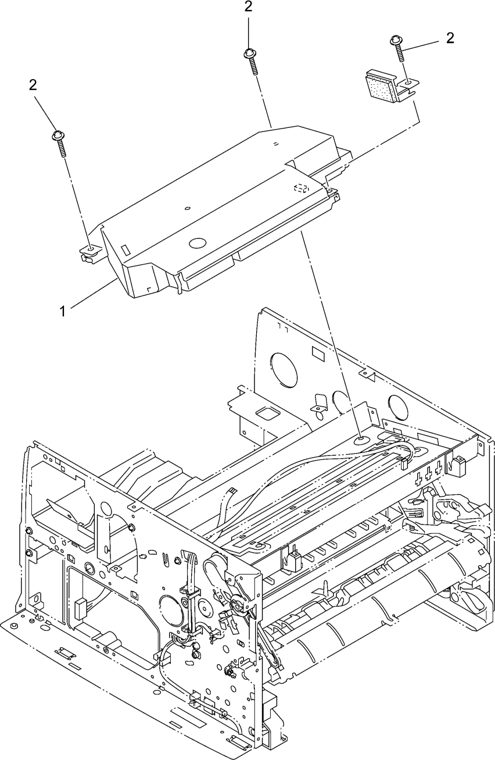

List 2 (LASER UNIT) - MFC9750 / MFC9850 / MFC9870 1 LJ4157001 LASER UNIT SUPPLY ASSY 2 087321615 TAPTITE, CUP S M3X16

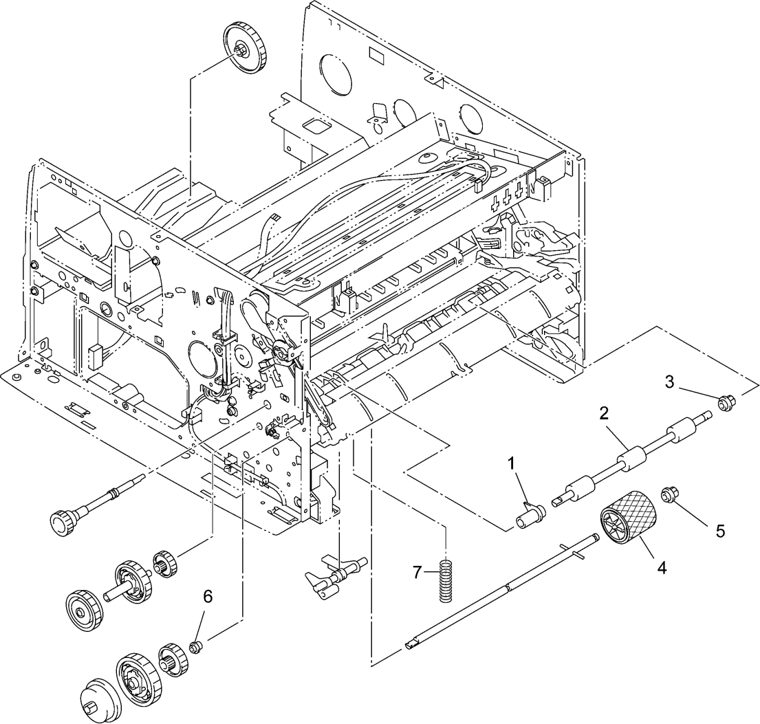

List 3 (PAPER TRANSPORT) - MFC9750 / MFC9850 / MFC9870 1 UL9059001 JOINT 2 UL9060001 PAPER FEED ROLLER ASSY 3 UL9062001 PAWLED BUSHING 4 UL9066001 PAPER PICKUP ROLLER UL9066001 Pickup Roller New UL9066001 (New) $29.00 5 UL9062001 PAWLED BUSHING 6 UL9069001 CONDUCTIVE BUSHING 7 LJ4499001 ELECTRODE SPRING (8) LJ4843001 OUTER CHUTE 1 SUPPLY ASSY

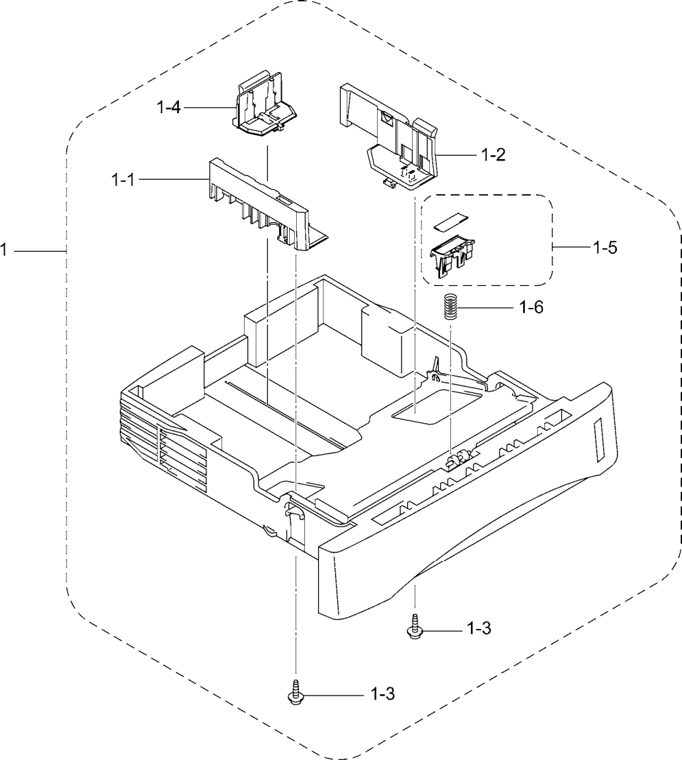

List 4 (PAPER CASSETTE) - MFC9750 / MFC9850 / MFC9870 1 LJ4181001 PAPER CASSETTE, A4 SUPPLY ASSY 1-1 UL9078001 SIDE GUIDE L 1-2 UL9079001 SIDE GUIDE R 1-3 U73515001 SCREW, PAN CUP B M2.6X5 1-4 UL9083001 PAPER REAR GUIDE 1-5 UL9084001 SEPARATION PAD SUPPORT ASSY UL9084001 Separation Pad - Cassette New UL9084001 (New) $31.00 1-6 UL9090001 SEPARATION PAD SPRING

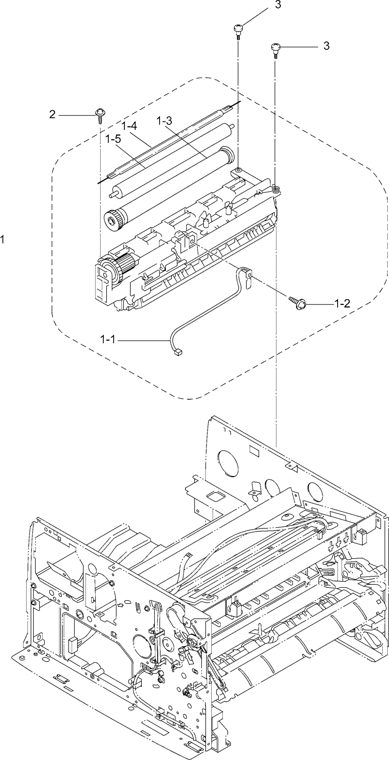

List 5 (HEAT FIXING UNIT) - MFC9750 / MFC9850 / MFC9870 1 LJ4168001 HEAT FIXING UNIT, 230V SUPPLY ASSY 1-1 UL8902001 THERMISTOR ASSY 1-2 087311215 TAPTITE, CUP B M3X12 1-3 LJ4169001 HEAT ROLLER SUPPLY ASSY 1-4 LJ4163001 FUSER LAMP, 230V SUPPLY ASSY 1-5 UL8918001 PRESSURE ROLLER 2 087320815 TAPTITE, CUP S M3X8 3 LJ4740001 SHOULDER SCREW

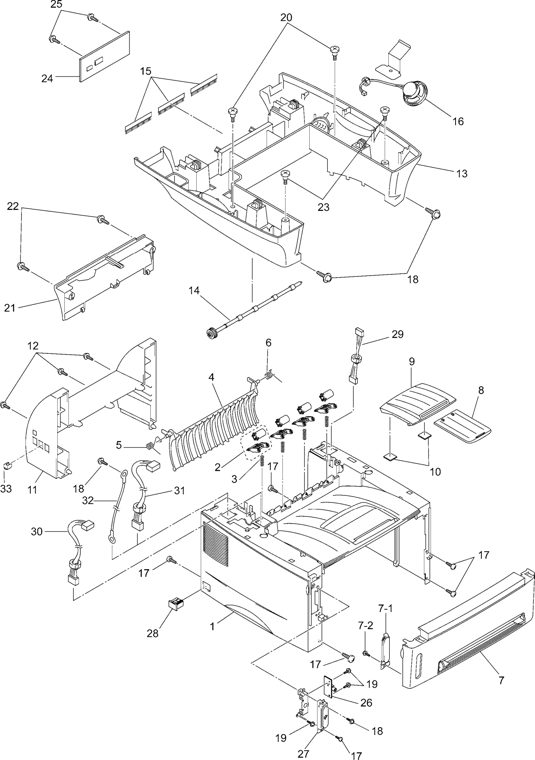

List 6 (COVER) - MFC9750 / MFC9850 / MFC9870 1 LJ4122001 MAIN COVER ASSY, WHITE(1495) 2 UL9122001 PINCH ROLLER ASSY 3 UL9125001 PINCH ROLLER SPRING 4 UL9126001 OUTER CHUTE, WHITE(1495) UL9126001 Outer Chute - Gray Fully refurbished with 90-day warranty UL9126001 $31.05 5 UL9127001 CHUTE SPRING L 6 UL9128001 CHUTE SPRING R 7 UU2102001 FRONT COVER ASSY, WHITE(1495) 7-1 UU2094001 FRONT SUB COVER, WHITE(1495) 7-2 087310815 TAPTITE, CUP B M3X8 8 LE1197001 PAPER SUB TRAY, WHITE(1495) 9 LE1198001 PAPER SUB TRAY COVER, WHITE(1495) 10 LE1291001 TRAY COVER ADHESIVE TAPE 11 UU2002001 REAR COVER, WHITE(1495) UU2002001 Rear Cover - Gray Fully refurbished with 90-day warranty UU2002001 $40.50 12 0A5401006 SCREW, PAN (S/P WASHER) M4X10 13 LE1200001 SCANNER MOUNT, WHITE(1495) 14 UL9142001 EXIT ROLLER ASSY UL9142001 Exit Roller Fully refurbished with 90-day warranty UL9142001 $41.85 15 LJ4125001 ANTI-STATIC BRUSH ZL 16 LG2425001 SPEAKER UNIT 17 085320816 TAPTITE, BIND S M3X8 18 087321015 TAPTITE, CUP S M3X10 19 --- NOT USE 20 UF9823001 SHOULDER SCREW 21 LE1202001 UPPER REAR COVER 22 087411216 TAPTITE, CUP B M4X12 23 LE1368001 SHOULDER SCREW BIND B M4X8 24 LE1523001 RELAY PCB SUPPLY ASSY 25 087311016 TAPTITE, CUP B M3X10 26 --- NOT USE 27 --- NOT USE 28 --- NOT USE 29 LG2221001 MAIN-RELAY(PANEL) HARNESS 30 LG2499001 MAIN-RELAY(CCD) HARNESS 31 LG2223001 MAIN-RELAY(MOTORS) HARNESS 32 LG2418001 CHASIS GROUNDING WIRE, MFC9850/9870 33 UF5745000 MJ COVER, EXT, MFC9850/9870 FOR GER/UK/FRA/BEL/NLD/DEN/AUT/ITA/SWE UF5745000 Mj Cover Ext New UF5745000 (New) 3-4 Day Lead $43.52
List 7 (SCANNER UNIT) - MFC9750 / MFC9850 / MFC9870 1 LE1524001 SCANNER UNIT SUPPLY ASSY 1-1 UU7490001 CCD MOTOR 1-2 LG2017001 CCD MOTOR HARNESS 1-3 0A4300605 SCREW, PAN (S/P WASHER) M3X6 1-4 LG2239001 CCD HP SENSOR 1-5 LG2019001 CCD HP SENSOR HARNESS 1-6 LG2025001 PANEL-MAIN HARNESS 1-7 LE2074001 CCD IDLE PULLEY HOLDER ASSY 1-8 LE1552001 CCD UNIT SUPPLY ASSY 1-9 LG2196001 CCD FLAT CABLE 1-10 LE2297001 CCD DRIVE BELT 1-11 LE2082001 CCD LOCK 1-12 LE2079001 COMPRESSION SPRING 1-13 LE2805001 TAPTITE, PAN B M3X10 1-14 087411216 TAPTITE, CUP B M4X12 2 LE2092001 HARNESS SUPPORT 3 087310816 TAPTITE, CUP B M3X8 4 LG2020001 FLAT CORE (CCD)
List 8 (ADF&TRAY) - MFC9750 / MFC9850 / MFC9870 1 LE1525001 ADF UNIT SUPPLY ASSY 1-1 UG6609001 DOCUMENT SENSOR PCB 1-2 LG2014001 DOCUMENT SENSOR HARNESS 1-3 UF7026001 DOCUMENT FRONT SENSOR ACTUATOR 1-4 LE2008001 DOCUMENT REAR SENSOR ACTUATOR 1-5 LE2011001 COMPRESSION SPRING 1-6 LE2551001 RUBBER HOLDER A 1-7 UU2055001 SEPARATION RUBBER UU2055001 ADF Separation Pad New UU2055001 (New) $29.00 1-8 LE1513001 SPRING PLATE A ASSY 1-9 LE2470001 ADF FILM 1-10 UF6116001 TAPTITE, PAN B M3X6 1-11 UF9009001 PRESSURE ROLLER 1-12 LE2471001 PRESSURE ROLLER SHAFT 1-13 LE2472001 PRESSURE ROLLER SPRING 1-14 LE1215001 ADF MOTOR 1-15 LG2201001 ADF MOTOR HARNESS 1-16 0A4300605 SCREW, PAN (S/P WASHER) M3X6 1-17 LG2016001 GROUNDING WIRE 1-18 087310815 TAPTITE, CUP B M3X8 1-19 LE2026001 UPPER LF ROLLER (GRAY) 1-20 LE2029001 LOWER LF ROLLER (BLACK) 1-21 LE2028001 DOCUMENT EJECTION ROLLER 1-22 UF8105001 CONDUCTIVE BUSHING 1-23 UU7039001 LF ROLLER GEAR 27 1-24 LE2030001 WHITE ROLLER 1-25 LE2032001 WHITE ROLLER BUSHING 1-26 LE2033001 EXTENSION SPRING 1-27 LE2919001 DOCUMENT FEED ROLLER HOLDER ASSY LE2919001 ADF Pickup Roller Assy New LE2919001 (New) $66.64 (1-27-1) LE2037001 DOCUMENT FEED ROLLER (RUBBER) 1-28 UU1290001 CONDUCTIVE BUSHING 1-29 UU7505001 ANTI-STATIC BRUSH 1-30 087320616 TAPTITE, CUP S M3X6 1-31 UF0208001 ADF ARM 1-32 LE2048001 DOCUMENT EJECTION CHUTE ASSY 1-32-1 LE2582001 PINCH ROLLER 1-32-2 UU2009001 PINCH ROLLER SPRING 1-33 LE2050001 ADF SIDE COVER F, WHITE(1495) 1-34 LE2051001 ADF SIDE COVER R, WHITE(1495) 1-35 LE2534001 ADF COVER ASSY, WHITE(1495) 1-36 087320816 TAPTITE, CUP S M3X8 2 UF8088001 PLASTIC RETAINING RING 3 LE2053001 ADF SUPPORT 4 087310816 TAPTITE, CUP B M3X8 5 LE2056001 DOCUMENT TRAY, WHITE(1495) 6 LE2487001 DOCUMENT SPONGE 7 LE2059001 DOCUMENT CHUTE, WHITE(1495) 8 LE2567001 HINGE A 9 087311015 TAPTITE, CUP B M3X10 10 LE2777001 DOCUMENT SUPPORT, WHITE(1495) 11 087320816 TAPTITE, CUP S M3X8 12 LE2568001 HINGE HOLDER A 13 LE1568001 DOCUMENT TRAY REINFORCEMENT PLATE 14 UF6116001 TAPTITE, PAN B M3X6

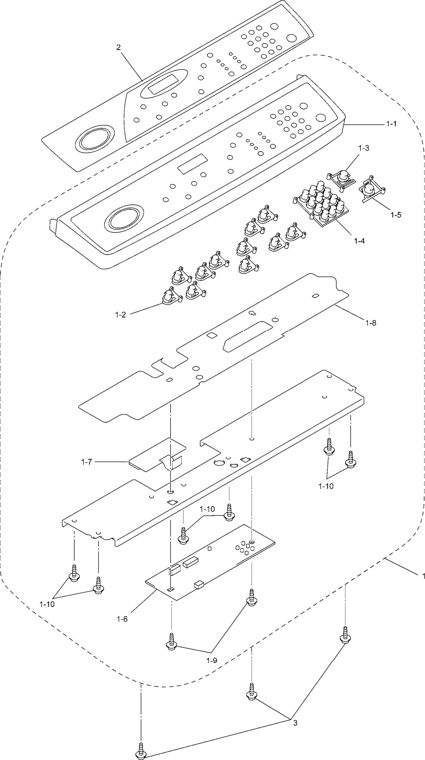

List 9 (CONTROL PANEL MFC9750) - MFC9750 / MFC9850 / MFC9870 1 LE1686001 CONTROL PANEL SUPPLY ASSY 1-1 LE1336001 CONTROL PANEL, WHITE(1495) 1-2 LJ4283001 KEY, FUNCTION, WHITE(1496) 1-3 LJ4231002 KEY, STOP, PINK(2205) 1-4 LJ4284001 KEY, TEN, WHITE(1495) 1-5 LJ4285001 KEY, START, GREEN(5159) 1-6 LE1577001 CONTROL PANEL PCB SUPPLY ASSY 1-7 UG4552000 LCD 1-8 LE1556001 FPC KEY SUPPLY ASSY 1-9 087270815 TAPTITE, CUP B M2.6X8 1-10 087310615 TAPTITE, CUP B M3X6 2 LE1483001 PANEL SHEET, MFC9750 FOR GER 2 LE1490001 PANEL SHEET, MFC9750 FOR UK/BEL/NLD/CHE 2 LE1493001 PANEL SHEET, MFC9750 FOR FRA 2 LE1494001 PANEL SHEET, MFC9750 FOR NOR 2 LE1499001 PANEL SHEET, MFC9750 FOR ITA 2 LE1501001 PANEL SHEET, MFC9750 FOR SPA 2 LE1503001 PANEL SHEET, MFC9750 FOR SWE 3 087310615 TAPTITE, CUP B M3X6

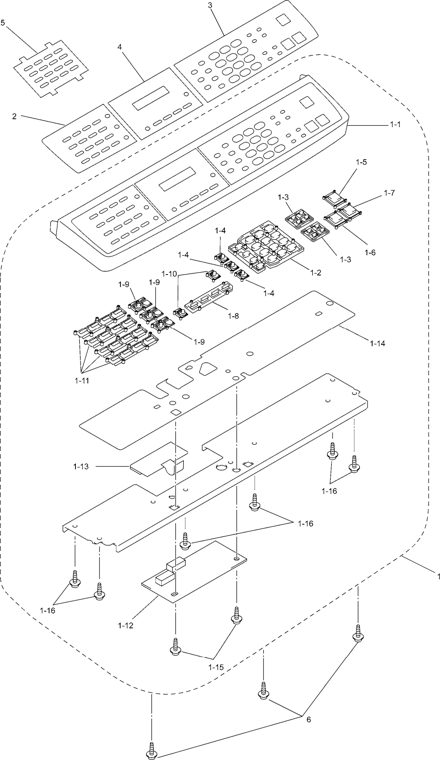

List 9 (C PANEL MFC9850 9870) - MFC9750 / MFC9850 / MFC9870 1 LE1611001 CONTROL PANEL SUPPLY ASSY, WHITE(1495) 1-1 LE2273001 CONTROL PANEL, WHITE(1495) 1-2 UF4393007 KEY, TEN, WHITE(1495) 1-3 LE2274001 KEY, COPY/FAX AREA, WHITE(1495) 1-4 LE1340001 KEY, SCANNER, WHITE(1495) 1-5 UF8174008 KEY, COPY, WHITE(1495) 1-6 UF8174010 KEY, STOP, PINK(2205) 1-7 UF8174011 KEY, START, PURPLE(6255) 1-8 UF8176009 KEY, FUNCTION4, GRAY(1509) 1-9 UF4576008 KEY, SHIFT, WHITE(1495) 1-10 UF4576010 KEY, SHIFT, GRAY(1509) 1-11 UF9118006 KEY, ONE TOUCH, WHITE(1495) 1-12 LG2138001 CONTROL PANEL PCB ASSY 1-13 UG4552000 LCD 1-14 LG2190001 FPC KEY ASSY 1-15 087270815 TAPTITE, CUP B M2.6X8 1-16 087310615 TAPTITE, CUP B M3X6 2 LE2277001 PANEL SHEET-1, MFC9870 FOR UK/BEL/NLD/CHE/IRE 2 LE2508001 PANEL SHEET-1, MFC9850/9870 FOR GER/AUS 2 LE2514001 PANEL SHEET-1, MFC9850/9870 FOR FRA 2 LE2811001 PANEL SHEET-1, MFC9870 FOR NOR 2 LE2814001 PANEL SHEET-1, MFC9870 FOR DEN 2 LE2817001 PANEL SHEET-1, MFC9870 FOR SPA 2 LE2820001 PANEL SHEET-1, MFC9870 FOR ITA 2 LE2823001 PANEL SHEET-1, MFC9870 FOR SWE 3 LE1391001 PANEL SHEET-2, MFC9850/9870 FOR GER/AUS 3 LE1401001 PANEL SHEET-2, MFC9870 FOR UK/BEL/NLD/CHE/IRE 3 LE1404001 PANEL SHEET-2, MFC9850/9870 FOR FRA 3 LE1421001 PANEL SHEET-2, MFC9870 FOR NOR 3 LE1428001 PANEL SHEET-2, MFC9870 FOR DEN 3 LE1432001 PANEL SHEET-2, MFC9870 FOR SPA 3 LE1436001 PANEL SHEET-2, MFC9870 FOR ITA 3 LE1439001 PANEL SHEET-2, MFC9870 FOR SWE 4 LE1392001 LCD SHEET MFC9870 FOR GER/AUS 4 LE1402001 LCD SHEET MFC9870 FOR UK/BEL/NLD/CHE/IRE 4 LE1405001 LCD SHEET MFC9870 FOR FRA 4 LE1422001 LCD SHEET MFC9870 FOR NOR 4 LE1429001 LCD SHEET MFC9870 FOR DEN 4 LE1433001 LCD SHEET MFC9870 FOR SPA 4 LE1437001 LCD SHEET MFC9870 FOR ITA 4 LE1440001 LCD SHEET MFC9870 FOR SWE 4 LE1558001 LCD SHEET MFC9850 FOR GER 4 LE1587001 LCD SHEET MFC9850 FOR FRA 5 LE1341001 ADDRESS LABEL 6 087310816 TAPTITE, CUP B M3xX8

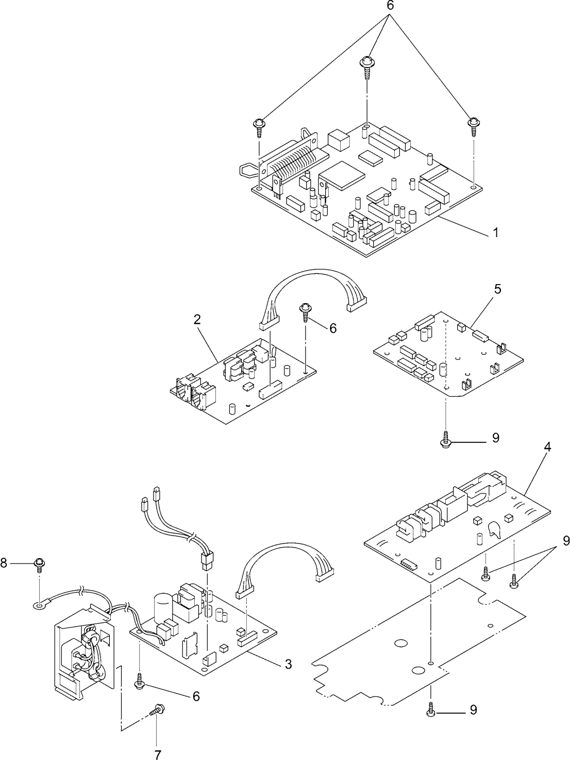

List 10 (PCB ASSY) - MFC9750 / MFC9850 / MFC9870 1 LE1627011 MAIN PCB SUPPLY ASSY, MFC9870 1 LE1627012 MAIN PCB SUPPLY ASSY, MFC9850 1 LE1628001 MAIN PCB SUPPLY ASSY, MFC9750 2 LG2295001 NCU PCB ASSY, MFC9850/9870 3 LJ4175001 LOW VOLTAGE POWER SUPPLY PCB, 230V 4 LE1364001 HIGH VOLTAGE POWER SUPPLY PCB, SUPPLY ASSY 5 LE1365001 ENGINE PCB SUPPLY ASSY 6 087320616 TAPTITE, CUP S M3X6 7 084320815 SCREW, FLAT S M3X8 8 0A5350606 SCREW, PAN (WASHER) M3.5X6 9 085411215 TAPTITE, BIND B M4X12

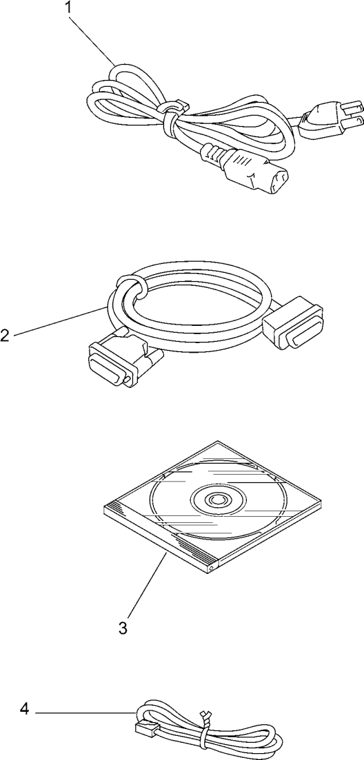

List 11 (ACCESSORIES) - MFC9750 / MFC9850 / MFC9870 1 LG2085001 AC CORD, MFC9850/9870 FOR GER/FRA 1 LG2086001 AC CORD, MFC9870 FOR UK 1 LG2358001 AC CORD, MFC9750 FOR GER/FRA/NOR/BEL/NLD/SPA/ITA/SWE MFC9870 FOR NOR/BEL/NLD/AUS/SPA/ITA/SWE 1 LG2359001 AC CORD, MFC9750 FOR UK, MFC9870 FOR IRE 1 LG2360001 AC CORD, MFC9750 FOR CHE 1 LG2361001 AC CORD, MFC9870 FOR DEN 2 UG4558001 INTERFACE CABLE MFC9750 FOR GER/UK, MFC9850 FOR UK, MFC9870 FOR GER/UK/IRE/AUS 3 LE1348001 CD-ROM ASSY, MFC9750/9850 3 LE1393001 CD-ROM ASSY, MFC9870 4 UG3469000 TELEPHONE LINE CORD, MFC9870 FOR CHE 4 UG3565001 TELEPHONE LINE CORD, MFC9870 FOR IRE/SPA 4 UG3625001 TELEPHONE LINE CORD, MFC9850/9870 FOR GER 4 UG3626001 TELEPHONE LINE CORD, MFC9870 FOR UK 4 UG3627001 TELEPHONE LINE CORD, MFC9850/9870 FOR FRA 4 UG3631001 TELEPHONE LINE CORD, MFC9870 FOR NLD 4 UG3633001 TELEPHONE LINE CORD, MFC9870 FOR DEN 4 UG3634001 TELEPHONE LINE CORD, MFC9870 FOR ITA 4 UG3635001 TELEPHONE LINE CORD, MFC9870 FOR SWE 4 UG4205001 TELEPHONE LINE CORD, MFC9870 FOR AUS

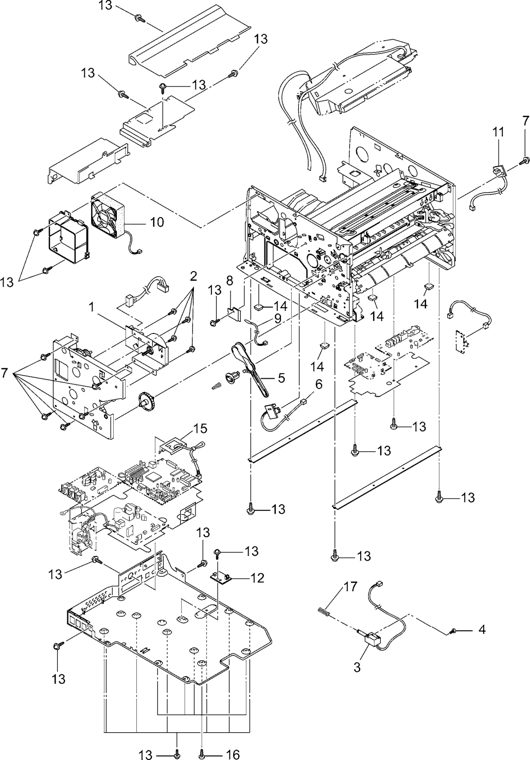

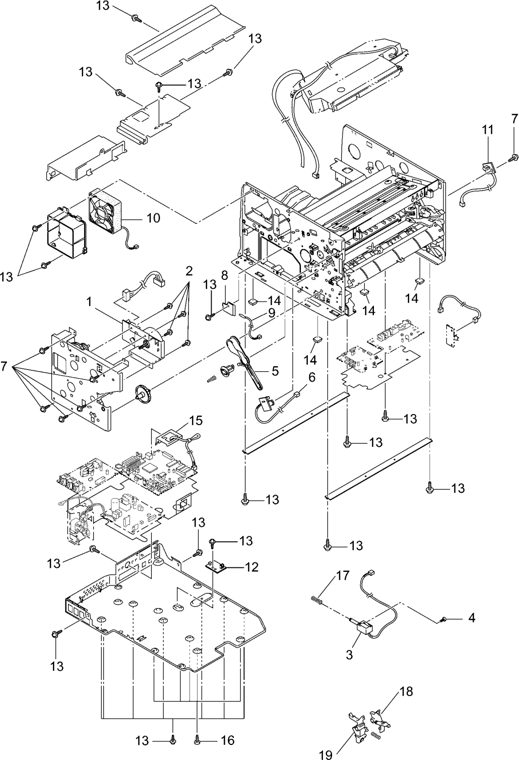

List 1 (MAIN FRAME) - MFC9600 / DCP1200 1 UL9311001 MAIN MOTOR ASSY 2 087320616 TAPTITE, CUP S M3X6 3 LJ4069001 SOLENOID 4 000300415 SCREW, BIND M3X4 5 UL8984001 FRONT COVER LINK 6 UL9099001 TONER SENSOR (LED) PCB 7 087320616 TAPTITE, CUP S M3X6 8 LE1166001 THERMISTOR FILM 9 LG2423001 IN CASING TEMPERATURE THERMISTOR 10 LJ4745001 FAN 11 UL9104001 TONER SENSOR (RECEIVER) PCB 12 LG2438001 PAPER EJECTION SENSOR PCB 13 087320616 TAPTITE, CUP S M3X6 14 UL8507001 RUBBER FOOT 15 LJ8031001 2ND CASSETTE RELAY PCB 16 085411215 TAPTITE, BIND B M4X12 17 UL8970001 SOLENOID RELEASE SPRING 18 UL8972001 P/R CLUTCH LEVER 19 UL8971001 F/R CLUTCH LEVER
List 2 (LASER UNIT) - MFC9600 / DCP1200 1 LJ4157001 LASER UNIT (SP) 2 087321615 TAPTITE, CUP S M3X16

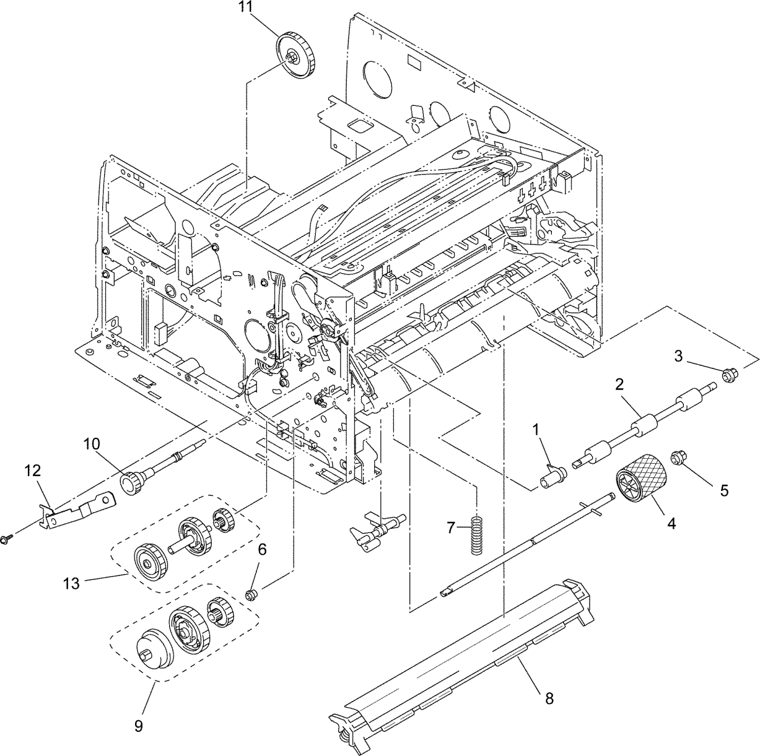

List 3 (PAPER TRANSPORT) - MFC9600 / DCP1200 1 UL9059001 JOINT 2 UL9060001 PAPER FEED ROLLER ASSY 3 UL9062001 PAWLED BUSHING 4 UL9066001 PAPER PICKUP ROLLER UL9066001 Pickup Roller New UL9066001 (New) $29.00 5 UL9062001 PAWLED BUSHING 6 UL9069001 CONDUCTIVE BUSHING 7 LJ4499001 ELECTRODE SPRING 8 LJ4843001 OUTER CHUTE 1 (SP) 9 LJ5591001 PLANETARY GEAR ASSY (SP) 10 UL9070001 GEAR 21 11 UL8985001 GEAR 59 12 LJ5705001 GEAR 21 PRESSURE PLATE 13 UL8985001 FEED ROLLER PLANETARY GEAR ASSY (SP)

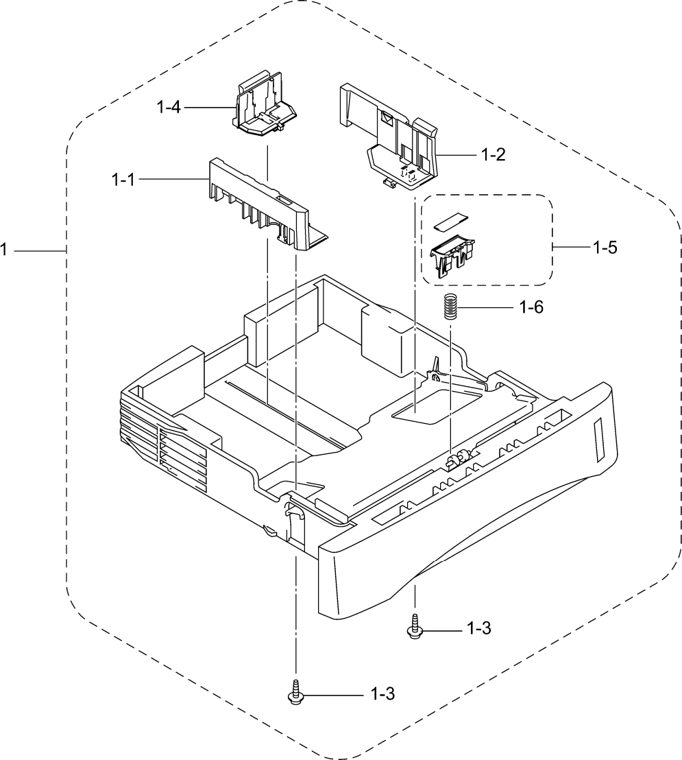

List 4 (PAPER CASSETTE) - MFC9600 / DCP1200 1 LE1162001 PAPER CASSETTE ASSY, LEGAL FOR US/CSA (SP) 1 LJ4181001 PAPER CASSETTE ASSY, A4 FOR ARL/NZ/ASA/GUL (SP) 1-1 UL9078001 SIDE GUIDE L 1-2 UL9079001 SIDE GUIDE R 1-3 U73515001 SCREW, PAN CUP B M2.6X5 1-4 UL9083001 PAPER REAR GUIDE 1-5 UL9084001 SEPARATION PAD SUPPORT ASSY UL9084001 Separation Pad - Cassette New UL9084001 (New) $31.00 1-6 UL9090001 SEPARATION PAD SPRING

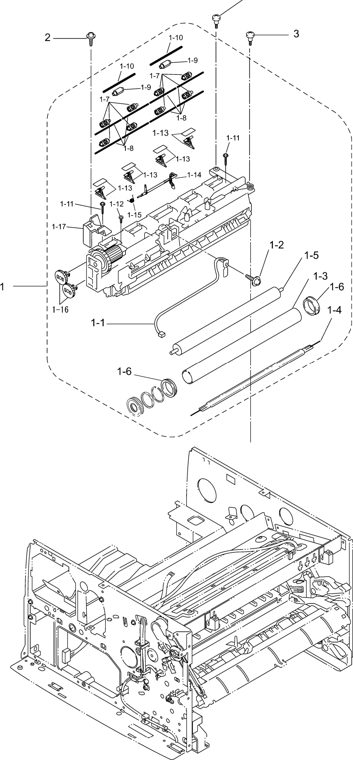

List 5 (HEAT FIXING UNIT) - MFC9600 / DCP1200 1 LJ4164001 HEAT FIXING UNIT, 115V FOR US/CAN (SP) 1 LJ4168001 HEAT FIXING UNIT, 230V FOR ARL/NZ/ASA/GUL (SP) 1-1 UL8902001 THERMISTOR ASSY 1-2 087311215 TAPTITE, CUP B M3X12 1-3 LJ4169001 HEAT ROLLER SUPPLY ASSY 1-4 LJ4160001 FUSER LAMP, 115V FOR US/CAN (SP) 1-4 LJ4163001 FUSER LAMP, 230V FOR ARL/NZ/ASA/GUL (SP) 1-5 LJ4853001 PRESSURE ROLLER (SP) 1-6 UL8908001 HR BEARING 25 1-7 UL8929001 EJECT PINCH ROLLER 1-8 LJ4431001 PINCH SPRING 1-9 LJ4407001 CLEANER ROLLER ASSY 1-10 LJ4409001 CLEANER SPRING 1-11 087312015 TAPTITE, CUP B M3X20 1-12 Z07200001 TAPTITE, PAN B M3X10 1-13 LJ4845001 PICK OFF FINGER (SP) 1-14 UL8920001 PAPER EJECT ACTUATOR 1-15 UL8921001 EJECT ACTUATOR SPRING 1-16 UL8914001 IDLE GEAR 13 1-17 LJ5871001 IDLE GEAR HOLDER 2 087320815 TAPTITE, CUP S M3X8 3 LJ4740001 SHOULDER SCREW

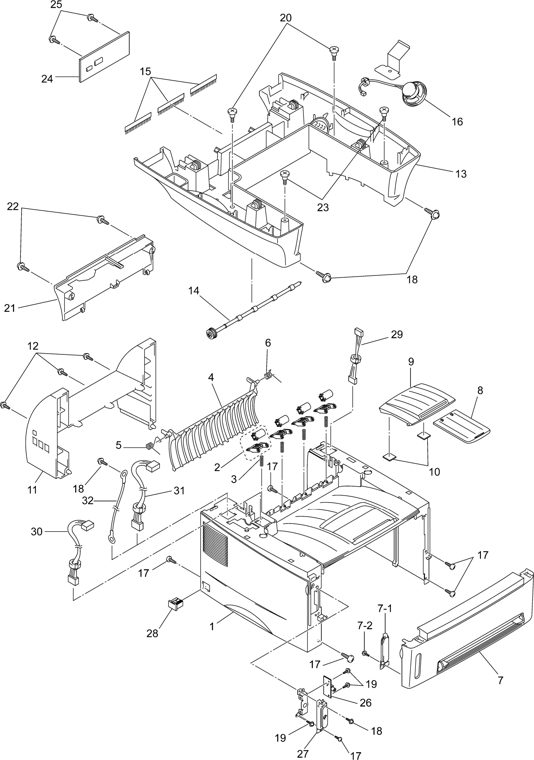

List 6 (COVER) - MFC9600 / DCP1200 1 LE7282001 MAIN COVER ASSY, WHITE(1495), MFC9600 FOR US/CAN 1 LJ5753001 MAIN COVER ASSY, WHITE(1495), MFC9600 FOR ARL/NZ/ASA, DCP1200 2 UL9122001 PINCH ROLLER ASSY 3 UL9125001 PINCH ROLLER SPRING 4 LJ5763001 OUTER CHUTE, WHITE(1495) LJ5763001 Outer Chute - Gray Fully refurbished with 90-day warranty LJ5763001 $31.05 5 UL9127001 CHUTE SPRING L 6 UL9128001 CHUTE SPRING R 7 UU2074001 FRONT COVER ASSY, WHITE(1495), MFC9600 FOR US/CAN 7 UU2102001 FRONT COVER ASSY, WHITE(1495), MFC9600 FOR ARL/NZ/ASA, DCP1200 7-1 UU2094001 FRONT SUB COVER, WHITE(1495), MFC9600 FOR ARL/NZ/ASA, DCP1200 7-2 087310815 TAPTITE, CUP B M3X8 8 LE1197001 PAPER SUB TRAY, WHITE(1495) 9 LE1198001 PAPER SUB TRAY COVER, WHITE(1495) 10 LE1291001 TRAY COVER ADHESIVE TAPE 11 UU2002001 REAR COVER, WHITE(1495) UU2002001 Rear Cover - Gray Fully refurbished with 90-day warranty UU2002001 $40.50 12 0A5401006 SCREW, PAN (S/P WASHER) M4X10 13 LE1200001 SCANNER MOUNT, WHITE(1495) 14 UL9142001 EXIT ROLLER ASSY UL9142001 Exit Roller Fully refurbished with 90-day warranty UL9142001 $41.85 15 LJ4125001 ANTI-STATIC BRUSH 16 LG2425001 SPEAKER UNIT 17 085320816 TAPTITE, BIND S M3X8 18 087321015 TAPTITE, CUP S M3X10 19 087320616 TAPTITE, CUP S M3X6, MFC9600 FOR US/CAN 20 UF9823001 SHOULDER SCREW 21 LE1202001 UPPER REAR COVER 22 087411216 TAPTITE, CUP B M4X12 23 LE1368001 SHOULDER SCREW BIND B M4X8 24 LG2219001 RELAY PCB ASSY 25 087311016 TAPTITE, CUP B M3X10 26 UG6219001 VIDEO CAPTURE PCB ASSY, MFC9600 FOR US/CAN 27 UU2044001 VC COVER, WHITE(1495), MFC9600 28 UU2045001 SWITCH COVER, MFC9600 FOR US/CAN 29 LG2221001 MAIN-RELAY(PANEL) HARNESS 30 LG2499001 MAIN-RELAY(CCD) HARNESS 31 LG2223001 MAIN-RELAY(MOTORS) HARNESS 32 LG2418001 CHASIS GROUNDING WIRE

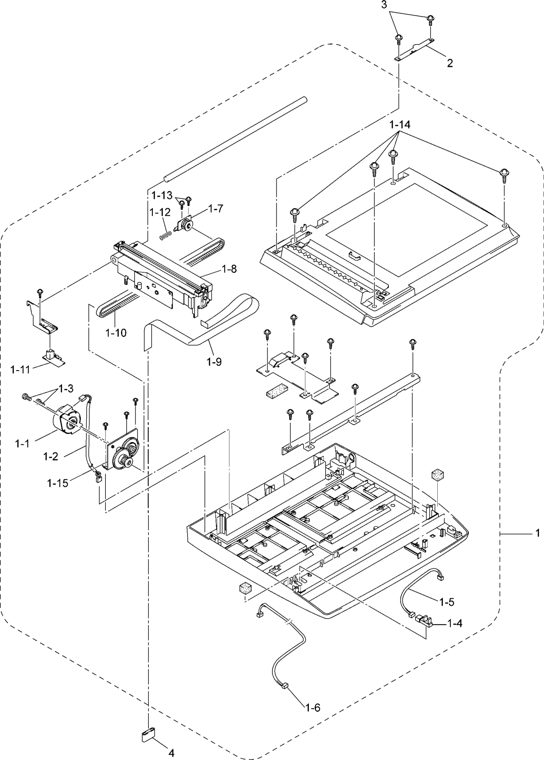

List 7 (SCANNER UNIT) - MFC9600 / DCP1200 1 LE1524001 SCANNER UNIT (SP) 1-1 UU7490001 CCD MOTOR 1-2 LG2017001 CCD MOTOR HARNESS 1-3 0A4300605 SCREW, PAN (S/P WASHER) M3X6 1-4 LG2239001 CCD HP SENSOR 1-5 LG2019001 CCD HP SENSOR HARNESS 1-6 LG2025001 PANEL-MAIN HARNESS 1-7 LE2074001 CCD IDLE PULLEY HOLDER ASSY 1-8 LE1552001 CCD UNIT (SP) 1-9 LG2196001 CCD FLAT CABLE 1-10 LE2297001 CCD DRIVE BELT 1-11 LE2082001 CCD LOCK 1-12 LE2079001 COMPRESSION SPRING 1-13 LE2805001 TAPTITE, PAN B M3X10 1-14 087411216 TAPTITE, CUP B M4X12 1-15 LE1775001 MOTOR BRACKET 2 LE2092001 HARNESS SUPPORT 3 087310816 TAPTITE, CUP B M3X8 4 LG2020001 FLAT CORE (CCD)

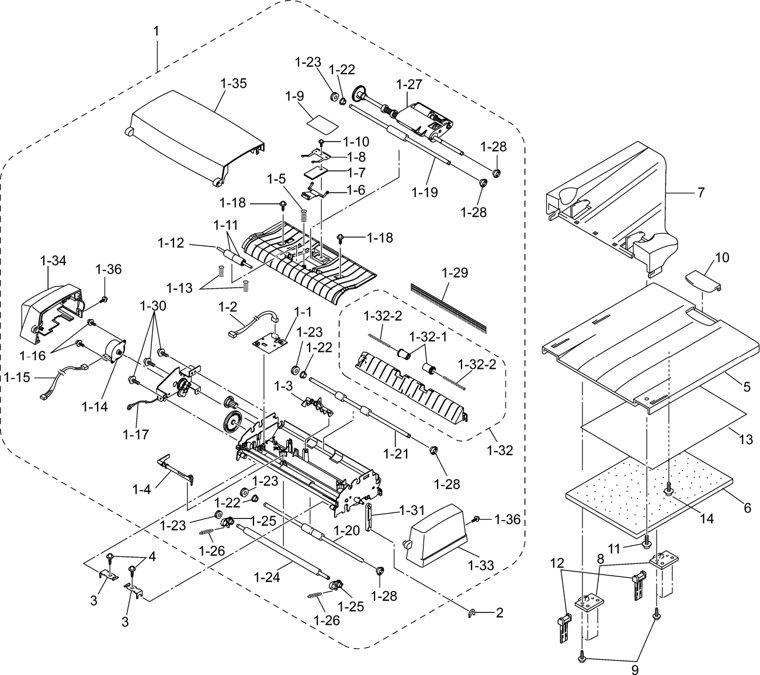

List 8 (ADF&TRAY) - MFC9600 / DCP1200 1 LE1525001 ADF UNIT (SP) 1-1 UG6609001 DOCUMENT SENSOR PCB 1-2 LG2014001 DOCUMENT SENSOR HARNESS 1-3 UF7026001 DOCUMENT FRONT SENSOR ACTUATOR 1-4 LE2008001 DOCUMENT REAR SENSOR ACTUATOR 1-5 LE2011001 COMPRESSION SPRING 1-6 LE2551001 RUBBER HOLDER A 1-7 UU2055001 SEPARATION RUBBER UU2055001 ADF Separation Pad New UU2055001 (New) $29.00 1-8 LE1513001 SPRING PLATE A ASSY 1-9 LE2470001 ADF FILM 1-10 UF6116001 TAPTITE, PAN B M3X6 1-11 UF9009001 PRESSURE ROLLER 1-12 LE2471001 PRESSURE ROLLER SHAFT 1-13 LE2472001 PRESSURE ROLLER SPRING 1-14 LE1215001 ADF MOTOR 1-15 LG2201001 ADF MOTOR HARNESS 1-16 0A4300605 SCREW, PAN (S/P WASHER) M3X6 1-17 LG2016001 GROUNDING WIRE 1-18 087310815 TAPTITE, CUP B M3X8 1-19 LE2026001 UPPER LF ROLLER (GRAY) 1-20 LE2029001 LOWER LF ROLLER (BLACK) 1-21 LE2028001 DOCUMENT EJECTION ROLLER 1-22 UF8105001 CONDUCTIVE BUSHING 1-23 UU7039001 LF ROLLER GEAR 27 1-24 LE2030001 WHITE ROLLER 1-25 LE2032001 WHITE ROLLER BUSHING 1-26 LE2033001 EXTENSION SPRING 1-27 LE2919001 DOCUMENT FEED ROLLER HOLDER ASSY LE2919001 ADF Pickup Roller Assy New LE2919001 (New) $66.64 (1-27-1) LE2037001 DOCUMENT FEED ROLLER (RUBBER) 1-28 UU1290001 CONDUCTIVE BUSHING 1-29 UU7505001 ANTI-STATIC BRUSH 1-30 087320616 TAPTITE, CUP S M3X6 1-31 UF0208001 ADF ARM 1-32 LE2048001 DOCUMENT EJECTION CHUTE ASSY 1-32-1 LE2582001 PINCH ROLLER 1-32-2 UU2009001 PINCH ROLLER SPRING 1-33 LE2050001 ADF SIDE COVER F, WHITE(1495) 1-34 LE2051001 ADF SIDE COVER R, WHITE(1495) 1-35 LE2534001 ADF COVER ASSY, WHITE(1495) 1-36 087320816 TAPTITE, CUP S M3X8 2 UF8088001 PLASTIC RETAINING RING 3 LE2053001 ADF SUPPORT 4 087310816 TAPTITE, CUP B M3X8 5 LE2056001 DOCUMENT TRAY, WHITE(1495) 6 LE2487001 DOCUMENT SPONGE 7 LE3426001 DOCUMENT CHUTE, WHITE(1495) 8 LE2567001 HINGE A 9 087311015 TAPTITE, CUP B M3X10 10 LE2777001 DOCUMENT SUPPORT, WHITE(1495) 11 087320816 TAPTITE, CUP S M3X8 12 LE2568001 HINGE HOLDER A 13 LE1568001 DOCUMENT TRAY REINFORCEMENT PLATE 14 UF6116001 TAPTITE, PAN B M3X6

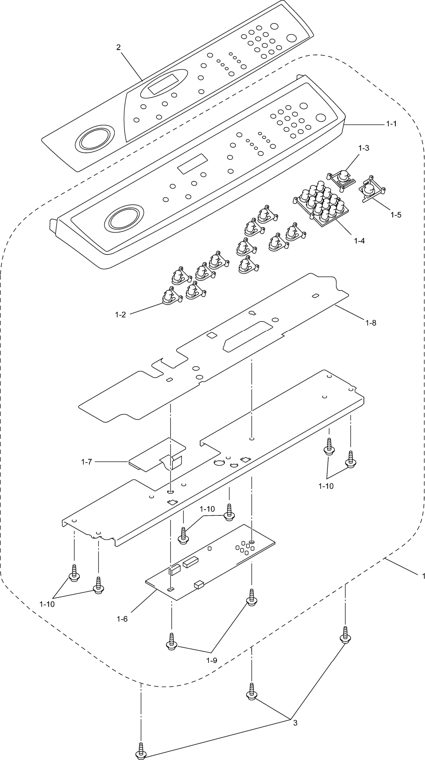

List 9 (CONTROL PANEL DCP1200) - MFC9600 / DCP1200 1 LE1554001 CONTROL PANEL ASSY, WHITE(1495), DCP1200 (SP) 1-1 LE1336001 CONTROL PANEL, WHITE(1495), DCP1200 (SP) 1-2 LJ4283001 KEY, FUNCTION, WHITE(1496) 1-3 LJ4231002 KEY, STOP, PINK(2205) 1-4 LJ4284001 KEY, TEN, WHITE(1495) 1-5 LJ4285001 KEY, START, GREEN(5159) 1-6 LG2326001 CONTROL PANEL PCB ASSY, DCP1200 1-7 UG4552000 LCD 1-8 LE1556001 FPC KEY (SP) 1-9 087270815 TAPTITE, CUP B M2.6X8 1-10 087310615 TAPTITE, CUP B M3X6 2 LE1338001 PANEL SHEET 3 087310816 TAPTITE, CUP B M3X8
List 9 (CONTROL PANEL MFC9600) - MFC9600 / DCP1200 1 LE1527001 CONTROL PANEL ASSY, WHITE(1495), MFC9600 (SP) 1-1 LE2273001 CONTROL PANEL, WHITE(1495), MFC9600 1-2 UF4393007 KEY, TEN, WHITE(1495) 1-3 LE2274001 KEY, COPY/FAX AREA, WHITE(1495) 1-4 LE1340001 KEY, SCANNER, WHITE(1495) 1-5 UF8174008 KEY, COPY, WHITE(1495) 1-6 UF8174010 KEY, STOP, PINK(2205) 1-7 UF8174011 KEY, START, PURPLE(6255) 1-8 UF8176009 KEY, FUNCTION4, GRAY(1509) 1-9 UF4576008 KEY, SHIFT, WHITE(1495) 1-10 UF4576010 KEY, SHIFT, GRAY(1509) 1-11 UF9118006 KEY, ONE TOUCH, WHITE(1495) 1-12 LG2138001 CONTROL PANEL PCB ASSY, MFC9600 1-13 UG4552000 LCD 1-14 LG2190001 FPC KEY ASSY 1-15 087270815 TAPTITE, CUP B M2.6X8 1-16 087310615 TAPTITE, CUP B M3X6 2 LE2277001 PANEL SHEET-1 3 LE1219001 PANEL SHEET-2, FOR US/CAN/ASA 3 LE1560001 PANEL SHEET-2, FOR ARL/NZ 4 LE1221001 LCD SHEET FOR US/CAN 4 LE1561001 LCD SHEET FOR ARL/NZ/ASA 5 LE1341001 ADDRESS LABEL 6 087310816 TAPTITE, CUP B M3X8

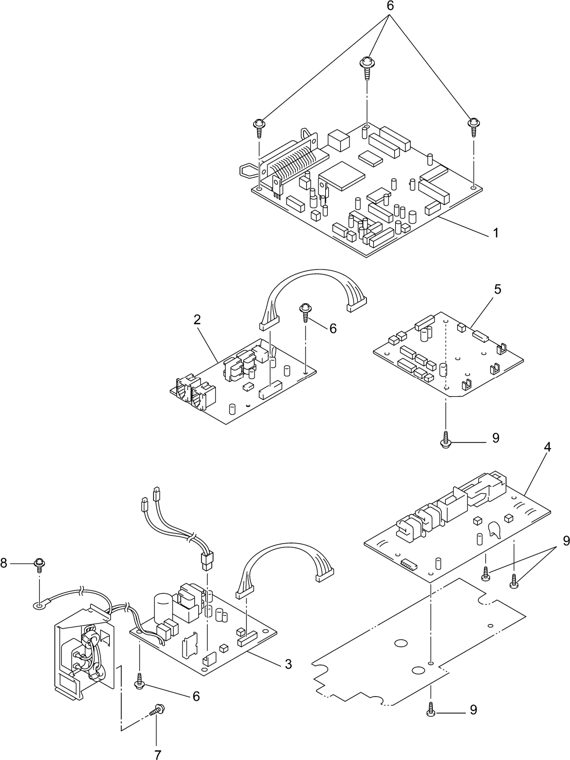

List 10 (PCB ASSY) - MFC9600 / DCP1200 1 LE1627011 MAIN PCB ASSY, MFC9600 FOR ARL/NZ/ASA (SP) 1 LG2226001 MAIN PCB ASSY, MFC9600 FOR US/CAN 1 LG2320001 MAIN PCB ASSY, DCP1200 2 LG2139001 NCU PCB ASSY, MFC9600 FOR US/CAN 2 LG2305040 NCU PCB ASSY, MFC9600 FOR ASA 2 LG2311006 NCU PCB ASSY, MFC9600 FOR ARL/NZ 3 LG2167001 LOW VOLTAGE POWER SUPPLY PCB, 230V FOR ASA 3 LJ4175001 LOW VOLTAGE POWER SUPPLY PCB ASSY, 230V FOR ARL/NZ/GUL (SP) 3 LJ8855001 LOW VOLTAGE POWER SUPPLY PCB ASSY, 115V FOR US/CAN LJ8855001 Power Supply PCB - 110V Fully refurbished with 90-day warranty LJ8855001 $53.04 4 LE1364001 HIGH VOLTAGE POWER SUPPLY PCB ASSY (SP) 5 LG2364001 ENGINE PCB ASSY 6 087320616 TAPTITE, CUP S M3X6 FOR DCP1200 7 084320815 SCREW, FLAT S M3X8 8 0A5350606 SCREW, PAN (WASHER) M3.5X6 9 085411215 TAPTITE, BIND B M4X10
List 11 (ACCESSORIES) - MFC9600 / DCP1200 1 LG2085001 AC CORD, VDE, MFC9600 FOR ASA (IDN)/GUL 1 LG2086001 AC CORD, BS, MFC9600 FOR ASA 1 LG2162001 AC CORD FOR ARL/NZ/GUL 1 UG6121001 AC CORD FOR US/CAN 2 UG4558001 INTERFACE CABLE 3 LE1222001 CD-ROM ASSY, MFC9600 FOR US/CAN/ARL/NZ/ASA/GUL 3 LE1325001 CD-ROM ASSY, DCP1200 3 LE7150001 CD-ROM ASSY, MFC9600 FOR ARL/NZ/ASA 4 LG3077001 TELEPHONE LINE CORD, MFC9600 FOR US/CAN LG3077001 Telephone Line Cord For Us/Can/Arl New LG3077001 (New) 3-4 Day Lead $43.52 4 UG1570001 TELEPHONE LINE CORD, MFC9600 FOR ASA 4 UG3290001 TELEPHONE LINE CORD, MFC9600 FOR NZ/ASA(HK) 4 UG3628001 TELEPHONE LINE CORD, MFC9600 FOR ARL (5) UG3468000 BT-MJ ADAPTER, FOR ASA(HK)
Other listed parts 1DOCUMENT 1-27
