Brother HL-820 HL-1020 HL-1040 HL-1050 Parts
Please call for parts assistance
| 1. DRIVE UNIT 1 UL8747001 DRIVE UNIT ASSY (SP) 2 087412016 TAPTITE, CUP B M4X20 3 085411215 TAPTITE, BIND B M4X12 4 UL7964001 MAIN MOTOR ASSY 5 UL7968001 SUB MOTOR ASSY 6 085320616 TAPTITE, BIND S M3X6 MODEL HL-820/1020/1040/1050 84U-821/831/832/861/862-010 |  |
| 2. SCANNER UNIT 1 UL8748001 SCANNER UNIT Y (SP) (B48K226) 2 085411215 TAPTITE, BIND B M4X12 3 UL8759001 TONER SENSOR PCB ASSY B48K231 3 UL8810001 TONER SENSOR PCB ASSY (LEGEND) B512028 4 084311015 TAPTITE, SARA B M3X10 (LEGEND) 4 087310815 TAPTITE, CUP B M3X8 5 UH3064001 S SEAL SPONGE 4 MODEL HL-820/1020/1040/1050 84U-821/831/832/861/862-020 T/I NO. PR98176 |  |
| 3. MP SHEET FEEDER 1 UL8749001 MP SHEET FEEDER ASSY (SP) 1 UL8832001 MP SHEET FEEDER ASSY (LEGEND) (SP) MODEL HL-820/1020/1040/1050 84U-821/831/832/861/862-040 T/I NO. PR98176 MODEL HL-820/1020/1040/1050 84U-821/831/832/861/862-040 T/I NO. PR98176 |  |
| 4. FIXING UNIT 1 UH3306001 HALOGEN LAMP Y, 120V (SP) 1 UH3307001 HALOGEN LAMP Y, 230V (SP) 1-11 UL8750001 FIXING UNIT, 120V (SP) 1-11 UL8751001 FIXING UNIT, 230V (SP) 1-11 UL8833001 FIXING UNIT (LEGEND) (SP) 2 087411616 TAPTITE, CUP B M4X16 3 085311216 TAPTITE, BIND B M3X12 4 083311017 TAPTITE, PAN B M3X10 5 UL8757001 HEAT ROLLER YS (SP) 5 UL8834001 HEAT ROLLER (LEGEND) (SP) 6 UH3178000 H/R BEARING Y 7 UL8758001 H/R CLEANER 7 UL8855001 H/R CLEANER (LEGEND) 8 UL8754001 H/R WASHER 9 UH3196001 THERMISTOR Y ASSY 9 UL6667001 THERMISTOR ASSY CHNG 10 UH3323001 EJECT PINCH ROLLER ASSY 11 UL6682001 PINCH SPRING MODEL HL-820/1020/1040/1050 84U-821/831/861-050/051 84U-832/862-052 T/I NO. PR98116 / PR98176 / PR98271 / PR98292 MODEL HL-820/1020/1040/1050 84U-821/831/861-050/051 84U-832/862-052 T/I NO. PR98116 / PR98176 / PR98271 / PR98292 / PR99042 |  |
| 5. COVERS 1 UH3306001 HALOGEN LAMP Y, 120V (SP) 1 UH3307001 HALOGEN LAMP Y, 230V (SP) 1 UL7983001 MAIN COVER ASSY 1-9 UH3164001 FIXING UNIT Y, 120V (SP) 1-9 UH3165001 FIXING UNIT Y, 230V (SP) 2 085411215 TAPTITE, BIND B M4X12 2 087411616 TAPTITE, CUP B M4X16 3 085411215 TAPTITE, BIND B M4X12 3 UL6667001 THERMISTOR ASSY CHNG 4 085411215 TAPTITE, BIND B M4X12 4 UH3188001 CLEANER ASSY Y 5 002400616 SCREW PAN M4X6 5 UH3178000 H/R BEARING Y 6 087320616 TAPTITE, CUP S M3X6 6 UH3419001 HEAT ROLLER YS ASSY (SP) 7 087311415 TAPTITE, CUP B 3X14 7 0A5350605 SCREW PAN(WASHER), M3.5X6 8 UH3323001 EJECT PINCH ROLLER ASSY 8 UL8659001 EL PCB UNIT B48K304 9 UL6682001 PINCH SPRING MODEL HL-1060 54U-S01-051 T/I NO. PR98040 / PR98292 / PR99042 MODEL HL-1070 54U-S03-050/051 T/I NO. PR98292 / PR99042 9 UL8753001 MAIN FAN MOTOR 10 UL8509001 SUB FAN MOTOR 11 085411215 TAPTITE, BIND B M4X12 12 UL8505001 BASE PLATE 820/1020/1040 12 UL8601001 BASE PLATE 1050 13 UL8506001 MAIN PCB GUIDE RAIL (820/1020/1040) 14 LJ4047001 RUBBER FOOT CHNG 14 UL8507001 RUBBER FOOT CHNG 15 085411215 TAPTITE, BIND B M4X12 16 087320616 TAPTITE, CUP S M3X6 17 UL8508001 INSULATION SHEET 18 UL8512001 INLET HOLDER 19 085411215 TAPTITE, BIND B M4X12 20 UL8510001 I/F SHIELD ASSY 820/1020/1040 20 UL8604001 I/F SHIELD ASSY 1050 21 UL8518001 PANEL COVER, GRAY1227 22 UL8745001 TOP COVER ASSY 23 UL8515001 OUTPUT TRAY 24 UL8516001 EXTENSION SUPPORT WIRE 25 UL8746001 REAR COVER ASSY 26 085411215 TAPTITE, BIND B M4X12 27 UL6740001 LASER CAUTION LABEL 27 UL7931001 LASER CAUTION LABEL (LEGEND) 28 UL6741001 TONER WARNING LABEL 29 UL8519001 MODEL PLATE, HL-1040 29 UL8575001 MODEL PLATE, HL-820 29 UL8611001 MODEL PLATE, HL-1050 29 UL8639001 MODEL PLATE, HL-1020 29 UL8641001 MODEL PLATE, HL-1040DX 29 UL8645001 MODEL PLATE, HL-1050DX 29 UL8686001 MODEL PLATE, HL-1040 (LEGEND) 29 UL8820001 MODEL PLATE, HL-1050 (LEGEND) 30 UL8522001 MYLAR LABEL, HL-1040 US 30 UL8547001 MYLAR LABEL, HL-1040 CAN 30 UL8596001 MYLAR LABEL, HL-1050 CAN 30 UL8612001 MYLAR LABEL, HL-1050 US 30 UL8640001 MYLAR LABEL, HL-1020 CAN 30 UL8642001 MYLAR LABEL, HL-1040DX CAN 30 UL8646001 MYLAR LABEL, HL-1050DX CAN 30 UL8650001 MYLAR LABEL, HL-820 EUR 30 UL8651001 MYLAR LABEL, HL-1040 EUR 30 UL8652001 MYLAR LABEL, HL-1050 EUR 31 UH3297001 C-TICK MARK LABEL 32 UH0905001 US PATENT SEAL HL-10 33 UG3005000 FERRITE CORE 34 UG3005000 FERRITE CORE (HL1050) 35 UK3617000 CORE, TFC-16813 (HL1050) MODEL HL-820/1020/1040/1050 84U-821/831/832/861/862-060 T/I NO. PR98096 / PR98110 / PR98176 MODEL HL-820/1020/1040/1050 84U-821/831/832/861/862-060 T/I NO. PR98096 / PR98110 / PR98176 / PR99041 MODEL HL-820/1020/1040/1050 84U-821/831/832/861/862-060 T/I NO. PR98096 / PR98110 / PR98176 / PR99041 / PR99057 | |
| 6. FIXING UNIT PR99042 1 UH3306001 HALOGEN LAMP Y, 120V (SP) 1 UH3307001 HALOGEN LAMP Y, 230V (SP) 1-11 UL8750001 FIXING UNIT, 120V (SP) 1-11 UL8751001 FIXING UNIT, 230V (SP) 1-11 UL8833001 FIXING UNIT, LEG 230V (SP) 2 087411616 TAPTITE, CUP B M4X16 3 085311216 TAPTITE, BIND B M3X12 4 083311017 TAPTITE, PAN B M3X10 5 UL8757001 HEAT ROLLER YS (SP) 5 UL8834001 HEAT ROLLER, LEG (SP) 6 UH3178000 H/R BEARING Y 7 UL8758001 H/R CLEANER 7 UL8855001 H/R CLEANER, LEG 8 UL8754001 H/R WASHER 9 UL6667001 THERMISTOR ASSY CHNG 10 UH3323001 EJECT PINCH ROLLER ASSY 11 UL6682001 PINCH SPRING MODEL MFC-P2000/HL-P2000 84U-901/902-050/051/052 T/I NO. PR98271 / PR98292 / PR98303 |  |

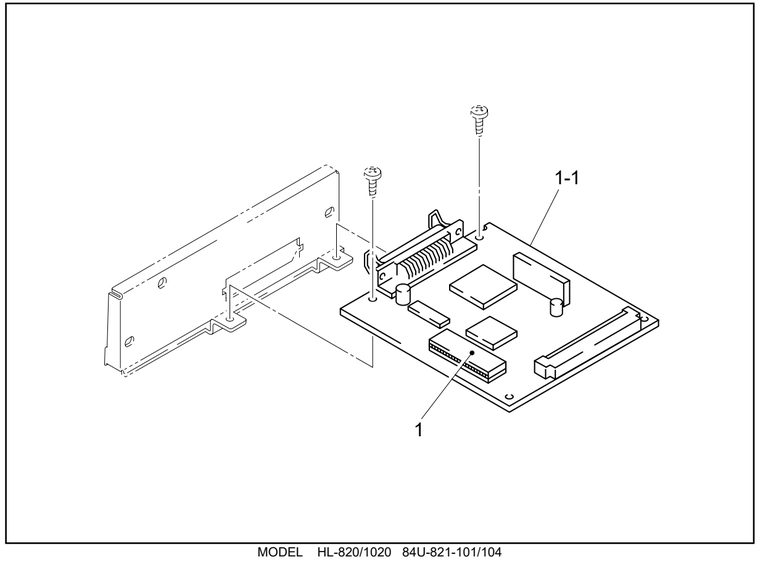

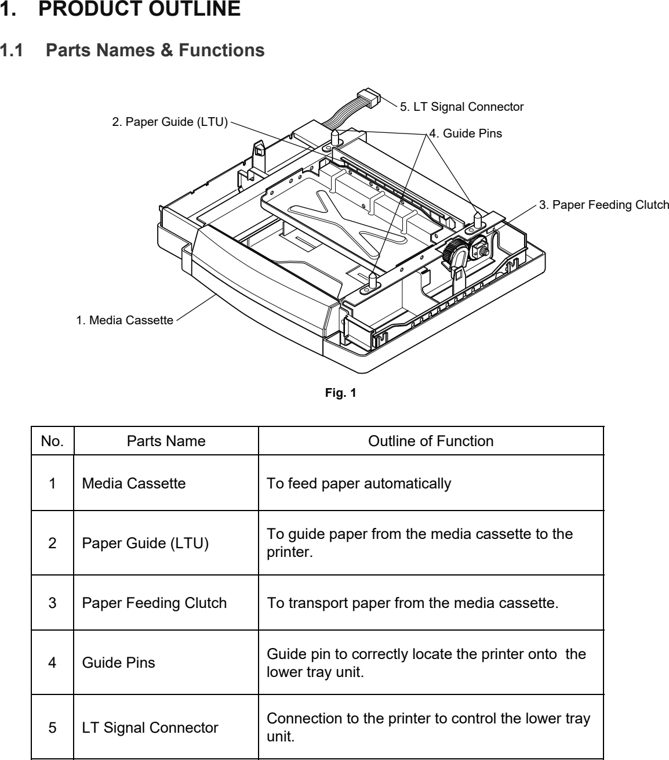

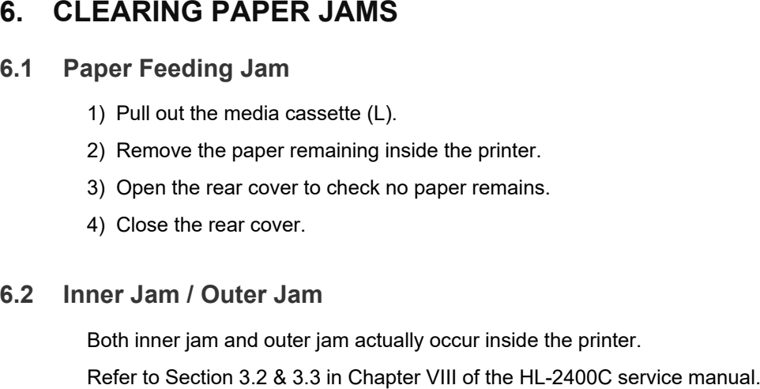

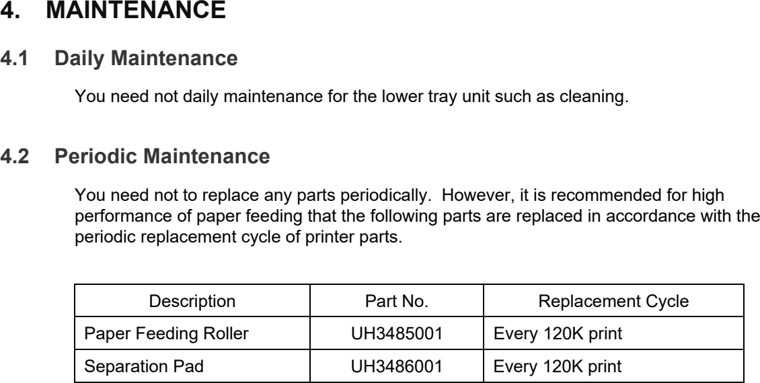

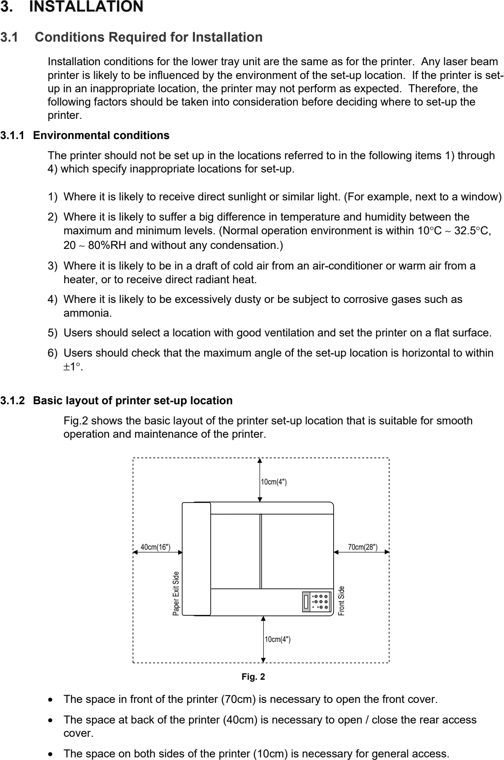

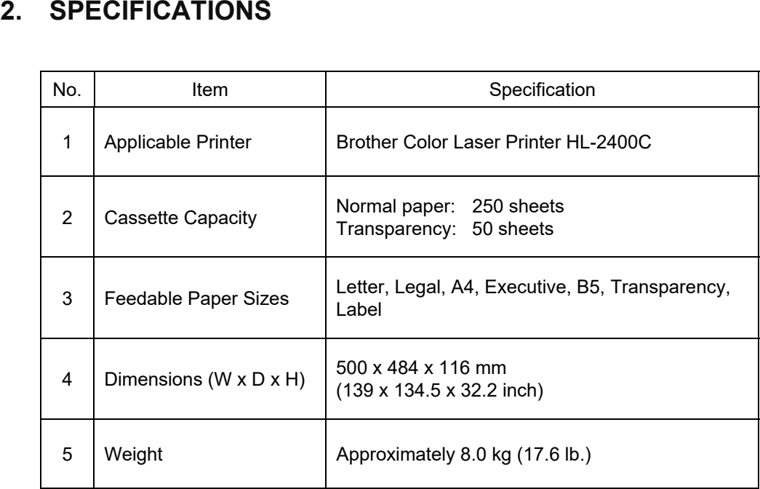

| 6-1. MAIN PCB <HL-820/1020> 1 UK4245000 MROM HL1040 #3 MODEL HL-820/1020 84U-821-101/104 T/I NO. PR98172 / PR98182 1-1 UK4202001 MAIN PCB ASSY, HL-820 (SP) B48K312-350E 1-1 UK4229001 MAIN PCB ASSY, HL-1020 (SP) B48K312-360E |  |
| 6-2. MAIN PCB <HL-1040 OTHERS> 1 UK4245000 MROM HL1040 #3 MODEL HL-1040 84U-831/832-101 T/I NO. PR98172 / PR98176 / PR98182 1-1 UK4165001 MAIN PCB ASSY, HL-1040 (LEGEND) (SP) B48K312-303F 1-1 UK4200001 MAIN PCB ASSY, HL-1040 (SP) B48K312-300F | |
| 6-3. MAIN PCB <HL-1040 ISRAEL> 1 UK3995000 MROM HL1040H #3 MODEL HL-1040 84U-831-103 T/I NO. PR98172 1-1 UK4201001 MAIN PCB ASSY, HL-1040 HEB (SP) B48K312-301B | |
| 6-4. MAIN PCB <HL-1050 OTHERS> 1 UK4168000 MROM1050-EVEN #11 1-1 UK4167001 MAIN PCB ASSY, HL-1050 200V (SP) B512030-140A 1-1 UK4174001 MAIN PCB ASSY, HL-1050 LEGEND (SP) B512030-143A 1-1 UK4203001 MAIN PCB ASSY, HL-1050 100V (SP) B512001-200C 2 UK4169000 MROM1050-ODD #7 MODEL HL-1050 84U-861-101/104 84U-862-106 T/I NO. PR98109 / PR98176 / PR98177 / PR98183 / PR98186 | |
| 6-5. MAIN PCB <HL-1050 ISRAEL> 1 UK3998000 MROM1050H-EVEN #11 1-1 UK4204001 MAIN PCB ASSY, HL-1050 (SP) B512030-141C 2 UK3999000 MROM1050H-ODD #7 MODEL HL-1050 84U-861-103 T/I NO. PR98109 / PR98177 / PR98183 / PR98186 | |
| 7. PANEL SENSOR PCB 1 UK3439001 MAIN PCB ASSY, PCL5 2M(SP) B48K246-300J MODEL HL-1060 54U-S01-101 1 UK3950001 MAIN PCB ASSY B48K302-100C 1 UK4205001 PANEL SENSOR PCB ASSY (SP) B48K303 MODEL HL-820/1020/1040/1050 84U-821/831/832/861/862-151 1 UL7983001 MAIN COVER ASSY 2 085411215 TAPTITE, BIND B M4X12 2 UH3542001 CONDUCTIVE TAPE MODEL HL-1070 54U-S03-101 T/I NO. PR98108 3 085411215 TAPTITE, BIND B M4X12 4 085411215 TAPTITE, BIND B M4X12 5 002400616 SCREW PAN M4X6 6 087320616 TAPTITE, CUP S M3X6 7 0A5350605 SCREW PAN(WASHER), M3.5X6 8 UL8659001 EL PCB UNIT B48K304 9 UL8753001 MAIN FAN MOTOR 10 UL8509001 SUB FAN MOTOR 11 085411215 TAPTITE, BIND B M4X12 12 UL8601001 BASE PLATE 13 LJ4047001 RUBBER FOOT CHNG 13 UL8507001 RUBBER FOOT CHNG 14 085411215 TAPTITE, BIND B M4X12 15 087320616 TAPTITE, CUP S M3X6 16 UL8508001 INSULATION SHEET 17 UL8512001 INLET HOLDER 18 085411215 TAPTITE, BIND B M4X12 19 UL8510001 I/F SHIELD ASSY 20 UH3828001 SHIELD SHEET, P2000 21 UH3850001 PANEL COVER, GRAY1227 22 UH3852001 TOP COVER ASSY 23 UH3826001 DOCUMENT EXTENSION SUPPORT WIRE 24 UH3825001 OUTPUT TRAY 25 UL8516001 EXTENSION SUPPORT WIRE 26 UH3801001 SCANNER REAR COVER ASSY 27 UH3805001 REAR COVER ASSY 28 085411215 TAPTITE, BIND B M4X12 29 UL6740001 LASER CAUTION LABEL 29 UL7931001 LASER CAUTION LABEL, LEG 30 UL6741001 TONER WARNING LABEL 31 UH3838001 MYLAR LABEL, MFC-P2000 (US) 31 UH3839001 MYLAR LABEL, MFC-P2000 (CANADA) 31 UH3840001 MYLAR LABEL, HL-P2000 (EUR) 32 UG3005000 FERRITE CORE 33 087320616 TAPTITE, CUP S M3X6 34 UH3751001 MINI CLAMP 35 UH3752001 NYLON CLAMP 36 085411215 TAPTITE, BIND B M4X12 MODEL MFC-P2000/HL-P2000 84U-901/902-060 T/I NO. PR98303 / PR99041 MODEL MFC-P2000/HL-P2000 84U-901/902-060 T/I NO. PR98303 / PR99041 / PR99057 | |
| 8. POWER SUPPLY PCB 1 UK4118001 LOW-VOLTAGE PS ASSY, 115V REV. B HL-820/1020/1040 (SP) 1 UK4119001 LOW-VOLTAGE PS ASSY, 230V REV. D HL-820/1020/1040 (SP) 1 UK4120001 LOW-VOLTAGE PS ASSY, 115V HL-1050 (SP) 1 UK4121001 LOW-VOLTAGE PS ASSY, 230V HL-1050 (SP) 1 UK4160000 MROMP2000, HEB #4 MODEL MFC-P2000/HL-P2000 84U-901/902-101/102/103 T/I NO. PR98260 1 UK4320000 MROMP2000, EUR #4 1 UK4328000 MROMP2000, US #4 1-1 UK4250001 MAIN PCB ASSY, US (SP) B512018-100C 1-1 UK4251001 MAIN PCB ASSY, EUR (SP) B512018-101B 1-1 UK4252001 MAIN PCB ASSY, HEB (SP) B512018-102 2 UK3836001 AC INLET ASSY, 115V 2 UK3843001 AC INLET ASSY, 230V MODEL HL-820/1020/1040/1050 84U-821/831/861-200/201 84U-832/862-201 T/I NO. PR98112 / PR98207 / PR98251 | |
| 9. HIGH VOLTAGE POWER SUPPLY 1 UK4122001 HIGH-VOLTAGE PS ASSY (SP) MODEL HL-820/1020/1040/1050 84U-821/831/832/861/862-220 | |
| 10. AC CORDS 1G U34320001 AC CORD ASSY, #4 (SAF) 1I U34322001 AC CORD ASSY, #6 (ISRAEL) 1A UH1051001 AC CORD ASSY, UL/CSA 1C UH1052001 AC CORD ASSY, VDE 1E UH1053001 AC CORD ASSY, SEV 1B UH1054001 AC CORD ASSY, BS 1D UH1055001 AC CORD ASSY, SAA 1J UK3610001 AC CORD ASSY, CHN96 MODEL HL-820/1020/1040/1050 84U-821/831/832/861/862-230 T/I NO. PR98176 1F UK4094001 AC CORD ASSY, DEMKO 1H UK4099001 AC CORD ASSY, CHLI | |
| 11. ACCESSORIES 1 UK3875001 PR DRIVER DISK ASSY1, 1040 (WINDOWS) 1 UK3895001 PR DRIVER DISK ASSY1, 1050 (WINDOWS) 1 UK4090001 PR DRIVER DISK ASSY1, 820 (WINDOWS) 1 UK4179001 PR DRIVER DISK ASSY 1, 1050HEB(WINDOWS) 1 UK4183001 PR DRIVER DISK ASSY 1, 1040LEG(WINDOWS) 1 UK4193001 PR DRIVER DISK ASSY1, 1020 (WINDOWS) 1 UK4233001 PR DRIVER DISK ASSY 1, 1050LEG(WINDOWS) 2 UK3877001 PR DRIVER DISK ASSY2, 1040 (TRUETYPE) 2 UK3897001 PR DRIVER DISK ASSY2, 1050 (TRUETYPE) 2 UK4092001 PR DRIVER DISK ASSY2, 820 (TRUETYPE) 2 UK4181001 PR DRIVER DISK ASSY2, 1050HEB(TRUETYPE) 2 UK4185001 PR DRIVER DISK ASSY2, 1040LEG(TRUETYPE) 2 UK4195001 PR DRIVER DISK ASSY2, 1020 (TRUETYPE) 2 UK4235001 PR DRIVER DISK ASSY2, 1050LEG(TRUETYPE) 3 UK4197001 PR DRIVER DISK ASSY6, 1050 ARABIC 3 UK4339001 PR DRIVER DISK ASSY 3, LEG 4 UK4199001 CD-ROM ASSY 5 UE2188001 PAPER SUPPORT ASSY CHNG 5-1 UL7158001 TE TUBE 6 UL8529001 SET GUIDE, US 6 UL8534001 SET GUIDE, GER 6 UL8550001 SET GUIDE, FRA 6 UL8557001 SET GUIDE, NOR 6 UL8560001 SET GUIDE, NL 6 UL8565001 SET GUIDE, DEN 6 UL8568001 SET GUIDE, ITA 6 UL8571001 SET GUIDE, SWE 6 UL8739001 SET GUIDE, SPA 7 UE2014001 BAG, 215X350H 8 UK4156001 CORE NF-13 ASSY (HL1050) MODEL HL-820/1020/1040/1050 84U-821/831/832/861/862-920 T/I NO. PR98100 / PR98110 / PR98176 / PR98235 / PR98265 MODEL HL-820/1020/1040/1050 84U-821/831/832/861/862-920 T/I NO. PR98100 / PR98110 / PR98176 / PR98235 | |
| 12. PACKING MATERIALS 1 UH1948001 PAPER SENSOR 2 UH1947001 PAPER SIZE SENSOR 4 UH3494001 PAPER FEEDING CLUTCH 5 UH3485001 PAPER FEEDING ROLLER 6 UH3486001 SEPARATOR PAD 7 UH3493001 PAPER CASSETTE |
