Brother HL-P2000 MFC-P2000 Parts

-- select -- AMT Datasouth Parts Avision Parts Brother Printer Parts Canon imagePROGRAF iPF610 Parts Compuprint Parts Dascom Parts Dell Laser Printer Parts Epson Parts Fujitsu Printer Parts Genicom Parts Godex Printer Parts HP Parts for Printers, MFPs, & Scanners IBM Infoprint Parts Ithaca Parts Konica Parts Lexmark Parts for Printers and Scanners Oki Parts (Okidata Parts) Olivetti Parts OTC (Output Technology) Parts Printek Parts Printronix Parts PSI Parts Ricoh Parts Samsung Printer and MFP Parts Sato Parts Sharp Printer Parts Source Technologies Parts Tally Parts Tharo Parts Toshiba Parts TSC Parts Videojet Spare Parts Visioneer Parts Xerox Parts Zebra Parts

-- select -- Brother ADS-1000W & ADS-1100W Document Scanner Parts Brother ADS-1500W & ADS-1600W Document Scanner Parts Brother ADS-2000 & ADS-2100 Document Scanner Parts Brother ADS-2400N / ADS-2800W / ADS-3000N / ADS-3600W Document Scanner Parts Brother ADS-2500W & ADS-2600W Document Scanner Parts Brother DCP-1200 MFC9600 MFC9750 MFC9850 MFC9870 Parts Brother DX-2000 Duplex Unit Parts Brother HL 6050D 6050DN 6050DW Parts Brother HL-1210W 1211W 1212W 1218W 1222W Parts Brother HL-3040CN HL-3045CN HL-3070CW HL-3075CW Parts Brother HL-3400 Parts Brother HL-4140CN HL-4150CDN HL-4570CDW HL-4570CDWT Parts Brother HL-5140 5150D 5150DLT 5170DN 5170DNLT Brother HL-5240 5240L 5250DN 5251DN Parts Brother HL-5340D 5340DL Parts Brother HL-720 HL-730 HL-730PLUS Parts Brother HL-820 HL-1020 HL-1040 HL-1050 Parts Brother HL-P2000 MFC-P2000 Parts Brother HL-S7000DN Parts Brother LT-2000 Parts Brother LT-400 Parts Brother MFC 9760 9860 9880 Parts Brother MFC-5490CN Parts Brother MFC-5890cn MFC-5895cw Parts Brother MFC-8870DW MFC8860DN Parts Brother MFC-L6900DW Parts Brother MFC8440 8840D 8840DN DCP8040 8045D 8045DN Parts Brother MFC9100C Parts Brother Parts for DCP 9030CDN L3510CDW L3517CDW L3550CDW L3551CDW HL L3290CDW MFC 9150CDN 9350CDW L3710CW L3730CDN L3735CDN L3745CDW L3750CDW L3770CDW Brother Parts for DCP L8410CDW MFC L8610CDW L8690CDW L8900CDW L9570CDW Brother Parts for DCP-1610W 1612W 1615NW 1616NW 1617NW 1618W 1622W MFC-1910W 1911W 1911NW 1912W 1915W 1916NW 1919NW Brother Parts for DCP-7080 7080D 7180DN DCP-L2500D L2520D L2520DW DCP-L2540DN L2540DW L2541DW L2560DW HL-L2380DW MFC-7380 7480D 7880DN MFC-L2680W L2685DW L2700D L2700DN L2700DW MFC-L2701D L2701DW L2703DW L2705DW L2707DW MFC-L2720DW L2740DW Brother Parts for DCP-8080DN DCP-8085DN MFC-8480DN MFC-8680DN MFC-8690DW MFC-8880DN MFC-8881DNHY MFC-8890DW Brother Parts for DCP-9010CN MFC 9010CN 9120CN 9125CN 9320CW 9325CW Brother Parts for DCP-9015 DCP-9017 DCP-9020 MFC-9130 MFC-9140 MFC-9330 MFC-9335 MFC-9340 Brother Parts for DCP-9055CDN DCP-9270CDN MFC-9460CDN MFC-9465CDN MFC-9560CDW MFC-9970CDW Brother Parts For DCP-L5500D DXP-L5500DN DCP-L5502DN DCP-L5600DN DCP-L5602DN DCP-L5650DN DCP-L5652DN DCP-L6600DW MFC-8530DN MFC-8535DN MFC-8540DN MFC-L5700DN MFC-L5700DW MFC-L5702DW MFC-L5750DW MFC-L5755DW MFC-L5800DW MFC-L5802DW MFC-L5850DW MFC-L5900DW M Brother Parts for DCP-L8400CDN L8450CDW MFC-L8600CDW L8650CDW MFC-L8850CDW L9550CDW Brother Parts for HL-5440D 5445D 5450DN 5450DNT 5452DN 5470DW 5470DWT 5472DW 5472DWT 6180DW 6180DWT 6182DW 6182DWT Brother Parts for HL-5580D 5585D 5590DN 5595DN L5000D L5100DN L5100DNT L5102DW L5200DW L5202DW L5200DWT L6250DN L6200DW L6202DW L6250DW L6200DWT L6300DW L6300DWT L6400DW L6402DW L6400DWT Brother Parts for HL-L8250CDN L8350CDW 8350CDWT L9200CDW L9200CDWT L9300CDW L9300CDWT Brother Parts For HL-L8260CDW HL-L8260CDN HL-L8360CDW HL-L8360CDWT HL-L9310CDW Brother Parts for HL-L8260CDW L8260CDN L8360CDW L8360CDWT L9310CDW Brother Parts for HLL2305W HLL2300D HLL2320D HLL2340DW HLL2360DN HLL2360DW HLL2365DW HL2260 HL2260D HL2560DN HLL2321D HLL2361DM HLL2366DW Brother Parts for MFC9010CN MFC9120CN MFC9125CN MFC9320CW MFC9325CW

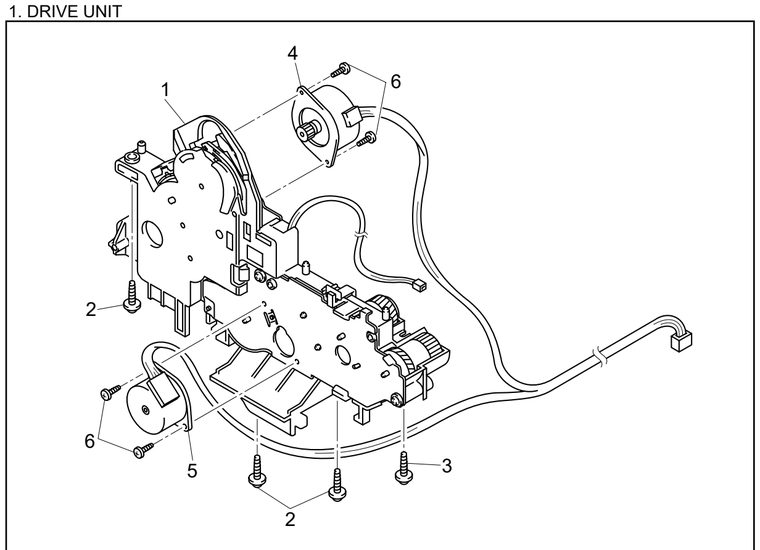

1. DRIVE UNIT 1 UL8747001 1 DRIVE UNIT ASSY (SP) 2 087412016 3 TAPTITE, CUP B M4X20 3 085411215 1 TAPTITE, BIND B M4X12 4 UL7964001 1 MAIN MOTOR ASSY 5 UL7968001 1 SUB MOTOR ASSY 6 085320616 4 TAPTITE, BIND S M3X6

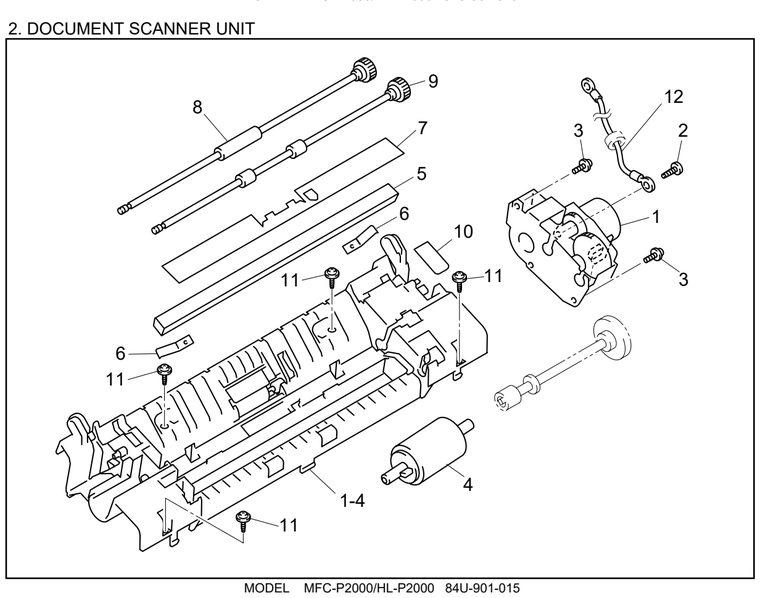

2. DOCUMENT SCANNER UNIT 1-4 UH3809001 1 SCANNER FRAME ASSY 1 UH3811001 1 SCANNER DRIVE UNIT ASSY 2 0A4300605 1 SCREW PAN(S/P WASHER), M3X6 3 087310815 2 TAPTITE, CUP B M3X8 4 UU7031001 1 SEPARATION ROLLER 5 UG4601001 1 CIS98 YL2 6 UU7035001 2 CIS BACK-UP SPRING 7 UU7036001 1 CIS FILM 8 UH3893001 1 LF ROLLER ASSY 9 UH3894001 1 DOCUMENT EJECT ROLLER ASSY 10 UF7187001 1 GEAR SHIELD FILM 11 087310815 4 TAPTITE, CUP B M3X8 12 UK4161001 1 MOTOR FRAME FG HARNESS ASSY
3. SCANNER PANEL UNIT 1-20 UH3900001 1 SCANNER PANEL UNIT ASSY (SP) 1 UH3820001 1 SCANNER PANEL 2 UH3823001 2 KEY TOP (GRAY) 3 UH3823002 1 KEY TOP (ORANGE) 4 UH3822001 1 START KEY (BLUE) 5 UK4258001 1 SCANNER PANEL PCB ASSY (SP) B512019 6 UK4257001 1 SCANNER SENSOR PCB ASSY (SP) B512020 7 UK3989001 1 SCANNER PANEL HARNESS ASSY 8 087310616 5 TAPTITE, CUP B M3X6 9 UH3824001 1 SCANNER PANEL REAR COVER 10 UH3779001 1 DOCUMENT PRESSURE BAR ASSY (SP) 11 UU7147001 1 DOCUMENT PRESSURE BAR SPRING 12 UH3767001 1 SEPARATION RUBBER ML ASSY 13 UU7105001 1 ADF SPRING PLATE 14 UU7106001 1 FRONT SPRING PLATE 15 UF5034001 1 TAPTITE, PAN B M3X6 16 UU7285001 1 VIBRATION-PROOF RUBBER 17 UU7107001 1 ACTUATOR F 18 UU7108001 1 ACTUATOR R 19 UH3897001 1 HELICAL TORSION SPRING 20 087310815 6 TAPTITE, CUP B M3X8 21 UH3821001 1 PANEL SHEET, US 21 UH3848001 1 PANEL SHEET, EU 21 UH3754001 1 PANEL SHEET, CANADA DX 21 UH4002001 1 PANEL SHEET, LEG 22 UH3853001 1 SENSOR HARNESS ASSY 23 UK4264001 1 R MOTOR HARNESS ASSY 23 UK4321001 1 R MOTOR HARNESS ASSY EU 24 UH3855001 1 CIS HARNESS ASSY 25 026030135 1 WASHER, PLAIN S3

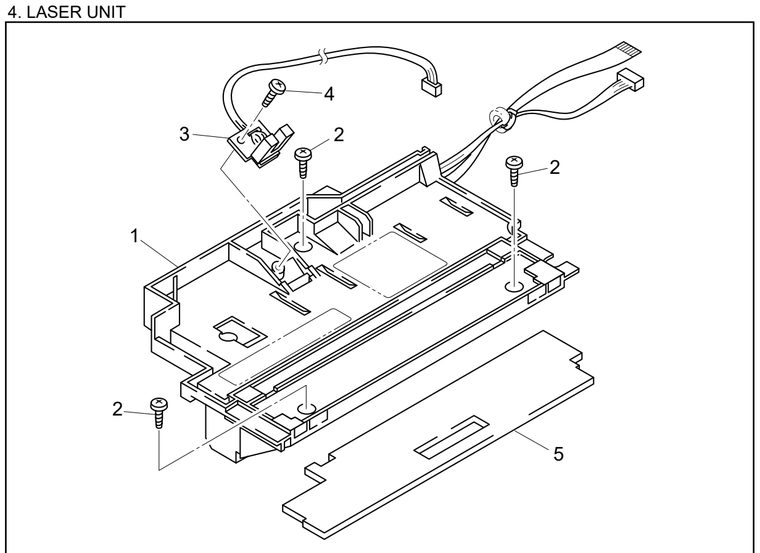

4. LASER UNIT 1 UL8748001 1 LASER UNIT Y (SP) (B48K226) 2 085411215 3 TAPTITE, BIND B M4X12 3 UL8759001 1 TONER SENSOR PCB ASSY B48K231 3 UK4326001 1 TONER SENSOR PCB ASSY EU B48K231 3 UL8810001 1 TONER SENSOR PCB ASSY LEG B512028 4 087310815 1 TAPTITE, CUP B M3X8 4 084311015 1 TAPTITE, SARA B M3X10 (LEGEND) 5 UH3064001 1 S SEAL SPONGE 4

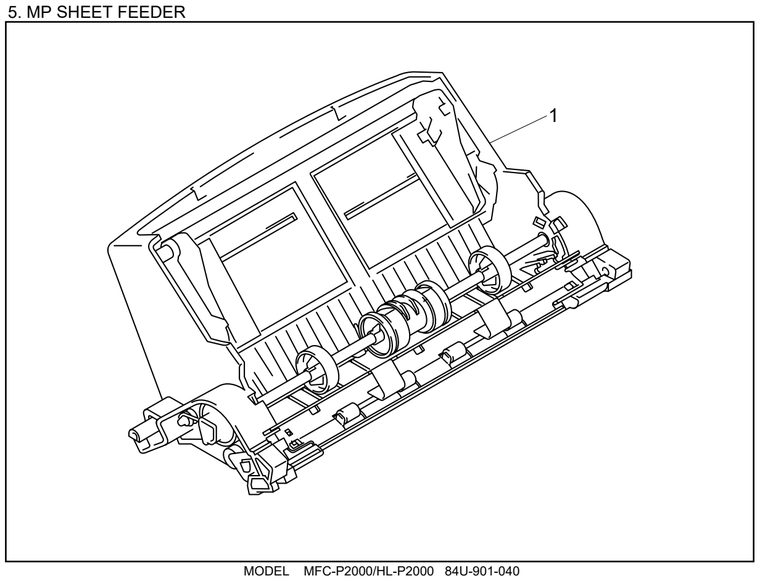

5. MP SHEET FEEDER 1 UH3899001 1 MP REAR SHEET FEEDER ASSY (SP) 1 UH4013001 1 MP REAR SHEET FEEDER ASSY LEG(SP)

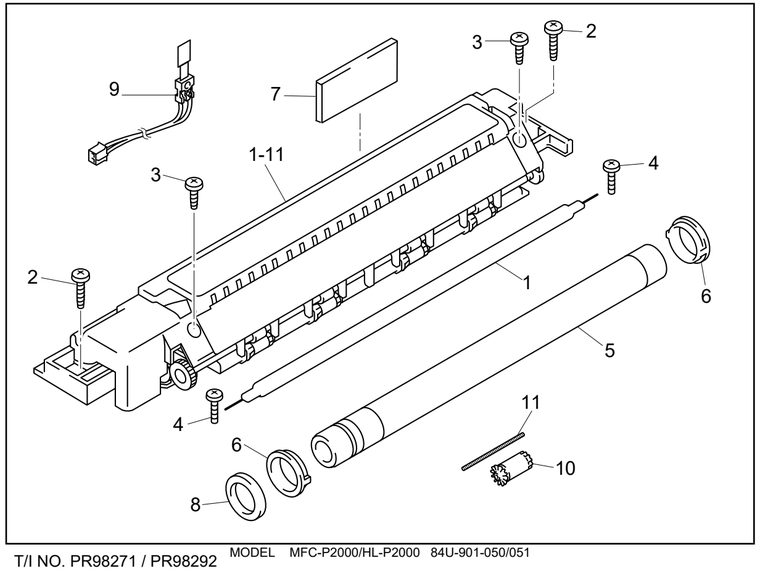

6. FIXING UNIT 1-11 UL8750001 1 FIXING UNIT, 120V (SP) 1-11 UL8751001 1 FIXING UNIT, 230V (SP) 1-11 UL8833001 1 FIXING UNIT, LEG 230V (SP) 1 UH3306001 1 HALOGEN LAMP Y, 120V (SP) 1 UH3307001 1 HALOGEN LAMP Y, 230V (SP) 2 087411616 2 TAPTITE, CUP B M4X16 3 085311216 2 TAPTITE, BIND B M3X12 4 083311017 2 TAPTITE, PAN B M3X10 5 UL8757001 1 HEAT ROLLER YS (SP) 5 UL8834001 1 HEAT ROLLER, LEG (SP) 6 UH3178000 2 H/R BEARING Y 7 UL8758001 1 H/R CLEANER 7 UL8855001 1 H/R CLEANER, LEG 8 UL8754001 1 H/R WASHER 9 UH3196001 1 THERMISTOR Y ASSY 10 UH3323001 4 EJECT PINCH ROLLER ASSY 11 UL6682001 4 PINCH SPRING

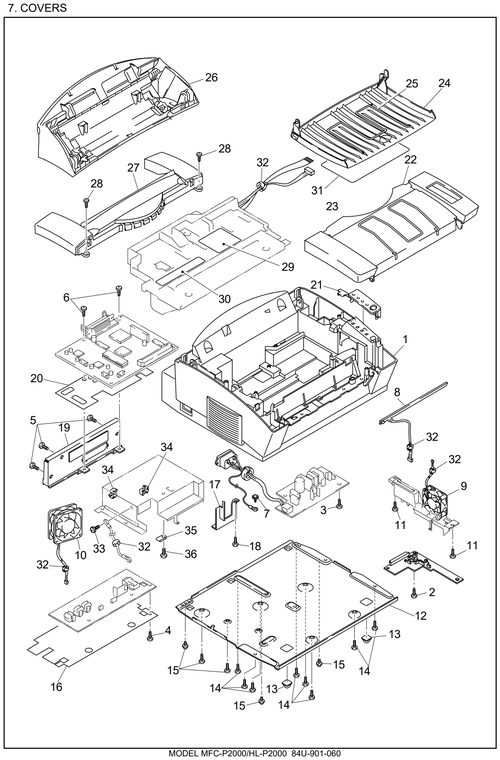

7. COVERS 1 UL7983001 1 MAIN COVER ASSY 2 085411215 1 TAPTITE, BIND B M4X12 3 085411215 1 TAPTITE, BIND B M4X12 4 085411215 1 TAPTITE, BIND B M4X12 5 002400616 3 SCREW PAN M4X6 6 087320616 2 TAPTITE, CUP S M3X6 7 0A5350605 1 SCREW PAN(WASHER), M3.5X6 8 UL8659001 1 EL PCB UNIT B48K304 9 UL8753001 1 MAIN FAN MOTOR 10 UL8509001 1 SUB FAN MOTOR 11 085411215 2 TAPTITE, BIND B M4X12 12 UL8601001 1 BASE PLATE 13 UL8507001 2 RUBBER FOOT 14 085411215 8 TAPTITE, BIND B M4X12 15 087320616 5 TAPTITE, CUP S M3X6 16 UL8508001 1 INSULATION SHEET 17 UL8512001 1 INLET HOLDER 18 085411215 1 TAPTITE, BIND B M4X12 19 UL8510001 1 I/F SHIELD ASSY 20 UH3828001 1 SHIELD SHEET, P2000 21 UH3850001 1 PANEL COVER, GRAY1227 22 UH3852001 1 TOP COVER ASSY 23 UH3826001 1 DOCUMENT EXTENSION SUPPORT WIRE 24 UH3825001 1 OUTPUT TRAY 25 UL8516001 1 EXTENSION SUPPORT WIRE 26 UH3801001 1 SCANNER REAR COVER ASSY 27 UH3805001 1 REAR COVER ASSY 28 085411215 2 TAPTITE, BIND B M4X12 29 UL6740001 1 LASER CAUTION LABEL 29 UL7931001 1 LASER CAUTION LABEL, LEG 30 UL6741001 1 TONER WARNING LABEL 31 UH3838001 1 MYLAR LABEL, MFC-P2000 (US) 31 UH3839001 1 MYLAR LABEL, MFC-P2000 (CANADA) 31 UH3840001 1 MYLAR LABEL, HL-P2000 (EUR) 32 UG3005000 5 FERRITE CORE 33 087320616 1 TAPTITE, CUP S M3X6 34 UH3751001 2 MINI CLAMP 35 UH3752001 1 NYLON CLAMP 36 085411215 1 TAPTITE, BIND B M4X12

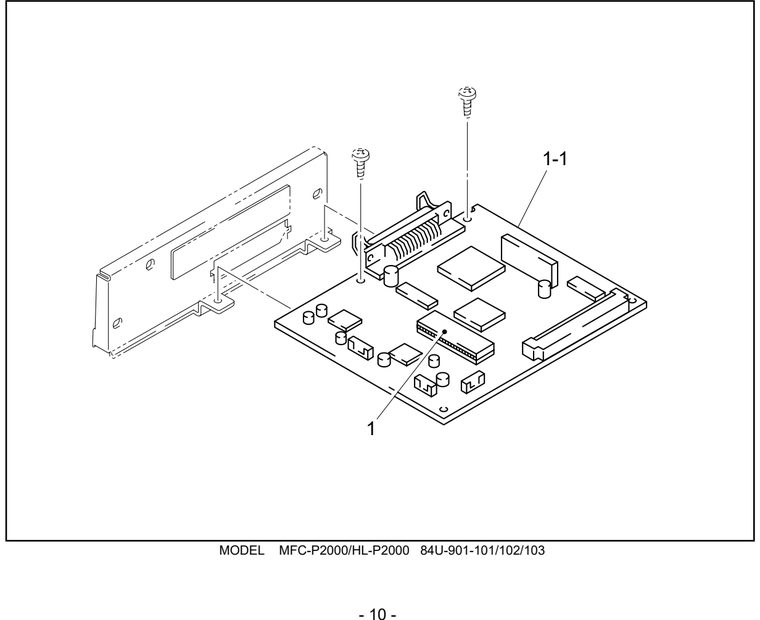

8. MAIN PCB 1-1 UK4250001 1 MAIN PCB ASSY, US (SP) B512018-100C 1-1 UK4251001 1 MAIN PCB ASSY, EUR (SP) B512018-101B 1-1 UK4252001 1 MAIN PCB ASSY, HEB (SP) B512018-102 1 UK4328000 1 MROMP2000, US #4 1 UK4320000 1 MROMP2000, EUR #4 1 UK4160000 1 MROMP2000, HEB #4

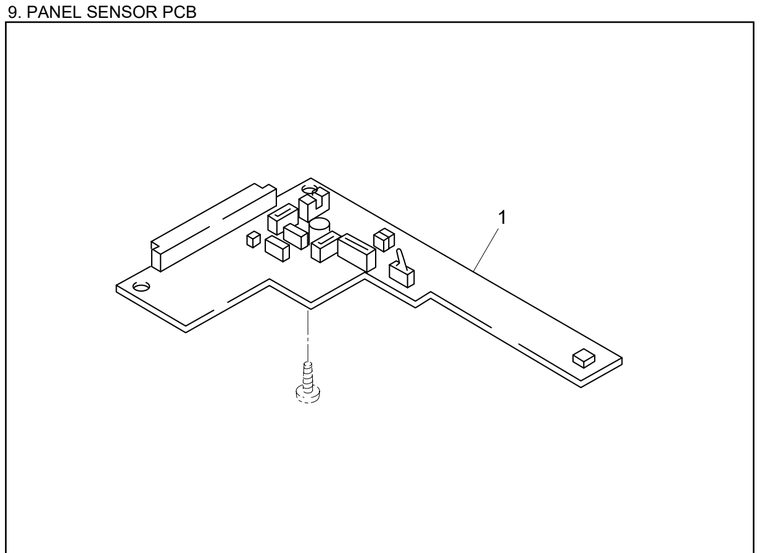

9. PANEL SENSOR PCB 1 UK4205001 1 PANEL SENSOR PCB ASSY (SP) B48K303

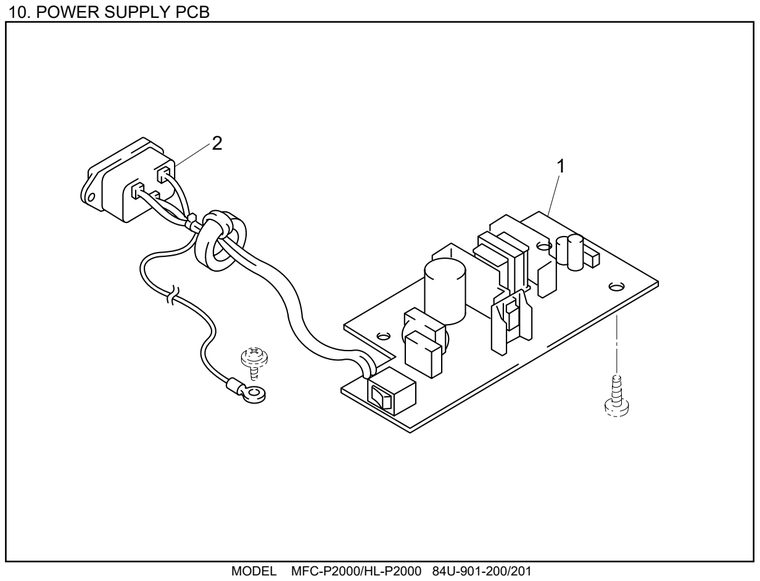

10. POWER SUPPLY PCB 1 UK4120001 1 LOW-VOLTAGE PS ASSY, 115V (SP) 1 UK4121001 1 LOW-VOLTAGE PS ASSY, 230V (SP) 2 UK3836001 1 AC INLET ASSY, 115V 2 UK3843001 1 AC INLET ASSY, 230V

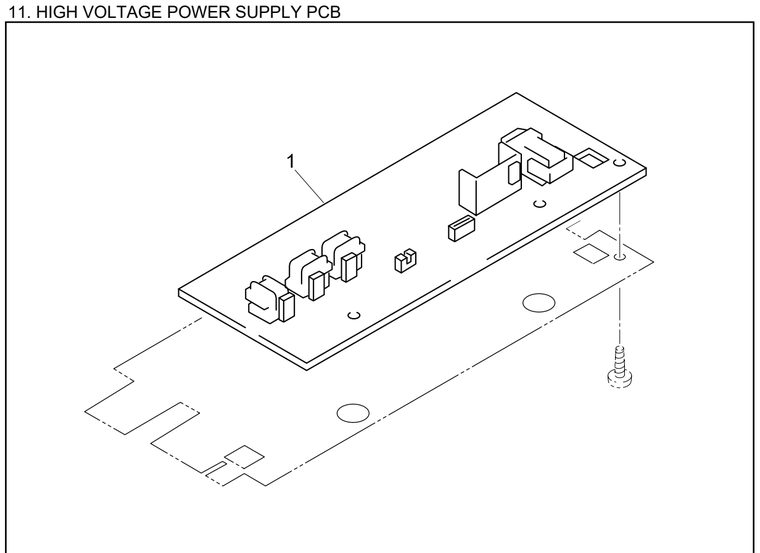

11. HIGH VOLTAGE POWER SUPPLY PCB 1 UK4122001 1 HIGH-VOLTAGE PS ASSY (SP)

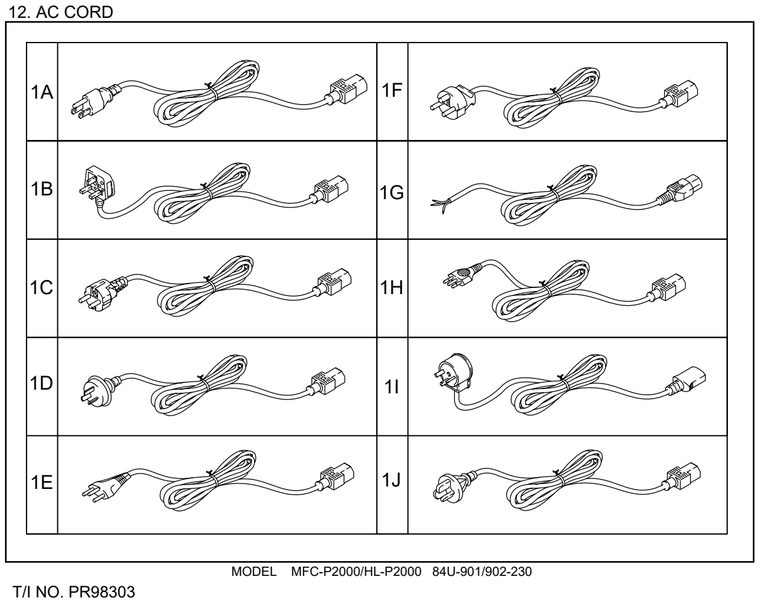

12. AC CORDS 1A UH1051001 1 AC CORD ASSY, UL/CSA 1B UH1054001 1 AC CORD ASSY, BS 1C UH1052001 1 AC CORD ASSY, VDE 1D UH1055001 1 AC CORD ASSY, SAA 1E UH1053001 1 AC CORD ASSY, SEV 1F UK4094001 1 AC CORD ASSY, DEMKO 1G U34320001 1 AC CORD ASSY, #4 (SAF) 1H UK4099001 1 AC CORD ASSY, CHLI 1I U34322001 1 AC CORD ASSY, #6 (ISRAEL) 1J UK3610001 1 AC CORD ASSY, CHN96

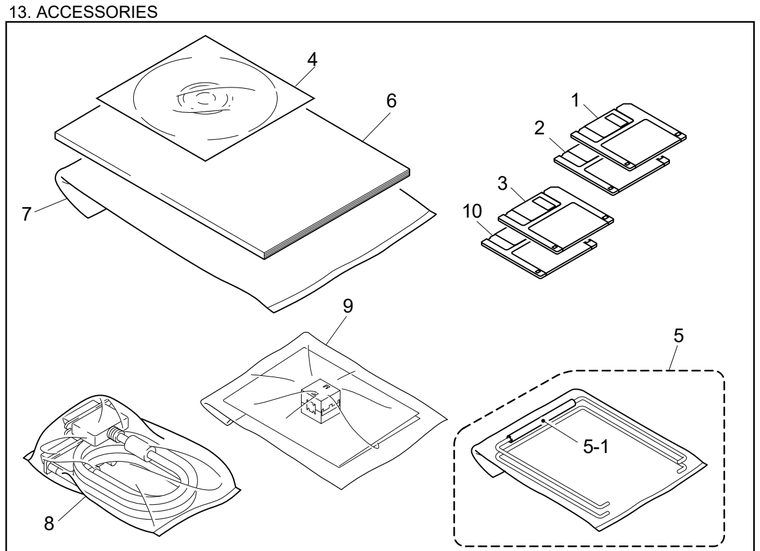

13. ACCESSORIES 1 UK4223001 1 PR DRIVER DISK ASSY1 (MFC-P2000) 1 UK4237001 1 PR DRIVER DISK ASSY1 (HL-P2000) 1 UK4343001 1 PR DRIVER DISK ASSY1, LEG 2 UK4225001 1 PR DRIVER DISK ASSY2 (MFC-P2000) 2 UK4239001 1 PR DRIVER DISK ASSY2 (HL-P2000) 2 UK4345001 1 PR DRIVER DISK ASSY2, LEG 3 UK4253001 1 PR DRIVER DISK ASSY3 (MFC-P2000) 3 UK4255001 1 PR DRIVER DISK ASSY3 (HL-P2000) 3 UK4347001 1 PR DRIVER DISK ASSY3, LEG 4 UK4227001 1 CD-ROM ASSY (MFC-P2000) 4 UK4228001 1 CD-ROM ASSY (HL-P2000) 5 UH3625001 1 EXTENSION WIRE ASSY, P2000 5-1 UL7158001 1 TE TUBE 6 UH3846001 1 SET GUIDE, US 6 UH3871001 1 SET GUIDE, FRA 6 UH3847001 1 SET GUIDE, GER 6 UH3875001 1 SET GUIDE, NOR 6 UH3877001 1 SET GUIDE, NL 6 UH3882001 1 SET GUIDE, DEN 6 UH3889001 1 SET GUIDE, SWE 7 UE2014001 1 BAG, 215X350H 8 UG4558001 1 I/F CABLE FE (US/LEG) 9 UK4322001 1 CORE NF-135 ASSY 10 UK4339001 1 PR DRIVER DISK ASSY #3, LEG 10 UK4333001 1 PR DRIVER DISK ASSY4 (ISRAEL)

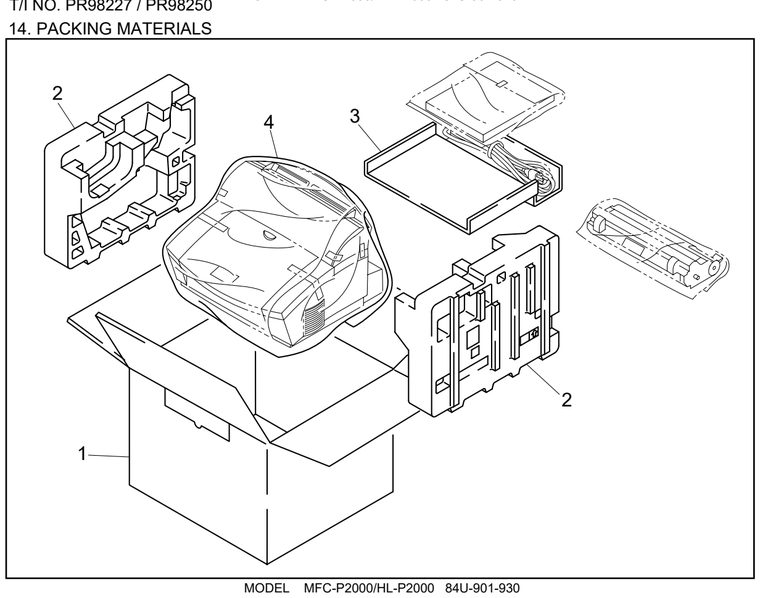

14. PACKING MATERIALS 1 UE0752001 1 CARTON, USA 1 UE0753001 1 CARTON, EUR 1 UE0777001 1 CARTON, CANADA DX 1 UE0781001 1 CARTON, CANADA 1 UE0806001 1 CARTON, LEG 2 UE0754001 1 STYROFOAM PAD ASSY 3 UE0757001 1 CARTON, ACCESORRIES 4 UE2126001 1 BAG, 700X800 (BODY)

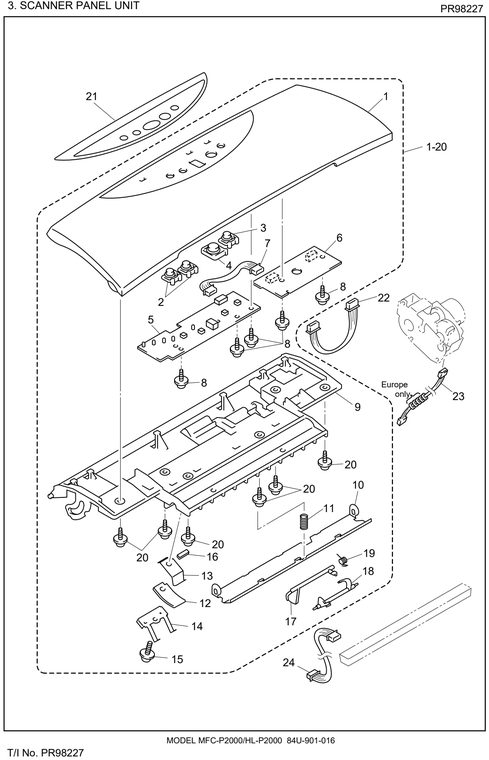

3. SCANNER PANEL UNIT (revision PR98227) 1-20 UH3900001 1 SCANNER PANEL UNIT ASSY (SP) 1 UH3820001 1 SCANNER PANEL 2 UH3823001 2 KEY TOP (GRAY) 3 UH3823002 1 KEY TOP (ORANGE) 4 UH3822001 1 START KEY (BLUE) 5 UK4258001 1 SCANNER PANEL PCB ASSY (SP) B512019 6 UK4257001 1 SCANNER SENSOR PCB ASSY (SP) B512020 7 UK3989001 1 SCANNER PANEL HARNESS ASSY 8 087310616 5 TAPTITE, CUP B M3X6 9 UH3824001 1 SCANNER PANEL REAR COVER 10 UH3779001 1 DOCUMENT PRESSURE BAR ASSY (SP) 11 UU7147001 1 DOCUMENT PRESSURE BAR SPRING 12 UU7104001 1 SEPARATION RUBBER 13 UU7105001 1 ADF SPRING PLATE 14 UU7106001 1 FRONT SPRING PLATE 15 UF5034001 1 TAPTITE, PAN B M3X6 16 UU7285001 1 VIBRATION-PROOF RUBBER 17 UU7107001 1 ACTUATOR F 18 UU7108001 1 ACTUATOR R 19 UH3897001 1 HELICAL TORSION SPRING 20 087310815 6 TAPTITE, CUP B M3X8 21 UH3821001 1 PANEL SHEET, US 21 UH3848001 1 PANEL SHEET, EU 21 UH3754001 1 PANEL SHEET, CANADA DX 22 UH3853001 1 SENSOR HARNESS ASSY 23 UK4264001 1 R MOTOR HARNESS ASSY 23 UK4321001 1 R MOTOR HARNESS ASSY EU ADD 24 UH3855001 1 CIS HARNESS ASSY

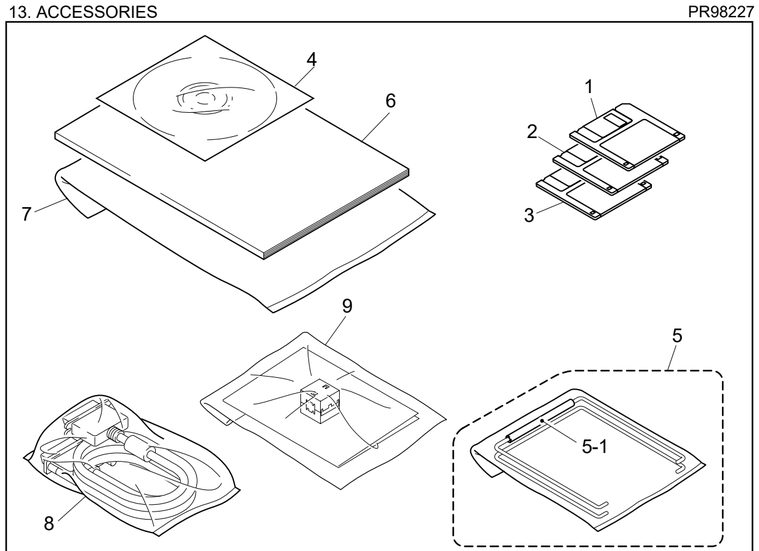

13. ACCESSORIES (revision PR98227) 1 UK4223001 1 PR DRIVER DISK ASSY1 (MFC-P2000) 1 UK4237001 1 PR DRIVER DISK ASSY1 (HL-P2000) 2 UK4225001 1 PR DRIVER DISK ASSY2 (MFC-P2000) 2 UK4239001 1 PR DRIVER DISK ASSY2 (HL-P2000) 3 UK4253001 1 PR DRIVER DISK ASSY3 (MFC-P2000) 3 UK4255001 1 PR DRIVER DISK ASSY3 (HL-P2000) 4 UK4227001 1 CD-ROM ASSY (MFC-P2000) 4 UK4228001 1 CD-ROM ASSY (HL-P2000) 5 UH3625001 1 EXTENSION WIRE ASSY, P2000 5-1 UL7158001 1 TE TUBE 6 UH3846001 1 SET GUIDE, US 6 UH3871001 1 SET GUIDE, FRA 6 UH3847001 1 SET GUIDE, GER 6 UH3875001 1 SET GUIDE, NOR 6 UH3877001 1 SET GUIDE, NL 6 UH3882001 1 SET GUIDE, DEN 6 UH3889001 1 SET GUIDE, SWE 7 UE2014001 1 BAG, 215X350H 8 UG4558001 1 I/F CABLE FE (US) 9 UK4322001 1 CORE NF-135 ASSY ADD

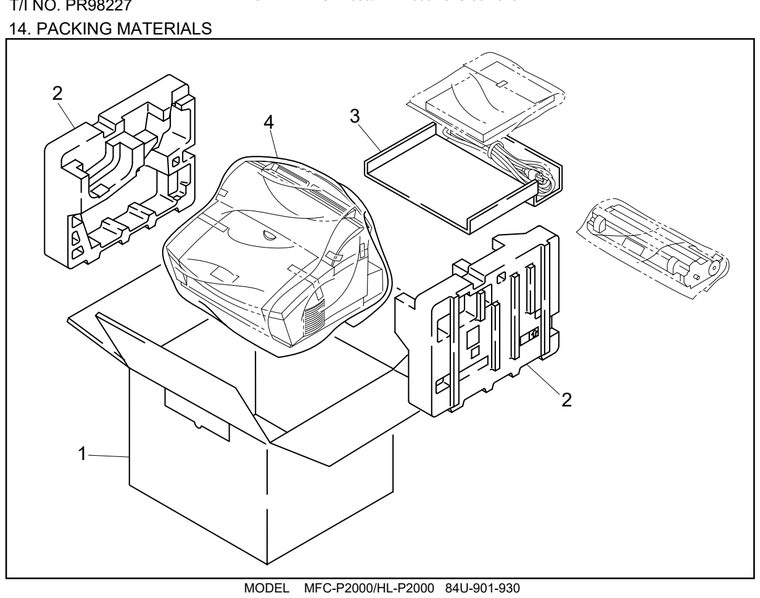

14. PACKING MATERIALS (revision PR98227) 1 UE0752001 1 CARTON, USA 1 UE0753001 1 CARTON, EUR 1 UE0777001 1 CARTON, CANADA DX 1 UE0781001 1 CARTON, CANADA 2 UE0754001 1 STYROFOAM PAD ASSY 3 UE0757001 1 CARTON, ACCESORRIES 4 UE2126001 1 BAG, 700X800 (BODY)
4. LASER UNIT (revision PR98228) 1 UL8748001 1 LASER UNIT Y (SP) (B48K226) 2 085411215 3 TAPTITE, BIND B M4X12 3 UL8759001 1 TONER SENSOR PCB ASSY B48K231 3 UK4326001 1 TONER SENSOR PCB ASSY EU B48K231 ADD 4 087310815 1 TAPTITE, CUP B M3X8 5 UH3064001 1 S SEAL SPONGE 4
5. MP SHEET FEEDER (revision PR98228) 1 UH3899001 1 MP REAR SHEET FEEDER ASSY (SP)
5. COVERS (revision PR99041) 1 UL7983001 1 MAIN COVER ASSY 2 085411215 1 TAPTITE, BIND B M4X12 3 085411215 1 TAPTITE, BIND B M4X12 4 085411215 1 TAPTITE, BIND B M4X12 5 002400616 3 SCREW PAN M4X6 6 087320616 2 TAPTITE, CUP S M3X6 7 0A5350605 1 SCREW PAN(WASHER), M3.5X6 8 UL8659001 1 EL PCB UNIT B48K304 9 UL8753001 1 MAIN FAN MOTOR 10 UL8509001 1 SUB FAN MOTOR 11 085411215 2 TAPTITE, BIND B M4X12 12 UL8505001 1 BASE PLATE 820/1020/1040 12 UL8601001 1 BASE PLATE 1050 13 UL8506001 1 MAIN PCB GUIDE RAIL (820/1020/1040) 14 LJ4047001 2 RUBBER FOOT CHNG 15 085411215 8 TAPTITE, BIND B M4X12 16 087320616 5 TAPTITE, CUP S M3X6 17 UL8508001 1 INSULATION SHEET 18 UL8512001 1 INLET HOLDER 19 085411215 1 TAPTITE, BIND B M4X12 20 UL8510001 1 I/F SHIELD ASSY 820/1020/1040 20 UL8604001 1 I/F SHIELD ASSY 1050 21 UL8518001 1 PANEL COVER, GRAY1227 22 UL8745001 1 TOP COVER ASSY 23 UL8515001 1 OUTPUT TRAY 24 UL8516001 1 EXTENSION SUPPORT WIRE 25 UL8746001 1 REAR COVER ASSY 26 085411215 2 TAPTITE, BIND B M4X12 27 UL6740001 1 LASER CAUTION LABEL 27 UL7931001 1 LASER CAUTION LABEL (LEGEND) 28 UL6741001 1 TONER WARNING LABEL 29 UL8575001 1 MODEL PLATE, HL-820 29 UL8639001 1 MODEL PLATE, HL-1020 29 UL8519001 1 MODEL PLATE, HL-1040 29 UL8641001 1 MODEL PLATE, HL-1040DX 29 UL8686001 1 MODEL PLATE, HL-1040 (LEGEND) 29 UL8611001 1 MODEL PLATE, HL-1050 29 UL8645001 1 MODEL PLATE, HL-1050DX 29 UL8820001 1 MODEL PLATE, HL-1050 (LEGEND) 30 UL8640001 1 MYLAR LABEL, HL-1020 CAN 30 UL8650001 1 MYLAR LABEL, HL-820 EUR 30 UL8522001 1 MYLAR LABEL, HL-1040 US 30 UL8547001 1 MYLAR LABEL, HL-1040 CAN 30 UL8642001 1 MYLAR LABEL, HL-1040DX CAN 30 UL8651001 1 MYLAR LABEL, HL-1040 EUR 30 UL8612001 1 MYLAR LABEL, HL-1050 US 30 UL8596001 1 MYLAR LABEL, HL-1050 CAN 30 UL8646001 1 MYLAR LABEL, HL-1050DX CAN 30 UL8652001 1 MYLAR LABEL, HL-1050 EUR 31 UH3297001 1 C-TICK MARK LABEL 32 UH0905001 1 US PATENT SEAL HL-10 33 UG3005000 4 FERRITE CORE 34 UG3005000 7 FERRITE CORE (HL1050) 35 UK3617000 1 CORE, TFC-16813 (HL1050)
7. COVERS (revision PR99041) 1 UL7983001 1 MAIN COVER ASSY 2 085411215 1 TAPTITE, BIND B M4X12 3 085411215 1 TAPTITE, BIND B M4X12 4 085411215 1 TAPTITE, BIND B M4X12 5 002400616 3 SCREW PAN M4X6 6 087320616 2 TAPTITE, CUP S M3X6 7 0A5350605 1 SCREW PAN(WASHER), M3.5X6 8 UL8659001 1 EL PCB UNIT B48K304 9 UL8753001 1 MAIN FAN MOTOR 10 UL8509001 1 SUB FAN MOTOR 11 085411215 2 TAPTITE, BIND B M4X12 12 UL8601001 1 BASE PLATE 13 LJ4047001 2 RUBBER FOOT CHNG 14 085411215 8 TAPTITE, BIND B M4X12 15 087320616 5 TAPTITE, CUP S M3X6 16 UL8508001 1 INSULATION SHEET 17 UL8512001 1 INLET HOLDER 18 085411215 1 TAPTITE, BIND B M4X12 19 UL8510001 1 I/F SHIELD ASSY 20 UH3828001 1 SHIELD SHEET, P2000 21 UH3850001 1 PANEL COVER, GRAY1227 22 UH3852001 1 TOP COVER ASSY 23 UH3826001 1 DOCUMENT EXTENSION SUPPORT WIRE 24 UH3825001 1 OUTPUT TRAY 25 UL8516001 1 EXTENSION SUPPORT WIRE 26 UH3801001 1 SCANNER REAR COVER ASSY 27 UH3805001 1 REAR COVER ASSY 28 085411215 2 TAPTITE, BIND B M4X12 29 UL6740001 1 LASER CAUTION LABEL 29 UL7931001 1 LASER CAUTION LABEL, LEG 30 UL6741001 1 TONER WARNING LABEL 31 UH3838001 1 MYLAR LABEL, MFC-P2000 (US) 31 UH3839001 1 MYLAR LABEL, MFC-P2000 (CANADA) 31 UH3840001 1 MYLAR LABEL, HL-P2000 (EUR) 32 UG3005000 5 FERRITE CORE 33 087320616 1 TAPTITE, CUP S M3X6 34 UH3751001 2 MINI CLAMP 35 UH3752001 1 NYLON CLAMP 36 085411215 1 TAPTITE, BIND B M4X12
3. MP SHEET FEEDER (revision PR99042) 1 UL8749001 1 MP SHEET FEEDER ASSY (SP) 1 UL8832001 1 MP SHEET FEEDER ASSY (LEGEND) (SP)
4. FIXING UNIT (revision PR99042) 1-11 UL8750001 1 FIXING UNIT, 120V (SP) 1-11 UL8751001 1 FIXING UNIT, 230V (SP) 1-11 UL8833001 1 FIXING UNIT (LEGEND) (SP) 1 UH3306001 1 HALOGEN LAMP Y, 120V (SP) 1 UH3307001 1 HALOGEN LAMP Y, 230V (SP) 2 087411616 2 TAPTITE, CUP B M4X16 3 085311216 2 TAPTITE, BIND B M3X12 4 083311017 2 TAPTITE, PAN B M3X10 5 UL8757001 1 HEAT ROLLER YS (SP) 5 UL8834001 1 HEAT ROLLER (LEGEND) (SP) 6 UH3178000 2 H/R BEARING Y 7 UL8758001 1 H/R CLEANER 7 UL8855001 1 H/R CLEANER (LEGEND) 8 UL8754001 1 H/R WASHER 9 UL6667001 1 THERMISTOR ASSY CHNG 10 UH3323001 4 EJECT PINCH ROLLER ASSY 11 UL6682001 4 PINCH SPRING
5. FIXING UNITS (revision PR99042, model HL1060PL) 1-9 UH3164001 1 FIXING UNIT Y, 120V (SP) 1-9 UH3165001 1 FIXING UNIT Y, 230V (SP) 1 UH3306001 1 HALOGEN LAMP Y, 120V (SP) 1 UH3307001 1 HALOGEN LAMP Y, 230V (SP) 2 087411616 2 TAPTITE, CUP B M4X16 3 UL6667001 1 THERMISTOR ASSY CHNG 4 UH3188001 1 CLEANER ASSY Y 5 UH3178000 2 H/R BEARING Y 6 UH3419001 1 HEAT ROLLER YS ASSY 7 087311415 1 TAPTITE, CUP B 3X14 8 UH3323001 4 EJECT PINCH ROLLER ASSY 9 UL6682001 4 PINCH SPRING
5. FIXING UNITS (revision PR99042) 1-9 UH3164001 1 FIXING UNIT Y, 120V (SP) 1-9 UH3165001 1 FIXING UNIT Y, 230V (SP) 1 UH3306001 1 HALOGEN LAMP Y, 120V (SP) 1 UH3307001 1 HALOGEN LAMP Y, 230V (SP) 2 087411616 2 TAPTITE, CUP B M4X16 3 UL6667001 1 THERMISTOR ASSY CHNG 4 UH3188001 1 CLEANER ASSY Y 5 UH3178000 2 H/R BEARING Y 6 UH3419001 1 HEAT ROLLER YS ASSY (SP) 7 087311415 1 TAPTITE, CUP B 3X14 8 UH3323001 4 EJECT PINCH ROLLER ASSY 9 UL6682001 4 PINCH SPRING
6. FIXING UNIT (revision PR99042) 1-11 UL8750001 1 FIXING UNIT, 120V (SP) 1-11 UL8751001 1 FIXING UNIT, 230V (SP) 1-11 UL8833001 1 FIXING UNIT, LEG 230V (SP) 1 UH3306001 1 HALOGEN LAMP Y, 120V (SP) 1 UH3307001 1 HALOGEN LAMP Y, 230V (SP) 2 087411616 2 TAPTITE, CUP B M4X16 3 085311216 2 TAPTITE, BIND B M3X12 4 083311017 2 TAPTITE, PAN B M3X10 5 UL8757001 1 HEAT ROLLER YS (SP) 5 UL8834001 1 HEAT ROLLER, LEG (SP) 6 UH3178000 2 H/R BEARING Y 7 UL8758001 1 H/R CLEANER 7 UL8855001 1 H/R CLEANER, LEG 8 UL8754001 1 H/R WASHER 9 UL6667001 1 THERMISTOR ASSY CHNG 10 UH3323001 4 EJECT PINCH ROLLER ASSY 11 UL6682001 4 PINCH SPRING
7. MAIN PCB (revision PR99042, model HL1060PL) 1 UK3439001 1 MAIN PCB ASSY, PCL5 2M(SP) B48K246-300J
7. MAIN PCB (revision PR99042) 1 UK3950001 1 MAIN PCB ASSY B48K302-100C 2 UH3542001 1 CONDUCTIVE TAPE
8. MAIN PCB (revision PR99042) 1-1 UK4250001 1 MAIN PCB ASSY, US (SP) B512018-100C 1-1 UK4251001 1 MAIN PCB ASSY, EUR (SP) B512018-101B 1-1 UK4252001 1 MAIN PCB ASSY, HEB (SP) B512018-102 1 UK4328000 1 MROMP2000, US #4 1 UK4320000 1 MROMP2000, EUR #4 1 UK4160000 1 MROMP2000, HEB #4
5. COVERS (revision PR99057) 1 UL7983001 1 MAIN COVER ASSY 2 085411215 1 TAPTITE, BIND B M4X12 3 085411215 1 TAPTITE, BIND B M4X12 4 085411215 1 TAPTITE, BIND B M4X12 5 002400616 3 SCREW PAN M4X6 6 087320616 2 TAPTITE, CUP S M3X6 7 0A5350605 1 SCREW PAN(WASHER), M3.5X6 8 UL8659001 1 EL PCB UNIT B48K304 9 UL8753001 1 MAIN FAN MOTOR 10 UL8509001 1 SUB FAN MOTOR 11 085411215 2 TAPTITE, BIND B M4X12 12 UL8505001 1 BASE PLATE 820/1020/1040 12 UL8601001 1 BASE PLATE 1050 13 UL8506001 1 MAIN PCB GUIDE RAIL (820/1020/1040) 14 UL8507001 2 RUBBER FOOT CHNG 15 085411215 8 TAPTITE, BIND B M4X12 16 087320616 5 TAPTITE, CUP S M3X6 17 UL8508001 1 INSULATION SHEET 18 UL8512001 1 INLET HOLDER 19 085411215 1 TAPTITE, BIND B M4X12 20 UL8510001 1 I/F SHIELD ASSY 820/1020/1040 20 UL8604001 1 I/F SHIELD ASSY 1050 21 UL8518001 1 PANEL COVER, GRAY1227 22 UL8745001 1 TOP COVER ASSY 23 UL8515001 1 OUTPUT TRAY 24 UL8516001 1 EXTENSION SUPPORT WIRE 25 UL8746001 1 REAR COVER ASSY 26 085411215 2 TAPTITE, BIND B M4X12 27 UL6740001 1 LASER CAUTION LABEL 27 UL7931001 1 LASER CAUTION LABEL (LEGEND) 28 UL6741001 1 TONER WARNING LABEL 29 UL8575001 1 MODEL PLATE, HL-820 29 UL8639001 1 MODEL PLATE, HL-1020 29 UL8519001 1 MODEL PLATE, HL-1040 29 UL8641001 1 MODEL PLATE, HL-1040DX 29 UL8686001 1 MODEL PLATE, HL-1040 (LEGEND) 29 UL8611001 1 MODEL PLATE, HL-1050 29 UL8645001 1 MODEL PLATE, HL-1050DX 29 UL8820001 1 MODEL PLATE, HL-1050 (LEGEND) 30 UL8640001 1 MYLAR LABEL, HL-1020 CAN 30 UL8650001 1 MYLAR LABEL, HL-820 EUR 30 UL8522001 1 MYLAR LABEL, HL-1040 US 30 UL8547001 1 MYLAR LABEL, HL-1040 CAN 30 UL8642001 1 MYLAR LABEL, HL-1040DX CAN 30 UL8651001 1 MYLAR LABEL, HL-1040 EUR 30 UL8612001 1 MYLAR LABEL, HL-1050 US 30 UL8596001 1 MYLAR LABEL, HL-1050 CAN 30 UL8646001 1 MYLAR LABEL, HL-1050DX CAN 30 UL8652001 1 MYLAR LABEL, HL-1050 EUR 31 UH3297001 1 C-TICK MARK LABEL 32 UH0905001 1 US PATENT SEAL HL-10 33 UG3005000 4 FERRITE CORE 34 UG3005000 7 FERRITE CORE (HL1050) 35 UK3617000 1 CORE, TFC-16813 (HL1050)
7. COVERS (revision PR99057) 1 UL7983001 1 MAIN COVER ASSY 2 085411215 1 TAPTITE, BIND B M4X12 3 085411215 1 TAPTITE, BIND B M4X12 4 085411215 1 TAPTITE, BIND B M4X12 5 002400616 3 SCREW PAN M4X6 6 087320616 2 TAPTITE, CUP S M3X6 7 0A5350605 1 SCREW PAN(WASHER), M3.5X6 8 UL8659001 1 EL PCB UNIT B48K304 9 UL8753001 1 MAIN FAN MOTOR 10 UL8509001 1 SUB FAN MOTOR 11 085411215 2 TAPTITE, BIND B M4X12 12 UL8601001 1 BASE PLATE 13 UL8507001 2 RUBBER FOOT CHNG 14 085411215 8 TAPTITE, BIND B M4X12 15 087320616 5 TAPTITE, CUP S M3X6 16 UL8508001 1 INSULATION SHEET 17 UL8512001 1 INLET HOLDER 18 085411215 1 TAPTITE, BIND B M4X12 19 UL8510001 1 I/F SHIELD ASSY 20 UH3828001 1 SHIELD SHEET, P2000 21 UH3850001 1 PANEL COVER, GRAY1227 22 UH3852001 1 TOP COVER ASSY 23 UH3826001 1 DOCUMENT EXTENSION SUPPORT WIRE 24 UH3825001 1 OUTPUT TRAY 25 UL8516001 1 EXTENSION SUPPORT WIRE 26 UH3801001 1 SCANNER REAR COVER ASSY 27 UH3805001 1 REAR COVER ASSY 28 085411215 2 TAPTITE, BIND B M4X12 29 UL6740001 1 LASER CAUTION LABEL 29 UL7931001 1 LASER CAUTION LABEL, LEG 30 UL6741001 1 TONER WARNING LABEL 31 UH3838001 1 MYLAR LABEL, MFC-P2000 (US) 31 UH3839001 1 MYLAR LABEL, MFC-P2000 (CANADA) 31 UH3840001 1 MYLAR LABEL, HL-P2000 (EUR) 32 UG3005000 5 FERRITE CORE 33 087320616 1 TAPTITE, CUP S M3X6 34 UH3751001 2 MINI CLAMP 35 UH3752001 1 NYLON CLAMP 36 085411215 1 TAPTITE, BIND B M4X12
