Brother MFC9100C Parts
Please call for parts assistance

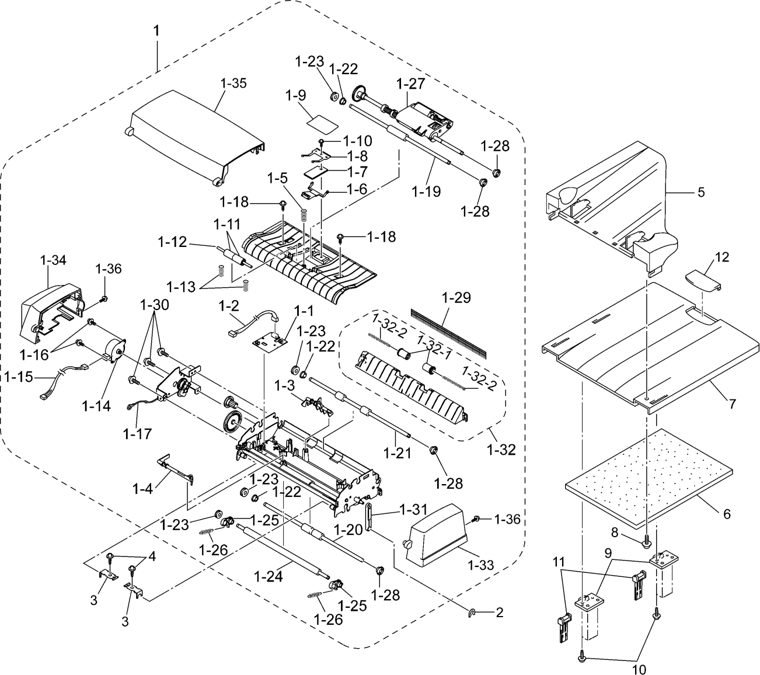

| 1. ADF&TRAY 1 LE2005001 ADF UNIT 1-1 UG6609001 DOCUMENT SENSOR PCB 1-2 LG2014001 DOCUMENT SENSOR HARNESS 1-3 UF7026001 DOCUMENT FRONT SENSOR ACTUATOR 1-4 LE2008001 DOCUMENT REAR SENSOR ACTUATOR 1-5 LE2011001 COMPRESSION SPRING 1-6 LE2551001 RUBBER HOLDER A 1-7 UU2055001 SEPARATION RUBBER 1-8 LE2550001 SPRING PLATE A 1-9 LE2470001 ADF FILM 1-10 UF6116001 TAPTITE, PAN B M3X6 1-11 UF9009001 PRESSURE ROLLER 1-12 LE2471001 PRESSURE ROLLER SHAFT 1-13 LE2472001 PRESSURE ROLLER SPRING 1-14 LE2566001 ADF MOTOR 1-15 LG2015001 ADF MOTOR HARNESS 1-16 0A4300605 SCREW, PAN (S/P WASHER) M3X6 1-17 LG2016001 GROUNDING WIRE 1-18 087310815 TAPTITE, CUP B M3X8 1-19 LE2026001 UPPER LF ROLLER (GRAY) 1-20 LE2029001 LOWER LF ROLLER (BLACK) 1-21 LE2028001 DOCUMENT EJECTION ROLLER 1-22 UF8105001 CONDUCTIVE BUSHING 1-23 UU7039001 LF ROLLER GEAR 27 1-24 LE2030001 WHITE ROLLER 1-25 LE2032001 WHITE ROLLER BUSHING 1-26 LE2033001 EXTENSION SPRING 1-27 LE2919001 DOCUMENT FEED ROLLER HOLDER ASSY (1-27-1) LE2037001 DOCUMENT FEED ROLLER (RUBBER) 1-28 UU1290001 CONDUCTIVE BUSHING 1-29 UU7505001 ANTI-STATIC BRUSH 1-30 087320616 TAPTITE, CUP S M3X6 1-31 UF0208001 ADF ARM 1-32 LE2048001 DOCUMENT EJECTION CHUTE ASSY 1-32-1 LE2582001 PINCH ROLLER 1-32-2 UU2009001 PINCH ROLLER SPRING 1-33 LE2050001 ADF SIDE COVER F, WHITE(1495) 1-34 LE2051001 ADF SIDE COVER R, WHITE(1495) 1-35 LE2534001 ADF COVER ASSY, WHITE(1495) 1-36 087320816 TAPTITE, CUP S M3X8 2 UF8088001 PLASTIC RETAINING RING 3 LE2053001 ADF SUPPORT 4 087310816 TAPTITE, CUP B M3X8 5 LE3426001 DOCUMENT CHUTE, WHITE(1495) 6 LE2487001 DOCUMENT SPONGE 7 LE2056001 DOCUMENT TRAY, WHITE(1495) 8 087320816 TAPTITE, CUP S M3X8 9 LE2567001 HINGE A 10 087311015 TAPTITE, CUP B M3X10 11 LE2568001 HINGE HOLDER A 12 LE2777001 DOCUMENT SUPPORT, WHITE(1495) |  |

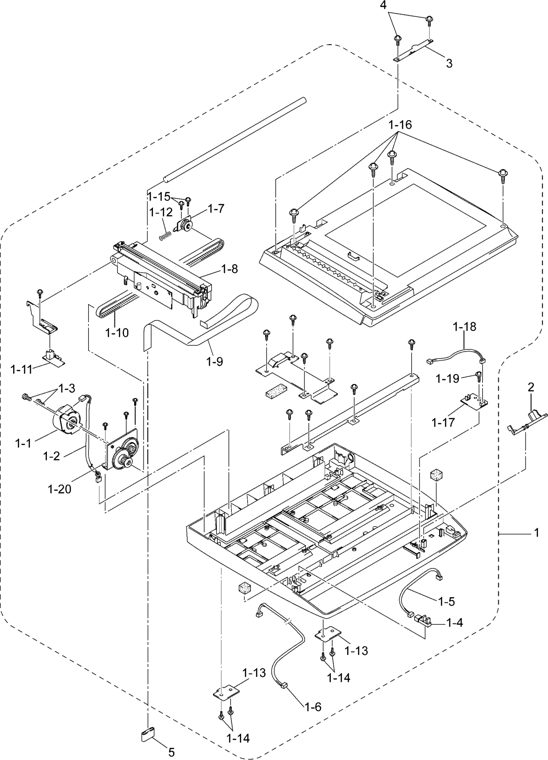

| 2. SCANNER UNIT 1 LE2883001 SCANNER UNIT SUPPLY ASSY 1-1 UU7490001 CCD MOTOR 1-2 LG2017001 CCD MOTOR HARNESS 1-3 0A4300605 SCREW, PAN (S/P WASHER) M3X6 1-4 LG2239001 CCD HP SENSOR 1-5 LG2019001 CCD HP SENSOR HARNESS 1-6 LG2025001 PANEL-MAIN HARNESS 1-7 LE2074001 CCD IDLE PULLEY HOLDER ASSY 1-8 LE2884001 CCD UNIT SUPPLY ASSY 1-9 LG2196001 CCD FLAT CABLE 1-10 LE2297001 CCD DRIVE BELT 1-11 LE2082001 CCD LOCK 1-12 LE2079001 COMPRESSION SPRING 1-13 LE2098001 HINGE PLATE 1-14 085411216 TAPTITE, BIND B M4X12 1-15 LE2805001 TAPTITE, PAN B M3X10 1-16 087411216 TAPTITE, CUP B M4X12 1-17 LG2018001 COVER SENSOR PCB 1-18 LG2137001 COVER SENSOR HARNESS 1-19 087310815 TAPTITE, CUP B M3X8 1-20 LE1775001 MOTOR BRACKET 2 LE2095001 COVER SENSOR ACTUATOR 3 LE2092001 HARNESS SUPPORT 4 087310816 TAPTITE, CUP B M3X8 5 LG2020001 FLAT CORE (CCD) |  |

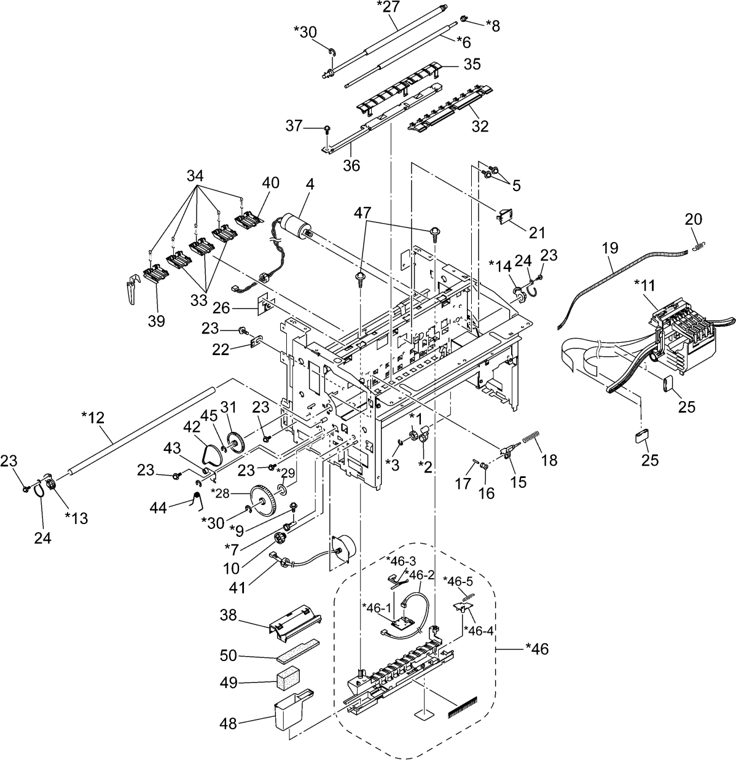

| 3. MAIN CHASIS *1 LE2110001 IDLE GEAR 23 (1-11-1) UU1454001 CARRIAGE TIMING BELT *2 LE2111001 ARM 12.3 ASSY *3 048030345 RETAINING RING, E3 4 LE3940001 CARRIAGE MOTOR 5 0A5300605 SCREW, PAN (S/P WASHER) M3X6 *6 UU1047001 PAPER EJECTION ROLLER *7 UU1049001 PAPER EJECTION ROLLER GEAR *8 UU1290001 CONDUCTIVE BUSHING *9 0A5260805 TAPTITE, PAN 2.6X8DB 10 UU1050001 IDLE GEAR EJECTION *11 LE3079001 CARRIAGE ASSY (SUPPLY ASSY INCLUDING CR DRIVE BELT AND FLAT CABLES) *12 UU1077001 CARRIAGE RAIL *13 UU1078001 ECCENTRIC BUSHING L *14 UU1079001 ECCENTRIC BUSHING R 15 UU1081001 IDLE PULLEY HOLDER 16 UD6023000 IDLE PULLEY 17 UD6025001 IDLE PULLEY SHAFT 18 LE0010001 TENSION SPRING 19 UD6014001 ENCODER STRIP 20 UD6012001 SPRING, EXTENSION 21 UU1088001 FFC HOLDER 22 UU1286001 IDLE PULLEY STOPPER 23 0A5300805 SCREW, PAN (S/P WASHER) M3X8 24 UU1476001 BUSHING LOCK 25 UG5569000 FLAT CORE 26 UU1459001 CORE SUPPORT *27 LE2933001 PAPER FEED ROLLER *28 UU1094001 PAPER FEED ROLLER GEAR L *29 UU1092001 SPACER *30 048080345 RETAINING RING, E8 31 UU1428001 IDLE GEAR P720 32 UU1108001 STAR WHEEL HOLDER ASSY 33 LE2759001 PAPER PRESSURE HOLDER ASSY 34 UU1115001 PRESSER ROLLER SPRING 35 UU1116001 PLATEN 36 UU1117001 PLATEN FRAME 37 087320616 TAPTITE, CUP S M3X6 38 UU1315001 FLUSHING FOAM GUTTER 39 LE2760001 PAPER PRESSURE HOLDER L 40 LE2761001 PAPER PRESSURE HOLDER R 41 LE2479001 PAPER FEED MOTOR 42 UU1446001 PF DRIVE BELT 43 UU1450001 TENSION PLATE ASSY 44 UU1444001 SPRING 45 048040345 RETAINING RING, E4 *46 LE2117001 LOWER CHUTE ASSY *46-1 UG6609001 PAPER EJECTION/CASSETTE SENSOR PCB *46-2 LG2021001 PAPER EJECTION/CASSETTE SENSOR HARNESS *46-3 LE2119001 PAPER EJECTION SENSOR ACTUATOR *46-4 LE2120001 CASSETTE SENSOR ACTUATOR *46-5 UD4336001 ACTUATOR SPRING 47 087411015 TAPTITE, CUP B M4X10 48 UU1449001 FLUSHING FOAMS PACK 49 UU1199001 LOWER FLUSHING FOAM 50 UU1200001 UPPER FLUSHING FOAM |  |

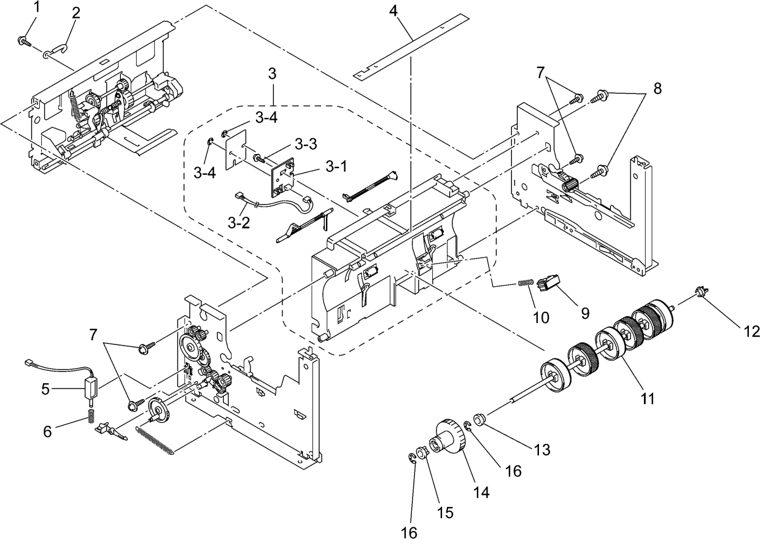

| 4. PAPER TRANSPORT 1 087320616 TAPTITE, CUP S M3X6 2 LE2489001 CABLE CLIP 3 LE2157001 UPPER PAPER CHUTE ASSY 3-1 UG6609001 PAPER WIDTH/REGISTRATION SENSOR PCB 3-2 LG2022001 PAPER WIDTH/REGISTRATION SENSOR HARNESS 3-3 087270816 TAPTITE, CUP B M2.6X8 3-4 UF0250000 PUSH NUT 3 4 LE2169001 CHUTE FILM 5 LE2481001 SOLENOID 6 UD4319001 SOLENOID SPRING 7 087320616 TAPTITE, CUP S M3X6 8 087311016 TAPTITE, CUP B M3X10 9 LE2208001 SEPARATION PAD HOLDER ASSY 10 LE2211001 SEPARATION PAD SPRING 11 LE2213001 PAPER PICK-UP ROLLER ASSY 12 UU1290001 PAWLED BUSHING 13 UF8105001 CONDUCTIVE BUSHING 14 LE2220001 PAPER PICK-UP ROLLER GEAR ASSY 15 LE2482001 COLLAR STOPPER 16 048050346 RETAINING RING, E5 |  |

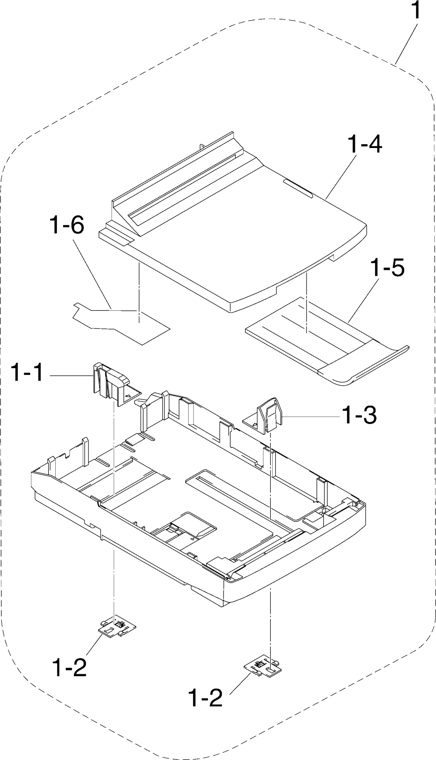

| 5. PAPER CASSETTE 1 LE2228001 PAPER CASSETTE ASSY 1-1 LE2234001 SIDE PAPER GUIDE 1-2 LE2235001 GUIDE STOPPER 1-3 LE2236001 FRONT PAPER GUIDE 1-4 LE2239001 CASSETTE COVER 1-5 LE2856001 PAPER EJECT SUB TRAY 1-6 LE2490001 CASSETTE GUIDE FILM |  |

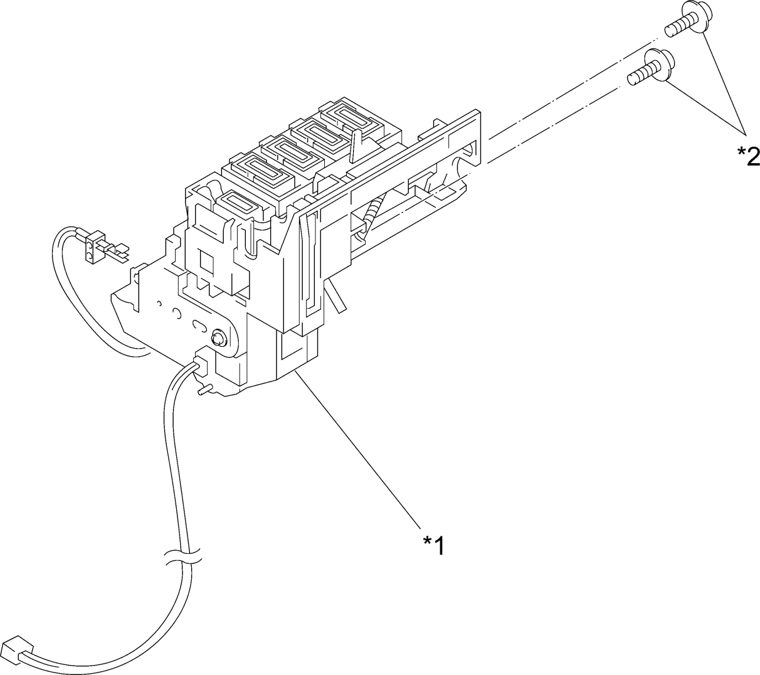

| 6. PURGE UNIT *1 LE2242001 PURGE UNIT ASSY *2 0A5300605 SCREW, PAN (S/P WASHER) M3X6 |  |

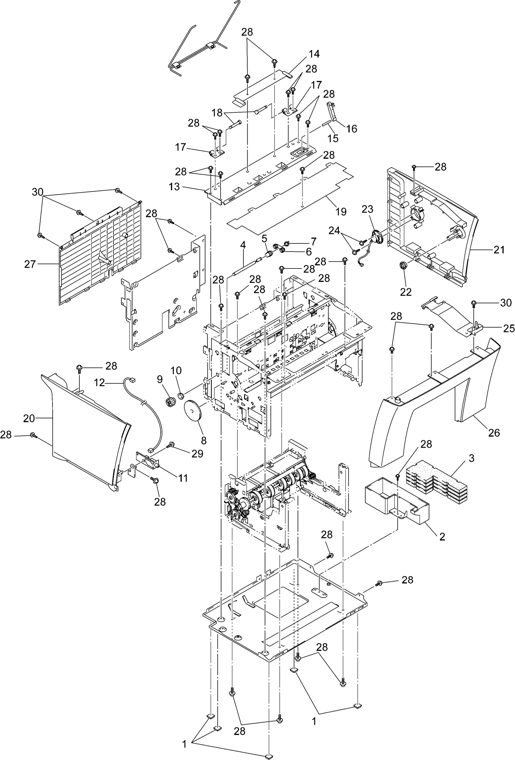

| 7. COVER 1 UL5600001 RUBBER FOOT 2 LE2246001 DRAIN TANK 3 UU1198001 INK ABSORBER 4 LE2223001 PAPER FEED SHAFT ASSY 5 LE2225001 GEAR M0.5/25 6 LE2226001 ONE WAY ARM ASSY 7 UU1290001 CONDUCTIVE BUSHING 8 LE2221001 IDLE GEAR 9 LE2222001 GEAR M0.6/25 10 UF0022000 BUSHING 11 UG5717001 VC CONNECTOR PCB ASSY 12 LG2195001 VC HARNESS 13 LE2248001 REAR FRAME 14 LE2577001 TORSION BAR SUPPORT 15 LE2773001 LINK SHAFT 16 LE2758001 LINK 17 LE2252001 HINGE PLATE 18 LE2253001 PIVOT PIN 19 LE2545001 COVER SHEET 20 LE3427001 SIDE COVER L, WHITE(1495) 21 LE2263001 SIDE COVER R, WHITE(1495) 22 LE2264001 OPEN BUTTON 23 LG2187001 SPEAKER 24 UU1225001 TAPTITE, CUP B M4X10 25 LE2265001 INNER COVER, WHITE(1495) 26 LE3471001 FRONT COVER, WHITE(1495) 27 LE2267001 REAR COVER, WHITE(1495) FOR US/CAN 27 LE2499001 REAR COVER, WHITE(1495) FOR ARL/NZ/ASA 28 087320616 TAPTITE, CUP S M3X6 29 087310815 TAPTITE, CUP B M3X8 30 087321016 TAPTITE, CUP S M3X10 |  |

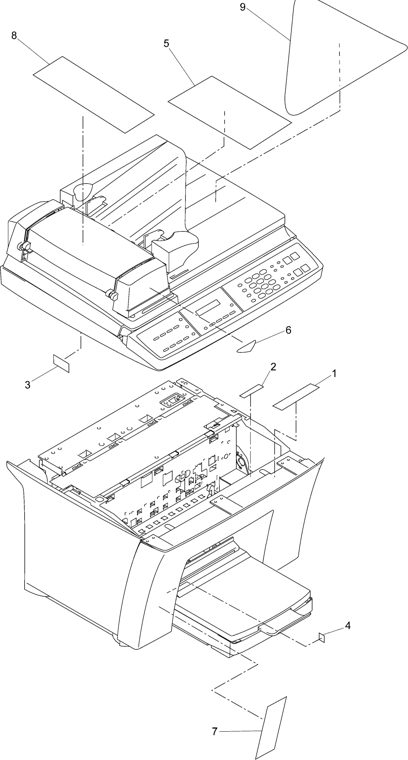

| 8. LABEL 1 UU1235001 INK REPLACEMENT INSTRUCTION LABEL 2 UU1236001 HEAD GAP ADJUSTMENT INSTRUCTION LABEL 3 LE2807001 SCANNER LOCK EXPLANATION LABEL 4 LE2859001 PAPER JAM CLEARANCE INSTRUCTION LABEL 5 UU0456001 PROTECTION PAPER 6 LE2498001 COLOR MARK FOR ARL/NZ/ASA 6 UU1240001 COLOR MARK FOR US/CAN 7 LE2269001 MYLAR LABEL 9100-1 FOR US/CAN 8 LE2270001 MYLAR LABEL 9100-2 FOR US/CAN 8 LE2270006 MYLAR LABEL 9100-2 FOR ARL/NZ/ASA 9 LE2533001 MYLAR LABEL 9100-3 FOR US/CAN 9 LE2533006 MYLAR LABEL 9100-3 FOR ARL/NZ/ASA |  |

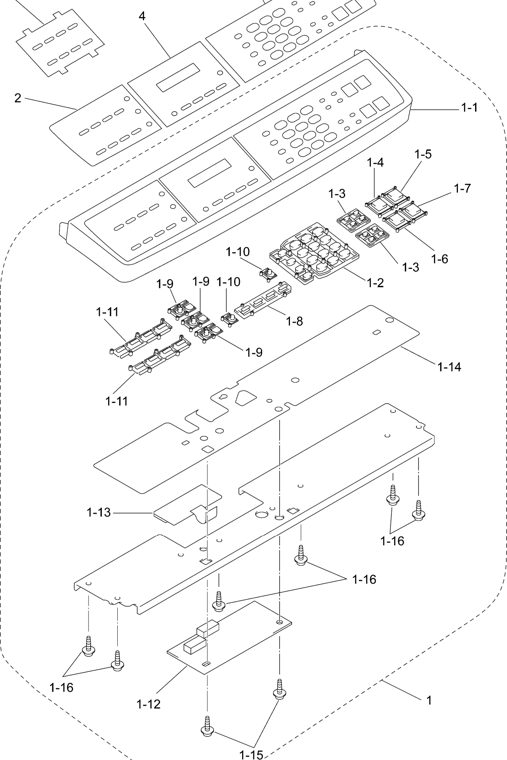

| 9. CONTROL PANEL 1 LE2272001 CONTROL PANEL ASSY, WHITE(1495) 1-1 LE2273001 CONTROL PANEL, WHITE(1495) 1-2 UF4393007 KEY, TEN, WHITE(1495) 1-3 LE2274001 KEY, COPY/FAX AREA, WHITE(1495) 1-4 UF8174008 KEY, MONO COPY, WHITE(1495) 1-5 UF8174009 KEY, COLOR COPY, GREEN(5159) 1-6 UF8174010 KEY, STOP, PINK(2205) 1-7 UF8174011 KEY, START, PURPLE(6255) 1-8 UF8176009 KEY, FUNCTION4, GRAY(1509) 1-9 UF4576008 KEY, SHIFT, WHITE(1495) 1-10 UF4576010 KEY, SHIFT, GRAY(1509) 1-11 UF9118006 KEY, ONE TOUCH, WHITE(1495) 1-12 LG2138001 CONTROL PANEL PCB ASSY 1-13 UG4552000 LCD 1-14 LG2190001 FPC KEY ASSY 1-15 087270815 TAPTITE, CUP B M2.6X8 1-16 087310615 TAPTITE, CUP B M3X6 2 LE2277001 PANEL SHEET-1 3 LE2278001 PANEL SHEET-2 FOR US/CAN 3 LE2844001 PANEL SHEET-2 FOR ARL/NZ/ASA 3 LE3021001 PANEL SHEET-2 FOR ASA 4 LE2279001 LCD SHEET FOR US/CAN 4 LE2845001 LCD SHEET FOR ARL/NZ/ASA 5 LE2280001 ADDRESS LABEL |  |

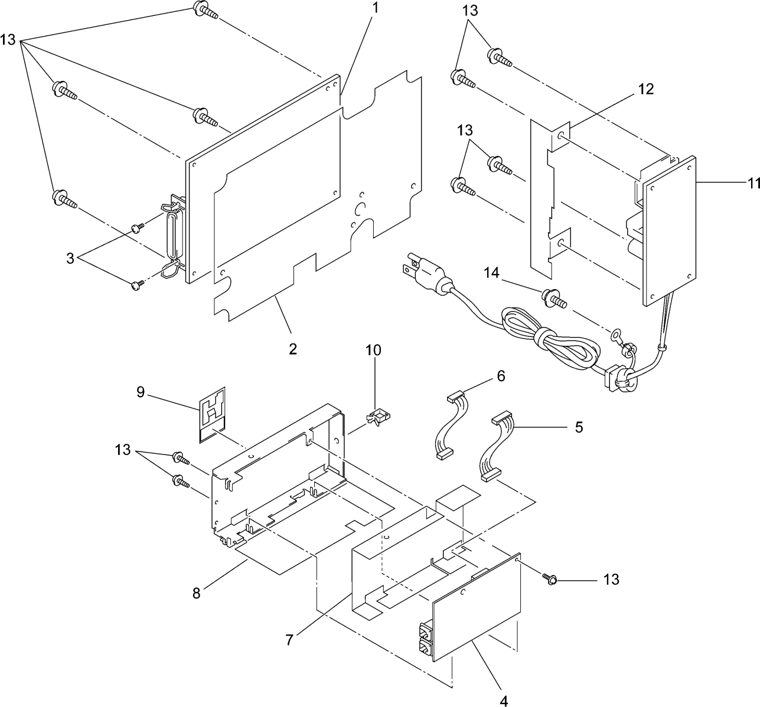

| 10. PCB ASSY 1 LG2026001 MAIN PCB ASSY FOR US/CAN 1 LG2233001 MAIN PCB ASSY FOR ARL/NZ/ASA 1 LG2532001 MAIN PCB ASSY FOR US 2 LE2258001 INSULATION FILM (MAIN) 3 002300615 SCREW, PAN M3X6 4 LG2139001 NCU PCB ASSY FOR US/CAN 4 LG2305040 NCU PCB ASSY FOR ASA 4 LG2311006 NCU PCB ASSY FOR ARL/NZ 5 LG2140001 NCU MAIN HARNESS 6 LG2231001 NCU MAIN HARNESS 2 FOR ARL/NZ/ASA 7 LE2257001 INSULATION FILM (NCU) 8 LE2484001 INSULATION FILM 2 (NCU) 9 LE2543001 CORE SUPPORT 10 UG4163000 CABLE CLAMP 11 LE2878001 POWER SUPPLY PCB, 115V SUPPLY ASSY FOR US/CAN (INCLUDING AC CABLE) 11 UG5570001 POWER SUPPLY PCB, 230V FOR ASA (EXCLUDING AC CABLE) 11 UG5573001 POWER SUPPLY PCB, 230V FOR ARL/NZ (EXCLUDING AC CABLE) 12 LE2483001 INSULATION FILM (POWER SUPPLY) 13 087320616 TAPTITE, CUP S M3X6 14 UF6559001 SCREW, PAN (WASHER) M4X8DB |  |

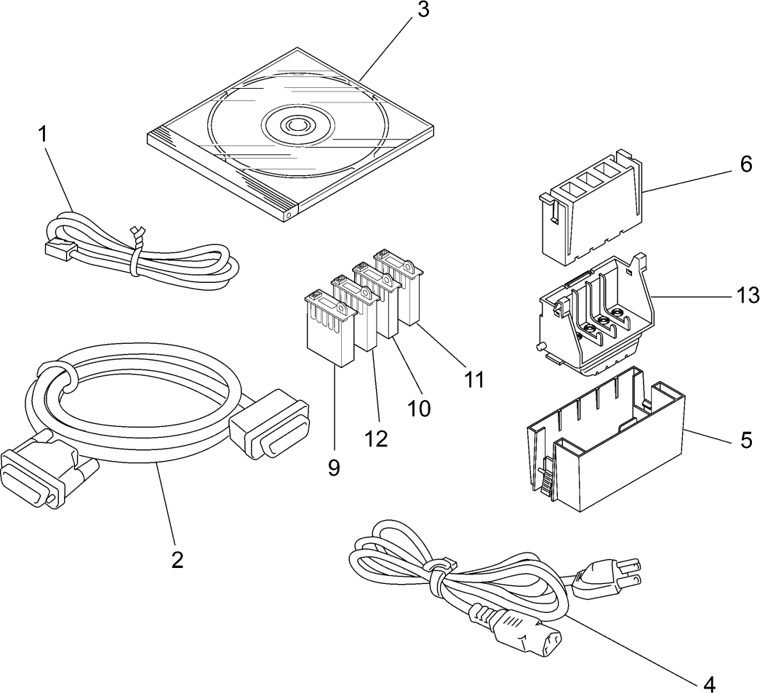

| 11. ACCESSORIES&OTHERS 1 LG3077001 TELEPHONE LINE CORD FOR US/CAN 1 UG1570001 TELEPHONE LINE CORD FOR ASA 1 UG3290001 TELEPHONE LINE CORD FOR NZ 1 UG3628001 TELEPHONE LINE CORD FOR ARL 2 UG4558001 INTERFACE CABLE 3 LE2281001 CD-ROM ASSY FOR US/CAN 3 LE2846001 CD-ROM ASSY ARL/NZ/ASA 4 LG2086001 AC CORD FOR ASA 4 LG2162001 AC CORD FOR ARL/NZ 5 ZA0423001 HEAD NOZZLE SEALS (INCLUDING 10PCS) 6 ZA0424001 HEAD FILTER SEALS (INCLUDING 10PCS) (7) ZA0310001 HEAD CLEANER STICK ASSY (8) ZA0509001 INITIAL LIQUID CARTRIDGE ASSY (INCLUDING 4 EMPTY CARTRIDGES) 9 ZA0492001 BLACK INK CARTRIDGES (INCLUDING 100PCS) <Eliminated> 10 ZA0495001 CYAN INK CARTRIDGES (INCLUDING 100PCS) <Eliminated> 11 ZA0498001 MAGENTA INK CARTRIDGES (INCLUDING 100PCS) <Eliminated> 12 ZA0501001 YELLOW INK CARTRIDGES (INCLUDING 100PCS) <Eliminated> 13 LK0045001 PRINT HEADS HD002 (INCLUDING 10PCS) (14) ZA0304001 INITIAL LIQUID ASSY (INCLUDING INITIAL LIQUID (120CC) AND SYRINGE (25CC)) (15) LE0026001 FOAM EMPTY CARTRIDGE FOR INK SENSOR ADJUSTMENT (16) LE0025001 EMPTY CARTRIDGE FOR INK SENSOR ADJUSTMENT (17) UF9258001 COLOR TEST CHART CTC-001 (18) UF4600001 CONTRAST CHECK CHART TC-023 |  |
