IBM Infoprint 1532, 1552, 1572 (4536 4537 4538) Parts

Please call for parts assistance

Assembly 1: Covers 1 40X0001 Fuser wiper cover assembly Lexmark 40X0001 Fuser Wiper Cover Assembly New 40X0001 41X6400 (New) $25.00 Lexmark 40X0001 Fuser Wiper Cover Assembly Fully refurbished with 90-day warranty 40X0001 41X6400 Contact for Details 2 40X0002 Redrive cap cover assembly Lexmark 40X0002 Redrive cap cover assembly Fully refurbished with 90-day warranty 40X0002 $11.20 3 40X0003 Laser cover assembly—250-sheet output, 1532 Lexmark 40X0003 Laser Cover Assembly New 40X0003 (New) $39.00 Lexmark 40X0003 Laser Cover Assembly Fully refurbished with 90-day warranty 40X0003 $24.00 3 40X0004 Laser cover assembly—500-sheet output, 1552/1572 Lexmark 40X0004 Laser Cover Assembly (500) New 40X0004 (New) $34.00 4 40X0050 Counterbalance spring Lexmark 40X0050 Counterbalance spring Fully refurbished with 90-day warranty 40X0050 $7.00 5 40X0005 Paper support Lexmark 40X0005 Paper support Fully refurbished with 90-day warranty 40X0005 $12.00 6 40X0006 Upper front cover hinge assembly, includes: (cid:127) USB cable (1) (cid:127) Cover open switch and cable (1) (cid:127) Left cable cover (1) (cid:127) Right cable cover (1) (cid:127) Left hinge spring (1) (cid:127) Right hinge spring (1) Lexmark 40X0006 Upper Front Cover Hinge Assembly Fully refurbished with 90-day warranty 40X0006 $20.50 Lexmark 40X0006 Upper Front Cover Hinge Assembly New 40X0006 (New) $36.00 7 40X0007 Right side cover—250-sheet output, 1532 Lexmark 40X0007 Right Side Cover 250-Sheet Fully refurbished with 90-day warranty 40X0007 I $75.00 7 40X0008 Right side cover—500-sheet output, 1552/1572 Lexmark 40X0008 Right side cover 500 Fully refurbished with 90-day warranty 40X0008 $23.71 Lexmark 40X0008 Right Side Cover 500-Sheet Output New 40X0008 (New) Contact for Details 8 40X0011 Upper cover latch/spring Lexmark 40X0011 Upper cover latch with spring Fully refurbished with 90-day warranty 40X0011 $12.69 9 40X0017 Lower front cover assembly Lexmark 40X0017 Lower Front Cover New 40X0017 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X0017 Lower Front Cover Fully refurbished with 90-day warranty 40X0017 $39.50 10 40X0151 USB board assembly Lexmark 40X0151 USB Board Assembly Fully refurbished with 90-day warranty 40X0151 $15.69 11 40X0010 Upper front cover assembly with IBM logo, including (cid:127) Operator panel board (1) (cid:127) Stop button (1) (cid:127) Menu button (1) (cid:127) Back button (1) (cid:127) LED cap (1) (cid:127) Navigation buttons (4) (cid:127) Number pad buttons (1) (cid:127) Navigation select button (1) (cid:127) Number pad rubber dome sheet (1) (cid:127) USB board (1) (cid:127) Functional rubber sheet (1) Lexmark 40X0010 Upper front cover assembly with IBM logo Fully refurbished with 90-day warranty 40X0010 I Contact for Details Lexmark 40X0010 Upper front cover assembly New 40X0010 (New) $174.47 12 40X0244 Operator panel outer bezel with IBM logo, Infoprint 1532 Lexmark 40X0244 Operator Panel Outer Bezel With IBM Logo Infoprint 1532 Fully refurbished with 90-day warranty 40X0244 I $45.00 12 40X0245 Operator panel outer bezel with IBM logo Infoprint 1552 40X0245 Operator Panel Outer Bezel With IBM logo Infoprint 1552 Fully refurbished with 90-day warranty 40X0245 I Contact for Details 12 40X0246 Operator panel outer bezel with IBM logo Infoprint 1572 40X0246 Operator Panel Outer Bezel With IBM logo Infoprint 1572 Fully refurbished with 90-day warranty 40X0246 I Contact for Details 13 40X0013 Clear LCD bezel Lexmark 40X0013 Clear LCD bezel New 40X0013 (New) $10.96 14 40X0235 Kit, upper front panel button, including: (cid:127) Stop button (1) (cid:127) Menu button (1) (cid:127) Back button (1) (cid:127) LED cap (1) (cid:127) Navigation buttons (4) (cid:127) Number pad buttons (1) (cid:127) Navigation select button (1) (cid:127) Number pad rubber dome sheet (1) (cid:127) Functional rubber sheet (1) 15 40X0195 Operator panel board assembly Lexmark 40X0195 Operator Panel Board Fully refurbished with 90-day warranty 40X0195 Advanced Exchange Contact for Details Lexmark 40X0195 Operator Panel Board New 40X0195 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details 16 40X0009 TLI/ID/serial number label—blank Lexmark 40X0009 TLI ID serial number label -blank Fully refurbished with 90-day warranty 40X0009 Contact for Details 17 40X0020 Left side door cover, 250-sheet—1-slot, 1532 Lexmark 40X0020 Left side door cover 250 Fully refurbished with 90-day warranty 40X0020 Contact for Details Lexmark 40X0020 Left side door cover 250-sheet 1-slot 000/010 New 40X0020 (New) Contact for Details 17 40X0023 Left side door cover, 500-sheet—2-slot, 1552/1572 Lexmark 40X0023 Left side door cover 500 Fully refurbished with 90-day warranty 40X0023 $24.19 Lexmark 40X0023 Left side door cover 500-sheet 2-slot New 40X0023 (New) $29.50

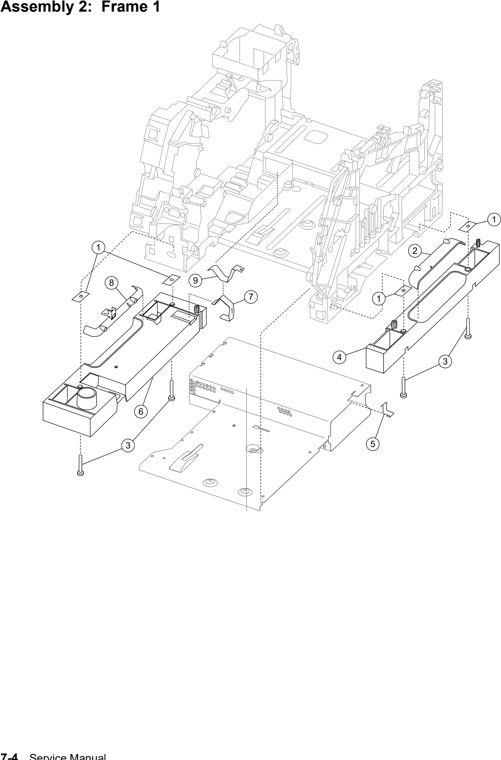

Assembly 2: Frame 1 1 40X0065 Frame extension, nut plate, 1552/1572 Lexmark 40X0065 Frame extension nut plate Fully refurbished with 90-day warranty 40X0065 Contact for Details 2 40X0225 Right side hand holder Lexmark 40X0225 Right side hand holder Fully refurbished with 90-day warranty 40X0225 Contact for Details 4 40X0024 Right frame extension, 1552/1572 Lexmark 40X0024 Right frame extension Fully refurbished with 90-day warranty 40X0024 $10.66 5 40X0026 Right side frame ground contact Lexmark 40X0026 Right side frame ground contact Fully refurbished with 90-day warranty 40X0026 Contact for Details 6 40X0025 Left frame extension, 1552/1572 Lexmark 40X0025 Left frame extension Fully refurbished with 90-day warranty 40X0025 $12.91 7 40X0060 External ground clip Lexmark 40X0060 External ground clip Fully refurbished with 90-day warranty 40X0060 Contact for Details 8 40X0331 Left side hand holder Lexmark 40X0331 Left side hand holder Fully refurbished with 90-day warranty 40X0331 Contact for Details 9 40X0285 Frame clip Parts catalog 7-5 Lexmark 40X0285 Frame clip Fully refurbished with 90-day warranty 40X0285 Contact for Details Lexmark 40X0285 Frame Clip New 40X0285 (New) Retired, no longer available: Contact for alternatives Contact for Details

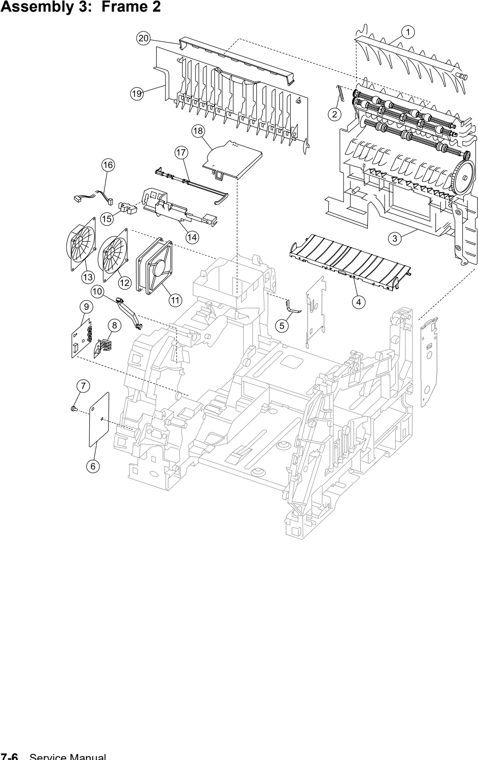

Assembly 3: Frame 2 1 40X0027 Upper redrive deflector Lexmark 40X0027 Upper Redrive Deflector Fully refurbished with 90-day warranty 40X0027 Contact for Details 2 40X0028 Upper diverter spring Lexmark 40X0028 Upper diverter spring New 40X0028 (New) $15.00 3 40X0029 Redrive assembly—250-sheet in/250 out, 1532 Lexmark 40X0029 250 Sheet Redrive Assembly Fully refurbished with 90-day warranty 40X0029 Includes Spring Contact for Details Lexmark 40X0029 250 Sheet Redrive Assembly New 40X0029 Includes Spring (New) $99.00 3 40X0030 Redrive assembly—500-sheet in/500 out, 1552/1572 Lexmark 40X0030 Redrive Assembly 500-Sheet In 500 Out New 40X0030 Includes Spring 40X0028 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X0030 Redrive Assembly 500-Sheet In 500 Out Fully refurbished with 90-day warranty 40X0030 Includes Spring 40X0028 $63.00 4 40X0032 Transfer deflector Lexmark 40X0032 Transfer deflector New 40X0032 (New) $16.82 5 40X0055 Left side frame ground contact Lexmark 40X0055 Left side frame ground contact Fully refurbished with 90-day warranty 40X0055 $81.25 6 40X0044 Gear guard Lexmark 40X0044 Gear guard Fully refurbished with 90-day warranty 40X0044 Contact for Details 8 40X0048 Paper switch activate spring Lexmark 40X0048 Paper switch activate spring Fully refurbished with 90-day warranty 40X0048 $17.22 9 40X0046 Paper size sensing board assembly Lexmark 40X0046 Paper Size Sensing Board Assembly Fully refurbished with 90-day warranty 40X0046 UJ395 $19.00 10 40X0049 Gear release link Lexmark 40X0049 Gear release link Fully refurbished with 90-day warranty 40X0049 $26.47 11 40X0053 Main fan with cable—250-sheet output Lexmark 40X0053 Main fan with cable 250-sheet output Fully refurbished with 90-day warranty 40X0053 $15.00 Lexmark 40X0053 Main fan with cable - 250-sheet New 40X0053 (New) Retired, no longer available: Contact for alternatives Contact for Details 11 40X0054 Main fan with cable—500-sheet output Lexmark 40X0054 Main Fan With Cable 500-Sheet Output Fully refurbished with 90-day warranty 40X0054 $20.00 Lexmark 40X0054 Main Fan With Cable 500-Sheet New 40X0054 (New) Retired, no longer available: Contact for alternatives Contact for Details 12 40X0212 Main fan duct, 1552/1572 Lexmark 40X0212 Main Fan Duct Fully refurbished with 90-day warranty 40X0212 Contact for Details 13 40X0211 Main fan duct, 1532 Lexmark 40X0211 Main fan duct Fully refurbished with 90-day warranty 40X0211 Contact for Details 14 40X0052 Standard bin level sensor bracket Lexmark 40X0052 Standard bin level sensor bracket Fully refurbished with 90-day warranty 40X0052 Contact for Details 15 40X0051 Standard bin level sensor Lexmark 40X0051 Standard bin level sensor Fully refurbished with 90-day warranty 40X0051 Contact for Details 16 40X0264 Standard bin level sensor cable Lexmark 40X0264 Standard Bin Level Sensor Cable New 40X0264 (New) $15.98 Lexmark 40X0264 Output Bin Level Sensor Cable Fully refurbished with 90-day warranty 40X0264 $12.00 17 40X0057 Output paper level flag, 1532 Lexmark 40X0057 Output paper level flag Fully refurbished with 90-day warranty 40X0057 $11.00 17 40X0058 Output paper level flag, 1552/1572 Lexmark 40X0058 Output Paper Level Flag New 40X0058 (New) $7.75 18 40X0210 Main fan cap Lexmark 40X0210 Main fan cap Fully refurbished with 90-day warranty 40X0210 Contact for Details 19 40X0056 Redrive door assembly 250 sheet 1532 Lexmark 40X0056 Redrive door assembly 250 sheet Fully refurbished with 90-day warranty 40X0056 $39.97 19 40X0232 Redrive door assembly 500 sheet 1552/1572 Lexmark 40X0232 Redrive Door Assembly 500 Sheet Fully refurbished with 90-day warranty 40X0232 Includes paper guide $49.00 20 40X0059 Extension guide Parts catalog 7-7 Lexmark 40X0059 Extension guide Fully refurbished with 90-day warranty 40X0059 Contact for Details

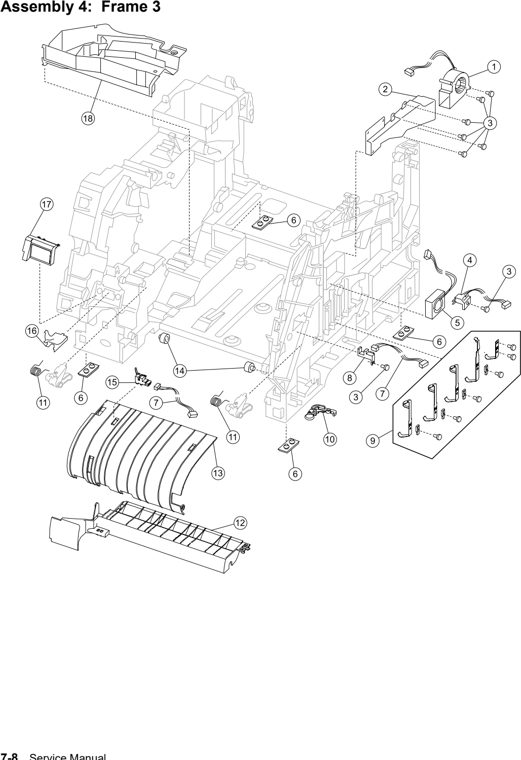

Assembly 4: Frame 3 1 40X0235 EP DC fan assembly, 1552/1572 2 40X0208 Blower duct, 1552/1572 Lexmark 40X0208 Blower duct Fully refurbished with 90-day warranty 40X0208 Contact for Details 4 40X0034 Signature button sensor assembly Lexmark 40X0034 Signature button sensor assembly Fully refurbished with 90-day warranty 40X0034 Contact for Details 5 40X0035 EP DC fan assembly, 1532 Lexmark 40X0035 EP DC fan assembly with cable 000/010 250 Fully refurbished with 90-day warranty 40X0035 Contact for Details Lexmark 40X0035 EP DC fan assembly with cable 000/010 250 New 40X0035 (New) Retired, no longer available: Contact for alternatives Contact for Details 6 40X0033 Machine mounting pad Lexmark 40X0033 Machine mounting pad Fully refurbished with 90-day warranty 40X0033 Contact for Details 7 40X0223 HVPS/input sensor/toner sensor cable assembly Lexmark 40X0223 Front cable harness (HVPS input sensor toner sensor) Fully refurbished with 90-day warranty 40X0223 Contact for Details 8 40X0036 Toner sensor assembly Lexmark 40X0036 Toner Sensor Assembly New 40X0036 (New) $19.00 9 40X0306 High voltage contact kit, including: (cid:127) Charge roll contact (1) (cid:127) Doc/TAR/Dev contact (3) (cid:127) PC drum contact (1) (cid:127) Screw (5) (cid:127) Screw block (4) Lexmark 40X0306 High Voltage Contact Kit Fully refurbished with 90-day warranty 40X0306 $19.71 Lexmark 40X0306 High Voltage Contact Kit New 40X0306 99a0585 (New) $34.71 10 40X0213 Tray bias assembly Lexmark 40X0213 Tray bias assembly Fully refurbished with 90-day warranty 40X0213 Contact for Details 11 40X0021 Cartridge holddown assembly 12 40X0040 Upper paper feed deflector Lexmark 40X0040 Upper Paper Feed Deflector Fully refurbished with 90-day warranty 40X0040 Contact for Details 13 40X0041 Inner paper feed deflector, 1532 Lexmark 40X0041 Inner paper feed deflector Fully refurbished with 90-day warranty 40X0041 Contact for Details 13 40X0042 Inner paper feed deflector, 1552/1572 Lexmark 40X0042 Inner Paper Feed Deflector Fully refurbished with 90-day warranty 40X0042 $15.00 14 40X0039 Developer support roller Lexmark 40X0039 Developer support roller Fully refurbished with 90-day warranty 40X0039 Contact for Details 15 40X0043 Input sensor Lexmark 40X0043 Input Sensor New 40X0043 (New) $11.77 16 40X0209 Gear #60 MPF shield 17 40X0045 ESD shield with label Lexmark 40X0045 ESD shield with label Fully refurbished with 90-day warranty 40X0045 Contact for Details 18 40X0207 EP duct Parts catalog 7-9 Lexmark 40X0207 EP duct Fully refurbished with 90-day warranty 40X0207 Contact for Details

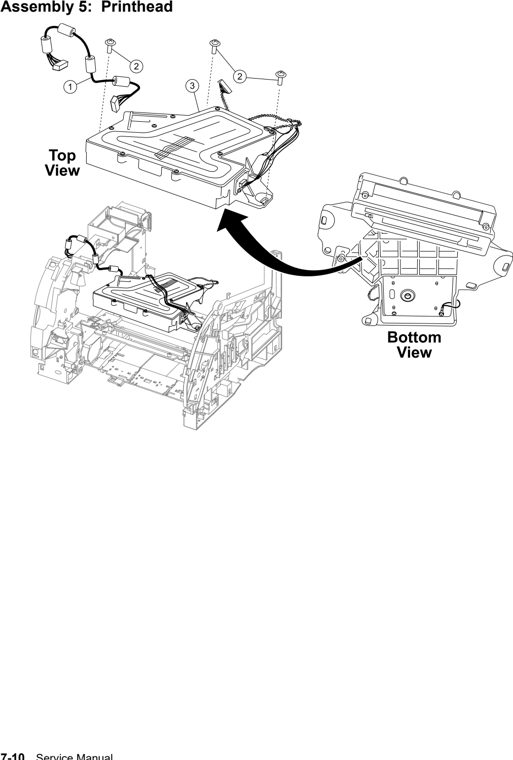

Assembly 5: Printhead 1 40X0061 Laser cable assembly Lexmark 40X0061 Laser cable assembly New 40X0061 (New) $15.98 3 40X0062 Printhead assembly (includes all cables) Lexmark 40X0062 Printhead assembly New 40X0062 20G0990 (New) Contact for Details Lexmark 40X0062 Printhead Assembly New 40X0062 20G0990 Advanced Exchange (New) Contact for Details Lexmark 40X0062 Printhead Assembly Fully refurbished with 90-day warranty 40X0062 20G0990 $45.00

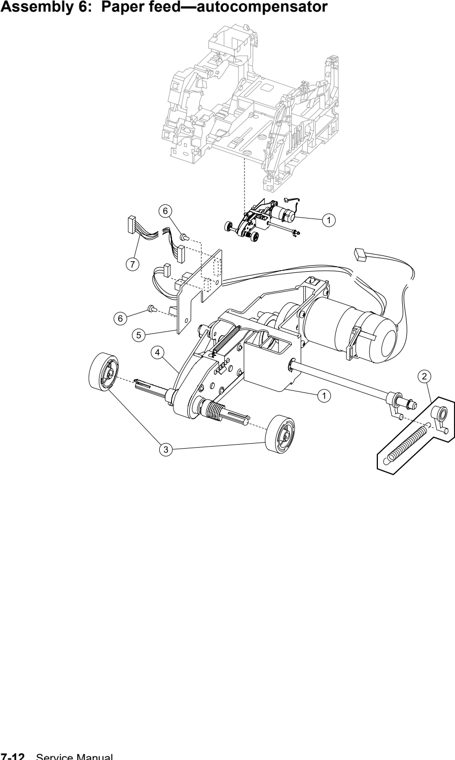

Assembly 6: Paper feed—autocompensator 1 40X0066 Pick arm assembly—500-sheet, 1552/1572 Lexmark 40X0066 500 Sheet Pick Arm Assembly New 40X0066 (New) Contact for Details Lexmark 40X0066 500 Sheet Pick Arm Assembly Fully refurbished with 90-day warranty 40X0066 $38.00 1 40X0067 Pick arm assembly—250-sheet, 1532 Lexmark 40X0067 250 Sheet Pick Arm Assembly New 40X0067 (New) $199.00 2 40X0068 Parts packet, bellcrank assembly—250-sheet tray, 1532 (cid:127) Bellcrank (1) (cid:127) Spring (1) Lexmark 40X0068 Parts packet bellcrank assembly 250-sheet tray Fully refurbished with 90-day warranty 40X0068 Contact for Details 2 40X0069 Parts packet, bellcrank assembly for—500-sheet tray, 1552/1572 (cid:127) Bellcrank (1) (cid:127) Spring (1) Lexmark 40X0069 Parts packet bellcrank assembly, 500-sheet tray Fully refurbished with 90-day warranty 40X0069 Contact for Details 3 40X0070 Pick roll assembly Lexmark 40X0070 Pick roll assembly - set of two New 40X0070 40X4308 CET5894 (New) $18.95 4 40X0071 Paper out flag—250-sheet tray, 1532 Lexmark 40X0071 Paper Out Flag 250-Sheet Tray Fully refurbished with 90-day warranty 40X0071 $22.00 4 40X0072 Paper out flag—500-sheet tray, 1552/1572 Lexmark 40X0072 Paper Out Flag 500-Sheet Tray Fully refurbished with 90-day warranty 40X0072 $10.00 5 40X0073 Paper low/out sensor card assembly Lexmark 40X0073 Paper low out sensor card assembly Fully refurbished with 90-day warranty 40X0073 Contact for Details 7 40X0074 Paper size/autocompensator cable Parts catalog 7-13 Lexmark 40X0074 Paper size autocompensator cable Fully refurbished with 90-day warranty 40X0074 Contact for Details

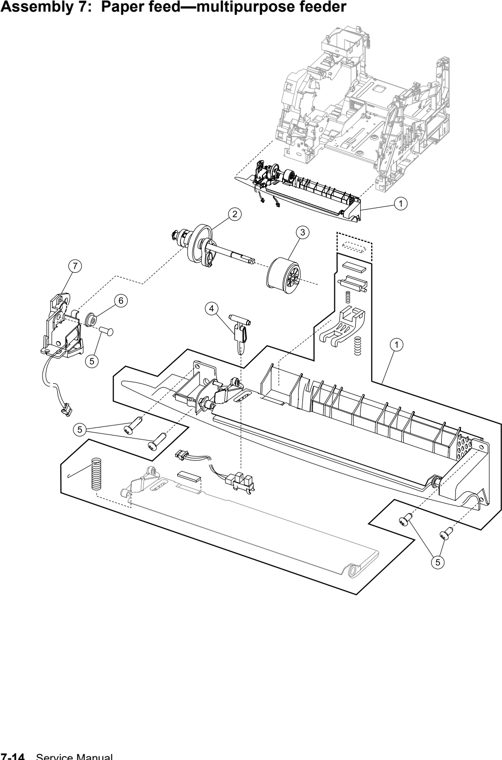

Assembly 7: Paper feed—multipurpose feeder 1 40X0079 Multipurpose feeder lower deflector assembly Lexmark 40X0079 Multipurpose Feeder Lower Deflector Assembly New 40X0079 (New) Contact for Details Lexmark 40X0079 Multipurpose Feeder Lower Deflector Assembly Fully refurbished with 90-day warranty 40X0079 $19.00 2 40X0075 Multipurpose feeder arm assembly Lexmark 40X0075 Multipurpose Feeder Arm Assembly Fully refurbished with 90-day warranty 40X0075 $23.83 3 40X0076 Pick roll assembly Lexmark 40X0076 Pick Roll Assembly New 40X0076 (New) $14.75 4 40X0077 Multipurpose feeder paper out flag Lexmark 40X0077 Multipurpose feeder paper out flag Fully refurbished with 90-day warranty 40X0077 Contact for Details 6 40X0082 Pick roll shaft bushing Lexmark 40X0082 Pick roll shaft bushing Fully refurbished with 90-day warranty 40X0082 Contact for Details 7 40X0083 Multipurpose feeder frame assembly with solenoid Lexmark 40X0083 Multipurpose Feeder Frame Assembly With Solenoid New 40X0083 (New) $23.83

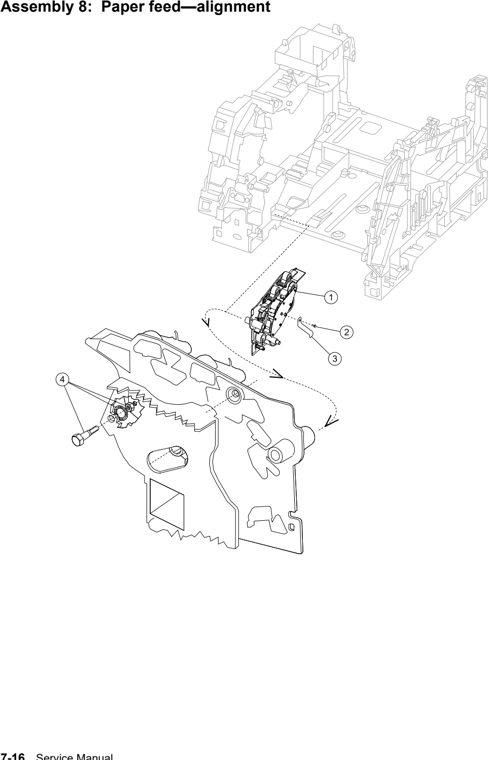

Assembly 8: Paper feed—alignment 1 40X0084 Paper feed alignment assembly paper feed Lexmark 40X0084 Paper Feed Alignment Assembly New 40X0084 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X0084 Paper Feed Alignment Assembly Fully refurbished with 90-day warranty 40X0084 $29.71 3 40X0085 Reference ground clip Lexmark 40X0085 Reference ground clip Fully refurbished with 90-day warranty 40X0085 Contact for Details 4 40X0086 Parts packet (reference adjust) (cid:127) Screw, paper reference adjust (1) (cid:127) Washer, paper reference adjust (1) (cid:127) Nut, paper reference adjust (1) Lexmark 40X0086 Parts packet (reference adjust) Fully refurbished with 90-day warranty 40X0086 Contact for Details

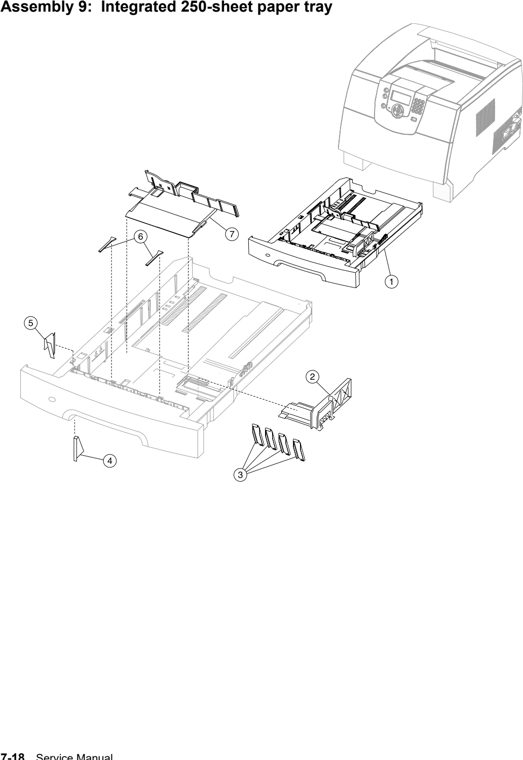

Assembly 9: Integrated 250-sheet paper tray 1 40X0087 Integrated 250-sheet tray Lexmark 40X0087 Integrated 250-sheet tray New 40X0087 (New) Contact for Details Lexmark 40X0087 Integrated 250-sheet tray Fully refurbished with 90-day warranty 40X0087 $89.00 2 40X0092 Side restraint—250-sheet tray Lexmark 40X0092 Restraint pad Fully refurbished with 90-day warranty 40X0092 Contact for Details 3 40X0093 Wear strips Lexmark 40X0093 4 Wear strips New 40X0093 (New) $13.02 4 40X0263 Pass thru plate—250-sheet tray Lexmark 40X0263 Pass thru plate 250-sheet tray Fully refurbished with 90-day warranty 40X0263 Contact for Details 5 40X0094 Wear plate—250-sheet tray Lexmark 40X0094 Wear plate 250-sheet tray Fully refurbished with 90-day warranty 40X0094 Contact for Details 6 40X0091 Restraint pad 7 40X0090 Back restraint—250-sheet tray Parts catalog 7-19 Lexmark 40X0090 Back restraint 250-sheet tray Fully refurbished with 90-day warranty 40X0090 Contact for Details

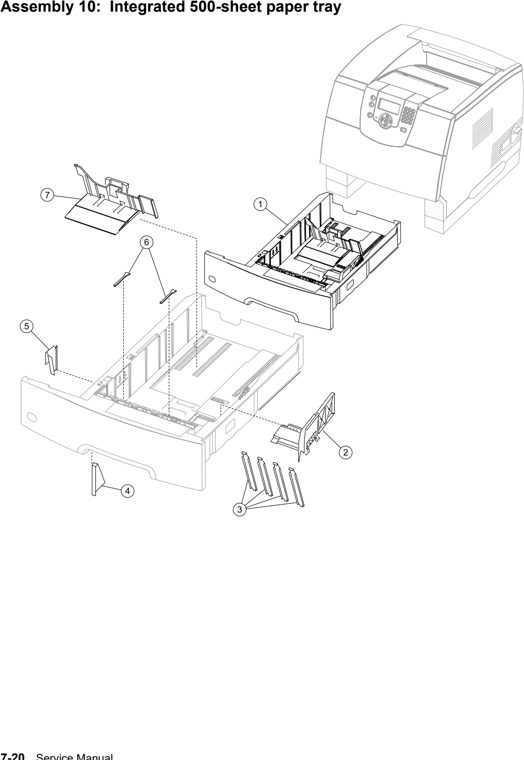

Assembly 10: Integrated 500-sheet paper tray 1 40X0098 Tray assembly—500-sheet tray Lexmark 40X0098 500 Sheet Tray New 40X0098 (New) $119.00 Lexmark 40X0098 500 Sheet Tray Fully refurbished with 90-day warranty 40X0098 $91.20 2 40X0099 Side restraint Lexmark 40X0099 Side Restraint Fully refurbished with 90-day warranty 40X0099 Contact for Details 3 40X0182 Wear strip Lexmark 40X0182 4 Wear Strips New 40X0182 (New) $13.00 4 40X0103 Pass thru plate—500-sheet tray Lexmark 40X0103 Pass thru plate 500-sheet tray Fully refurbished with 90-day warranty 40X0103 Contact for Details 5 40X0183 Wear plate—500-sheet tray Lexmark 40X0183 Wear plate 500-sheet tray Fully refurbished with 90-day warranty 40X0183 Contact for Details 6 40X0105 Restraint pad Lexmark 40X0105 Restraint pad Fully refurbished with 90-day warranty 40X0105 Contact for Details 7 40X0106 Back restraint Parts catalog 7-21 Lexmark 40X0106 Back restraint Fully refurbished with 90-day warranty 40X0106 Contact for Details

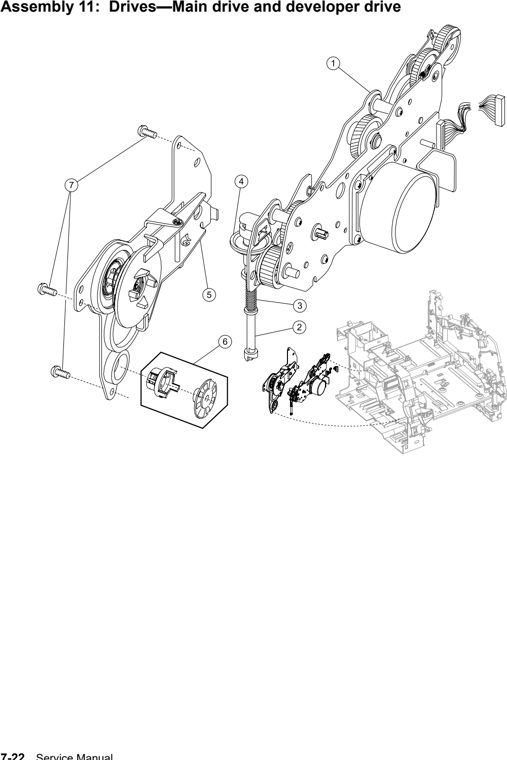

Assembly 11: Drives—Main drive and developer drive 1 40X0107 Gearbox with motor Lexmark 40X0107 Gearbox with motor New 40X0107 (New) Contact for Details Lexmark 40X0107 Gearbox With Motor Fully refurbished with 90-day warranty 40X0107 $79.71 2 40X0110 Power takeoff shaft—250-sheet, 1532 Lexmark 40X0110 Power takeoff shaft 250-sheet Fully refurbished with 90-day warranty 40X0110 Contact for Details 2 40X0111 Power takeoff shaft—500-sheet, 1552/1572 Lexmark 40X0111 Power takeoff shaft 500-sheet Fully refurbished with 90-day warranty 40X0111 Contact for Details 3 40X0112 Power takeoff shaft spring Lexmark 40X0112 Power Takeoff Shaft Spring Fully refurbished with 90-day warranty 40X0112 Contact for Details 4 40X0113 Bevel gear with grease packet and washer (cid:127) Bevel gear (1) (cid:127) Instruction sheet (1) (cid:127) Grease packet (1) Lexmark 40X0113 Bevel Gear Kit New 40X0113 (New) Contact for Details Lexmark 40X0113 Bevel Gear Kit Fully refurbished with 90-day warranty 40X0113 $24.47 5 40X0114 Developer drive assembly Lexmark 40X0114 Developer drive assembly Fully refurbished with 90-day warranty 40X0114 $29.00 6 40X0115 Parts packet, developer drive (cid:127) Developer drive shaft (1) (cid:127) shaft, coupler gear #55 (1) Lexmark 40X0115 Parts packet developer drive Fully refurbished with 90-day warranty 40X0115 Contact for Details

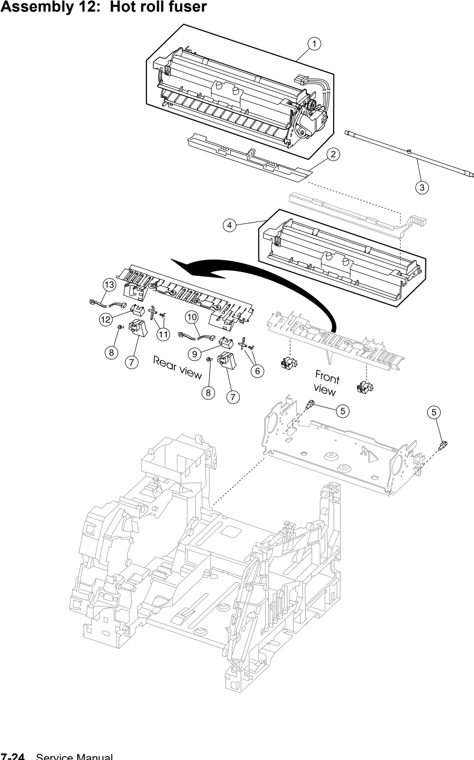

Assembly 12: Hot roll fuser 1 56P4243 Fuser assembly w/115 V lamp 56P4243 Fuser for IBM 15x2 New 56P4243 I Compatible (New) Contact for Details 1 40X0241 Fuser assembly w/100 V lamp 1 40X0117 Fuser assembly w/220 V lamp 2 40X0120 Fuser wiper cavity cover Lexmark 40X0120 Fuser wiper cavity cover Fully refurbished with 90-day warranty 40X0120 Contact for Details 3 40X0122 Fuser lamp, 115V Lexmark 40X0122 Fuser lamp 115V New 40X0122 (New) $35.00 3 40X0123 Fuser lamp, 220V 4 40X0121 Fuser cover assembly kit, including: (cid:127) Thermistor (1) (cid:127) Thermostat (1) (cid:127) Left and right fuser lamp contact assemblies (1) Lexmark 40X0121 Fuser Cover Assembly Fully refurbished with 90-day warranty 40X0121 $7.00 6 40X0239 Exit sensor flag/spring kit, including: (cid:127) Spring (1) (cid:127) Flag (1) 7 40X0236 Exit/narrow media sensor cover Lexmark 40X0236 Exit Narrow Media Sensor Cover New 40X0236 (New) $35.23 9 40X0125 Exit sensor Lexmark 40X0125 Exit sensor Fully refurbished with 90-day warranty 40X0125 Contact for Details 10 40X0330 Exit sensor cable Lexmark 40X0330 Exit sensor cable Fully refurbished with 90-day warranty 40X0330 Contact for Details 11 40X0238 Narrow media flag/spring kit, including: Lexmark 40X0238 Narrow Media Flag/Spring Kit New 40X0238 (New) $20.08 12 40X0124 Narrow media sensor 13 40X0229 Narrow media sensor cable Lexmark 40X0229 Narrow Media Sensor Cable Fully refurbished with 90-day warranty 40X0229 $31.94 NS 40X0226 Fuser AC to fuser lamp cable Parts catalog 7-25

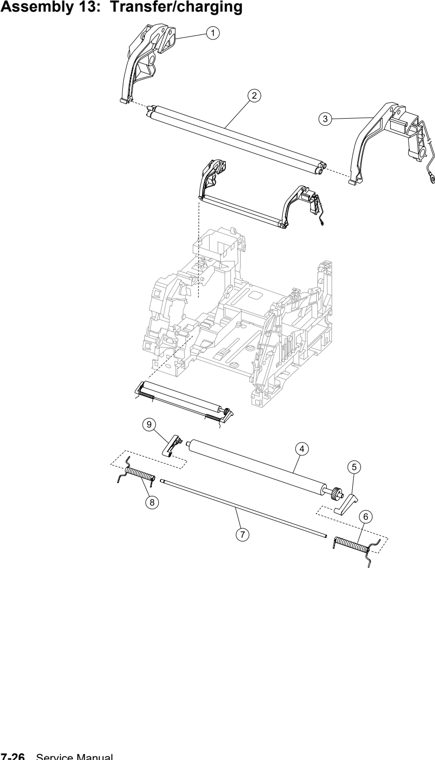

Assembly 13: Transfer/charging 1 40X0126 Parts kit, charge roll link asm, left side Lexmark 40X0126 Parts kit charge roll link asm left side Fully refurbished with 90-day warranty 40X0126 $18.00 2 40X0127 Charge roll assembly, dual Lexmark 40X0127 Charge Roll Assembly Dual New 40X0127 CET1448N Compatible (New) $30.00 3 40X0129 Parts kit, right side charge roll link assembly Lexmark 40X0129 Parts Kit Right Side Charge Roll Link Assembly Fully refurbished with 90-day warranty 40X0129 $19.00 4 40X0130 Transfer roll assembly Lexmark 40X0130 I Transfer Roll New 40X0130 I (New) $32.82 5 40X0131 Transfer roll assembly right arm Lexmark 40X0131 Transfer roll assembly right arm Fully refurbished with 90-day warranty 40X0131 Contact for Details 6 40X0132 Transfer roll right spring Lexmark 40X0132 Transfer roll right spring Fully refurbished with 90-day warranty 40X0132 Contact for Details 7 40X0133 Transfer pivot shaft Lexmark 40X0133 Transfer pivot shaft Fully refurbished with 90-day warranty 40X0133 Contact for Details 8 40X0134 Transfer roll left spring Lexmark 40X0134 Transfer roll left spring Fully refurbished with 90-day warranty 40X0134 Contact for Details 9 40X0135 Transfer roll left arm Lexmark 40X0135 Transfer roll left arm Fully refurbished with 90-day warranty 40X0135 Contact for Details

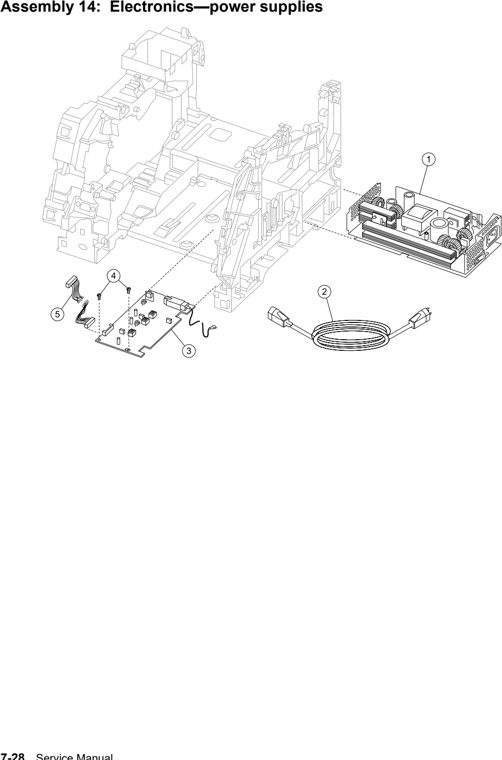

Assembly 14: Electronics—power supplies 1 56P4232 LVPS—115 V ac, 1532 Lexmark 40x0136 Power Supply 115v T640 1532 LVPS New 40X4269 40X0136 56p4232 (New) Contact for Details 1 56P4233 LVPS—220 V ac, 1532 1 56P4234 LVPS—115 V ac, 1552/1572 Lexmark 56P4234 Low Voltage Power Supply LVPS T642/4/1552/1572 Fully refurbished with 90-day warranty 56P4234 $78.50 1 56P4238 LVPS—220 V ac, 1552/1572 2 40X0260 Power cord set (8 ft right angle, 13 amp)—United States, Canada, Caribbean countries, Columbia, Costa Rica, Dominican Republic, El Salvador, Equator, Guatemala, Honduras, Mexico, Nicaragua, Panama, Puerto Rico, Saudi Arabia, Venezuela, and Virgin Islands 2 40X0256 Power cord set (8 ft right angle)—Bolivia and Peru 2 40X0255 Power cord set (8 ft right angle)—Argentina 2 40X0257 Power cord set (8 ft right angle)—Chile, Uruguay 2 40X0258 Power cord set (8 ft right angle)—Arabic, Austria, Belgium, Bluemark, CIS, Czechoslovakia, Denmark, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Medmark, (1 and 2), Netherlands, Norway, Paraguay, Poland, Portugal, Russia, Slavic countries, Spain, Sweden, Turkey, and UK. 2 40X0293 Power cord set (8 ft right angle)—Arabic, Austria, Belgium, Bluemark, CIS, Czechoslovakia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Medmark, (1 and 2), Netherlands, Poland, Portugal, Russia, Slavic countries, Spain, Turkey, and UK. 2 40X0259 Power cord set (6 ft right angle)—Brazil 2 40X0301 Power cord set—AS/NZS 2 40X0271 Power cord set—Hong Kong 2 40X0302 Power cord set—Japan 2 40X0280 Power cord set—Korea 2 40X0303 Power cord set—PRC 2 40X0281 Power cord set—Taiwan 2 40X0294 Power cord set—Denmark, Norway, and Sweden 2 40X0295 Power cord set—Israel 2 40X0304 Power cord set—Botswana, Lesotho, Namibia, Pakistan, and South Africa 2 40X0305 Power cord set—Switzerland 3 56P4244 High voltage power supply 56P4244 High Voltage Power Supply HVPS New 56P4244 (New) Contact for Details 56P4244 High Voltage Power Supply HVPS Fully refurbished with 90-day warranty 56P4244 $49.00 5 40X0223 Front cable harness (HVPS/input sensor/toner sensor) Parts catalog 7-29 Lexmark 40X0223 Front cable harness (HVPS input sensor toner sensor) Fully refurbished with 90-day warranty 40X0223 Contact for Details

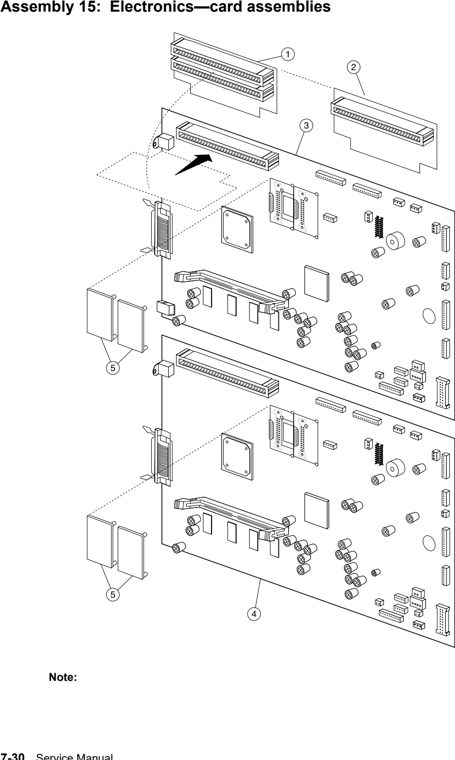

Assembly 15: Electronics—card assemblies 1 40X0146 Interconnect card assembly (2 slot), 1552/1572 Lexmark 40X0146 Interconnect card assembly (2 slot) Fully refurbished with 90-day warranty 40X0146 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $15.00 2 40X0147 Interconnect card assembly (1 slot), 1532 Lexmark 40X0147 Interconnect Board Assembly Fully refurbished with 90-day warranty 40X0147 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $23.25 4 40X0143 System board assembly (network), Infoprint 1532 (Board ID Q0016001) 40X0143 IBM Infoprint 1552n Network System Board (RIP) Fully refurbished with 90-day warranty 40X0143 I This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $159.00 40X0143 Advanced Exchange IBM Infoprint 1552n Network System Board (RIP) Fully refurbished with 90-day warranty 40X0143 I Advanced Exchange This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $159.72 4 40X0144 System board assembly (network), Infoprint 1552 (Board ID Q0016002) Lexmark 40X0144 IBM Infoprint 1572 Non-Network System Board (RIP) Fully refurbished with 90-day warranty 40X0144 I Advanced Exchange This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $109.71 4 40X0145 System board assembly (network), Infoprint 1572 (Board ID Q0016003) 40X0145 IBM Infoprint 1572n Network System Board (RIP) New 40x0145 53p4360 40X3464 40X2527 40X2742 40X5031 40x5298 40X5928 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details Lexmark 40X0145 IBM Infoprint 1572n Network System Board (RIP) Fully refurbished with 90-day warranty 40x0145 53p4360 40X2527 40X3464 40X2742 40X5031 40x5298 40X5928 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $217.00 5 40X0198 Bar code card assembly 5 40X0268 IPDS and SC5/TNe card assembly 5 40X0199 PrintCryption card assembly 5 40X0265 PRESCRIBE card assembly

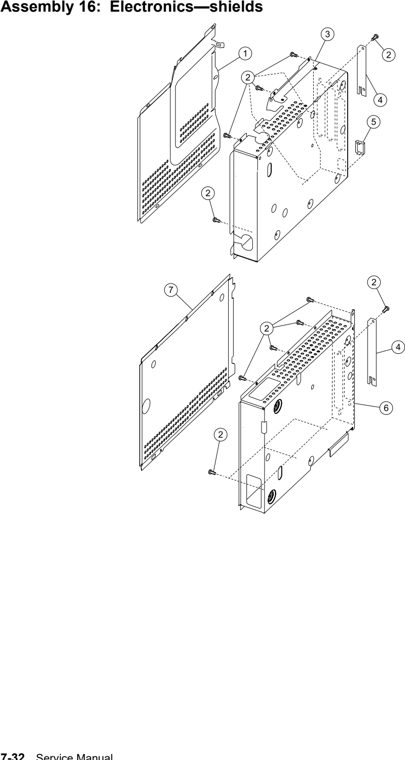

Assembly 16: Electronics—shields 1 40X0150 Outer shield—2 slot, 1552/1572 3 40X0149 Inner shield assembly—2 slot, 1552/1572 4 40X0153 INA flat cover (blank) 5 40X0152 Ethernet shield (blank), 000/200/400 6 40X0154 Inner shield assembly—1 slot. 1532 7 40X0222 Outer shield—1 slot, 1532 Parts catalog 7-33

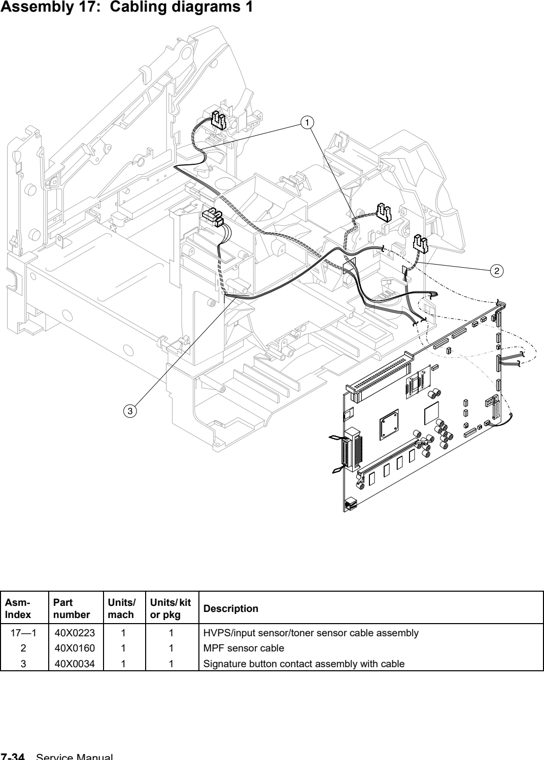

Assembly 17: Cabling diagrams 1 1 40X0223 HVPS/input sensor/toner sensor cable assembly Lexmark 40X0223 Front cable harness (HVPS input sensor toner sensor) Fully refurbished with 90-day warranty 40X0223 Contact for Details 2 40X0160 MPF sensor cable 3 40X0034 Signature button contact assembly with cable Lexmark 40X0034 Signature button sensor assembly Fully refurbished with 90-day warranty 40X0034 Contact for Details

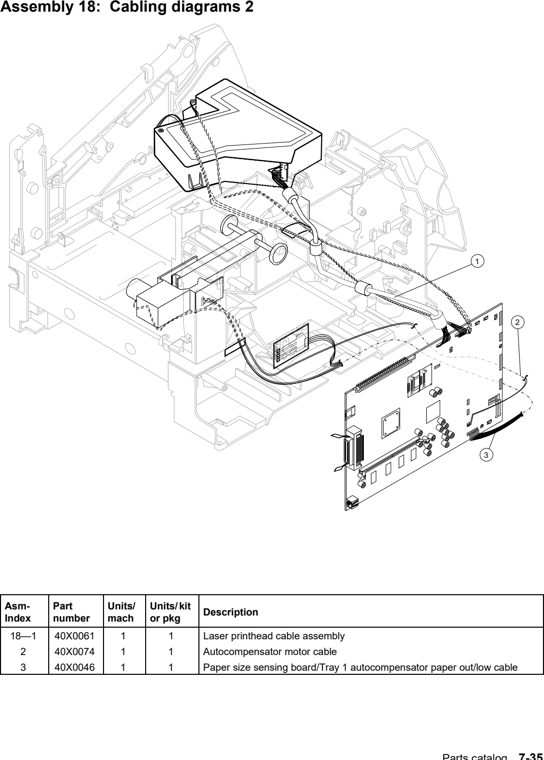

Assembly 18: Cabling diagrams 2 1 40X0061 Laser printhead cable assembly Lexmark 40X0061 Laser cable assembly New 40X0061 (New) $15.98 2 40X0074 Autocompensator motor cable Lexmark 40X0074 Paper size autocompensator cable Fully refurbished with 90-day warranty 40X0074 Contact for Details 3 40X0046 Paper size sensing board/Tray 1 autocompensator paper out/low cable Parts catalog 7-35 Lexmark 40X0046 Paper Size Sensing Board Assembly Fully refurbished with 90-day warranty 40X0046 UJ395 $19.00

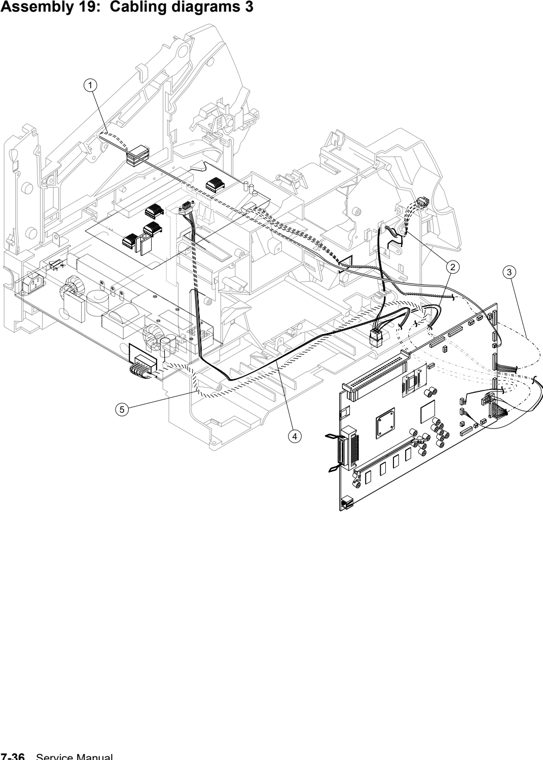

Assembly 19: Cabling diagrams 3 1 40X0034 Signature button contact assembly with cable Lexmark 40X0034 Signature button sensor assembly Fully refurbished with 90-day warranty 40X0034 Contact for Details 2 40X0156 Bottom/front autoconnect cable assembly 3 40X0223 HVPS/input sensor/toner sensor cable assembly Lexmark 40X0223 Front cable harness (HVPS input sensor toner sensor) Fully refurbished with 90-day warranty 40X0223 Contact for Details 4 40X0157 Top autoconnect cable assembly 5 40X0224 LVPS to system board cable assembly Parts catalog 7-37

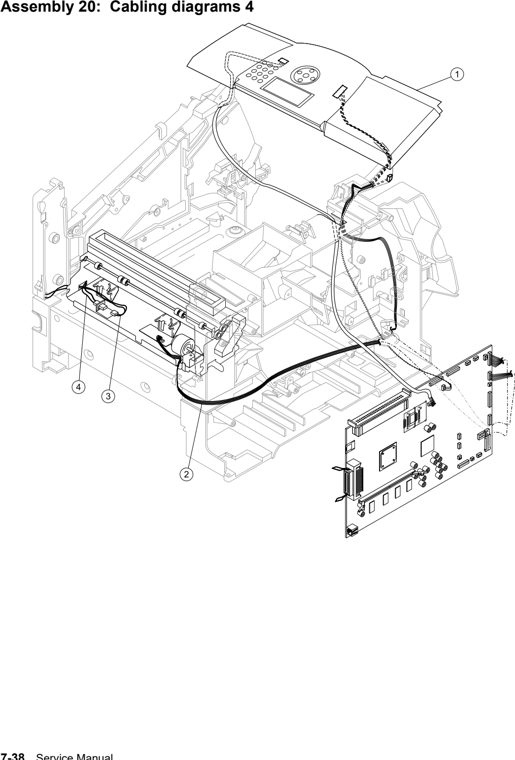

Assembly 20: Cabling diagrams 4 1 40X0006 Upper front cover hinge assembly, includes: (cid:127) USB cable (A) (1) (cid:127) Operator panel cable (B) (1) (cid:127) Cover open switch/cable (C) (1) Lexmark 40X0006 Upper Front Cover Hinge Assembly Fully refurbished with 90-day warranty 40X0006 $20.50 Lexmark 40X0006 Upper Front Cover Hinge Assembly New 40X0006 (New) $36.00 2 40X0162 System board to fuser board cable assembly 3 40X0163 Fuser AC lamp to LVPS cable assembly 4 40X0226 Fuser connector (fuser AC to fuser lamp) Parts catalog 7-39

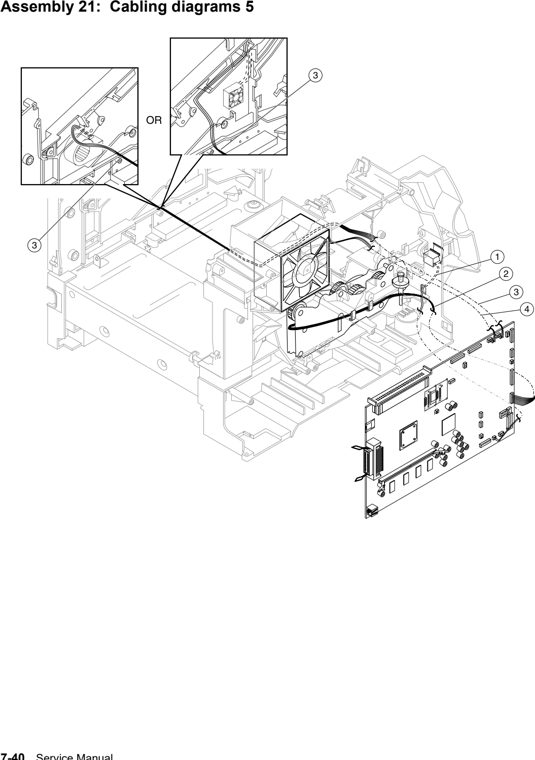

Assembly 21: Cabling diagrams 5 1 40X0083 Frame assembly with solenoid and cable Lexmark 40X0083 Multipurpose Feeder Frame Assembly With Solenoid New 40X0083 (New) $23.83 2 40X0159 Main drive motor cable assembly Lexmark 40X0159 Main drive motor cable assembly Fully refurbished with 90-day warranty 40x0159 Contact for Details 3 40X0035 EP fan with cable—250 sheet, 1532 Lexmark 40X0035 EP DC fan assembly with cable 000/010 250 Fully refurbished with 90-day warranty 40X0035 Contact for Details Lexmark 40X0035 EP DC fan assembly with cable 000/010 250 New 40X0035 (New) Retired, no longer available: Contact for alternatives Contact for Details 3 40X0249 EP fan with cable—500 sheet, 1552/1572 Lexmark 40X0249 EP DC Fan Assembly With Cable - 500-Sheet New 40X0249 (New) $24.50 Lexmark 40X0249 EP DC fan assembly 500 Fully refurbished with 90-day warranty 40X0249 $23.00 4 40X0054 Main fan, 500 sheet Parts catalog 7-41 Lexmark 40X0054 Main Fan With Cable 500-Sheet Output Fully refurbished with 90-day warranty 40X0054 $20.00 Lexmark 40X0054 Main Fan With Cable 500-Sheet New 40X0054 (New) Retired, no longer available: Contact for alternatives Contact for Details

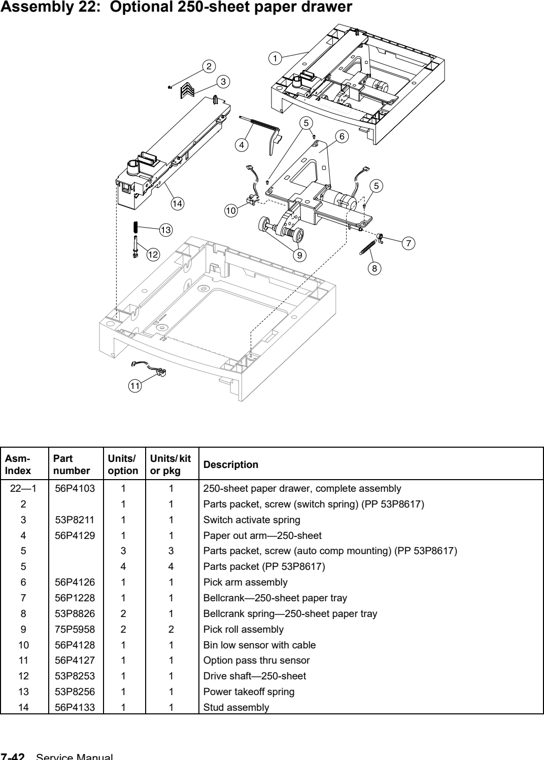

Assembly 22: Optional 250-sheet paper drawer 1 56P4103 250-sheet paper drawer, complete assembly 3 53P8211 Switch activate spring 53P8211 Spring Switch Activate Fully refurbished with 90-day warranty 53P8211 $16.00 4 56P4129 Paper out arm—250-sheet 56P4129 Paper out arm 250-sheet New 56P4129 (New) $44.00 56P4129 Paper out arm 250-sheet Fully refurbished with 90-day warranty 56P4129 $36.00 6 56P4126 Pick arm assembly 56P4126 Pick arm assembly 250-Sheet Drawer New 56P4126 (New) $95.00 56P4126 Pick arm assembly Fully refurbished with 90-day warranty 56P4126 Contact for Details 7 56P1228 Bellcrank—250-sheet paper tray 56P1228 Bellcrank Arm Assembly New 56P1228 (New) $19.00 56P1228 Bellcrank Arm Assembly Fully refurbished with 90-day warranty 56P1228 Contact for Details 8 53P8826 Bellcrank spring—250-sheet paper tray 9 75P5958 Pick roll assembly 75P5958 Pick roll tires (2 per pack) New 75P5958 (New) $16.00 10 56P4128 Bin low sensor with cable 11 56P4127 Option pass thru sensor 12 53P8253 Drive shaft—250-sheet 13 53P8256 Power takeoff spring 53P8256 Spring Power Takeoff Fully refurbished with 90-day warranty 53P8256 $16.00 14 56P4133 Stud assembly

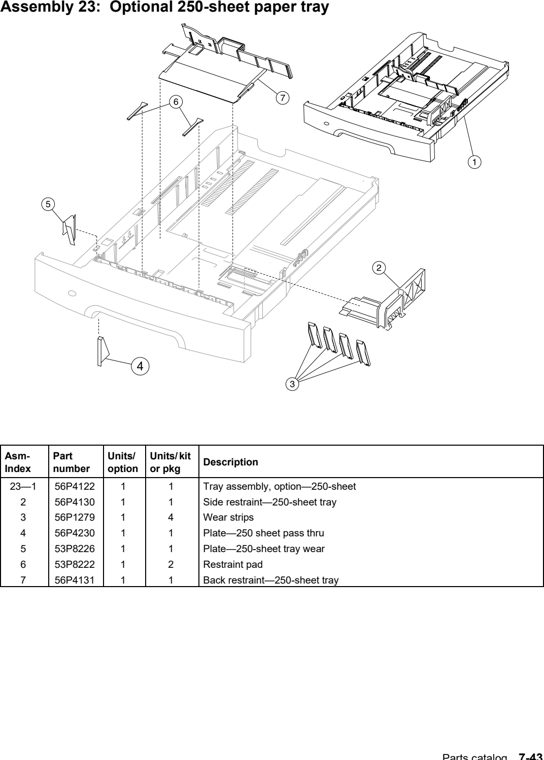

Assembly 23: Optional 250-sheet paper tray 1 56P4122 Tray assembly, option—250-sheet 2 56P4130 Side restraint—250-sheet tray 3 56P1279 Wear strips 4 56P4230 Plate—250 sheet pass thru 5 53P8226 Plate—250-sheet tray wear 53P8226 Restraint Pad Fully refurbished with 90-day warranty 53P8226 $20.00 6 53P8222 Restraint pad 53P8222 Spring, Upper Diverter Fully refurbished with 90-day warranty 53P8222 Contact for Details 7 56P4131 Back restraint—250-sheet tray Parts catalog 7-43

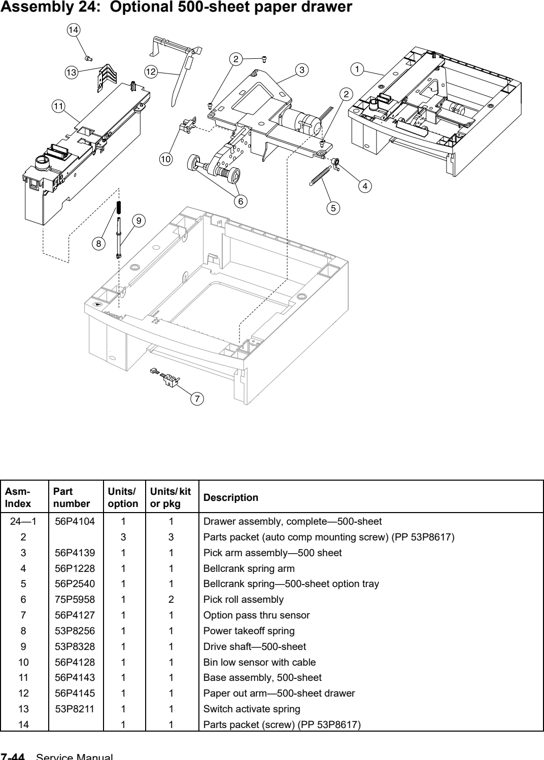

Assembly 24: Optional 500-sheet paper drawer 1 56P4104 Drawer assembly, complete—500-sheet Sale56P4104 500 Sheet Drawer, No tray New 56P4104 (New) Contact for Details 3 56P4139 Pick arm assembly—500 sheet 56P4139 500 Sheet Pick Arm Assembly New 56P4139 (New) Retired, no longer available: Contact for alternatives Contact for Details 56P4139 500 Sheet Pick Arm Assembly Fully refurbished with 90-day warranty 56P4139 Contact for Details 4 56P1228 Bellcrank spring arm 56P1228 Bellcrank Arm Assembly New 56P1228 (New) $19.00 56P1228 Bellcrank Arm Assembly Fully refurbished with 90-day warranty 56P1228 Contact for Details 5 56P2540 Bellcrank spring—500-sheet option tray 6 75P5958 Pick roll assembly 75P5958 Pick roll tires (2 per pack) New 75P5958 (New) $16.00 7 56P4127 Option pass thru sensor 8 53P8256 Power takeoff spring 53P8256 Spring Power Takeoff Fully refurbished with 90-day warranty 53P8256 $16.00 9 53P8328 Drive shaft—500-sheet 53P8328 Shaft 500 Drive Fully refurbished with 90-day warranty 53P8328 $17.00 10 56P4128 Bin low sensor with cable 11 56P4143 Base assembly, 500-sheet 12 56P4145 Paper out arm—500-sheet drawer 56P4145 Paper out arm - 500-sheet drawer New 56P4145 (New) $25.00 56P4145 Paper out arm - 500-sheet drawer Fully refurbished with 90-day warranty 56P4145 Contact for Details 13 53P8211 Switch activate spring 53P8211 Spring Switch Activate Fully refurbished with 90-day warranty 53P8211 $16.00

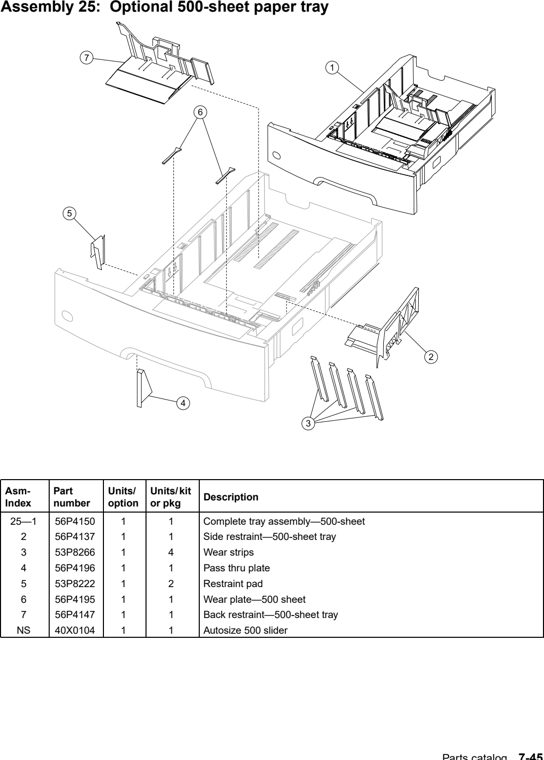

Assembly 25: Optional 500-sheet paper tray 1 56P4150 Complete tray assembly—500-sheet 2 56P4137 Side restraint—500-sheet tray 56P4137 Side restraint - 500-sheet tray New 56P4137 (New) $45.00 56P4137 Side restraint - 500-sheet tray Fully refurbished with 90-day warranty 56P4137 Contact for Details 3 53P8266 Wear strips 53P8266 Wear Strips New 53P8266 (New) $20.00 4 56P4196 Pass thru plate 56P4196 Pass thru plate New 56P4196 (New) $25.00 56P4196 Pass thru plate Fully refurbished with 90-day warranty 56P4196 Contact for Details 5 53P8222 Restraint pad 53P8222 Spring, Upper Diverter Fully refurbished with 90-day warranty 53P8222 Contact for Details 6 56P4195 Wear plate—500 sheet 56P4195 Wear plate - 500 sheet New 56P4195 (New) $44.00 56P4195 Wear plate - 500 sheet Fully refurbished with 90-day warranty 56P4195 Contact for Details 7 56P4147 Back restraint—500-sheet tray 56P4147 Back restraint - 500-sheet tray New 56P4147 (New) $47.00 56P4147 Back restraint - 500-sheet tray Fully refurbished with 90-day warranty 56P4147 Contact for Details NS 40X0104 Autosize 500 slider Parts catalog 7-45

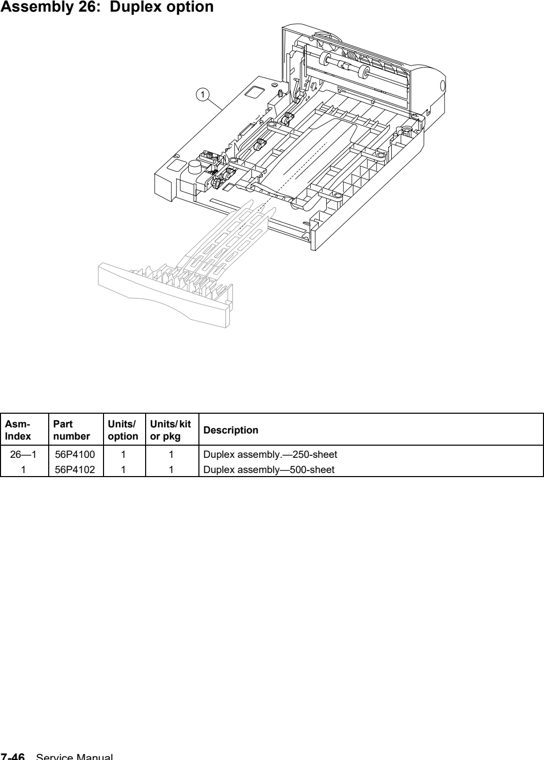

Assembly 26: Duplex option 1 56P4100 Duplex assembly.—250-sheet 56P4100 250-Sheet Duplex Unit, Complete Assembly New 56P4100 (New) Retired, no longer available: Contact for alternatives Contact for Details 1 56P4102 Duplex assembly—500-sheet IBM 56P4102 500 Sheet Duplex Unit New 56P4102 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 56P4102 500 Sheet Duplex Unit Fully refurbished with 90-day warranty 56P4102 Retired, no longer available: Contact for alternatives Contact for Details

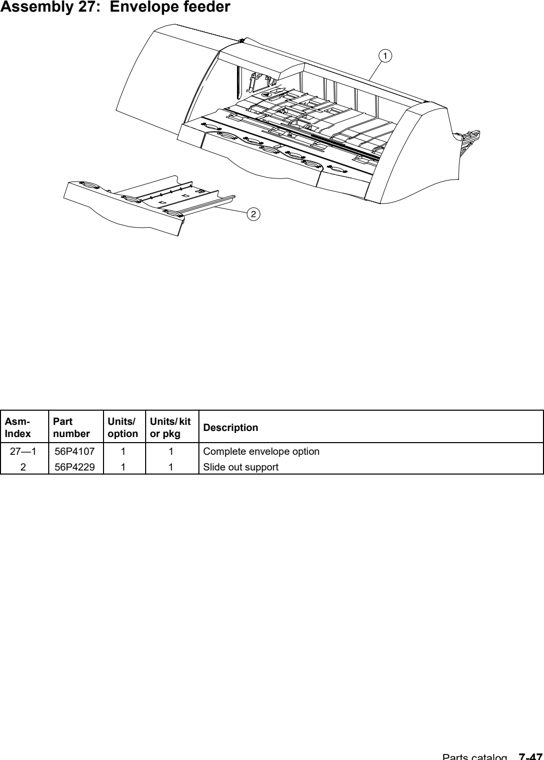

Assembly 27: Envelope feeder 1 56P4107 Complete envelope option 2 56P4229 Slide out support Parts catalog 7-47 56P4229 Slide out support New 56P4229 (New) $27.00 56P4229 Slide out support Fully refurbished with 90-day warranty 56P4229 Contact for Details

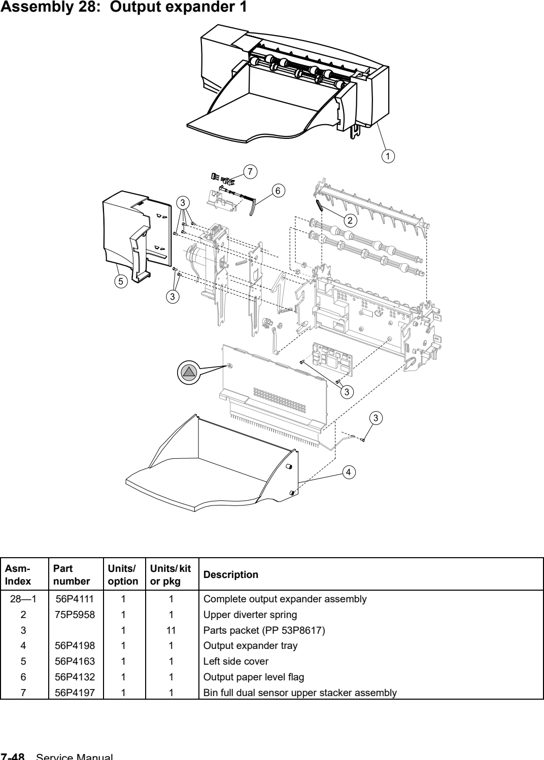

Assembly 28: Output expander 1 1 56P4111 Complete output expander assembly 2 75P5958 Upper diverter spring 75P5958 Pick roll tires (2 per pack) New 75P5958 (New) $16.00 4 56P4198 Output expander tray 5 56P4163 Left side cover 6 56P4132 Output paper level flag 7 56P4197 Bin full dual sensor upper stacker assembly

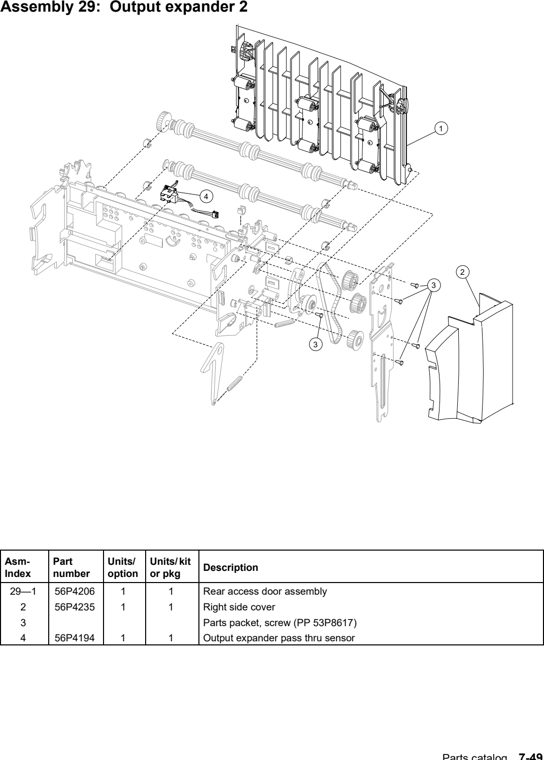

Assembly 29: Output expander 2 1 56P4206 Rear access door assembly 2 56P4235 Right side cover 4 56P4194 Output expander pass thru sensor Parts catalog 7-49
Assembly 30: High-capacity output expander 1 1 56P4112 Complete high-capacity output expander 56p4112 High Capacity Output Expander New 56p4112 40x3263 (New) $667.42 56p4112 High Capacity Output Expander Fully refurbished with 90-day warranty 56p4112 40x3263 $513.17 2 56P4206 Rear access door assembly 3 56P4211 Rear door latch 56P4211 Rear access door latch New 56P4211 (New) $28.00 56P4211 Rear access door latch Fully refurbished with 90-day warranty 56P4211 Contact for Details 4 56P4204 Right cover 6 56P4205 Front cover 7 56P4207 Output tray assembly 8 56P4203 Left cover NS 56P4208 Tray sensing switch assembly 56P4208 Switch (media bin HP) Fully refurbished with 90-day warranty 56P4208 Contact for Details

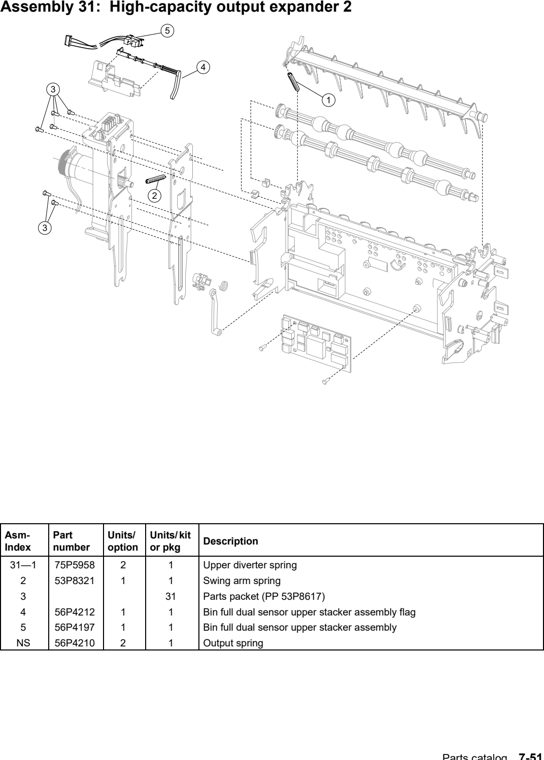

Assembly 31: High-capacity output expander 2 1 75P5958 Upper diverter spring 75P5958 Pick roll tires (2 per pack) New 75P5958 (New) $16.00 2 53P8321 Swing arm spring 4 56P4212 Bin full dual sensor upper stacker assembly flag 56P4212 Media bin full actuator New 56P4212 (New) $34.00 5 56P4197 Bin full dual sensor upper stacker assembly NS 56P4210 Output spring Parts catalog 7-51 56P4210 Media output bin recoil spring Fully refurbished with 90-day warranty 56P4210 Contact for Details
Assembly 32: High-capacity output expander 3 1 56P4194 Stacker pass thru sensor Parts catalog 7-53
Assembly 33: 5-bin mailbox 1 1 56P4110 Complete 5-bin mailbox option 2 56P4176 Redrive cap cover 56P4176 Redrive cap cover New 56P4176 (New) $32.00 3 56P4180 Wire cover 4 56P4181 Top bin cover 5 53P8588 Rear access door latch 53P8588 Rear access door latch New 53P8588 (New) $38.00 53P8588 Rear access door latch Fully refurbished with 90-day warranty 53P8588 $19.00 6 75P5958 Upper diverter spring 75P5958 Pick roll tires (2 per pack) New 75P5958 (New) $16.00 7 56P4183 Rear access door 56P4183 5-Bin mailbox kit, T64x New 56P4183 (New) $114.00 8 56P4178 Right side cover 56P4178 Right side cover New 56P4178 40x4228 (New) $89.00 9 56P4190 5-bin mailbox pass thru sensor 10 56P4182 Paper cap tray 11 56P4191 5-bin mailbox assembly kit 56P4191 5-bin mailbox assembly kit, T64x New 56P4191 (New) Contact for Details 56P4191 Media bail assembly Fully refurbished with 90-day warranty 56P4191 Contact for Details 13 56P4186 Bin full flag 14 56P4188 Dual paper height sensor 16 56P4179 Left side cover Parts catalog 7-55
Assembly 34: 5-bin mailbox 2 2 56P4185 Diverter solenoid Parts catalog 7-57
Assembly 35: High capacity feeder 1 1 56P4105 Complete option assembly (letter) 56P4105 2000 Sheet Input New 56P4105 (New) Contact for Details 56P4105 2000 Sheet Input Fully refurbished with 90-day warranty 56P4105 $499.00 1 56P4106 Complete option assembly (A4) 2 53P8815 Wear dimple strip 3 53P8385 Wear strip 4 56P4155 Front door assembly 56P4155 Front door assembly New 56P4155 (New) $150.00 5 56P4157 Door hinge 56P4157 Door hinge New 56P4157 (New) $52.00 9 56P4142 2000-sheet option control card assembly 56P4142 2000-Sheet Option Control Card Assembly New 56P4142 (New) $101.00 11 53P8370 Door magnet Parts catalog 7-59
Assembly 36: High-capacity feeder 2 1 53P8366 Paper low switch 3 53P8603 AC external jumper cord 4 53P8377 Power supply board 53P8377 Power Supply Board New 53P8377 (New) $169.00 5 53P8244 Paper feed legs Parts catalog 7-61

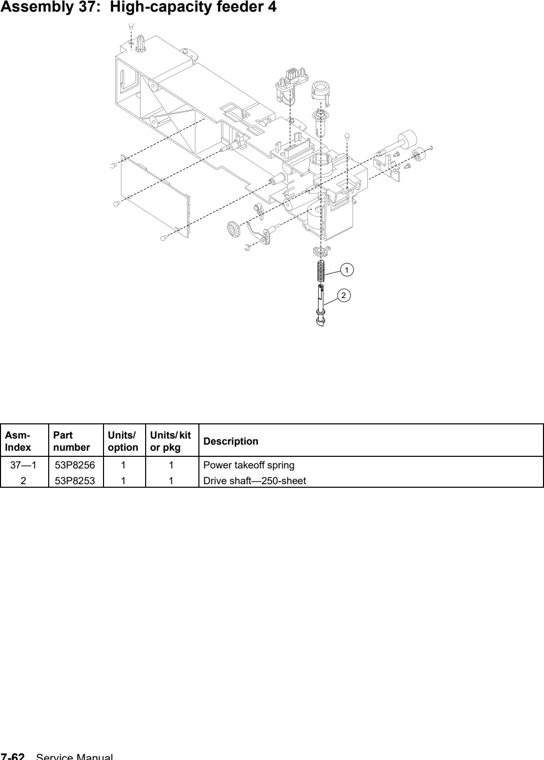

Assembly 37: High-capacity feeder 4 1 53P8256 Power takeoff spring 53P8256 Spring Power Takeoff Fully refurbished with 90-day warranty 53P8256 $16.00 2 53P8253 Drive shaft—250-sheet

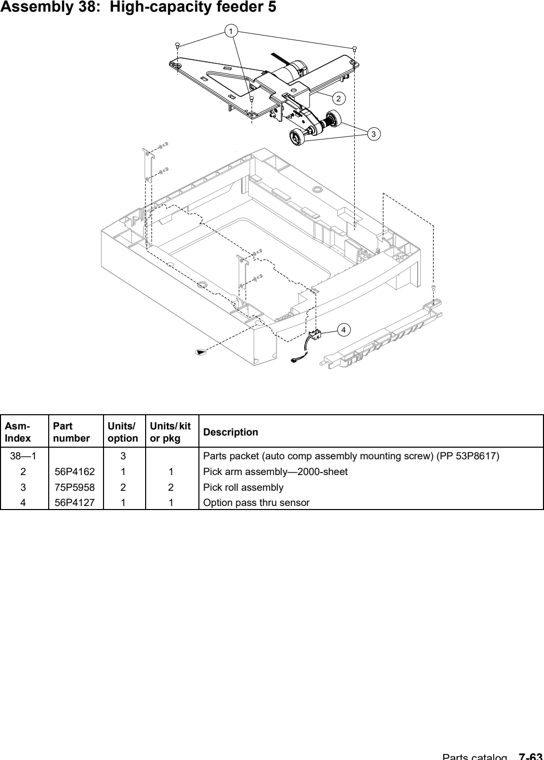

Assembly 38: High-capacity feeder 5 2 56P4162 Pick arm assembly—2000-sheet 3 75P5958 Pick roll assembly 75P5958 Pick roll tires (2 per pack) New 75P5958 (New) $16.00 4 56P4127 Option pass thru sensor Parts catalog 7-63

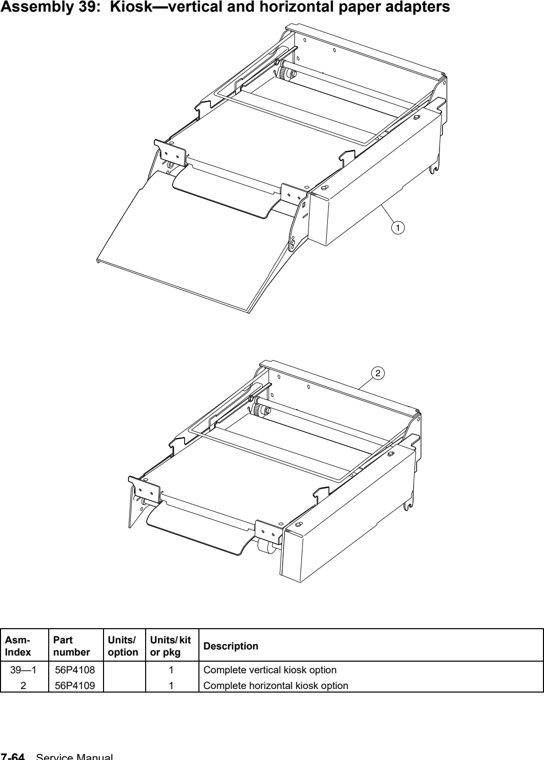

Assembly 39: Kiosk—vertical and horizontal paper adapters 1 56P4108 Complete vertical kiosk option 56P4108 Horizontal Kiosk Presenter New 56p4108 (New) Contact for Details 2 56P4109 Complete horizontal kiosk option

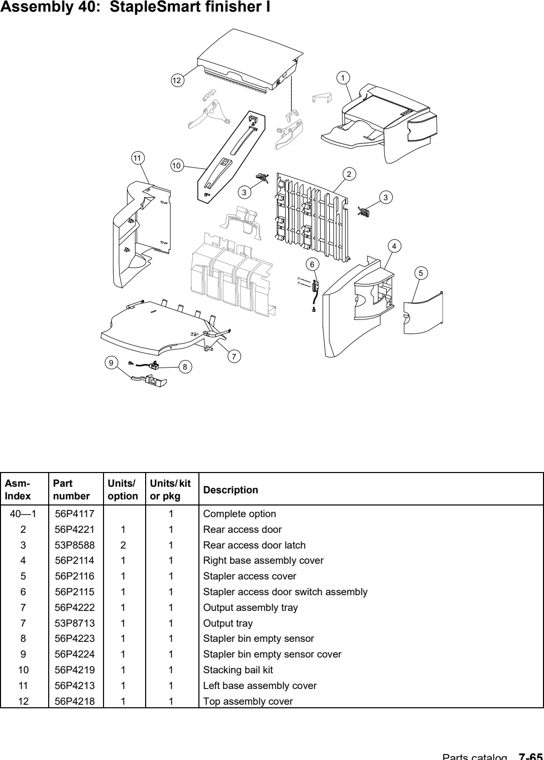

Assembly 40: StapleSmart finisher I 1 56P4117 Complete option Sale56P4117 Complete Option New 56P4117 (New) ~~$195.00~~ $149.00 56P4117 Complete Option Fully refurbished with 90-day warranty 56P4117 $150.00 2 56P4221 Rear access door 56P4221 Rear access door New 56P4221 (New) $56.00 56P4221 Rear access door Fully refurbished with 90-day warranty 56P4221 $37.00 3 53P8588 Rear access door latch 53P8588 Rear access door latch New 53P8588 (New) $38.00 53P8588 Rear access door latch Fully refurbished with 90-day warranty 53P8588 $19.00 4 56P2114 Right base assembly cover 56P2114 Hinge, ADF assembly, right New 56P2114 (New) $87.00 56P2114 Hinge ADF assembly right Fully refurbished with 90-day warranty 56P2114 $66.00 5 56P2116 Stapler access cover 56P2116 Card assembly, ADF controller New 56P2116 (New) $147.00 56P2116 Card assembly ADF controller Fully refurbished with 90-day warranty 56P2116 $115.00 6 56P2115 Stapler access door switch assembly 56P2115 Hinge, ADF assembly, left New 56P2115 (New) $87.00 56P2115 Stapler access door switch assembly Fully refurbished with 90-day warranty 56P2115 $23.00 7 56P4222 Output assembly tray 56P4222 Output assembly tray New 56P4222 (New) $64.00 56P4222 Output assembly tray Fully refurbished with 90-day warranty 56P4222 $45.00 7 53P8713 Output tray 53P8713 Output tray New 53P8713 (New) $64.00 8 56P4223 Stapler bin empty sensor 9 56P4224 Stapler bin empty sensor cover 10 56P4219 Stacking bail kit 56P4219 Stacking bail kit New 56P4219 (New) $55.00 11 56P4213 Left base assembly cover 12 56P4218 Top assembly cover Parts catalog 7-65 56P4218 Top assembly cover New 56P4218 (New) $28.00 56P4218 Top assembly cover Fully refurbished with 90-day warranty 56P4218 Contact for Details

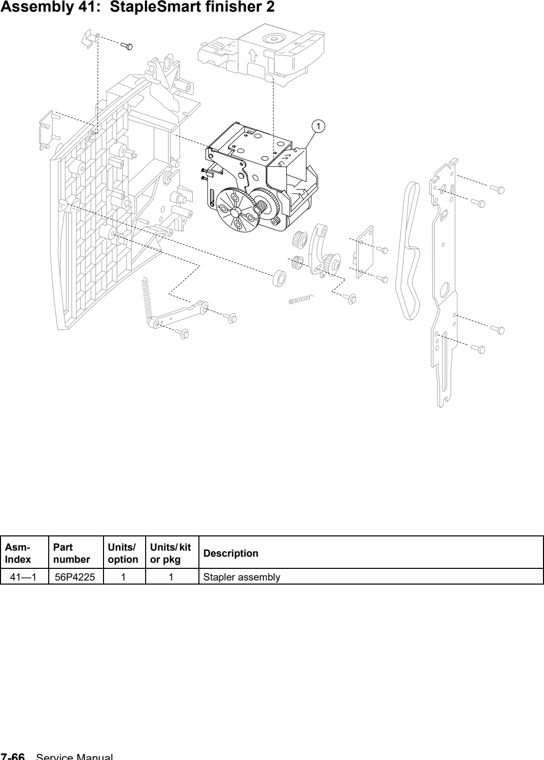

Assembly 41: StapleSmart finisher 2 1 56P4225 Stapler assembly

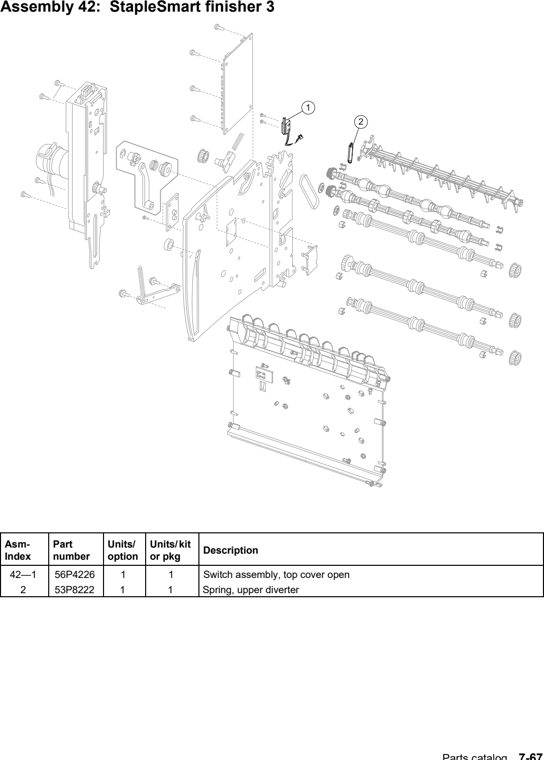

Assembly 42: StapleSmart finisher 3 1 56P4226 Switch assembly, top cover open 56P4226 Switch Assembly Top Cover Open New 56P4226 (New) $95.00 56P4226 Switch assembly, top cover open Fully refurbished with 90-day warranty 56P4226 $83.00 2 53P8222 Spring, upper diverter Parts catalog 7-67 53P8222 Spring, Upper Diverter Fully refurbished with 90-day warranty 53P8222 Contact for Details

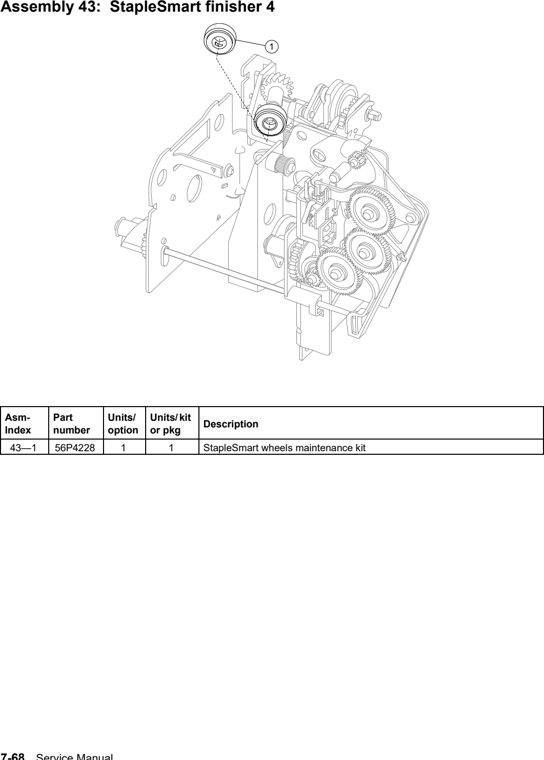

Assembly 43: StapleSmart finisher 4 1 56P4228 StapleSmart wheels maintenance kit 56P4228 StapleSmart Bails maintenance kit New 56P4228 (New) $27.00 56P4228 StapleSmart wheels maintenance kit Fully refurbished with 90-day warranty 56P4228 Contact for Details

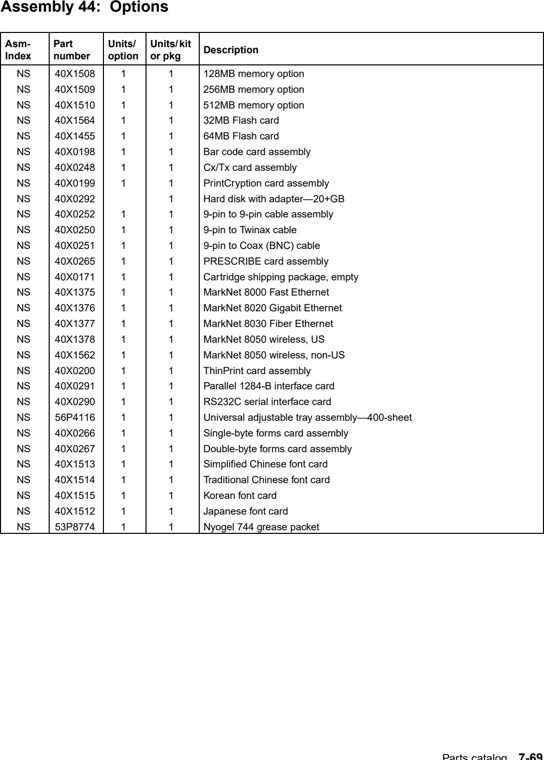

Assembly 44: Options NS 40X1508 128MB memory option NS 40X1509 256MB memory option NS 40X1510 512MB memory option NS 40X1564 32MB Flash card NS 40X1455 64MB Flash card NS 40X0198 Bar code card assembly NS 40X0248 Cx/Tx card assembly NS 40X0199 PrintCryption card assembly NS 40X0292 Hard disk with adapter—20+GB NS 40X0252 9-pin to 9-pin cable assembly NS 40X0250 9-pin to Twinax cable NS 40X0251 9-pin to Coax (BNC) cable NS 40X0265 PRESCRIBE card assembly NS 40X0171 Cartridge shipping package, empty NS 40X1375 MarkNet 8000 Fast Ethernet NS 40X1376 MarkNet 8020 Gigabit Ethernet NS 40X1377 MarkNet 8030 Fiber Ethernet NS 40X1378 MarkNet 8050 wireless, US NS 40X1562 MarkNet 8050 wireless, non-US NS 40X0200 ThinPrint card assembly NS 40X0291 Parallel 1284-B interface card NS 40X0290 RS232C serial interface card NS 56P4116 Universal adjustable tray assembly—400-sheet 56P4116 400 Sheet Tray Fully refurbished with 90-day warranty 56P4116 Contact for Details NS 40X0266 Single-byte forms card assembly NS 40X0267 Double-byte forms card assembly NS 40X1513 Simplified Chinese font card NS 40X1514 Traditional Chinese font card NS 40X1515 Korean font card NS 40X1512 Japanese font card NS 53P8774 Nyogel 744 grease packet Parts catalog 7-69
Other listed parts 39V0065 IBM 4537-N01 Infoprint 1552n Printer IBM 4537-N01 Infoprint 1552n Printer Fully refurbished with 90-day warranty 4537-n01 39V0065 Contact for Details 39V0106 IBM 4538-N01 Infoprint 1572n Printer IBM 4538-N01 Infoprint 1572n Printer Fully refurbished with 90-day warranty 4538-N01 39v0106 Contact for Details 39V0153 IBM 4536-N01 Infoprint 1532n Printer IBM 4536-N01 Infoprint 1532n Printer Fully refurbished with 90-day warranty 4536-N01 39V0153 Contact for Details 39V0886 IBM 4536-001 Infoprint 1532 Express Printer IBM 4536-001 Infoprint 1532 Express Printer Fully refurbished with 90-day warranty 4536-001 39v0886 Contact for Details 39V2375 IBM 4538-DN1 Infoprint 1572dn Printer IBM 4538-DN1 Infoprint 1572dn Printer Fully refurbished with 90-day warranty 4538-DN1 39V2375 Retired, no longer available: Contact for alternatives Contact for Details 40X0116 Fuser Assembly 40X0116 Fuser Assembly Fully refurbished with 90-day warranty 40x2592 45U2820 40X0116 56P4243 $125.00 40X0140 IBM System Board 1532 Non-Network (RIP) Lexmark 40x0140 System Board 1532 Non-Network (RIP) New 40x0140 56p4355 40x2522 40X3459 40x5026 40x5293 I Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details Lexmark 40x0140 System Board 1532 Non-Network (RIP) Fully refurbished with 90-day warranty 40x0140 56p4355 40x2522 40X3459 40x5026 40x5293 I This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $159.00 40X0141 IBM System Board 1532n Network (RIP) Lexmark 40x0141 IBM System Board 1532n Network (RIP) Fully refurbished with 90-day warranty 40x0141 I Advanced Exchange This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details Lexmark 40x0141 IBM System Board 1532n Network (RIP) Fully refurbished with 90-day warranty 40x0141 I This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details 40X0142 IBM System Board Non-Network 1552 (RIP) 40x0142 IBM System Board Non-Network 1552 (RIP) Fully refurbished with 90-day warranty 40x0142 I Advanced Exchange This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $93.91 40X0165 ) 40X0234 Operator Panel Outer Bezel With Logo T644 Lexmark 40X0234 Operator Panel Outer Bezel With Logo T644 New 40X0234 L (New) $23.04 40X2522 IBM System Board 1532 Non-Network (RIP) Lexmark 40x2522 IBM System Board 1532 Non-Network (RIP) New 40x2522 I Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $179.72 Retired, no longer available: Contact for alternatives 40X2523 IBM System Board 1532n Network (RIP) Lexmark 40x2523 IBM System Board 1532n Network (RIP) New 40x2523 I Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details 40X2524 IBM System Board 1552 Non-Network (RIP) Lexmark 40x2524 IBM System Board 1552 Non-Network (RIP) Fully refurbished with 90-day warranty 40x2524 I Advanced Exchange This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $93.91 40X2525 IBM Infoprint 1552n Network System Board (RIP) 40x2525 IBM Infoprint 1552n Network System Board (RIP) Fully refurbished with 90-day warranty 40x2525 I Advanced Exchange This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $225.00 40x2525 IBM Infoprint 1552n Network System Board (RIP) Fully refurbished with 90-day warranty 40x2525 I This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $225.00 40X2526 IBM System Board 1572 Non-Network (RIP) Lexmark 40x2526 IBM System Board 1572 Non-Network (RIP) Fully refurbished with 90-day warranty 40x2526 I Exchange This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $109.71 40X2592 Fuser Assembly Lexmark 40x2592 Fuser Assembly New 40x2592 45U2820 40X0116 56P4243 Advanced Exchange (New) Contact for Details 40X2665 Oil Fuser Wiper (Wick), Black Housing Lexmark 40X2665 Oil Fuser Wiper (Wick), Black Housing New 40X2665 VXPFF (New) $26.00 40X2666 Wax Fuser Wiper (Gray) Lexmark 40x2666 Wax Fuser Wiper (Gray) New 40x2666 M4G25 (New) $26.00 40X2669 Power supply board Lexmark 40X2669 Power supply board Fully refurbished with 90-day warranty 40X2669 $105.10 40X2739 IBM System Board Non-Network 1552 (RIP) 40x2739 IBM System Board Non-Network 1552 (RIP) Fully refurbished with 90-day warranty 40x2739 I Advanced Exchange This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details 40X3230 250-Sheet Drawer with Tray Lexmark 40X3230 250-Sheet Drawer with Tray New 40X3230 (New) $159.50 40X3231 250-Sheet Tray, complete assembly T64x, X642e, X644e, X646e Lexmark 40X3231 250-Sheet Tray, complete assembly T64x, X642e, X644e, X646e New 40X3231 (New) $169.00 40X3232 Pick arm assembly 250 Lexmark 40X3232 Pick arm assembly 250 New 40X3232 (New) $86.65 40X3233 Option pass through sensor Lexmark 40X3233 Option pass through sensor New 40X3233 (New) $24.71 Lexmark 40X3233 Option pass thru sensor Fully refurbished with 90-day warranty 40X3233 $25.00 40X3234 Bin low sensor with cable Lexmark 40X3234 Bin low sensor with cable New 40X3234 (New) Contact for Details Lexmark 40X3234 Bin low sensor with cable Fully refurbished with 90-day warranty 40X3234 $34.14 40X3235 Side restraint - 250-sheet tray Lexmark 40X3235 Side restraint - 250-sheet tray New 40X3235 (New) $59.82 40X3236 Back restraint - 250-sheet tray Lexmark 40X3236 Back restraint - 250-sheet tray New 40X3236 (New) $60.44 Lexmark 40X3236 Back restraint - 250-sheet tray Fully refurbished with 90-day warranty 40X3236 $49.28 40X3237 Base assembly - 250-sheet Lexmark 40X3237 Base assembly - 250-sheet New 40X3237 (New) $53.21 40X3238 5-bin Mailbox, complete assembly Lexmark 40X3238 5-bin Mailbox, complete assembly New 40X3238 (New) $270.00 40X3240 Dual paper height sensor Lexmark 40X3240 Sensor (media bin empty) Fully refurbished with 90-day warranty 40X3240 $30.10 40X3242 5-bin mailbox pass thru sensor Lexmark 40X3242 Sensor (pass through) Fully refurbished with 90-day warranty 40X3242 $25.00 40X3243 500-Sheet Drawer with Tray, Complete Assembly Lexmark 40X3243 500-Sheet Drawer with Tray, Complete Assembly New 40X3243 (New) $225.00 Lexmark 40X3243 500-Sheet Drawer with Tray, Complete Assembly Fully refurbished with 90-day warranty 40X3243 $179.00 40X3246 Pick arm assembly - 500-sheet Lexmark 40X3246 Pick arm assembly - 500-sheet New 40X3246 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X3246 Pick arm assembly - 500-sheet Fully refurbished with 90-day warranty 40X3246 $125.00 40X3247 Base assembly 500-sheet Lexmark 40X3247 Base assembly 500-sheet Fully refurbished with 90-day warranty 40X3247 $165.45 40X3248 Complete envelope option 39V0219 Envelope Feeder New 39V0219 40x3248 (New) $285.00 Lexmark 20G0891 Envelope Feeder Fully refurbished with 90-day warranty 20G0891 40x3248 $275.00 Lexmark 20G0891 Envelope Feeder New 20G0891 40x3248 (New) Contact for Details 39V0219 Envelope Feeder Fully refurbished with 90-day warranty 39V0219 40x3248 $176.00 40X3249 2000-Sheet High Capacity Feeder (A4), complete assembly T64x, X642e, X644e, X646e Lexmark 40X3249 2000-Sheet High Capacity Feeder (A4), complete assembly T64x, X642e, X644e, X646e New 40X3249 (New) $1247.75 40X3252 2000-sheet HCF Lower control card assembly Lexmark 40X3252 2000-sheet HCF Lower control card assembly New 40X3252 (New) $101.70 40X3254 Front door assembly Lexmark 40X3254 Front door assembly New 40X3254 56P4155 (New) $160.03 40X3255 Pick arm assembly - 2000-sheet Lexmark 40X3255 Pick arm assembly - 2000-sheet New 40X3255 56P4162 (New) $136.97 40X3262 AC External Jumper Cord Lexmark 40X3262 AC External Jumper Cord New 40X3262 (New) $139.00 40X3264 Output expander pass thru sensor Lexmark 40X3264 Sensor (pass through) New 40X3264 (New) $57.50 40X3265 Bin full sensor Lexmark 40X3265 Bin full sensor New 40X3265 (New) $53.00 40X3267 Rear Access Door Assembly Lexmark 40X3267 Rear Access Door Assembly New 40X3267 (New) Retired, no longer available: Contact for alternatives Contact for Details 40X3268 Output tray assembly 40X3269 Horizontal Kiosk complete assembly T63x T64x Lexmark 40X3269 Horizontal Kiosk complete assembly T63x T64x New 40X3269 (New) $2658.24 40X3270 Output Expander, Complete Assembly SaleLexmark 40X3270 Output Expander, Complete Assembly New 40X3270 56p4111 (New) ~~$123.21~~ $55.00 40X3280 Vertical Kiosk, Complete Assembly T63x, T64x Lexmark 40X3280 Vertical Kiosk, Complete Assembly T63x, T64x New 40X3280 (New) $1112.12 40X3459 IBM System Card 1532 Non-Network (RIP) Lexmark 40X3459 IBM System Card 1532 Non-Network (RIP) New 40X3459 I Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details 40X3460 IBM System Board 1532n Network (RIP) Lexmark 40x3460 IBM System Board 1532n Network (RIP) New 40x3460 I Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details 40X3461 IBM System Board 1552 Non-Network (RIP) Lexmark 40x3461 IBM System Board 1552 Non-Network (RIP) Fully refurbished with 90-day warranty 40x3461 I Advanced Exchange This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $93.91 40X3462 IBM System Board 1552n Network (RIP) 40X3462 IBM System Board 1552n Network (RIP) Fully refurbished with 90-day warranty 40X3462 I Advanced Exchange This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $225.00 40X3462 IBM System Board 1552n Network (RIP) Fully refurbished with 90-day warranty 40X3462 I This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $225.00 40X3463 IBM System Board 1572 Non-Network (RIP) Lexmark 40x3463 IBM System Board 1572 Non-Network (RIP) Fully refurbished with 90-day warranty 40x3463 I Exchange This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $109.71 40X4663 500-Sheet Tray complete assembly Lexmark 40X4663 500-Sheet Tray complete assembly New 40X4663 20G0084 (New) Contact for Details 40X5026 IBM System Board 1532 Non-Network (RIP) Lexmark 40x5026 IBM System Board 1532 Non-Network (RIP) New 40x5026 I Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details 40X5027 IBM System Board 1532n Network (RIP) Lexmark 40X5027 IBM System Board 1532n Network (RIP) New 40X5027 I Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details 40X5028 IBM System Board Non-Network 1552 (RIP) 40x5028 IBM System Board Non-Network 1552 (RIP) Fully refurbished with 90-day warranty 40x5028 I Advanced Exchange This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $122.45 40X5029 IBM Infoprint 1552n Network System Board (RIP) 40x5029 IBM Infoprint 1552n Network System Board (RIP) Fully refurbished with 90-day warranty 40x5029 I Advanced Exchange This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $225.00 40x5029 IBM Infoprint 1552n Network System Board (RIP) Fully refurbished with 90-day warranty 40x5029 I This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $225.00 40X5030 IBM System Board 1572n Network (RIP) Lexmark 40X5030 IBM System Board 1572n Network (RIP) Fully refurbished with 90-day warranty 40X5030 I Advanced Exchange This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $109.71 40X5295 IBM System Board Non-Network 1552 (RIP) 40x5295 IBM System Board Non-Network 1552 (RIP) Fully refurbished with 90-day warranty 40x5295 I Advanced Exchange This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $122.45 40X5298 IBM System Board 1572n Network (RIP) 40X5298 IBM System Board 1572n Network (RIP) Fully refurbished with 90-day warranty 40x0145 53p4360 40X2527 40X3464 40X2742 40X5031 40x5298 40X5928 I Advanced Exchange This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $125.00 53P8617 Parts Packet 53P8617 Parts Packet Fully refurbished with 90-day warranty 53P8617 $38.00 53P8617 Screws Parts Packet New 53P8617 (New) $42.00 56P4355 IBM System Board 1532 Non-Network (RIP) 56p4355 System Board 1532 Non-Network (RIP) New 56p4355 I Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details 56P4356 IBM Infoprint 1532 Network System Board (RIP) 56p4356 IBM Infoprint 1532 Network System Board (RIP) New 56p4356 I Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details 56P4357 IBM System Board 1552 Non-Network (RIP) 56p4357 System Board 1552 Non-Network (RIP) Fully refurbished with 90-day warranty 56p4357 I Advanced Exchange This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $199.00 56P4358 IBM Infoprint 1552n Network System Board (RIP) 56p4358 System Board (RIP) Infoprint 1552n Network Fully refurbished with 90-day warranty 56p4358 I Advanced Exchange This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $125.00 56p4358 System Board (RIP) Infoprint 1552n Network System Board (RIP) Fully refurbished with 90-day warranty 56p4358 I This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $157.00 56P4359 IBM System Board 1572 Non-Network (RIP) 56p4359 System Board 1572 Non-Network (RIP) Fully refurbished with 90-day warranty 56p4359 I Exchange This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $199.00 56P4360 IBM System Board 1572n Network (RIP) 56p4360 System Board 1572n Network (RIP) Fully refurbished with 90-day warranty 56p4360 I Advanced Exchange This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $199.00 56P5294 IBM System Board 1532n network (RIP) 56P5294 IBM System Board 1532n network (RIP) New 56P5294 40X5294 I Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $275.00 99A0063 Switch activate spring Lexmark 99A0063 Switch Activate Spring Fully refurbished with 90-day warranty 99A0063 $14.62 99A0104 Upper diverter spring Lexmark 99A0104 Spring, Upper Diverter New 99A0104 (New) $25.00 99A0120 Restraint pad 99A0121 Plate- 250-sheet tray wear 99A0263 Screws Parts Packet Lexmark 99A0263 Screws Parts Packet New 99A0263 (New) Contact for Details 99A0272 Drive shaft- 250-sheet 99A0275 Power takeoff spring 99A0292 Wear strips 99A0415 Swing arm spring 99A0447 Drive shaft- 500-sheet 99A0654 Paper low switch Lexmark 99A0654 Paper low switch New 99A0654 (New) Contact for Details 99A0658 Door magnet 99A0676 ) 99A0677 ) 99A0681 Wear strip 99A1818 Wear dimple strip 99A1929 Bellcrank spring- 250-sheet paper tray IBM 4537-001 Infoprint 1552 IBM 4537-001 Infoprint 1552 New 4537-001 (New) Retired, no longer available: Contact for alternatives Contact for Details
