Lexmark C75x & C76x Options Parts

Please call for parts assistance

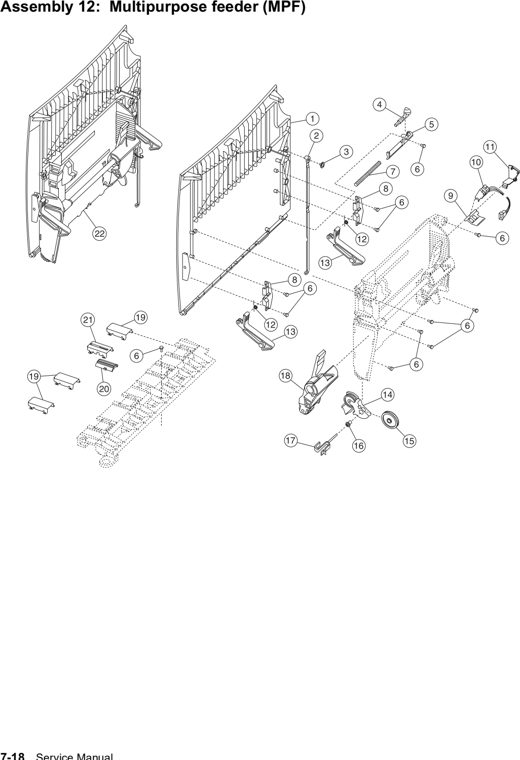

Assembly 12: Multipurpose feeder (MPF) 1 56P2825 MP feeder door cover 2 12G6460 Door hinge restraint 4 56P2826 Frame bias latch 5 56P2827 Frame bias latch cover 7 12G6454 Frame bias spring 8 56P2831 MPF support bracket cover 9 56P2828 Sensor mount bracket 10 56P1524 Paper out sensor MPF 11 56P2829 MPF cable cover 12 12G6458 MPF support bracket spring 13 56P2833 MPF support bracket 14 12G6462 MPF bracket assembly 15 12G6463 MPF drive gear 16 12G6465 MPF drive gear bushing 17 12G6464 MPF drive gear shaft 18 56P2832 MPF autocompensator pick assembly 19 12G6354 Rib housing 20 12G6447 Friction buckler 21 12G6346 Buckler housing 22 56P2830 MPF door assembly Parts catalog 7-19

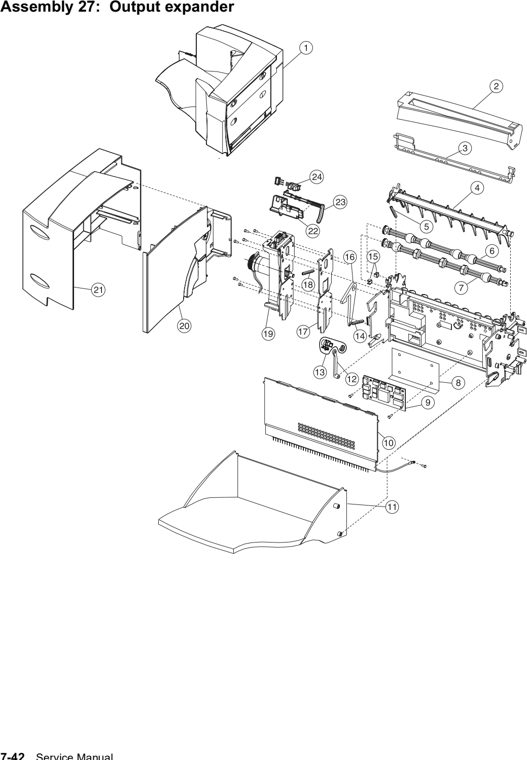

Assembly 27: Output expander 1 56P2870 Output expander, complete 2 56P2918 Right cover 2 99A0368 Shaft assembly, lower, Lexmark 99A0368 Shaft Assembly Lower New 99A0368 (New) Contact for Details 3 56P2919 ESD brush cover 3 99A0363 Pulley, drive Lexmark 99A0363 Pulley, Drive New 99A0363 (New) Contact for Details 4 56P2875 Deflector, upper redrive, 4 56P0410 Bracket, rear attach 5 99A0104 Spring, upper diverter Lexmark 99A0104 Spring, Upper Diverter New 99A0104 (New) $25.00 6 99A0369 Shaft assembly, exit, Lexmark 99A0369 Shaft Assembly, Exit New 99A0369 (New) Contact for Details 6 56P2872 Cover, front 7 99A0052 Shaft assembly, lower exit, 7 99A0361 Belt, 160 gear Lexmark 99A0361 Belt, 160G Upper Stacker Assembly New 99A0361 (New) Contact for Details 8 56P0407 Shield, output option card 8 99A0362 Arm assembly, belt idler Lexmark 99A0362 Arm Assembly, Belt Idler New 99A0362 (New) Contact for Details 9 99A0915 Board, output expander DC motor Lexmark 99a0915 Output expander DC motor board New 99A0915 (New) Contact for Details 9 99A0364 Spring, belt tensioner Lexmark 99A0364 Spring, Belt Tensioner New 99A0364 (New) Contact for Details 10 56P2871 Cover, front control board 10 99A0482 Spring, output tray 11 56P2879 Tray, output expander 11 56P2878 Latch, output tray 12 99A1688 Diverter arm 12 56P2899 Frame assembly 13 99A1689 Spring clutch assembly Lexmark 99A1689 Spring Clutch Assembly New 99A1689 (New) $27.06 13 99A0351 Sensor, output expander pass thru Lexmark 99A0351 Sensor, Stacker Pass thru New 99A0351 (New) Contact for Details 14 99A0482 Spring, output tray 15 99A0913 Shaft assembly, middle 40T, Lexmark 99A0913 Shaft Assembly Middle 40T New 99A0913 (New) Contact for Details 16 56P2878 Latch, output tray 17 56P0406 Bracket, front attach 18 99A0415 Spring, swing arm 19 56P2917 Output expander assembly, mechanical linkage 56p2917 Drive Assembly Stacker Fully refurbished with 90-day warranty 56p2917 Contact for Details 56p2917 Drive Assembly Stacker New 56p2917 (New) Contact for Details 20 56P2874 Cover, rear support 21 56P2873 Rear cover 22 56P2876 Level sensor bracket 23 56P2877 Flag, output paper level 24 99A0414 Sensor, dual bin full Parts catalog 7-43 27.1–1 56P2916 Door assembly, right jam access NS 56P2943 Kit, multi-bin stacker Parts catalog 7-45

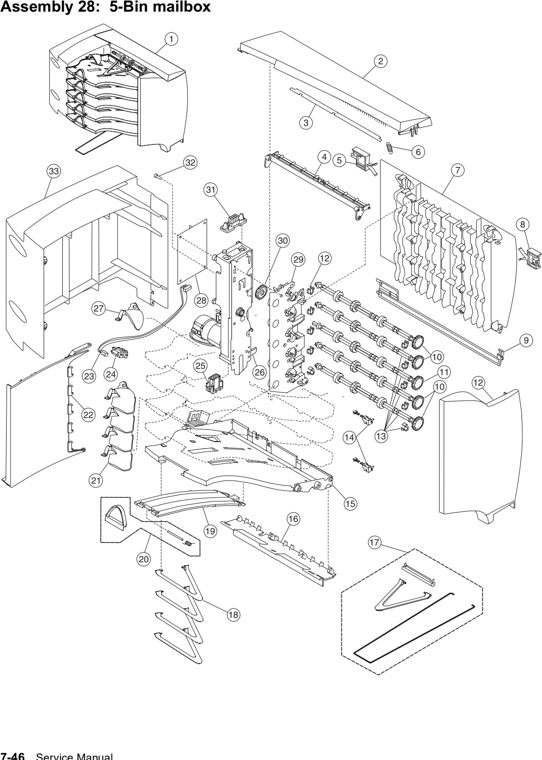

Assembly 28: 5-Bin mailbox 1 56P2880 5-Bin mailbox, complete 2 56P2820 Redrive cap cover assembly 56P2820 Redrive Cap Cover Assembly New 56P2820 (New) $30.00 56P2820 Redrive Cap Cover Assembly Fully refurbished with 90-day warranty 56P2820 $28.00 2 56P2936 Frame asm, right side 3 56P2937 Cover, wire 4 56P2882 Cover, top bin 4 99A1728 Cam, diverter actuator Lexmark 99A1728 Cam, Diverter Actuator New 99A1728 (New) Contact for Details 5 56P2931 Latch, access door rear 5 99A1731 Spring, diverter actuator 6 99A0104 Spring, upper diverter Lexmark 99A0104 Spring, Upper Diverter New 99A0104 (New) $25.00 6 99A1729 Latch, diverter actuator Lexmark 99A1729 Latch, Diverter Actuator New 99A1729 (New) Contact for Details 7 56P2889 Door, front 7 99A1730 Arbor, diverter actuator Lexmark 99A1730 Arbor, Diverter Actuator New 99A1730 (NEW) Contact for Details 8 56P2881 Latch, access door front 8 99A1789 Retainer, C-clip 9 56P2930 Cover, right 9 56P0418 Bracket, attach front 10 99A1723 Shaft asm, drive Lexmark 99A1723 Shaft Assembly, Drive New 99A1723 (New) Contact for Details 10 99A1732 Solenoid, diverter Lexmark 99A1732 Solenoid, Diverter New 99A1732 (NEW) Contact for Details 11 99A1724 Shaft asm, drive with gear Lexmark 99A1724 Shaft Assembly, Drive W/Gear New 99A1724 (New) Contact for Details 11 56P2938 Deflector, paper exit w/brush 12 56P2886 Cover, right side 12 56P2934 Deflector, paper 13 99A1725 Packet, drive shaft bushing Lexmark 99A1725 Packet, Drive Shaft Bushing New 99A1725 (New) Contact for Details 13 99A1787 Deflector Lexmark 99A1787 Deflector New 99A1787 (New) Contact for Details 14 99A1742 Sensor, 5-bin mailbox pass thru 14 56P2933 Deflector, paper top bin 15 56P2885 Tray, paper cap 56p2885 Tray Paper cap 18mm New 56p2885 (New) $45.00 56p2885 Tray Paper cap 18mm Fully refurbished with 90-day warranty 56p2885 $36.00 16 56P2884 Bracket asm, bail attach 17 56P2940 Kit, 5-bin mailbox asm 19 56P2932 Support, paper tray 20 56P2939 Stop asm, paper tray 21 56P2935 Flag, bin full 22 56P2887 Rear structural cover 23 99A1736 Cable, dual sensor Lexmark 99A1736 Cable, Dual Sensor New 99A1736 (NEW) Contact for Details 24 99A1737 Sensor, dual bin level Lexmark 99A1737 Sensor, Dual Paper Height New 99A1737 (NEW) Contact for Details 25 99A1718 Cable asm, lower autoconnect 99A1718 Cable Assembly, Lower Auto Connect New 99A1718 (New) $23.00 26 99A1716 Drive asm, main DC drive Lexmark 99A1716 Drive Assembly, Main DC Driver New 99A1716 (New) Contact for Details 27 56P2883 Flag, bin full 28 99A1740 Board asm, 5-bin mailbox system Lexmark 99A1740 Board Assembly, 5-Bin Mailbox System New 99A1740 (New) Contact for Details 28.1–1 99A1741 Spring, diverter Lexmark 99A1741 Spring, Diverter New 99A1741 (NEW) Contact for Details 29 56P2941 Frame asm, left w/clutch asm 30 99A1786 Gear, drive Lexmark 99A1786 (40X2067) Gear, Drive New 99A1786 (New) Contact for Details 31 99A1719 Cable asm, upper autoconnect 99A1719 Cable Assembly, Upper Auto Connect New 99A1719 (New) $33.00 33 56P2888 Cover, left side Parts catalog 7-47 NS 56P0421 Spring, static ground NS 99A0462 Grease packet, IBM #23 Lexmark 99A0462 #23 Nyogel Grease New 99A0462 (New) $14.72 NS 99A1715 Roller asm, rear access door Lexmark 99A1715 Roller Assembly, Rear Access Door New 99A1715 (New) Contact for Details NS 99A1717 32 ppm drive gear Lexmark 99A1717 Gear Drive New 99A1717 (New) Contact for Details NS 99A1788 Retainer, R-ring NS 99A0450 Retainer NS 56P0550 Cable, tray media level sensor Parts catalog 7-49

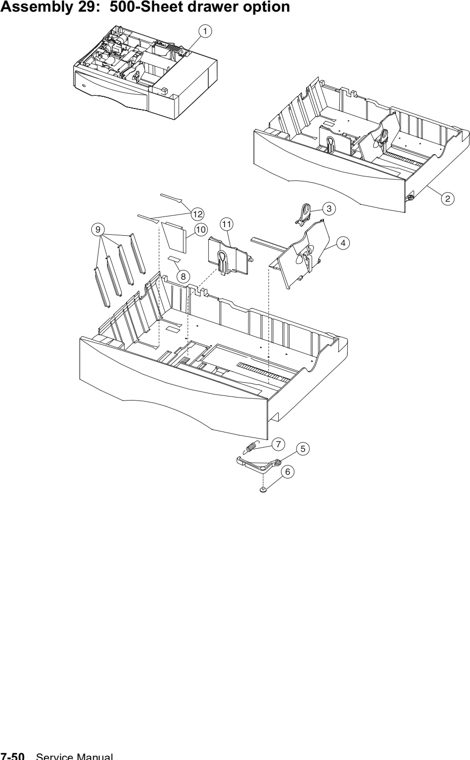

Assembly 29: 500-Sheet drawer option 1 56P2850 500-Sheet drawer option, complete 56p2850 500 Sheet Drawer with Tray New 56p2850 (New) $75.00 56p2850 500 Sheet Drawer with Tray Fully refurbished with 90-day warranty 56p2850 $55.00 2 56P2834 500-Sheet tray assembly 56P2834 500-Sheet tray assembly New 56P2834 (New) $45.00 56P2834 500-Sheet tray assembly Fully refurbished with 90-day warranty 56P2834 $38.00 3 12G6419 Back restraint latch 3 56P2868 500-Sheet option tray pick assembly 56p2868 Pick assembly 500 tray option New 56p2868 (New) $112.00 56p2868 Pick assembly 500 tray option Fully refurbished with 90-day warranty 56p2868 $66.00 4 12G6418 Back restraint 4 12G6565 Paper level sensing assembly 5 12G6425 Tray bias bellcrank assembly 5 12G6471 Tray interlock bellcrank 6 56P2859 Cover, frame 7 12G6426 Tray bias spring 7 12G6553 Pass thru sensor 8 12G6568 Reflector label 8 12G6562 Hinge 9 12G6421 Wear strip 9 12G6559 Electronics/size sensing assembly with system board Lexmark 12G6559 Electronics / size sensing assembly with system board New 12G6559 (New) Contact for Details 10 12G6420 Tray wear clip 10 12G6558 Pick arm lift bellcrank 11 12G6417 Side restraint 11 12G6566 Paper size sensing assembly 12 56P1504 Restraint pad Parts catalog 7-51 12 12G6557 Bellcrank lift spring 13 56P2858 500 base assembly 14 12G6380 Machine pad 15 56P1571 Plate, 500 support assembly 56P1571 Plate, 500 support assembly New 56P1571 (New) $56.00 56P1571 Plate 500 support assembly Fully refurbished with 90-day warranty 56P1571 $56.00 16 56P2867 Paper guide 17 12G6563 Wall support plate 18 56P2869 Base door assembly 19 12G6561 Spring 20 56P2849 500 option deflector 21 56P2176 Grounding spring 22 99A0070 Pick roll tires Lexmark 99A0070 Pick Rolls (Set Of Two) New 99A0070 (New) Contact for Details 29.1–1 56P0168 Drive assembly, 500 option 2 56P0168 Drive assembly, 500 option 2 New 56P0168 (New) $448.00 56P0168 Drive assembly 500 option 2 Fully refurbished with 90-day warranty 56P0168 $448.00 NS 12G6510 Cable tie (6 in a pack) Parts catalog 7-53

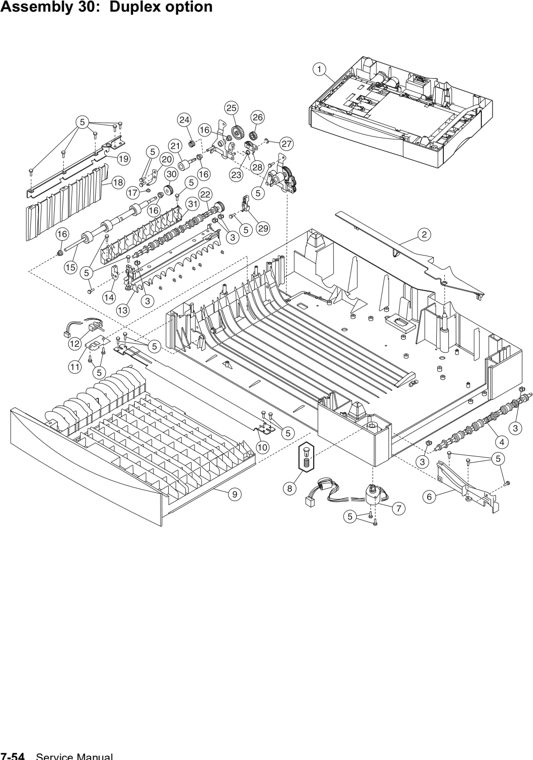

Assembly 30: Duplex option 1 56P2860 Duplex option, complete 56P2860 Duplex Assembly New 56P2860 (New) Contact for Details 56P2860 Duplex Assembly Fully refurbished with 90-day warranty 56P2860 Contact for Details 2 56P2863 Back cover 56p2863 Cover Back New 56p2863 (New) $109.00 56p2863 Cover Back Fully refurbished with 90-day warranty 56p2863 $76.00 2 56P0462 Autoconnect cable assembly 56P0462 Autoconnect cable assembly New 56P0462 (New) Contact for Details 56P0462 Autoconnect cable assembly Fully refurbished with 90-day warranty 56P0462 $77.00 3 56P2898 Redrive bearing 3 56P0463 DC forward/reverse motor assembly 4 56P0447 Duplex entry shaft assembly 4 56P0464 DC duplex feed motor 6 56P0434 Right side front tray guide 56P0434 Right side front tray guide Fully refurbished with 90-day warranty 56P0434 $69.00 56P0434 Right side front tray guide New 56P0434 (New) Contact for Details 6 12G6510 Cable tie (6 in pack) 7 56P0483 Deflector actuator assembly 56P0483 Deflector actuator assembly New 56P0483 (New) $78.00 56P0483 Deflector actuator assembly Fully refurbished with 90-day warranty 56P0483 $78.00 8 56P1570 Deflector follower assembly 8 56P0459 Back support 56P0459 Back support Fully refurbished with 90-day warranty 56P0459 $75.00 56P0459 Back support New 56P0459 (New) Contact for Details 9 56P2861 Duplex front jam tray assembly 9 56P0430 Duplex card assembly 56P0430 Duplex Card Assembly New 56P0430 (New) $342.00 56P0430 Duplex Card Assembly Fully refurbished with 90-day warranty 56P0430 $91.00 10 56P0457 Duplex support bracket 10 56P2484 Belt, transfer 11 56P2866 Sensor mount plate 11 56P2862 Right jam clearance tray assembly 56p2862 Tray Assembly Right Jam Clearance New 56p2862 (New) $75.00 56p2862 Tray Assembly Right Jam Clearance Fully refurbished with 90-day warranty 56p2862 $56.00 12 56P0442 Duplex exit sensor 12 56P0458 Chassis ground spring 56P0458 Chassis ground spring New 56P0458 (New) Contact for Details 56P0458 Chassis ground spring Fully refurbished with 90-day warranty 56P0458 $77.00 13 56P0435 Duplex shaft mount 13 99A1789 Retainer, C-clip 14 56P0479 Front decurl assembly 14 56P0478 Aligner spring 15 56P0444 F/R backup shaft assembly 56P0444 F/R Backup Shaft Assembly New 56P0444 (New) Contact for Details 56P0444 F/R backup shaft assembly Fully refurbished with 90-day warranty 56P0444 $106.00 15 99A0323 Paper guide assembly 16 56P0476 5 mm bushing 16 56P0465 Drive alignment shaft assembly 56P0465 Drive alignment shaft assembly Fully refurbished with 90-day warranty 56P0465 $74.00 56P0465 Drive alignment shaft assembly New 56P0465 (New) Contact for Details 17 56P0473 Brake pad 56P0473 Brake pad New 56P0473 (New) Contact for Details 56P0473 Brake pad Fully refurbished with 90-day warranty 56P0473 $58.00 17 56P0477 Reduction gear shaft 18 56P2865 Duplex paper guide 18 56P0451 Right backup spring assembly 56P0451 Right Backup spring assembly New 56P0451 (New) Contact for Details 56P0451 Right Backup spring assembly Fully refurbished with 90-day warranty 56P0451 $65.00 19 56P0454 Wall support 56P0454 Wall support New 56P0454 (New) Contact for Details 56P0454 Wall support Fully refurbished with 90-day warranty 56P0454 $80.00 19 99A1717 32 ppm drive gear Lexmark 99A1717 Gear Drive New 99A1717 (New) Contact for Details 20 56P0475 Brake spring 56P0475 Brake spring Fully refurbished with 90-day warranty 56P0475 $73.00 56P0475 Brake spring New 56P0475 (New) Contact for Details 20 56P0452 Left backup spring assembly 56P0452 Left backup spring assembly Fully refurbished with 90-day warranty 56P0452 $115.00 56P0452 Left backup spring assembly New 56P0452 (New) Contact for Details 21 56P0472 Pass thru shaft assembly 56P0472 Pass thru shaft assembly New 56P0472 (New) Contact for Details 56P0472 Pass thru shaft assembly Fully refurbished with 90-day warranty 56P0472 $71.00 21 56P2864 Upper rib assembly 22 56P0441 Duplex shaft assembly 22 56P0437 Duplex input sensor 23 56P0468 Pass thru spring 56P0468 Pass thru spring Fully refurbished with 90-day warranty 56P0468 $47.00 56P0468 Pass thru spring New 56P0468 (New) Contact for Details 24 56P0470 Aligner arm spring 56P0470 Aligner arm spring Fully refurbished with 90-day warranty 56P0470 $66.00 56P0470 Aligner arm spring New 56P0470 (New) Contact for Details 25 56P0466 Spur drive gear 56P0466 Spur drive gear Fully refurbished with 90-day warranty 56P0466 $57.00 56P0466 Spur drive gear New 56P0466 (New) Contact for Details 26 56P0467 26T duplex gear 28 56P0471 Bellcrank assembly 29 56P0474 Decurl BAC assembly 56P0474 Decurl BAC assembly Fully refurbished with 90-day warranty 56P0474 $70.00 56P0474 Decurl BAC assembly New 56P0474 (New) Contact for Details 30 56P0445 40T shaft drive F/R gear 56P0445 40T shaft drive F/R gear Fully refurbished with 90-day warranty 56P0445 $70.00 56P0445 40T shaft drive F/R gear New 56P0445 (New) Contact for Details 30.1–1 56P0456 Duplex support plate 31 56P0449 Support decurl guide 56P0449 Support decurl guide New 56P0449 (New) Contact for Details 56P0449 Support decurl guide Fully refurbished with 90-day warranty 56P0449 $86.00 NS 56P0482 Pulley washer Parts catalog 7-55

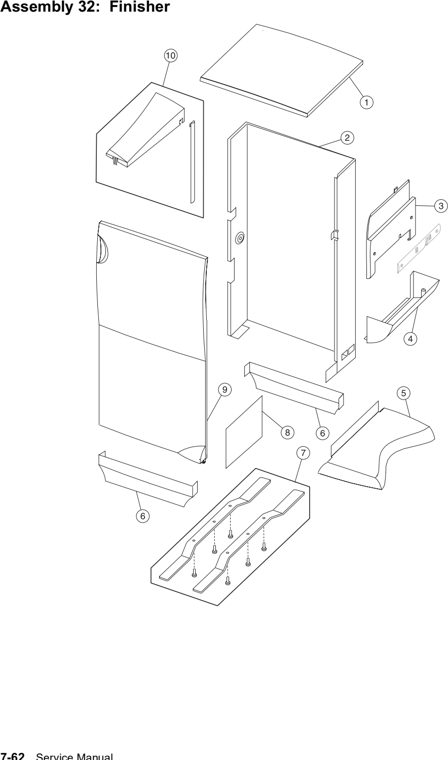

Assembly 32: Finisher 1 56P0321 Top cover (tall finisher) 2 56P0569 Rear cover (tall finisher) 2 56P1285 Rear cover (short finisher) 2 56P0357 Actuation assembly 2 56P0385 Solenoid drop assembly 3 56P0573 Upper right side cover (tall finisher) 3 56P1471 HCOF control board assembly 56P1471 HCOF Control Board Assembly New 56P1471 (New) $332.00 56P1471 HCOF Control Board Assembly Fully refurbished with 90-day warranty 56P1471 $332.00 3 56P0347 Jogger fence homing sensor (EE-SX1235A-P2) 4 56P0574 Lower tray cover 4 56P0325 Motor assembly paper feed 56p0325 Motor assembly paper feed Fully refurbished with 90-day warranty 56p0325 Contact for Details 4 56P0384 Accumulator belt (hook) 5 56P0576 Bottom kick cover 5 56P0332 Accumulator paper feed belt (40S3M900) 5 56P2294 Accumulator drive belt (B30S2M334) 56P2294 Accumulator Drive Belt (B30S2M334) New 56P2294 (New) $25.00 56P2294 Accumulator drive belt (B30S2M334) Fully refurbished with 90-day warranty 56P2294 Contact for Details 6 56P0575 Front/rear lower cover 56P0575 Front/rear lower cover New 56P0575 (New) Contact for Details 56P0575 Front/rear lower cover Fully refurbished with 90-day warranty 56P0575 $81.00 6 56P2294 Accumulator drive belt (B30S2M334) 56P2294 Accumulator Drive Belt (B30S2M334) New 56P2294 (New) $25.00 56P2294 Accumulator drive belt (B30S2M334) Fully refurbished with 90-day warranty 56P2294 Contact for Details 6 56P0319 Accumulator w/o stapler 7 56P0387 Bar tip unit 56P0387 Bar tip unit New 56P0387 (New) $174.00 56P0387 Bar tip unit Fully refurbished with 90-day warranty 56P0387 $174.00 7 56P0315 Punch assembly 7 56P0348 Drop timing sensor (OS-535223-602) 8 56P0577 Lower right side cover 56P0577 Lower right side cover New 56P0577 (New) Contact for Details 56P0577 Lower right side cover Fully refurbished with 90-day warranty 56P0577 $73.00 8 56P0345 Punch motor homing sensor (GP1A73A) 8 56P0349 Accumulator homing sensor (OS-311D-A5) 9 56P0320 Cover front door 56P0320 Cover front door New 56P0320 (New) $277.00 56P0320 Cover front door Fully refurbished with 90-day warranty 56P0320 $277.00 9 56P0318 Box, chad 9 56P0316 Staple assembly 10 56P0566 Finisher install kit 10 56P0329 Inverter D drive belt (40S3M225) 10 56P0358 Accumulator slides 11 56P0383 Solenoid inverter 56P0383 Solenoid inverter New 56P0383 (New) $38.00 56P0383 Solenoid inverter Fully refurbished with 90-day warranty 56P0383 $38.00 11 56P0317 Staple cartridge 12 56P0347 Jogger fence homing sensor (EE-SX460-P1-CHN) 12 56P0346 Exit timing sensor (EE-SPY415) 13 56P0342 Caster 13 56P0344 Inverter timing sensor (OJ511K-A5) 14 56P0338 Low voltage power supply 56P0338 Low voltage power supply New 56P0338 (New) $270.00 56P0338 Low Voltage Power Supply LVPS Fully refurbished with 90-day warranty 56P0338 Contact for Details 14 56P0330 Paper feed-input belt (40S3M279) 15 56P0333 Tray elevation belt (60S6M1420) 15 56P0351 Cover open switch 16 56P0323 Output tray offset motor and gear assembly 56P0323 Output tray offset motor and gear assembly Fully refurbished with 90-day warranty 56P0323 $122.00 16 56P2295 Jogger fence belt (B40S2M460) 17 56P0386 Fan assembly DC motor 18 56P0322 Tray paper 56P0322 Tray Paper New 56P0322 (New) $95.00 56P0322 Tray Paper Fully refurbished with 90-day warranty 56P0322 $95.00 19 56P0326 Flag paper full 56P0326 Flag paper full New 56P0326 (New) $47.00 56P0326 Flag paper full Fully refurbished with 90-day warranty 56P0326 $47.00 20 56P0331 Exit foam Roller drive belt (40S3M80) 21 56P0334 Tray elevation drive belt (170P2M4) 22 56P0335 Exit roller drive belt (40S2M264) 23 56P0336 Output tray offset drive belt (40S2M134) 24 56P0337 Punch belt (40S2M176) 25 56P0578 Tray wall cover 56P0578 Tray wall cover New 56P0578 (New) Contact for Details 56P0578 Tray wall cover Fully refurbished with 90-day warranty 56P0578 $59.00 26 56P0327 Paper feed belt (40S3M888) 27 56P0343 Punch timing sensor (OJ-541-A5) 28 56P0350 Paper surface sensor (EE-SX460-P1-CHN) 29 56P0352 Printer docking switch SS-5FL-3T(10E) 30 56P0388 Tray limit switches (includes two) 56P0388 Tray limit switches (includes two) Fully refurbished with 90-day warranty 56P0388 $46.00 56P0388 Tray limit switches (includes two) New 56P0388 (New) $46.00 31 56P0346 Exit timing sensor (EE-SPY415) 32 56P0328 Inverter transfer belt (40S3M198) 32.1–1 56P0324 Motor assembly elevator tray 32.2–1 56P0355 Guide vertical paper NS 56P0391 2-Pin attachment bracket (male) Parts catalog 7-63 NS 56P0340 Communications cable NS 56P0341 Power cord NS 56P0354 Bracket finisher alignment NS 56P0356 Pack magnet, strong and weak and door latch Parts catalog 7-65 NS 56P0382 Harness cable assembly D5 - low voltage power supply to low voltage power relay

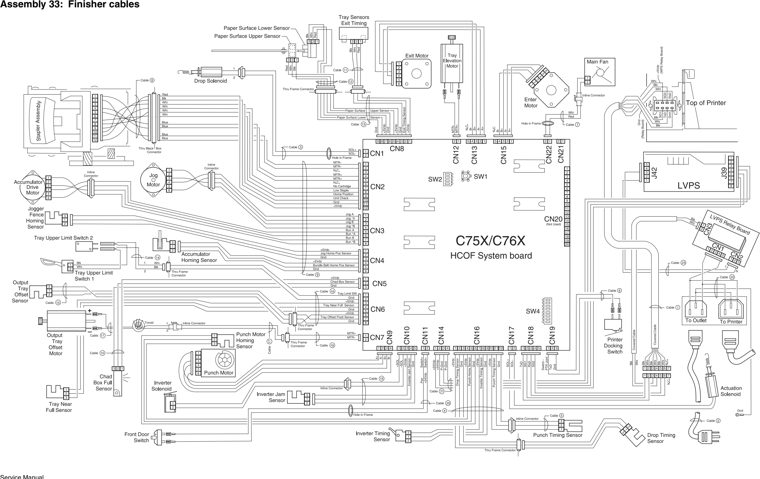

Assembly 33: Finisher cables 1 56P0340 Communications cable 2 56P0341 Power cord 3 56P0359 Harness cable assembly H2 - system board to drop solenoid 4 56P0360 Harness cable assembly H3 - system board to harness cable assembly H4/drop timing 5 56P0361 Harness cable assembly H4 - harness cable H3 to punch timing sensor 6 56P0362 Harness cable assembly H5 - system board to printer docking switch 7 56P0363 Harness cable assembly H6 - system board to fan 8 56P0364 Harness cable assembly S1 - stapler cable to stapler assembly 9 56P0368 Harness cable assembly S5 - system board to chad box full sensor 10 56P0369 Harness cable assembly E2 - cable E5 to exit timing sensor 11 56P0370 Harness cable assembly E3 - cable E5 to paper surface upper sensor/paper surface 12 56P0371 Harness cable assembly E5 - system board to cable E2/E3 13 56P0372 Harness cable assembly E6 - cable E8 to tray limit switches 14 56P0373 Harness cable assembly E7 - cable E8 to output tray offset sensor 15 56P0374 Harness cable assembly E8 - system board to E6/E7 16 56P0375 Harness cable assembly E9 - cable E10 to output offset motor 17 56P0376 Harness cable assembly E10 - system board to cable E9 18 56P0378 Harness cable assembly R1 - system board to inverter solenoid/inverter jam sensor 19 56P0379 Harness cable assembly D1 - system board to front door switch 20 56P0380 Harness cable assembly D2 - system board to low voltage power supply 21 56P0381 Harness cable assembly D3 - low voltage power supply relay board to AC input/output 22 56P0382 Harness cable assembly D5 - low voltage power supply to low voltage power supply

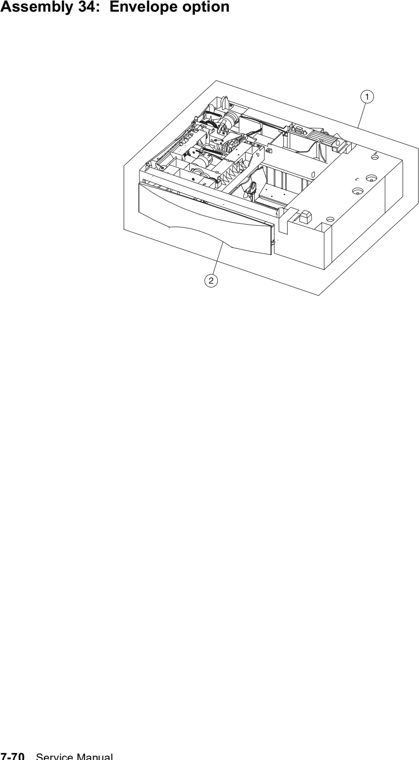

Assembly 34: Envelope option 1 56P2890 Envelope option (complete) 56p2890 Envelope Feeder New 56p2890 (New) $299.00 2 56P2891 Envelope tray assembly Parts catalog 7-71

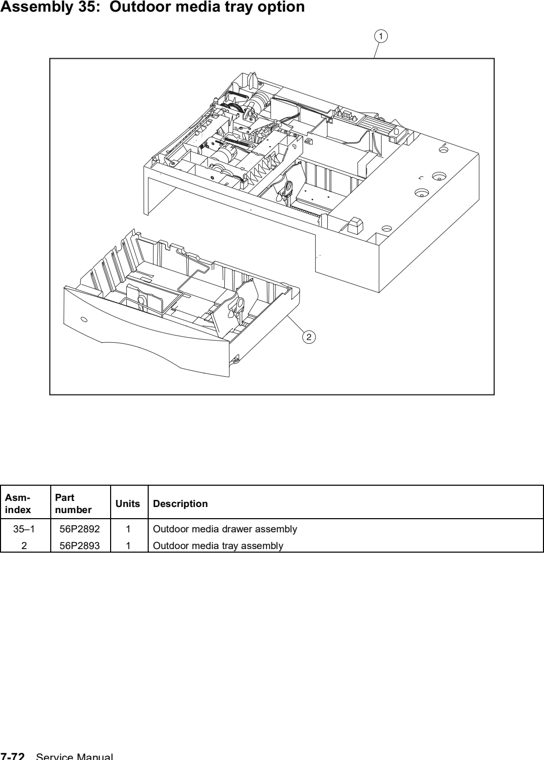

Assembly 35: Outdoor media tray option 1 56P2892 Outdoor media drawer assembly 2 56P2893 Outdoor media tray assembly

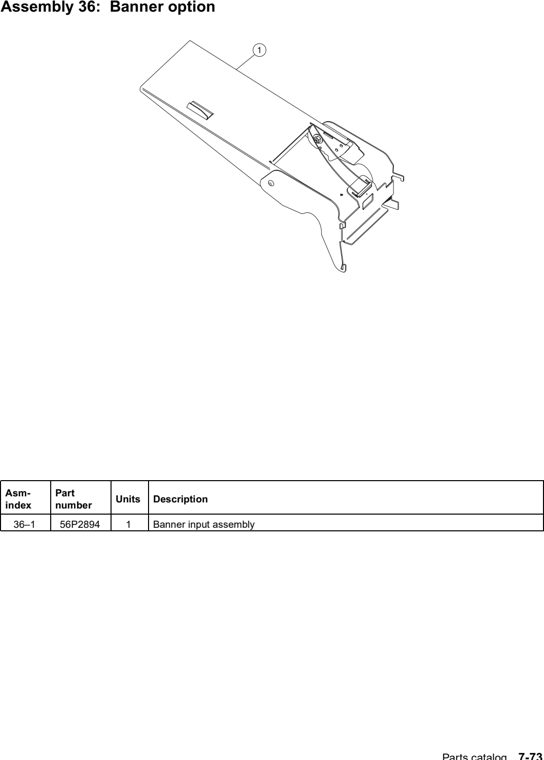

Assembly 36: Banner option 1 56P2894 Banner input assembly Parts catalog 7-73

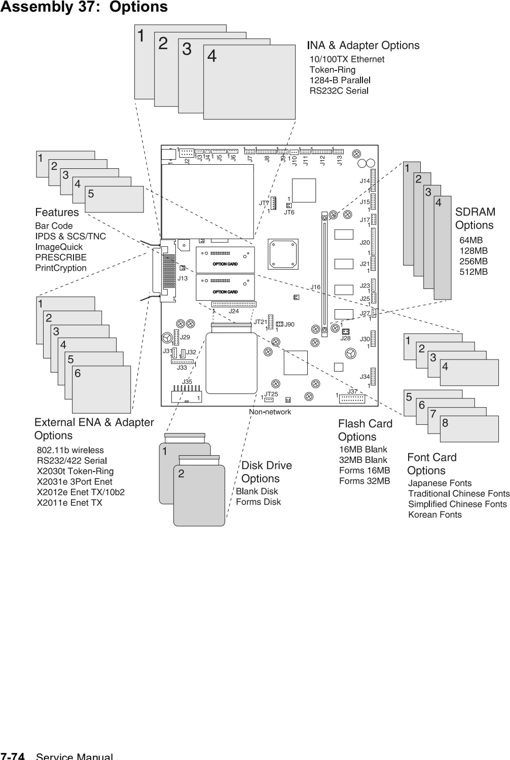

Assembly 37: Options NS 12G6509 64MB SDRAM card assembly Lexmark 12G6509 SDRAM DIMM 64MB Fully refurbished with 90-day warranty 12G6509 $44.71 NS 56P9910 128MB SDRAM card assembly NS 56P9911 256MB SDRAM card assembly NS 56P2223 512MB SDRAM card assembly NS 56P1417 16MB Flash DIMM card assembly NS 56P1418 32MB Flash DIMM card assembly NS 56P1430 Traditional Chinese font DIMM card assembly NS 56P1429 Simplified Chinese font DIMM card assembly NS 56P1437 Adapter, parallel 1284-B NS 56P9982 Hard Disk, 20GB with/Adapter (formatted) NS 56P9926 Lexmark Optra Forms™ Software NS 56P9927 Lexmark Forms Director Software NS 56P1428 Lexmark Forms 16MB Flash DIMM NS 56P1427 Lexmark Forms 32MB Flash DIMM NS 56P9942 Hard Drive Mounting Kit NS 56P1741 MarkNet™ Token-Ring Print Internal Server NS 56P1431 MarkNet X2011e Ethernet 10/100BaseTX - 1 Port External Server NS 56P1432 MarkNet X2012e Ethernet 10BaseT/2 10BaseTX/10Base 2 - 1 Port External Server NS 56P1435 External serial adapter (RS 232) NS 56P0159 Coax/Twinax adapter for SCS NS 56P1436 RS-232 serial interface card NS 56P3090 IPDS/SCS card assembly NS 56P1438 Japanese font card assembly NS 56P2231 Korean font card assembly card assembly NS 56P3142 PrintCryption™ card assembly NS 56P3143 Bar code card assembly NS 56P3302 ImageQuick™ card assembly NS 56P3303 PRESCRIBE card assembly NS 56P1433 MarkNet X2031e Ethernet 10/100BaseTX - 3 Port External Server NS 56P1434 MarkNet X2030t Token-Ring External Server NS 56P1742 MarkNet N2101e Ethernet 10/100BaseTX Internal Server Lexmark 56P1742 MarkNet N2101e Ethernet Internal Print Server Fully refurbished with 90-day warranty 56P1742 $195.00 NS 56P9932 Lexmark Forms hard disk, 5GB or larger w/adapter Parts catalog 7-75
Other listed parts 12G6309 12G6530 12G6533 16N3050 Output Expander 16N3050 Output Expander New 16N3050 (New) $249.00 16N3050 Output Expander Fully refurbished with 90-day warranty 16N3050 Contact for Details 40X2067 ) Gear, Drive Lexmark 40X2067 C77x SVC Gear DRIVE New 40X2067 (New) $45.50 56P0169 56P0490 Jumper, AC power cord 56P0491 Caster, movable 56P0492 Caster, fixed 56P0493 F adjuster 56P0494 System Control Board 56P0494 System Control Board New 56P0494 (New) $217.00 56P0494 System Control Board Fully refurbished with 90-day warranty 56P0494 Contact for Details 56P0495 LVPS Low Voltage Power Supply 56P0495 LVPS Low Voltage Power Supply New 56P0495 (New) $247.00 56P0495 LVPS Low Voltage Power Supply Fully refurbished with 90-day warranty 56P0495 $167.00 56P0497 AC power outlet 56P0498 AC power inlet 56P0506 Locating pin, options rear left 56P0507 Locating pin, options front right 56P0509 Cable, feed unit special sensors 56P0510 Cable, feed unit sensors 56P0511 Paper size sensors cable 56P0512 Cable, elevator motor 56P0513 Elevator motor assembly 56P0513 Elevator motor assembly New 56P0513 (New) $63.00 56P0513 Elevator motor assembly Fully refurbished with 90-day warranty 56P0513 $43.00 56P0514 Options autoconnect cable assembly 56P0515 Magnetic latch 56P0516 Sensor, photo interrupter 56P0517 Options cable mounting plate 56P0518 Flag, paper size R 56P0519 Flag, paper size F 56P0520 Flag, paper size C 56P0522 3 Spring, paper size flag 56P0523 Paper tray arms 56P0524 Paper tray guide 56P0525 Feed unit, complete assembly 56P0526 Sensors, special optical 56P0527 Bushing 56P0528 Feed roller 56P0529 Feed cam 56P0530 Spring, feed unit 56P0531 56P0532 Bushing, 060 56P0533 Spring, feed unit front 56P0534 Spring, feed unit rear 56P0535 Clip, plastic 5W 56P0536 Level sensor flag 56P0539 Near empty sensor flag 56P0540 Spring, extension 56P0541 Tray present lever 56P0542 Separation/torque roller 56P0543 Cable clamp 56P0544 Emitter timing wheel 56P0547 Elevator lift belt 56P0548 Elevator lift gear 56P0549 Elevator lift 56P0561 Paper size sensor box assembly 56P0561 Paper size sensor box assembly New 56P0561 (New) Contact for Details 56P0561 Paper size sensor box assembly Fully refurbished with 90-day warranty 56P0561 $26.00 56P0562 Feed cover 56P0563 Ring, elevator lift gear/elevator lift 56P0564 Kit, stabilizer with mounting screws 56P2901 Front cover 56P2902 Cover, main CA 56P2903 Right side cover 56P2904 Left side cover 56P2905 Rear cover 56P2906 Upper left side jam cover 88A0235 99A0263 Screws Parts Packet Lexmark 99A0263 Screws Parts Packet New 99A0263 (New) Contact for Details 99A0267 99A0572 Shaft Bearing Lexmark 99A0572 Shaft Bearing New 99A0572 (New) Contact for Details
