Please call for parts assistance

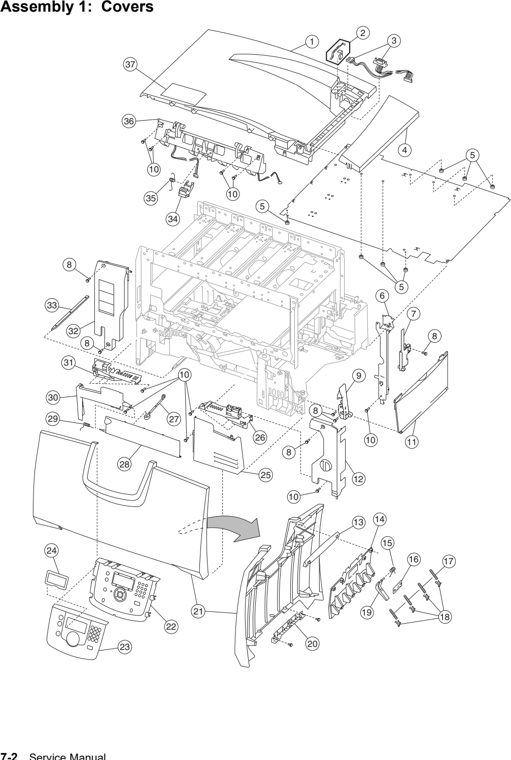

Assembly 1: Covers 1 40X1628 Top cover assembly Also order cable tie parts packet (P/N 40X1648) Lexmark 40X1628 Top Cover Assembly New 40X1628 (New) $25.81 Lexmark 40X1628 Top Cover Assembly Fully refurbished with 90-day warranty 40X1628 $54.35 1.1–1 40X1657 Left upper cover assembly Lexmark 40X1657 Left Upper Cover Assembly New 40X1657 (New) $26.41 2 40X1631 250 output flag and retainer 3 40X1637 Top autoconnect and output bin sensor—1xx/3xx only 3 40X1777 Top autoconnect and output bin sensor—2xx/4xx Lexmark 40X1777 Output Options Autoconnect and Bin Sensor New 40X1777 (New) Contact for Details Lexmark 40X1777 Output Options Autoconnect and Bin Sensor Fully refurbished with 90-day warranty 40X1777 $31.10 3 40X1653 Left upper pivot cover 4 40X1638 Redrive cap cover assembly Lexmark 40X1638 Redrive Cap Cover New 40X1638 (New) $19.21 Lexmark 40X1638 Redrive Cap Cover Fully refurbished with 90-day warranty 40X1638 $17.25 4 40X1787 Jam access door spring 5 40X1601 Machine pad 5 40X1658 Lower jam access door assembly Lexmark 40X1658 Lower Jam Access Door Assembly New 40X1658 (New) $16.00 6 40X1602 Top front support bracket 6 40X1655 Left lower pivot cover 7 40X1622 Right rear cover 7 40X1768 Reference edge nip release strap 8 40X1654 Left lower cover 9 40X1620 Right front cover 9 40X1656 Waste container door Lexmark 40X1656 Waste Container Door Fully refurbished with 90-day warranty 40X1656 Contact for Details 10 40X1647 Ground cable 11 40X1634 Lower right door assembly Lexmark 40X1634 Lower Right Door Assembly New 40X1634 (New) $21.54 11 40X1644 Rear cover Lexmark 40X1644 Rear Cover New 40X1644 (New) $65.49 Lexmark 40X1644 Rear Cover Fully refurbished with 90-day warranty 40X1644 $53.41 12 40X1605 Front right light shield 12 40X1643 Fuser latch slide 13 40X1615 Front cover rear pivot cover 13 40X1645 Fuser latch slide spring 14 40X1607 Front cover backplate assembly Lexmark 40X1607 Front Cover Backplate Assembly New 40X1607 (New) $41.00 Lexmark 40X1607 Front Cover Backplate Assembly Fully refurbished with 90-day warranty 40X1607 $33.00 14 40X1640 Fuser top duct 15 40X1608 Detent link spring 15 40X1646 Duplex actuator arm assembly 16 40X1672 Bellcrank detent bearing 16 40X1662 RIP fan duct 17 40X1636 Rear hold down spring 17 40X1642 Fuser wall duct 18 40X1610 Front hold down bellcrank 18 40X1641 Fuser bottom duct 19 40X1609 Detent link Lexmark 40X1609 Detent Link New 40X1609 (New) $42.48 Lexmark 40X1609 Detent Link Fully refurbished with 90-day warranty 40X1609 $34.62 19 40X1650 Fuser left duct 20 40X1623 Front access door handle 20 40X1652 Redrive belt cover duct 21 40X1614 Front cover Lexmark 40X1614 Front Cover New 40X1614 (New) $56.55 Lexmark 40X1614 Front Cover Fully refurbished with 90-day warranty 40X1614 $46.10 22 40X1626 Operator panel assembly Lexmark 40X1626 I Operator Panel Assembly New 40X1626 I (New) $27.50 Lexmark 40X1626 I Operator Panel Assembly Fully refurbished with 90-day warranty 40X1626 I $24.50 23 40X1625 Operator panel bezel with overlays—1xx only 23 40X1822 Operator panel bezel with overlays—2xx only 23 40X1624 Operator panel bezel with overlays—3xx only 23 40X1874 Operator panel bezel with overlays—4xx only 24 40X1627 Clear LCD lens 25 40X1621 Front lower right cover 26 40X1629 Front right handle cover assembly 27 40X1867 Reference edge nip release strap 28 40X1619 Paper path access door Lexmark 40x1619 Paper Path Access Door New 40x1619 (New) Contact for Details 29 40X1603 Paper path access door spring Lexmark 40X1603 Paper path access door spring New 40X1603 (New) Contact for Details 30 40X1618 Front lower left cover 31 40X1630 Front left handle cover assembly 32 40X1604 Left front light shield cover 33 40X1606 Paper tray guide 34 40X1612 Detent bellcrank 35 40X1613 Bellcrank detent spring 36 40X1611 Front access door support Lexmark 40X1611 Front Access Door Support New 40X1611 (New) $23.56 Lexmark 40X1611 Front Access Door Support Fully refurbished with 90-day warranty 40X1611 $29.66 37 40X1616 Top paper jam label—3xx/4xx only 37 40X1617 Top paper jam label—1xx/2xx only Parts catalog 7-3 NS 40X1648 Cable tie (6 in pack) Note: Use to secure cables to the inner system board shield) Lexmark 40X1648 Cable Ties Fully refurbished with 90-day warranty 40X1648 $22.00 NS 40X1649 Cable tie mount NS 40X1671 Cable tie (6 in pack) Parts catalog 7-5

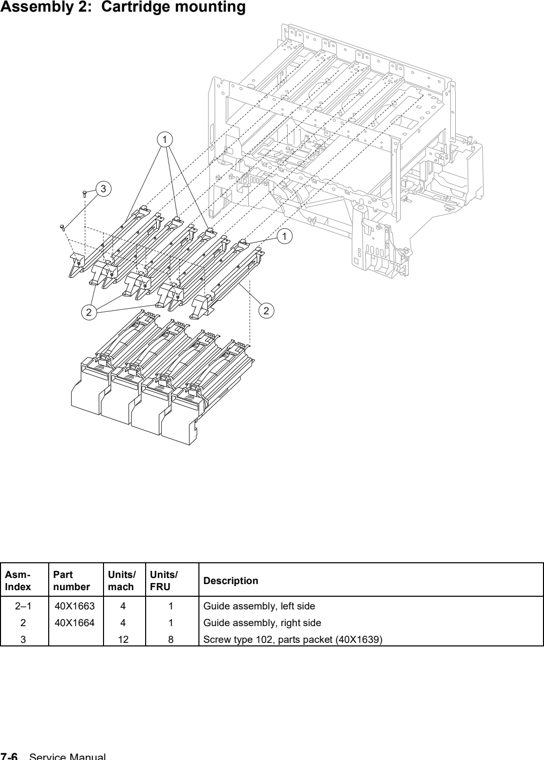

Assembly 2: Cartridge mounting 1 40X1663 Guide assembly, left side Lexmark 40X1663 Left Side Guide Assembly New 40X1663 (New) $24.87 2 40X1664 Guide assembly, right side Lexmark 40X1664 Right Side Guide Assembly New 40X1664 (New) Contact for Details

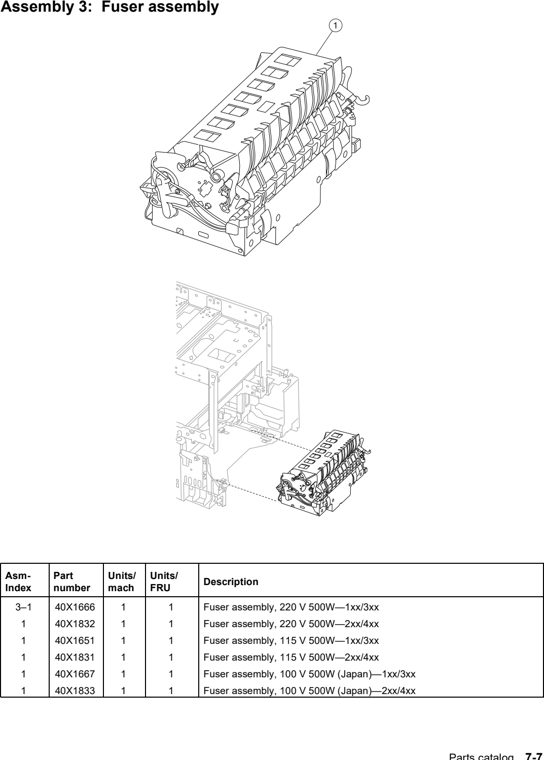

Assembly 3: Fuser assembly 1 40X1666 Fuser assembly, 220 V 500W—1xx/3xx 1 40X1832 Fuser assembly, 220 V 500W—2xx/4xx 1 40X1651 Fuser assembly, 115 V 500W—1xx/3xx Lexmark 40X1651 Fuser Assembly New 40X1651 40X1859 (New) $479.00 Lexmark 40X1651 Fuser Assembly Fully refurbished with 90-day warranty 40X1651 Retired, no longer available: Contact for alternatives Contact for Details 1 40X1831 Fuser assembly, 115 V 500W—2xx/4xx Lexmark 40X1831 Thumps but new Maintenance Kit New 40X1831 (New) Thumps but new $199.00 1 40X1667 Fuser assembly, 100 V 500W (Japan)—1xx/3xx 1 40X1833 Fuser assembly, 100 V 500W (Japan)—2xx/4xx Parts catalog 7-7 2 40X1670 Web oiler driver board assembly Lexmark 40X1670 Web Oiler Driver Board Assembly New 40X1670 (New) $56.71 Lexmark 40X1670 Web Oiler Driver Board Assembly Fully refurbished with 90-day warranty 40X1670 $46.23 3 40X1669 Web oiler index drive assembly Parts catalog 7-9 Lexmark 40X1669 Web Oiler Index Drive Assembly New 40X1669 (New) $96.00 Lexmark 40X1669 Web Oiler Index Drive Assembly Fully refurbished with 90-day warranty 40X1669 $78.32 3.1–1 40X1674 Web oiler assembly Lexmark 40X1674 Web Oiler Assembly New 40X1674 (New) $573.16 Lexmark 40X1674 Web Oiler Assembly Fully refurbished with 90-day warranty 40X1674 $440.83

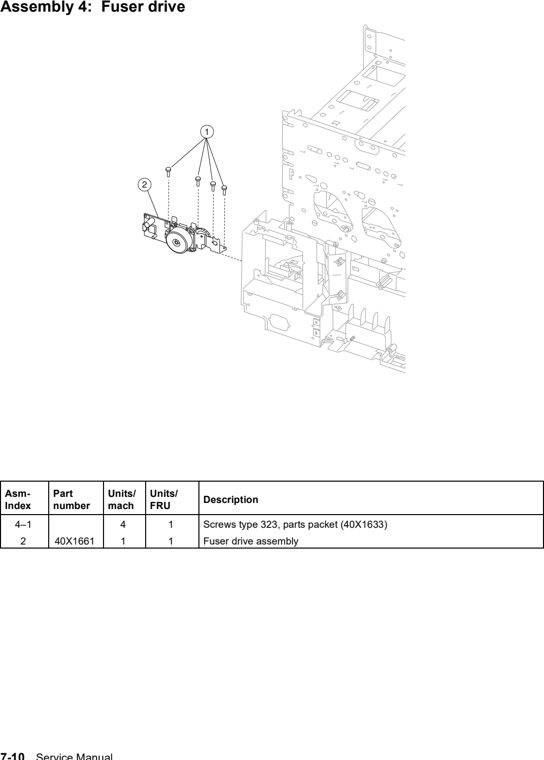

Assembly 4: Fuser drive 2 40X1661 Fuser drive assembly Lexmark 40X1661 Fuser Drive Assembly New 40X1661 (New) Contact for Details Lexmark 40X1661 Fuser Drive Assembly Fully refurbished with 90-day warranty 40X1661 $53.00

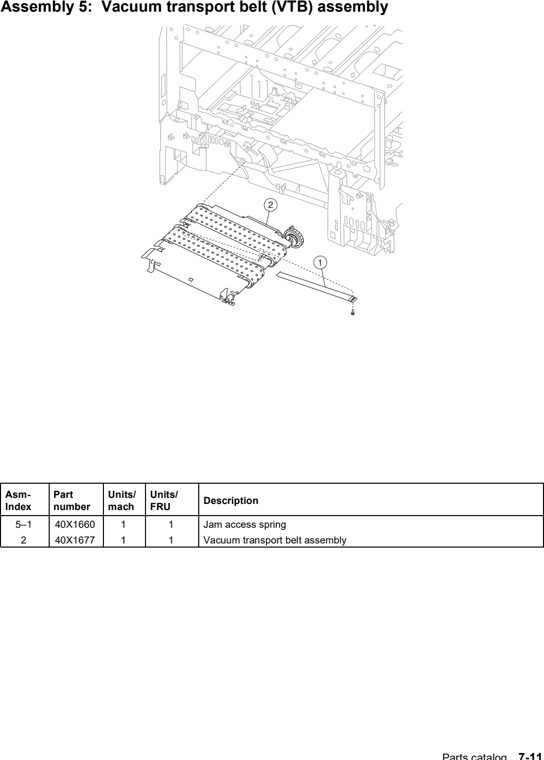

Assembly 5: Vacuum transport belt (VTB) assembly 1 40X1660 Jam access spring 2 40X1677 Vacuum transport belt assembly Parts catalog 7-11 Lexmark 40X1677 Vacuum Transport Belt Assembly New 40X1677 (New) $26.24 Lexmark 40X1677 Vacuum Transport Belt Assembly Fully refurbished with 90-day warranty 40X1677 $26.54

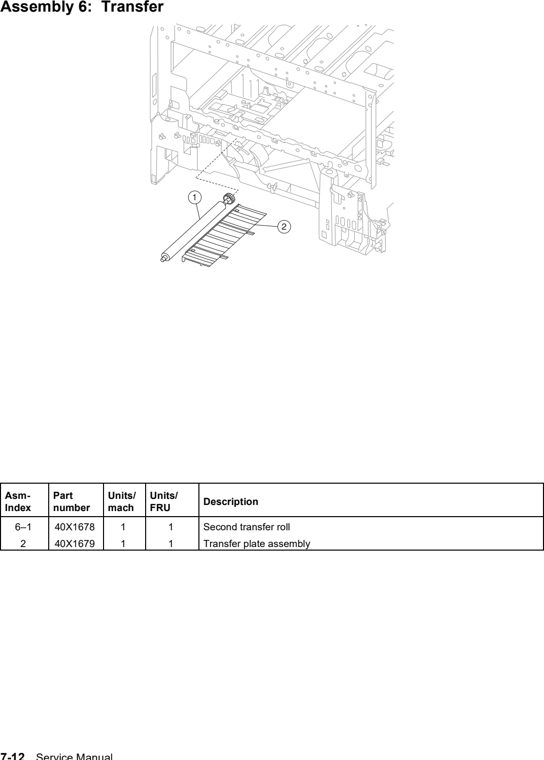

Assembly 6: Transfer 1 40X1678 Second transfer roll Lexmark 40X1678 Second Transfer Roll New 40X1678 (New) Retired, no longer available: Contact for alternatives Contact for Details 2 40X1679 Transfer plate assembly Lexmark 40X1679 Transfer Plate Assembly New 40X1679 (New) Contact for Details

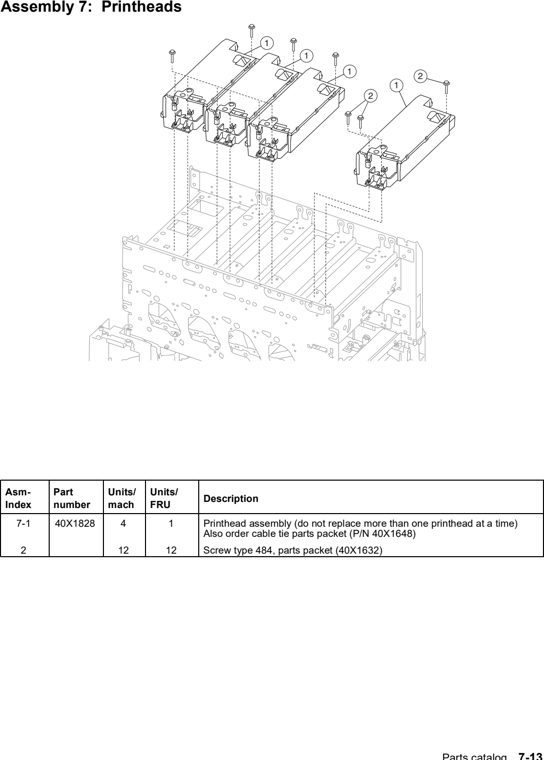

Assembly 7: Printheads 1 40X1828 Printhead assembly (do not replace more than one printhead at a time) Also order cable tie parts packet (P/N 40X1648) Lexmark 40X1828 Printhead Assembly New 40X1828 (New) Contact for Details Lexmark 40X1828 Printhead Assembly Fully refurbished with 90-day warranty 40X1828 $70.00

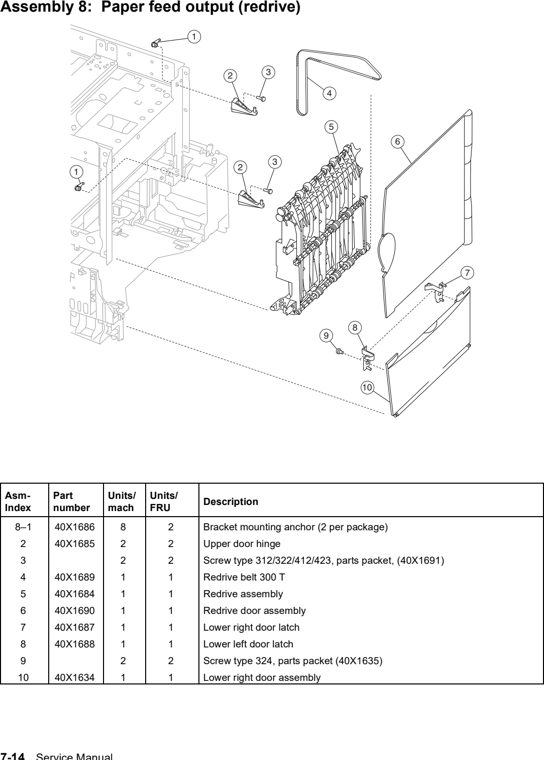

Assembly 8: Paper feed output (redrive) 1 40X1686 Bracket mounting anchor (2 per package) 2 40X1685 Upper door hinge 4 40X1689 Redrive belt 300 T 5 40X1684 Redrive assembly Lexmark 40X1684 Redrive Assembly New 40X1684 (New) Contact for Details Lexmark 40X1684 Redrive Assembly Fully refurbished with 90-day warranty 40X1684 $28.96 6 40X1690 Redrive door assembly Lexmark 40X1690 Redrive door assembly New 40X1690 (New) $24.71 Lexmark 40X1690 Redrive door assembly Fully refurbished with 90-day warranty 40X1690 $25.00 7 40X1687 Lower right door latch 8 40X1688 Lower left door latch 10 40X1634 Lower right door assembly Lexmark 40X1634 Lower Right Door Assembly New 40X1634 (New) $21.54

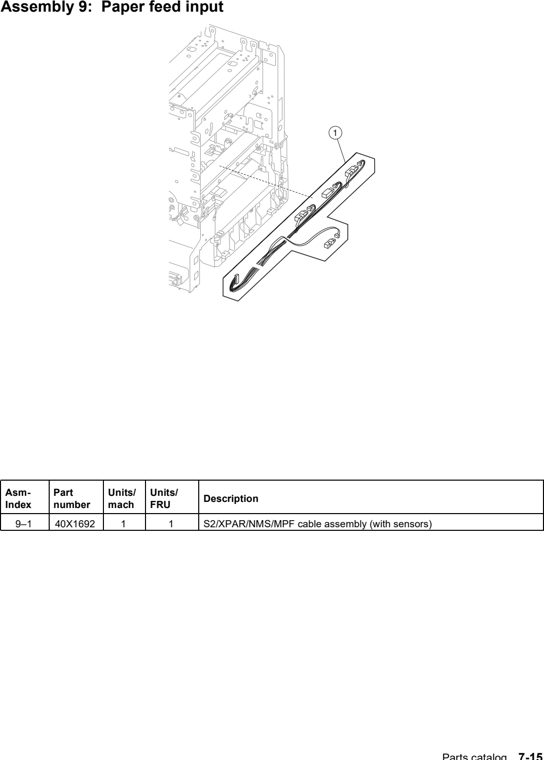

Assembly 9: Paper feed input 1 40X1692 S2/XPAR/NMS/MPF cable assembly (with sensors) Parts catalog 7-15 Lexmark 40X1692 S2/XPAR/NMS/MPF Cable Assembly (With Sensors) New 40X1692 (New) $199.00 Lexmark 40X1692 S2/XPAR/NMS/MPF Cable Assembly (With Sensors) Fully refurbished with 90-day warranty 40X1692 $155.00

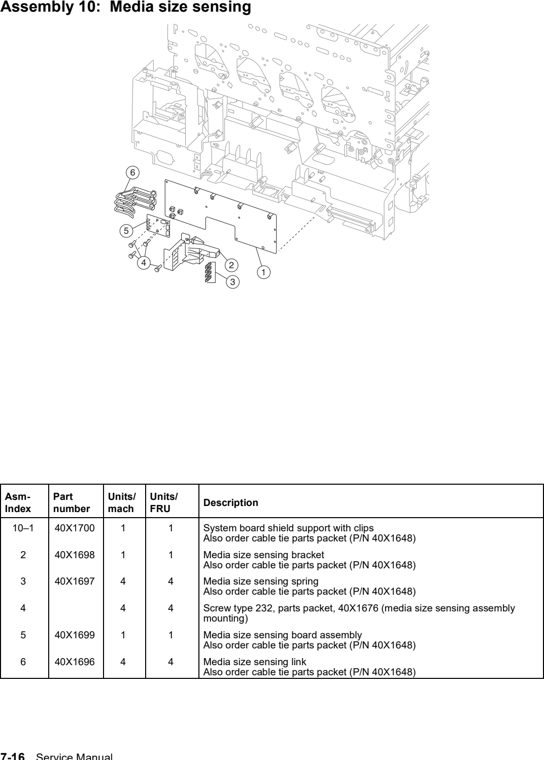

Assembly 10: Media size sensing 1 40X1700 System board shield support with clips Also order cable tie parts packet (P/N 40X1648) 2 40X1698 Media size sensing bracket Also order cable tie parts packet (P/N40X1648) 3 40X1697 Media size sensing spring Also order cable tie parts packet (P/N 40X1648) 5 40X1699 Media size sensing board assembly Also order cable tie parts packet (P/N40X1648) Lexmark 40X1699 Media Size Sensing Board Assembly New 40X1699 (New) $19.63 6 40X1696 Media size sensing link Also order cable tie parts packet (P/N40X1648) Lexmark 40X1696 Media Size Sensing Assembly New 40X1696 (New) Contact for Details

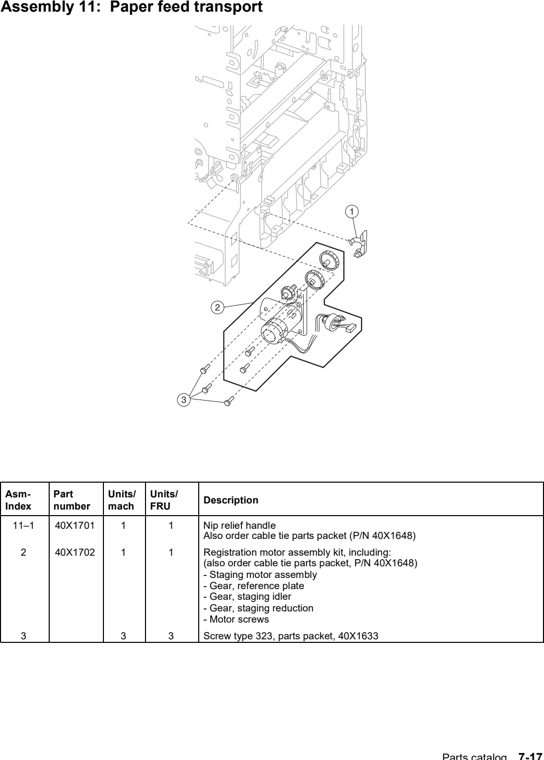

Assembly 11: Paper feed transport 1 40X1701 Nip relief handle Also order cable tie parts packet (P/N 40X1648) 2 40X1702 Registration motor assembly kit, including: (also order cable tie parts packet, P/N 40X1648) - Staging motor assembly - Gear, reference plate - Gear, staging idler - Gear, staging reduction - Motor screws Lexmark 40X1702 Registration motor assembly kit New 40X1702 (New) $9.00 Lexmark 40X1702 Registration motor assembly kit Fully refurbished with 90-day warranty 40X1702 $16.85

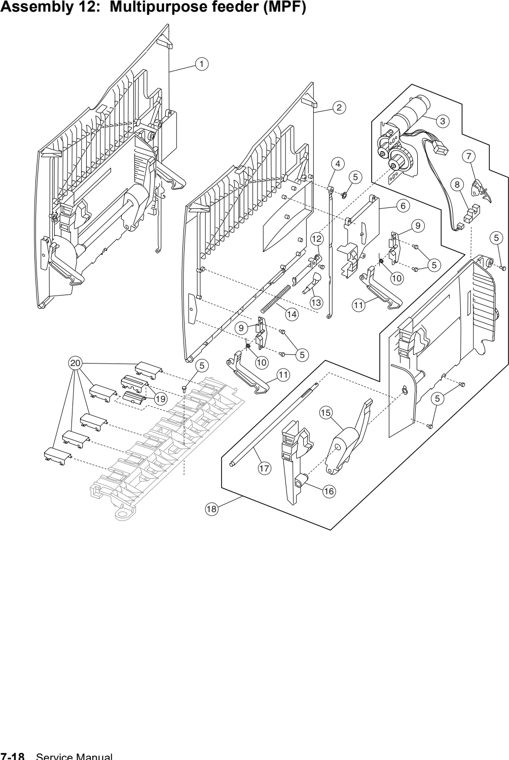

Assembly 12: Multipurpose feeder (MPF) 1 40X1714 MPF door assembly—1xx/3xx Lexmark 40X1714 MPF Door Assembly New 40X1714 (New) $41.96 Lexmark 40X1714 MPF Door Assembly Fully refurbished with 90-day warranty 40X1714 $34.71 1 40X1841 MPF door assembly—2xx/4xx Lexmark 40X1841 MPF Door Assembly New 40X1841 (New) $96.09 Lexmark 40X1841 MPF Door Assembly Fully refurbished with 90-day warranty 40X1841 $28.96 2 40X1711 MPF door cover Lexmark 40X1711 MPF Door Cover New 40X1711 (New) $25.88 3 40X1853 MPF drive assembly Lexmark 40X1853 MPF drive assembly Fully refurbished with 90-day warranty 40X1853 Contact for Details Lexmark 40X1853 MPF drive assembly New 40X1853 (New) Contact for Details 4 40X1708 Door hinge restraint 6 40X1710 MPF gear cover 7 40X1673 MPF paper out flag 8 40X1852 Paper out sensor MPF 9 40X1715 MPF support bracket cover 10 40X1707 MPF support bracket spring 11 40X1717 MPF support bracket 12 40X1713 Frame bias latch cover 13 40X1712 Frame bias latch 14 40X1706 Frame bias spring 15 40X1716 MPF autocompensator pick assembly 16 40X1736 MPF side restraint 17 40X1682 MPF pick shaft 18 40X1709 MPF feed assembly—1xx/3xx Lexmark 40X1709 MPF Feed Assembly New 40X1709 (New) Contact for Details Lexmark 40X1709 MPF Feed Assembly Fully refurbished with 90-day warranty 40X1709 Contact for Details 18 40X1840 MPF feed assembly—2xx/4xx Lexmark 40X1840 MPF Feed Assembly New 40X1840 (New) $69.39 Lexmark 40X1840 MPF Feed Assembly Fully refurbished with 90-day warranty 40X1840 $56.60 19 40X1808 Friction buckler and buckler housing 20 40X1704 Rib housing NS 40X1854 MPF motor/sensor cable Parts catalog 7-19

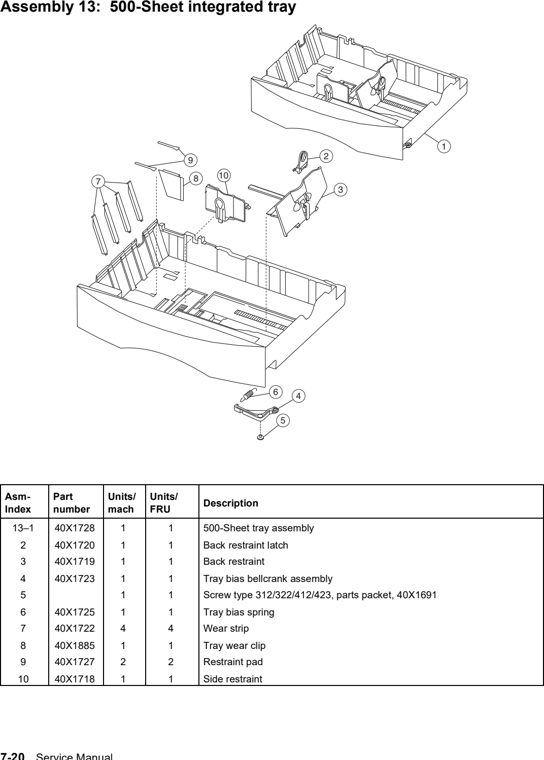

Assembly 13: 500-Sheet integrated tray 1 40X1728 500-Sheet tray assembly Lexmark 40X1728 500-Sheet Tray Complete Assembly New 40X1728 (New) $73.00 Lexmark 40X1728 500-Sheet Tray Complete Assembly Fully refurbished with 90-day warranty 40X1728 $56.00 2 40X1720 Back restraint latch 3 40X1719 Back restraint 4 40X1723 Tray bias bellcrank assembly 6 40X1725 Tray bias spring 7 40X1722 Wear strip 8 40X1885 Tray wear clip 9 40X1727 Restraint pad 10 40X1718 Side restraint

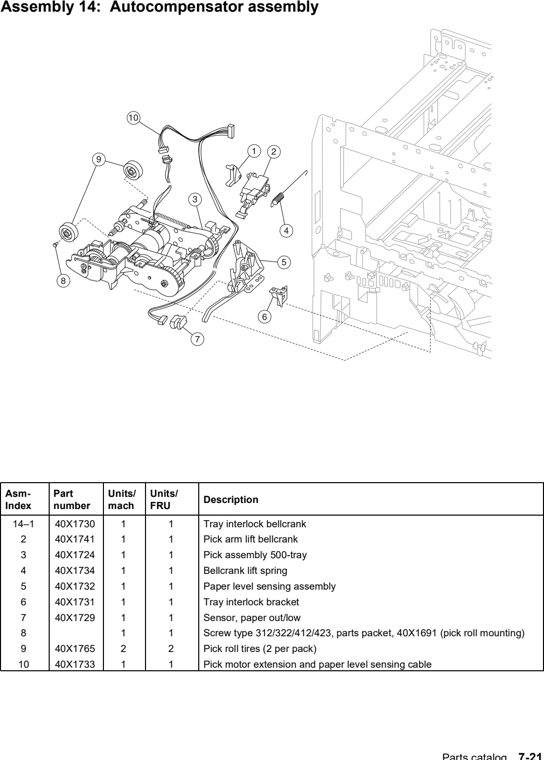

Assembly 14: Autocompensator assembly 1 40X1730 Tray interlock bellcrank 2 40X1741 Pick arm lift bellcrank 3 40X1724 Pick assembly 500-tray Lexmark 40X1724 Pick Assembly 500-Tray New 40X1724 (New) $13.15 Lexmark 40X1724 Pick Assembly 500-Tray Fully refurbished with 90-day warranty 40X1724 $24.71 4 40X1734 Bellcrank lift spring 5 40X1732 Paper level sensing assembly Lexmark 40X1732 Paper Level Sensing Assembly New 40X1732 (New) Contact for Details 6 40X1731 Tray interlock bracket 7 40X1729 Sensor, paper out/low Lexmark 40X1729 Sensor Paper Out/Low New 40X1729 (New) $18.56 9 40X1765 Pick roll tires (2 per pack) Lexmark 40X1765 Pick rolls (2) New 40X1765 (New) $99.00 10 40X1733 Pick motor extension and paper level sensing cable Parts catalog 7-21

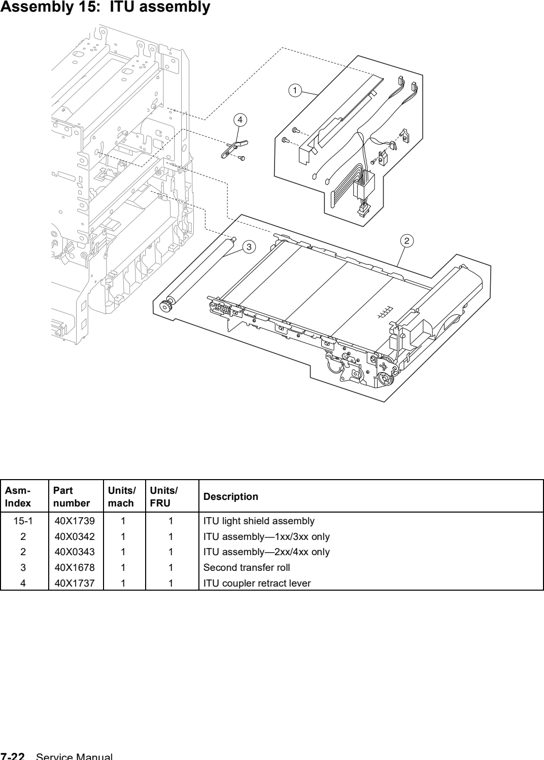

Assembly 15: ITU assembly 1 40X1739 ITU light shield assembly Lexmark 40X1739 ITU Light Shield Assembly New 40X1739 (New) $55.10 Lexmark 40X1739 ITU Light Shield Assembly Fully refurbished with 90-day warranty 40X1739 $44.92 2 40X0342 ITU assembly—1xx/3xx only Lexmark 40X0342 Image Transfer Unit Maintenance Kit (ITU) New 40X0342 40x1788 (New) Contact for Details 2 40X0343 ITU assembly—2xx/4xx only Lexmark 40X0343 Image Transfer Unit Maintenance Kit New 40X0343 (New) $689.00 3 40X1678 Second transfer roll Lexmark 40X1678 Second Transfer Roll New 40X1678 (New) Retired, no longer available: Contact for alternatives Contact for Details 4 40X1737 ITU coupler retract lever

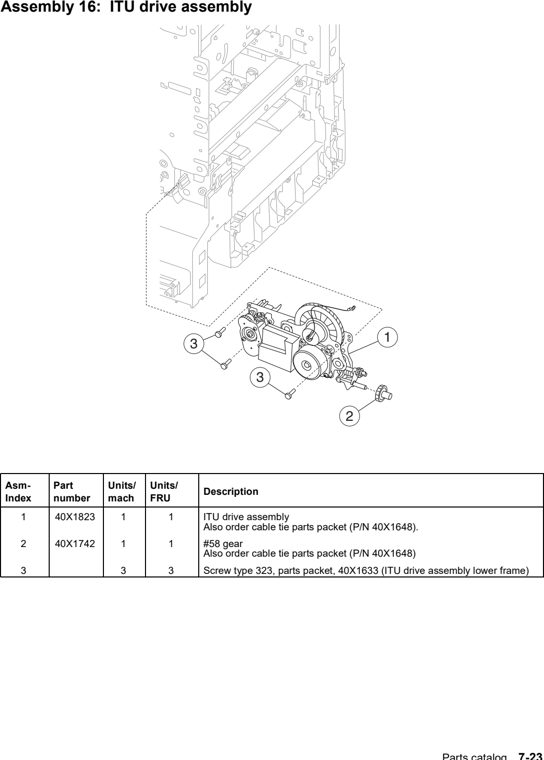

Assembly 16: ITU drive assembly 1 40X1823 ITU drive assembly Also order cable tie parts packet (P/N 40X1648). Lexmark 40X1823 ITU Drive Assembly New 40X1823 (New) $39.78 Lexmark 40X1823 ITU Drive Assembly Fully refurbished with 90-day warranty 40X1823 $28.96 2 40X1742 #58 gear Also order cable tie parts packet (P/N 40X1648)

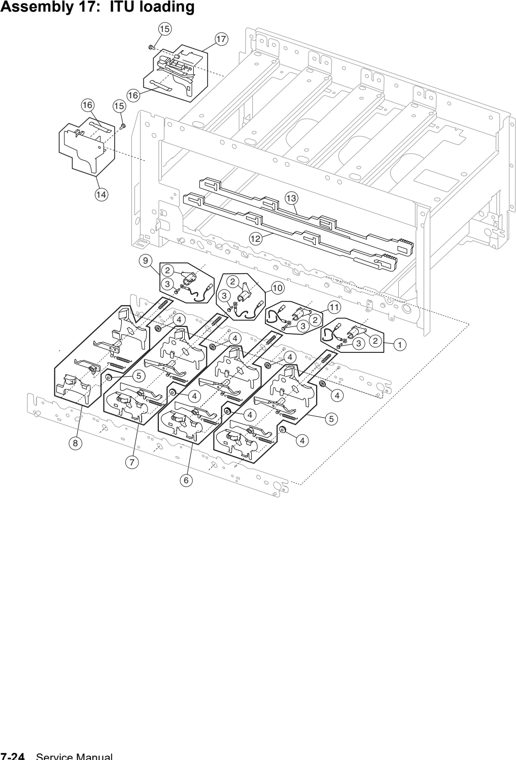

Assembly 17: ITU loading 1 40X1761 Yellow terminal contact assembly 2 40X1744 Contact spring terminal 4 40X1743 Cartridge support roller 5 40X1749 Parts packet, ITU loading—yellow, including 6 40X1750 Parts packet, ITU loading—cyan, including 7 40X1751 Parts packet, ITU loading (1xx/3xx)—magenta, including 7 40X1849 Parts packet, ITU loading (2xx/4xx)—magenta, including Lexmark 40X1849 New Parts Packet (2xx 4xx) ITU Loading - Magenta New 40X1849 (New) $13.32 Lexmark 40X1849 Parts Packet (2xx 4xx) ITU Loading - Magenta Fully refurbished with 90-day warranty 40X1849 Contact for Details 8 40X1752 Parts packet, ITU loading—black, including 9 40X1753 Black terminal contact assembly 10 40X1757 Magenta terminal contact assembly 11 40X1759 Cyan terminal contact assembly 12 40X1747 BOR front cam 13 40X1748 BOR rear cam 14 40X1770 Front ITU guide 16 40X1745 ITU bias spring 17 40X1746 Rear ITU guide Parts catalog 7-25

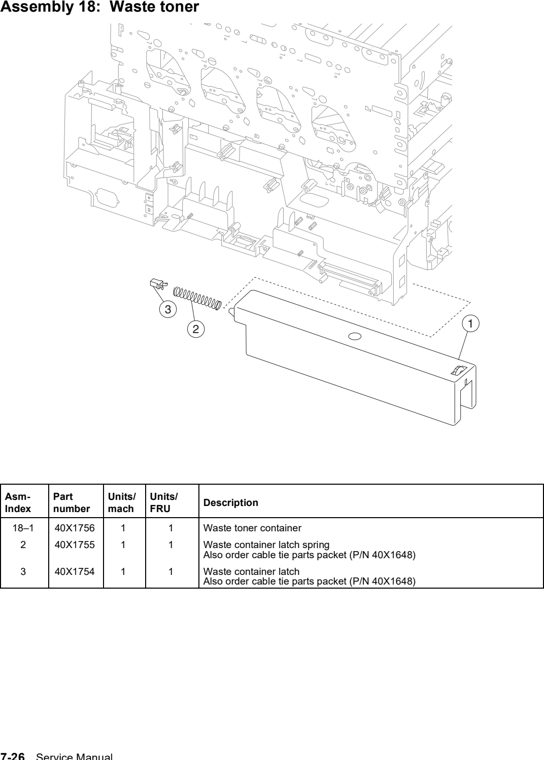

Assembly 18: Waste toner 1 40X1756 Waste toner container Lexmark 40X1756 Waste Toner Container New 40X1756 (New) $20.71 2 40X1755 Waste container latch spring 3 40X1754 Waste container latch Lexmark 40X1754 Waste Container Latch Fully refurbished with 90-day warranty 40X1754 $24.00

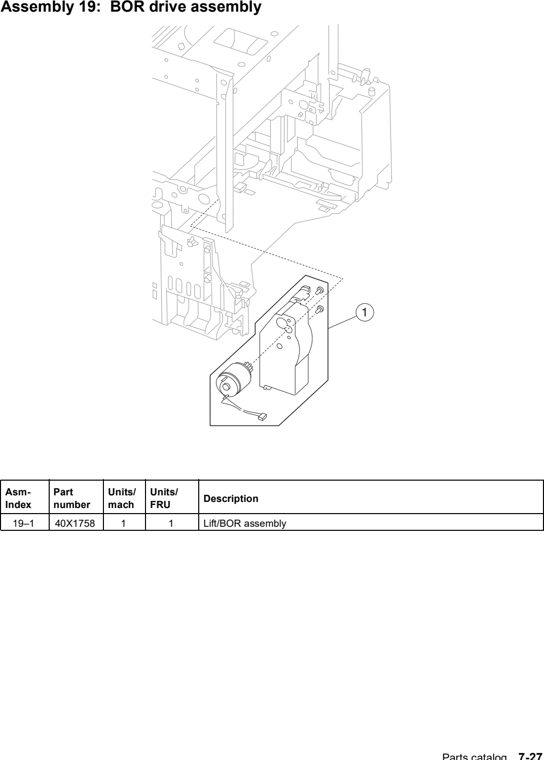

Assembly 19: BOR drive assembly 1 40X1758 Lift/BOR assembly Parts catalog 7-27 Lexmark 40X1758 Lift/BOR Assembly New 40X1758 (New) $12.50 Lexmark 40X1758 Lift/BOR Assembly Fully refurbished with 90-day warranty 40X1758 $15.07

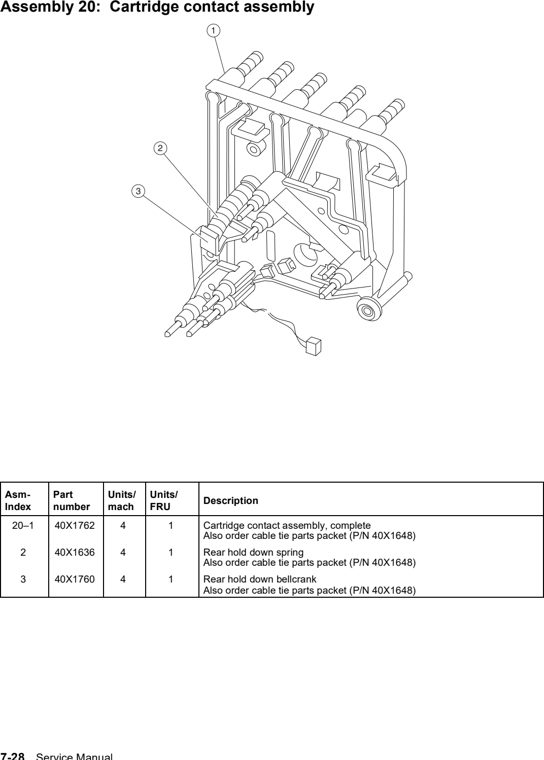

Assembly 20: Cartridge contact assembly 1 40X1762 Cartridge contact assembly, complete Also order cable tie parts packet (P/N 40X1648) Lexmark 40X1762 Cartridge Contact Assembly Complete New 40X1762 (New) $36.40 Lexmark 40X1762 Cartridge Contact Assembly Complete Fully refurbished with 90-day warranty 40X1762 Contact for Details 2 40X1636 Rear hold down spring Also order cable tie parts packet (P/N 40X1648) 3 40X1760 Rear hold down bellcrank Also order cable tie parts packet (P/N 40X1648)

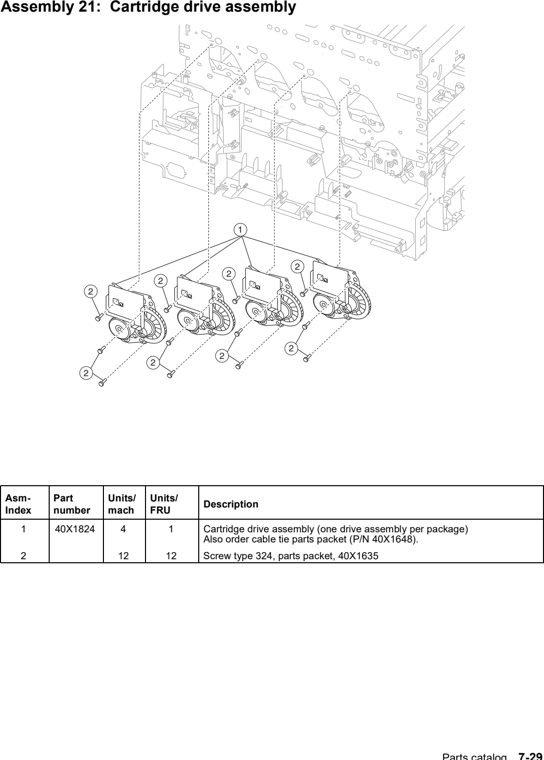

Assembly 21: Cartridge drive assembly 1 40X1824 Cartridge drive assembly (one drive assembly per package) Also order cable tie parts packet (P/N 40X1648). Lexmark 40X1824 Cartridge Drive Assembly New 40X1824 (New) $18.25 Lexmark 40X1824 Cartridge Drive Assembly Fully refurbished with 90-day warranty 40X1824 $44.71

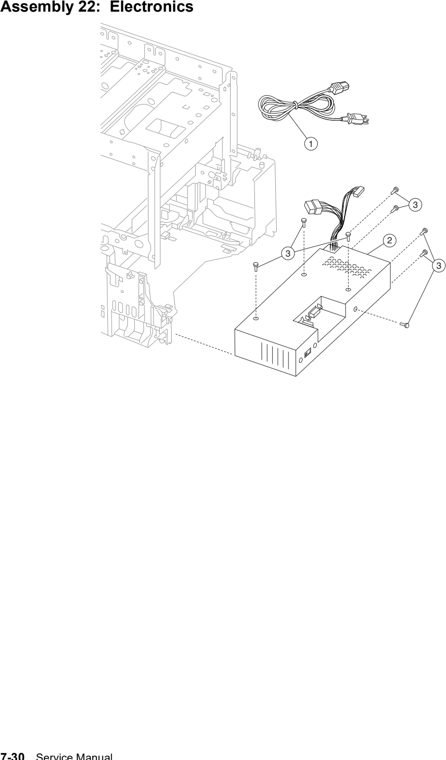

Assembly 22: Electronics 1 40X0269 Power cord set, 8 ft (straight)—U.S., Asia Pacific (English), Canada, Colombia, Costa Rica, Dominican Republic, Ecuador, El Salvador, Guatemala, Honduras, Mexico, Nicaragua, Panama, Puerto Rico, Saudi Arabia, Taiwan, Venezuela, Virgin Islands Lexmark 40x0269 Power Cord; 2.5m, 8ft. Right angle, US, CA, La New 40x0269 (New) $30.90 1 40X1767 Power cord set, 8 ft (straight)—African countries—Bluemark, Austria, Belgium, Bulgaria, Catalan, CIS, Croatia, Finland, France, Germany, Greece, Hungary, Italy, Macedonia, Netherlands, Norway, Paraguay, Poland, Portugal, Romania, Russia, Slovenia, Spain, Sweden, Turkey, Yugoslavia (Serbia and Montenegro) 1 40X0288 Power cord set, 8 ft (straight)—Argentina Lexmark 40x0288 Power cord; 2.5m, 8ft. Straight, Argentina New 40x0288 (New) Retired, no longer available: Contact for alternatives Contact for Details 1 40X0301 Power cord set, 8 ft (straight)—Australia Lexmark 40x0301 Power cord; 2.5m, 8ft. Straight, Australia, New Zealand New 40x0301 (New) Contact for Details 1 40X1766 Power cord set, 8 ft (straight)—Bolivia, Peru Lexmark 40X1766 Power cord; 2.5 m 8 ft. Straight Bolivia Peru New 40X1766 (New) Contact for Details 1 40X1773 Power cord set, 8 ft (straight)—Botswana, Lesotho, Namibia, South Africa Lexmark 40x1773 Power cord; 2.5m, 8ft. Straight, South Africa, Hong Kong, Singapore, Thailand, Malaysia New 40x1773 (New) Contact for Details 1 40X0277 Power cord set, 8 ft (straight)—Brazil 1 40X0273 Power cord set, 8 ft (straight)—Chile, Uruguay Lexmark 40x0273 Power cord; 2.5m, 8ft. Straight, Italy, Chile, Uruguay New 40x0273 (New) $44.20 Retired, no longer available: Contact for alternatives 1 40X1774 Power cord set, 8 ft (straight)—Denmark Lexmark 40x1774 Power cord; 2.5m, 8ft. Straight, Denmark, Finland, Norway, Sweden New 40x1774 (New) Contact for Details 1 40X0271 Power cord set, 8 ft (straight)—Ireland, UK Lexmark 40x0271 Power Cord; 2.5m, 8ft. Straight, UK, Ireland, HK, IT New 40x0271 (New) Retired, no longer available: Contact for alternatives Contact for Details 1 40X0275 Power cord set, 8 ft (straight)—Israel Lexmark 40x0275 Power cord; 1.8m, 6ft. Straight, Israel New 40x0275 (New) Retired, no longer available: Contact for alternatives Contact for Details 1 40X0270 Power cord set, 8 ft (straight)—Japan Lexmark 40x0270 Power cord; 2.5m, 8ft. Straight, Japan New 40x0270 (New) Retired, no longer available: Contact for alternatives Contact for Details 1 40X0280 Power cord set, 6 ft (straight)—Korea 1 40X1792 Power cord set, 8 ft (straight)—Korea Lexmark 40x1792 Power cord; 2.5m, 8ft. Straight, Korea New 40x1792 (New) Contact for Details 1 40X0303 Power cord set, 8 ft (straight)—PRC Lexmark 40x0303 Power cord; 2.5m, 8ft. Straight, PR China New 40x0303 (New) Contact for Details 1 40X1772 Power cord set, 8 ft (straight)—Switzerland Lexmark 40x1772 Power cord; 2.5m, 8ft. Straight, Liechtenstein, Switzerland New 40x1772 (New) Contact for Details 1 40X0281 Power cord set, 6 ft (straight)—Taiwan 1 40X1791 Power cord set, 8 ft (straight)—Taiwan Lexmark 40x1791 Power Cord; 2.5m, 8ft. Straight, Taiwan New 40x1791 (New) Contact for Details 2 40X1781 LVPS assembly Lexmark 40X1781 LVPS Assembly With Cable New 40X1781 (New) $397.00 Lexmark 40X1781 LVPS Assembly With Cable Fully refurbished with 90-day warranty 40X1781 Contact for Details 2 40X1786 Cable clip 2 40X1796 VTB fan gap cover 3 40X1783 System board inner shield assembly Lexmark 40X1783 System Board Inner Shield Assembly New 40X1783 (New) Contact for Details 3 40X1798 Fuser fan assembly Lexmark 40X1798 Fuser Fan Assembly With Cable New 40X1798 (New) $44.71 Lexmark 40X1798 Fuser Fan Assembly With Cable Fully refurbished with 90-day warranty 40X1798 $29.71 4 40X1785 Ground cable 4 40X1794 Standoff, high voltage power supply—developer board 5 40X1700 System board shield support with clips 5 40X1799 RIP fan, 92 mm Lexmark 40X1799 RIP Fan 92 mm New 40X1799 (New) $24.71 Lexmark 40X1799 RIP Fan 92 mm Fully refurbished with 90-day warranty 40X1799 Contact for Details 6 40X1795 Developer HVPS board—1xx/3xx only Lexmark 40X1795 Developer HVPS board New 40X1795 (New) $72.28 Lexmark 40X1795 Developer HVPS board Fully refurbished with 90-day warranty 40X1795 $51.71 6 40X1825 Developer HVPS board—2xx/4xx only Lexmark 40X1825 Developer HVPS Board New 40X1825 (New) $179.00 Lexmark 40X1825 Developer HVPS Board Fully refurbished with 90-day warranty 40X1825 $48.00 6 40X1662 RIP fan duct 7 40X1775 System board, network—1xx/3xx only Lexmark 40x1775 System Board, Network, C77x New 40x1775 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $669.72 Lexmark 40x1775 System Board Network C77x Fully refurbished with 90-day warranty 40x1775 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $424.71 7 40X1817 System board, network—2xx/4xx.only Lexmark 40X1817 System Board, Network C772 C782 New 40X1817 40X1829 10z0983 L (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $324.50 Lexmark 40X1817 System Board, Network C772 C782 Fully refurbished with 90-day warranty 40X1817 40x1829 10z0983 L This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $299.00 8 40X3521 Bar code card assembly—1xx/3xx only 8 40X4741 Bar code card assembly—2xx/4xx only 9 40X1508 128MB SDRAM card assembly Lexmark 40X1508 Lexmark Brand 128MB Memory New 40X1508 (New) $27.50 Lexmark 40X1508 Lexmark Brand 128MB Memory Fully refurbished with 90-day warranty 40X1508 $24.50 9 40X1509 256MB SDRAM card assembly Lexmark 40X1509 Lexmark Brand 256 MB DIMM New 40X1509 (New) $71.21 Lexmark 40X1509 Lexmark Brand 256 MB DIMM Fully refurbished with 90-day warranty 40X1509 $69.71 9 40X1510 512MB SDRAM card assembly Lexmark 40x1510 512MB DDR Memory New 40X1510 40X5939 (New) $199.00 Lexmark 40x1510 512MB DDR Memory Fully refurbished with 90-day warranty 40X1510 40X5939 Compatible $49.00 10 40X1784 INA blank flat shield, use when options are not installed Parts catalog 7-33 22.1–1 40X1782 System board outer shield Lexmark 40X1782 System Board Outer Shield New 40X1782 (New) Contact for Details 22.2–1 40X1793 Transfer HVPS board Lexmark 40X1793 Transfer HVPS board New 40X1793 (New) $51.71 22.3–1 40X1800 VTB fan, 60 mm Lexmark 40X1800 VTB Fan 60 mm New 40X1800 (New) $20.56 Lexmark 40X1800 VTB Fan 60 mm Fully refurbished with 90-day warranty 40X1800 $25.89

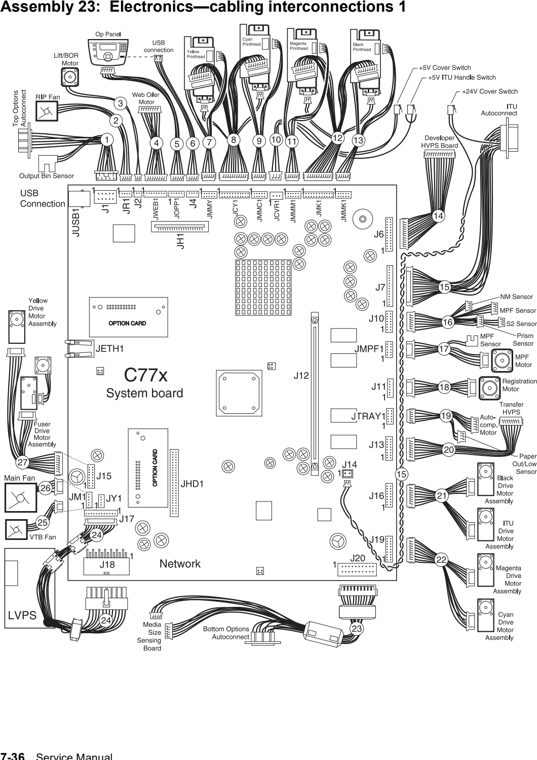

Assembly 23: Electronics—cabling interconnections 1 1 40X1637 Top autoconnect and output bin sensor—1xx/3xx only 1 40X1777 Top autoconnect and output bin sensor—2xx/4xx Lexmark 40X1777 Output Options Autoconnect and Bin Sensor New 40X1777 (New) Contact for Details Lexmark 40X1777 Output Options Autoconnect and Bin Sensor Fully refurbished with 90-day warranty 40X1777 $31.10 2 40X1799 RIP fan, 92 mm Lexmark 40X1799 RIP Fan 92 mm New 40X1799 (New) $24.71 Lexmark 40X1799 RIP Fan 92 mm Fully refurbished with 90-day warranty 40X1799 Contact for Details 3 40X1758 Lift/BOR assembly Lexmark 40X1758 Lift/BOR Assembly New 40X1758 (New) $12.50 Lexmark 40X1758 Lift/BOR Assembly Fully refurbished with 90-day warranty 40X1758 $15.07 4 40X1807 Oiler motor driver cable 5 40X1801 Operator panel cable 6 40X1769 Operator panel USB cable 7 40X1828 Printhead assembly—yellow mirror motor (attached to yellow printhead) Lexmark 40X1828 Printhead Assembly New 40X1828 (New) Contact for Details Lexmark 40X1828 Printhead Assembly Fully refurbished with 90-day warranty 40X1828 $70.00 8 40X1806 Laser cable—cyan/yellow 9 40X1828 Printhead assembly—cyan mirror motor (attached to cyan printhead) Lexmark 40X1828 Printhead Assembly New 40X1828 (New) Contact for Details Lexmark 40X1828 Printhead Assembly Fully refurbished with 90-day warranty 40X1828 $70.00 10 40X1740 Printhead interlock cable assembly 11 40X1828 Printhead assembly—magenta mirror motor (attached to magenta Lexmark 40X1828 Printhead Assembly New 40X1828 (New) Contact for Details Lexmark 40X1828 Printhead Assembly Fully refurbished with 90-day warranty 40X1828 $70.00 12 40X1805 Laser cable—black/magenta 13 40X1828 Printhead assembly—black mirror motor (attached to black printhead) Lexmark 40X1828 Printhead Assembly New 40X1828 (New) Contact for Details Lexmark 40X1828 Printhead Assembly Fully refurbished with 90-day warranty 40X1828 $70.00 14 40X1810 HVPS control cable—developer 15 40X1739 ITU light shield assembly Lexmark 40X1739 ITU Light Shield Assembly New 40X1739 (New) $55.10 Lexmark 40X1739 ITU Light Shield Assembly Fully refurbished with 90-day warranty 40X1739 $44.92 16 40X1692 S2/XPAR/NMS/MPF cable assembly (with sensors) Lexmark 40X1692 S2/XPAR/NMS/MPF Cable Assembly (With Sensors) New 40X1692 (New) $199.00 Lexmark 40X1692 S2/XPAR/NMS/MPF Cable Assembly (With Sensors) Fully refurbished with 90-day warranty 40X1692 $155.00 17 40X1854 MPF motor/sensor cable 18 40X1702 Registration motor assembly kit Lexmark 40X1702 Registration motor assembly kit New 40X1702 (New) $9.00 Lexmark 40X1702 Registration motor assembly kit Fully refurbished with 90-day warranty 40X1702 $16.85 19 40X1733 Pick motor extension and paper level sensing cable 20 40X1809 HVPS control cable—transfer 21 40X1804 ITU and black cartridge motor cable Lexmark 40X1804 ITU And Black Cartridge Motor Cable New 40X1804 (New) Contact for Details 22 40X1803 Cyan and magenta cartridge motor cable Lexmark 40X1803 Cyan And Magenta Cartridge Motor Cable New 40X1803 (New) $16.32 23 40X1811 Options bottom/media size sensing cable assembly Lexmark 40X1811 Options Bottom/Media Size Sensing Cable Assembly New 40X1811 (New) $19.38 Lexmark 40X1811 Options Bottom/Media Size Sensing Cable Assembly Fully refurbished with 90-day warranty 40X1811 $17.41 24 40X1781 LVPS assembly Lexmark 40X1781 LVPS Assembly With Cable New 40X1781 (New) $397.00 Lexmark 40X1781 LVPS Assembly With Cable Fully refurbished with 90-day warranty 40X1781 Contact for Details 25 40X1800 VTB fan, 60 mm Lexmark 40X1800 VTB Fan 60 mm New 40X1800 (New) $20.56 Lexmark 40X1800 VTB Fan 60 mm Fully refurbished with 90-day warranty 40X1800 $25.89 26 40X1798 Fuser fan assembly Lexmark 40X1798 Fuser Fan Assembly With Cable New 40X1798 (New) $44.71 Lexmark 40X1798 Fuser Fan Assembly With Cable Fully refurbished with 90-day warranty 40X1798 $29.71 27 40X1802 Fuser and yellow cartridge motor cable Parts catalog 7-37 Lexmark 40X1802 Fuser And Yellow Cartridge Motor Cable New 40X1802 (New) Contact for Details

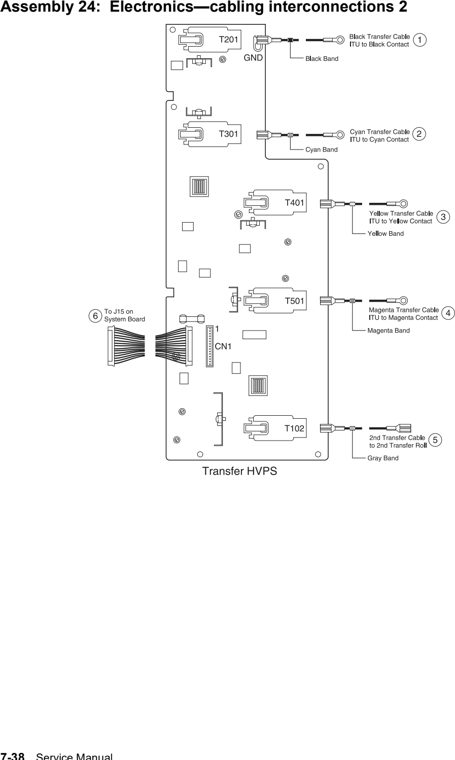

Assembly 24: Electronics—cabling interconnections 2 1 40X1753 Black terminal contact assembly 2 40X1759 Cyan terminal contact assembly 3 40X1761 Yellow terminal contact assembly 4 40X1757 Magenta terminal contact assembly 5 40X1812 Second transfer voltage cable assembly 6 40X1809 HVPS control cable—transfer Parts catalog 7-39

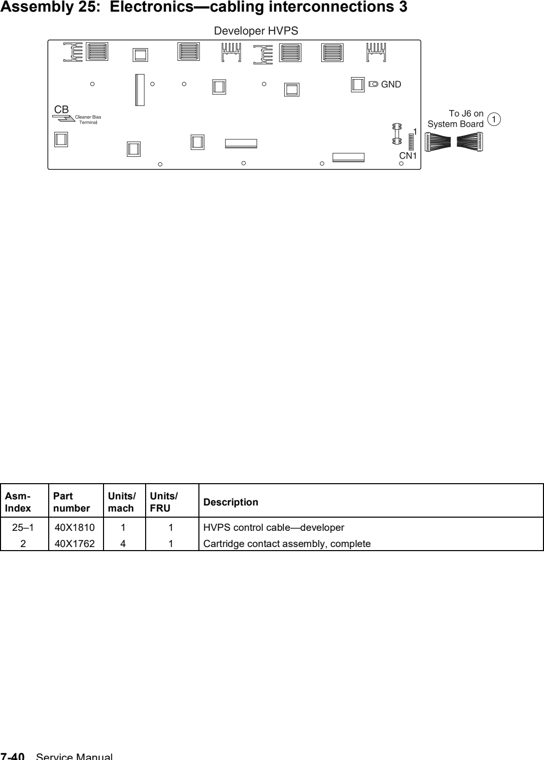

Assembly 25: Electronics—cabling interconnections 3 1 40X1810 HVPS control cable—developer 2 40X1762 Cartridge contact assembly, complete Lexmark 40X1762 Cartridge Contact Assembly Complete New 40X1762 (New) $36.40 Lexmark 40X1762 Cartridge Contact Assembly Complete Fully refurbished with 90-day warranty 40X1762 Contact for Details

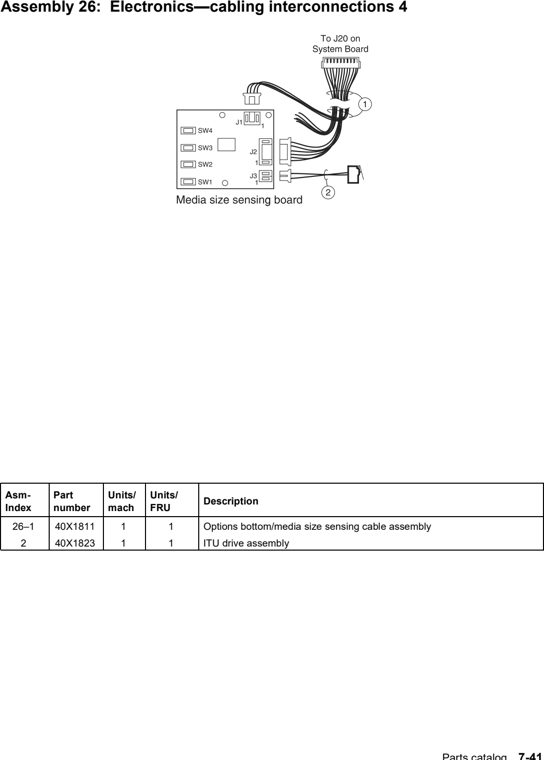

Assembly 26: Electronics—cabling interconnections 4 1 40X1811 Options bottom/media size sensing cable assembly Lexmark 40X1811 Options Bottom/Media Size Sensing Cable Assembly New 40X1811 (New) $19.38 Lexmark 40X1811 Options Bottom/Media Size Sensing Cable Assembly Fully refurbished with 90-day warranty 40X1811 $17.41 2 40X1823 ITU drive assembly Parts catalog 7-41 Lexmark 40X1823 ITU Drive Assembly New 40X1823 (New) $39.78 Lexmark 40X1823 ITU Drive Assembly Fully refurbished with 90-day warranty 40X1823 $28.96

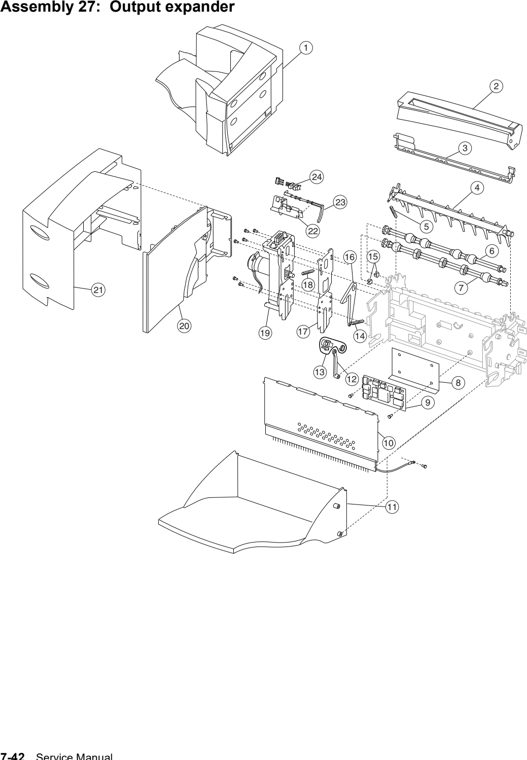

Assembly 27: Output expander 1 40X1980 Output expander, complete Lexmark 40X1980 Output Expander Complete Assembly New 40X1980 (New) Contact for Details Lexmark 40X1980 Output Expander Complete Assembly Fully refurbished with 90-day warranty 40X1980 Contact for Details 2 40X1996 Right cover Lexmark 40X1996 Right Cover New 40X1996 (New) Contact for Details Lexmark 40X1996 Right Cover Fully refurbished with 90-day warranty 40X1996 Contact for Details 2 40X2006 Lower shaft assembly, also order parts packet 40X2011 3 40X1997 ESD brush cover Lexmark 40X1997 ESD Brush Cover New 40X1997 (New) $45.23 Lexmark 40X1997 ESD Brush Cover Fully refurbished with 90-day warranty 40X1997 Contact for Details 3 40X2004 Drive pulley 4 40X1988 Deflector gate (also order 40X2000) Also called upper redrive deflecter. Lexmark 40X1988 Diverter Gate / Deflector New 40X1988 (New) $35.30 Lexmark 40X1988 Diverter Gate / Deflector Fully refurbished with 90-day warranty 40X1988 $28.77 4 40X1983 Rear attach bracket 5 40X2000 Upper diverter spring Lexmark 40X2000 Upper Diverter Spring New 40X2000 (New) Contact for Details 6 40X2007 Exit shaft assembly, also order parts packet 40X2011 Lexmark 40X2007 Exit Shaft Assembly New 40X2007 (New) $34.87 6 40X1985 Front cover 7 40X1999 Lower exit shaft assembly, also order parts packet 40X2011 Lexmark 40X1999 Lower Exit Shaft Assembly New 40X1999 (New) Contact for Details Lexmark 40X1999 Lower Exit Shaft Assembly Fully refurbished with 90-day warranty 40X1999 Contact for Details 7 40X2002 160-gear belt 8 40X1982 Output option card shield Lexmark 40X1982 Output Option Card Shield New 40X1982 (New) Contact for Details Lexmark 40X1982 Output Option Card Shield Fully refurbished with 90-day warranty 40X1982 Contact for Details 8 40X2003 Belt idler arm assembly 9 40X2013 Output expander DC motor board Lexmark 40X2013 Output Expander DC Motor Board New 40X2013 (New) $176.87 9 40X2005 Belt tensioner spring 10 40X1984 Front control board cover Lexmark 40X1984 Front Control Board Cover New 40X1984 (New) Contact for Details Lexmark 40X1984 Front Control Board Cover Fully refurbished with 90-day warranty 40X1984 Contact for Details 10 40X2010 Output tray spring Lexmark 40X2010 Output Tray Spring New 40X2010 (New) Contact for Details 11 40X1992 Output expander tray Lexmark 40X1992 Output Expander Tray New 40X1992 (New) $41.23 Lexmark 40X1992 Output Expander Tray Fully refurbished with 90-day warranty 40X1992 $33.62 11 40X1991 Output tray latch Lexmark 40X1991 Output Bin / Tray Latch New 40X1991 (New) Contact for Details 12 40X2014 Diverter arm Lexmark 40X2014 Diverter arm New 40X2014 (New) $32.64 12 40X2015 Frame assembly 13 40X1978 Spring clutch assembly Lexmark 40X1978 Clutch Assembly New 40X1978 (New) $142.33 Lexmark 40X1978 Clutch Assembly Fully refurbished with 90-day warranty 40X1978 $118.56 13 40X3264 Output expander pass thru sensor Lexmark 40X3264 Sensor (pass through) New 40X3264 (New) $57.50 14 40X2010 Output tray spring Lexmark 40X2010 Output Tray Spring New 40X2010 (New) Contact for Details 15 40X2012 Shaft assembly, middle 40T, also order parts packet 40X2011 16 40X1991 Output tray latch Lexmark 40X1991 Output Bin / Tray Latch New 40X1991 (New) Contact for Details 17 40X1981 Front attach bracket Lexmark 40X1981 Front Attach Bracket New 40X1981 (New) Contact for Details Lexmark 40X1981 Front Attach Bracket Fully refurbished with 90-day warranty 40X1981 Contact for Details 18 40X2009 Swing arm spring Lexmark 40X2009 Swing Arm Spring New 40X2009 (New) Contact for Details 19 40X1995 Output expander assembly, mechanical linkage Lexmark 40X1995 New Output Expander Assembly Mechanical Linkage New 40X1995 (New) $115.27 Lexmark 40X1995 Output Expander Assembly Mechanical Linkage Fully refurbished with 90-day warranty 40X1995 Contact for Details 20 40X1987 Rear support cover Lexmark 40X1987 Rear Support Cover New 40X1987 (New) Contact for Details Lexmark 40X1987 Rear Support Cover Fully refurbished with 90-day warranty 40X1987 Contact for Details 21 40X1986 Rear cover Lexmark 40X1986 Rear Cover New 40X1986 (New) $48.35 Lexmark 40X1986 Rear Cover Fully refurbished with 90-day warranty 40X1986 $39.41 22 40X1989 Level sensor bracket Lexmark 40X1989 Level Sensor Bracket New 40X1989 (New) Contact for Details 23 40X1990 Output paper level flag Lexmark 40X1990 Output Paper Level (Full) Flag / Actuator New 40X1990 (New) $45.78 24 40X3265 Dual bin full sensor Parts catalog 7-43 Lexmark 40X3265 Bin full sensor New 40X3265 (New) $53.00 Lexmark 40X3265 Sensor (media bin full assembly) Fully refurbished with 90-day warranty 40X3265 $40.00 27.1–1 40X1994 Right jam access door assembly NS 40X1998 Multi-bin stacker kit Parts catalog 7-45 Lexmark 40X1998 Media bail assembly Fully refurbished with 90-day warranty 40X1998 Contact for Details

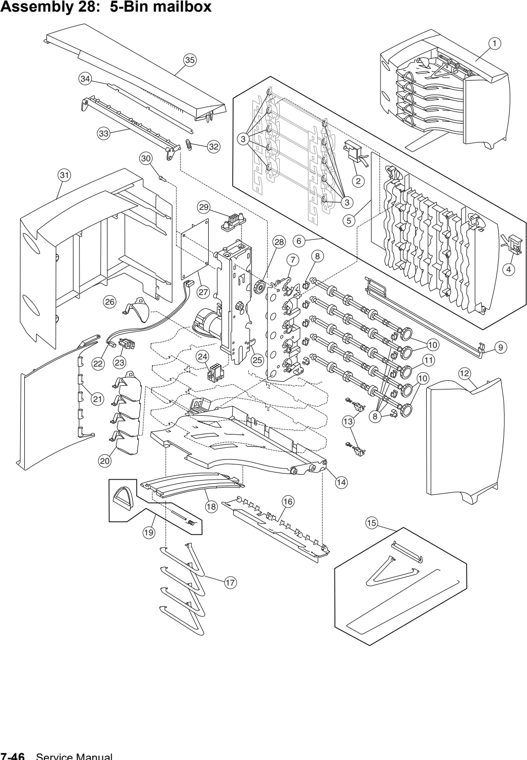

Assembly 28: 5-Bin mailbox 1 40X2020 5-Bin mailbox, complete Lexmark 40X2020 5-Bin Mailbox New 40x2020 (New) $459.71 2 40X2157 Access door rear latch 2 40X2039 Right side frame assembly 3 40X2049 Rear access door roller assembly 4 40X2024 Access door front latch 4 40X2057 Diverter actuator cam 5 40X2032 Front door cover 5 40X2060 Diverter actuator spring 6 40X4268 Front door assembly 6 40X2058 Diverter actuator latch 7 40X2044 Left frame assembly w/clutch assembly 7 40X2059 Diverter actuator arbor 8 40X2056 Drive shaft bushing packet 8 40X2069 C-clip retainer 9 40X2033 Right cover 9 40X2021 Attach front bracket 10 40X2054 Drive shaft assembly 10 40X2061 Diverter solenoid Lexmark 40X2061 Diverter gate solenoid Fully refurbished with 90-day warranty 40X2061 $27.70 11 40X2055 Drive with gear shaft assembly 11 40X2022 Static ground contact 12 40X2029 Front cover 12 40X2041 Paper exit deflector w/brush 13 40X3242 5-bin mailbox pass thru sensor Lexmark 40X3242 Sensor (pass through) Fully refurbished with 90-day warranty 40X3242 $25.00 13 40X2037 Paper deflector Lexmark 40X2037 Media bin 1st Fully refurbished with 90-day warranty 40X2037 $25.00 14 40X2028 Paper cap tray 14 40X2068 Deflector 15 40X2043 5-bin mailbox assembly kit 15 40X2036 Paper top bin deflector Lexmark 40X2036 Media bin 5th diverter Fully refurbished with 90-day warranty 40X2036 $41.10 16 40X2027 Bail attach bracket assembly 18 40X2035 Paper tray support 19 40X2042 Paper tray stop assembly 20 40X2038 Bin full flag Lexmark 40X2038 Media bin full actuator Fully refurbished with 90-day warranty 40X2038 $39.48 21 40X2030 Rear structural cover 22 40X2023 Tray media level sensor cable 23 40X3240 Dual bin level sensor Lexmark 40X3240 Sensor (media bin empty) Fully refurbished with 90-day warranty 40X3240 $30.10 24 40X2052 Lower autoconnect cable assembly 25 40X2050 Main DC drive assembly 26 40X2026 Bin full flag 27 40X2064 5-bin mailbox system board assembly Lexmark 40X2064 5-Bin Mailbox System Board Assembly New 40X2064 (New) $186.00 28 40X2067 Drive gear Lexmark 40X2067 C77x SVC Gear DRIVE New 40X2067 (New) $45.50 Lexmark 40X2067 C77x SVC Gear DRIVE Fully refurbished with 90-day warranty 40X2067 Contact for Details 28.1–1 40X2065 Diverter spring 29 40X2053 Upper autoconnect cable assembly 31 40X2031 Rear assembly cover Lexmark 40X2031 Rear cover assembly New 40X2031 (New) Contact for Details 32 40X2000 Upper diverter spring Lexmark 40X2000 Upper Diverter Spring New 40X2000 (New) Contact for Details 33 40X2025 Top bin cover 34 40X2040 Wire cover 35 40X1638 Redrive cap cover assembly Parts catalog 7-47 Lexmark 40X1638 Redrive Cap Cover New 40X1638 (New) $19.21 Lexmark 40X1638 Redrive Cap Cover Fully refurbished with 90-day warranty 40X1638 $17.25 NS 40X1968 Drive gear NS 40X2047 Roller retainer Parts catalog 7-49

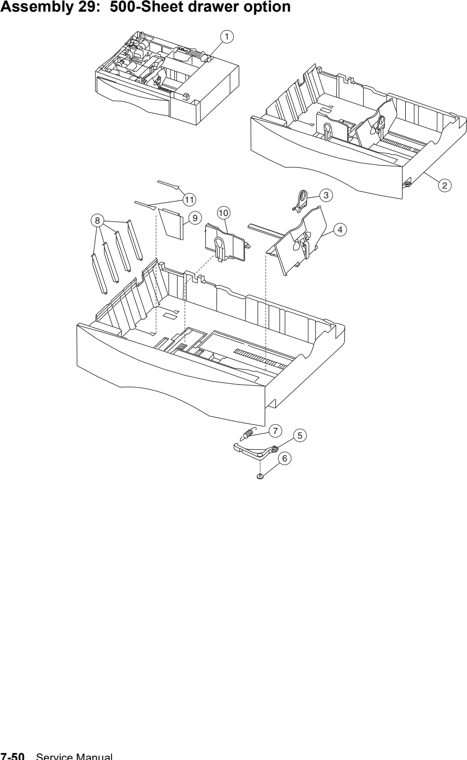

Assembly 29: 500-Sheet drawer option 1 40X1880 500-Sheet drawer option, complete Lexmark 40X1880 500-Sheet Drawer, Complete Assembly with Tray New 40X1880 (New) $149.75 Lexmark 40X1880 500-Sheet Drawer Complete Assembly with Tray Fully refurbished with 90-day warranty 40X1880 Contact for Details 2 40X1728 500-Sheet tray assembly Lexmark 40X1728 500-Sheet Tray Complete Assembly New 40X1728 (New) $73.00 Lexmark 40X1728 500-Sheet Tray Complete Assembly Fully refurbished with 90-day warranty 40X1728 $56.00 3 40X1720 Back restraint latch 3 40X1910 500-Sheet option tray pick assembly Lexmark 40X1910 500-Sheet Option Tray Pick Assembly New 40X1910 (New) $40.55 4 40X1719 Back restraint 4 40X1898 Paper level sensing assembly 5 40X1723 Tray bias bellcrank assembly 5 40X1938 Autoconnect cable assembly Lexmark 40X1938 C77x SVC Cables A CONNECT New 40X1938 (New) Contact for Details Lexmark 40X1938 C77x SVC Cables A CONNECT Fully refurbished with 90-day warranty 40X1938 Contact for Details 6 40X1648 Cable tie (6 in a pack) Lexmark 40X1648 Cable Ties Fully refurbished with 90-day warranty 40X1648 $22.00 7 40X1725 Tray bias spring 7 40X1908 Frame cover 8 40X1722 Wear strip 8 40X1730 Tray interlock bellcrank 9 40X1721 Tray wear clip 9 40X1891 Pass thru sensor Lexmark 40X1891 Pass-through Sensor New 40X1891 (New) Contact for Details 10 40X1885 Tray wear clip 10 40X1896 Hinge 11 40X1727 Restraint pad Parts catalog 7-51 11 40X1894 Electronics/size sensing assembly with system board 12 40X1741 Pick arm lift bellcrank 13 40X1899 Media size sensing assembly 14 40X1734 Bellcrank lift spring 15 40X1907 500-Sheet base assembly 16 40X1601 Machine pad 17 40X1903 Plate, 500-Sheet support assembly 18 40X1909 Paper guide 19 40X1897 Wall support plate 20 40X1911 Base door assembly 21 40X1895 500-sheet option spring 22 40X1913 500-Sheet option deflector 23 40X1765 Pick roll tires (2 per pack) Lexmark 40X1765 Pick rolls (2) New 40X1765 (New) $99.00 29.1–1 40X1901 Drive assembly, 500 option 2 Lexmark 40X1901 Drive Assembly, 500 Option 2 New 40X1901 (New) $24.71 NS 40X1671 Cable tie (6 in pack) Parts catalog 7-53

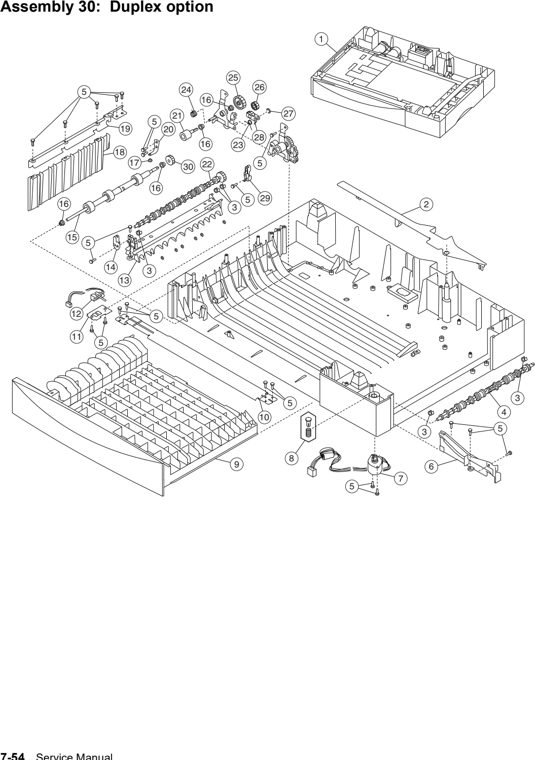

Assembly 30: Duplex option 1 40X1920 Duplex option, complete Lexmark 40X1920 Duplexer New 40X1920 (New) $139.00 2 40X1961 Back cover 2 40X1938 Autoconnect cable assembly Lexmark 40X1938 C77x SVC Cables A CONNECT New 40X1938 (New) Contact for Details Lexmark 40X1938 C77x SVC Cables A CONNECT Fully refurbished with 90-day warranty 40X1938 Contact for Details 3 40X1965 Redrive bearing 3 40X1939 DC forward/reverse motor assembly Lexmark 40X1939 DC Forward/Reverse Motor Assembly New 40X1939 (New) Contact for Details 4 40X1930 Duplex entry shaft assembly 4 40X1940 DC duplex feed motor 6 40X1923 Right side front tray guide 6 40X1648 Cable tie (6 in pack) Lexmark 40X1648 Cable Ties Fully refurbished with 90-day warranty 40X1648 $22.00 7 40X1956 Deflector actuator assembly 7 40X1937 Back support 8 40X1957 Deflector follower assembly 8 40X1922 Duplex card assembly 9 40X1959 Duplex front jam tray assembly 9 40X1958 Transfer belt 10 40X1935 Duplex support bracket 10 40X1960 Right jam clearance tray assembly 11 40X1964 Sensor mount plate 11 40X1969 C-clip retainer 12 40X1927 Duplex exit sensor 12 40X1953 Aligner spring 13 40X1924 Duplex shaft mount 13 40X1967 Paper guide assembly 14 40X1954 Front decurl assembly 14 40X1941 Drive alignment shaft assembly 15 40X1979 F/R backup shaft assembly Lexmark 40X1979 F/R Backup Shaft Assembly New 40X1979 (New) $43.14 Lexmark 40X1979 F/R Backup Shaft Assembly Fully refurbished with 90-day warranty 40X1979 $35.17 15 40X1952 Reduction gear shaft 16 40X1951 5 mm bushing 16 40X1931 Right backup spring assembly 17 40X1948 Brake pad 17 40X1968 Drive gear 18 40X1963 Duplex paper guide 18 40X1932 Left backup spring assembly 19 40X1933 Wall support 19 40X1962 Upper rib assembly 20 40X1950 Brake spring 20 40X1925 Duplex input sensor 21 40X1947 Pass thru shaft assembly 22 40X1926 Duplex shaft assembly 23 40X1944 Pass thru spring 24 40X1814 Aligner arm spring Lexmark 40X1814 Aligner Arm Spring New 40X1814 (New) $28.96 Lexmark 40X1814 Aligner Arm Spring Fully refurbished with 90-day warranty 40X1814 $23.58 25 40X1942 Spur drive gear 26 40X1943 26T duplex gear 28 40X1946 Bellcrank assembly 29 40X1949 Decurl BAC assembly 30 40X1929 40T shaft drive F/R gear 30.1–1 40X1934 Duplex support plate NS 40X1955 Pulley washer Parts catalog 7-55

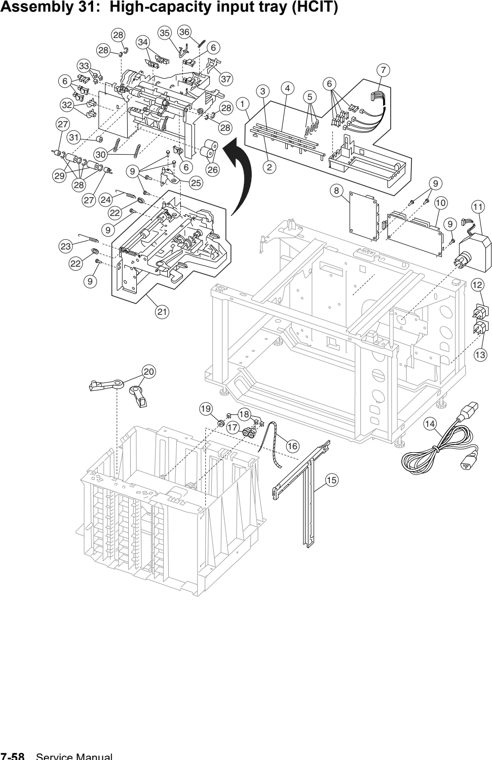

Assembly 31: HCIT 1 40X2137 Paper size sensor box assembly Lexmark 40X2137 Paper Size Sensor Box Assembly New 40X2137 (New) Contact for Details 2 40X2111 Flag, paper size F 2 40X2143 Right side cover 3 40X2112 Flag, paper size C 3 40X2092 Caster, movable 4 40X2110 Flag, paper size R 5 40X2113 Spring, paper size flag 5 40X2094 F adjuster 6 40X2108 Sensor, photo interrupter 6 40X2141 Front cover 7 40X2103 Paper size sensors cable 7 40X2142 Cover, main CA 8 40X2095 System control board 8 40X2093 Caster, fixed 9 40X2144 Left side cover 10 40X2096 LVPS Lexmark 40x2096 Low Volt Power Supply (LVPS) New 40x2096 (New) Contact for Details Lexmark 40x2096 Low Volt Power Supply (LVPS) Fully refurbished with 90-day warranty 40x2096 Contact for Details 10 40X2146 Upper left side jam cover 11 40X2105 Elevator motor assembly 11 40X2100 Locating pin, options front right 12 40X2097 AC power outlet 12 40X2099 Locating pin, options rear left 13 40X2098 AC power inlet 13 40X2106 Options autoconnect cable assembly 14 40X2091 AC power cord jumper 14 40X2109 Options cable mounting plate 15 40X2115 Paper tray guide 16 40X2134 Elevator lift belt 17 40X2136 Elevator lift 18 40X2139 Ring 7, elevator lift gear/elevator lift 19 40X2135 Elevator lift gear 20 40X2114 Paper tray arms 21 40X2116 Feed unit, complete assembly Lexmark 40X2116 Feed Unit, Complete Assembly Fully refurbished with 90-day warranty 40X2116 Contact for Details 22 40X2118 Bushing 23 40X2124 Front feed unit spring 24 40X2125 Rear feed unit spring 25 40X2138 Feed cover 26 40X2131 Separation/torque roller 27 40X2120 Feed cam 29 40X2119 Feed roller 30 40X2121 Feed unit spring 31 40X2123 060 bushing 31.1–1 40X2145 Rear cover 32 40X2133 Emitter timing wheel 33 40X2126 Plastic 5W clip 34 40X2117 Special optical sensors 35 40X2127 Level sensor flag 36 40X2129 Extension spring 37 40X2128 Near empty sensor flag NS 40X2090 HCIT option Parts catalog 7-59 Lexmark 40x2090 2000-Sheet High Capacity Feeder, complete assembly New 40x2090 5061-HC2 (New) $3612.42 Lexmark 40x2090 2000-Sheet High Capacity Feeder, complete assembly Fully refurbished with 90-day warranty 40x2090 5061-HC2 Contact for Details NS 40X2101 Feed unit special sensors cable NS 40X2102 Feed unit sensors cable NS 40X2104 Elevator motor cable NS 40X2107 Magnetic latch NS 40X2130 Tray present lever NS 40X2132 Cable clamp NS 40X2140 Stabilizer kit with mounting screws Parts catalog 7-61

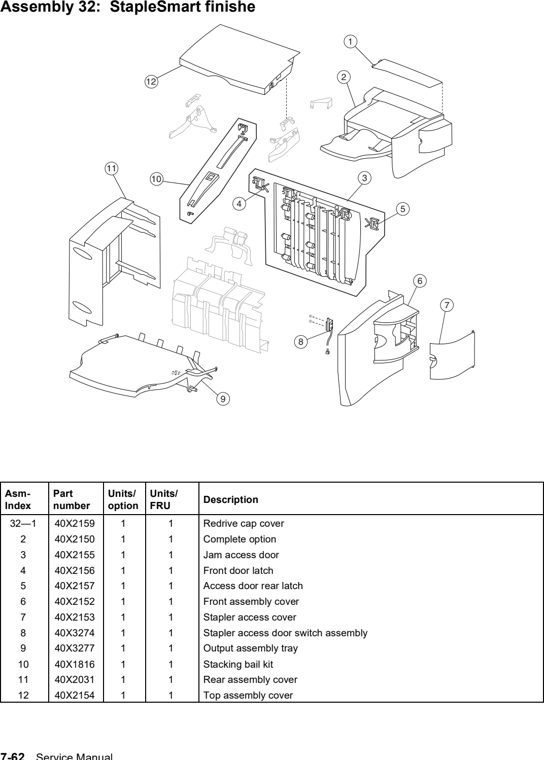

Assembly 32: StapleSmart finishe 1 40X2159 Redrive cap cover Lexmark 40X2159 Redrive cap cover New 40X2159 (New) Contact for Details 2 40X2150 Complete option Lexmark 40X2150 StapleSmart Finisher, complete assembly New 40X2150 (New) $1772.19 2 99A0104 Spring, upper diverter Lexmark 99A0104 Spring, Upper Diverter New 99A0104 (New) $25.00 3 40X2155 Jam access door Lexmark 40X2155 Jam access door New 40X2155 (New) Contact for Details 4 40X2156 Front door latch 5 40X2157 Access door rear latch 6 40X2152 Front assembly cover Lexmark 40X2152 Front assembly cover New 40X2152 (New) Contact for Details 7 40X2153 Stapler access cover Lexmark 40X2153 Stapler access cover New 40X2153 (New) Contact for Details 8 40X3274 Stapler access door switch assembly Lexmark 40X3274 Stapler access door switch assembly New 40X3274 (New) $36.41 Lexmark 40X3274 Stapler access door switch assembly Fully refurbished with 90-day warranty 40X3274 $29.68 9 40X3277 Output assembly tray Lexmark 40X3277 Output assembly tray New 40X3277 (New) $72.49 Lexmark 40X3277 Output assembly tray Fully refurbished with 90-day warranty 40X3277 $59.12 10 40X1816 Stacking bail kit Lexmark 40X1816 Stacking Bail Kit New 40X1816 (New) $43.46 11 40X2031 Rear assembly cover Lexmark 40X2031 Rear cover assembly New 40X2031 (New) Contact for Details 12 40X2154 Top assembly cover Lexmark 40X2154 Top assembly cover New 40X2154 (New) Contact for Details 32.1—1 40X3278 Stapler assembly Parts catalog 7-63 Lexmark 40X3278 Stapler assembly New 40X3278 (New) $258.33 Lexmark 40X3278 Stapler assembly Fully refurbished with 90-day warranty 40X3278 $198.65 32.2—1 40X3279 Switch assembly, safety cover open Lexmark 40X3279 Switch assembly New 40X3279 (New) $130.12 Lexmark 40X3279 Switch assembly Fully refurbished with 90-day warranty 40X3279 $108.38 32.3—1 99A2480 StapleSmart wheels maintenance kit Parts catalog 7-65 Lexmark 99A2480 StapleSmart Wheels Maintenance Kit New 99A2480 (New) Contact for Details

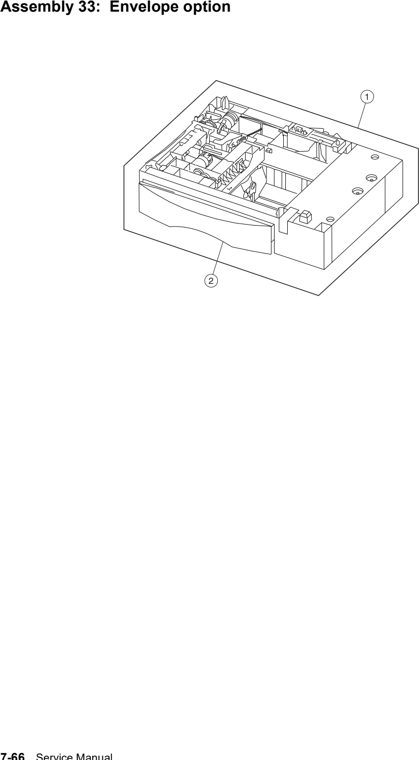

Assembly 33: Envelope option 1 40X1842 Envelope option, complete Lexmark 40X1842 Envelope Drawer Complete Assembly New 40X1842 (New) $30.00 Lexmark 40X1842 Envelope Drawer Complete Assembly Fully refurbished with 90-day warranty 40X1842 $29.00 2 40X1843 Envelope tray assembly Lexmark 40X1843 Envelope Tray Assembly New 40X1843 (New) $30.93 Lexmark 40X1843 Envelope Tray Assembly Fully refurbished with 90-day warranty 40X1843 $54.71 NS 40X2080 Envelope feeder pick tire Parts catalog 7-67

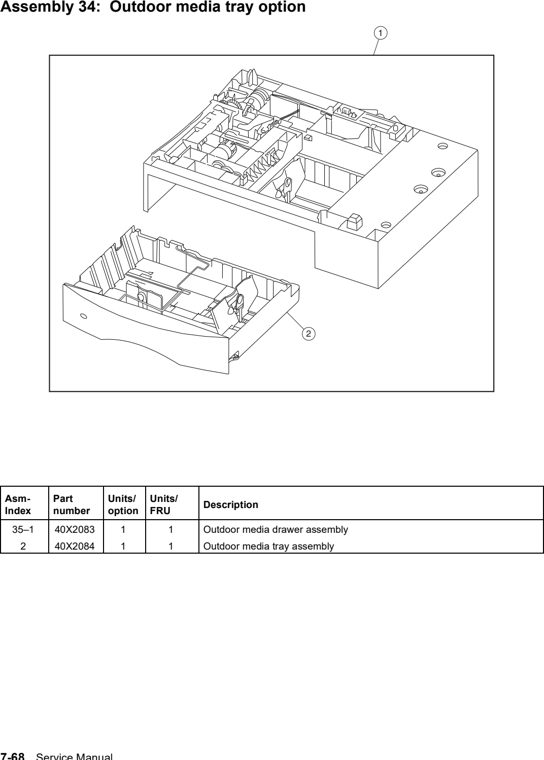

Assembly 34: Outdoor media tray option 1 40X2083 Outdoor media drawer assembly 2 40X2084 Outdoor media tray assembly

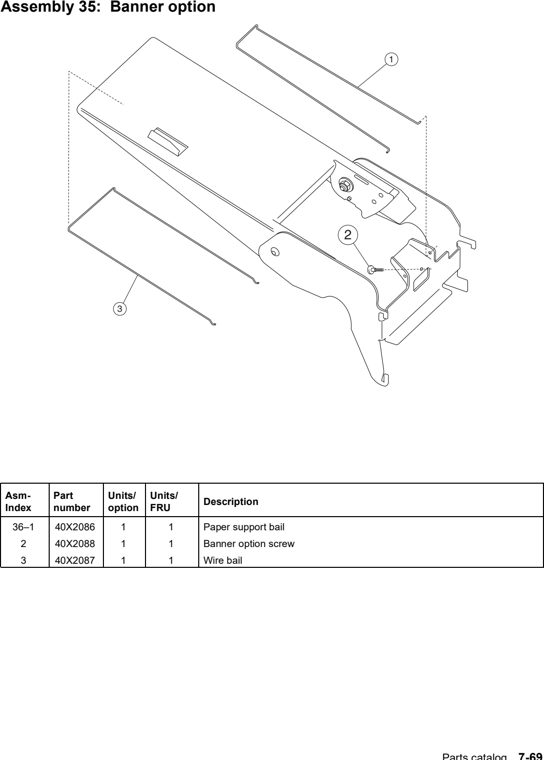

Assembly 35: Banner option 1 40X2086 Paper support bail 2 40X2088 Banner option screw 3 40X2087 Wire bail Parts catalog 7-69

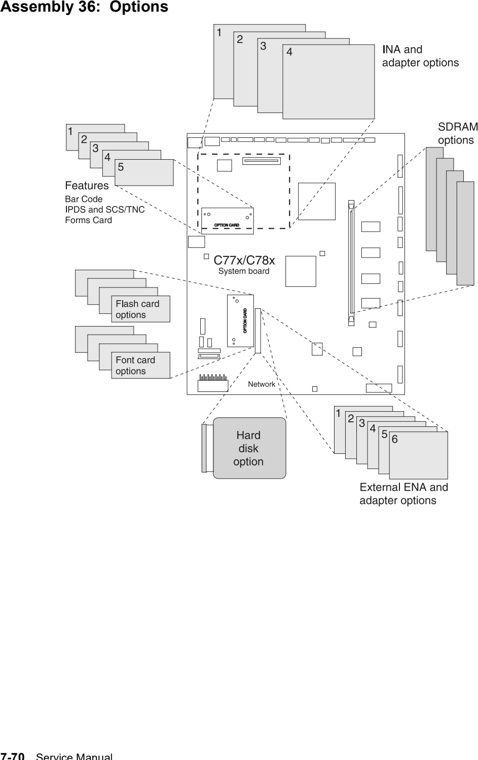

Assembly 36: Options and miscellaneous NS 40X1508 128MB SDRAM card assembly Lexmark 40X1508 Lexmark Brand 128MB Memory New 40X1508 (New) $27.50 Lexmark 40X1508 Lexmark Brand 128MB Memory Fully refurbished with 90-day warranty 40X1508 $24.50 NS 40X1509 256MB SDRAM card assembly Lexmark 40X1509 Lexmark Brand 256 MB DIMM New 40X1509 (New) $71.21 Lexmark 40X1509 Lexmark Brand 256 MB DIMM Fully refurbished with 90-day warranty 40X1509 $69.71 NS 40X1510 512MB SDRAM card assembly Lexmark 40x1510 512MB DDR Memory New 40X1510 40X5939 (New) $199.00 Lexmark 40x1510 512MB DDR Memory Fully refurbished with 90-day warranty 40X1510 40X5939 Compatible $49.00 NS 40X1454 32MB Flash DIMM card assembly Lexmark 40X1454 32MB Flash Memory Card New 40X1454 (New) $174.72 Lexmark 40X1454 32MB Flash Memory Card Fully refurbished with 90-day warranty 40X1454 $175.00 NS 40X1455 64MB Flash DIMM card assembly Lexmark 40X1455 64MB Flash Memory Card New 40X1455 (New) Contact for Details Lexmark 40X1455 64MB Flash Memory Card Fully refurbished with 90-day warranty 40X1455 Contact for Details NS 40X1514 Traditional Chinese font DIMM card assembly NS 40X1513 Simplified Chinese font DIMM card assembly NS 40X1512 Japanese font card assembly NS 40X1515 Korean font card assembly card assembly NS 40X0290 RS-232 serial interface card Lexmark 40X0290 Serial RS232C Card Assembly New 40X0290 56P1436 (New) $15.00 NS 40X3522 IPDS/SCS card assembly—1xx/3xx only NS 40X4743 IPDS/SCS card assembly—2xx/4xx only NS 40X3521 Bar code card assembly—1xx/3xx only NS 40X4741 Bar code card assembly—2xx/4xx only NS 40X3523 Lexmark Forms card assembly—1xx/3xx only NS 40X4742 Lexmark Forms card assembly—2xx/4xx only NS 40X3524 PrintCryption™ card assembly—1xx/3xx only NS 40X4744 PrintCryption card assembly—2xx/4xx only NS 40X4754 PRESCRIBE card assembly—2xx/4xx only NS 40X0291 Adapter, parallel 1284-B Lexmark 40X0291 Parallel 1284B Card Assembly New 40X0291 (New) $15.00 NS 40X2610 Hard Disk, 40GB with/adapter (formatted) Lexmark 40x2610 Hard disk with adapter - 40+ GB New 40x2610 (New) Contact for Details NS 40X1592 MarkNet N7020e ENA adapter NS 40X1593 MarkNet N7000e ENA adapter Lexmark 40X1593 MarkNet N7000e Fast Ethernet 10/100BaseTX- USB New 40X1593 (New) $466.49 NS 40X1594 MarkNet N7000e ENA adapter (requires parallel) Lexmark 40X1594 MarkNet N7002e Fast Ethernet 10/100BaseTX - Parallel New 40X1594 (New) $622.50 NS 40X1376 MarkNet N8020 Gigabit Ethernet adapter Lexmark 40X1376 MarkNet N8020 GigaBit Ethernet New 40X1376 (New) $175.00 Lexmark 40X1376 MarkNet N8020 GigaBit Ethernet Fully refurbished with 90-day warranty 40X1376 $125.00 NS 40X1377 MarkNet N8030 Fiber Ethernet adapter Lexmark 40X1377 MarkNet N8030 Fiber Ethernet 100BaseTX New 40X1377 (New) Contact for Details Lexmark 40X1377 MarkNet N8030 Fiber Ethernet 100BaseTX Fully refurbished with 90-day warranty 40X1377 Contact for Details NS 40X1378 MarkNet N8050 wireless print server, 802.11g, U.S. Lexmark 40X1378 MarkNet N8050 802.11g Wireless Print Server US New 40X1378 (New) Contact for Details Lexmark 40X1378 MarkNet N8050 802.11g Wireless Print Server US Fully refurbished with 90-day warranty 40X1378 Contact for Details NS 40X1562 MarkNet 8050 wireless print server, 802.11g, non-U.S. Lexmark 40X1562 MarkNet N8050 802.11g Wireless Print Server Not-US New 40X1562 (New) Contact for Details Lexmark 40X1562 MarkNet N8050 802.11g Wireless Print Server Not-US Fully refurbished with 90-day warranty 40X1562 Contact for Details NS 7371549 Relocation package kit assembly—printer NS 7370563 Relocation package kit assembly—output expander NS 7370564 Relocation package kit assembly—5-bin mailbox NS 7370565 Relocation package kit assembly—500 drawer NS 7370566 Relocation package kit assembly—duplex Parts catalog 7-71
Other listed parts 40X1632 ) 40X1633 ) 40X1635 ) 40X1639 Screw type 102 Parts Packet Lexmark 40X1639 Screw type 102 Parts Packet New 40X1639 (New) Contact for Details 40X1675 Fuser Drive Card Assembly Lexmark 40X1675 Fuser Drive Card Assembly New 40X1675 (New) Contact for Details 40X1676 Screw type 232 Parts Packet Lexmark 40X1676 Screw type 232 Parts Packet New 40X1676 (New) Contact for Details 40X1683 Printhead Assembly, C77x, C78x Lexmark 40x1683 Printhead Assembly, C77x, C78x New 40x1683 40X1828 40X1778 (New) Contact for Details Lexmark 40x1683 Printhead Assembly C77x C78x Fully refurbished with 90-day warranty 40x1683 40X1828 40X1778 $70.00 40X1691 Screw type 312/322/412/423 Parts Packet Lexmark 40X1691 Screw type 312/322/412/423 Parts Packet New 40X1691 (New) Contact for Details 40X1703 Buckler housing 40X1705 Friction buckler 40X1735 ITU Drive Assembly Lexmark 40X1735 ITU Drive Assembly New 40X1735 (New) $39.78 Lexmark 40X1735 ITU Drive Assembly Fully refurbished with 90-day warranty 40X1735 $28.96 40X1764 Cartridge Drive Assembly Lexmark 40X1764 Cartridge Drive Assembly New 40X1764 One Drive Assembly Per Package (New) $23.00 Lexmark 40X1764 Cartridge Drive Assembly Fully refurbished with 90-day warranty 40X1764 One Drive Assembly Per Package $38.00 40X1778 Printhead Assembly Lexmark 40X1778 Printhead Assembly New 40X1778 (New) Contact for Details Lexmark 40X1778 Printhead Assembly Fully refurbished with 90-day warranty 40X1778 $94.71 40X1780 40X1797 Screws Parts packet Lexmark 40X1797 Screws Parts packet New 40X1797 (New) Contact for Details 40X1813 40X1966 40X2011 Shaft bearing Parts packet Lexmark 40X2011 Shaft bearing Parts packet New 40X2011 (New) Contact for Details 40X2046 (board mounting) 40X2122 40X2158 StapleSmart Bails maintenance kit Lexmark 40X2158 StapleSmart Bails maintenance kit New 40X2158 99A2480 (New) Contact for Details 40X5335 System Board, Network Lexmark 40x5335 System Board, Network New 40x5335 20B0983 Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $669.72 Lexmark 40x5335 System Board, Network New 40x5335 20B0983 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details 99A2540 Redrive Bearing Lexmark 99A2540 Redrive Bearing New 99A2540 40X1965 (New) $24.44
