Lexmark CX532 CX635 XC2335 Parts

Please call for parts assistance

Looking for whole machines? Click on the link below:
CX532
CX635adwe

📖 Lexmark CX532 / CX635 / XC2335: Complete Technical Guide. Specifications, maintenance & parts reference from 40 years of Lexmark expertise.

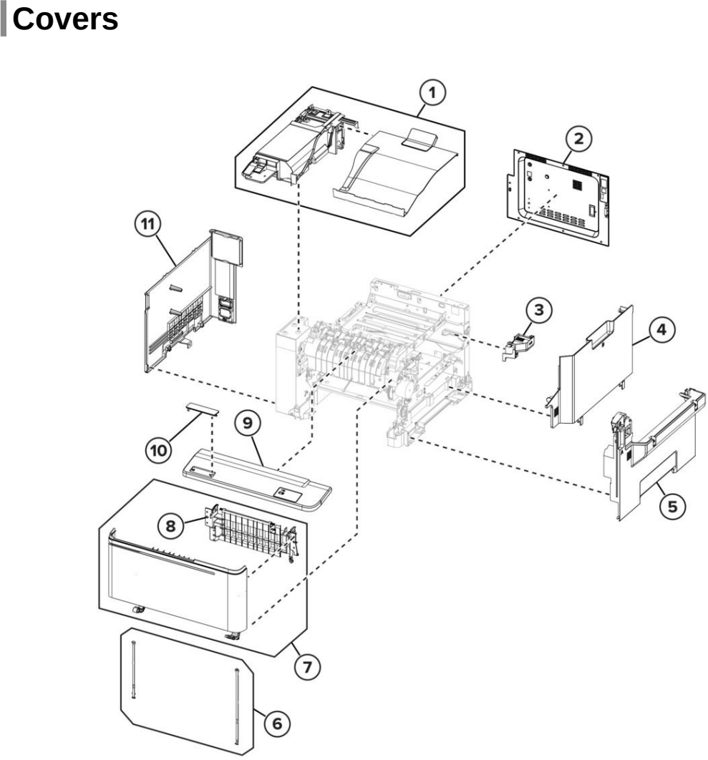

Assembly 2: Covers 1 41X4554 Top cover Lexmark 41X4554 Top cover New 41X4554 (New) $38.51 Lexmark 41X4554 Top cover Fully refurbished with 90-day warranty 41X4554 Contact for Details 2 41X4558 Rear cover Lexmark 41X4558 Rear cover New 41X4558 (New) $27.25 Lexmark 41X4558 Rear cover Fully refurbished with 90-day warranty 41X4558 Contact for Details 3 41X4555 Connectivity cover Lexmark 41X4555 Connectivity cover New 41X4555 (New) $13.00 Lexmark 41X4555 Connectivity cover Fully refurbished with 90-day warranty 41X4555 Contact for Details 4 41X4435 Toner access door Lexmark 41X4435 Toner access door New 41X4435 (New) $22.70 Lexmark 41X4435 Toner access door Fully refurbished with 90-day warranty 41X4435 $17.84 5 41X4334 Right cover Lexmark 41X4334 Right cover New 41X4334 (New) $26.49 Lexmark 41X4334 Right cover Fully refurbished with 90-day warranty 41X4334 $20.16 6 40X7619 Door straps Lexmark 40X7619 Front cover straps New 40X7619 (New) $3.33 7 41X4330 Front door Lexmark 41X4330 Front door New 41X4330 (New) $67.91 Lexmark 41X4330 Front door Fully refurbished with 90-day warranty 41X4330 $51.86 8 41X2663 Front door inner paper feed guide Lexmark 41X2663 Front cover inner deflector New 41X2663 (New) $27.33 Lexmark 41X2663 Front cover inner deflector Fully refurbished with 90-day warranty 41X2663 Contact for Details 9 41X4557 Upper front cover ‑ Lexmark 41X4557 Upper front cover New 41X4557 (New) $81.61 Lexmark 41X4557 Upper front cover Fully refurbished with 90-day warranty 41X4557 Contact for Details 10 41X4421 Bezel (blank) ‑‑ Lexmark 41X4421 Bezel (blank) New 41X4421 (New) $16.27 Lexmark 41X4421 Bezel (blank) Fully refurbished with 90-day warranty 41X4421 $7.39 10 41X4373 Bezel for CX532 ‑‑ Lexmark 41X4373 Bezel New 41X4373 (New) $12.12 10 41X4384 Bezel for CX635 ‑‑ Lexmark 41X4384 Bezel New 41X4384 (New) $12.12 Lexmark 41X4384 Bezel Fully refurbished with 90-day warranty 41X4384 Contact for Details 11 41X4556 Left side cover ‑ Lexmark 41X4556 Left side cover New 41X4556 (New) $35.65 Lexmark 41X4556 Left side cover Fully refurbished with 90-day warranty 41X4556 Contact for Details

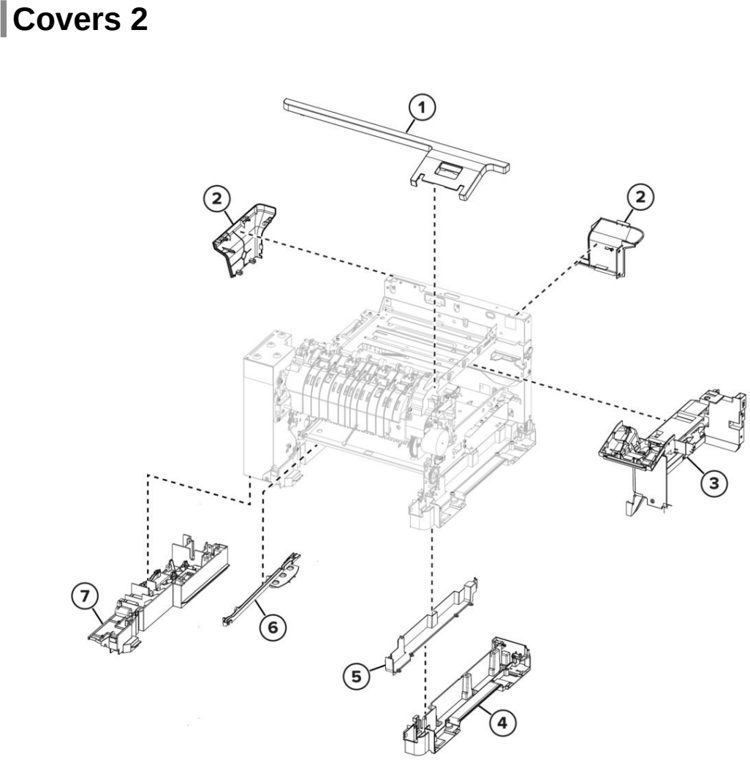

Assembly 3: Covers 2 1 41X4360 Control panel base cover Lexmark 41X4360 Control panel base cover New 41X4360 (New) $16.63 Lexmark 41X4360 Control panel base cover Fully refurbished with 90-day warranty 41X4360 Contact for Details 2 41X4552 Scanner rear access (left and right) cover Lexmark 41X4552 Scanner rear access (left and right) cover New 41X4552 (New) $13.69 Lexmark 41X4552 Scanner rear access (left and right) cover Fully refurbished with 90-day warranty 41X4552 Contact for Details 3 41X4553 Scanner right support cover Lexmark 41X4553 Scanner right support cover New 41X4553 (New) $28.65 Lexmark 41X4553 Scanner right support cover Fully refurbished with 90-day warranty 41X4553 Contact for Details 4 41X4354 Lower right subframe Lexmark 41X4354 Lower right subframe New 41X4354 (New) $32.91 Lexmark 41X4354 Lower right subframe Fully refurbished with 90-day warranty 41X4354 $25.07 5 41X2327 Subframe cable cover Lexmark 41X2327 Subframe Cable Cover New 41X2327 (New) $17.14 Lexmark 41X2327 Subframe Cable Cover Fully refurbished with 90-day warranty 41X2327 Contact for Details 6 41X0580 Transfer module guide Lexmark 41X0580 ITU guide Fully refurbished with 90-day warranty 41X0580 Contact for Details Lexmark 41X0580 ITU guide New 41X0580 (New) $20.40 7 41X4924 Lower left subframe Lexmark 41X4924 Lower left subframe New 41X4924 (New) $27.27

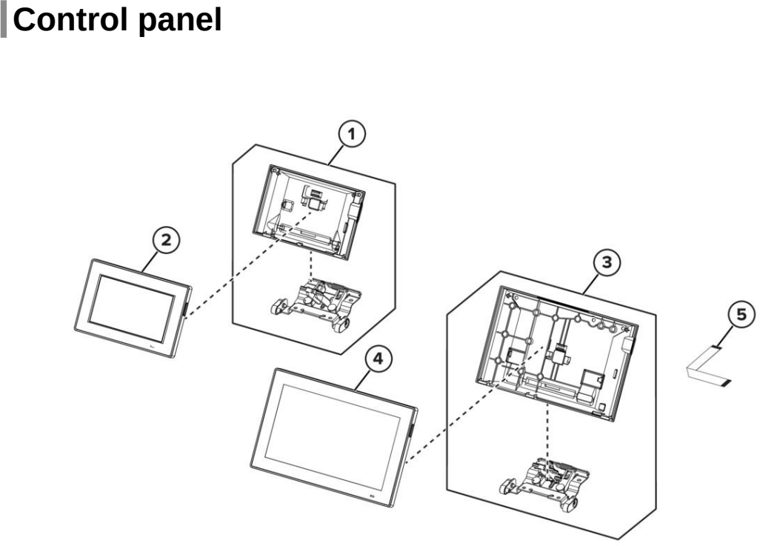

Assembly 4: Control panel 1 41X3707 Control panel hinge (CX532 and XC2335) Lexmark 41X3707 Control panel hinge (for MX532 CX532 and XC2335) New 41X3707 (New) $24.96 Lexmark 41X3707 Control panel hinge (for MX532 CX532 and XC2335) Fully refurbished with 90-day warranty 41X3707 $19.80 2 41X4351 Control panel (CX532 and XC2335) Lexmark 41X4351 Control panel display 4.3-inch control New 41X4351 (New) $167.73 Lexmark 41X4351 Control panel display 4.3-inch control Fully refurbished with 90-day warranty 41X4351 Contact for Details 3 41X3708 Control panel hinge (CX635) Lexmark 41X3708 Control panel hinge (CX635) New 41X3708 (New) $25.26 Lexmark 41X3708 Control panel hinge (CX635) Fully refurbished with 90-day warranty 41X3708 $20.07 4 41X2880 Control panel (CX635) Lexmark 41X2880 Control panel display 7-inch New 41X2880 (New) $218.46 Lexmark 41X2880 Control panel display 7-inch Fully refurbished with 90-day warranty 41X2880 Contact for Details 5 41X4788 Control panel flat cable Lexmark 41X4788 Control panel flat cable New 41X4788 (New) $16.85 Lexmark 41X4788 Control panel flat cable Fully refurbished with 90-day warranty 41X4788 Contact for Details

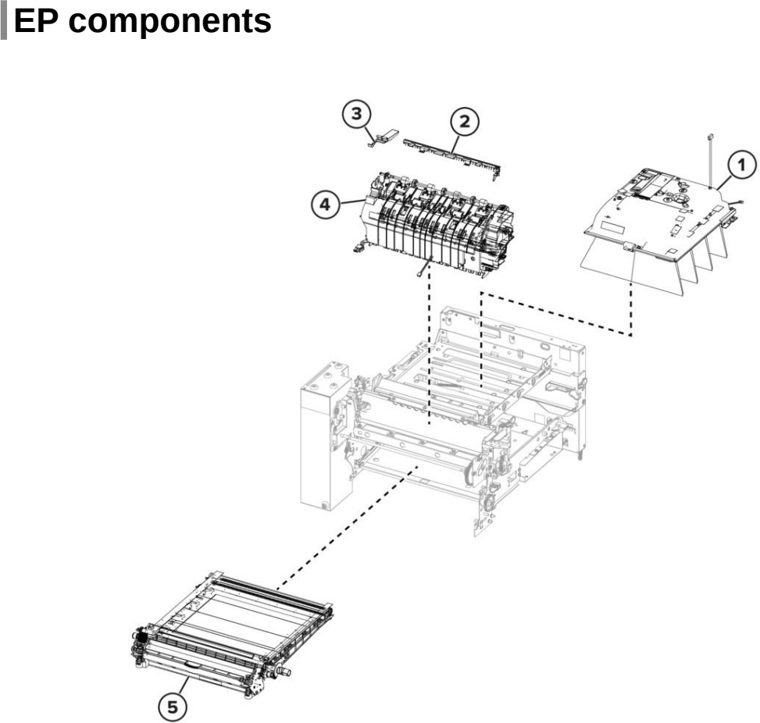

Assembly 5: EP components 1 41X2844 Printhead Lexmark 41X2844 Printhead New 41X2844 (New) $241.50 Lexmark 41X2844 Printhead Fully refurbished with 90-day warranty 41X2844 Contact for Details 2 41X4337 Fuser deflector Lexmark 41X4337 Fuser deflector New 41X4337 (New) $15.02 Lexmark 41X4337 Fuser deflector Fully refurbished with 90-day warranty 41X4337 Contact for Details 3 41X4343 Narrow media/bin full flag Lexmark 41X4343 Narrow media/bin full flag New 41X4343 (New) $12.37 Lexmark 41X4343 Narrow media/bin full flag Fully refurbished with 90-day warranty 41X4343 Contact for Details 4 41X4996 Fuser, 100 V 4 41X4997 Fuser, 110 V Lexmark 41X4997 Fuser 110 V New 41X4997 (New) $249.00 Lexmark 41X4997 Fuser 110 V Fully refurbished with 90-day warranty 41X4997 Contact for Details 4 41X4998 Fuser, 220 V 5 41X1039 Transfer module

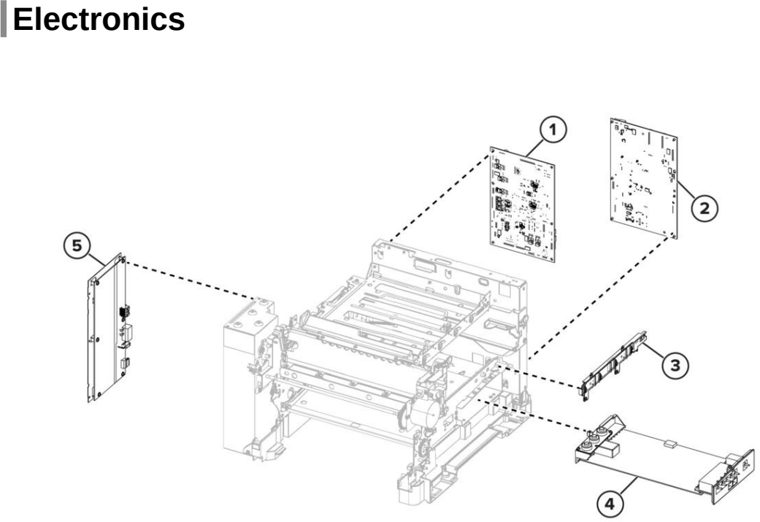

Assembly 6: Electronics 1 41X4331 Engine board Lexmark 41X4331 Engine board New 41X4331 (New) $224.77 Lexmark 41X4331 Engine board Fully refurbished with 90-day warranty 41X4331 $167.80 2 41X4327 Controller board Lexmark 41X4327 Controller board New 41X4327 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $435.00 3 41X4322 Toner meter card Lexmark 41X4322 Toner meter card New 41X4322 (New) $38.23 Lexmark 41X4322 Toner meter card Fully refurbished with 90-day warranty 41X4322 $29.14 4 41X4346 HVPS Lexmark 41X4346 HVPS New 41X4346 (New) $118.24 Lexmark 41X4346 HVPS Fully refurbished with 90-day warranty 41X4346 $96.30 5 41X4276 LVPS, 230 V 5 41X4275 LVPS, 100 / 115 V Lexmark 41X4275 LVPS 100 / 115 V New 41X4275 (New) $124.99 Lexmark 41X4275 LVPS 100 / 115 V Fully refurbished with 90-day warranty 41X4275 Contact for Details

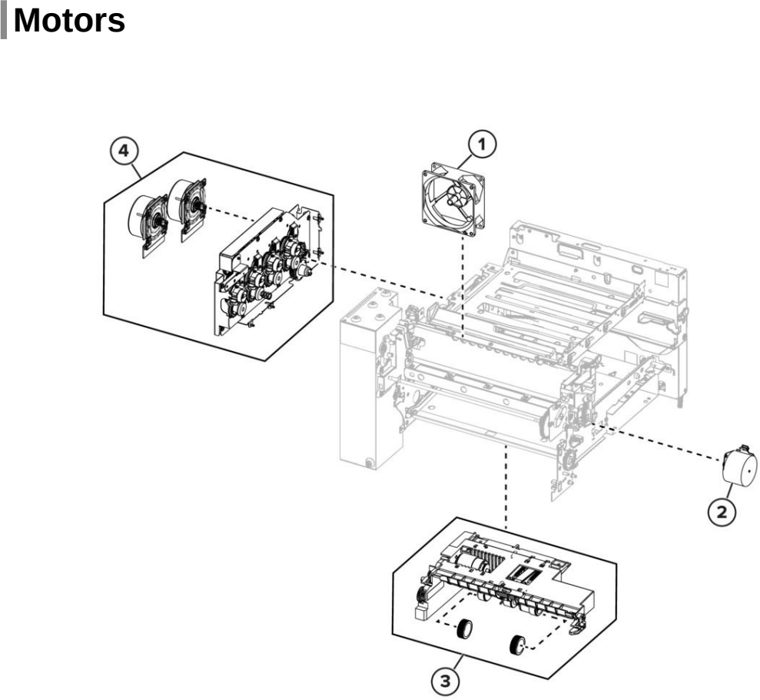

Assembly 7: Motors 1 41X0397 Fan Lexmark 41X0397 Main fan New 41X0397 (New) $39.36 Lexmark 41X0397 Main fan Fully refurbished with 90-day warranty 41X0397 Contact for Details 2 40X7629 Motor (fuser drive) page Lexmark 40X7629 Fuser drive motor assembly New 40X7629 (New) $26.03 Lexmark 40X7629 Fuser drive motor assembly Fully refurbished with 90-day warranty 40X7629 $11.50 3 41X1292 Media feeder Tray on Lexmark 41X1292 Media Feeder New 41X1292 (New) $91.90 Lexmark 41X1292 Media Feeder Fully refurbished with 90-day warranty 41X1292 $59.00 4 41X1289 EP drive EP Lexmark 41X1289 EP Drive Assembly New 41X1289 (New) $194.68 Lexmark 41X1289 EP Drive Assembly Fully refurbished with 90-day warranty 41X1289 Contact for Details

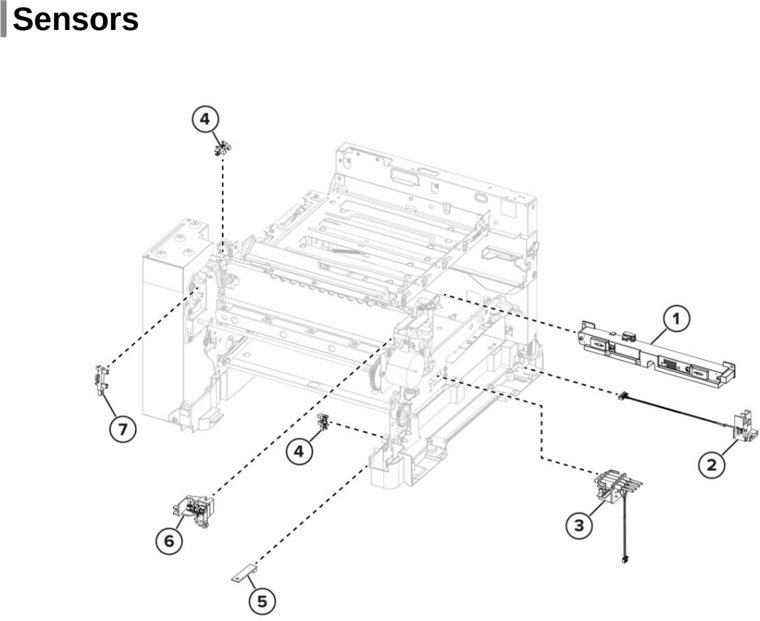

Assembly 8: Sensors 1 41X2832 Sensor (toner patch) Lexmark 41X2832 Sensor (TPS) New 41X2832 (New) $43.66 Lexmark 41X2832 Sensor (TPS) Fully refurbished with 90-day warranty 41X2832 Contact for Details 2 41X4319 Waste toner bottle contact block Lexmark 41X4319 Waste toner bottle contact block New 41X4319 (New) $18.39 Lexmark 41X4319 Waste toner bottle contact block Fully refurbished with 90-day warranty 41X4319 $9.30 3 41X4336 Toner cartridge contact Lexmark 41X4336 Toner cartridge contact New 41X4336 (New) $22.89 Lexmark 41X4336 Toner cartridge contact Fully refurbished with 90-day warranty 41X4336 $18.01 4 40X7301 Photo sensors: • Sensors (duplex) • Sensors (narrow media/bin full) Lexmark 40X7301 New Photo sensor and retainer (one per package) New 40X7301 (New) $15.25 Lexmark 40X7301 Photo sensor and retainer (one per package) Fully refurbished with 90-day warranty 40X7301 Contact for Details 5 41X1290 Weather station Lexmark 41X1290 Weather Station New 41X1290 (New) $20.93 Lexmark 41X1290 Weather Station Fully refurbished with 90-day warranty 41X1290 Contact for Details 6 41X4344 Front and right side interlock switch cover Lexmark 41X4344 Front and right side interlock switch cover New 41X4344 (New) $18.44 7 40X5413 Sensor (fuser exit) Lexmark 40X5413 Fuser exit sensor New 40X5413 (New) $14.16 Lexmark 40X5413 Fuser exit sensor Fully refurbished with 90-day warranty 40X5413 Contact for Details

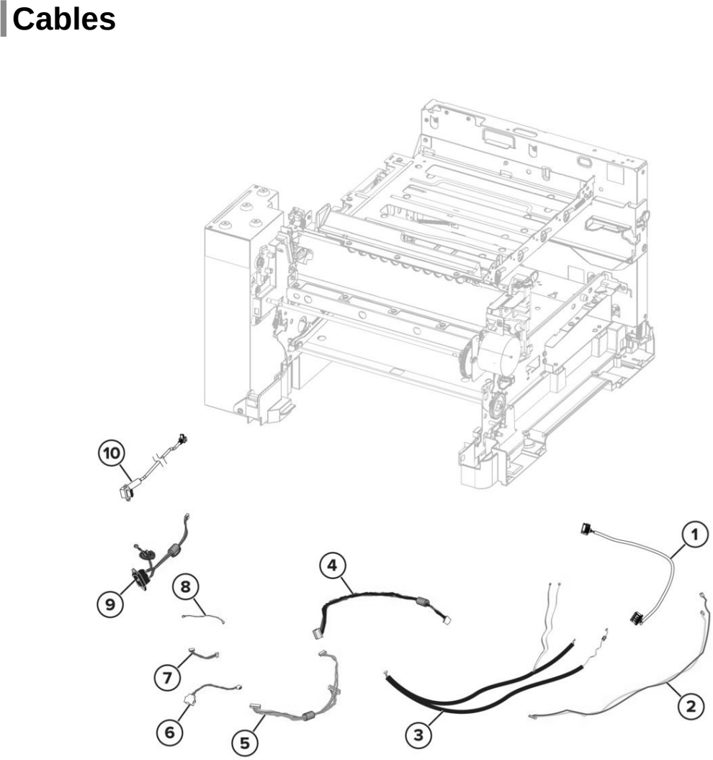

Assembly 9: Cables 1 41X4318 Weather station cable Lexmark 41X4318 Weather station cable New 41X4318 (New) $13.28 Lexmark 41X4318 Weather station cable Fully refurbished with 90-day warranty 41X4318 Contact for Details 2 41X2328 Fuser exit narrow media to controller board cable Lexmark 41X2328 Fuser exit narrow media to controller board New 41X2328 (New) $13.53 Lexmark 41X2328 Fuser exit narrow media to controller board Fully refurbished with 90-day warranty 41X2328 Contact for Details 3 41X4347 Fuser/input sensor cable Lexmark 41X4347 Fuser/input sensor cable New 41X4347 (New) $17.83 Lexmark 41X4347 Fuser/input sensor cable Fully refurbished with 90-day warranty 41X4347 $13.63 4 41X4340 LVPS to controller board cable Lexmark 41X4340 LVPS to controller board cable New 41X4340 (New) $18.83 Lexmark 41X4340 LVPS to controller board cable Fully refurbished with 90-day warranty 41X4340 $14.49 5 41X2330 EP motor to controller board cable Lexmark 41X2330 EP motor to controller board cable New 41X2330 (New) $21.57 Lexmark 41X2330 EP motor to controller board cable Fully refurbished with 90-day warranty 41X2330 Contact for Details 6 41X4338 Tray 2 to controller board cable Lexmark 41X4338 Tray 2 to controller board cable New 41X4338 (New) $18.32 Lexmark 41X4338 Tray 2 to controller board cable Fully refurbished with 90-day warranty 41X4338 $9.24 7 41X2334 HVPS to controller board cable Lexmark 41X2334 HVPS to controller board cable New 41X2334 (New) $17.26 Lexmark 41X2334 HVPS to controller board cable Fully refurbished with 90-day warranty 41X2334 Contact for Details 8 41X4320 Tray present sensor cable Lexmark 41X4320 Tray present sensor cable New 41X4320 (New) $15.02 Lexmark 41X4320 Tray present sensor cable Fully refurbished with 90-day warranty 41X4320 $6.27 9 41X2331 AC power to LVPS cable Lexmark 41X2331 AC power to LVPS cable New 41X2331 (New) $22.32 Lexmark 41X2331 AC power to LVPS cable Fully refurbished with 90-day warranty 41X2331 Contact for Details 10 41X4370 Front USB cable Lexmark 41X4370 Front USB cable New 41X4370 (New) $21.22 Lexmark 41X4370 Front USB cable Fully refurbished with 90-day warranty 41X4370 $11.85

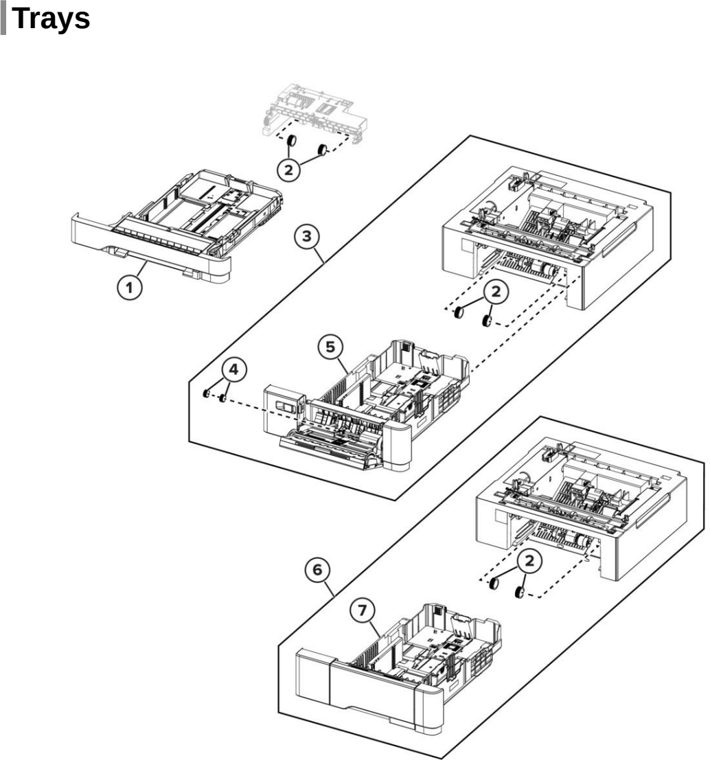

Assembly 10: Trays 1 41X4582 250-sheet tray Lexmark 41X4582 250-sheet tray insert New 41X4582 (New) $89.74 Lexmark 41X4582 250-sheet tray insert Fully refurbished with 90-day warranty 41X4582 Contact for Details 2 40X5168 Pick arm roller Lexmark 40X5168 Pick Tire New 40X5168 (New) $8.75 3 41X4524 Optional 650-sheet duo tray on Lexmark 41X4524 Optional 650-sheet duo tray New 41X4524 (New) $358.55 Lexmark 41X4524 Optional 650-sheet duo tray Fully refurbished with 90-day warranty 41X4524 $267.76 4 40X7178 650-sheet duo tray MPF ‑‑ Lexmark 40X7178 MPF Pick Tires and Wear Strip New 40X7178 (New) $14.59 SaleLexmark 40X7178 MPF pick tire roll with wear strips Fully refurbished with 90-day warranty 40X7178 Contact for Details 5 41X1784 650-sheet duo tray insert 650‑sheet removal Lexmark 41X1784 650-sheet duo tray insert New 41X1784 (New) $172.88 Lexmark 41X1784 650-sheet duo tray insert Fully refurbished with 90-day warranty 41X1784 Contact for Details 6 41X4523 Optional 550-sheet tray -- Lexmark 41X4523 Optional 550-sheet tray New 41X4523 (New) $311.72 Lexmark 41X4523 Optional 550-sheet tray Fully refurbished with 90-day warranty 41X4523 Contact for Details 7 41X1781 550‑sheet tray insert -- Lexmark 41X1781 550-sheet tray insert New 41X1781 (New) $121.50 Lexmark 41X1781 550-sheet tray insert Fully refurbished with 90-day warranty 41X1781 Contact for Details

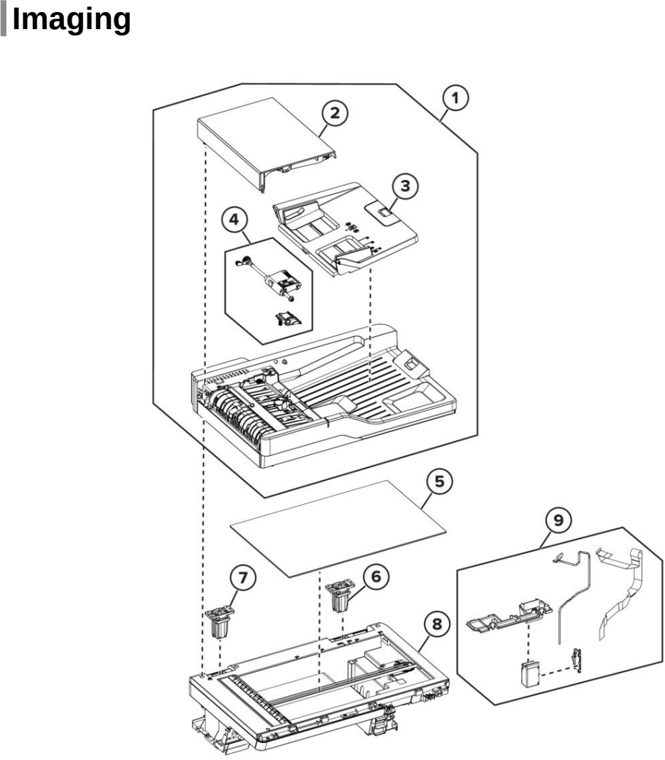

Assembly 11: Imaging 1 41X4369 ADF Lexmark 41X4369 ADF New 41X4369 (New) $410.42 Lexmark 41X4369 ADF Fully refurbished with 90-day warranty 41X4369 $306.51 2 41X4429 ADF access door Lexmark 41X4429 ADF access door New 41X4429 (New) $72.82 Lexmark 41X4429 ADF access door Fully refurbished with 90-day warranty 41X4429 $55.61 3 41X2847 ADF tray Lexmark 41X2847 ADF tray New 41X2847 (New) $54.65 Lexmark 41X2847 ADF tray Fully refurbished with 90-day warranty 41X2847 Contact for Details 4 41X2848 ADF roller Lexmark 41X2848 ADF rollers New 41X2848 (New) $39.38 Lexmark 41X2848 ADF rollers Fully refurbished with 90-day warranty 41X2848 Contact for Details 5 41X2853 Scanner glass pad Lexmark 41X2853 Scanner glass pad New 41X2853 (New) $55.41 Lexmark 41X2853 Scanner glass pad Fully refurbished with 90-day warranty 41X2853 Contact for Details 6 40X7546 ADF right hinge Lexmark 40X7546 ADF Right hinge New 40X7546 (New) $17.95 7 41X2845 ADF left hinge Lexmark 41X2845 ADF Left hinge New 41X2845 (New) $57.45 Lexmark 41X2845 ADF Left hinge Fully refurbished with 90-day warranty 41X2845 Contact for Details 8 41X4426 Flatbed scanner Lexmark 41X4426 Flatbed scanner New 41X4426 (New) $439.50 9 41X4433 ADF cable kit Lexmark 41X4433 ADF cable kit New 41X4433 (New) $35.35 Lexmark 41X4433 ADF cable kit Fully refurbished with 90-day warranty 41X4433 $26.94

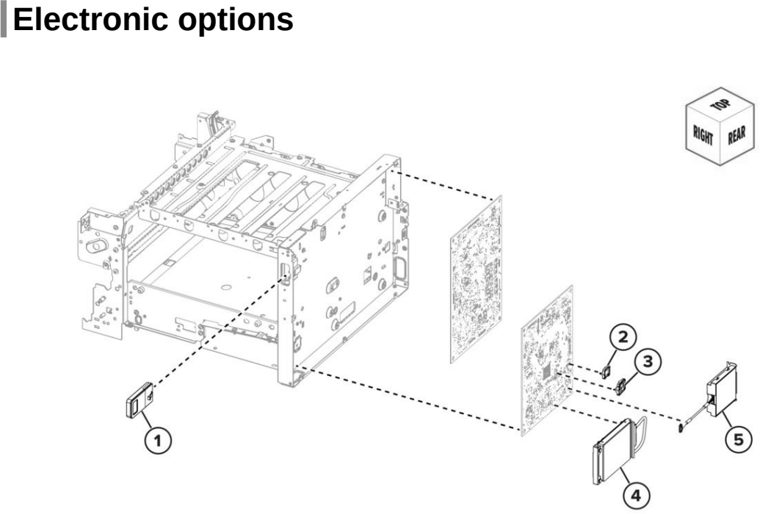

Assembly 12: Electronic options 1 41X4177 Wireless card (Marknet N8450) Lexmark 41X4177 Wireless card (Marknet N8450) New 41X4177 (New) $57.70 Lexmark 41X4177 Wireless card (Marknet N8450) Fully refurbished with 90-day warranty 41X4177 $44.04 2 41X2873 Trusted platform module Lexmark 41X2873 Trusted platform module (TPM) card New 41X2873 (New) $368.00 3 41X2854 Intelligent Storage Device (ISD), 128GB Lexmark 41X2854 Intelligent storage drive New 41X2854 (New) $211.11 4 41X2536 USB hard disk drive with backpack kit for CX532, CX635, and XC2335, 500GB Lexmark 41X2536 Hard disk 500GB (USB) New 41X2536 (New) $485.00 Lexmark 41X2536 Hard disk 500GB (USB) Fully refurbished with 90-day warranty 41X2536 Contact for Details 5 41X3287 2‑port fax card Lexmark 41X3287 2-port fax card New 41X3287 (New) $73.56 Lexmark 41X3287 2-port fax card Fully refurbished with 90-day warranty 41X3287 $56.18

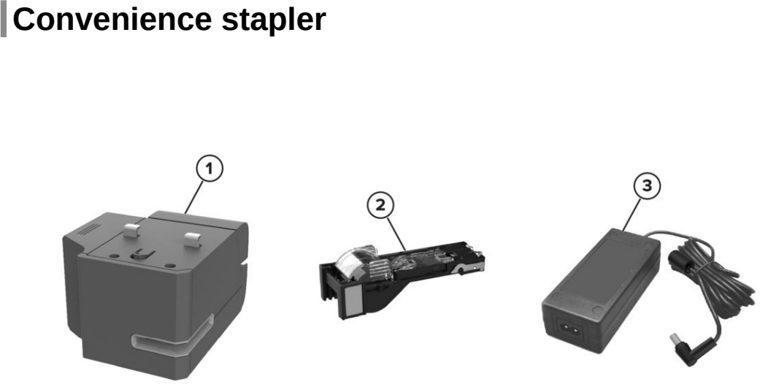

Assembly 13: Convenience stapler 1 41X4236 Convenience stapler Lexmark 41X4236 Convenience stapler New 41X4236 (New) $806.00 Lexmark 41X4236 Convenience stapler Fully refurbished with 90-day warranty 41X4236 Contact for Details 2 40X8149 Staple cartridge holder Lexmark 40X8149 Staple roll holder Fully refurbished with 90-day warranty 40X8149 $70.58 3 41X4237 Universal AC power adapter Lexmark 41X4237 Universal AC power adapter New 41X4237 (New) $231.50 Lexmark 41X4237 Universal AC power adapter Fully refurbished with 90-day warranty 41X4237 Contact for Details

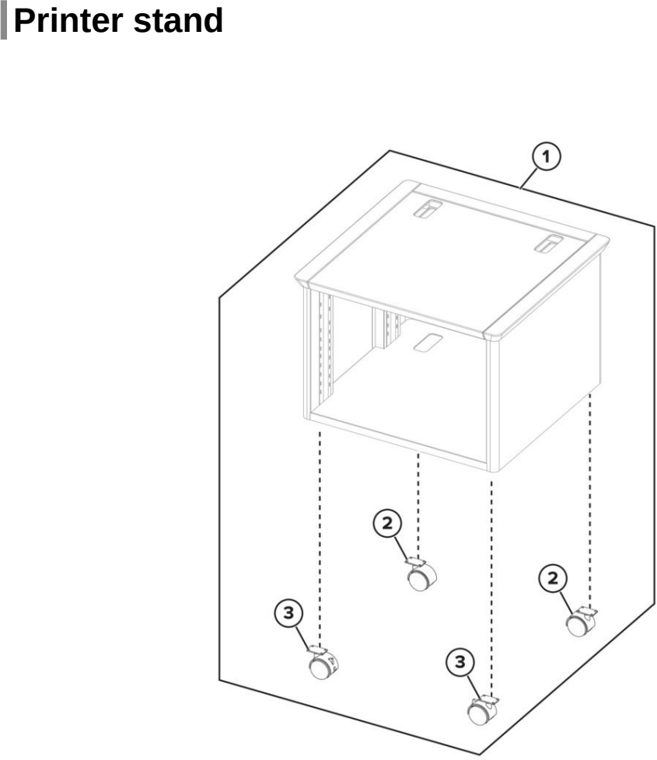

Assembly 14: Printer stand 1 41X0764 Printer stand Lexmark 41X0764 Locking caster Adjustable Stand New 41X0764 (New) $1048.44 Lexmark 41X0764 Locking caster Adjustable Stand Fully refurbished with 90-day warranty 41X0764 Contact for Details 2 41X0775 Nonlocking caster Lexmark 41X0775 Non-locking caster New 41X0775 (New) $46.52 Lexmark 41X0775 Non-locking caster Fully refurbished with 90-day warranty 41X0775 Contact for Details 3 41X0774 Locking caster Lexmark 41X0774 Locking caster New 41X0774 (New) $49.05 Lexmark 41X0774 Locking caster Fully refurbished with 90-day warranty 41X0774 Contact for Details
Assembly 15: Maintenance kits NS 41X4999 Fuser maintenance kit, 100 V • Fuser, 100 V • Pick roller NS 41X5000 Fuser maintenance kit, 110 V • Fuser, 110 V • Pick roller Lexmark 41X5000 Fuser maintenance kit 110 V New 41X5000 (New) $259.00 NS 41X5001 Fuser maintenance kit, 220 V • Fuser, 220 V • Pick roller
Assembly 16: Power cords NS 40X0269 Power cord, 2.5 m (straight)— USA, Canada Lexmark 40x0269 Power Cord; 2.5m, 8ft. Right angle, US, CA, La New 40x0269 (New) $30.90 NS 40X3141 Power cord, 2.5 m (straight)— Europe and others Lexmark 40x3141 Power cord; 2.5m, 8ft. Europe, Middle East, Indonesia, Africa (HV) New 40x3141 (New) Contact for Details NS 40X0288 Power cord, 2.5 m (straight)— Argentina Lexmark 40x0288 Power cord; 2.5m, 8ft. Straight, Argentina New 40x0288 (New) Retired, no longer available: Contact for alternatives Contact for Details NS 40X0271 Power cord, 2.5 m (straight)— United Kingdom Lexmark 40x0271 Power Cord; 2.5m, 8ft. Straight, UK, Ireland, HK, IT New 40x0271 (New) Retired, no longer available: Contact for alternatives Contact for Details NS 40X0275 Power cord, 2.5 m (straight)— Israel Lexmark 40x0275 Power cord; 1.8m, 6ft. Straight, Israel New 40x0275 (New) Retired, no longer available: Contact for alternatives Contact for Details NS 40X1772 Power cord, 2.5 m (straight)— Switzerland Lexmark 40x1772 Power cord; 2.5m, 8ft. Straight, Liechtenstein, Switzerland New 40x1772 (New) Contact for Details NS 40X1773 Power cord, 2.5 m (straight)— South Africa Lexmark 40x1773 Power cord; 2.5m, 8ft. Straight, South Africa, Hong Kong, Singapore, Thailand, Malaysia New 40x1773 (New) Contact for Details NS 40X0273 Power cord, 2.5 m (straight)— Traditional Italy Lexmark 40x0273 Power cord; 2.5m, 8ft. Straight, Italy, Chile, Uruguay New 40x0273 (New) $44.20 Retired, no longer available: Contact for alternatives NS 40X1774 Power cord, 2.5 m (straight)— Denmark Lexmark 40x1774 Power cord; 2.5m, 8ft. Straight, Denmark, Finland, Norway, Sweden New 40x1774 (New) Contact for Details NS 40X4596 Power cord, 2.5 m (straight)— Brazil Lexmark 40x4596 Power cord; 2.5m, 8ft. Straight, Brazil New 40x4596 (New) Contact for Details NS 40X0303 Power cord, 2.5 m (straight)— China Lexmark 40x0303 Power cord; 2.5m, 8ft. Straight, PR China New 40x0303 (New) Contact for Details NS 40X0270 Power cord, 2.5 m (straight)— Japan Lexmark 40x0270 Power cord; 2.5m, 8ft. Straight, Japan New 40x0270 (New) Retired, no longer available: Contact for alternatives Contact for Details NS 40X1792 Power cord, 2.5 m (straight)— Korea Lexmark 40x1792 Power cord; 2.5m, 8ft. Straight, Korea New 40x1792 (New) Contact for Details NS 40X1791 Power cord, 2.5 m (straight)— Taiwan Lexmark 40x1791 Power Cord; 2.5m, 8ft. Straight, Taiwan New 40x1791 (New) Contact for Details NS 40X0301 Power cord, 2.5 m (straight)— Australia Lexmark 40x0301 Power cord; 2.5m, 8ft. Straight, Australia, New Zealand New 40x0301 (New) Contact for Details
Other listed parts 40X5403 Transfer Module Lexmark 40X5403 Transfer Module New 40X5403 40X7610 41X1039 85K Page Yield (New) $289.00 40X7610 Transfer Module Lexmark 40X7610 Transfer Module New 40X7610 40X5403 41X1039 85K Page Yield (New) $289.00 41X2326 Lower Left Subframe Lexmark 41X2326 Lower Left Subframe New 41X2326 (New) $24.90 Lexmark 41X2326 Lower Left Subframe Fully refurbished with 90-day warranty 41X2326 Contact for Details 41X4537 Front USB cable Lexmark 41X4537 Front USB cable New 41X4537 (New) Contact for Details
