Lexmark MS321 MS421 MS521 M124x B2338 B2442 B2546 Parts







Looking for whole machines? Click on the link below:
MS321
MS421
MS521
B2338
B2442
B2546

📖 Lexmark MS321 / MS421 / MS521 / M1242: Complete Technical Guide. Specifications, maintenance & parts reference from 40 years of Lexmark expertise.

Please call for parts assistance

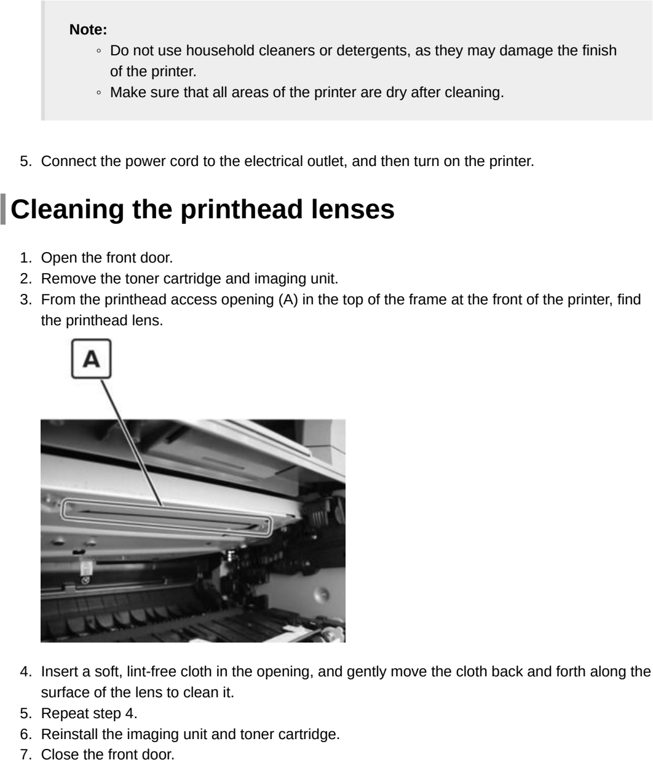

Assembly 1: Parts
1 41X1171 Top cover
Lexmark 41X1171 Top cover
New
41X1171 (New)
$52.17


Lexmark 41X1171 Top cover
Fully refurbished with 90-day warranty
41X1171



2 41X2262 Output extender
Lexmark 41X2262 Output extender
Fully refurbished with 90-day warranty
41X2262


Lexmark 41X2262 Output extender
New
41X2262 (New)
$30.06



3 41X1169 Rear door and cover
Lexmark 41X1169 Rear door and cover
New
41X1169 (New)
$39.36


Lexmark 41X1169 Rear door and cover
Fully refurbished with 90-day warranty
41X1169



4 41X2263 Rear access door
Lexmark 41X2263 Rear access door
Fully refurbished with 90-day warranty
41X2263


Lexmark 41X2263 Rear access door
New
41X2263 (New)
$31.63



5 40X8520 Dust cover
Lexmark 40X8520 Dust cover 250-sheet tray
Fully refurbished with 90-day warranty
40X8520



6 41X1165 Right cover
Lexmark 41X1165 Right cover
Fully refurbished with 90-day warranty
41X1165



7 41X1233 Right access cover
Lexmark 41X1233 Right access cover
Fully refurbished with 90-day warranty
41X1233
$23.95


Lexmark 41X1233 Right access cover
New
41X1233 (New)
$31.45



8 41X1163 Nameplate
Lexmark 41X1163 Nameplate
New
41X1163 (New)
$30.63


Lexmark 41X1163 Nameplate
Fully refurbished with 90-day warranty
41X1163



9 41X1167 Left cover
Lexmark 41X1167 Left cover
New
41X1167 (New)
$30.89


Lexmark 41X1167 Left cover
Fully refurbished with 90-day warranty
41X1167



10 41X2300 Access cover link
Lexmark 41X2300 Access cover link
New
41X2300 (New)
$11.36



Assembly 1: Parts parts diagram - Lexmark MS321 MS421 MS521 M124x B2338 B2442 B2546 Parts

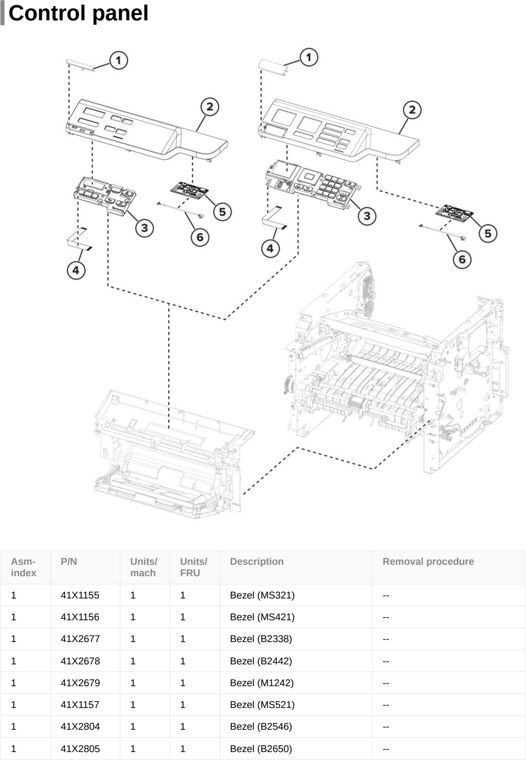

Assembly 2: Control panel
1 41X1155 Bezel (MS321)
Lexmark 41X1155 Bezel (MS321)
New
41X1155 (New)
$17.39


Lexmark 41X1155 Bezel (MS321)
Fully refurbished with 90-day warranty
41X1155



1 41X1156 Bezel (MS421)
Lexmark 41X1156 Bezel (MS421)
New
41X1156 (New)
$17.39


Lexmark 41X1156 Bezel (MS421)
Fully refurbished with 90-day warranty
41X1156



1 41X2677 Bezel (B2338)
Lexmark 41X2677 Bezel (B2338)
New
41X2677 (New)
$12.70



1 41X2678 Bezel (B2442)
Lexmark 41X2678 Bezel (B2442)
New
41X2678 (New)
$12.70



1 41X2679 Bezel (M1242)
Lexmark 41X2679 Bezel (M1242)
New
41X2679 (New)
$12.70



1 41X1157 Bezel (MS521)
Lexmark 41X1157 Bezel
Fully refurbished with 90-day warranty
41X1157



1 41X2804 Bezel (B2546)
Lexmark 41X2804 Bezel (B2546)
New
41X2804 (New)
$17.96



1 41X2805 Bezel (B2650)
Lexmark 41X2805 Bezel (B2650)
New
41X2805 (New)
$17.96



1 41X2863 Bezel (M1246)
Lexmark 41X2863 Bezel (M1246)
New
41X2863 (New)
$23.64


Lexmark 41X2863 Bezel (M1246)
Fully refurbished with 90-day warranty
41X2863



1 41X2699 Bezel (2.4” Blank)

2 41X2264 Control panel front cover (MS321, B2338, MS421, B2442, and M1242)
Lexmark 41X2264 Control panel covers
Fully refurbished with 90-day warranty
41X2264


Lexmark 41X2264 Control panel covers
New
41X2264 (New)
$25.49



2 41X2265 Control panel front cover (MS521, B2546, and M1246)
Lexmark 41X2265 Control panel covers
Fully refurbished with 90-day warranty
41X2265


Lexmark 41X2265 Control panel covers
New
41X2265 (New)
$24.50



3 41X2047 Control panel display assembly (MS321, B2338, MS421, B2442, and M1242)

3 41X1627 Control panel display assembly (MS521, B2546, and M1246)
Lexmark 41X1627 Control panel display assembly
Fully refurbished with 90-day warranty
41X1627



4 41X2267 Flat cable, 2.4‑inch display (MS521, B2546, and M1246)
Lexmark 41X2267 Flat cable 2.4-inch display
Fully refurbished with 90-day warranty
41X2267
$16.22




4 41X2266 Flat cable, 2-line display (MS321, B2338, MS421, B2442, and M1242)
Lexmark 41X2266 Flat cable 2-line display
Fully refurbished with 90-day warranty
41X2266




5 41X1873 Wireless module
Lexmark 41X1873 Wireless module
Fully refurbished with 90-day warranty
41X1873


Lexmark 41X1873 Wireless module
New
41X1873 (New)
$92.34



5 41X2894 Integrated wireless card (B2338dw, B2442dw, B2546dw, MS421dw)
Lexmark 41X2894 Integrated wireless card
Fully refurbished with 90-day warranty
41X2894



6 41X2270 Wireless module cable
Lexmark 41X2270 Wireless module cable
Fully refurbished with 90-day warranty
41X2270


Lexmark 41X2270 Wireless module cable
New
41X2270 (New)
$18.06



Assembly 2: Control panel parts diagram - Lexmark MS321 MS421 MS521 M124x B2338 B2442 B2546 Parts

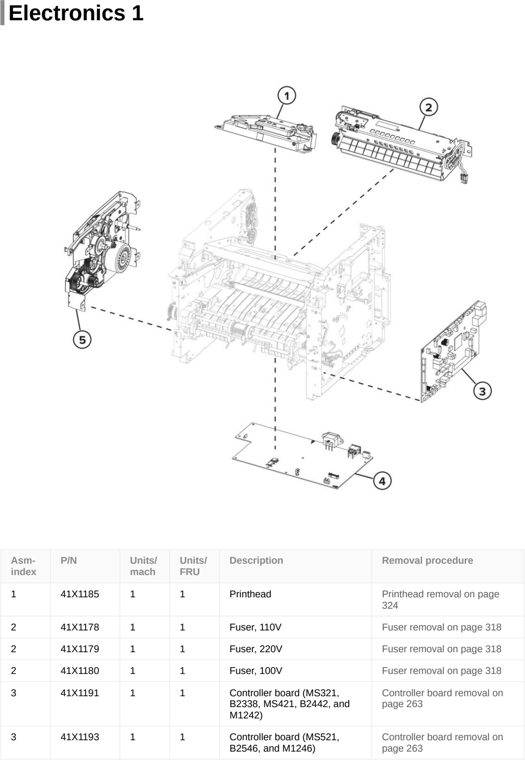

Assembly 3: Electronics 1
1 41X1185 Printhead
Lexmark 41X1185 Printhead
Fully refurbished with 90-day warranty
41X1185


Lexmark 41X1185 Printhead
New
41X1185 (New)
$111.50



2 41X1178 Fuser, 110V
Lexmark 41X1178 Fuser 110V
New
41X1178 36S3650 (New)
$267.00 $213.00


Lexmark 41X1178 Fuser 110V
Fully refurbished with 90-day warranty
41X1178 Rebuilt, new parts
$125.00



2 41X1179 Fuser, 220V
2 41X1180 Fuser, 100V
3 41X1191 Controller board (MS321, B2338, MS421, B2442, and M1242)
Lexmark 41X1191 Controller board
Fully refurbished with 90-day warranty
41X1191 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED


Lexmark 41X1191 Controller board
New
41X1191 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$245.92



3 41X1193 Controller board (MS521, B2546, and M1246)
Lexmark 41X1193 Controller board
Fully refurbished with 90-day warranty
41X1193 matched set with Operator panel This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED


Lexmark 41X1193 Controller board
New
41X1193 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$248.50



4 41X1201 Power supply, 100V/110V
Lexmark 41X1201 Power supply 100V/110V
Fully refurbished with 90-day warranty
41X1201
$91.50


Lexmark 41X1201 Power supply 100V/110V
New
41X1201 (New)
$128.50



4 41X1202 Power supply, 220V
5 41X1224 Main drive gearbox
Lexmark 41X1224 Main drive gearbox
Fully refurbished with 90-day warranty
41X1224
$78.50


Lexmark 41X1224 Main drive gearbox
New
41X1224 (New)
$169.50



Assembly 3: Electronics 1 parts diagram - Lexmark MS321 MS421 MS521 M124x B2338 B2442 B2546 Parts

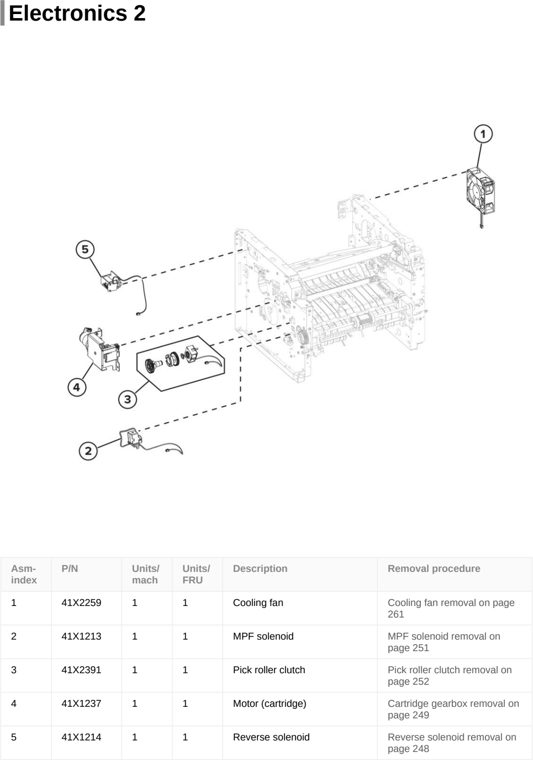

Assembly 4: Electronics 2
1 41X2259 Cooling fan
Lexmark 41X2259 Cooling fan
Fully refurbished with 90-day warranty
41X2259
$16.78


Lexmark 41X2259 Cooling fan
New
41X2259 (New)
$21.47



2 41X1213 MPF solenoid
Lexmark 41X1213 MPF solenoid
Fully refurbished with 90-day warranty
41X1213
$14.62


Lexmark 41X1213 MPF solenoid
New
41X1213 (New)
$18.97



3 41X2391 Pick roller clutch
Lexmark 41X2391 Pick roller clutch
Fully refurbished with 90-day warranty
41X2391


Lexmark 41X2391 Pick roller clutch
New
41X2391 (New)
$26.22



4 41X1237 Motor (cartridge)
Lexmark 41X1237 Motor (cartridge)
Fully refurbished with 90-day warranty
41X1237
$54.50


Lexmark 41X1237 Motor (cartridge)
New
41X1237 (New)
$108.21



5 41X1214 Reverse solenoid
Lexmark 41X1214 Reverse solenoid
Fully refurbished with 90-day warranty
41X1214
$17.47


Lexmark 41X1214 Reverse solenoid
New
41X1214 (New)
$22.27



Assembly 4: Electronics 2 parts diagram - Lexmark MS321 MS421 MS521 M124x B2338 B2442 B2546 Parts

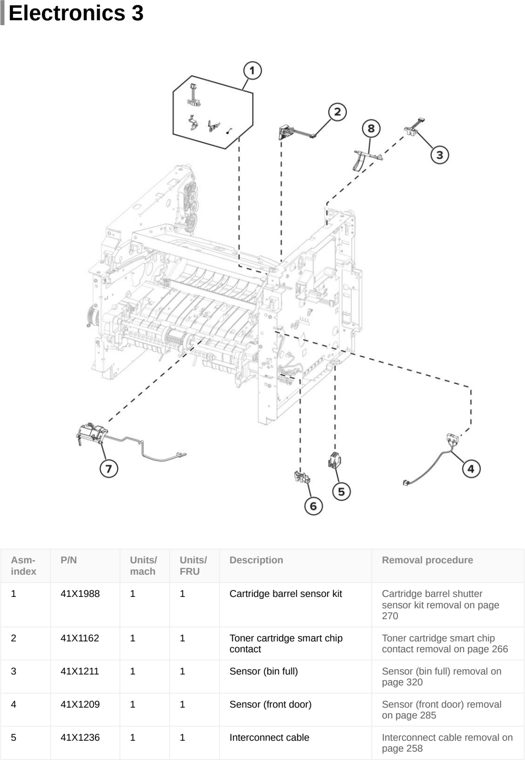

Assembly 5: Electronics 3
1 41X1988 Cartridge barrel sensor kit
Lexmark 41X1988 Cartridge barrel sensor kit
Fully refurbished with 90-day warranty
41X1988




2 41X1162 Toner cartridge smart chip contact
Lexmark 41X1162 Toner cartridge smart chip contact
Fully refurbished with 90-day warranty
41X1162



3 41X1211 Sensor (bin full)
Lexmark 41X1211 Sensor (bin full)
Fully refurbished with 90-day warranty
41X1211


Lexmark 41X1211 Sensor (bin full)
New
41X1211 (New)
$20.54



4 41X1209 Sensor (front door)
Lexmark 41X1209 Sensor (front door)
Fully refurbished with 90-day warranty
41X1209
$17.08


Lexmark 41X1209 Sensor (front door)
New
41X1209 (New)
$21.81



5 41X1236 Interconnect cable
Lexmark 41X1236 Interconnect cable
Fully refurbished with 90-day warranty
41X1236
$12.11


Lexmark 41X1236 Interconnect cable
New
41X1236 (New)
$21.51



6 41X1238 Sensor (tray present)
Lexmark 41X1238 Sensor (tray present)
Fully refurbished with 90-day warranty
41X1238
$11.59


Lexmark 41X1238 Sensor (tray present)
New
41X1238 (New)
$20.93



7 41X1210 Sensor (MPF paper present)
Lexmark 41X1210 Sensor (MPF paper present)
Fully refurbished with 90-day warranty
41X1210




8 41X2667 Bin full flag
Lexmark 41X2667 Bin full flag
New
41X2667 (New)
$18.78



Assembly 5: Electronics 3 parts diagram - Lexmark MS321 MS421 MS521 M124x B2338 B2442 B2546 Parts
Assembly 6: Electronics 4
1 41X1206 Sensor (duplex and input)
Lexmark 41X1206 Sensor (duplex and input)
Fully refurbished with 90-day warranty
41X1206
$19.00




2 41X1240 Sensor (trailing edge)
Lexmark 41X1240 Sensor (trailing edge)
Fully refurbished with 90-day warranty
41X1240


Lexmark 41X1240 Sensor (trailing edge)
New
41X1240 (New)
$21.12



3 41X4456 Toner density sensor kit

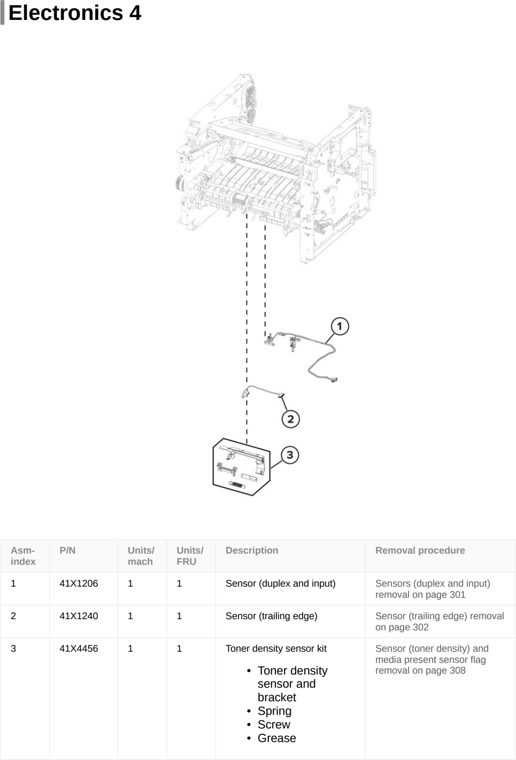

Assembly 6: Electronics 4 parts diagram - Lexmark MS321 MS421 MS521 M124x B2338 B2442 B2546 Parts

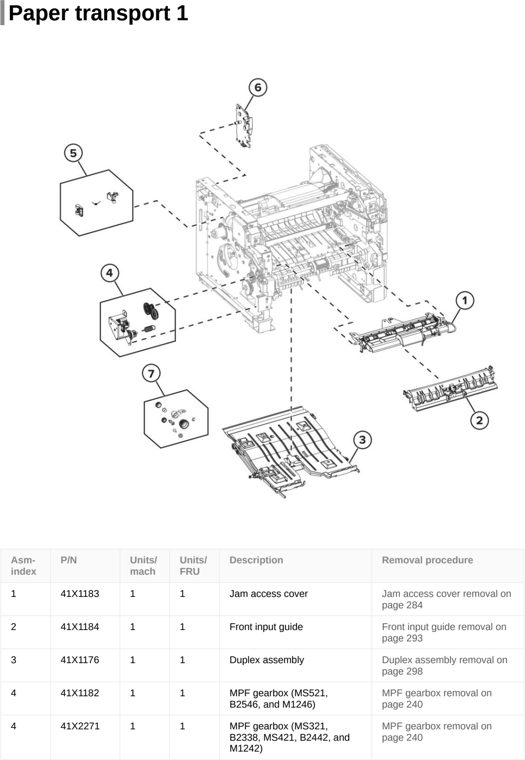

Assembly 7: Paper transport 1
1 41X1183 Jam access cover
Lexmark 41X1183 Jam access cover
New
41X1183 (New)
$45.50


Lexmark 41X1183 Jam access cover
Fully refurbished with 90-day warranty
41X1183
$28.50



2 41X1184 Front input guide
Lexmark 41X1184 Front input guide
New
41X1184 (New)
$45.50


Lexmark 41X1184 Front input guide
Fully refurbished with 90-day warranty
41X1184
$28.50



3 41X1176 Duplex assembly
Lexmark 41X1176 Duplex assembly
New
41X1176 (New)
$60.24


Lexmark 41X1176 Duplex assembly
Fully refurbished with 90-day warranty
41X1176
$49.15



4 41X1182 MPF gearbox (MS521, B2546, and M1246)
Lexmark 41X1182 MPF gearbox (MS/MX52x MS62x)
Fully refurbished with 90-day warranty
41X1182
$20.50



4 41X2271 MPF gearbox (MS321, B2338, MS421, B2442, and M1242)
Lexmark 41X2271 MPF gearbox
Fully refurbished with 90-day warranty
41X2271




5 41X2255 Fuser cam
Lexmark 41X2255 Fuser actuator
Fully refurbished with 90-day warranty
41X2255
$9.54


Lexmark 41X2255 Fuser actuator
New
41X2255 (New)
$18.66



6 41X2268 Redrive gear plate
Lexmark 41X2268 Redrive gear plate
Fully refurbished with 90-day warranty
41X2268


Lexmark 41X2268 Redrive gear plate
New
41X2268 (New)
$24.50



7 41X4214 Duplex gear kit
Lexmark 41X4214 Access cover link
New
41X4214 (New)
$18.69



Assembly 7: Paper transport 1 parts diagram - Lexmark MS321 MS421 MS521 M124x B2338 B2442 B2546 Parts
Assembly 8: Paper transport 2
1 40X8393 Transfer roller
Lexmark 40X8393 Transfer Roll
New
40X8393 (New)
$19.95



2 41X1197 MPF pick roller and separator pad
Lexmark 41X1197 MPF pick roller and separator pad
Fully refurbished with 90-day warranty
41X1197




3 41X1223 Pick roller assembly
Lexmark 41X1223 Pick roller assembly
Fully refurbished with 90-day warranty
41X1223


Lexmark 41X1223 Pick roller assembly
New
41X1223 (New)
$30.87



4 41X0918 Pick tire
Lexmark 41X0918 Pick Tire
New
41X0918 set of two (New)
$14.10



5 41X1203 Redrive assembly
Lexmark 41X1203 Redrive assembly
Fully refurbished with 90-day warranty
41X1203


Lexmark 41X1203 Redrive assembly
New
41X1203 (New)
$51.54



6 41X4474 Mounting bracket
Lexmark 41X4474 Mounting bracket
New
41X4474 (New)
$22.03


Lexmark 41X4474 Mounting bracket
Fully refurbished with 90-day warranty
41X4474



7 41X4545 Isolation roller
Lexmark 41X4545 Isolation Roller
New
41X4545 (New)
$9.35

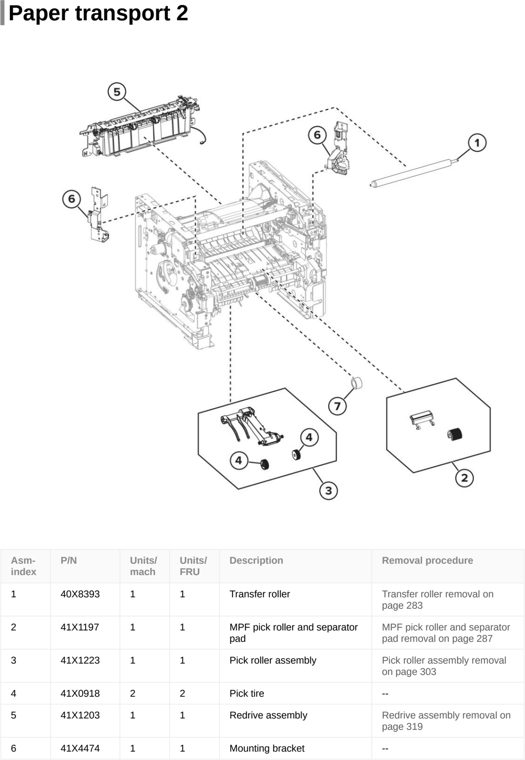

Assembly 8: Paper transport 2 parts diagram - Lexmark MS321 MS421 MS521 M124x B2338 B2442 B2546 Parts
Assembly 9: MPF and standard tray
1 41X1218 MPF with front access cover
Lexmark 41X1218 MPF with front access cover
Fully refurbished with 90-day warranty
41X1218




2 41X2125 Standard 250-sheet tray insert (MS321, B2338, MS421, B2442, and M1242)
Lexmark 41X2125 Standard 250-sheet tray insert
Fully refurbished with 90-day warranty
41X2125
$88.50




2 41X1220 Standard 250-sheet tray insert (MS521, B2546, and M1246)
Lexmark 41X1220 Standard 250-sheet tray insert
Fully refurbished with 90-day warranty
41X1220

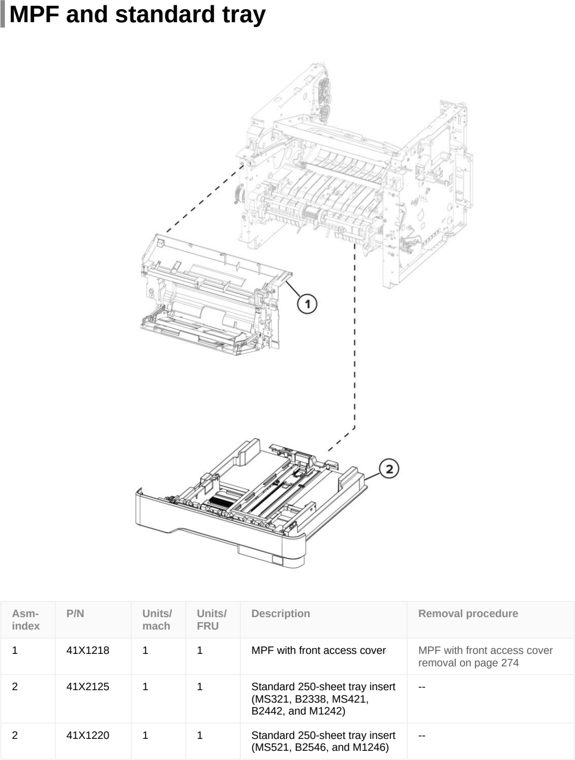

Assembly 9: MPF and standard tray parts diagram - Lexmark MS321 MS421 MS521 M124x B2338 B2442 B2546 Parts
Assembly 10: Optional trays
1 41X1216 Optional 550-sheet tray
Lexmark 41X1216 Optional 550-sheet tray
Fully refurbished with 90-day warranty
41X1216
$129.00


Lexmark 41X1216 Optional 550-sheet tray
New
41X1216 (New)
$362.99



1 41X1217 Optional 250-sheet tray
Lexmark 41X1217 Optional 250-Drawer with Tray
Fully refurbished with 90-day warranty
41X1217




1 41X2813 Optional 550-sheet tray, lockable

2 41X1239 Pick roller
Lexmark 41X1239 Pick roller
Fully refurbished with 90-day warranty
41X1239


Lexmark 41X1239 Pick roller
New
41X1239 (New)
$16.50



3 41X1222 550-sheet tray insert (optional tray)
Lexmark 41X1222 550-sheet tray insert (optional tray)
Fully refurbished with 90-day warranty
41X1222




3 41X1221 250-sheet tray insert (optional tray)
Lexmark 41X1221 250-sheet tray insert (optional tray)
Fully refurbished with 90-day warranty
41X1221




3 41X2814 550-sheet tray insert (lockable optional tray)

4 41X1212 Separator roller assembly
Lexmark 41X1212 Separator roller assembly
Fully refurbished with 90-day warranty
41X1212




NS 40X8033 Lockable tray key

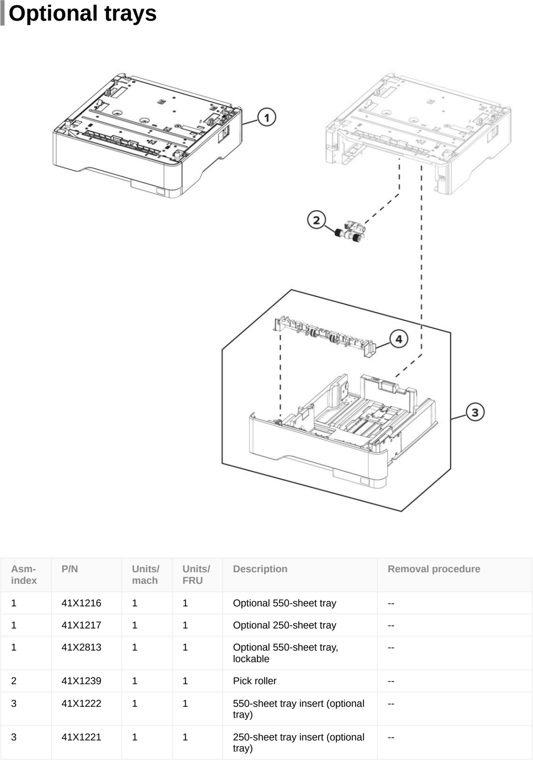

Assembly 10: Optional trays parts diagram - Lexmark MS321 MS421 MS521 M124x B2338 B2442 B2546 Parts
Assembly 11: Maintenance kits (MS521, B2546, and M1246)
NS 41X1230 Maintenance Kit (100 V) • Fuser (100 V) • MPF pick roller and separator pad • Pick tires • Transfer roller


NS 41X1228 Maintenance Kit (110 V) • Fuser (110 V) • MPF pick roller and separator pad • Pick tires • Transfer roller
Lexmark 41X1228 Maintenance Kit 110V
New
41X1228 200K Page Yield (New)
$264.49


Lexmark 41X1228 Maintenance Kit 110V
Fully refurbished with 90-day warranty
41X1228 200K Page Yield
$174.50



NS 41X1229 Maintenance Kit (220 V) • Fuser (220 V) • MPF pick roller and separator pad • Pick tires • Transfer roller

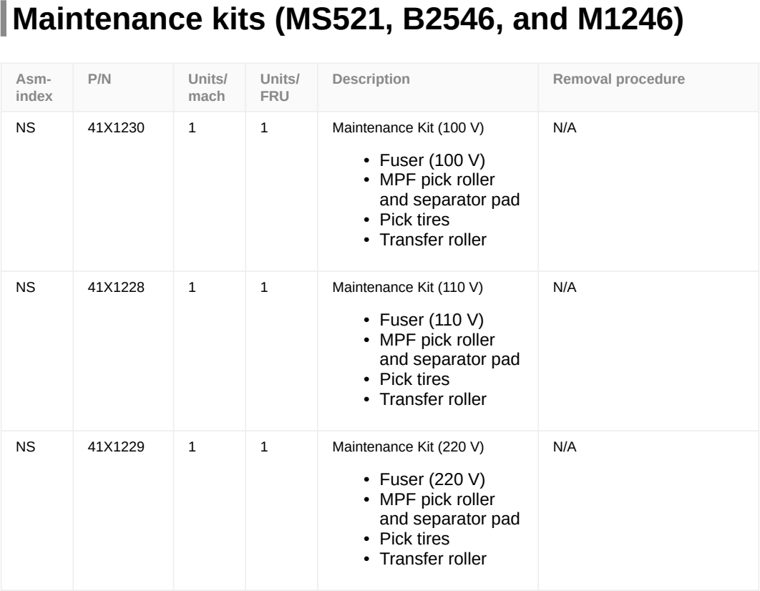

Assembly 11: Maintenance kits (MS521, B2546, and M1246) parts diagram - Lexmark MS321 MS421 MS521 M124x B2338 B2442 B2546 Parts

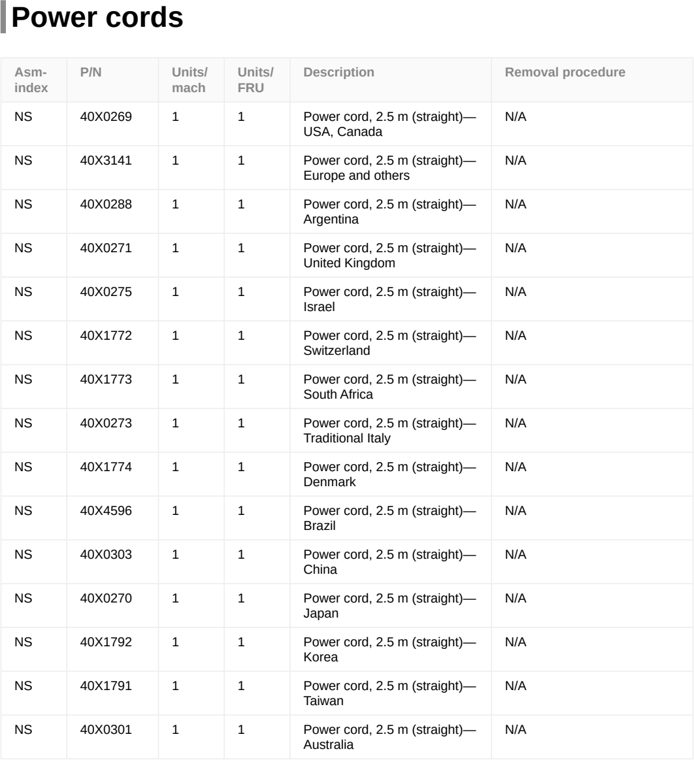

Assembly 12: Power cords
NS 40X0269 Power cord, 2.5 m (straight)— USA, Canada

NS 40X3141 Power cord, 2.5 m (straight)— Europe and others

NS 40X0288 Power cord, 2.5 m (straight)— Argentina
Lexmark 40x0288 Power cord; 2.5m, 8ft. Straight, Argentina
New
40x0288 (New)

Retired, no longer available: Contact for alternatives



NS 40X0271 Power cord, 2.5 m (straight)— United Kingdom
Lexmark 40x0271 Power Cord; 2.5m, 8ft. Straight, UK, Ireland, HK, IT
New
40x0271 (New)

Retired, no longer available: Contact for alternatives



NS 40X0275 Power cord, 2.5 m (straight)— Israel
Lexmark 40x0275 Power cord; 1.8m, 6ft. Straight, Israel
New
40x0275 (New)

Retired, no longer available: Contact for alternatives



NS 40X1772 Power cord, 2.5 m (straight)— Switzerland

NS 40X1773 Power cord, 2.5 m (straight)— South Africa

NS 40X0273 Power cord, 2.5 m (straight)— Traditional Italy
Lexmark 40x0273 Power cord; 2.5m, 8ft. Straight, Italy, Chile, Uruguay
New
40x0273 (New)
$44.20

Retired, no longer available: Contact for alternatives



NS 40X1774 Power cord, 2.5 m (straight)— Denmark

NS 40X4596 Power cord, 2.5 m (straight)— Brazil

NS 40X0303 Power cord, 2.5 m (straight)— China

NS 40X0270 Power cord, 2.5 m (straight)— Japan
Lexmark 40x0270 Power cord; 2.5m, 8ft. Straight, Japan
New
40x0270 (New)

Retired, no longer available: Contact for alternatives



NS 40X1792 Power cord, 2.5 m (straight)— Korea

NS 40X1791 Power cord, 2.5 m (straight)— Taiwan

NS 40X0301 Power cord, 2.5 m (straight)— Australia

Assembly 12: Power cords parts diagram - Lexmark MS321 MS421 MS521 M124x B2338 B2442 B2546 Parts
Assembly 13: Miscellaneous
NS 41X1010 User Flash Memory, 256MB
Lexmark 41X1010 Flash memory 256 MB
New
41X1010 (New)
$92.60


Lexmark 41X1010 Flash memory 256 MB
Fully refurbished with 90-day warranty
41X1010
$62.50



NS 41X1002 Forms and Bar Code card (MS521, B2546, and M1246)
Lexmark 41X1002 Forms and barcode card
New
41X1002 (New)
$96.50


Lexmark 41X1002 Forms and barcode card
Fully refurbished with 90-day warranty
41X1002



NS 41X1004 IPDS card (MS521, B2546, and M1246)
Lexmark 41X1004 IPDS SCS TNE card
New
41X1004 (New)
$96.50


Lexmark 41X1004 IPDS SCS TNE card
Fully refurbished with 90-day warranty
41X1004
$61.50



NS 41X1006 PRESCRIBE card (MS521, B2546, and M1246)
Lexmark 41X1006 PRESCRIBE card
New
41X1006 (New)
$197.50



NS 41X1014 Font card, Traditional Chinese Note: This part is obsolete.
NS 41X1013 Font card, Simplified Chinese
Lexmark 41X1013 Simplified Chinese Font Card
Fully refurbished with 90-day warranty
41X1013



NS 41X1015 Font card, Korean
Lexmark 41X1015 Korean Font Card
New
41X1015 (New)
$86.42


Lexmark 41X1015 Korean Font Card
Fully refurbished with 90-day warranty
41X1015



NS 41X1016 Font card, Japanese
NS 41X1372 Marknet N8370, Rear WiFi (MS521, B2546, and M1246)
Lexmark 41X1372 Wireless network card MarkNet N8370
Fully refurbished with 90-day warranty
41X1372



NS 41X2051 Parallel card, thin (MS521, B2546, and M1246)
Lexmark 41X2051 Parallel Card Thin
New
41X2051 (New)
$198.25


Lexmark 41X2051 Parallel card thin
Fully refurbished with 90-day warranty
41X2051



NS 41X2055 Smart card
Lexmark 41X2055 Smart card
New
41X2055 (New)
$291.50


Lexmark 41X2055 Smart card
Fully refurbished with 90-day warranty
41X2055



NS 40X1368 USB 2.0 cable (2 meters)
Lexmark 40X1368 2-Meter USB Cable
New
40X1368 (New)
$23.70

Retired, no longer available: Contact for alternatives



NS 3086579 Software CD Note: The part number is for internal use only and is not orderable.
NS 41X0997 Contact Authentication Device
Lexmark 41X0997 Contact Front Authentication Device
Fully refurbished with 90-day warranty
41X0997



NS 41X0998 Contactless Authentication Device

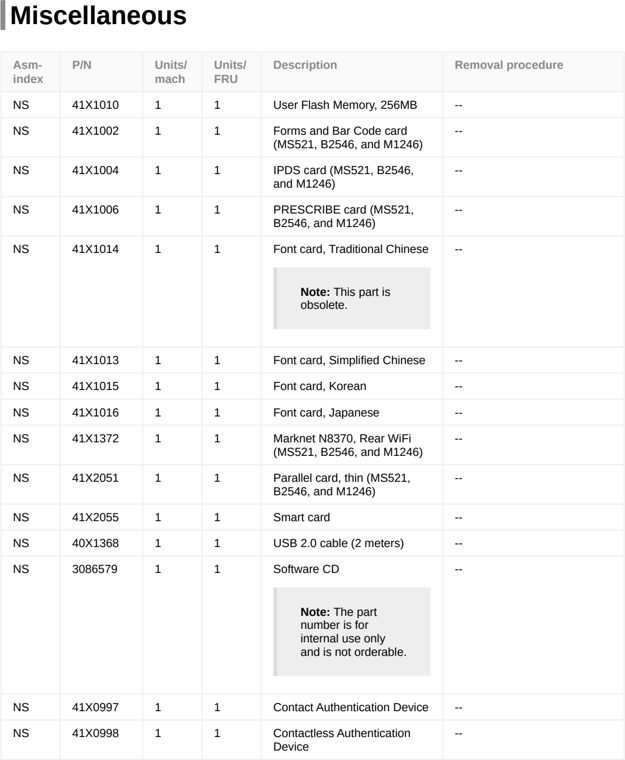

Assembly 13: Miscellaneous parts diagram - Lexmark MS321 MS421 MS521 M124x B2338 B2442 B2546 Parts
Other listed parts
40X8046 Toner density sensor
Lexmark 40X8046 Toner density sensor
New
40X8046 (New)
$26.00


Lexmark 40X8046 Toner density sensor
Fully refurbished with 90-day warranty
40X8046
$19.88



41X1158 Bezel
Lexmark 41X1158 Bezel
New
41X1158 41X1189 (New)
$120.09



41X1186 Control panel display assembly (MS321, MS421)
