Assembly 2: Covers
1 41X4543 Scanner rear cover
Lexmark 41X4543 Scanner rear cover
New
41X4543 (New)
$23.67


41X4543 Scanner rear cover
Fully refurbished with 90-day warranty
41X4543 (Refurbished)



2 41X4544 Top cover
Lexmark 41X4544 Top cover
New
41X4544 (New)
$42.26


41X4544 Top cover
Fully refurbished with 90-day warranty
41X4544 (Refurbished)



3 40X9102 Output extender
Lexmark 40X9102 Output expander cover
New
40X9102 (New)
$53.00


Lexmark 40X9102 Output expander cover
Fully refurbished with 90-day warranty
40X9102
$23.22



4 41X1170 Rear door and cover
Lexmark 41X1170 Rear door and cover
New
41X1170 (New)
$53.59


Lexmark 41X1170 Rear door and cover
Fully refurbished with 90-day warranty
41X1170
$38.50



5 41X1232 Rear door
Lexmark 41X1232 Rear access door
New
41X1232 (New)
$32.40


Lexmark 41X1232 Rear access door
Fully refurbished with 90-day warranty
41X1232
$24.68



6 40X8521 Dust cover
Lexmark 40X8521 Dust cover 550-sheet tray
Fully refurbished with 90-day warranty
40X8521
$41.16



7 41X1166 Right cover
Lexmark 41X1166 Right cover
New
41X1166 (New)
$54.56


Lexmark 41X1166 Right cover
Fully refurbished with 90-day warranty
41X1166
$41.64



8 41X1233 Controller board cover
Lexmark 41X1233 Right access cover
New
41X1233 (New)
$31.45


Lexmark 41X1233 Right access cover
Fully refurbished with 90-day warranty
41X1233
$23.95



9 41X1164 Front cover
Lexmark 41X1164 Nameplate
New
41X1164 (New)
$48.70


Lexmark 41X1164 Nameplate
Fully refurbished with 90-day warranty
41X1164
$36.03



10 41X4538 Top front cover
Lexmark 41X4538 Top Front Cover
New
41X4538 (New)
$20.26


41X4538 Top front cover
Fully refurbished with 90-day warranty
41X4538 (Refurbished)



11 41X4533 Bezel for MX532
Lexmark 41X4533 Bezel for MX532
New
41X4533 (New)
$7.29


41X4533 Bezel for MX532
Fully refurbished with 90-day warranty
41X4533 (Refurbished)



11 41X4534 Bezel for MX632
Lexmark 41X4534 Bezel for MX632
New
41X4534 (New)
$7.29


41X4534 Bezel for MX632
Fully refurbished with 90-day warranty
41X4534 (Refurbished)



11 41X4535 Bezel (blank)
Lexmark 41X4535 Bezel (blank)
New
41X4535 (New)
$6.87


41X4535 Bezel (blank)
Fully refurbished with 90-day warranty
41X4535 (Refurbished)



11 41X4536 Bezel for XM3350
Lexmark 41X4536 Bezel for XM3350
New
41X4536 (New)
$7.29


41X4536 Bezel for XM3350
Fully refurbished with 90-day warranty
41X4536 (Refurbished)



12 41X1168 Left cover
Lexmark 41X1168 Left cover
New
41X1168 (New)
$48.87


Lexmark 41X1168 Left cover
Fully refurbished with 90-day warranty
41X1168
$39.78



13 41X4541 Scanner front cover
Lexmark 41X4541 Scanner front cover
New
41X4541 (New)
$29.24


41X4541 Scanner front cover
Fully refurbished with 90-day warranty
41X4541 (Refurbished)



14 41X4540 Control panel support cover
41X4540 Control panel support cover
Fully refurbished with 90-day warranty
41X4540 (Refurbished)



15 41X2300 Access cover link
Lexmark 41X2300 Access cover link
New
41X2300 (New)
$11.36


41X2300 Access cover link
Fully refurbished with 90-day warranty
41X2300 (Refurbished)

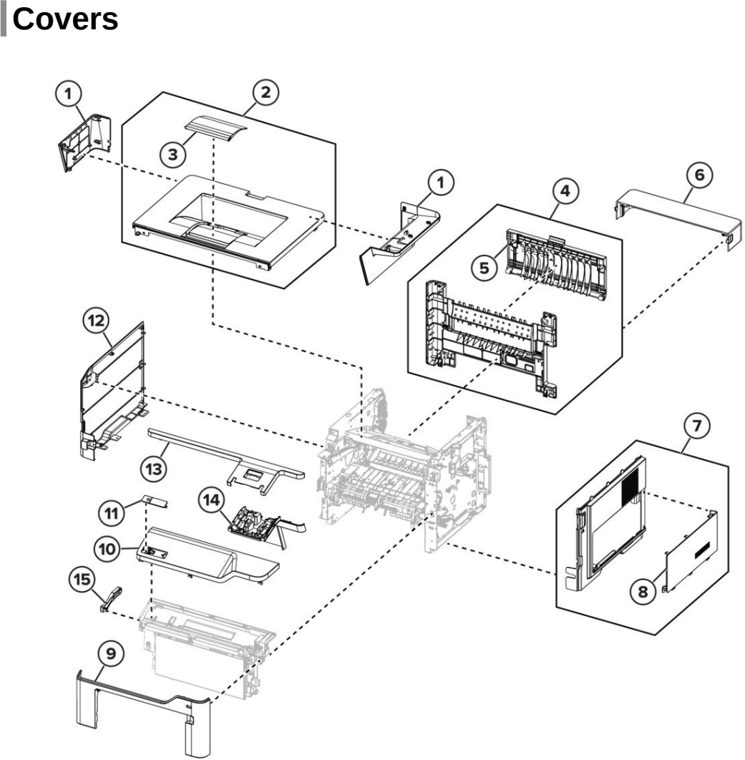

Assembly 2: Covers parts diagram - Lexmark MX532 MX632 XM3350 Parts

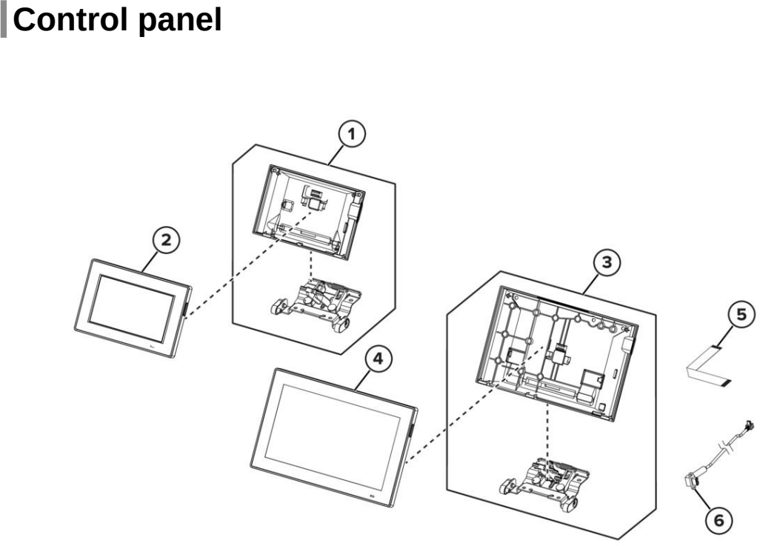

Assembly 3: Control panel
1 41X3707 Control panel hinge for MX532
Lexmark 41X3707 Control panel hinge (for MX532 CX532 and XC2335)
Fully refurbished with 90-day warranty
41X3707
$19.80




2 41X4351 Control panel for MX532


3 41X3708 Control panel hinge for MX632 and XM3350
Lexmark 41X3708 Control panel hinge (CX635)
Fully refurbished with 90-day warranty
41X3708
$20.07



4 41X2880 Control panel for MX632 and XM3350
Lexmark 41X2880 Control panel display 7-inch
Fully refurbished with 90-day warranty
41X2880




5 41X4550 Control panel FFC
Lexmark 41X4550 Control panel FFC
New
41X4550 (New)
$18.33


41X4550 Control panel FFC
Fully refurbished with 90-day warranty
41X4550 (Refurbished)



6 41X4537 Front USB cable
Lexmark 41X4537 Front USB cable
New
41X4537 (New)
$22.64


41X4537 Front USB cable
Fully refurbished with 90-day warranty
41X4537 (Refurbished)



Assembly 3: Control panel parts diagram - Lexmark MX532 MX632 XM3350 Parts
Assembly 4: Electronics
1 41X1185 Printhead
Lexmark 41X1185 Printhead
New
41X1185 (New)
$122.44 $111.50


Lexmark 41X1185 Printhead
Fully refurbished with 90-day warranty
41X1185
$68.50



2 41X1178 Fuser, 110 V
Lexmark 41X1178 Fuser 110V
New
41X1178 36S3650 (New)
$267.00 $213.00


Lexmark 41X1178 Fuser 110V
Fully refurbished with 90-day warranty
41X1178 Rebuilt, new parts
$125.00



2 41X1179 Fuser, 220 V
2 41X1180 Fuser, 100 V



3 41X4154 Engine board
41X4154 Engine board
Fully refurbished with 90-day warranty
41X4154 (Refurbished)



4 41X4152 Controller board
41X4152 Controller board
Fully refurbished with 90-day warranty
41X4152 (Refurbished)



5 41X4411 Power supply, 100 / 110 V
Lexmark 41X4411 Power supply 110 V
New
41X4411 (New)
$128.58


41X4411 Power supply, 100 / 110 V
Fully refurbished with 90-day warranty
41X4411 (Refurbished)



5 41X4410 Power supply, 230 V

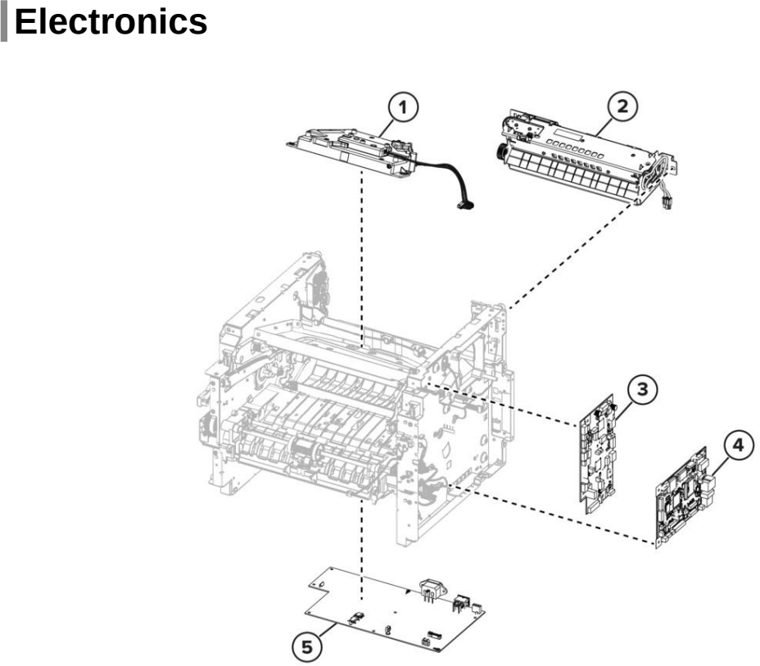

Assembly 4: Electronics parts diagram - Lexmark MX532 MX632 XM3350 Parts
Assembly 5: Motors
1 41X2259 Cooling fan
Lexmark 41X2259 Cooling fan
New
41X2259 (New)
$21.47


Lexmark 41X2259 Cooling fan
Fully refurbished with 90-day warranty
41X2259
$16.78



2 41X1989 Pick/lift motor gearbox
Lexmark 41X1989 Pick/lift motor gearbox
New
41X1989 (New)
$114.42


Lexmark 41X1989 Pick/lift motor gearbox
Fully refurbished with 90-day warranty
41X1989
$93.18



3 41X1213 MPF solenoid
Lexmark 41X1213 MPF solenoid
New
41X1213 (New)
$18.97


Lexmark 41X1213 MPF solenoid
Fully refurbished with 90-day warranty
41X1213
$14.62



4 41X1224 Main drive gearbox
Lexmark 41X1224 Main drive gearbox
New
41X1224 (New)
$169.50


Lexmark 41X1224 Main drive gearbox
Fully refurbished with 90-day warranty
41X1224
$78.50



5 41X1237 Cartridge gearbox
Lexmark 41X1237 Motor (cartridge)
New
41X1237 (New)
$108.21


Lexmark 41X1237 Motor (cartridge)
Fully refurbished with 90-day warranty
41X1237
$54.50



6 41X1214 Reverse solenoid
Lexmark 41X1214 Reverse solenoid
New
41X1214 (New)
$22.27


Lexmark 41X1214 Reverse solenoid
Fully refurbished with 90-day warranty
41X1214
$17.47

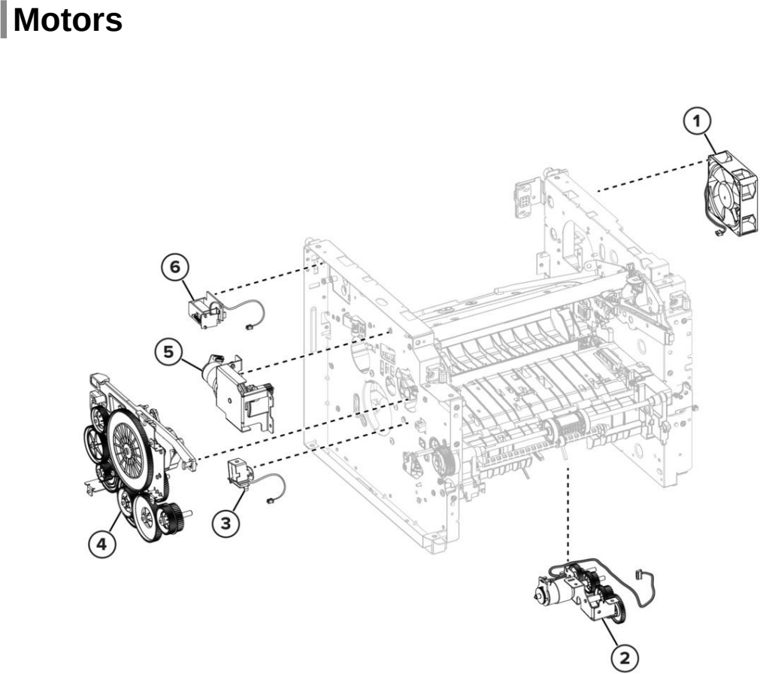

Assembly 5: Motors parts diagram - Lexmark MX532 MX632 XM3350 Parts

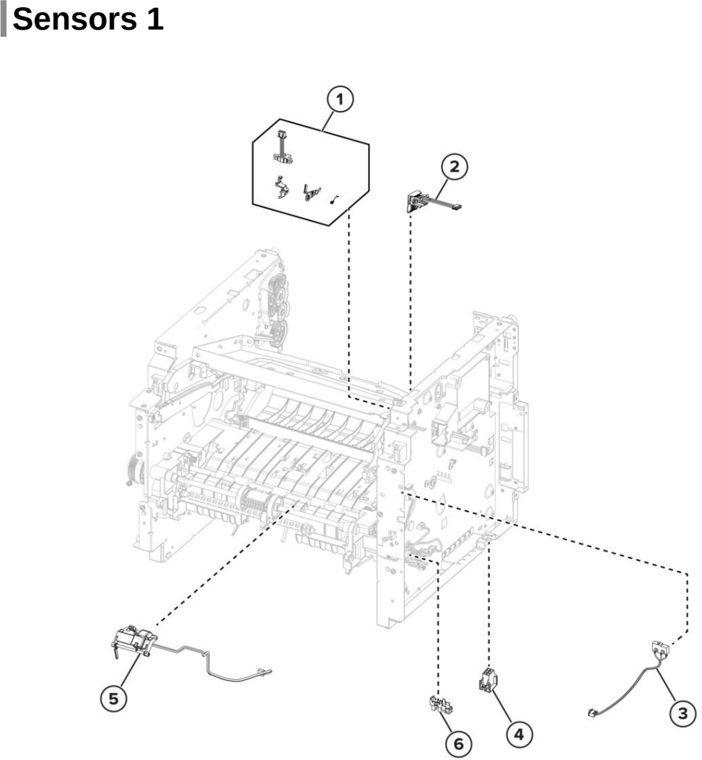

Assembly 6: Sensors 1
1 41X1988 Sensor (cartridge barrel)
Lexmark 41X1988 Cartridge barrel sensor kit
Fully refurbished with 90-day warranty
41X1988



2 41X1162 Toner cartridge smart chip contact
Lexmark 41X1162 Toner cartridge smart chip contact
Fully refurbished with 90-day warranty
41X1162



3 41X1209 Sensor (front door)
Lexmark 41X1209 Sensor (front door)
New
41X1209 (New)
$21.81


Lexmark 41X1209 Sensor (front door)
Fully refurbished with 90-day warranty
41X1209
$17.08



4 41X4549 Interconnect cable
Lexmark 41X4549 Interconnect cable
New
41X4549 (New)
$22.36


41X4549 Interconnect cable
Fully refurbished with 90-day warranty
41X4549 (Refurbished)



5 41X1210 Sensor (MPF paper present)
Lexmark 41X1210 Sensor (MPF paper present)
Fully refurbished with 90-day warranty
41X1210



6 41X4991 Sensor (tray present)
Lexmark 41X4991 Sensor (tray present)
New
41X4991 (New)
$11.15


41X4991 Sensor (tray present)
Fully refurbished with 90-day warranty
41X4991 (Refurbished)



Assembly 6: Sensors 1 parts diagram - Lexmark MX532 MX632 XM3350 Parts
Assembly 7: Sensors 2
1 41X1208 Sensor (trailing edge)
Lexmark 41X1208 Sensor (trailing edge)
New
41X1208 (New)
$28.50


Lexmark 41X1208 Sensor (trailing edge)
Fully refurbished with 90-day warranty
41X1208
$23.28



2 41X4548 Sensor (duplex and input)
41X4548 Sensor (duplex and input)
Fully refurbished with 90-day warranty
41X4548 (Refurbished)



3 41X1238 Sensor (paper present)
Lexmark 41X1238 Sensor (tray present)
New
41X1238 (New)
$20.93


Lexmark 41X1238 Sensor (tray present)
Fully refurbished with 90-day warranty
41X1238
$11.59



4 41X4453 Paper present sensor flag parts kit
Lexmark 41X4453 Sensor Paper Present Flag Kit
Fully refurbished with 90-day warranty
41X4453
$28.50



5 41X4456 Toner density sensor parts kit
Lexmark 41X4456 Toner Density Sensor
New
41X4456 (New)
$31.94



6 40X8044 Sensor (index)
Lexmark 40X8044 Index sensor
New
40X8044 (New)
$19.58


Lexmark 40X8044 Index sensor
Fully refurbished with 90-day warranty
40X8044
$16.96

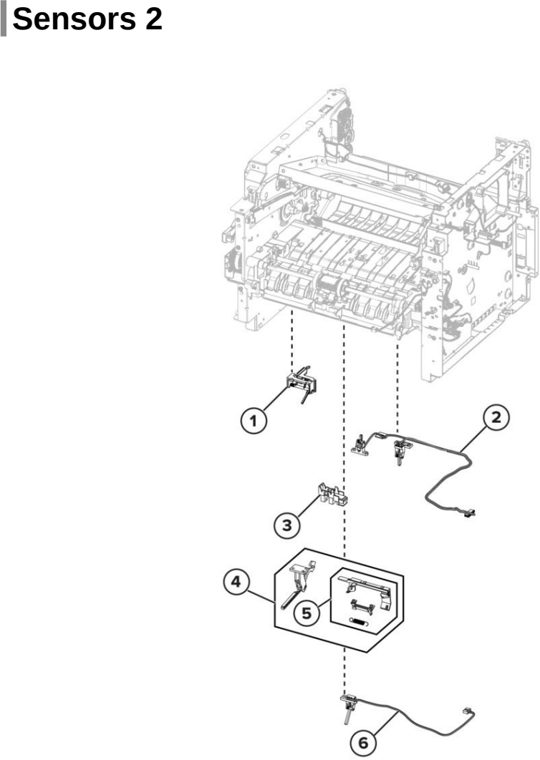

Assembly 7: Sensors 2 parts diagram - Lexmark MX532 MX632 XM3350 Parts
Assembly 8: Paper feed
1 41X2256 Redrive gear plate
Lexmark 41X2256 Redrive gear plate
New
41X2256 (New)
$32.99


Lexmark 41X2256 Redrive gear plate
Fully refurbished with 90-day warranty
41X2256
$25.13



2 41X1183 Jam access cover
Lexmark 41X1183 Jam access cover
New
41X1183 (New)
$45.50


Lexmark 41X1183 Jam access cover
Fully refurbished with 90-day warranty
41X1183
$28.50



3 41X1184 Front input guide
Lexmark 41X1184 Front input guide
New
41X1184 (New)
$45.50


Lexmark 41X1184 Front input guide
Fully refurbished with 90-day warranty
41X1184
$28.50



4 41X1176 Duplex unit
Lexmark 41X1176 Duplex assembly
New
41X1176 (New)
$60.24


Lexmark 41X1176 Duplex assembly
Fully refurbished with 90-day warranty
41X1176
$49.15



5 41X1182 MPF gearbox
Lexmark 41X1182 MPF gearbox (MS/MX52x MS62x)
Fully refurbished with 90-day warranty
41X1182
$20.50



6 41X2255 Fuser actuator
Lexmark 41X2255 Fuser actuator
New
41X2255 (New)
$18.66


Lexmark 41X2255 Fuser actuator
Fully refurbished with 90-day warranty
41X2255
$9.54



7 41X4214 Duplex gear kit
Lexmark 41X4214 Access cover link
New
41X4214 (New)
$18.69


41X4214 Duplex gear kit
Fully refurbished with 90-day warranty
41X4214 (Refurbished)

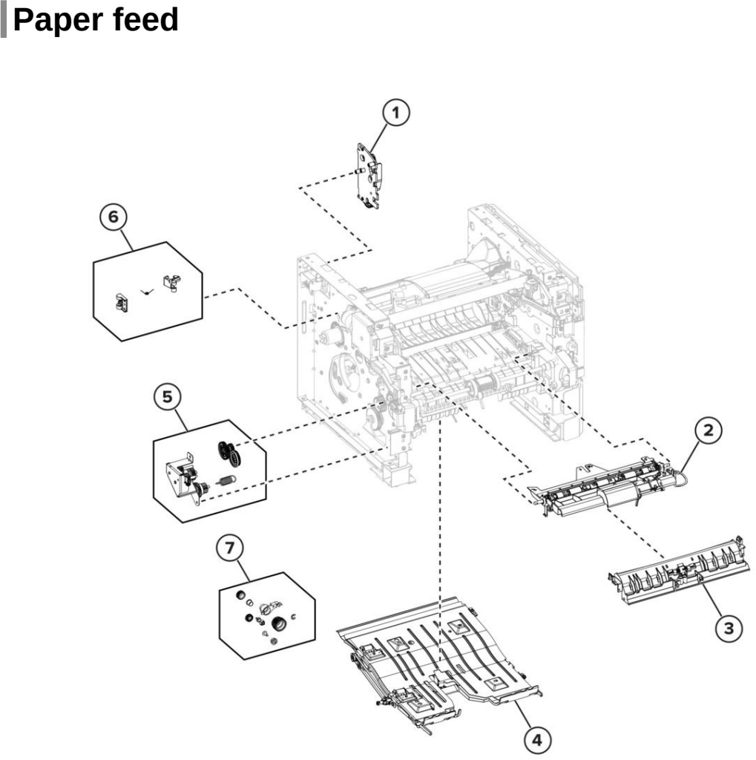

Assembly 8: Paper feed parts diagram - Lexmark MX532 MX632 XM3350 Parts

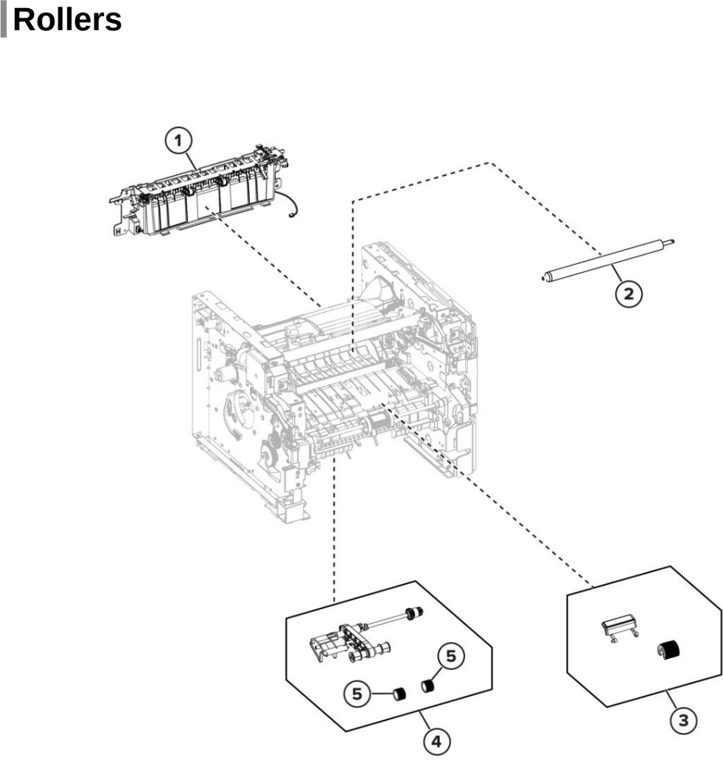

Assembly 9: Rollers
1 41X4409 Redrive
Lexmark 41X4409 Redrive
New
41X4409 (New)
$48.71


41X4409 Redrive for M3350, MS631, MS632, and MS639
Fully refurbished with 90-day warranty
41X4409 (Refurbished)



2 40X8393 Transfer roller
Lexmark 40X8393 Transfer Roll
New
40X8393 (New)
$19.95


40X8393 Transfer roll
Fully refurbished with 90-day warranty
40X8393 (Refurbished)



3 41X1197 MPF pick roller and separator pad
Lexmark 41X1197 MPF pick roller and separator pad
Fully refurbished with 90-day warranty
41X1197



4 41X1196 Pick roller
Lexmark 41X1196 Pick roller assembly
New
41X1196 (New)
$28.10


Lexmark 41X1196 Pick roller assembly
Fully refurbished with 90-day warranty
41X1196
$19.50



5 41X1198 Pick tire
Lexmark 41X1198 Pick Tires
New
41X1198 Set of Two (New)
$18.11


Lexmark 41X1198 Pick Tires
New
41X1198 Set of Two Compatible (New)


41X1198 Pick tire
Fully refurbished with 90-day warranty
41X1198 (Refurbished)



Assembly 9: Rollers parts diagram - Lexmark MX532 MX632 XM3350 Parts
Assembly 10: MPF and standard tray
1 41X4144 MPF with front cover
Lexmark 41X4144 MPF with front cover
New
41X4144 (New)
$35.65


41X4144 MPF with front cover for M3350, MS631, MS632, and MS639
Fully refurbished with 90-day warranty
41X4144 (Refurbished)



2 41X1987 Standard 550-sheet tray insert
Lexmark 41X1987 Standard 550-sheet tray insert
Fully refurbished with 90-day warranty
41X1987
$71.06



3 41X1212 Separator roller
Lexmark 41X1212 Separator roller assembly
Fully refurbished with 90-day warranty
41X1212

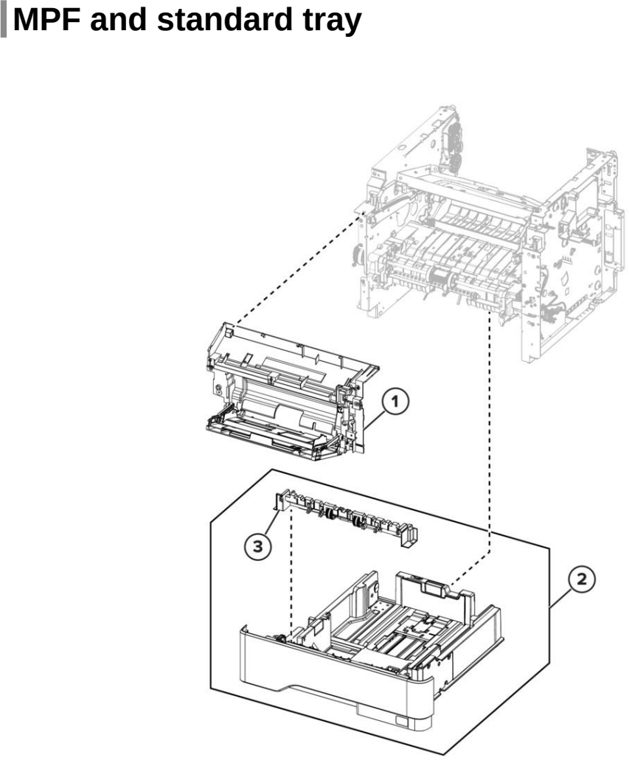

Assembly 10: MPF and standard tray parts diagram - Lexmark MX532 MX632 XM3350 Parts
Assembly 11: Optional trays
1 41X4149 Optional 550-sheet tray
Lexmark 41X4149 Optional 550-sheet tray
New
41X4149 (New)
$284.71


41X4149 Optional 550-sheet tray
Fully refurbished with 90-day warranty
41X4149 (Refurbished)



1 41X4148 Optional 250-sheet tray
Lexmark 41X4148 (New) Optional 250-sheet tray
New
41X4148 (New)
$312.95 $271.77


Lexmark 41X4148 Optional 250-sheet tray
Fully refurbished with 90-day warranty
41X4148 (Refurbished)



2 41X1239 Pick roller
Lexmark 41X1239 Pick roller
New
41X1239 (New)
$16.50


Lexmark 41X1239 Pick roller
Fully refurbished with 90-day warranty
41X1239



3 41X1222 550-sheet tray insert (optional tray)
Lexmark 41X1222 550-sheet tray insert (optional tray)
Fully refurbished with 90-day warranty
41X1222



3 41X1221 250-sheet tray insert (optional tray)
Lexmark 41X1221 250-sheet tray insert (optional tray)
Fully refurbished with 90-day warranty
41X1221



4 41X1212 Separator roller and bracket
Lexmark 41X1212 Separator roller assembly
Fully refurbished with 90-day warranty
41X1212

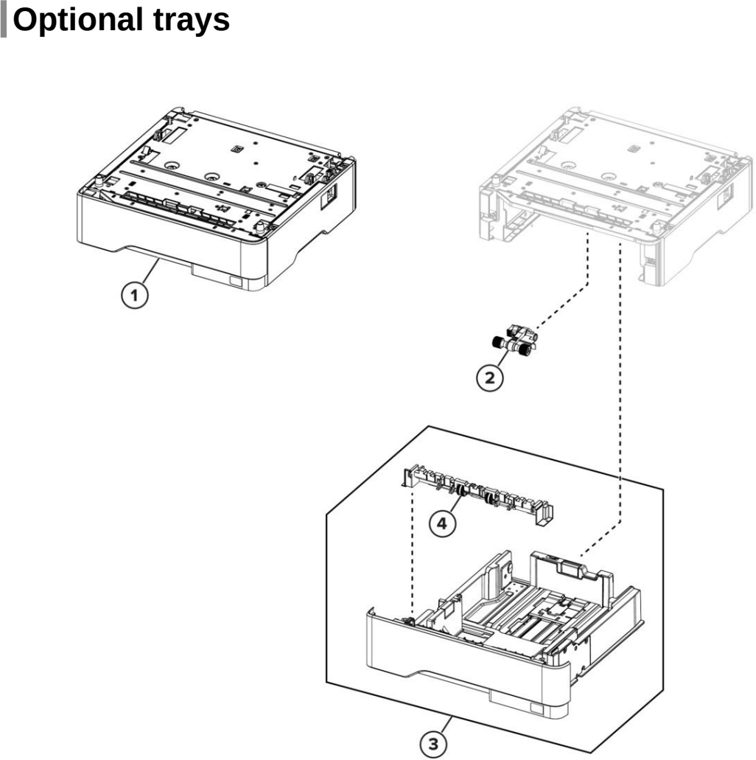

Assembly 11: Optional trays parts diagram - Lexmark MX532 MX632 XM3350 Parts
Assembly 12: Imaging
1 41X4369 ADF
Lexmark 41X4369 ADF
New
41X4369 (New)
$410.42


Lexmark 41X4369 ADF
Fully refurbished with 90-day warranty
41X4369
$306.51



2 41X4429 ADF access door
Lexmark 41X4429 ADF access door
New
41X4429 (New)
$72.82


Lexmark 41X4429 ADF access door
Fully refurbished with 90-day warranty
41X4429
$55.61



3 41X2847 ADF tray
Lexmark 41X2847 ADF tray
New
41X2847 (New)
$54.65


Lexmark 41X2847 ADF tray
Fully refurbished with 90-day warranty
41X2847



4 41X2848 ADF roller
Lexmark 41X2848 ADF rollers
New
41X2848 (New)
$40.69


Lexmark 41X2848 ADF rollers
Fully refurbished with 90-day warranty
41X2848



5 41X2853 Scanner glass pad
Lexmark 41X2853 Scanner glass pad
New
41X2853 (New)
$55.41


Lexmark 41X2853 Scanner glass pad
Fully refurbished with 90-day warranty
41X2853



6 40X7546 ADF right hinge
Lexmark 40X7546 ADF Right hinge
New
40X7546 (New)
$17.95


Lexmark 40X7546 ADF Right hinge
Fully refurbished with 90-day warranty
40X7546



7 41X2845 ADF left hinge
Lexmark 41X2845 ADF Left hinge
New
41X2845 (New)
$57.45


Lexmark 41X2845 ADF Left hinge
Fully refurbished with 90-day warranty
41X2845



8 41X4427 Flatbed scanner
Lexmark 41X4427 Flatbed scanner
New
41X4427 (New)
$315.43


41X4427 Flatbed scanner
Fully refurbished with 90-day warranty
41X4427 (Refurbished)



9 41X4431 ADF cable kit
Lexmark 41X4431 ADF cable kit
New
41X4431 (New)
$42.73


41X4431 ADF cable kit
Fully refurbished with 90-day warranty
41X4431 (Refurbished)

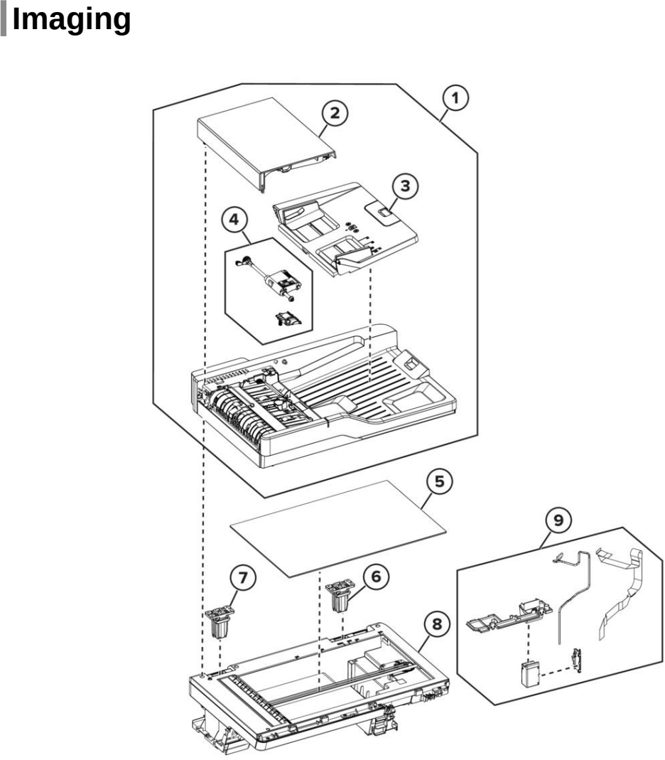

Assembly 12: Imaging parts diagram - Lexmark MX532 MX632 XM3350 Parts
Assembly 13: Electronic attachments
1 41X4177 Wireless card (Marknet N8450)
Lexmark 41X4177 Wireless card (Marknet N8450)
Fully refurbished with 90-day warranty
41X4177
$44.04



2 41X2936 Fax card
Lexmark 41X2936 Fax Card kit
New
41X2936 (New)
$95.92


41X2936 Fax card
Fully refurbished with 90-day warranty
41X2936 (Refurbished)



3 41X2854 Intelligent Storage Device (ISD), 128GB
Lexmark 41X2854 Intelligent Storage Device (ISD) 128GB
Fully refurbished with 90-day warranty
41X2854
$157.60



4 41X2873 Trusted platform module
Lexmark 41X2873 Trusted platform module (TPM) card
Fully refurbished with 90-day warranty
41X2873



5 40X9934 Printer hard disk (SATA) for MX532, MX632, XM3350, 500GB
Lexmark 40X9934 500GB SATA Hard disk
New
40X9934 (New)
$299.00


Lexmark 40X9934 500GB SATA Hard disk
Fully refurbished with 90-day warranty
40X9934
$161.00

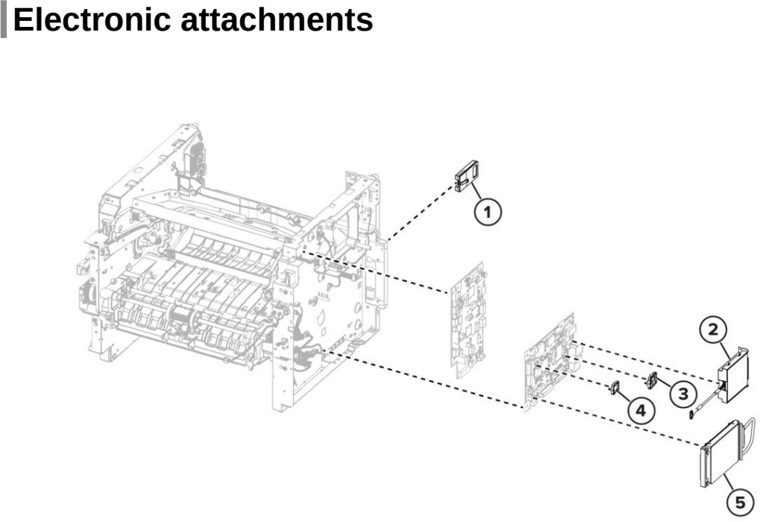

Assembly 13: Electronic attachments parts diagram - Lexmark MX532 MX632 XM3350 Parts
Assembly 14: Convenience stapler
1 41X4236 Convenience stapler
Lexmark 41X4236 Convenience stapler
New
41X4236 (New)
$806.00


Lexmark 41X4236 Convenience stapler
Fully refurbished with 90-day warranty
41X4236



2 40X8149 Staple cartridge holder
Lexmark 40X8149 Staple roll holder
Fully refurbished with 90-day warranty
40X8149
$70.58


Lexmark 40X8149 Stapler roll holder
New
40X8149 (New)
$86.24



3 41X4237 Universal AC power adapter
Lexmark 41X4237 Universal AC power adapter
Fully refurbished with 90-day warranty
41X4237

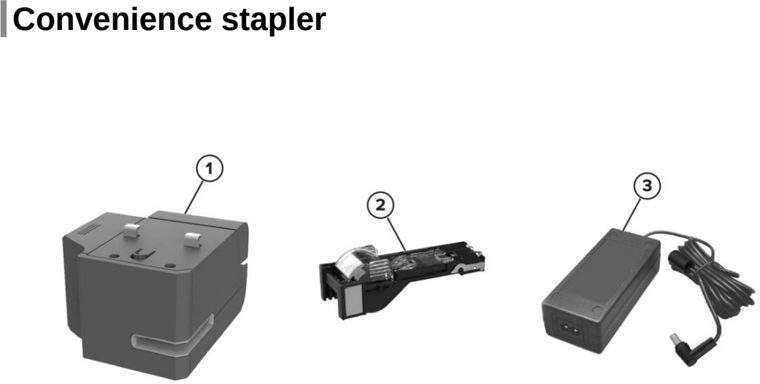

Assembly 14: Convenience stapler parts diagram - Lexmark MX532 MX632 XM3350 Parts
Assembly 15: Printer stand
1 41X0764 Printer stand
Lexmark 41X0764 Locking caster Adjustable Stand
Fully refurbished with 90-day warranty
41X0764



2 41X0775 Nonlocking caster
Lexmark 41X0775 Non-locking caster
New
41X0775 (New)
$46.52


Lexmark 41X0775 Non-locking caster
Fully refurbished with 90-day warranty
41X0775



3 41X0774 Locking caster
Lexmark 41X0774 Locking caster
New
41X0774 (New)
$49.05


Lexmark 41X0774 Locking caster
Fully refurbished with 90-day warranty
41X0774

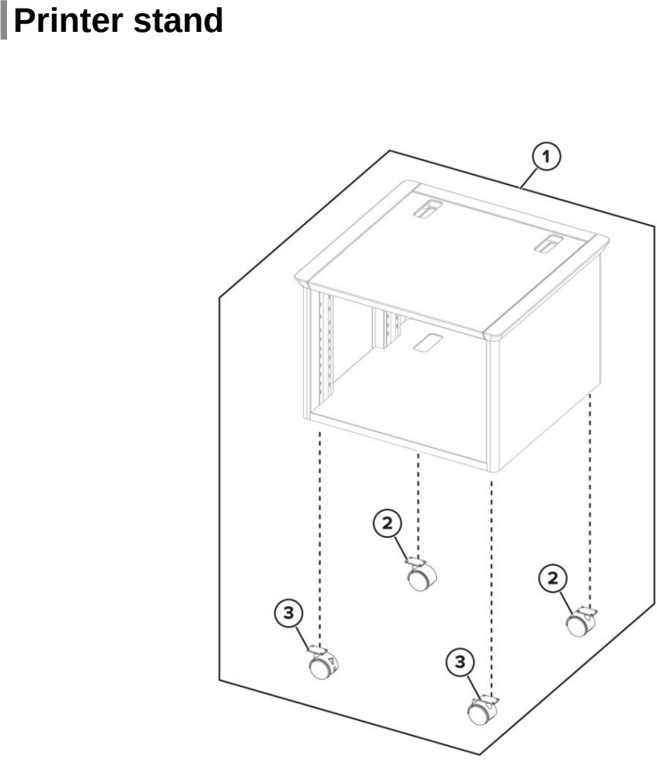

Assembly 15: Printer stand parts diagram - Lexmark MX532 MX632 XM3350 Parts
Assembly 16: Power cords
NS 40X0269 Power cord, 2.5 m (straight)— USA, Canada
40X0269 Power cord, 2.5 m (straight)-USA, Canada
Fully refurbished with 90-day warranty
40X0269 (Refurbished)



NS 40X3141 Power cord, 2.5 m (straight)— Europe and others

NS 40X0288 Power cord, 2.5 m (straight)— Argentina
Lexmark 40x0288 Power cord; 2.5m, 8ft. Straight, Argentina
New
40x0288 (New)

Retired, no longer available: Contact for alternatives



NS 40X0271 Power cord, 2.5 m (straight)— United Kingdom
Lexmark 40x0271 Power Cord; 2.5m, 8ft. Straight, UK, Ireland, HK, IT
New
40x0271 (New)

Retired, no longer available: Contact for alternatives



NS 40X0275 Power cord, 2.5 m (straight)— Israel
Lexmark 40x0275 Power cord; 1.8m, 6ft. Straight, Israel
New
40x0275 (New)

Retired, no longer available: Contact for alternatives



NS 40X1772 Power cord, 2.5 m (straight)— Switzerland

NS 40X1773 Power cord, 2.5 m (straight)— South Africa

NS 40X0273 Power cord, 2.5 m (straight)— Traditional Italy
Lexmark 40x0273 Power cord; 2.5m, 8ft. Straight, Italy, Chile, Uruguay
New
40x0273 (New)

Retired, no longer available: Contact for alternatives



NS 40X1774 Power cord, 2.5 m (straight)— Denmark

NS 40X4596 Power cord, 2.5 m (straight)— Brazil

NS 40X0303 Power cord, 2.5 m (straight)— China

NS 40X0270 Power cord, 2.5 m (straight)— Japan
Lexmark 40x0270 Power cord; 2.5m, 8ft. Straight, Japan
New
40x0270 (New)

Retired, no longer available: Contact for alternatives



NS 40X1792 Power cord, 2.5 m (straight)— Korea

NS 40X1791 Power cord, 2.5 m (straight)— Taiwan

NS 40X0301 Power cord, 2.5 m (straight)— Australia

Other listed parts
40X5364 Transfer Roll.
Lexmark 40X5364 Transfer Roll.
New
40X5364 (New)
$19.95




41X1225 Lexmark 41X1225 Maintenance Kit 110 V
Lexmark 41X1225 Maintenance Kit 110 V
New
41X1225 200K Page Yield (New)
$349.00


Lexmark 41X1225 Maintenance Kit, 110 V
Fully refurbished with 90-day warranty
41X1225 200K Page Yield (Rebuilt, new parts)
$249.00



41X4328 Control Panel Hinge
Lexmark 41X4328 Control Panel Hinge
New
41X4328 (New)
$19.64


41X4328 Control Panel Hinge
Fully refurbished with 90-day warranty
41X4328 (Refurbished)



41X4420 Control panel front cover
41X4420 Control panel front cover for M3350 and MS632
Fully refurbished with 90-day warranty
41X4420 (Refurbished)



41X4422 Bezel
Lexmark 41X4422 Bezel
New
41X4422 (New)
$16.65


41X4422 Bezel for MS631
Fully refurbished with 90-day warranty
41X4422 (Refurbished)
