Lexmark T630, T632, T634 Parts

Please call for parts assistance

Looking for whole machines? View Printer Info

📖 Lexmark T630 / T632 / T634: Complete Technical Guide. Specifications, maintenance & parts reference from 40 years of Lexmark expertise.

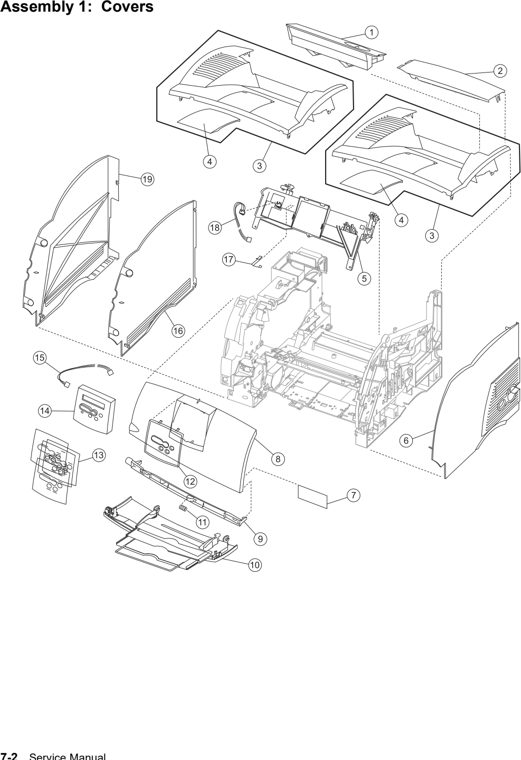

Assembly 1: Covers 1 56P1300 Cover, fuser wick assembly 56P1300 Cover, fuser wick assembly Fully refurbished with 90-day warranty 56P1300 Contact for Details 56P1300 Cover fuser wick assembly New 56P1300 (New) $5.50 2 99A2074 Cover assembly, redrive cap Lexmark 99A2074 Cover assembly redrive cap New 99A2074 (New) $24.71 Lexmark 99a2074 Redrive cover cap Fully refurbished with 90-day warranty 99a2074 Contact for Details 3 56P1301 Cover assembly, laser assembly, 250-sheet output, 000/010 56P1301 Cover assembly, laser assembly, 250-sheet output Fully refurbished with 90-day warranty 56P1301 $24.00 56P1301 Cover assembly laser assembly 250-sheet output 000/010 New 56P1301 (New) $12.00 3 56P1302 Cover assembly, laser assembly, 500-sheet output, 200/210/400/410 56P1302 Cover assembly, laser assembly, 500-sheet output Fully refurbished with 90-day warranty 56P1302 $24.00 56P1302 Cover assembly laser assembly 500-sheet output 200/210/400/410 New 56P1302 (New) $12.00 4 56P2797 Support, paper assembly 5 56P1305 Hinge, upper front cover 56P1305 Hinge, upper front cover Fully refurbished with 90-day warranty 56P1305 $18.00 6 56P1306 Cover, right side, 250-sheet output, 000/010 56P1306 Cover, right side, 250-sheet output Fully refurbished with 90-day warranty 56P1306 $19.00 56P1306 Cover right side 250-sheet output 000/010 New 56P1306 (New) $29.00 6 56P1307 Cover, right side 500-sheet output, 200/210/400/410 56P1307 Cover, right side 500-sheet output Fully refurbished with 90-day warranty 56P1307 $9.38 56P1307 Cover right side 500-sheet output 200/210/400/410 New 56P1307 (New) $12.00 7 99A0007 Label, TLI/ID/serial number—blank 8 56P1303 Upper front cover with Lexmark logo 9 56P1308 Latch, upper cover 56P1308 Latch, upper cover Fully refurbished with 90-day warranty 56P1308 Contact for Details 10 56P1309 Cover assembly, lower front 56p1309 Lower Door (MP Feeder) Fully refurbished with 90-day warranty 56P1309 Retired, no longer available: Contact for alternatives Contact for Details 56P1309 Lower Door (MP Feeder) New 56P1309 (New) Retired, no longer available: Contact for alternatives Contact for Details 11 99A0004 Spring, latch 12 56P1356 Cover, clear bezel, 000/010 12 56P1358 Cover, clear bezel, 200/210 Lexmark 56P1358 Clear Bezel Cover New 56P1358 (New) $5.40 12 56P1862 Cover, clear bezel, 400/410 13 56P1753 Kit, operator panel overlay—English, Brazilian Portuguese, French, and Spanish 56P1753 Operator Panel Overlay New 56P1753 (New) $35.00 56P1753 Operator Panel Overlay Fully refurbished with 90-day warranty 56P1753 $27.02 13 56P1754 Kit, operator panel overlay—Dutch, French, German, and Italian 13 56P1755 Kit, operator panel overlay—Czech and Hungarian 13 56P1756 Kit, operator panel overlay—Danish, Finnish, Norwegian, and Swedish 13 56P1757 Kit, operator panel overlay—Polish, Russian, and Turkish 13 56P1758 Kit, operator panel overlay—WW English and Spanish 56P1758 OP Panel Overlay For The T63X Fully refurbished with 90-day warranty 56P1758 Retired, no longer available: Contact for alternatives Contact for Details 56P1758 OP Panel Overlay For The T63X New 56P1758 (New) Retired, no longer available: Contact for alternatives Contact for Details 13 56P1759 Kit, operator panel overlay—WW English, Simplified Chinese, Traditional Chinese, and 14 56P1310 Operator panel assembly 110V 14 56P1311 Operator panel assembly 220V 15 56P1394 Cable assembly, operator panel 56P1394 Cable assembly, operator panel Fully refurbished with 90-day warranty 56P1394 Contact for Details 56P1394 Cable assembly operator panel Fully refurbished with 90-day warranty 56P1394 Contact for Details 16 56P2122 Cover, left door, 250 1-slot, 000/010 56P2122 Cover, left door, 250 1-slot Fully refurbished with 90-day warranty 56P2122 $29.00 56P2122 Cover left door 250 1-slot 000/010 New 56P2122 (New) $12.00 17 99A1524 Cartridge load spring 18 56P1395 Switch, cover closed w/cable assembly 56P1395 Switch, Cover Closed W/Cable Assembly New 56P1395 (New) Contact for Details 19 56P2126 Cover, left door, 500 2-slot, 200/210/400/410 56P2126 Cover, left door, 500 2-slot 200/210/400/410 Fully refurbished with 90-day warranty 56P2126 $26.00 56P2126 Cover left door 500 2-slot 200/210/400/410 New 56P2126 (New) $24.50 NS 99A0577 Parts packet, cable ties (10 each) NS 99A1594 Retainer, cable NS 99A0263 Parts packet, screw (left side cover mounting) Parts packet, screw (right side cover mounting) Parts packet, screw (laser cover) Parts packet, screw (upper front cover mounting) Parts catalog 7-3

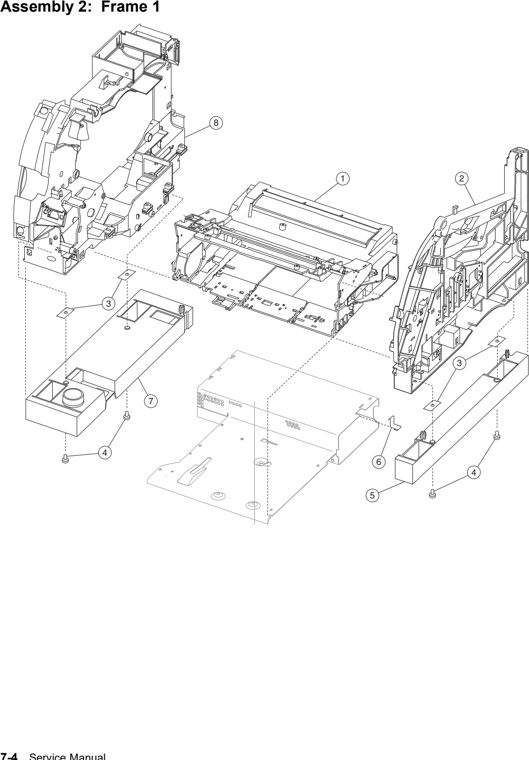

Assembly 2: Frame 1 1 56P1322 Frame, EP module, 000/010 1 56P1347 Frame, EP module, 200/210/400/410 2 56P1320 Right side frame assembly 3 99A1540 Nut plate, frame extension, 200/210/400/410 4 99A0263 Parts packet, screw 5 99A1518 Frame extension, right, 200/210/400/410 6 99A1538 Contact, RSF ground 7 99A1517 Frame extension, left, 200/210/400/410 8 56P1321 Left side frame Parts catalog 7-5

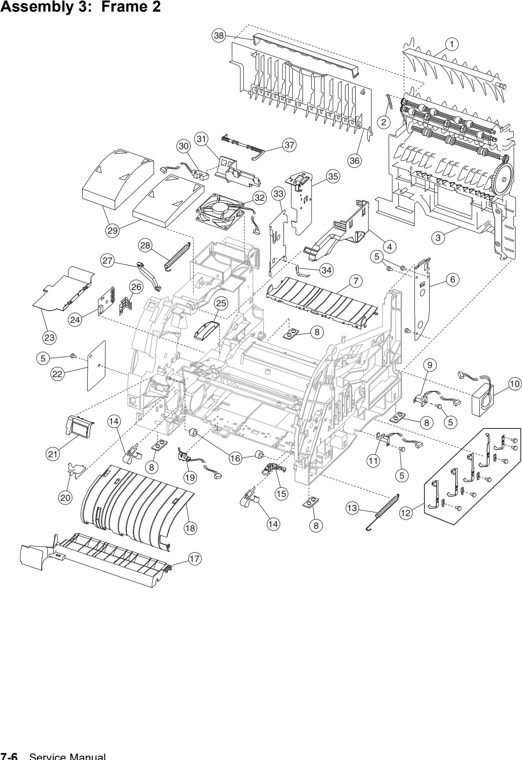

Assembly 3: Frame 2 1 99A1857 Upper redrive deflector Lexmark 99A1857 Deflector Upper Redrive New 99A1857 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 99a1857 Deflector Upper Redrive Fully refurbished with 90-day warranty 99a1857 $35.00 2 99A0104 Upper diverter spring Lexmark 99A0104 Spring, Upper Diverter New 99A0104 (New) $25.00 3 99A2151 Redrive assembly, 250 in/250 out, 000/010 Lexmark 99A2151 Redrive assembly 250 in/250 out New 99A2151 (New) $77.31 Lexmark 99A2151 Redrive assembly, 250 in/250 out Fully refurbished with 90-day warranty 99A2151 Contact for Details 3 56P1328 Redrive assembly, 500 in/500 out, 200/210/400/410 56P1328 Redrive assembly, Inner 500 Fully refurbished with 90-day warranty 56P1328 $119.00 56P1328 Redrive assembly 500 in/500 out 200/210/400/410 New 56P1328 (New) Retired, no longer available: Contact for alternatives Contact for Details 4 56P1318 Duct, main cap 5 99A0263 Parts packet, screw 6 99A2021 Support, right stacker plate, 000/010 6 56P1319 Support, right stacker plate, 200/210/400/410 7 99A2020 Transfer plate assembly Lexmark 99A2020 Transfer plate assembly Fully refurbished with 90-day warranty 99A2020 $17.71 8 99A2077 Pad, machine mounting 9 56P1399 Smart cartridge contact assembly w/cable 56P1399 Smart cartridge contact assembly w/cable Fully refurbished with 90-day warranty 56P1399 $12.00 10 56P1408 Cartridge fan 56P1408 Cartridge fan New 56P1408 (New) $27.00 56P1408 Cartridge fan Fully refurbished with 90-day warranty 56P1408 $16.00 11 56P1361 Toner sensor assembly 56P1361 Toner sensor assembly New 56P1361 (New) $23.00 56P1361 Toner sensor assembly Fully refurbished with 90-day warranty 56P1361 Contact for Details 12 99A0585 Parts packet, contact kit • Contact, doctor blade/TAR/developer roll (3) • Contact, PCdrum (1) • Contact, charge roll (1) • Block, contact mounting (4) • Screw, contact mounting (5) 13 99A0028 Spring, tray bias 14 99A2019 Spring, cartridge hold down 15 99A0026 Tray bias arm assembly Lexmark 99A0026 Tray Bias Arm Assembly Fully refurbished with 90-day warranty 99A0026 $10.93 16 99A0039 Roller, developer support 17 99A1525 Deflector, upper PF Lexmark 99A1525 Upper Pf Deflector Fully refurbished with 90-day warranty 99A1525 Contact for Details 18 56P1334 Deflector, inner, 000/010 56P1334 Deflector, inner Fully refurbished with 90-day warranty 56P1334 $39.00 56P1334 Deflector inner 000/010 New 56P1334 (New) $60.00 18 56P1336 Deflector, inner, 200/210/400/410 56P1336 Deflector, inner New 56P1336 (New) Contact for Details 19 99A0053 Sensor, input Lexmark 99A0053 Input Sensor Fully refurbished with 90-day warranty 99A0053 $15.77 20 99A1546 Shield, gear #60/MPF 21 99A0549 Shield, ESD assembly with label Lexmark 99A0549 EDS shield 4069 Fully refurbished with 90-day warranty 99A0549 Contact for Details 22 99A2445 Guard, gear 23 99A2078 Pan, motor drip 24 56P1350 Board, input tray (ITC) 56P1350 Board input tray (ITC) Fully refurbished with 90-day warranty 56p1350 Contact for Details 56P1350 Board, input tray (ITC) New 56p1350 (New) Contact for Details 25 99A2076 Pan, drip ITC 26 99A0063 Paper switch activate Lexmark 99A0063 Switch Activate Spring Fully refurbished with 90-day warranty 99A0063 $14.62 27 99A0567 Link, gear release 28 99A0556 Spring, counterbalance Lexmark 99A0556 Counter Balance Spring Fully refurbished with 90-day warranty 99A0556 $12.16 29 56P1314 Shroud, fan, 000/010 56P1314 Shroud, fan New 56P1314 (New) Contact for Details 29 56P1315 Shroud, fan, 200/210/400/410 56P1315 Shroud, fan New 56P1315 (New) Contact for Details 30 56P1391 Sensor, standard bin level with cable 31 99A0062 Bracket, level sensor Lexmark 99A0062 Sensor Bracket Assembly Fully refurbished with 90-day warranty 99A0062 $12.00 32 56P1360 Fan, main w/cable 56P1360 Fan, main w/cable Fully refurbished with 90-day warranty 56P1360 $29.00 56P1360 Fan main w/cable New 56P1360 (New) Contact for Details 33 99A2018 Support, left lower stacker Parts catalog 7-7 34 99A1596 Contact, LSF ground 35 56P1317 Duct, left stacker, 250-sheet, 000/010 56P1317 Duct, left stacker, 500-sheet New 56P1317 (New) Contact for Details 35 99A2016 Duct, left stacker, 500-sheet, 200/210/400/410 36 56P1351 Door assembly, redrive 250-sheet 36 56P1329 Door assembly, redrive 500-sheet 56P1329 Door assembly redrive 500-sheet New 56P1329 (New) Contact for Details 37 99A1613 Flag, output paper level, 000/010 Lexmark 99A1613 Flag Output Paper Level Fully refurbished with 90-day warranty 99A1613 $5.00 37 56P1316 Flag, output paper level, 200/210/400/410 56P1316 Flag output paper level 200/210/400/410 New 56P1316 (New) $8.50 38 99A2017 Guide, extension Lexmark 99a2017 T63X T52X Redrive Exit Guide Fully refurbished with 90-day warranty 99a2017 Contact for Details NS 99A1541 Clip, external ground NS 99A0263 Parts packet, screw Parts catalog 7-9

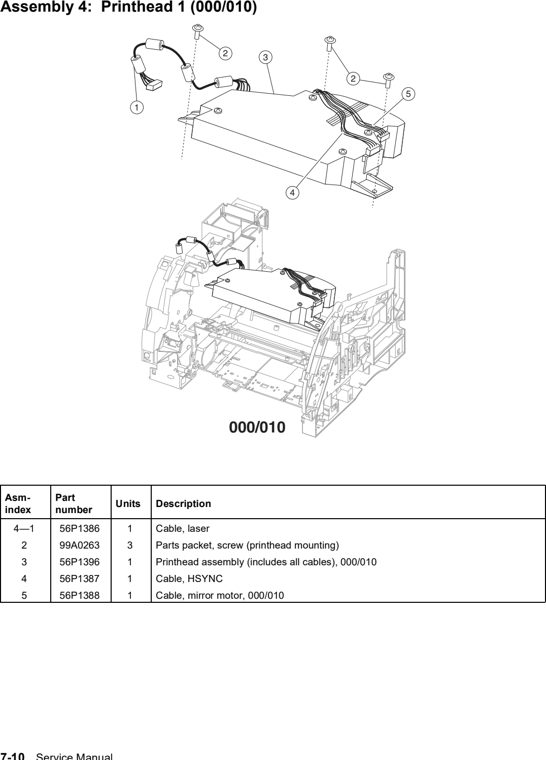

Assembly 4: Printhead 1 (000/010) 1 56P1386 Cable, laser 2 99A0263 Parts packet, screw (printhead mounting) 3 56P1396 Printhead assembly (includes all cables), 000/010 56P1396 Printhead Assembly 1332 Fully refurbished with 90-day warranty 56P1396 I Retired, no longer available: Contact for alternatives Contact for Details 56P1396 Printhead assembly (includes all cables) 000/010 New 56P1396 Advanced Exchange (New) Contact for Details 56P1396 Printhead assembly (includes all cables) 000/010 New 56P1396 (New) $140.00 4 56P1387 Cable, HSYNC 5 56P1388 Cable, mirror motor, 000/010

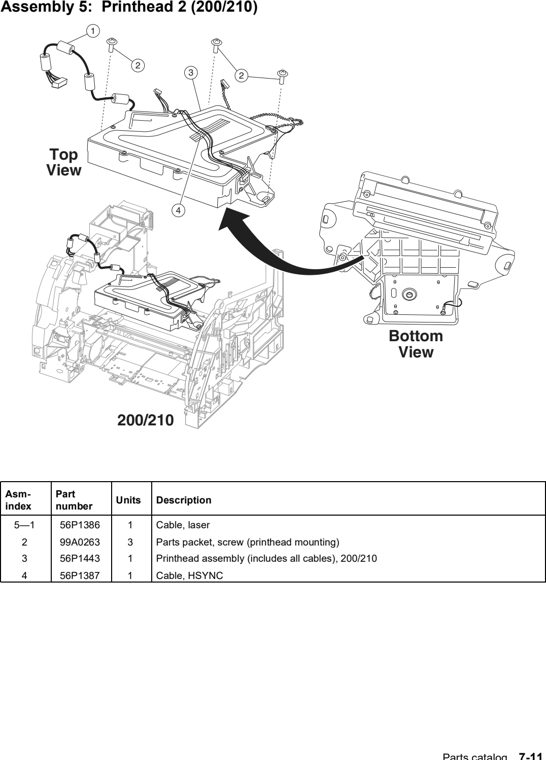

Assembly 5: Printhead 2 (200/210) 1 56P1386 Cable, laser 2 99A0263 Parts packet, screw (printhead mounting) 3 56P1443 Printhead assembly (includes all cables), 200/210 56P1443 Printhead assembly (includes all cables) 200/210 New 56P1443 (New) Retired, no longer available: Contact for alternatives Contact for Details 56P1443 Printhead assembly (includes all cables) 200/210 New 56P1443 Advanced Exchange (New) Contact for Details 56P1443 Printhead Assembly 1352 Fully refurbished with 90-day warranty 56P1443 I Contact for Details 4 56P1387 Cable, HSYNC Parts catalog 7-11

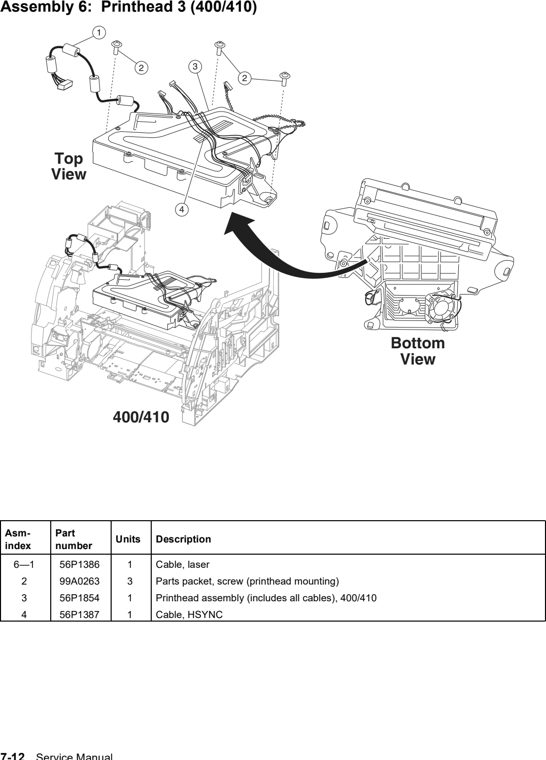

Assembly 6: Printhead 3 (400/410) 1 56P1386 Cable, laser 2 99A0263 Parts packet, screw (printhead mounting) 3 56P1854 Printhead assembly (includes all cables), 400/410 56P1854 Printhead assembly (includes all cables) 400/410 New 56P1854 (New) $475.00 56p1854 Printhead Assembly 1372 Fully refurbished with 90-day warranty 56p1854 I Retired, no longer available: Contact for alternatives Contact for Details 4 56P1387 Cable, HSYNC

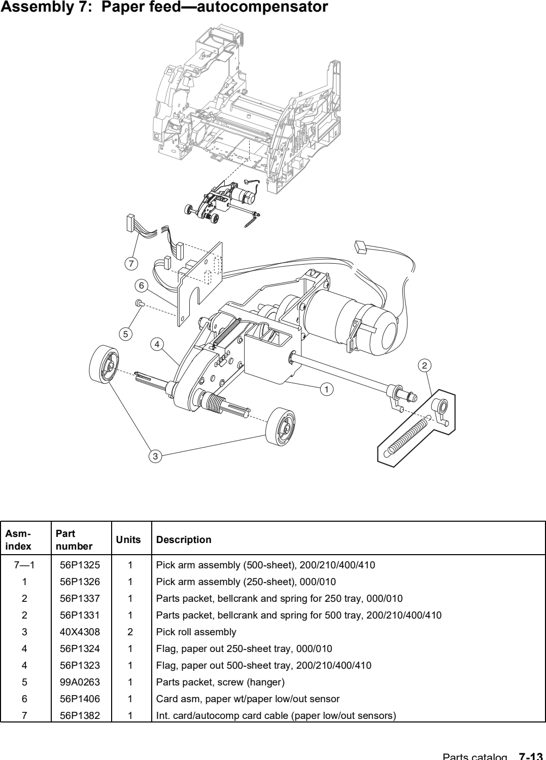

Assembly 7: Paper feed—autocompensator 1 56P1325 Pick arm assembly (500-sheet), 200/210/400/410 56p1325 Pickup Assembly Autocompensator 500 Fully refurbished with 90-day warranty 56p1325 $37.00 56P1325 Pick Arm Assembly (500-sheet) 200/210/400/410 New 56P1325 (New) $58.00 1 56P1326 Pick arm assembly (250-sheet), 000/010 56p1326 Pickup Assembly Autocompensator 250 Fully refurbished with 90-day warranty 56p1326 Contact for Details 56P1326 Pick arm assembly (250-sheet) 000/010 New 56P1326 (New) $77.35 2 56P1337 Parts packet, bellcrank and spring for 250 tray, 000/010 2 56P1331 Parts packet, bellcrank and spring for 500 tray, 200/210/400/410 56P1331 Bell Crank/Spring 500 Packet kit New 56P1331 (New) Contact for Details 3 40X4308 Pick roll assembly Lexmark 40X4308 Pick roll assembly (Set of 2) New 40X4308 CET5894 (New) $18.95 4 56P1324 Flag, paper out 250-sheet tray, 000/010 56P1324 Flag paper out 250-sheet tray 000/010 New 56P1324 (New) $27.00 4 56P1323 Flag, paper out 500-sheet tray, 200/210/400/410 56P1323 Flag paper out 500-sheet tray 200/210/400/410 New 56P1323 (New) $28.00 5 99A0263 Parts packet, screw (hanger) 6 56P1406 Card asm, paper wt/paper low/out sensor 56P1406 Paper Out / Low Sensor Fully refurbished with 90-day warranty 56P1406 $19.00 7 56P1382 Int. card/autocomp card cable (paper low/out sensors) Parts catalog 7-13 56p1382 Auto Comp Card Cable New 56p1382 (New) Contact for Details

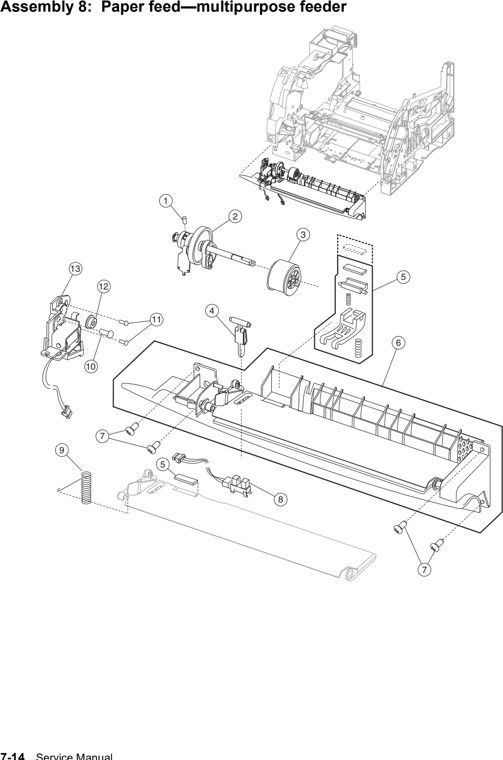

Assembly 8: Paper feed—multipurpose feeder 1 99A0075 Screw, socket set M4X5 mm 2 99A0071 Arm assembly, MPF Lexmark 99A0071 Multipurpose feeder Arm assembly New 99A0071 (New) $20.68 Lexmark 99A0071 Multipurpose Arm Assembly Fully refurbished with 90-day warranty 99A0071 $20.96 3 99A0076 Pick roll assembly 4 99A0084 Flag, MPT paper out 5 56P1352 MPF pad/separator arm assembly, includes: • Pad, restraint • Pad, separator • Housing, separator pad • Spring, sep pad • Arm, separator • Spring, sep 56p1352 MPF Pad/Separator Arm Asm Fully refurbished with 90-day warranty 99a0083 53p8219 56p1352 Contact for Details 6 99A2092 MPF lower deflector Lexmark 99A2092 Deflector Assembly MPT Fully refurbished with 90-day warranty 99A2092 $76.42 7 99A0263 Parts packet, screw (lower deflector mounting 8 mm) Parts packet, screw (lower deflector mounting 12 mm) 8 99A2071 Sensor, MPF paper out 9 99A0081 Spring assembly, separator 10 99A0263 Parts packet, screw (frame mounting) 11 99A0073 Screw, damper 12 99A0074 Bushing, pick roll shaft 13 56P2407 MPF frame assembly with solenoid NS 99A0267 Parts packet, clip (pick roll shaft) Parts catalog 7-15

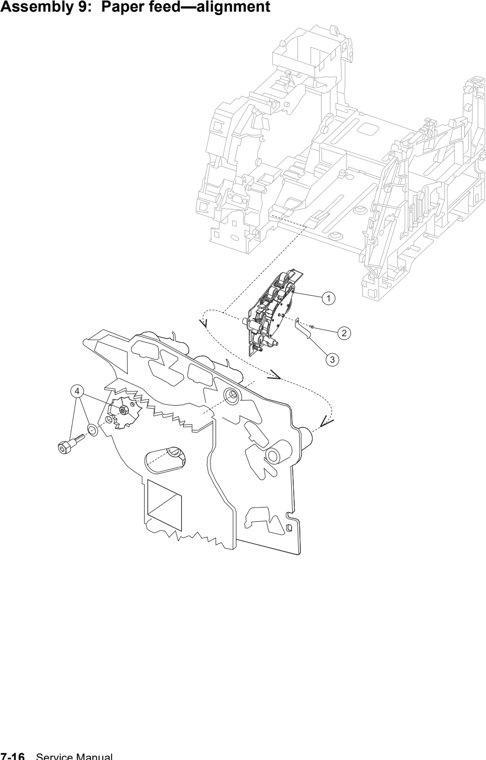

Assembly 9: Paper feed—alignment 1 56P1327 Alignment assembly paper feed 2 99A0263 Parts packet, screw (clip ref ground mounting) 3 56P1349 Clip, reference ground 4 56P1346 Parts packet (reference adjust) • Screw, paper reference adjust • Washer, paper reference adjust • Nut, paper reference adjust NS 99A0263 Parts packet, screw (alignment asm mounting) Parts catalog 7-17

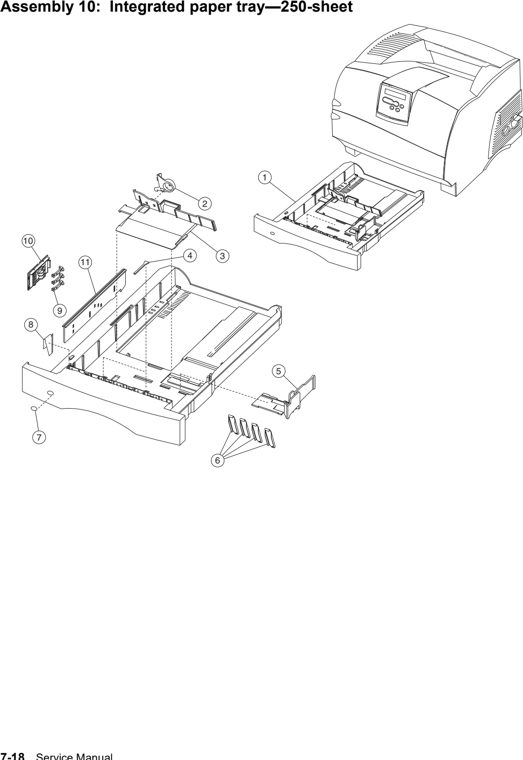

Assembly 10: Integrated paper tray—250-sheet 1 99A1536 Tray, integrated 250-sheet Lexmark 99A1536 250-Sheet Tray Fully refurbished with 90-day warranty 99A1536 Contact for Details 2 99A1601 Latch, back restraint 3 99A2160 Restraint, back 250-sheet tray 4 99A0120 Restraint pad 5 99A1894 Restraint, side 250-sheet tray Lexmark 99A1894 Restraint Side 250-Sheet Tray New 99A1894 (New) $67.69 6 56P1279 Wear strips 7 99A1812 Label, tray option number 8 99A0121 Clip, 250-sheet tray wear 9 99A0126 Finger, autosize 10 99A0124 Plate, snap-in 11 99A0127 Slider, autosize 250-sheet Parts catalog 7-19

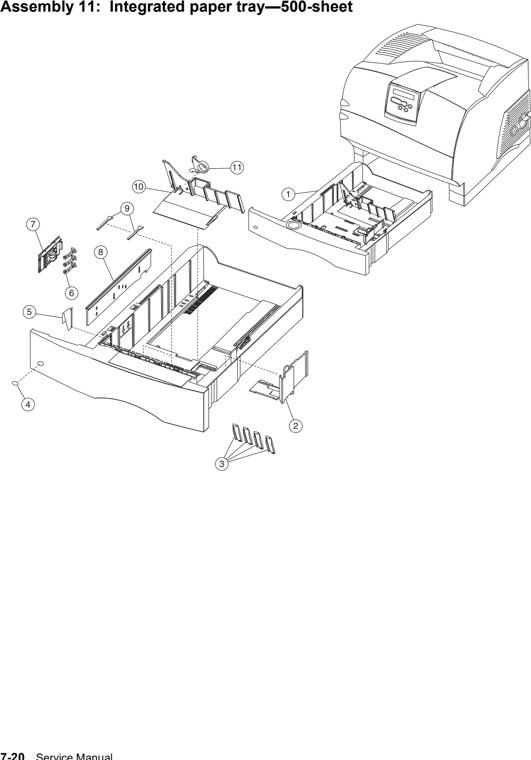

Assembly 11: Integrated paper tray—500-sheet 1 99A1576 Tray assembly 500-sheet Lexmark 99a1576 500 Sheet Paper Tray Fully refurbished with 90-day warranty 99a1576 $95.00 2 99A1895 Restraint, side Lexmark 99A1895 Restraint Side 500-Sheet Tray New 99A1895 (New) $90.41 Lexmark 99A1895 Restraint Side 500 Sheet Fully refurbished with 90-day warranty 99A1895 Contact for Details 3 99A0292 Strip, wear 4 99A1812 Label, tray option number 5 99A1583 Plate, 500-sheet tray wear 6 99A0126 Finger, autosize 7 99A0124 Plate, snap-in 8 99A1582 Slider, autosize 500-sheet 9 99A0120 Restraint pad 10 99A2093 Restraint, back 11 99A1601 Latch, back restraint Parts catalog 7-21

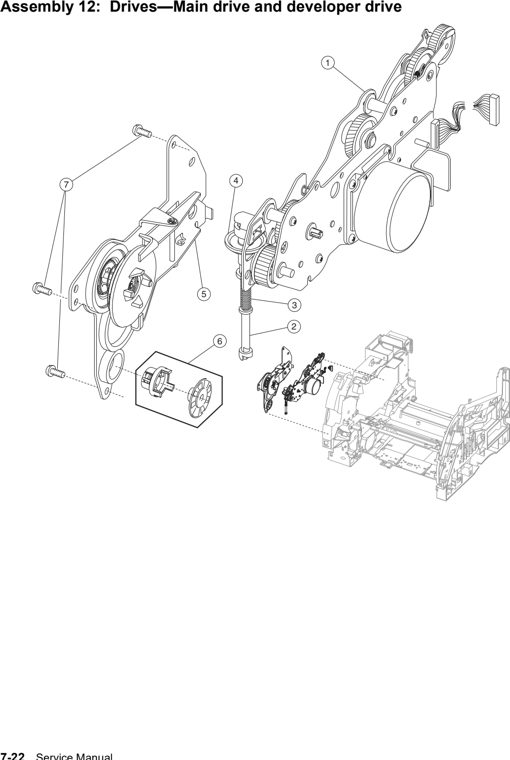

Assembly 12: Drives—Main drive and developer drive 1 56P1330 Gearbox, w/motor, 000/010/200/210 56P1330 Gearbox w/motor 000/010 New 56P1330 (New) $60.00 56P1330 Gearbox w/motor 000/010 Fully refurbished with 90-day warranty 56P1330 $62.00 1 56P1858 Gearbox, w/motor, 400/410 56P1858 Gearbox w/motor 400/410 New 56P1858 (New) $16.38 Retired, no longer available: Contact for alternatives 56P1858 Gearbox w/motor 400/410 Fully refurbished with 90-day warranty 56P1858 Retired, no longer available: Contact for alternatives Contact for Details 2 99A0134 Shaft, power takeoff 250, 000/010 2 99A1569 Shaft, power takeoff 500, 200/210/400/410 Lexmark 99A1569 Shaft Power Takeoff 500 New 99A1569 (New) $17.71 3 99A0275 Spring, power takeoff shaft 4 99A0954 Gear, bevel with grease packet and washer Lexmark 99A0954 Bevel Gear with grease packet, washer New 99A0954 (New) $12.31 5 99A1544 Developer drive assembly Lexmark 99A1544 Developer Drive Assembly Fully refurbished with 90-day warranty 99A1544 $19.00 6 99A2081 Parts packet, developer drive shaft, coupler gear #55 7 99A0263 Parts packet, screw (developer drive ground) NS 99A0263 Parts packet, screw (gearbox mounting) Parts packet, screw (motor mounting) Parts catalog 7-23

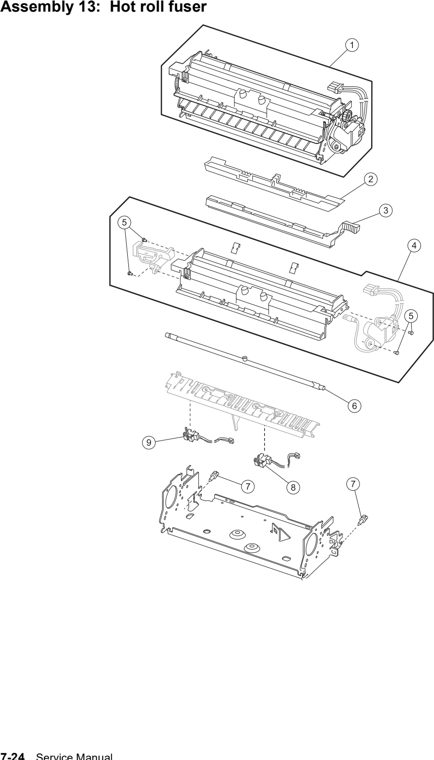

Assembly 13: Hot roll fuser 1 56P2542 Fuser assembly w/115V lamp, 000/010/200/210 Lexmark 56P2542 Fuser Assembly Fully refurbished with 90-day warranty 56P2542 Advanced Exchange Contact for Details 1 56P2543 Fuser assembly w/100V lamp, 000/010/200/210 1 56P2544 Fuser assembly w/220V lamp, 000/010/200/210 1 56P2545 Fuser assembly w/115V lamp, 400/410 1 56P2546 Fuser assembly w/220V lamp, 400/410 1 56P2547 Fuser assembly w/100V lamp, 400/410 2 99A1658 Cover, fuser wiper cavity Lexmark 99a1658 Cover wand (wick) wiper New 99a1658 (New) $13.02 3 56P1415 Wiper assembly, wet 56P1415 Wiper Assembly, Wet New 56P1415 (New) $26.50 4 56P1348 Kit, fuser cover assembly with thermistor, thermal fuse, and L & R fuser lamp contact 56P1348 Fuser cover assembly New 56P1348 (New) $38.00 5 99A0263 Parts packet, screws: • Contact assembly (4) • Solenoid mounting (1) • Board cover mounting (1) • Fuser cover assembly (4) • Hanger (7) 6 56P1362 Lamp, 115V, 000/010/200/210 6 56P1363 Lamp, 220V, 000/010/200/210 8 56P1402 Sensor, narrow media 56P1402 Narrow Media Sensor New 56P1402 56P3313 (New) $37.00 56P1402 Narrow Media Sensor Fully refurbished with 90-day warranty 56P1402 $21.00 9 56P1403 Sensor, exit Parts catalog 7-25 56P1403 Exit Sensor New 56P1403 56P3314 (New) $44.00

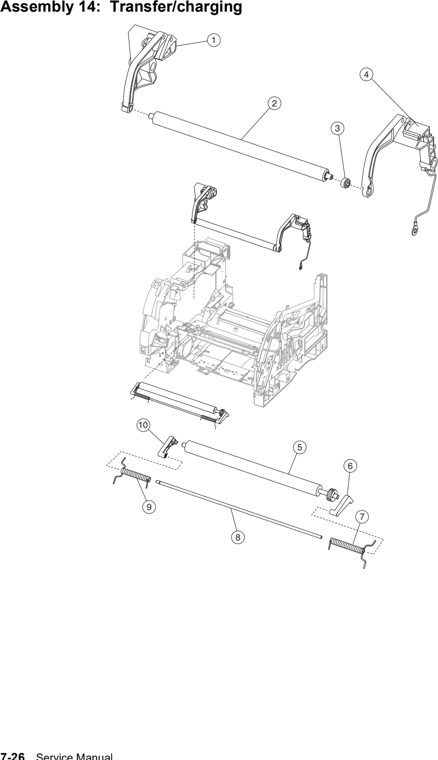

Assembly 14: Transfer/charging 1 99A0512 Parts kit, charge roll link asm, left side 2 99A1017 Roll assembly, charge Lexmark 99A1017 Charge Roller New 99A1017 12G0360 12G4462 (New) $9.00 3 99A1555 Bushing, charge roll 4 99A0513 Parts kit, charge roll link asm, right side 5 56P1357 Transfer roll assembly 6 99A0349 Arm, transfer roll assembly right 7 99A0184 Spring, transfer roll right 8 99A0185 Shaft, transfer pivot 9 99A0181 Spring, transfer roll left 10 99A1578 Arm, transfer roll left NS 99A0263 Parts packet, screw (charge roll) NS 99A0267 Parts packet, retainer (pivot shaft) Parts catalog 7-27

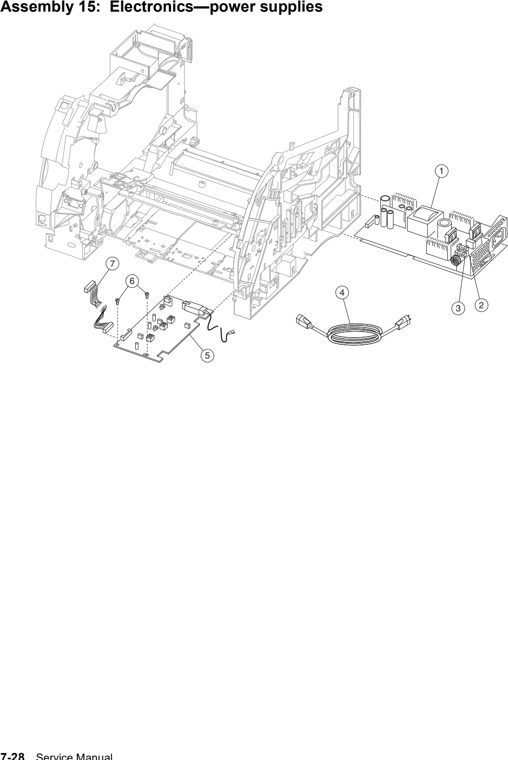

Assembly 15: Electronics—power supplies 1 56P1369 LVPS, 110 V ac, 000/010 56P1369 Low Voltage Power Supply (110v) 000/010 Fully refurbished with 90-day warranty 56P1369 LVPS $49.50 56P1369 Low Voltage Power Supply (110v) 000/010 New 56P1369 (New) $16.38 1 56P1371 LVPS, 110 V ac, 200/210/400/410 56P1371 Low Voltage Power Supply LVPS 110V 200/210/400/410 Fully refurbished with 90-day warranty 56p1371 $58.50 56P1371 Low Voltage Power Supply LVPS 110V 200/210/400/410 New 56P1371 (New) $20.63 1 56P1372 LVPS, 220 V ac, 000/010 1 56P1374 LVPS, 220 V ac, 200/210/400/410 2 56P1365 Fuse, for 110 V ac LVPS 5 a/250V (fuse F1), 000/010 2 56P1367 Fuse, for 220 V ac LVPS 3.15 a/250V (fuse F1), 200/210/400/410 3 56P1366 Fuse, for 110 V ac LVPS 10 a/250V (fuse F2), 200/210/400/410 3 56P1364 Fuse, for 220 V ac LVPS 6.3 a/250V (fuse F2), 000/010 4 43H5248 Power cord set,—USA, Canada, Columbia, Costa Rica, Dominican Republic, 4 1342514 Power cord set, 8 ft.—Bolivia (HV), Peru (HV) 4 1339538 Power cord set —Austria, Belgium, BlueMark, Catalan, CIS, Czechoslovakia, Finland, 4 1339537 Power cord set—Ireland, U.K. 4 1339539 Power cord set—Israel 4 1339552 Power cord set—Japan 4 1339540 Power cord set—Switzerland 4 1339541 Power cord set—Botswana, Lesotho, Namibia, Pakistan, South Africa 4 1342534 Power cord set, 8 ft.—Chile, Uruguay 4 1339543 Power cord set—Denmark 4 1339545 Power cord set, 8 ft., right angle—Argentina (HV) 4 1342530 Power cord set—Paraguay (HV) 4 43H5546 Power cord set—PRC (HV) 4 40X4596 Power cord set—Brazil Lexmark 40x4596 Power cord; 2.5m, 8ft. Straight, Brazil New 40x4596 (New) Contact for Details 5 56P1375 Power supply, high voltage 56P1375 High Voltage Power Supply HVPS Assembly Fully refurbished with 90-day warranty 56p1375 $39.50 Retired, no longer available: Contact for alternatives 56P1375 Power supply high voltage HVPS New 56P1375 (New) $24.50 6 99A0263 Parts packet, screw(s): • System board mtg (2) • System board mtg Front (2) • System mtg ground (1) • HVPS mtg (2) • INA cover mtg (12) • Interconnect board mtg (2) • Interconnect board shield ground (1) • Interconnect shield mtg (5) • Outer shield mtg (10) • Parallel connector mtg (2) 7 56P1385 Cable, front harness (HVPS/input sensor/toner sensor) Parts catalog 7-29

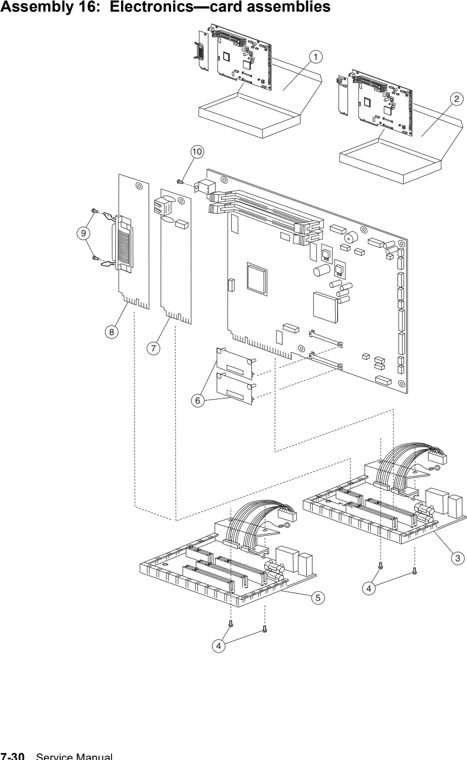

Assembly 16: Electronics—card assemblies 1 56P2410 System board assembly (non-network), 000 1 56P2412 System board assembly (non-network), 200 1 56P2414 System board assembly (non-network), 400 56p2414 T634 System Board Fully refurbished with 90-day warranty 56p2414 L Advanced Exchange Retired, no longer available: Contact for alternatives Contact for Details 2 56P2411 System board assembly (network), 010 56p2411 RIP System Board with Ethernet T630n Fully refurbished with 90-day warranty 56p2411 L $61.00 Retired, no longer available: Contact for alternatives 2 56P2413 System board assembly (network), 210 Lexmark 56P2413 Lexmark T632N System Board Fully refurbished with 90-day warranty 56P2413 L Retired, no longer available: Contact for alternatives Contact for Details 2 56P2415 System board assembly (network), 410 Lexmark 56p2415 Lexmark T634N RIP Board Fully refurbished with 90-day warranty 56p2415 Retired, no longer available: Contact for alternatives Contact for Details Lexmark 56p2415 Lexmark T634N RIP Board Fully refurbished with 90-day warranty 56p2415 Advanced Exchange Retired, no longer available: Contact for alternatives Contact for Details 3 56P1340 Interconnect board assembly 1 slot, 000/010 5 56P1339 Interconnect board assembly 2 slot, 200/210/400/410 6 56P1850 Card assembly, Bar code 6 56P2468 Card assembly, IPDS and SC5/TNe 6 56P2182 Card assembly, ImageQuick 6 56P1851 Card assembly, PrintCryption 7 56P1445 Card assembly, communications, network 56P1445 Ethernet Card Assembly New 56P1445 (New) $225.00 56P1445 Ethernet Card Assembly Fully refurbished with 90-day warranty 56P1445 $64.00 56P1445 Ethernet Card Assembly Fully refurbished with 90-day warranty 56P1445 Contact for Details 56P1445 Ethernet Card Assembly Fully refurbished with 90-day warranty 56P1445 Advanced Exchange Contact for Details 8 56P1444 Card assembly, communications, non-network 56P1444 Card Assembly Communications Non-Network New 56P1444 (New) $120.00 56P1444 Parallel Card Assembly Fully refurbished with 90-day warranty 56P1444 $95.00 9 99A0426 Screws, parallel connector mounting 10 99A0263 Screw, USB attaching Parts catalog 7-31

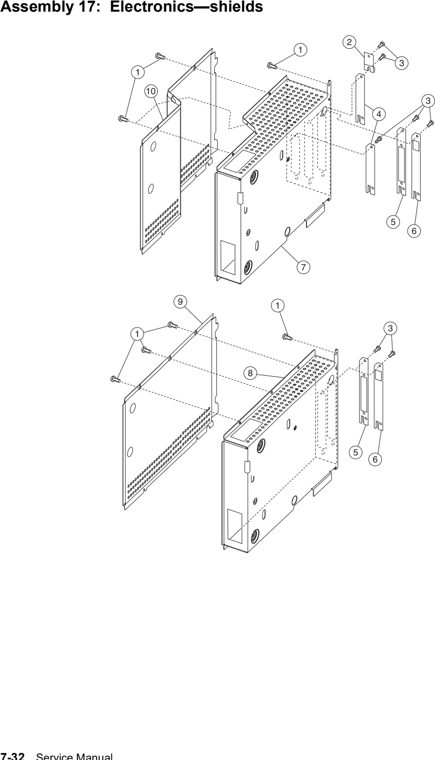

Assembly 17: Electronics—shields 1 99A0263 Parts packet, screw (INA cover mounting) 2 99A1611 Shield, Ethernet (blank) 3 99A0263 Parts packet, screw (outer shield mounting) Parts packet, screw (inner shield mounting) 4 56P1341 Cover, INA flat (blank) 5 56P2404 Shield, INA flat non-network 6 56P2405 Shield, INA flat network 7 56P1342 Shield, inner assembly, 2 slot, 200/210/400/410 8 56P1343 Shield, inner assembly, 1 slot. 000/010 9 56P1345 Shield, outer 1 slot, 000/010 10 56P1344 Shield, outer 2 slot, 200/210/400/410 Parts catalog 7-33

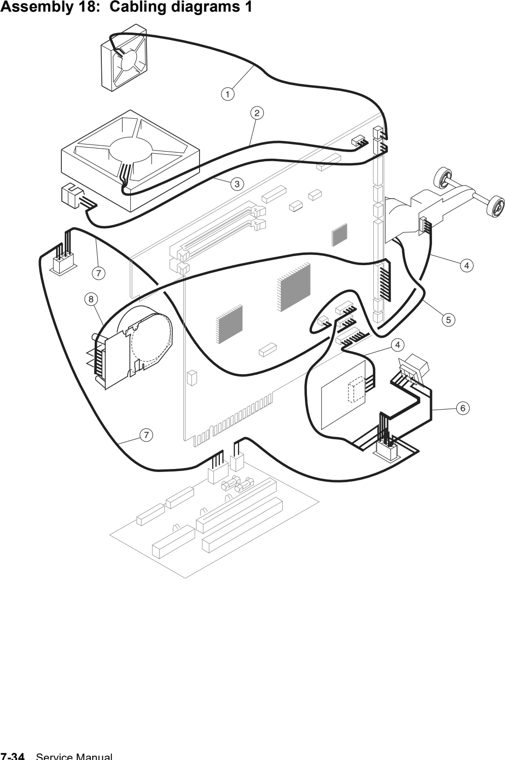

Assembly 18: Cabling diagrams 1 1 56P1408 Cartridge fan 56P1408 Cartridge fan New 56P1408 (New) $27.00 56P1408 Cartridge fan Fully refurbished with 90-day warranty 56P1408 $16.00 2 56P1360 Fan, main w/cable 56P1360 Fan, main w/cable Fully refurbished with 90-day warranty 56P1360 $29.00 56P1360 Fan main w/cable New 56P1360 (New) Contact for Details 3 56P1391 Sensor, standard bin level with cable 4 56P1382 Int. card/autocomp card cable (paper low/out sensors) 56p1382 Auto Comp Card Cable New 56p1382 (New) Contact for Details 5 56P1326 Pick arm assembly (250-sheet) 000/010 56p1326 Pickup Assembly Autocompensator 250 Fully refurbished with 90-day warranty 56p1326 Contact for Details 56P1326 Pick arm assembly (250-sheet) 000/010 New 56P1326 (New) $77.35 5 56P1325 Pick arm assembly (500-sheet) 200/210/400/410 56p1325 Pickup Assembly Autocompensator 500 Fully refurbished with 90-day warranty 56p1325 $37.00 56P1325 Pick Arm Assembly (500-sheet) 200/210/400/410 New 56P1325 (New) $58.00 6 56P1383 Cable, autoconnect bottom 7 56P1400 Cable, autoconnect top, 000/010 7 56P1401 Cable, autoconnect top, 200/210/400/410 8 56P1384 Cable, main drive motor Parts catalog 7-35

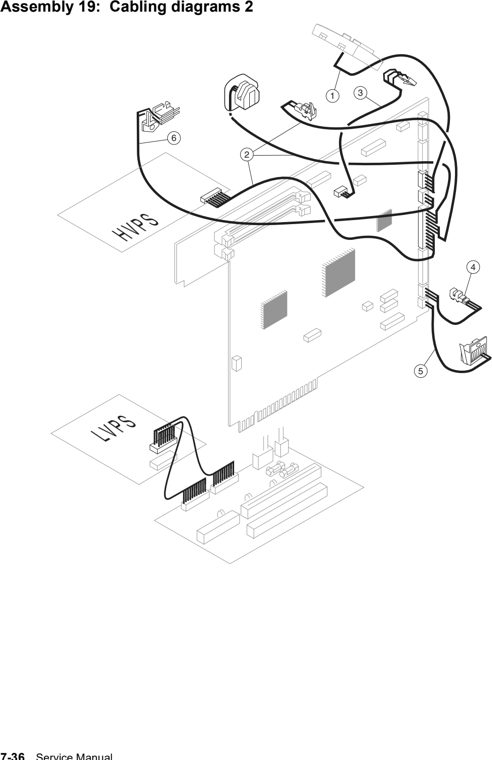

Assembly 19: Cabling diagrams 2 1 56P1394 Cable assembly, operator panel 56P1394 Cable assembly, operator panel Fully refurbished with 90-day warranty 56P1394 Contact for Details 56P1394 Cable assembly operator panel Fully refurbished with 90-day warranty 56P1394 Contact for Details 2 56P1385 Cable, front harness (HVPS/input sensor/toner sensor) 3 56P1395 Switch, cover closed w/cable 56P1395 Switch, Cover Closed W/Cable Assembly New 56P1395 (New) Contact for Details 4 56P1398 Sensor, MPF cable 5 56P2407 MPF solenoid w/cable 6 56P1399 Smart contact assembly w/cable 56P1399 Smart cartridge contact assembly w/cable Fully refurbished with 90-day warranty 56P1399 $12.00 NS 56P1389 Cable, deflector Parts catalog 7-37

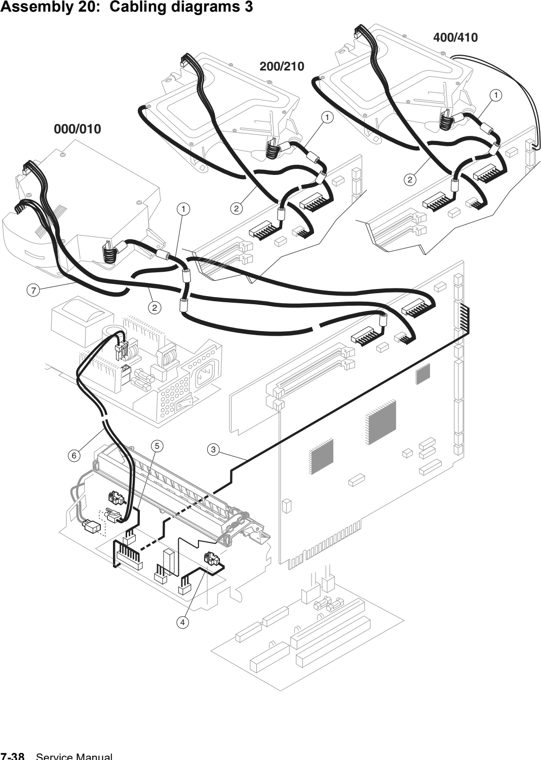

Assembly 20: Cabling diagrams 3 1 56P1386 Cable, laser 2 56P1387 Cable, HSYNC 3 56P1390 Cable, system board to fuser board 4 56P1403 Exit sensor 56P1403 Exit Sensor New 56P1403 56P3314 (New) $44.00 5 56P1402 Narrow media sensor 56P1402 Narrow Media Sensor New 56P1402 56P3313 (New) $37.00 56P1402 Narrow Media Sensor Fully refurbished with 90-day warranty 56P1402 $21.00 6 56P1405 Cable, AC fuser lamp to LVPS 7 56P1388 Cable, mirror motor, 000/010 Parts catalog 7-39

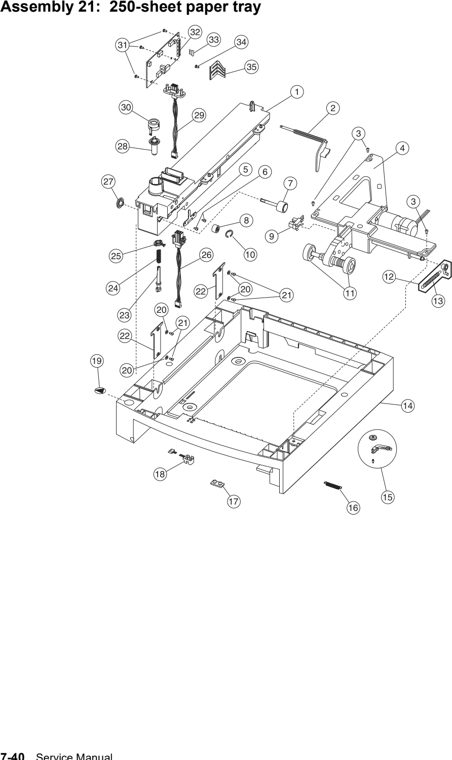

Assembly 21: 250-sheet paper tray 1 99A0445 Stud assembly, 250-sheet frame 2 99A0448 Arm, paper out 250-sheet Lexmark 99A0448 Arm paper out 250-sheet New 99A0448 (New) $22.24 Lexmark 99A0448 250-Sheet Drawer Paper Out Arm Fully refurbished with 90-day warranty 99A0448 $19.99 3 99A0263 Parts packet, screw (auto comp mounting) 4 99A1054 Pick arm assembly Lexmark 99A1054 Pick Arm Assembly New 99A1054 (New) Contact for Details Lexmark 99A1054 250 Sheet Pick Arm Assembly Fully refurbished with 90-day warranty 99A1054 $29.00 5 99A0277 Wear plate, pass thru 6 99A0263 Parts packet, screw (wear plate mounting) 7 99A0276 500 Drive roll assembly 8 99A0451 Roll, skewed backup 9 99A0350 Sensor, paper low 10 99A0450 Retainer, roller 11 40X4308 Pick roll assembly Lexmark 40X4308 Pick roll assembly (Set of 2) New 40X4308 CET5894 (New) $18.95 12 56P1337 Parts packet, bellcrank and spring 13 99A1929 Spring, bellcrank 250-sheet tray option 14 99A1638 Base, 250-sheet option 15 99A0026 Tray bias arm assembly Lexmark 99A0026 Tray Bias Arm Assembly Fully refurbished with 90-day warranty 99A0026 $10.93 16 99A0419 Spring, tray bias 17 99A0058 Pad, machine mounting 18 99A0288 Sensor, option pass thru Lexmark 99A0288 Pass Thru Sensor Fully refurbished with 90-day warranty 99A0288 $19.71 19 99A1666 Label, tray options 20 99A0677 Parts packet, washer 21 99A0263 Parts packet, screw 22 99A0679 Bracket, 250-sheet frame retention 23 99A0272 Shaft, 250-sheet drive 24 99A0275 Spring, power takeoff 25 99A0280 Bushing, drive shaft low 26 99A0282 Cable, 250-sheet autoconnect 27 99A0274 Gear, feed roll 28 99A0273 Gear, bevel 29 99A0281 Cable, 250-sheet autoconnect 30 99A0279 Bearing, drive shaft 31 99A0263 Parts packet, screw (option board) 32 40X3351 Board, option tray Lexmark 40X3351 Tray Option Card assembly New 40X3351 (New) $32.05 Lexmark 40x3351 ITC Board Fully refurbished with 90-day warranty 40x3351 $24.71 33 99A0627 Jumper, pin 34 99A0263 Parts packet, screw (switch spring) 35 99A0063 Spring, switch activate Parts catalog 7-41 Lexmark 99A0063 Switch Activate Spring Fully refurbished with 90-day warranty 99A0063 $14.62 36 99A1536 Tray assembly, 250-sheet option Lexmark 99A1536 250-Sheet Tray Fully refurbished with 90-day warranty 99A1536 Contact for Details 37 99A0892 Restraint, side 250-sheet tray 38 99A0119 Wear strips 39 99A1829 Label, tray option number 40 99A0121 Clip, 250-sheet tray wear 41 99A0126 Finger, autosize 42 99A0127 Slider, autosize 250-sheet 43 99A0124 Plate, snap-in 44 99A1952 Label, paper size 45 99A1537 Knob, paper size 46 99A0120 Restraint pad 47 99A0893 Restraint, back 250-sheet tray 48 99A1601 Latch, back restraint NS 99A0286 Spring, backup roller NS 99A0438 Bushing, drive roll NS 99A0278 Bellcrank, roller release Parts catalog 7-43

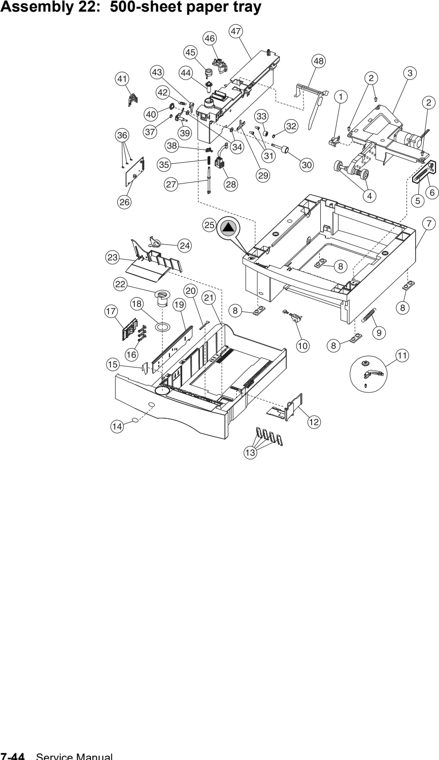

Assembly 22: 500-sheet paper tray 1 99A0350 Sensor, paper low 2 99A0263 Parts packet, screw (auto comp mounting) 3 99A0405 Pick arm assembly Lexmark 99A0405 Pickup Arm Assembly 500-Sheet Drawer New 99A0405 (New) Contact for Details Lexmark 99A0405 Pickup Arm Assembly 500-Sheet Drawer Fully refurbished with 90-day warranty 99A0405 Contact for Details 4 40X4308 Pick roll assembly Lexmark 40X4308 Pick roll assembly (Set of 2) New 40X4308 CET5894 (New) $18.95 5 56P2540 Spring, bellcrank 500-sheet option tray 6 56P1337 Parts packet, bellcrank and spring 7 99A1636 Base, 500-sheet tray Lexmark 99A1636 Base Assembly 500 Fully refurbished with 90-day warranty 99A1636 Contact for Details 8 99A0058 Pad, base 500-sheet 9 99A0419 Spring, tray bias 10 99A0288 Sensor, option pass thru Lexmark 99A0288 Pass Thru Sensor Fully refurbished with 90-day warranty 99A0288 $19.71 11 99A0026 Tray bias arm assembly Lexmark 99A0026 Tray Bias Arm Assembly Fully refurbished with 90-day warranty 99A0026 $10.93 12 99A1895 Restraint, side 500-sheet tray Lexmark 99A1895 Restraint Side 500-Sheet Tray New 99A1895 (New) $90.41 Lexmark 99A1895 Restraint Side 500 Sheet Fully refurbished with 90-day warranty 99A1895 Contact for Details 13 99A0292 Wear strips 14 99A1829 Label, tray option number 15 99A1583 Plate, 500-sheet tray wear 16 99A0126 Finger, autosize 17 99A0124 Plate, snap-in 18 99A1952 Label, paper size 19 99A1582 Slider, autosize 500-sheet 20 99A0120 Restraint pad 21 99A1576 Tray assembly, 500-sheet Lexmark 99a1576 500 Sheet Paper Tray Fully refurbished with 90-day warranty 99a1576 $95.00 22 99A1537 Knob, paper size 23 99A1602 Restraint, back 500-sheet tray 24 99A1601 Latch, back restraint 25 99A1666 Label, options 26 40X3351 Board, option tray Lexmark 40X3351 Tray Option Card assembly New 40X3351 (New) $32.05 Lexmark 40x3351 ITC Board Fully refurbished with 90-day warranty 40x3351 $24.71 27 99A0447 Shaft, 500-sheet drive 28 99A0282 Cable, 250 autoconnect 29 99A1750 Wear plate, pass thru 30 99A0276 500 Drive roll assembly 31 99A0263 Parts packet, screw (wear plate mounting) 32 99A0450 Retainer, roller 33 99A0451 Roller, skewed backup 34 99A0438 Bushing, drive roll 35 99A0275 Spring, power takeoff 36 99A0263 Parts packet, screw (board mounting) 37 99A0267 Parts packet, retainer (aligner assembly) 38 99A0280 Bearing, drive shaft low 39 99A0446 Aligner assembly, paper 40 99A0274 Gear, feed roll 41 99A0063 Spring, switch activate Parts catalog 7-45 Lexmark 99A0063 Switch Activate Spring Fully refurbished with 90-day warranty 99A0063 $14.62 42 99A0286 Spring, backup roller 43 99A1664 Bellcrank, roller release 44 99A0273 Gear, bevel 45 99A0279 Bearing, drive shaft 46 99A0281 Cable, 250-sheet autoconnect 47 99A1702 Stud assembly, 500 frame Lexmark 99A1702 Stud Assembly 500 Frame New 99A1702 (New) $26.85 48 99A1645 Arm, paper out 500 Lexmark 99A1645 Arm paper out 500-sheet tray New 99A1645 (New) Contact for Details Lexmark 99A1645 Paper Out Arm 500 Fully refurbished with 90-day warranty 99A1645 $21.84 NS 99A0452 Washer, frame mounting NS 99A1665 Deflector, base 500 Lexmark 99A1665 Deflector Base 500 New 99A1665 (New) $26.38 NS 99A1667 Bracket, 500-sheet tray retention Parts catalog 7-47

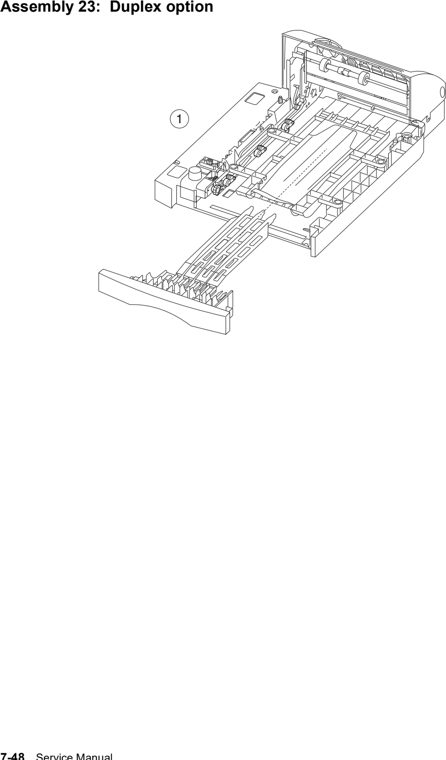

Assembly 23: Duplex option 1 56P1414 250 duplex option, complete Lexmark 56P1414 250 sheet duplexer Fully refurbished with 90-day warranty 56P1414 $262.43 1 56P1416 500 duplex option, complete Parts catalog 7-49

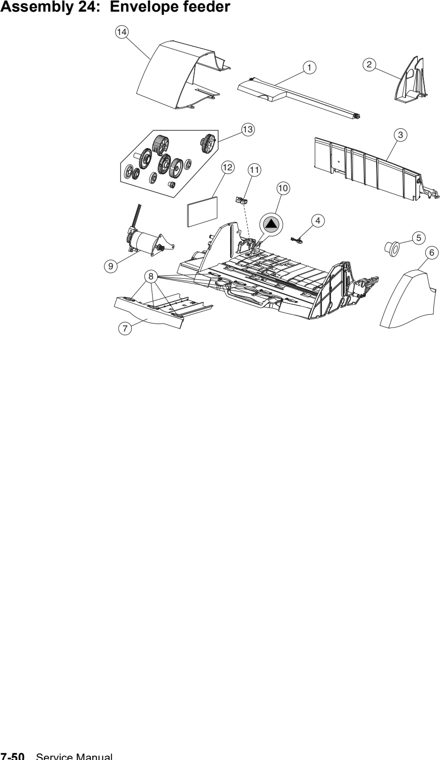

Assembly 24: Envelope feeder 1 99A0389 Paper weight assembly 2 99A1694 Guide, edge 3 99A1696 Cover, top 4 99A0485 Sensor, envelope pass thru 5 99A0393 Clutch, restraint/gear 6 99A1697 Cover, right side Lexmark 99A1697 Cover Right Side New 99A1697 (New) $35.19 7 99A0390 Support, slide out 8 99A0488 Roller, support 9 99A0382 Motor, stepper DC Lexmark 99A0382 Motor Stepper DC New 99A0382 (New) $62.14 10 99A1666 Label, options 11 99A0388 Switch, envelope out 12 99A1700 Board assembly, electronic control 13 99A0271 Parts packet, gear kit 14 99A1698 Cover, left side Lexmark 99A1698 Cover Left Side New 99A1698 (New) $102.25 NS 99A0404 Parts packet, retainer (4 mm PP) Parts packet, retainer (clip 5 mm shaft) Parts packet, retainer (6 mm) Parts packet, retainer (7 mm shaft) NS 99A0384 Shaft, drive pressure roller Lexmark 99A0384 Shaft Drive Pressure Roller New 99A0384 53P8305 (New) $29.71 NS 99A0385 Cable, auto connect front NS 99A0494 Spring, cam clutch NS 99A0427 Label, envelope orientation icon NS 99A0469 Deflector guide NS 99A1699 Guard, pass thru sensor NS 99A0413 Screw, top/motor/board NS 99A0484 Belt, gear drive NS 99A0491 Bracket, stack limiter NS 99A0400 Spring, restraint roll shaft NS 99A0489 Spring, latch return NS 99A0487 Flag, envelope out sensor Parts catalog 7-51

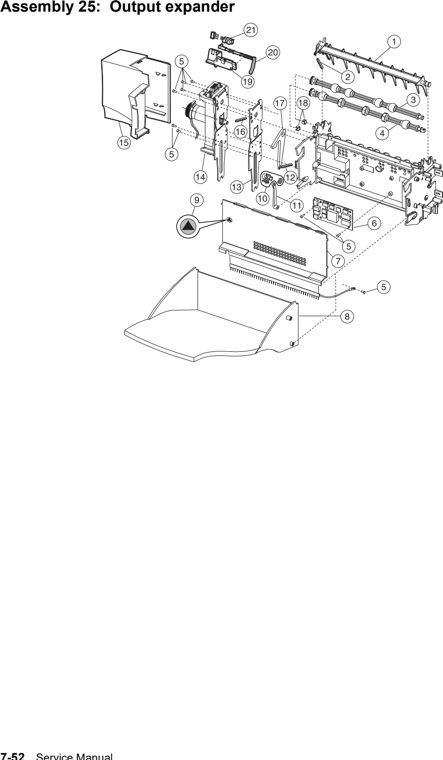

Assembly 25: Output expander 1 99A1857 Deflector, upper redrive, also order 99A0104 Lexmark 99A1857 Deflector Upper Redrive New 99A1857 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 99a1857 Deflector Upper Redrive Fully refurbished with 90-day warranty 99a1857 $35.00 2 99A0104 Spring, upper diverter Lexmark 99A0104 Spring, Upper Diverter New 99A0104 (New) $25.00 3 99A0369 Shaft assembly, exit, also order PP 99A0572 4 99A0052 Shaft assembly, lower exit, also order PP 99A0572 6 99A0915 Board, output expander DC motor 7 99A0571 Cover, front control board with ESD brush 8 99A1817 Tray, output expander 9 99A1666 Label, options 10 99A1689 Spring clutch assembly Lexmark 99A1689 Spring Clutch Assembly New 99A1689 (New) $27.06 11 99A1688 Diverter arm 12 99A0482 Spring, output tray 13 99A1784 Bracket, attach 14 99A0914 Output expander assembly, mechanical linkage 15 99A0372 Cover, left side 16 99A0415 Spring, swing arm 17 99A0481 Latch, output tray 19 99A0409 Level sensor bracket 20 99A1580 Flag, output paper level Lexmark 99A1580 Flag 500 Bin Level Fully refurbished with 90-day warranty 99A1580 $5.00 21 99A0414 Sensor, dual bin full Parts catalog 7-53 22 99A1748 Door assembly, rear access 23 99A0368 Shaft assembly, lower, also order PP 99A0572 24 99A0363 Pulley, drive 25 99A0371 Cover, right side 26 99A0361 Belt, 160 gear 27 99A0362 Arm assembly, belt idler 28 99A0364 Spring, belt tensioner 29 99A0351 Sensor, output expander pass thru 30 99A0913 Shaft assembly, middle 40T, also order PP 99A0572 31 99A0912 Frame assembly Parts catalog 7-55

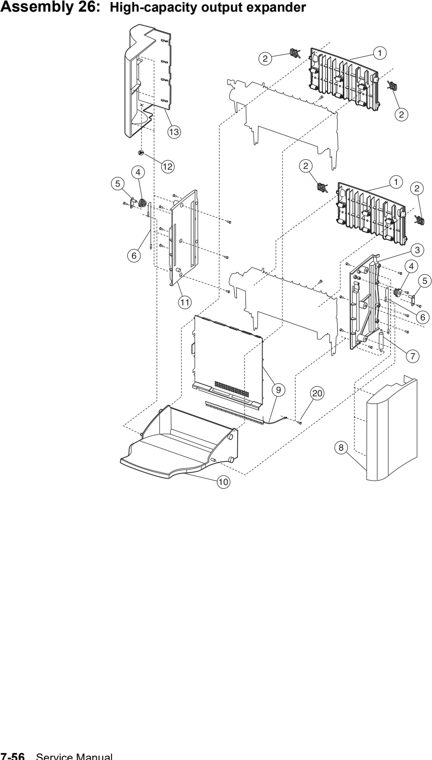

Assembly 26: High-capacity output expander 1 99A1748 Door asm, rear access 2 99A1785 Latch, rear door 3 99A1783 Frame, right 4 99A1778 Pulley, output tray 5 99A1782 Shaft, pulley 6 99A1790 Guide, output tray 7 99A1779 Spring, output tray 8 99A1746 Cover, right 9 99A1747 Cover, front 10 99A1701 Tray asm, output 11 99A1781 Frame, left 12 99A1666 Label, options 13 99A1745 Cover, left 14 99A0107 Deflector, upper, also order 99A0104 Lexmark 99A0107 Upper Diverter Fully refurbished with 90-day warranty 99A0107 $18.35 15 99A0104 Spring, upper diverter Lexmark 99A0104 Spring, Upper Diverter New 99A0104 (New) $25.00 16 99A0369 Shaft asm, exit upper stacker asm 17 99A0052 Shaft asm, stacker lower exit upper stacker asm 19 99A1749 Board asm, high-capacity output stacker 21 99A1688 Arm, diverter 22 99A1689 Clutch asm, output stacker Lexmark 99A1689 Spring Clutch Assembly New 99A1689 (New) $27.06 23 99A1784 Bracket, attach 24 99A0415 Spring, swing arm 25 99A0914 Drive asm, output stacker DC motor 26 99A0409 Bracket, dual sensor mounting upper stacker asm 27 99A1613 Flag, bin full dual sensor upper stacker asm Lexmark 99A1613 Flag Output Paper Level Fully refurbished with 90-day warranty 99A1613 $5.00 28 99A0414 Sensor asm, bin full dual upper stacker asm 29 99A0913 Shaft, 40T middle output stacker 30 99A0368 Shaft asm lower 31 99A0363 Pulley, drive 32 99A0361 Belt, 160G upper stacker asm 33 99A0362 Arm asm, belt idler 34 99A0364 Spring, belt tensioner 35 99A1791 Stacker asm, paper path lower 35 99A1792 Stacker, asm paper path upper 36 99A0351 Sensor, stacker pass thru NS 99A1751 Switch asm, tray sensing NS 99A1777 Flag, tray sensing switch NS 99A1780 Gear, damping NS 99A1744 Kit, high-capacity output stacker Parts catalog 7-57 NS 99A1690 Belt, 95G lower stacker asm NS 99A0462 Packet grease, IBM #23 Lexmark 99A0462 #23 Nyogel Grease New 99A0462 (New) $14.72 NS 99A0627 Jumper, 2 pin (use with 99A1749) Parts catalog 7-59

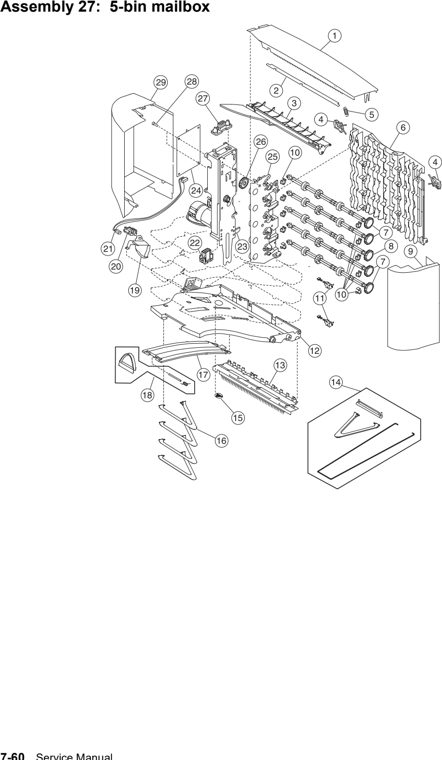

Assembly 27: 5-bin mailbox 1 99A1512 Cover, redrive cap 2 99A1710 Cover, wire 3 99A1711 Cover, top bin 4 99A1785 Latch, rear access door 5 99A0104 Spring, upper diverter Lexmark 99A0104 Spring, Upper Diverter New 99A0104 (New) $25.00 6 99A1714 Door, rear access Lexmark 99A1714 Door Rear Access New 99A1714 (New) $29.45 7 99A1723 Shaft asm, drive 8 99A1724 Shaft asm, drive w/gear 9 99A1708 Cover, right side 10 99A1725 Packet, drive shaft bushing 11 99A1742 Sensor, 5-bin mailbox pass thru 12 99A1712 Tray, paper cap 13 99A1739 Bracket asm, bail attach w/brush 14 99A1743 Kit, 5-bin mailbox asm 15 99A1666 Label, options 17 99A1713 Support, paper tray 18 99A1687 Stop asm, paper tray 19 99A1735 Flag, bin full 20 99A1737 Sensor, dual paper height 21 99A1736 Cable, dual sensor 22 99A1718 Cable asm, lower auto connect 23 99A1716 Drive asm, main DC drive 24 99A1740 Board asm, 5-bin mailbox system 25 99A1726 Frame asm, left w/clutch asm Lexmark 99A1726 Frame Assembly, Left w/Clutch Assembly New 99A1726 (New) $46.57 26 99A1786 Gear, drive 27 99A1719 Cable asm, upper auto connect 29 99A1709 Cover, left side Parts catalog 7-61 30 99A1741 Spring, diverter 31 99A1727 Frame asm, right side Lexmark 99A1727 Frame Assembly, Right Side New 99A1727 (New) $22.79 32 99A1728 Cam, diverter actuator 33 99A1731 Spring, diverter actuator 34 99A1729 Latch, diverter actuator 35 99A1730 Arbor, diverter actuator 36 99A1789 C-clip 37 99A1720 Bracket, attach 38 99A1732 Solenoid, diverter 39 99A1738 Deflector, paper exit w/brush 40 99A1722 Deflector, paper 41 99A1787 Deflector 42 99A1721 Deflector, paper top bin NS 99A1734 Spring, static ground NS 99A0462 Grease packet, IBM #23 Lexmark 99A0462 #23 Nyogel Grease New 99A0462 (New) $14.72 NS 99A1715 Roller asm, rear access door NS 99A1717 Gear, drive NS 99A1788 Retainer, R-ring Parts catalog 7-63

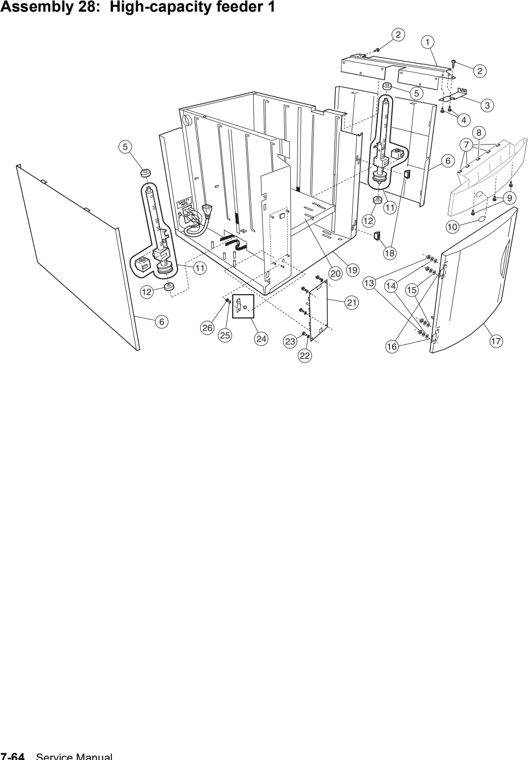

Assembly 28: High-capacity feeder 1 1 99A0660 Frame, printer support frame 2 2 99A0675 Parts packet, screw 3 99A0698 Clamp, feed frame 4 99A0675 Parts packet, screw (feed frame clamp) 5 99A0691 Bearing, Nyliner leadscrew top 6 99A0656 Cover, left side 7 99A0681 Strip, wear 8 99A1818 Strip, wear dimple 9 99A0675 Parts packet, screw 10 99A1829 Label, tray option number 11 99A0662 Transfer leadscrew assembly 12 99A0716 Bearing, leadscrew bottom 13 99A0676 Parts packet, nut (6-32 hinge mounting) 14 99A0677 Parts packet, washer (hinge mounting flat) 15 99A0677 Parts packet, washer (hinge mounting star) 16 99A0657 Hinge, door 17 99A0655 Door assembly, front 18 99A0658 Magnet, door 19 99A0650 Frame assembly 20 99A0661 Tray assembly, elevator 21 40X3252 Card assembly, 2000 option control Lexmark 40X3252 2000-sheet HCF Lower control card assembly New 40X3252 (New) $101.70 22 99A0677 Parts packet, washer (card asm. mounting) 23 99A0675 Parts packet, screw (card asm. mounting) 24 99A0392 Kit, door switch spring and bumper 25 99A0677 Parts packet, washer (door switch spring mounting) 26 99A0676 Parts packet, nut (door switch spring mounting) NS 99A0690 Cable, optical sensor Parts catalog 7-65

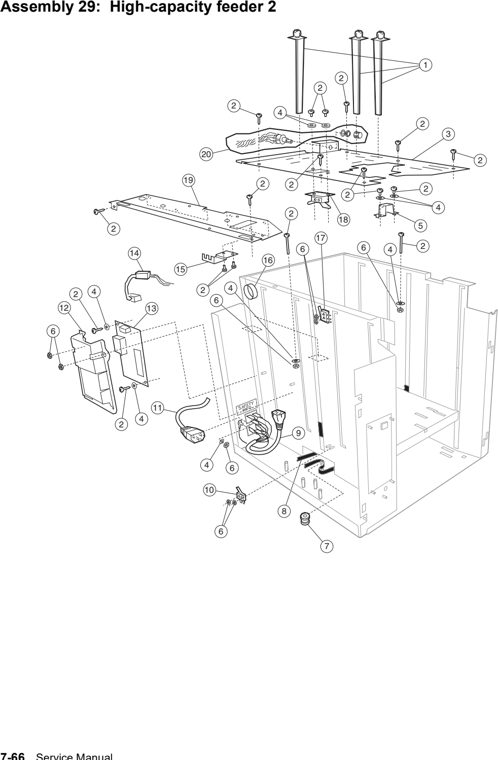

Assembly 29: High-capacity feeder 2 1 99A0188 Guide, rear paper, use with 99A0219 2 99A0675 Parts packet, screws (including): • Top frame mounting (6) • Base mounting (2) • Power supply board mtg (2) • Sensor bracket mtg (2) • Support 1 frame mtg (2) • Screw (2) 3 99A0219 Frame assembly, top with labels 4 99A0677 Parts packet, washers, (including): • Top frame clamp (2) • Base mounting (2) • Motor plate mtg (4) • Power supply board (2) • Sensor bracket mtg (2) 5 99A0719 Clamp, top frame mounting 6 99A0676 Parts packet, nuts, (including): • Base mounting (2) • 2-56 switch mounting (2) • Power supply cover (2) • Power supply ground (2) 7 99A0663 Pulley, idler 8 99A0664 Belt, drive 9 99A1807 Cable, AC internal wiring 10 99A0653 Switch, lower limit microswitch 11 99A1808 Cord, AC external jumper 12 99A0714 Cover, power supply 13 99A0667 Power supply board Lexmark 99A0667 PCBA Power Supply 100-240V 4069-F12 Fully refurbished with 90-day warranty 99A0667 $79.00 14 99A0715 Cable, low voltage power supply 15 99A0698 Clamp, feed frame 16 99A0685 Bushing 17 99A0654 Switch, paper low 18 99A0651 Sensor assembly, paper out/upper limit 19 99A0659 Frame, printer support 1 20 99A0695 Parts kit, paper size switch assembly Parts catalog 7-67

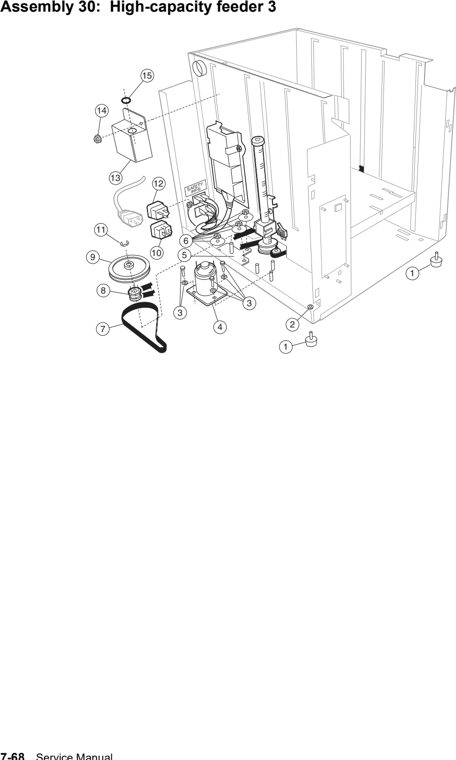

Assembly 30: High-capacity feeder 3 1 99A0687 Parts packet, mounting feet 2 99A0672 Parts packet, foot (stabilizer) 3 99A1793 Parts packet, screw w/washer (motor mt) 4 99A1795 Motor assembly, DC 5 99A1798 Plate, drive pulley 6 99A1794 Parts packet, nut and washer (drive pulley plate) 7 99A1796 Belt, DC motor drive 8 99A1797 Idler pulley, belt tension 9 99A1800 Pulley, drive 10 99A1799 AC receptacle, lower AC 11 99A1801 Retainer, C-clip 12 99A1802 AC receptacle, upper AC 13 99A1803 Cover, top LVPS 14 99A1804 Nut w/lock washer, top LVPS cover mounting 15 99A1805 Grommet, top LVPS cover Parts catalog 7-69

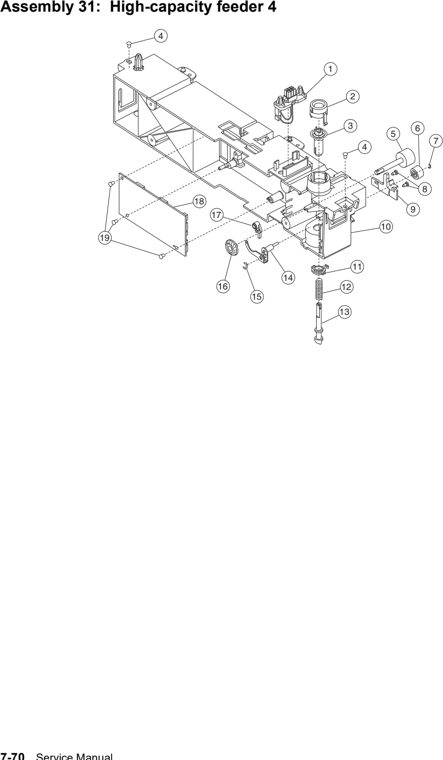

Assembly 31: High-capacity feeder 4 1 99A0281 Cable, 250-sheet autoconnect 2 99A0279 Bearing, drive shaft 3 99A0273 Gear, bevel 4 99A0276 500 Drive roll assembly 5 99A0263 Parts packet, screw (frame mounting) 6 99A0451 Roll, skewed backup 7 99A0267 Parts packet, retainer (roller) 8 99A0675 Parts packet, screw (wear plate mounting) 9 99A0277 Wear plate wear, pass thru 10 99A0445 Stud assembly, 250-sheet frame 11 99A0280 Bearing, drive shaft low 12 99A0275 Spring, power takeoff 13 99A0272 Shaft, 250-sheet drive 14 99A0446 Aligner assembly, paper 15 99A0267 Parts packet, retainer (aligner assembly) 16 99A0274 Gear, feed roll 17 99A0278 Bellcrank, roller release 18 56P4172 Card assembly, 2000 tray option 19 99A0263 Parts packet, screw (tray option card mounting) NS 99A0675 Parts packet, screw (door to door frame mounting) NS 99A0676 Parts packet, nut support frame 1 hex, support frame 2, hex NS 99A0677 Parts packet, washer (support frame 1 star, support frame 2 star) NS 99A0684 Cable, HCIT-14 pin flex Lexmark 99A0684 Cable HCIT-14 pin flex New 99A0684 (New) $26.96 NS 99A0286 Spring, backup roller Parts catalog 7-71

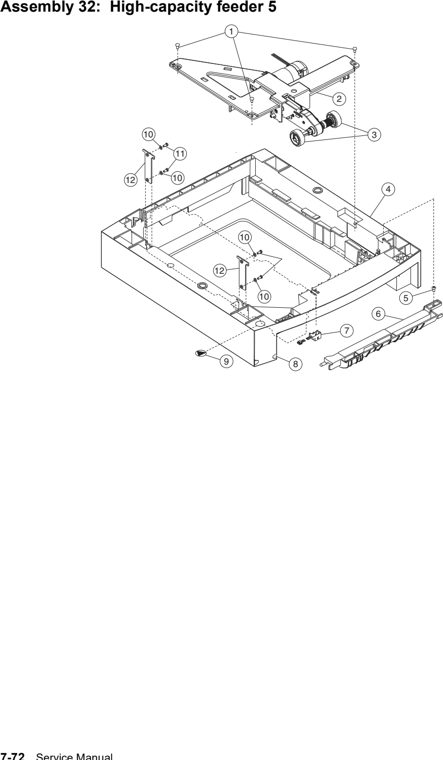

Assembly 32: High-capacity feeder 5 1 99A0263 Parts packet, screw 2 99A1055 Arm assembly, pick 2000 Lexmark 99A1055 Pick Arm Assembly 2000-Sheet Drawer Fully refurbished with 90-day warranty 99A1055 $68.70 3 40X4308 Roll assembly, pick Lexmark 40X4308 Pick roll assembly (Set of 2) New 40X4308 CET5894 (New) $18.95 4 99A0692 Base, 2000 option 5 99A0263 Parts packet, screw (deflector mounting) 6 99A0678 Deflector, base 7 99A0288 Sensor, pass thru Lexmark 99A0288 Pass Thru Sensor Fully refurbished with 90-day warranty 99A0288 $19.71 8 99A1812 Label, tray option number 9 99A1666 Label, options 10 99A0677 Parts packet, washer 11 99A0263 Parts packet, screw 12 99A0679 Bracket, 250-sheet frame retention NS 99A0717 Cable, paper low switch NS 99A0720 Cable, lower limit switch Parts catalog 7-73

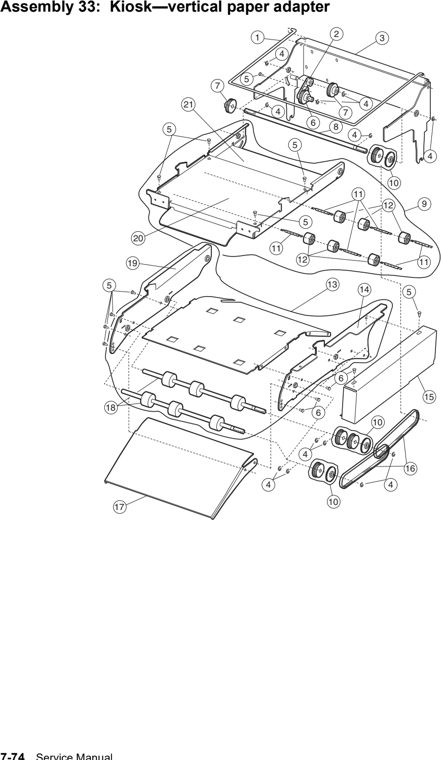

Assembly 33: Kiosk—vertical paper adapter 1 99A0231 Bail, support 2 99A1646 Arm assembly, pivot Lexmark 99A1646 Arm Assembly Pivot New 99A1646 (New) $360.65 3 99A1819 Mounting, frame assembly Lexmark 99A1819 Mounting Frame Assembly New 99A1819 (New) Contact for Details 4 99A0240 Parts packet, retainer 5 99A0234 Parts packet, screw 6 99A1705 Gear, idler Lexmark 99A1705 Gear, Idler New 99A1705 (New) $21.64 7 99A1704 Gear, idler Lexmark 99A1704 Gear Idler New 99A1704 (New) $46.05 8 99A0197 Shaft, drive rear 9 99A0079 Tray assembly, backup roller 10 99A0208 Parts packet, pulley 11 99A0087 Spring, backup roller 12 99A0086 Roller, backup Lexmark 99A0086 Roller backup New 99A0086 (New) $24.71 13 99A1706 Tray assembly, drive roller Lexmark 99A1706 Tray Assembly Drive Roller New 99A1706 (New) $40.17 14 99A0125 Frame assembly, right side 15 99A0232 Cover, right 16 99A1820 Belt, 185G Lexmark 99A1820 Belt Main Drive New 99A1820 (New) Contact for Details Lexmark 99A1820 Belt, 185G Fully refurbished with 90-day warranty 99A1820 Contact for Details 17 99A0226 Guide, paper exit 18 99A0122 Shaft assembly, drive roller 19 99A0137 Frame assembly, left side 20 99A0088 Cover, backup tray 21 99A0085 Tray, backup roller Parts catalog 7-75

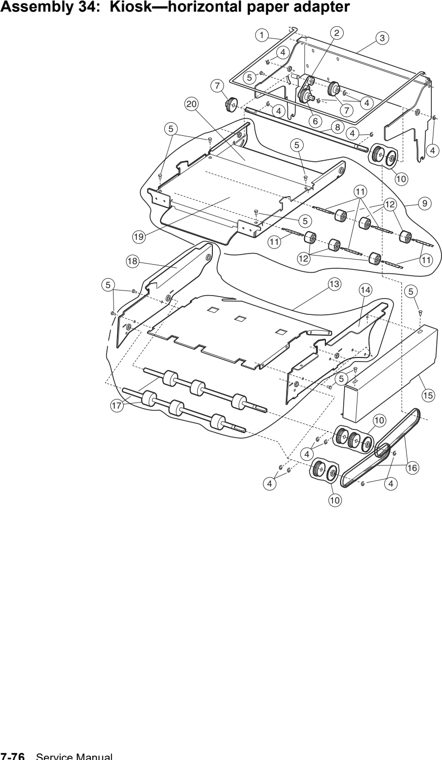

Assembly 34: Kiosk—horizontal paper adapter 1 99A0231 Bail, support 2 99A1646 Arm assembly, pivot Lexmark 99A1646 Arm Assembly Pivot New 99A1646 (New) $360.65 3 99A1819 Mounting, frame assembly Lexmark 99A1819 Mounting Frame Assembly New 99A1819 (New) Contact for Details 4 99A0240 Parts packet, retainer 5 99A0234 Parts packet, screw 6 99A1705 Gear, idler Lexmark 99A1705 Gear, Idler New 99A1705 (New) $21.64 7 99A1704 Gear, idler Lexmark 99A1704 Gear Idler New 99A1704 (New) $46.05 8 99A0197 Shaft, drive rear 9 99A0079 Tray assembly, backup roller 10 99A0208 Parts packet, pulley 11 99A0087 Spring, backup roller 12 99A0086 Roller, backup Lexmark 99A0086 Roller backup New 99A0086 (New) $24.71 13 99A1707 Tray assembly, drive roller 14 99A0907 Frame assembly, right side 15 99A0232 Cover, right 16 99A1820 Belt, 185G Lexmark 99A1820 Belt Main Drive New 99A1820 (New) Contact for Details Lexmark 99A1820 Belt, 185G Fully refurbished with 90-day warranty 99A1820 Contact for Details 17 99A0122 Shaft assembly, drive roller 18 99A0906 Frame assembly, left side 19 99A0088 Cover, backup tray 20 99A0085 Tray, backup roller Parts catalog 7-77

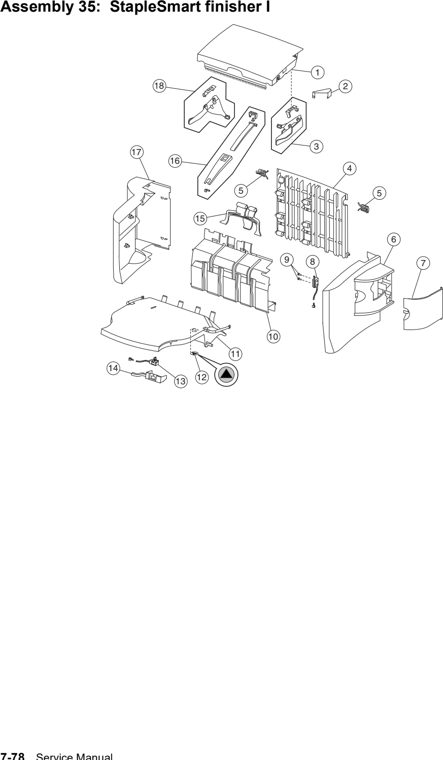

Assembly 35: StapleSmart finisher 1 1 99A2505 Cover, top assembly Lexmark 99A2505 Cover Top Assembly New 99A2505 (New) $41.91 Lexmark 99A2505 Cover, Top Assembly Fully refurbished with 90-day warranty 99A2505 $34.16 2 99A2510 Clip, brush ground 3 99A2506 Top cover bail/plate, right side 4 99A2512 Door, rear access 5 99A1785 Latch, rear access door 6 99A2501 Cover, right base assembly 7 99A2503 Cover, stapler access Lexmark 99A2503 Cover Stapler Access New 99A2503 (New) $53.44 Lexmark 99A2503 Cover, Stapler Access Fully refurbished with 90-day warranty 99A2503 $43.57 8 99A2502 Switch, stapler access door assembly 10 99A2519 Cover, accumulator assembly 11 99A2520 Tray, output assembly 11 99A2542 Tray, output 12 99A1666 Label, tray options 13 99A2521 Sensor, stapler bin empty 14 99A2541 Sensor cover, stapler bin empty 15 99A2511 Bail, center stapler Lexmark 99A2511 Bail Center Stapler New 99A2511 (New) $69.55 Lexmark 99A2511 Bail, Center Stapler Fully refurbished with 90-day warranty 99A2511 $56.71 16 99A2508 Kit, stacking bail 17 99A2500 Cover, left base assembly 18 99A2507 Top cover bail/plate, left side Parts catalog 7-79

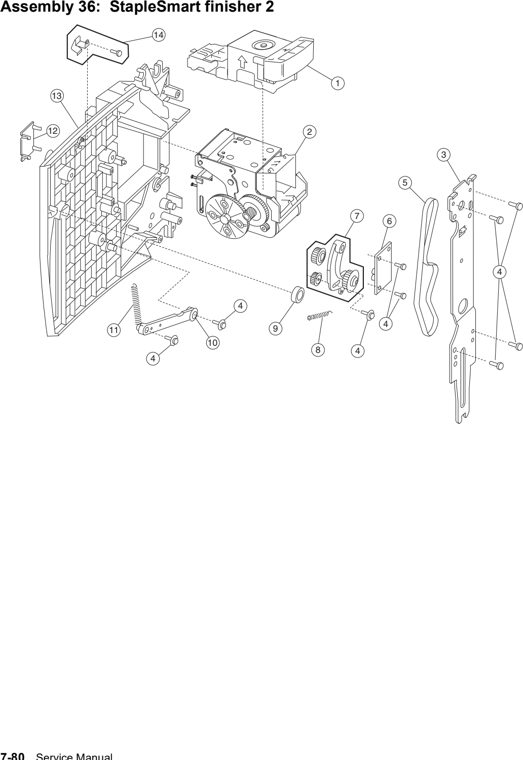

Assembly 36: StapleSmart finisher 2 1 99A2575 Stapler cartridge holder 321-C 2 99A2526 Stapler assembly Lexmark 99a2526 Stapler Unit New 99a2526 40X3278 (New) $265.42 3 99A2556 Bracket, attach 4 99A0263 Parts packet, screws 5 99A1820 Belt, 185G Lexmark 99A1820 Belt Main Drive New 99A1820 (New) Contact for Details Lexmark 99A1820 Belt, 185G Fully refurbished with 90-day warranty 99A1820 Contact for Details 6 99A2544 Card assembly, right stapler bin level Lexmark 99A2544 Card Assembly Right Stapler Bin Level New 99A2544 (New) $105.69 Lexmark 99A2544 Card Assembly, Right Stapler Bin Level Fully refurbished with 90-day warranty 99A2544 $88.02 7 99A0362 Arm assembly, belt idler 8 99A2545 Spring, swing arm Lexmark 99A2545 Spring Swing Arm New 99A2545 (New) $24.30 9 99A2548 Bumper, output tray 10 99A2533 Bar, upper output tray 11 99A2523 Spring, output tray 12 99A2543 Cover, optical sensor 13 99A2528 Frame assembly, right 14 99A2557 Clip, static ground Parts catalog 7-81

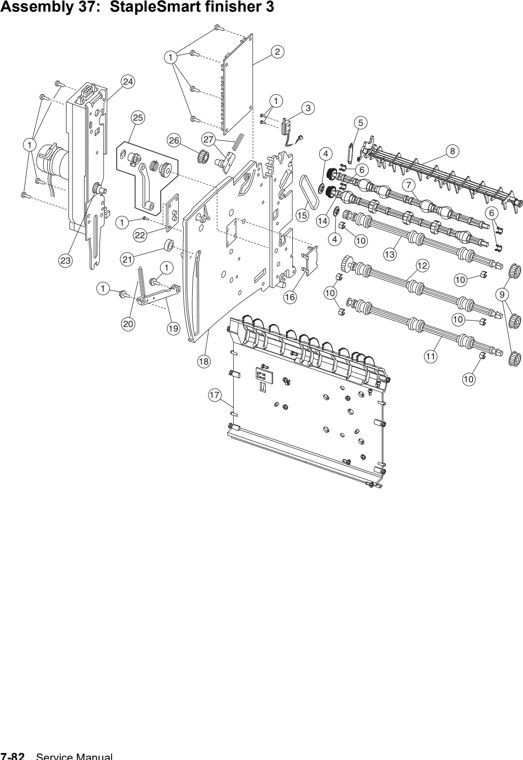

Assembly 37: StapleSmart finisher 3 1 99A0263 Parts packet, screws 2 56P1747 System card assembly, stapler option 3 99A2531 Switch assembly, top cover open Lexmark 99A2531 Switch Assembly Top Cover Open New 99A2531 (New) $35.50 4 99A2539 Flange, pulley 5 99A0104 Spring, upper diverter Lexmark 99A0104 Spring, Upper Diverter New 99A0104 (New) $25.00 6 99A2540 Bearing, redrive Lexmark 99A2540 Redrive Bearing New 99A2540 40X1965 (New) $24.44 7 99A2517 Shaft assembly, upper exit Lexmark 99A2517 Shaft Assembly Upper Exit New 99A2517 (New) $31.12 Lexmark 99A2517 Shaft Assembly Upper Exit Fully refurbished with 90-day warranty 99A2517 $25.35 8 99A2516 Deflector, upper Lexmark 99A2516 Deflector Upper New 99A2516 (New) $87.74 9 99A0363 Pulley, drive 11 99A0368 Shaft assembly, lower 12 99A0913 Shaft assembly, 40T middle stacker 13 99A2515 Shaft assembly, upper drive 14 99A2518 Shaft assembly, lower exit 15 99A2538 Belt, FHT 86T 16 99A2543 Cover, optical sensor 17 99A2529 Guide, inner bias 18 99A2527 Frame assembly, left Lexmark 99A2527 Frame Assembly Left New 99A2527 (New) $108.77 19 99A2533 Bar, upper output tray 20 99A2523 Spring, output tray 21 99A2548 Bumper, output tray 22 99A2549 Card assembly, left stapler bin level Lexmark 99A2549 Card Assembly Left Stapler Bin Level New 99A2549 (New) $106.77 23 99A1717 Gear, drive 24 99A2513 Motor assembly, drive Lexmark 99A2513 Motor Assembly Drive New 99A2513 (New) $220.76 25 99A2551 Clutch assembly, stapler option 26 99A2547 Pulley, belt idler 27 99A2552 Bushing, tensioner CBM Parts catalog 7-83

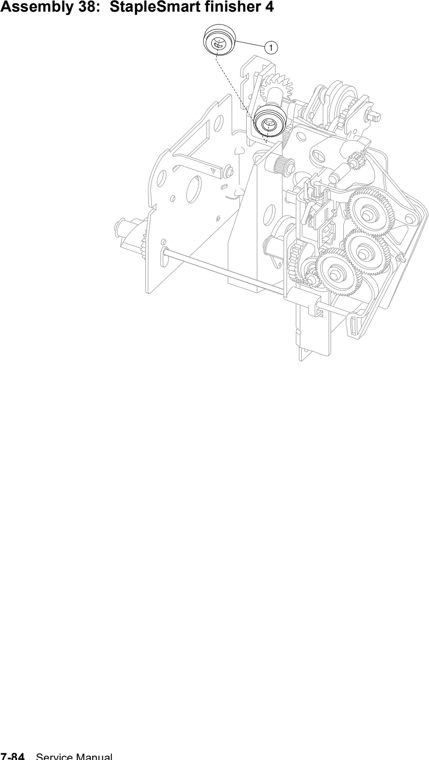

Assembly 38: StapleSmart finisher 4 1 99A2559 Paper alignment wheel NS 99A2480 Kit, maintenance StapleSmart wheels NS 99A2525 Sensor, stapler pass thru Lexmark 99A2525 Sensor Stapler Pass Thru New 99A2525 (New) $58.23 NS 99A2530 Cable assembly, right stapler bin level NS 99A2534 Ground cable, stapler tray bar NS 99A2524 Cable, stapler NS 99A2532 Cable, ground NS 99A2504 Cable assembly, left stapler bin level NS 99A2546 Label, pinch point NS 99A0548 Tie, cable Parts catalog 7-85

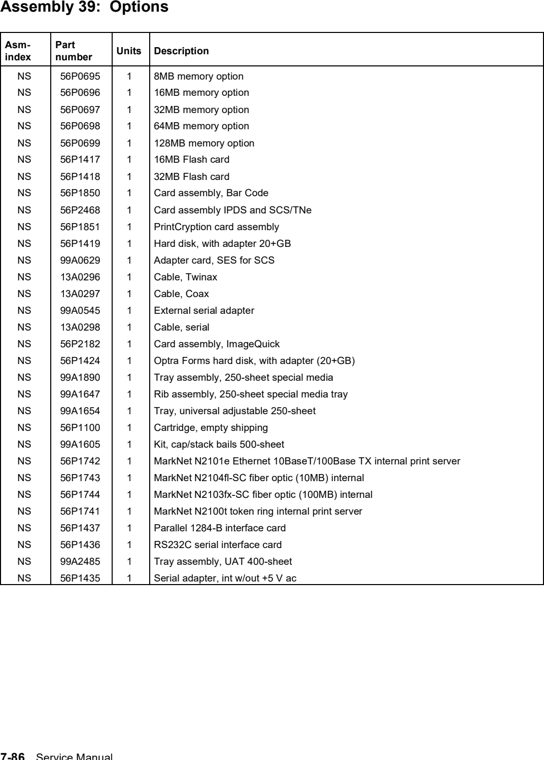

Assembly 39: Options NS 56P0695 8MB memory option NS 56P0696 16MB memory option NS 56P0697 32MB memory option NS 56P0698 64MB memory option NS 56P0699 128MB memory option NS 56P1417 16MB Flash card NS 56P1418 32MB Flash card NS 56P1850 Card assembly, Bar Code NS 56P2468 Card assembly IPDS and SCS/TNe NS 56P1851 PrintCryption card assembly NS 56P1419 Hard disk, with adapter 20+GB NS 99A0629 Adapter card, SES for SCS Lexmark 99A0629 Coax/Twinax Interface Fully refurbished with 90-day warranty 99A0629 $61.46 NS 13A0296 Cable, Twinax NS 13A0297 Cable, Coax NS 99A0545 External serial adapter NS 13A0298 Cable, serial NS 56P2182 Card assembly, ImageQuick NS 56P1424 Optra Forms hard disk, with adapter (20+GB) NS 99A1890 Tray assembly, 250-sheet special media NS 99A1647 Rib assembly, 250-sheet special media tray Lexmark 99A1647 Rib assembly 250-sheet special media tray New 99A1647 (New) $38.69 NS 99A1654 Tray, universal adjustable 250-sheet Lexmark 99A1654 250-Sheet (UAT) Tray New 99A1654 (New) $122.91 NS 56P1100 Cartridge, empty shipping NS 99A1605 Kit, cap/stack bails 500-sheet NS 56P1742 MarkNet N2101e Ethernet 10BaseT/100Base TX internal print server Lexmark 56P1742 MarkNet N2101e Ethernet Internal Print Server Fully refurbished with 90-day warranty 56P1742 $195.00 NS 56P1743 MarkNet N2104fl-SC fiber optic (10MB) internal NS 56P1744 MarkNet N2103fx-SC fiber optic (100MB) internal NS 56P1741 MarkNet N2100t token ring internal print server NS 56P1437 Parallel 1284-B interface card NS 56P1436 RS232C serial interface card NS 99A2485 Tray assembly, UAT 400-sheet NS 56P1435 Serial adapter, int w/out +5 V ac NS 56P1427 Optra Forms 32MB Flash card NS 56P1428 Optra Forms 16MB Flash card NS 56P1429 Simplified Chinese font card NS 56P1430 Traditional Chinese font card NS 56P1438 Japanese font card NS 56P1101 Cable assembly, 6’ parallel, A-C NS 56P0161 Cable assembly, SER+PAR 1284C INA NS 56P0162 Cable, parallel 1284 C-B adapter Parts catalog 7-87

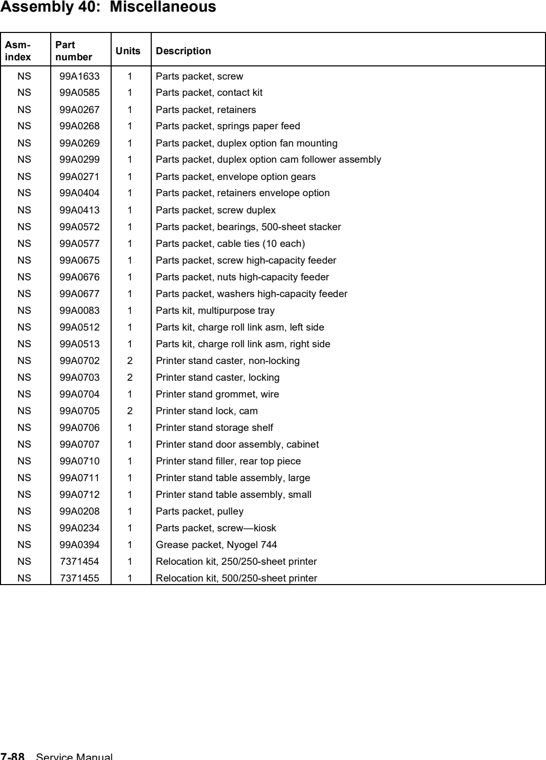

Assembly 40: Miscellaneous NS 99A1633 Parts packet, screw NS 99A0585 Parts packet, contact kit NS 99A0267 Parts packet, retainers NS 99A0268 Parts packet, springs paper feed NS 99A0269 Parts packet, duplex option fan mounting NS 99A0299 Parts packet, duplex option cam follower assembly NS 99A0271 Parts packet, envelope option gears NS 99A0404 Parts packet, retainers envelope option NS 99A0413 Parts packet, screw duplex NS 99A0572 Parts packet, bearings, 500-sheet stacker NS 99A0577 Parts packet, cable ties (10 each) NS 99A0675 Parts packet, screw high-capacity feeder NS 99A0676 Parts packet, nuts high-capacity feeder NS 99A0677 Parts packet, washers high-capacity feeder NS 99A0083 Parts kit, multipurpose tray NS 99A0512 Parts kit, charge roll link asm, left side NS 99A0513 Parts kit, charge roll link asm, right side NS 99A0702 Printer stand caster, non-locking Lexmark 99A0702 Stand Caster Non-Locking New 99A0702 (New) $33.21 NS 99A0703 Printer stand caster, locking Lexmark 99A0703 Printer Stand Caster Locking New 99A0703 (New) Contact for Details NS 99A0704 Printer stand grommet, wire NS 99A0705 Printer stand lock, cam NS 99A0706 Printer stand storage shelf Lexmark 99A0706 Printer Stand Storage Shelf New 99A0706 (New) Contact for Details NS 99A0707 Printer stand door assembly, cabinet NS 99A0710 Printer stand filler, rear top piece Lexmark 99A0710 Printer Stand Filler Rear Top Piece New 99A0710 (New) Contact for Details NS 99A0711 Printer stand table assembly, large Lexmark 99A0711 Printer Stand Table Assembly Large New 99A0711 (New) Contact for Details NS 99A0712 Printer stand table assembly, small Lexmark 99A0712 Printer Stand Table Assembly Small New 99A0712 (New) Contact for Details NS 99A0208 Parts packet, pulley NS 99A0234 Parts packet, screw—kiosk NS 99A0394 Grease packet, Nyogel 744 Lexmark 99A0394 IBM #23 Oil Fully refurbished with 90-day warranty 99A0394 Contact for Details NS 7371454 Relocation kit, 250/250-sheet printer NS 7371455 Relocation kit, 500/250-sheet printer
Other listed parts 28P2016 Charge Roll 28P2016 Charge Roll New 28P2016 (New) $41.00 53P8201 Spring Latch 53P8201 Spring Latch Fully refurbished with 90-day warranty 53P8201 Contact for Details 53P8203 Tray Bias Arm Assembly 53P8203 Tray Bias Arm Assembly Fully refurbished with 90-day warranty 53P8203 Contact for Details 53P8204 Spring Tray Bias 53P8204 Spring Tray Bias Fully refurbished with 90-day warranty 53P8204 $13.00 53P8205 Roller Developer Support 53P8205 Roller Developer Support Fully refurbished with 90-day warranty 53P8205 $16.00 53P8207 Sensor Input 53P8207 Sensor Input Fully refurbished with 90-day warranty 53P8207 $15.00 53P8209 Pad Base 500 53P8209 Pad Base 500 New 53P8209 (New) $19.00 53P8211 Spring Switch Activate 53P8211 Spring Switch Activate Fully refurbished with 90-day warranty 53P8211 $16.00 53P8213 Screw Damper 53P8213 Screw Damper Fully refurbished with 90-day warranty 53P8213 Contact for Details 53P8214 Bushing Pick Roll Shaft 53P8214 Bushing Pick Roll Shaft Fully refurbished with 90-day warranty 53P8214 $16.00 53P8215 Screw, socket set M4X5 mm 53P8217 Spring Assembly Separator 53P8217 Spring Assembly Separator Fully refurbished with 90-day warranty 53P8217 $16.00 53P8220 Flag MPT Paper Out 53P8220 Flag MPT Paper Out Fully refurbished with 90-day warranty 53P8220 $20.00 53P8222 Spring, Upper Diverter 53P8222 Spring, Upper Diverter Fully refurbished with 90-day warranty 53P8222 Contact for Details 53P8226 Restraint Pad 53P8226 Restraint Pad Fully refurbished with 90-day warranty 53P8226 $20.00 53P8227 Clip, 250-sheet tray wear 53P8228 Plate Snap-In 53P8228 Plate Snap-In Fully refurbished with 90-day warranty 53P8228 $20.00 53P8229 Finger Autosize 53P8229 Finger Autosize Fully refurbished with 90-day warranty 53P8229 $20.00 53P8230 Cam 53P8230 Cam Fully refurbished with 90-day warranty 53P8230 Contact for Details 53P8241 Spring, transfer roll left 53P8242 Spring, transfer roll right 53P8243 Shaft 53P8243 Shaft Fully refurbished with 90-day warranty 53P8243 Contact for Details 53P8249 Parts Packet Retainer (Aligner Assembly) 53P8249 Parts Packet Retainer (Aligner Assembly) Fully refurbished with 90-day warranty 53P8249 Contact for Details 53P8253 Shaft, 250-sheet drive 53P8254 Gear Bevel 53P8254 Gear Bevel Fully refurbished with 90-day warranty 53P8254 $16.00 53P8255 Gear Feed Roll 53P8255 Gear Feed Roll Fully refurbished with 90-day warranty 53P8255 $16.00 53P8256 Spring Power Takeoff 53P8256 Spring Power Takeoff Fully refurbished with 90-day warranty 53P8256 $16.00 53P8257 Roll Assembly Drive 53P8257 Roll Assembly Drive New 53P8257 (New) Contact for Details 53P8258 Wear plate, pass thru 53P8260 Bearing Drive Shaft 53P8260 Bearing Drive Shaft Fully refurbished with 90-day warranty 53P8260 $16.00 53P8261 Bearing Drive Shaft Low 53P8261 Bearing Drive Shaft Low Fully refurbished with 90-day warranty 53P8261 $16.00 53P8262 Cable 500 Auto Connect Top 53P8262 Cable 500 Auto Connect Top Fully refurbished with 90-day warranty 53P8262 $16.00 53P8263 Cable 500 Auto Connect Bottom 53P8263 Cable 500 Auto Connect Bottom Fully refurbished with 90-day warranty 53P8263 $16.00 53P8264 Spring Backup Roller 53P8264 Spring Backup Roller Fully refurbished with 90-day warranty 53P8264 $13.00 53P8265 Sensor Option Pass Thru 53P8265 Sensor Option Pass Thru New 53P8265 (New) Retired, no longer available: Contact for alternatives Contact for Details 53P8266 Wear Strips 53P8266 Wear Strips New 53P8266 (New) $20.00 53P8293 Arm, transfer roll assembly right 53P8294 Sensor Paper Low 53P8294 Sensor Paper Low Fully refurbished with 90-day warranty 53P8294 $19.00 53P8315 Pick Arm Assembly (500) 53P8315 Pick Arm Assembly (500) Fully refurbished with 90-day warranty 53P8315 Contact for Details 53P8315 Pickup Arm Assembly 500-Sheet Drawer New 53P8315 (New) Contact for Details 53P8316 Label TLI/ID/Serial No. - Blank 53P8316 Label TLI/ID/Serial No. - Blank Fully refurbished with 90-day warranty 53P8316 Contact for Details 53P8322 Spring Tray Bias 53P8322 Spring Tray Bias Fully refurbished with 90-day warranty 53P8322 $13.00 53P8325 Bearing Drive Roll 53P8325 Bearing Drive Roll Fully refurbished with 90-day warranty 53P8325 Contact for Details 53P8326 Stud assembly, 250-sheet frame 53P8327 Aligner Assembly Paper 53P8327 Aligner Assembly Paper Fully refurbished with 90-day warranty 53P8327 Contact for Details 53P8328 Shaft 500 Drive 53P8328 Shaft 500 Drive Fully refurbished with 90-day warranty 53P8328 $17.00 53P8330 Retainer Roller 53P8330 Retainer Roller Fully refurbished with 90-day warranty 53P8330 Contact for Details 53P8331 Roller Skewed Backup Sale53P8331 Roller Skewed Backup New 53P8331 99a0451 (New) ~~$12.00~~ $8.00 53P8348 Parts kit, charge roll link asm, left side 53P8349 Parts kit, charge roll link asm, right side 53P8351 Shield ESD Assembly with label 53P8351 Shield ESD Assembly with label Fully refurbished with 90-day warranty 53P8351 Contact for Details 53P8352 Spring Counterbalance 53P8352 Spring Counterbalance Fully refurbished with 90-day warranty 53P8352 $13.00 53P8357 Link Gear Release 53P8357 Link Gear Release Fully refurbished with 90-day warranty 53P8357 $16.00 53P8361 Parts Packet Contact Kit 53P8361 Parts Packet Contact Kit Fully refurbished with 90-day warranty 53P8361 Contact for Details 53P8362 Jumper, pin 53P8382 Parts packet, washer 53P8384 Bracket, 250-sheet frame retention 53P8423 Pick Arm for 250-Sheet Drawer 53P8423 Pick Arm for 250-Sheet Drawer Fully refurbished with 90-day warranty 53P8423 $75.00 53P8434 Cover Assembly Redrive Cap 53P8434 Cover Assembly Redrive Cap Fully refurbished with 90-day warranty 53P8434 $39.00 53P8441 Cartridge load spring 53P8442 Deflector Upper PF 53P8442 Deflector Upper PF Fully refurbished with 90-day warranty 53P8442 $12.00 53P8446 Paper Tray 250-sheet 53P8446 Paper Tray 250-sheet Fully refurbished with 90-day warranty 53P8446 $43.00 53P8447 Knob Paper Size 53P8447 Knob Paper Size Fully refurbished with 90-day warranty 53P8447 Contact for Details 53P8451 Developer Drive Assembly 53P8451 Developer Drive Assembly New 53P8451 (New) Contact for Details 53P8452 Shield, gear #60/MPF 53P8456 Bushing, charge roll 53P8457 Shaft Takeoff 500 53P8457 Shaft Takeoff 500 New 53P8457 (New) $59.00 53P8459 Tray Assembly 500 Sheet 53P8459 Tray Assembly 500 Sheet Fully refurbished with 90-day warranty 53P8459 $95.00 53P8460 Arm, Transfer Roll Left 53P8460 Arm, Transfer Roll Left Fully refurbished with 90-day warranty 53P8460 $21.00 53P8463 Slider Autosize 500 53P8463 Slider Autosize 500 Fully refurbished with 90-day warranty 53P8463 Contact for Details 53P8464 Plate 500 Tray Wear 53P8464 Plate 500 Tray Wear Fully refurbished with 90-day warranty 53P8464 Contact for Details 53P8465 Support Paper 53P8465 Support Paper Fully refurbished with 90-day warranty 53P8465 Contact for Details 53P8470 Contact, LSF ground 53P8473 Latch Back Restraint 53P8473 Latch Back Restraint Fully refurbished with 90-day warranty 53P8473 99a1601 $19.00 53P8479 Flag Output Paper Level 53P8479 Flag Output Paper Level Fully refurbished with 90-day warranty 53P8479 Contact for Details 53P8482 Base Drawer (500) no tray 53P8482 Base Drawer (500) no tray Fully refurbished with 90-day warranty 53P8482 Contact for Details 53P8483 Label, tray option number 53P8484 Base 250-sheet option 53P8484 Base 250-sheet option Fully refurbished with 90-day warranty 53P8484 $105.00 53P8485 Arm Paper Out 500 53P8485 Arm Paper Out 500 Fully refurbished with 90-day warranty 53P8485 $24.00 53P8488 Cover, fuser wiper cavity 53P8488 Cover, fuser wiper cavity Fully refurbished with 90-day warranty 53P8488 $15.00 53P8491 Bellcrank Roller Release 53P8491 Bellcrank Roller Release Fully refurbished with 90-day warranty 53P8491 Contact for Details 53P8493 Label Options 53P8493 Label Options Fully refurbished with 90-day warranty 53P8493 Contact for Details 53P8526 Stud Assembly 500 Frame 53P8526 Stud Assembly 500 Frame Fully refurbished with 90-day warranty 53P8526 Contact for Details 53P8568 Wear Plate Pass Thru 53P8568 Wear Plate Pass Thru Fully refurbished with 90-day warranty 53P8568 Contact for Details 53P8610 Deflector Upper Redrive 53P8610 Deflector Upper Redrive Fully refurbished with 90-day warranty 53P8610 $49.00 53P8614 Label Paper Size 53P8614 Label Paper Size Fully refurbished with 90-day warranty 53P8614 Contact for Details 53P8617 Parts Packet 53P8617 Parts Packet Fully refurbished with 90-day warranty 53P8617 $38.00 53P8617 Screws Parts Packet New 53P8617 (New) $42.00 53P8641 Guard, gear 53P8747 Restraint Side 500-Sheet Tray 53P8747 Restraint Side 500-Sheet Tray Fully refurbished with 90-day warranty 53P8747 $19.00 53P8748 Label Tray Option Number 53P8748 Label Tray Option Number Fully refurbished with 90-day warranty 53P8748 Contact for Details 53P8795 Pick Roll Assembly 53P8795 Pick Roll Assembly Fully refurbished with 90-day warranty 53P8795 $19.00 53P8823 Restraint, side 250-sheet tray 53P8863 Bracket Level Sensor 53P8863 Bracket Level Sensor Fully refurbished with 90-day warranty 53P8863 $19.00 53P8876 Door assembly redrive 250 sheet 53P8876 Door assembly redrive 250 sheet Fully refurbished with 90-day warranty 53P8876 56p1351 $29.00 53P8883 Duct Left Stacker 53P8883 Duct Left Stacker Fully refurbished with 90-day warranty 53P8883 Contact for Details 53P8884 Guide Redrive Exit 53P8884 Guide Redrive Exit Fully refurbished with 90-day warranty 53P8884 Contact for Details 53P8885 Support Left Lower Stacker 53P8885 Support Left Lower Stacker Fully refurbished with 90-day warranty 53P8885 Contact for Details 53P8886 Spring Cartridge Hold Down 53P8886 Spring Cartridge Hold Down Fully refurbished with 90-day warranty 53P8886 Contact for Details 53P8887 Transfer Plate Assembly 53P8887 Transfer Plate Assembly Fully refurbished with 90-day warranty 53P8887 Contact for Details 53P8888 Support Right Stacker Plate 53P8888 Support Right Stacker Plate Fully refurbished with 90-day warranty 53P8888 Contact for Details 53P8893 Solenoid Assembly MPT 53P8893 Solenoid Assembly MPT Fully refurbished with 90-day warranty 53P8893 $30.00 53P8914 Sensor MPT Paper Out 53P8914 Sensor MPT Paper Out Fully refurbished with 90-day warranty 53P8914 $19.00 53P8916 Cover Assembly Redrive Cap 53P8916 Cover Assembly Redrive Cap Fully refurbished with 90-day warranty 53P8916 99A2074 53P8434 99a1512 Contact for Details 53P8919 Pad Machine Mounting 53P8919 Pad Machine Mounting Fully refurbished with 90-day warranty 53P8919 Contact for Details 53P8920 Pan Motor Drip 53P8920 Pan Motor Drip Fully refurbished with 90-day warranty 53P8920 Contact for Details 53P8922 Parts packet, developer drive shaft, coupler gear #55 53P8925 Shaft, Power Takeoff 250 53P8925 Shaft, Power Takeoff 250 New 53P8925 (New) $59.00 53P8928 Arm Assembly 53p8928 Arm Assembly New 53p8928 (New) $37.00 53P8931 Redrive assembly 250 in/250 out 53P8931 Redrive assembly 250 in/250 out New 53P8931 (New) Retired, no longer available: Contact for alternatives Contact for Details 53P9106 Arm Assembly MPT 53P9106 Arm Assembly MPT Fully refurbished with 90-day warranty 53P9106 $27.00 53P9135 Restraint, back 500 53P9135 Restraint, back 500 Fully refurbished with 90-day warranty 53P9135 99a2093 Contact for Details 53P9136 Restraint, back 250-sheet tray 56P0125 Deflector Lower 56P0125 Deflector Lower New 56P0125 (New) $59.00 56P0125 Deflector, Lower Fully refurbished with 90-day warranty 56P0125 $59.00 56P0557 Board, Tray ITC 56P0557 Board, Tray ITC Fully refurbished with 90-day warranty 56P0557 $25.00 56P1332 Gearbox w/motor, Infoprint 1352 56P1332 Gearbox w/motor, Infoprint 1352 Fully refurbished with 90-day warranty 56P1332 Retired, no longer available: Contact for alternatives Contact for Details 56P1332 Gearbox w/motor Infoprint 1352 New 56P1332 (New) Retired, no longer available: Contact for alternatives Contact for Details 56P1333 IBM Fuser Assembly 1332 1352 Lexmark 56p1333 IBM Fuser Assembly 1332 1352 Fully refurbished with 90-day warranty 56P1333 56p2542 $110.50 56P1359 Over Clear Bezel/Blank 56P1359 Over Clear Bezel/Blank Fully refurbished with 90-day warranty 56P1359 $29.00 56P1381 Network Motherboard for T632n 56P1381 Network Motherboard for T632n Fully refurbished with 90-day warranty 56P1381 L Advanced Exchange Retired, no longer available: Contact for alternatives Contact for Details Lexmark 56P1381 System Board Assembly (network) T632n Fully refurbished with 90-day warranty 56P1381 L $32.00 Retired, no longer available: Contact for alternatives 56P2000 Upper Front Cover 56P2000 Upper Front Cover Fully refurbished with 90-day warranty 56P2000 $65.00 56P2000 Upper Front Cover New 56P2000 (New) Contact for Details 56P2001 Interconnect Board Assembly 1 slot, Infoprint 1332 56P2001 Interconnect Board Assembly 1 slot, Infoprint 1332 New 56P2001 (New) Contact for Details 56P2002 Interconnect Board Assembly 2 slot, Infoprint 1352 56P2002 Interconnect Board Assembly 2 slot, Infoprint 1352 Fully refurbished with 90-day warranty 56P2002 Contact for Details 56P2003 Interconnect Board Assembly 2 slot, Infoprint 1372 56P2003 Interconnect Board Assembly 2 slot, Infoprint 1372 New 56P2003 (New) Contact for Details 56P2004 Operator Panel Assembly 110V 56P2004 Operator Panel Assembly 110V Fully refurbished with 90-day warranty 56P2004 $9.38 56P2004 Operator Panel Assembly 110V New 56P2004 (New) $12.00 56P2130 RIP System Board T630N 56P2130 RIP System Board T630N Fully refurbished with 90-day warranty 56P2130 L Retired, no longer available: Contact for alternatives Contact for Details 56P2132 Lexmark T632N System Board Lexmark 56P2132 Lexmark T632N System Board Fully refurbished with 90-day warranty 56P2132 Advanced Exchange Retired, no longer available: Contact for alternatives Contact for Details Lexmark 56P2132 Lexmark T632N System Board Fully refurbished with 90-day warranty 56P2132 $32.21 Retired, no longer available: Contact for alternatives 56P2162 Bevel Gear 56P2162 Bevel Gear Fully refurbished with 90-day warranty 56P2162 $24.00 56P2190 RIP System Board T630 56P2190 RIP System Board T630 Fully refurbished with 90-day warranty 56P2190 Advanced Exchange Retired, no longer available: Contact for alternatives Contact for Details 56P2191 RIP System Board T630N 56p2191 RIP System Board T630N Fully refurbished with 90-day warranty 56p2191 L $61.25 Retired, no longer available: Contact for alternatives 56p2191 RIP System Board T630N Fully refurbished with 90-day warranty 56p2191 L Advanced Exchange Retired, no longer available: Contact for alternatives Contact for Details 56P2192 Card System Non-Network T632 56P2192 Card System Non-Network T632 Fully refurbished with 90-day warranty 56P2192 L Advanced Exchange Retired, no longer available: Contact for alternatives Contact for Details 56P2192 Card System Non-network T632 Fully refurbished with 90-day warranty 56P2192 L Advanced Exchange Retired, no longer available: Contact for alternatives Contact for Details 56P3080 RIP System Board T630 Non-Network Lexmark 56P3080 RIP System Board T630 Non-Network Fully refurbished with 90-day warranty 56P3080 L $110.50 Retired, no longer available: Contact for alternatives 56P3080 RIP System Board T630 Non-Network Fully refurbished with 90-day warranty 56P3080 L Advanced Exchange Retired, no longer available: Contact for alternatives Contact for Details 56P3081 RIP System Board T630n 56P3081 RIP System Board T630n Fully refurbished with 90-day warranty 56P3081 L Advanced Exchange Retired, no longer available: Contact for alternatives Contact for Details 56P3081 RIP System Board T630n Fully refurbished with 90-day warranty 56P3081 L $61.75 Retired, no longer available: Contact for alternatives 56P3082 System Board T632 Non-Network Lexmark 56P3082 System Board T632 Non-Network Fully refurbished with 90-day warranty 56P3082 L $64.71 Retired, no longer available: Contact for alternatives Lexmark 56P3082 System Board T632 (RIP) Fully refurbished with 90-day warranty 56P3082 L Advanced Exchange Retired, no longer available: Contact for alternatives Contact for Details 56P3083 System Board T632n (RIP) 56P3083 System Board T632n (RIP) Fully refurbished with 90-day warranty 56P3083 L $32.50 Retired, no longer available: Contact for alternatives 56P3084 System board assembly Non-Network T634 56P3084 System board assembly Non-Network T634 Fully refurbished with 90-day warranty 56P3084 L Retired, no longer available: Contact for alternatives Contact for Details 56P3084 System board assembly Non-Network T634 Fully refurbished with 90-day warranty 56P3084 L Advanced Exchange Retired, no longer available: Contact for alternatives Contact for Details 56P3085 System Board Assembly (Network) T634 Includes 56p1445 56P3085 System Board Assembly (Network) T634 Includes 56p1445 Fully refurbished with 90-day warranty 56P3085 L Advanced Exchange Retired, no longer available: Contact for alternatives Contact for Details 56P3085 System Board Assembly (Network) T634 Includes 56p1445 Fully refurbished with 90-day warranty 56P3085 L Retired, no longer available: Contact for alternatives Contact for Details 6952298 Power cord set USA 75P5958 Pick roll tires (2 per pack) 75P5958 Pick roll tires (2 per pack) New 75P5958 (New) $16.00
