Lexmark T640 T642 T644 Parts

Looking for whole machines? Click on the link below:
T640
T642
T644

📖 Lexmark T640 / T642 / T644: Complete Technical Guide. Specifications, maintenance & parts reference from 40 years of Lexmark expertise.

Please call for parts assistance

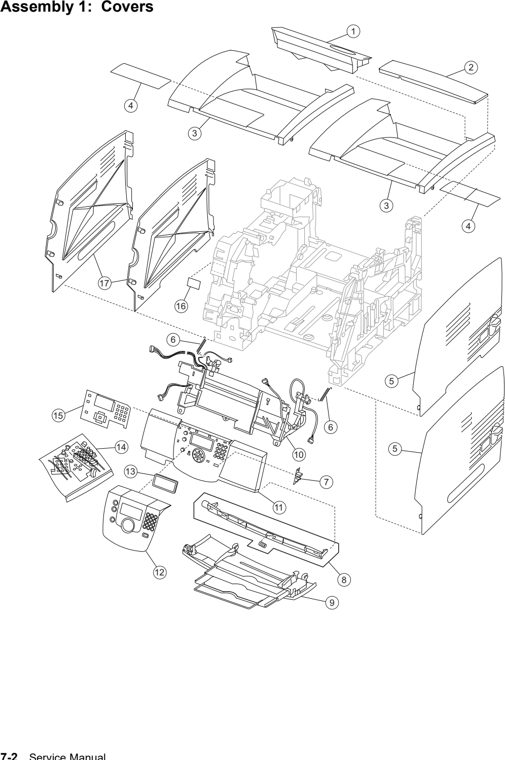

Assembly 1: Covers 1 40X0001 Fuser wiper cover assembly Lexmark 40X0001 Fuser Wiper Cover Assembly New 40X0001 41X6400 (New) $25.00 2 40X0002 Redrive cap cover assembly Lexmark 40X0002 Redrive cap cover assembly Fully refurbished with 90-day warranty 40X0002 $11.20 3 40X0003 Laser cover assembly—250-sheet output, 000/010 Lexmark 40X0003 Laser Cover Assembly New 40X0003 (New) $39.00 Lexmark 40X0003 Laser Cover Assembly Fully refurbished with 90-day warranty 40X0003 $24.00 3 40X0004 Laser cover assembly—500-sheet output, 200/210/400/410 Lexmark 40X0004 Laser Cover Assembly (500) New 40X0004 (New) $34.00 4 40X0005 Paper support Lexmark 40X0005 Paper support Fully refurbished with 90-day warranty 40X0005 $12.00 5 40X0007 Right side cover—250-sheet output, 000/010 Lexmark 40X0007 Right Side Cover 250-Sheet Fully refurbished with 90-day warranty 40X0007 L $75.00 5 40X0008 Right side cover—500-sheet output, 200/210/400/410 Lexmark 40X0008 Right Side Cover 500-Sheet Output New 40X0008 (New) Contact for Details Lexmark 40X0008 Right side cover 500 Fully refurbished with 90-day warranty 40X0008 $23.71 6 40X0050 Counterbalance spring Lexmark 40X0050 Counterbalance spring Fully refurbished with 90-day warranty 40X0050 $7.00 7 40X0151 USB board assembly Lexmark 40X0151 USB Board Assembly Fully refurbished with 90-day warranty 40X0151 $15.69 8 40X0011 Upper front cover latch kit Lexmark 40X0011 Upper cover latch with spring Fully refurbished with 90-day warranty 40X0011 $12.69 9 40X0017 Lower front cover assembly Lexmark 40X0017 Lower Front Cover New 40X0017 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X0017 Lower Front Cover Fully refurbished with 90-day warranty 40X0017 $39.50 10 40X0006 Upper front cover hinge assembly, includes: • USB cable (1) • Cover open switch and cable (1) • Left cable cover (1) • Right cable cover (1) • Left hinge spring (1) • Right hinge spring (1) Lexmark 40X0006 Upper Front Cover Hinge Assembly Fully refurbished with 90-day warranty 40X0006 $20.50 Lexmark 40X0006 Upper Front Cover Hinge Assembly New 40X0006 (New) $36.00 11 40X0010 Upper front cover assembly with Lexmark logo, including • Operator panel board (1) • Stop button (1) • Menu button (1) • Back button (1) • LED cap (1) • Navigation buttons (4) • Number pad buttons (1) • Navigation select button (1) • Number pad rubber dome sheet (1) • USB board (1) • Functional rubber sheet (1) Lexmark 40X0010 Upper Front Cover Fully refurbished with 90-day warranty 40X0010 $20.00 Lexmark 40X0010 Upper front cover assembly New 40X0010 (New) $174.47 12 40X0014 Operator panel outer bezel with Lexmark logo, T640 Lexmark 40X0014 Operator panel outer bezel with logo, T640 New 40X0014 L (New) Contact for Details 12 40X0233 Operator panel outer bezel with Lexmark logo T642 Lexmark 40X0233 Operator Panel Outer Bezel With Logo T642 New 40X0233 (New) $13.70 12 40X0234 Operator panel outer bezel with Lexmark logo T644 Lexmark 40X0234 Operator Panel Outer Bezel With Logo T644 New 40X0234 L (New) $23.04 13 40X0013 Clear LCD bezel Lexmark 40X0013 Clear LCD bezel New 40X0013 (New) $10.96 14 40X0235 Kit, upper front panel button, including: • Stop button (1) • Menu button (1) • Back button (1) • LED cap (1) • Navigation buttons (4) • Number pad buttons (1) • Navigation select button (1) • Number pad rubber dome sheet (1) • Functional rubber sheet (1) 15 40X0195 Operator panel board assembly Lexmark 40X0195 Operator Panel Board Fully refurbished with 90-day warranty 40X0195 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details Lexmark 40X0195 Operator Panel Board New 40X0195 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X0195 Operator Panel Board Fully refurbished with 90-day warranty 40X0195 Advanced Exchange Contact for Details 16 40X0009 TLI/ID/serial number label—blank Lexmark 40X0009 TLI ID serial number label -blank Fully refurbished with 90-day warranty 40X0009 Contact for Details 17 40X0020 Left side door cover, 250-sheet—1-slot, 000/010 Lexmark 40X0020 Left side door cover 250 Fully refurbished with 90-day warranty 40X0020 Contact for Details Lexmark 40X0020 Left side door cover 250-sheet 1-slot 000/010 New 40X0020 (New) Contact for Details 17 40X0023 Left side door cover, 500-sheet—2-slot, 200/210/400/410 Lexmark 40X0023 Left side door cover 500 Fully refurbished with 90-day warranty 40X0023 $24.19 Lexmark 40X0023 Left side door cover 500-sheet 2-slot New 40X0023 (New) $29.50

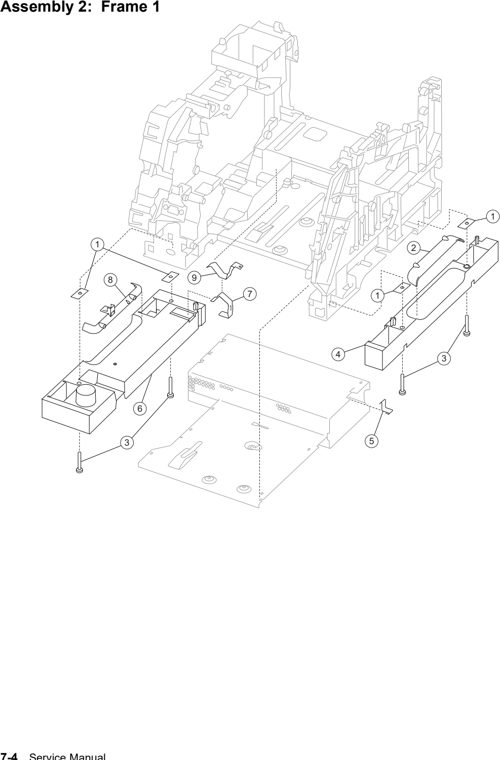

Assembly 2: Frame 1 1 40X0065 Frame extension, nut plate, 200/210/400/410 Lexmark 40X0065 Frame extension nut plate Fully refurbished with 90-day warranty 40X0065 Contact for Details 2 40X0225 Right side hand holder Lexmark 40X0225 Right side hand holder Fully refurbished with 90-day warranty 40X0225 Contact for Details 4 40X0024 Right frame extension, 200/210/400/410 Lexmark 40X0024 Right frame extension Fully refurbished with 90-day warranty 40X0024 $10.66 5 40X0026 Right side frame ground contact Lexmark 40X0026 Right side frame ground contact Fully refurbished with 90-day warranty 40X0026 Contact for Details 6 40X0025 Left frame extension, 200/210/400/410 Lexmark 40X0025 Left frame extension Fully refurbished with 90-day warranty 40X0025 $12.91 7 40X0060 External ground clip Lexmark 40X0060 External ground clip Fully refurbished with 90-day warranty 40X0060 Contact for Details 8 40X0231 Left side hand holder 9 40X0285 Frame clip Parts catalog 7-5 Lexmark 40X0285 Frame clip Fully refurbished with 90-day warranty 40X0285 Contact for Details

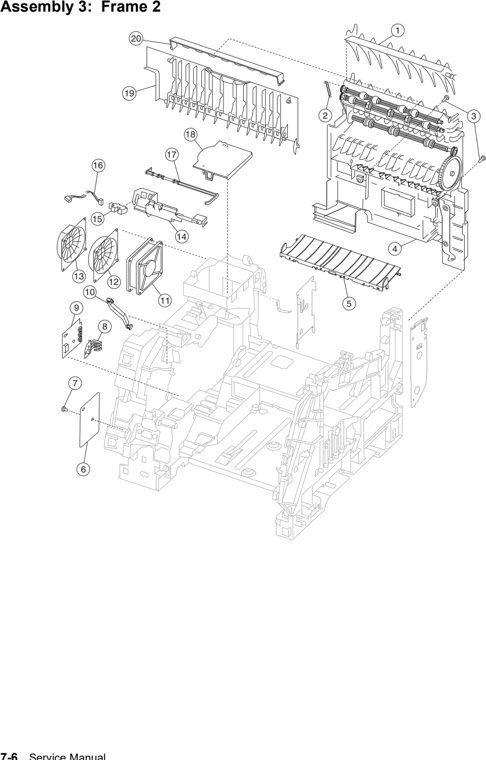

Assembly 3: Frame 2 1 40X0027 Upper redrive deflector Lexmark 40X0027 Upper Redrive Deflector Fully refurbished with 90-day warranty 40X0027 Contact for Details 2 40X0028 Upper diverter spring Lexmark 40X0028 Upper diverter spring New 40X0028 (New) $15.00 4 40X0029 Redrive assembly—250-sheet in/250 out, 000/010 Lexmark 40X0029 250 Sheet Redrive Assembly Fully refurbished with 90-day warranty 40X0029 Includes Spring Contact for Details Lexmark 40X0029 250 Sheet Redrive Assembly New 40X0029 Includes Spring (New) $99.00 4 40X0030 Redrive assembly—500-sheet in/500 out, 200/210/400/410 Lexmark 40X0030 Redrive Assembly 500-Sheet In 500 Out New 40X0030 Includes Spring 40X0028 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X0030 Redrive Assembly 500-Sheet In 500 Out Fully refurbished with 90-day warranty 40X0030 Includes Spring 40X0028 $63.00 5 40X0032 Transfer deflector Lexmark 40X0032 Transfer deflector New 40X0032 (New) $16.82 6 40X0044 Gear guard Lexmark 40X0044 Gear guard Fully refurbished with 90-day warranty 40X0044 Contact for Details 8 40X0048 Paper switch activate spring Lexmark 40X0048 Paper switch activate spring Fully refurbished with 90-day warranty 40X0048 $17.22 9 40X0046 Paper size sensing board assembly Lexmark 40X0046 Paper Size Sensing Board Assembly Fully refurbished with 90-day warranty 40X0046 UJ395 $19.00 10 40X0049 Gear release link Lexmark 40X0049 Gear release link Fully refurbished with 90-day warranty 40X0049 $26.47 11 40X0053 Main fan with cable—250-sheet output Lexmark 40X0053 Main fan with cable 250-sheet output Fully refurbished with 90-day warranty 40X0053 $15.00 Lexmark 40X0053 Main fan with cable - 250-sheet New 40X0053 (New) Retired, no longer available: Contact for alternatives Contact for Details 11 40X0054 Main fan with cable—500-sheet output Lexmark 40X0054 Main Fan With Cable 500-Sheet Output Fully refurbished with 90-day warranty 40X0054 $20.00 Lexmark 40X0054 Main Fan With Cable 500-Sheet New 40X0054 (New) Retired, no longer available: Contact for alternatives Contact for Details 12 40X0212 Main fan duct, 200/210/400/410 Lexmark 40X0212 Main Fan Duct Fully refurbished with 90-day warranty 40X0212 Contact for Details 13 40X0211 Main fan duct, 000/010 Lexmark 40X0211 Main fan duct Fully refurbished with 90-day warranty 40X0211 Contact for Details 14 40X0052 Standard bin level sensor bracket Lexmark 40X0052 Standard bin level sensor bracket Fully refurbished with 90-day warranty 40X0052 Contact for Details 15 40X0051 Standard bin level sensor Lexmark 40X0051 Standard bin level sensor Fully refurbished with 90-day warranty 40X0051 Contact for Details 16 40X0264 Standard bin level sensor cable Lexmark 40X0264 Standard Bin Level Sensor Cable New 40X0264 (New) $15.98 Lexmark 40X0264 Output Bin Level Sensor Cable Fully refurbished with 90-day warranty 40X0264 $12.00 17 40X0057 Output paper level flag, 000/010 Lexmark 40X0057 Output paper level flag Fully refurbished with 90-day warranty 40X0057 $11.00 17 40X0058 Output paper level flag, 200/210/400/410 Lexmark 40X0058 Output Paper Level Flag New 40X0058 (New) $7.75 18 40X0210 Main fan cap Lexmark 40X0210 Main fan cap Fully refurbished with 90-day warranty 40X0210 Contact for Details 19 40X0056 Redrive door assembly 250 sheet 000/010 Lexmark 40X0056 Redrive door assembly 250 sheet Fully refurbished with 90-day warranty 40X0056 $39.97 19 40X0232 Redrive door assembly 500 sheet 200/210/400/410 Lexmark 40X0232 Redrive Door Assembly 500 Sheet Fully refurbished with 90-day warranty 40X0232 Includes paper guide $49.00 20 40X0059 Extension guide Parts catalog 7-7 Lexmark 40X0059 Extension guide Fully refurbished with 90-day warranty 40X0059 Contact for Details

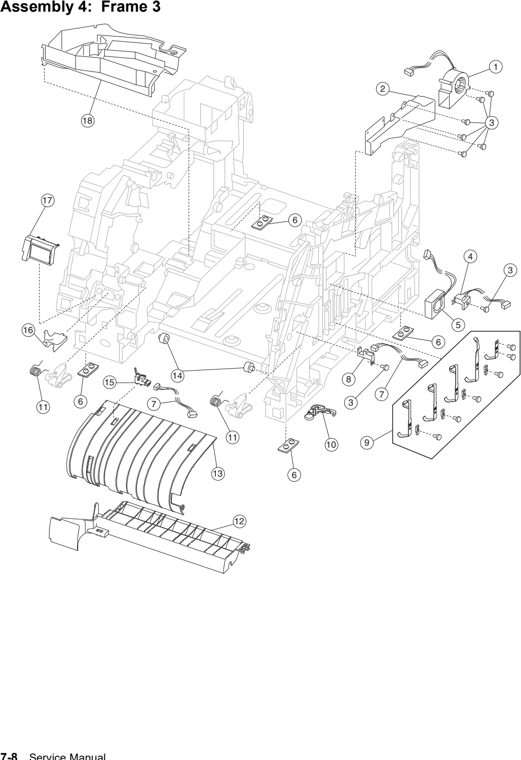

Assembly 4: Frame 3 1 40X0249 EP DC fan assembly, 200/210/400/410 Lexmark 40X0249 EP DC fan assembly 500 Fully refurbished with 90-day warranty 40X0249 $23.00 2 40X0208 Blower duct, 200/210/400/410 Lexmark 40X0208 Blower duct Fully refurbished with 90-day warranty 40X0208 Contact for Details 4 40X0034 Signature button sensor assembly Lexmark 40X0034 Signature button sensor assembly Fully refurbished with 90-day warranty 40X0034 Contact for Details 5 40X0035 EP DC fan assembly, 000/010 Lexmark 40X0035 EP DC fan assembly with cable 000/010 250 Fully refurbished with 90-day warranty 40X0035 Contact for Details Lexmark 40X0035 EP DC fan assembly with cable 000/010 250 New 40X0035 (New) Retired, no longer available: Contact for alternatives Contact for Details 6 40X0033 Machine mounting pad Lexmark 40X0033 Machine mounting pad Fully refurbished with 90-day warranty 40X0033 Contact for Details 7 40X0223 HVPS/input sensor/toner sensor cable assembly Lexmark 40X0223 Front cable harness (HVPS input sensor toner sensor) Fully refurbished with 90-day warranty 40X0223 Contact for Details 8 40X0036 Toner sensor assembly Lexmark 40X0036 Toner Sensor Assembly New 40X0036 (New) $19.00 9 40X0306 High voltage contact kit, including: • Charge roll contact (1) • Doc/TAR/Dev contact (3) • PC drum contact (1) • Screw (5) • Screw block (4) Lexmark 40X0306 High Voltage Contact Kit New 40X0306 99a0585 (New) $34.71 Lexmark 40X0306 High Voltage Contact Kit Fully refurbished with 90-day warranty 40X0306 $19.71 10 40X0213 Tray bias assembly Lexmark 40X0213 Tray bias assembly Fully refurbished with 90-day warranty 40X0213 Contact for Details 11 40X0021 Cartridge holddown assembly 12 40X0040 Upper paper feed deflector Lexmark 40X0040 Upper Paper Feed Deflector Fully refurbished with 90-day warranty 40X0040 Contact for Details 13 40X0041 Inner paper feed deflector, 000/010 Lexmark 40X0041 Inner paper feed deflector Fully refurbished with 90-day warranty 40X0041 Contact for Details 13 40X0042 Inner paper feed deflector, 200/210/400/410 Lexmark 40X0042 Inner Paper Feed Deflector Fully refurbished with 90-day warranty 40X0042 $15.00 14 40X0039 Developer support roller Lexmark 40X0039 Developer support roller Fully refurbished with 90-day warranty 40X0039 Contact for Details 15 40X0043 Input sensor Lexmark 40X0043 Input Sensor New 40X0043 (New) $11.77 16 40X0209 Gear #60 MPF shield 17 40X0045 ESD shield with label Lexmark 40X0045 ESD shield with label Fully refurbished with 90-day warranty 40X0045 Contact for Details 18 40X0207 EP duct Parts catalog 7-9 Lexmark 40X0207 EP duct Fully refurbished with 90-day warranty 40X0207 Contact for Details

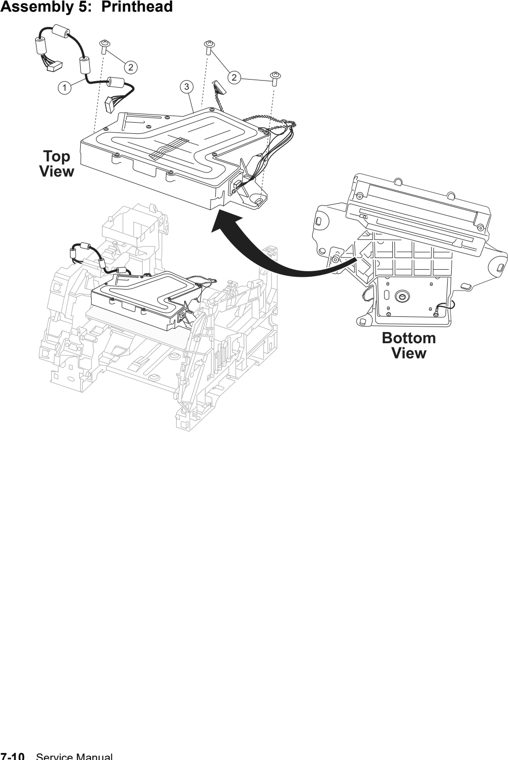

Assembly 5: Printhead 1 40X0061 Laser cable assembly Lexmark 40X0061 Laser cable assembly New 40X0061 (New) $15.98 3 40X0062 Printhead assembly (includes all cables) CAUTION:The printhead is not a serviceable FRU. Do not disassemble the printhead. Parts catalog 7-11 Lexmark 40X0062 Printhead Assembly Fully refurbished with 90-day warranty 40X0062 20G0990 $45.00 Lexmark 40X0062 Printhead assembly New 40X0062 20G0990 (New) Contact for Details Lexmark 40X0062 Printhead Assembly New 40X0062 20G0990 Advanced Exchange (New) Contact for Details

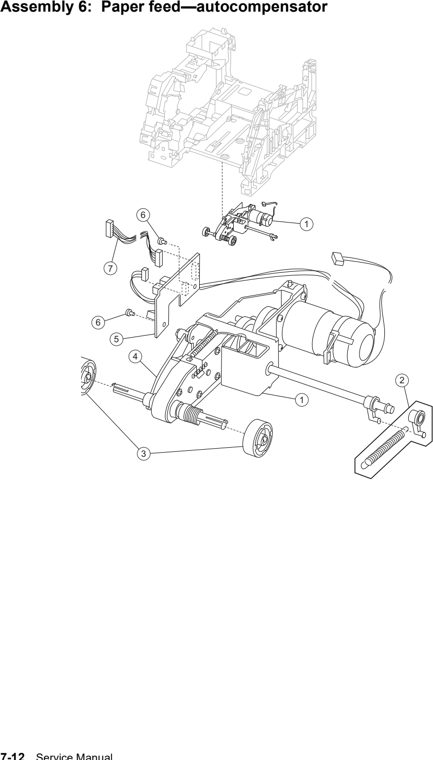

Assembly 6: Paper feed—autocompensator 1 40X0066 Pick arm assembly—500-sheet, 200/210/400/410 Lexmark 40X0066 500 Sheet Pick Arm Assembly New 40X0066 (New) Contact for Details Lexmark 40X0066 500 Sheet Pick Arm Assembly Fully refurbished with 90-day warranty 40X0066 $38.00 1 40X0067 Pick arm assembly—250-sheet, 000/010 Lexmark 40X0067 250 Sheet Pick Arm Assembly New 40X0067 (New) $199.00 2 40X0068 Parts packet, bellcrank assembly—250-sheet tray, 000/010 • Bellcrank (1) • Spring (1) Lexmark 40X0068 Parts packet bellcrank assembly 250-sheet tray Fully refurbished with 90-day warranty 40X0068 Contact for Details 2 40X0069 Parts packet, bellcrank assembly for—500-sheet tray, 200/210/400/410 • Bellcrank (1) • Spring (1) Lexmark 40X0069 Parts packet bellcrank assembly, 500-sheet tray Fully refurbished with 90-day warranty 40X0069 Contact for Details 3 40X4308 Pick roll assembly Lexmark 40X4308 Pick roll assembly (Set of 2) New 40X4308 CET5894 (New) $18.95 4 40X0071 Paper out flag—250-sheet tray, 000/010 Lexmark 40X0071 Paper Out Flag 250-Sheet Tray Fully refurbished with 90-day warranty 40X0071 $22.00 4 40X0072 Paper out flag—500-sheet tray, 200/210/400/410 Lexmark 40X0072 Paper Out Flag 500-Sheet Tray Fully refurbished with 90-day warranty 40X0072 $10.00 5 40X0073 Paper low/out sensor card assembly Lexmark 40X0073 Paper low out sensor card assembly Fully refurbished with 90-day warranty 40X0073 Contact for Details 7 40X0074 Paper size/autocompensator cable Parts catalog 7-13 Lexmark 40X0074 Paper size autocompensator cable Fully refurbished with 90-day warranty 40X0074 Contact for Details

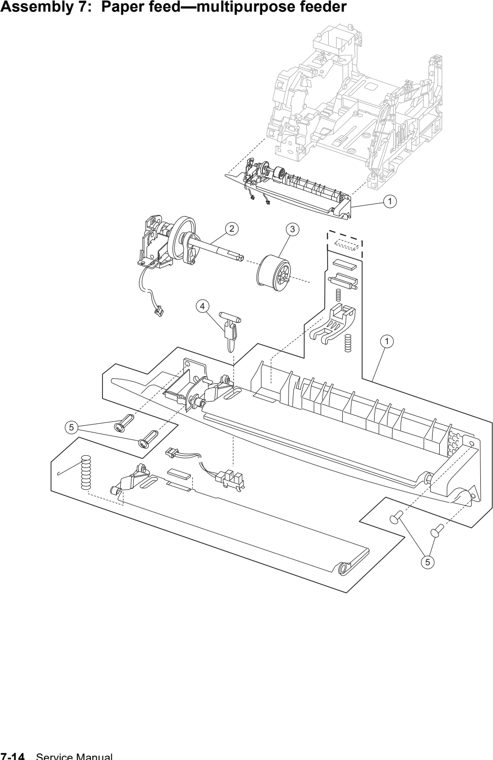

Assembly 7: Paper feed—multipurpose feeder 1 40X0079 Multipurpose feeder lower deflector assembly Lexmark 40X0079 Multipurpose Feeder Lower Deflector Assembly New 40X0079 (New) Contact for Details Lexmark 40X0079 Multipurpose Feeder Lower Deflector Assembly Fully refurbished with 90-day warranty 40X0079 $19.00 2 40X0310 Multipurpose feeder pick arm assembly with solenoid Lexmark 40X0310 Multipurpose Feeder Pick Arm Assembly With Solenoid Fully refurbished with 90-day warranty 40X0310 $20.00 3 40X0076 Pick roll assembly Lexmark 40X0076 Pick Roll Assembly New 40X0076 (New) $14.75 4 40X0077 Multipurpose feeder paper out flag Lexmark 40X0077 Multipurpose feeder paper out flag Fully refurbished with 90-day warranty 40X0077 Contact for Details

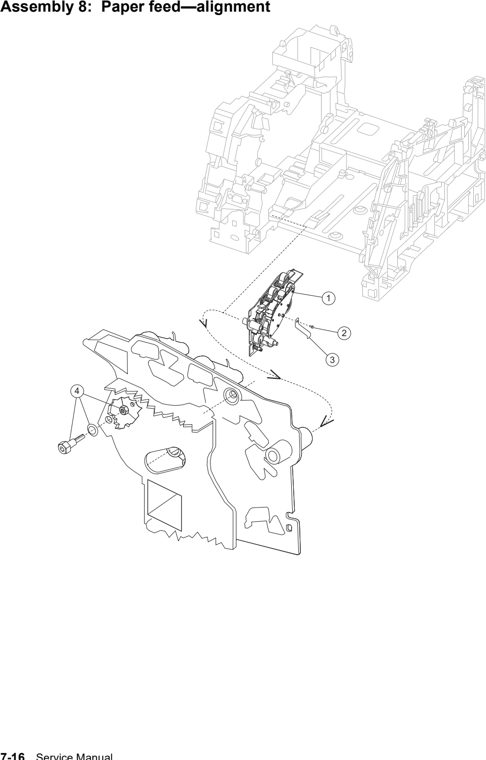

Assembly 8: Paper feed—alignment 1 40X0084 Paper feed alignment assembly paper feed Lexmark 40X0084 Paper Feed Alignment Assembly New 40X0084 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X0084 Paper Feed Alignment Assembly Fully refurbished with 90-day warranty 40X0084 $29.71 3 40X0085 Reference ground clip Lexmark 40X0085 Reference ground clip Fully refurbished with 90-day warranty 40X0085 Contact for Details 4 40X0086 Parts packet (reference adjust) • Screw, paper reference adjust (1) • Washer, paper reference adjust (1) • Nut, paper reference adjust (1) Lexmark 40X0086 Parts packet (reference adjust) Fully refurbished with 90-day warranty 40X0086 Contact for Details

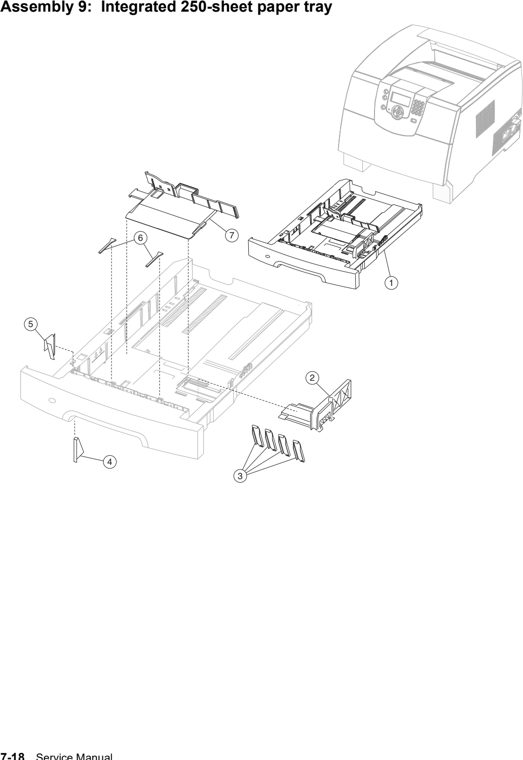

Assembly 9: Integrated 250-sheet paper tray 1 40X3231 Integrated 250-sheet tray Lexmark 40X3231 250-Sheet Tray, complete assembly T64x, X642e, X644e, X646e New 40X3231 (New) $169.00 Lexmark 40X3231 250-Sheet Tray, complete assembly T64x, X642e, X644e, X646e Fully refurbished with 90-day warranty 40X3231 $89.00 2 40X0092 Side restraint—250-sheet tray Lexmark 40X0092 Restraint pad Fully refurbished with 90-day warranty 40X0092 Contact for Details 3 40X0093 Wear strips Lexmark 40X0093 4 Wear strips New 40X0093 (New) $13.02 4 40X0263 Pass thru plate—250-sheet tray Lexmark 40X0263 Pass thru plate 250-sheet tray Fully refurbished with 90-day warranty 40X0263 Contact for Details 5 40X0094 Wear plate—250-sheet tray Lexmark 40X0094 Wear plate 250-sheet tray Fully refurbished with 90-day warranty 40X0094 Contact for Details 6 40X0105 Restraint pad Lexmark 40X0105 Restraint pad Fully refurbished with 90-day warranty 40X0105 Contact for Details 7 40X0090 Back restraint—250-sheet tray Parts catalog 7-19 Lexmark 40X0090 Back restraint 250-sheet tray Fully refurbished with 90-day warranty 40X0090 Contact for Details

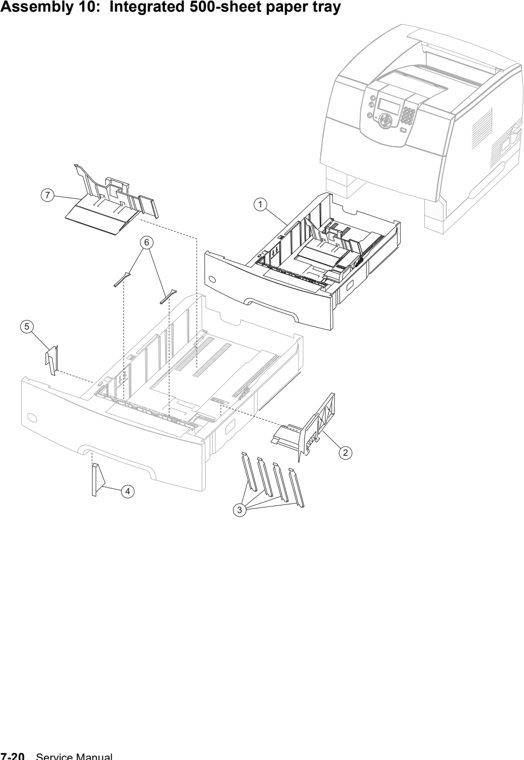

Assembly 10: Integrated 500-sheet paper tray 1 40X4663 Tray assembly—500-sheet tray Lexmark 40X4663 500-Sheet Tray complete assembly New 40X4663 20G0084 (New) Contact for Details Lexmark 40X4663 500-Sheet Tray complete assembly Fully refurbished with 90-day warranty 40X4663 20G0084 $47.71 2 40X0099 Side restraint Lexmark 40X0099 Side Restraint Fully refurbished with 90-day warranty 40X0099 Contact for Details 3 40X0182 Wear strip Lexmark 40X0182 4 Wear Strips New 40X0182 (New) $13.00 4 40X0103 Pass thru plate—500-sheet tray Lexmark 40X0103 Pass thru plate 500-sheet tray Fully refurbished with 90-day warranty 40X0103 Contact for Details 5 40X0183 Wear plate—500-sheet tray Lexmark 40X0183 Wear plate 500-sheet tray Fully refurbished with 90-day warranty 40X0183 Contact for Details 6 40X0105 Restraint pad Lexmark 40X0105 Restraint pad Fully refurbished with 90-day warranty 40X0105 Contact for Details 7 40X0106 Back restraint Parts catalog 7-21 Lexmark 40X0106 Back restraint Fully refurbished with 90-day warranty 40X0106 Contact for Details

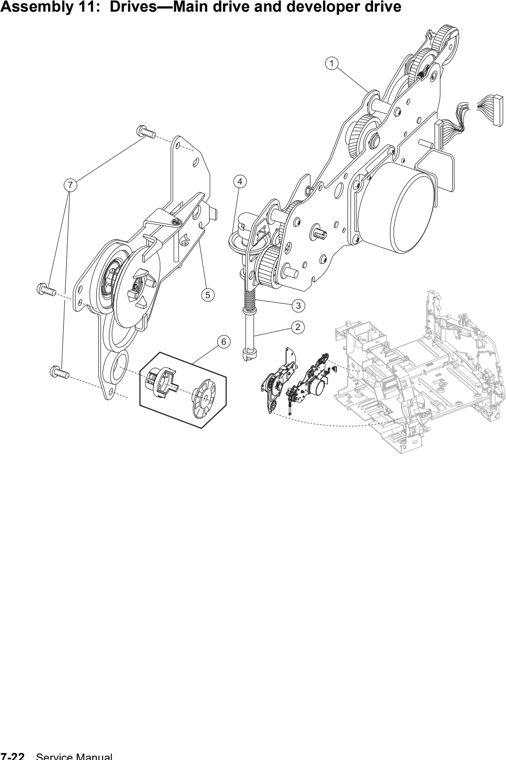

Assembly 11: Drives—Main drive and developer drive 1 40X0107 Gearbox with motor Lexmark 40X0107 Gearbox With Motor Fully refurbished with 90-day warranty 40X0107 $79.71 Lexmark 40X0107 Gearbox with motor New 40X0107 (New) Contact for Details 2 40X0110 Power takeoff shaft—250-sheet, 000/010 Lexmark 40X0110 Power takeoff shaft 250-sheet Fully refurbished with 90-day warranty 40X0110 Contact for Details 2 40X0111 Power takeoff shaft—500-sheet, 200/210/400/410 Lexmark 40X0111 Power takeoff shaft 500-sheet Fully refurbished with 90-day warranty 40X0111 Contact for Details 3 40X0112 Power takeoff shaft spring Lexmark 40X0112 Power Takeoff Shaft Spring Fully refurbished with 90-day warranty 40X0112 Contact for Details 4 99A0954 Bevel gear with grease packet and washer • Bevel gear (1) • Instruction sheet (1) • Grease packet (1) Lexmark 99A0954 Bevel Gear with grease packet, washer New 99A0954 (New) $12.31 5 40X0114 Developer drive assembly Lexmark 40X0114 Developer drive assembly Fully refurbished with 90-day warranty 40X0114 $29.00 6 40X0115 Parts packet, developer drive • Developer drive shaft (1) • shaft, coupler gear #55 (1) Lexmark 40X0115 Parts packet developer drive Fully refurbished with 90-day warranty 40X0115 Contact for Details

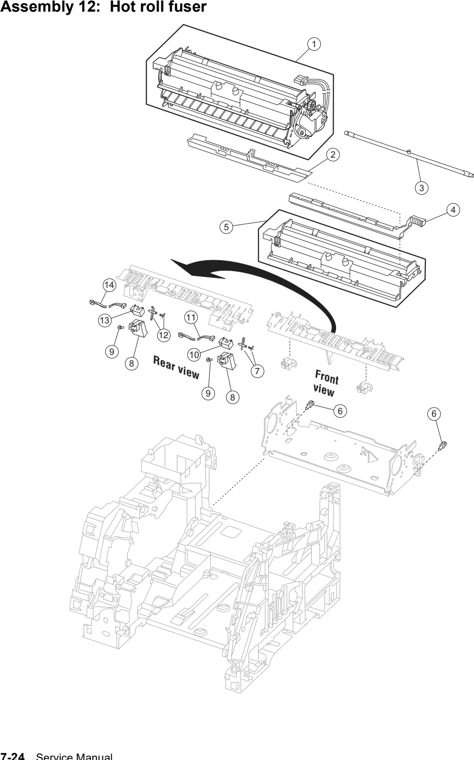

Assembly 12: Hot roll fuser 1 40X2592 Fuser assembly w/115 V lamp Lexmark 40x0116 Fuser Assembly New 40x2592 45U2820 40X0116 56P4243 Compatible (New) $199.00 1 40X2591 Fuser assembly w/100 V lamp Lexmark 40X2591 Fuser Assembly W/100 V Lamp New 40X2591 (New) Contact for Details 1 40X2590 Fuser assembly w/220 V lamp 2 40X0120 Fuser wiper cavity cover Lexmark 40X0120 Fuser Wiper Cover New 40X0120 (New) $9.50 Lexmark 40X0120 Fuser wiper cavity cover Fully refurbished with 90-day warranty 40X0120 Contact for Details 3 40X0122 Fuser lamp, 115V Lexmark 40X0122 Fuser lamp 115V New 40X0122 (New) $35.00 3 40X0123 Fuser lamp, 220V 4 40X2665 Oil fuser wiper (black housing) Lexmark 40X2665 Oil Fuser Wiper (Wick), Black Housing New 40X2665 VXPFF (New) $26.00 4 40X2666 Wax fuser wiper (gray housing) Lexmark 40x2666 Wax Fuser Wiper (Gray) New 40x2666 M4G25 (New) $26.00 5 40X0121 Fuser cover assembly kit, including: • Thermistor (1) • Thermostat (1) • Left and right fuser lamp contact assemblies (1) Lexmark 40X0121 Fuser Cover Assembly Fully refurbished with 90-day warranty 40X0121 $7.00 7 40X0239 Exit sensor flag/spring kit, including: • Spring (1) • Flag (1) 8 40X0236 Exit/narrow media sensor cover Lexmark 40X0236 Exit Narrow Media Sensor Cover New 40X0236 (New) $35.23 10 40X0125 Exit sensor Lexmark 40X0125 Exit sensor Fully refurbished with 90-day warranty 40X0125 Contact for Details 11 40X0230 Exit sensor cable Lexmark 40X0230 Exit Sensor Cable Fully refurbished with 90-day warranty 40X0230 $31.94 12 40X0238 Narrow media flag/spring kit, including: Lexmark 40X0238 Narrow Media Flag/Spring Kit New 40X0238 (New) $20.08 13 40X0124 Narrow media sensor 14 40X0229 Narrow media sensor cable Lexmark 40X0229 Narrow Media Sensor Cable Fully refurbished with 90-day warranty 40X0229 $31.94 NS 40X0226 Fuser AC to fuser lamp cable Parts catalog 7-25

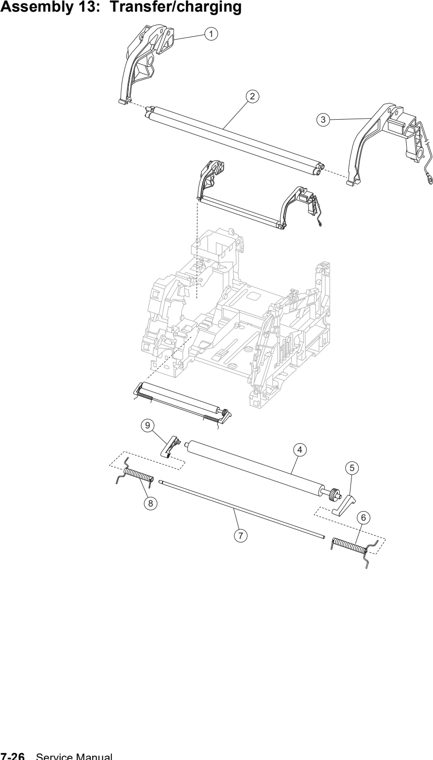

Assembly 13: Transfer/charging 1 40X0126 Parts kit, charge roll link asm, left side Lexmark 40X0126 Parts kit charge roll link asm left side Fully refurbished with 90-day warranty 40X0126 $18.00 2 40X0127 Charge roll assembly, dual Lexmark 40X0127 Charge Roll Assembly Dual New 40X0127 CET1448N (New) $68.00 3 40X0129 Parts kit, right side charge roll link assembly Lexmark 40X0129 Parts Kit Right Side Charge Roll Link Assembly Fully refurbished with 90-day warranty 40X0129 $19.00 4 40X0130 Transfer roll assembly Lexmark 40X0130 Transfer Roll New 40X0130 (New) $32.82 5 40X0131 Transfer roll assembly right arm Lexmark 40X0131 Transfer roll assembly right arm Fully refurbished with 90-day warranty 40X0131 Contact for Details 6 40X0132 Transfer roll right spring Lexmark 40X0132 Transfer roll right spring Fully refurbished with 90-day warranty 40X0132 Contact for Details 7 40X0133 Transfer pivot shaft Lexmark 40X0133 Transfer pivot shaft Fully refurbished with 90-day warranty 40X0133 Contact for Details 8 40X0134 Transfer roll left spring Lexmark 40X0134 Transfer roll left spring Fully refurbished with 90-day warranty 40X0134 Contact for Details 9 40X0135 Transfer roll left arm Lexmark 40X0135 Transfer roll left arm Fully refurbished with 90-day warranty 40X0135 Contact for Details

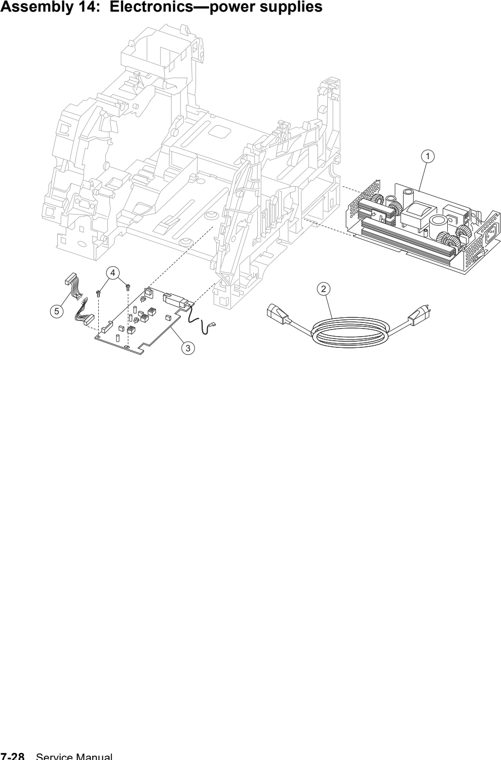

Assembly 14: Electronics—power supplies 1 56P4232 LVPS—115 V ac, 000/010 Lexmark 40x0136 Power Supply 115v T640 1532 LVPS New 40X4269 40X0136 56p4232 (New) Contact for Details 1 56P4233 LVPS—220 V ac, 000/010 1 56P4234 LVPS—115 V ac, 200/210/400/410 56P4234 Low Voltage Power Supply LVPS T642/4/1552/1572 Fully refurbished with 90-day warranty 56P4234 40x4271 $79.00 Lexmark 56P4234 Low Voltage Power Supply LVPS T642/4/1552/1572 Fully refurbished with 90-day warranty 56P4234 $78.50 1 56P4238 LVPS—220 V ac, 200/210/400/410 2 40X0260 Power cord set (8 ft right angle, 13 amp)—United States, Canada, Caribbean countries, Colombia, Costa Rica, Dominican Republic, ElSalvador, Ecuador, Guatemala, Honduras, Mexico, Nicaragua, Panama, Puerto Rico, Saudi Arabia, Venezuela, and Virgin Islands 2 40X0256 Power cord set (8 ft right angle)—Bolivia and Peru 2 40X0255 Power cord set (8 ft right angle)—Argentina 2 40X0257 Power cord set (8 ft right angle)—Chile, Uruguay 2 40X0258 Power cord set (8 ft right angle)—Arabic, Austria, Belgium, Bluemark, CIS, Czechoslovakia, Denmark, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Medmark, (1 and 2), Netherlands, Norway, Paraguay, Poland, Portugal, Russia, Slavic countries, Spain, Sweden, Turkey, and UK. 2 40X0293 Power cord set (8 ft right angle)—Arabic, Austria, Belgium, Bluemark, CIS, Czechoslovakia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Medmark, (1 and 2), Netherlands, Poland, Portugal, Russia, Slavic countries, Spain, Turkey, and UK. 2 40X4596 Power cord set (6 ft right angle)—Brazil Lexmark 40x4596 Power cord; 2.5m, 8ft. Straight, Brazil New 40x4596 (New) Contact for Details 2 40X0301 Power cord set (8 ft straight)—AS/NZS Lexmark 40x0301 Power cord; 2.5m, 8ft. Straight, Australia, New Zealand New 40x0301 (New) Contact for Details 2 40X0271 Power cord set (8 ft straight)—Hong Kong Lexmark 40x0271 Power Cord; 2.5m, 8ft. Straight, UK, Ireland, HK, IT New 40x0271 (New) Retired, no longer available: Contact for alternatives Contact for Details 2 40X0272 Power cord set (8 ft right angle)—Japan 2 40X0280 Power cord set (6 ft straight)—Korea 2 40X0303 Power cord set (8 ft straight)—PRC Lexmark 40x0303 Power cord; 2.5m, 8ft. Straight, PR China New 40x0303 (New) Contact for Details 2 40X0281 Power cord set (6 ft right angle)—Taiwan 2 40X0294 Power cord set (8 ft right angle)—Denmark, Norway, and Sweden 2 40X0295 Power cord set (8 ft right angle)—Israel 2 40X0304 Power cord set (8 ft right angle)—Botswana, Lesotho, Namibia, Pakistan, and South Africa 2 40X0305 Power cord set (8 ft right angle)—Switzerland 3 40X0138 High voltage power supply Lexmark 40X0138 High Voltage Power Supply (HVPS) Fully refurbished with 90-day warranty 40X0138 40x4275 56P4239 $49.00 5 40X0223 Front cable harness (HVPS/input sensor/toner sensor) Parts catalog 7-29 Lexmark 40X0223 Front cable harness (HVPS input sensor toner sensor) Fully refurbished with 90-day warranty 40X0223 Contact for Details

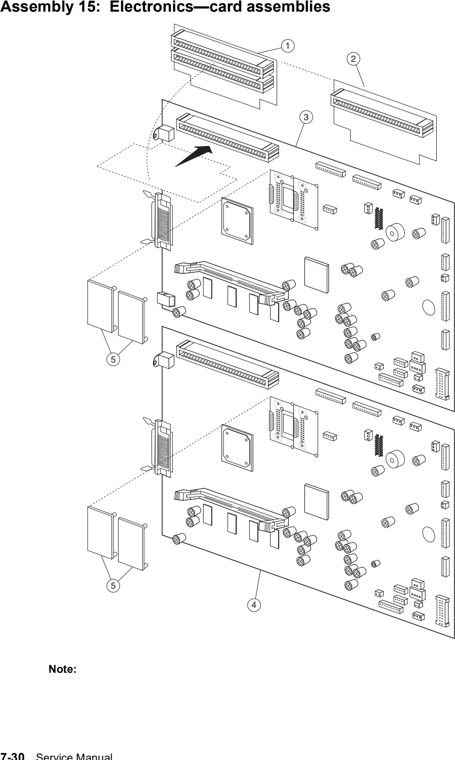

Assembly 15: Electronics—card assemblies 1 40X0148 Interconnect card assembly (2 slot), 200/210/400/410 Lexmark 40X0148 Interconnect card assembly (2 slot) 200/210 400/410 New 40X0148 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $17.50 2 40X0147 Interconnect card assembly (1 slot), 000/010 Lexmark 40X0147 Interconnect Board Assembly Fully refurbished with 90-day warranty 40X0147 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $23.25 3 40X5293 System board assembly (non-network), 000 3 40X5295 System board assembly (non-network), 200 Lexmark 40x5295 System Board Non-Network T642 (RIP) New 40x5295 40x0142 L (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40x5295 Lexmark System Board Non-Network T642 (RIP) New 40x5295 L Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details 3 40X5297 System board assembly (non-network), 400 Lexmark 40X5297 T644 Main Rip Board parallel Fully refurbished with 90-day warranty 40X5297 Contact for Details 4 40X5294 System board assembly (network), 010 4 40X5296 System board assembly (network), 210 Lexmark 40x5296 Lexmark System Board T642n Network (RIP) Fully refurbished with 90-day warranty 40x5296 L This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $159.72 Lexmark 40x5296 Lexmark System Board T642n Network (RIP) New 40x5296 L Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details 4 40X5298 System board assembly (network), 410 Lexmark 40X5298 Lexmark System Board T644n network (RIP) New 40x0145 53p4360 40X2527 40X3464 40X2742 40X5031 40x5298 40X5928 L Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details 5 40X3212 Bar code card assembly 5 40X3378 IPDS/SCS card assembly 5 40X0199 PrintCryption card assembly 5 40X0265 PRESCRIBE card assembly Parts catalog 7-31

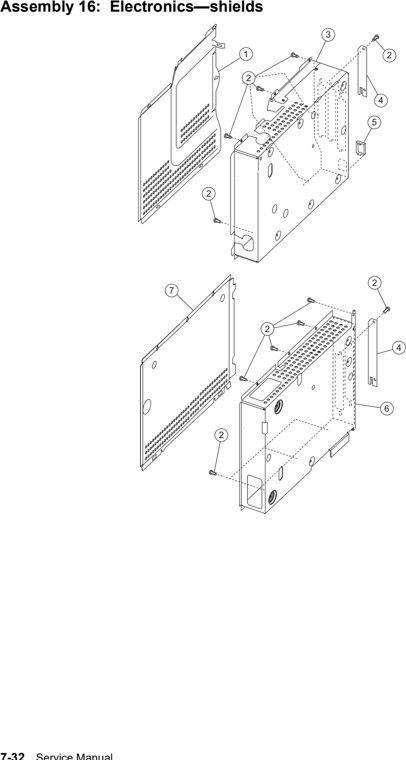

Assembly 16: Electronics—shields 1 40X0150 Outer shield—2 slot, 200/210/400/410 3 40X0149 Inner shield assembly—2 slot, 200/210/400/410 Lexmark 40X0149 Inner shield assembly, 500-Sheet New 40X0149 (New) $14.94 4 40X0153 INA flat cover (blank) 5 40X0152 Ethernet shield (blank), 010/210/410 6 40X0154 Inner shield assembly—1 slot. 000/010 7 40X0222 Outer shield—1 slot, 000/010 Parts catalog 7-33

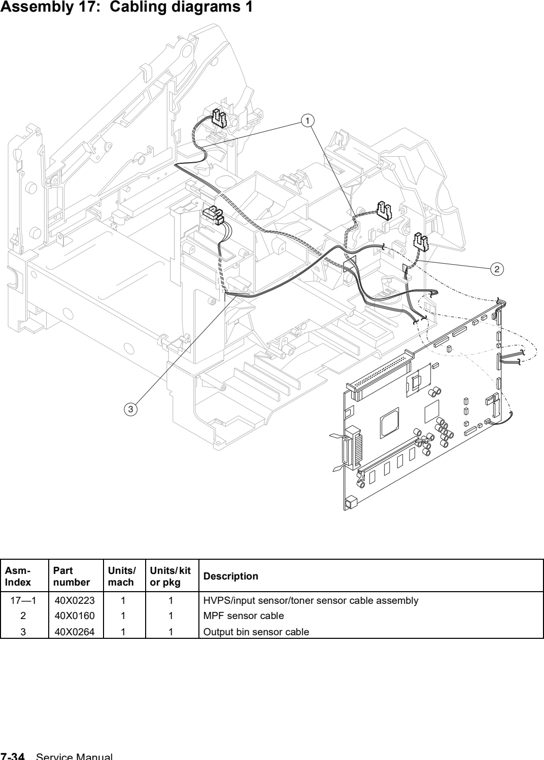

Assembly 17: Cabling diagrams 1 1 40X0223 HVPS/input sensor/toner sensor cable assembly Lexmark 40X0223 Front cable harness (HVPS input sensor toner sensor) Fully refurbished with 90-day warranty 40X0223 Contact for Details 2 40X0160 MPF sensor cable 3 40X0264 Output bin sensor cable Lexmark 40X0264 Standard Bin Level Sensor Cable New 40X0264 (New) $15.98 Lexmark 40X0264 Output Bin Level Sensor Cable Fully refurbished with 90-day warranty 40X0264 $12.00

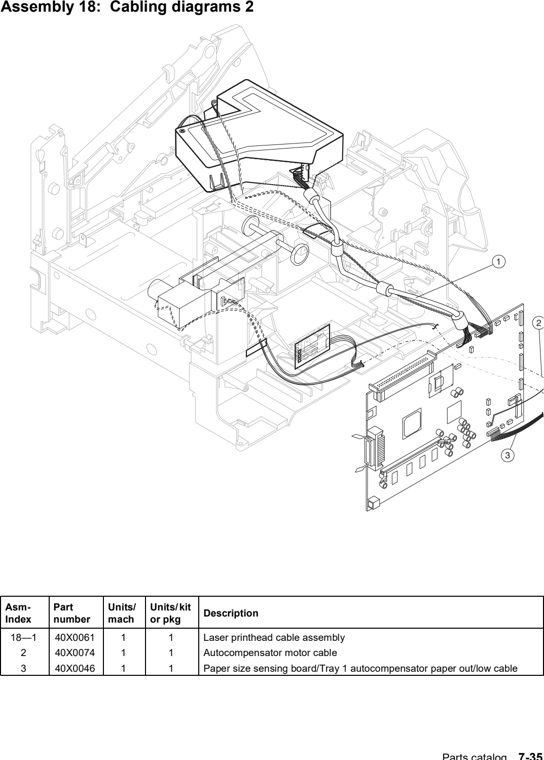

Assembly 18: Cabling diagrams 2 1 40X0061 Laser printhead cable assembly Lexmark 40X0061 Laser cable assembly New 40X0061 (New) $15.98 2 40X0074 Autocompensator motor cable Lexmark 40X0074 Paper size autocompensator cable Fully refurbished with 90-day warranty 40X0074 Contact for Details 3 40X0046 Paper size sensing board/Tray 1 autocompensator paper out/low cable Parts catalog 7-35 Lexmark 40X0046 Paper Size Sensing Board Assembly Fully refurbished with 90-day warranty 40X0046 UJ395 $19.00

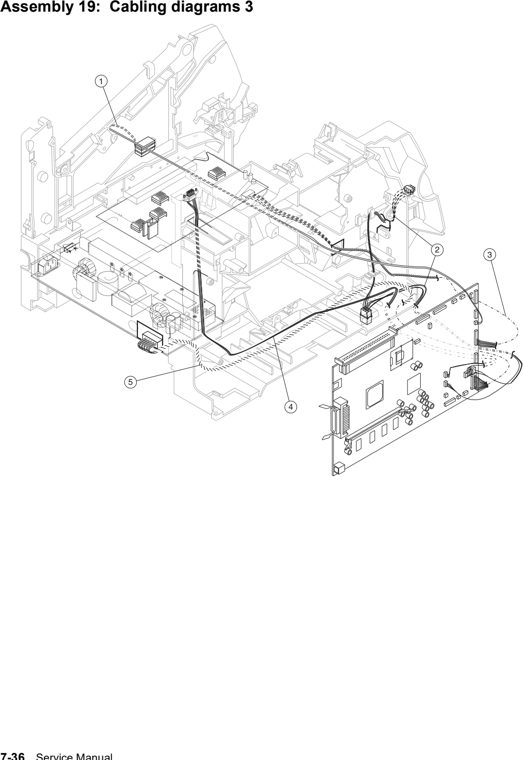

Assembly 19: Cabling diagrams 3 1 40X0034 Signature button contact assembly with cable Lexmark 40X0034 Signature button sensor assembly Fully refurbished with 90-day warranty 40X0034 Contact for Details 2 40X0156 Bottom/front autoconnect cable assembly 3 40X0223 HVPS/input sensor/toner sensor cable assembly Lexmark 40X0223 Front cable harness (HVPS input sensor toner sensor) Fully refurbished with 90-day warranty 40X0223 Contact for Details 4 40X0157 Top autoconnect cable assembly 5 40X0224 LVPS to system board cable assembly Parts catalog 7-37

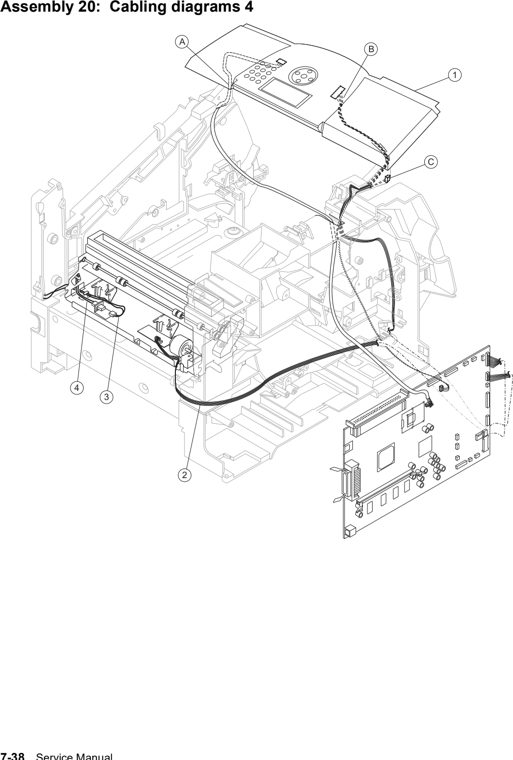

Assembly 20: Cabling diagrams 4 1 40X0006 Upper front cover hinge assembly, includes: • USB cable (A) (1) • Operator panel cable (B) (1) • Cover open switch/cable (C) (1) Lexmark 40X0006 Upper Front Cover Hinge Assembly Fully refurbished with 90-day warranty 40X0006 $20.50 Lexmark 40X0006 Upper Front Cover Hinge Assembly New 40X0006 (New) $36.00 2 40X0162 System board to fuser board cable assembly Lexmark 40X0162 System Board To Fuser Board Cable Assembly Fully refurbished with 90-day warranty 40X0162 Contact for Details 3 40X0163 Fuser AC lamp to LVPS cable assembly 4 40X0226 Fuser connector (fuser AC to fuser lamp) Parts catalog 7-39

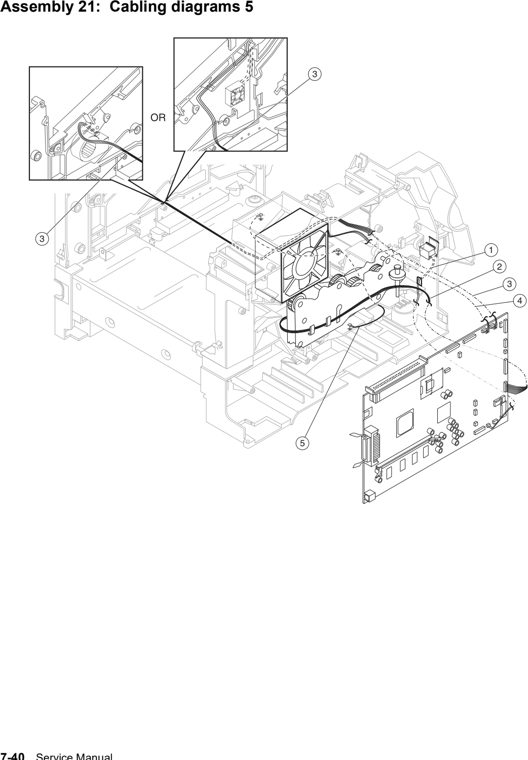

Assembly 21: Cabling diagrams 5 1 40X0083 Frame assembly with solenoid and cable Lexmark 40X0083 Multipurpose Feeder Frame Assembly With Solenoid New 40X0083 (New) $23.83 2 40X0159 Main drive motor cable assembly Lexmark 40X0159 Main drive motor cable assembly Fully refurbished with 90-day warranty 40x0159 Contact for Details 3 40X0035 EP fan with cable—250 sheet, 000/010 Lexmark 40X0035 EP DC fan assembly with cable 000/010 250 Fully refurbished with 90-day warranty 40X0035 Contact for Details Lexmark 40X0035 EP DC fan assembly with cable 000/010 250 New 40X0035 (New) Retired, no longer available: Contact for alternatives Contact for Details 3 40X0249 EP fan with cable—500 sheet, 200/210/400/410 Lexmark 40X0249 EP DC fan assembly 500 Fully refurbished with 90-day warranty 40X0249 $23.00 4 40X0053 Main fan, 250 sheet Lexmark 40X0053 Main fan with cable 250-sheet output Fully refurbished with 90-day warranty 40X0053 $15.00 Lexmark 40X0053 Main fan with cable - 250-sheet New 40X0053 (New) Retired, no longer available: Contact for alternatives Contact for Details 4 40X0054 Main fan, 500 sheet Lexmark 40X0054 Main Fan With Cable 500-Sheet Output Fully refurbished with 90-day warranty 40X0054 $20.00 Lexmark 40X0054 Main Fan With Cable 500-Sheet New 40X0054 (New) Retired, no longer available: Contact for alternatives Contact for Details 5 40X0161 Ground cable Parts catalog 7-41

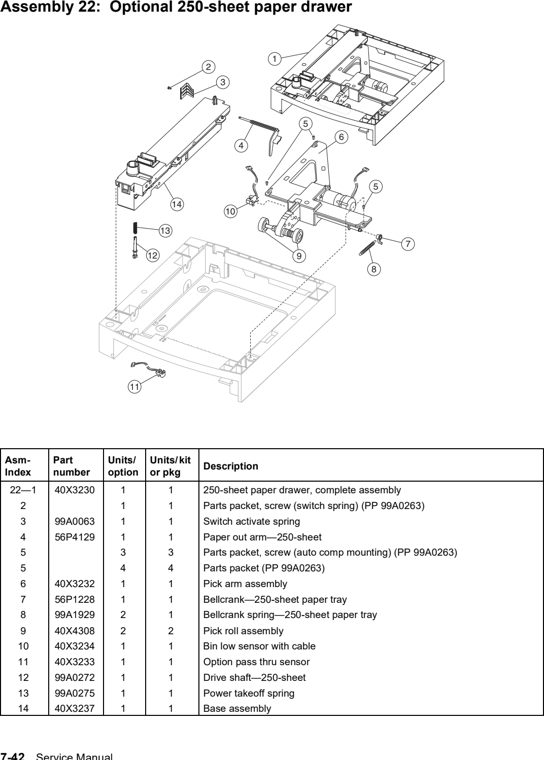

Assembly 22: Optional 250-sheet paper drawer 1 40X3230 250-sheet paper drawer, complete assembly Lexmark 40X3230 250-Sheet Drawer with Tray New 40X3230 (New) $159.50 3 99A0063 Switch activate spring Lexmark 99A0063 Switch Activate Spring Fully refurbished with 90-day warranty 99A0063 $14.62 4 56P4129 Paper out arm—250-sheet 56P4129 Paper out arm 250-sheet New 56P4129 (New) $44.00 56P4129 Paper out arm 250-sheet Fully refurbished with 90-day warranty 56P4129 $36.00 6 40X3232 Pick arm assembly Lexmark 40X3232 Pick arm assembly 250 New 40X3232 (New) $86.65 7 56P1228 Bellcrank—250-sheet paper tray 56P1228 Bellcrank Arm Assembly New 56P1228 (New) $19.00 56P1228 Bellcrank Arm Assembly Fully refurbished with 90-day warranty 56P1228 Contact for Details 8 99A1929 Bellcrank spring—250-sheet paper tray 9 40X4308 Pick roll assembly Lexmark 40X4308 Pick roll assembly (Set of 2) New 40X4308 CET5894 (New) $18.95 10 40X3234 Bin low sensor with cable Lexmark 40X3234 Bin low sensor with cable New 40X3234 (New) Contact for Details Lexmark 40X3234 Bin low sensor with cable Fully refurbished with 90-day warranty 40X3234 $34.14 11 40X3233 Option pass thru sensor Lexmark 40X3233 Option pass through sensor New 40X3233 (New) $24.71 Lexmark 40X3233 Option pass thru sensor Fully refurbished with 90-day warranty 40X3233 $25.00 12 99A0272 Drive shaft—250-sheet 13 99A0275 Power takeoff spring 14 40X3237 Base assembly Lexmark 40X3237 Base assembly - 250-sheet New 40X3237 (New) $53.21

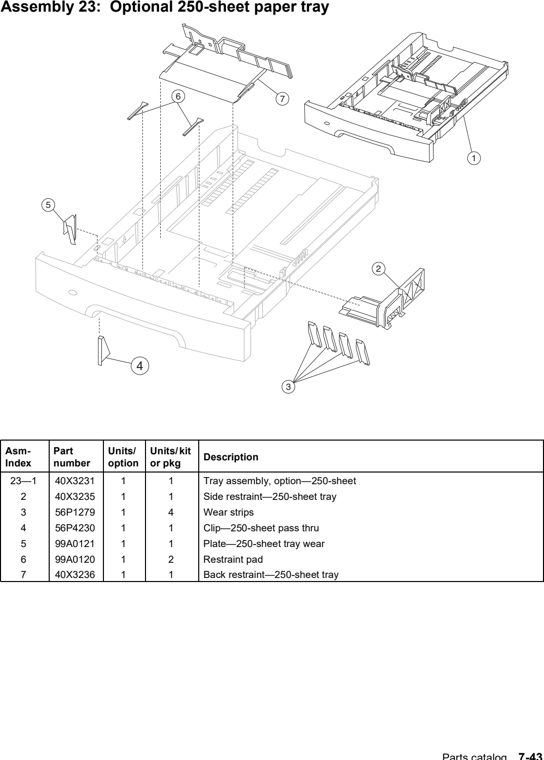

Assembly 23: Optional 250-sheet paper tray 1 40X3231 Tray assembly, option—250-sheet Lexmark 40X3231 250-Sheet Tray, complete assembly T64x, X642e, X644e, X646e New 40X3231 (New) $169.00 Lexmark 40X3231 250-Sheet Tray, complete assembly T64x, X642e, X644e, X646e Fully refurbished with 90-day warranty 40X3231 $89.00 2 40X3235 Side restraint—250-sheet tray Lexmark 40X3235 Side restraint - 250-sheet tray New 40X3235 (New) $59.82 3 56P1279 Wear strips 4 56P4230 Clip—250-sheet pass thru 5 99A0121 Plate—250-sheet tray wear 6 99A0120 Restraint pad 7 40X3236 Back restraint—250-sheet tray Parts catalog 7-43 Lexmark 40X3236 Back restraint - 250-sheet tray New 40X3236 (New) $60.44 Lexmark 40X3236 Back restraint - 250-sheet tray Fully refurbished with 90-day warranty 40X3236 $49.28

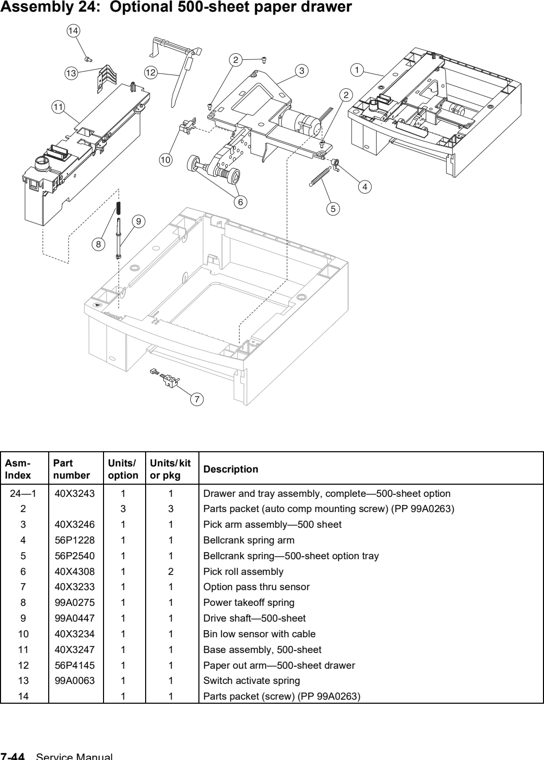

Assembly 24: Optional 500-sheet paper drawer 1 40X3243 Drawer and tray assembly, complete—500-sheet option Lexmark 40X3243 500-Sheet Drawer with Tray, Complete Assembly New 40X3243 (New) $225.00 Lexmark 40X3243 500-Sheet Drawer with Tray, Complete Assembly Fully refurbished with 90-day warranty 40X3243 $179.00 3 40X3246 Pick arm assembly—500 sheet Lexmark 40X3246 Pick arm assembly - 500-sheet New 40X3246 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X3246 Pick arm assembly - 500-sheet Fully refurbished with 90-day warranty 40X3246 $125.00 4 56P1228 Bellcrank spring arm 56P1228 Bellcrank Arm Assembly New 56P1228 (New) $19.00 56P1228 Bellcrank Arm Assembly Fully refurbished with 90-day warranty 56P1228 Contact for Details 5 56P2540 Bellcrank spring—500-sheet option tray 6 40X4308 Pick roll assembly Lexmark 40X4308 Pick roll assembly (Set of 2) New 40X4308 CET5894 (New) $18.95 7 40X3233 Option pass thru sensor Lexmark 40X3233 Option pass through sensor New 40X3233 (New) $24.71 Lexmark 40X3233 Option pass thru sensor Fully refurbished with 90-day warranty 40X3233 $25.00 8 99A0275 Power takeoff spring 9 99A0447 Drive shaft—500-sheet 10 40X3234 Bin low sensor with cable Lexmark 40X3234 Bin low sensor with cable New 40X3234 (New) Contact for Details Lexmark 40X3234 Bin low sensor with cable Fully refurbished with 90-day warranty 40X3234 $34.14 11 40X3247 Base assembly, 500-sheet Lexmark 40X3247 Base assembly 500-sheet Fully refurbished with 90-day warranty 40X3247 $165.45 12 56P4145 Paper out arm—500-sheet drawer 56P4145 Paper out arm - 500-sheet drawer New 56P4145 (New) $25.00 56P4145 Paper out arm - 500-sheet drawer Fully refurbished with 90-day warranty 56P4145 Contact for Details 13 99A0063 Switch activate spring Lexmark 99A0063 Switch Activate Spring Fully refurbished with 90-day warranty 99A0063 $14.62

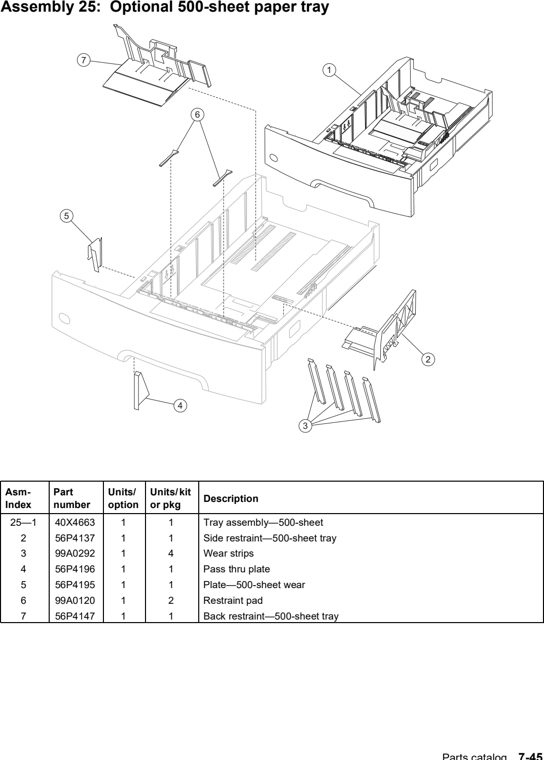

Assembly 25: Optional 500-sheet paper tray 1 40X4663 Tray assembly—500-sheet Lexmark 40X4663 500-Sheet Tray complete assembly New 40X4663 20G0084 (New) Contact for Details Lexmark 40X4663 500-Sheet Tray complete assembly Fully refurbished with 90-day warranty 40X4663 20G0084 $47.71 2 56P4137 Side restraint—500-sheet tray 56P4137 Side restraint - 500-sheet tray New 56P4137 (New) $45.00 56P4137 Side restraint - 500-sheet tray Fully refurbished with 90-day warranty 56P4137 Contact for Details 3 99A0292 Wear strips 4 56P4196 Pass thru plate 56P4196 Pass thru plate New 56P4196 (New) $25.00 56P4196 Pass thru plate Fully refurbished with 90-day warranty 56P4196 Contact for Details 5 56P4195 Plate—500-sheet wear 56P4195 Wear plate - 500 sheet New 56P4195 (New) $44.00 56P4195 Wear plate - 500 sheet Fully refurbished with 90-day warranty 56P4195 Contact for Details 6 99A0120 Restraint pad 7 56P4147 Back restraint—500-sheet tray Parts catalog 7-45 56P4147 Back restraint - 500-sheet tray New 56P4147 (New) $47.00

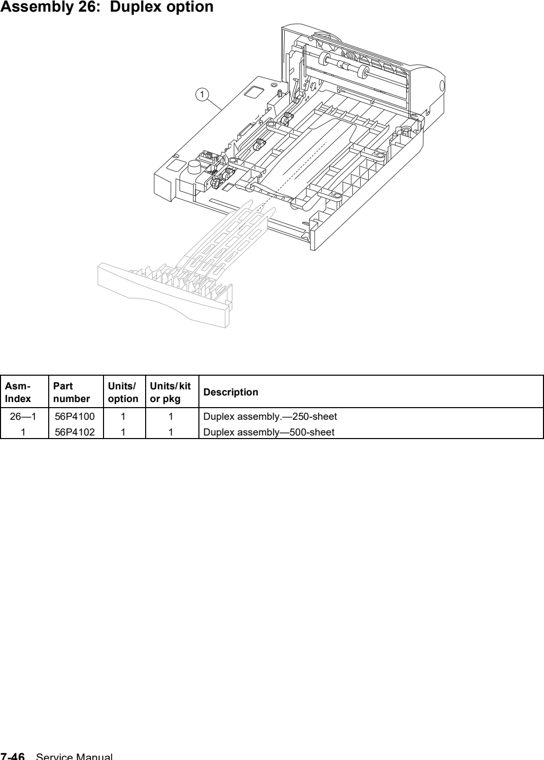

Assembly 26: Duplex option 1 56P4100 Duplex assembly.—250-sheet 56P4100 250-Sheet Duplex Unit, Complete Assembly Fully refurbished with 90-day warranty 56P4100 Retired, no longer available: Contact for alternatives Contact for Details 56P4100 250-Sheet Duplex Unit, Complete Assembly New 56P4100 (New) Retired, no longer available: Contact for alternatives Contact for Details 1 56P4102 Duplex assembly—500-sheet IBM 56P4102 500 Sheet Duplex Unit New 56P4102 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 56P4102 500 Sheet Duplex Unit Fully refurbished with 90-day warranty 56P4102 Retired, no longer available: Contact for alternatives Contact for Details

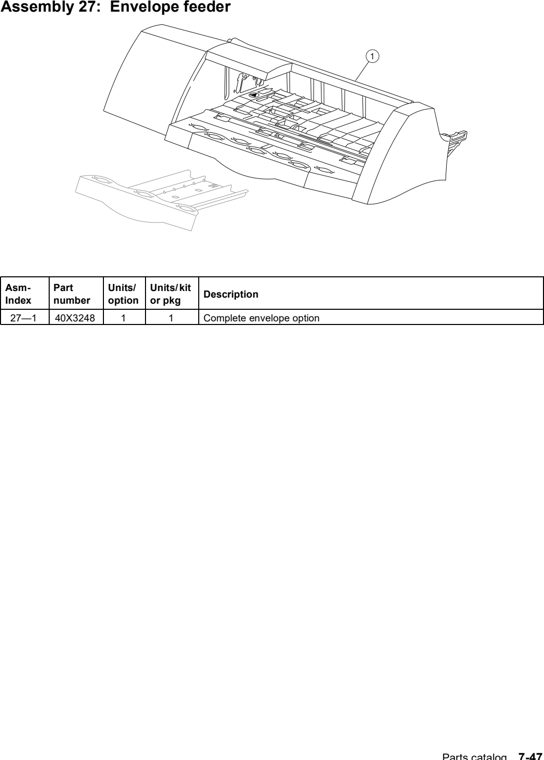

Assembly 27: Envelope feeder 1 40X3248 Complete envelope option Parts catalog 7-47

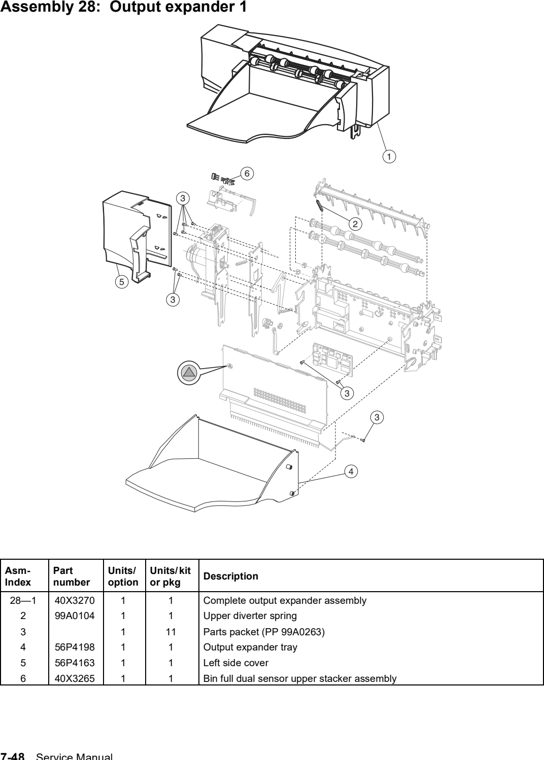

Assembly 28: Output expander 1 1 40X3270 Complete output expander assembly SaleLexmark 40X3270 Output Expander, Complete Assembly New 40X3270 56p4111 (New) ~~$123.21~~ $55.00 2 99A0104 Upper diverter spring Lexmark 99A0104 Spring, Upper Diverter New 99A0104 (New) $25.00 4 56P4198 Output expander tray 5 56P4163 Left side cover 6 40X3265 Bin full dual sensor upper stacker assembly Lexmark 40X3265 Bin full sensor New 40X3265 (New) $53.00

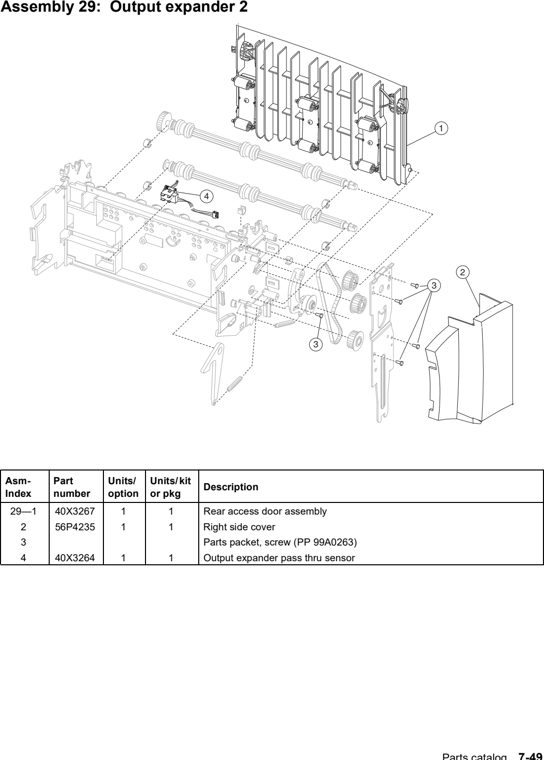

Assembly 29: Output expander 2 1 40X3267 Rear access door assembly Lexmark 40X3267 Rear Access Door Assembly New 40X3267 (New) Retired, no longer available: Contact for alternatives Contact for Details 2 56P4235 Right side cover 4 40X3264 Output expander pass thru sensor Parts catalog 7-49 Lexmark 40X3264 Sensor (pass through) New 40X3264 (New) $57.50

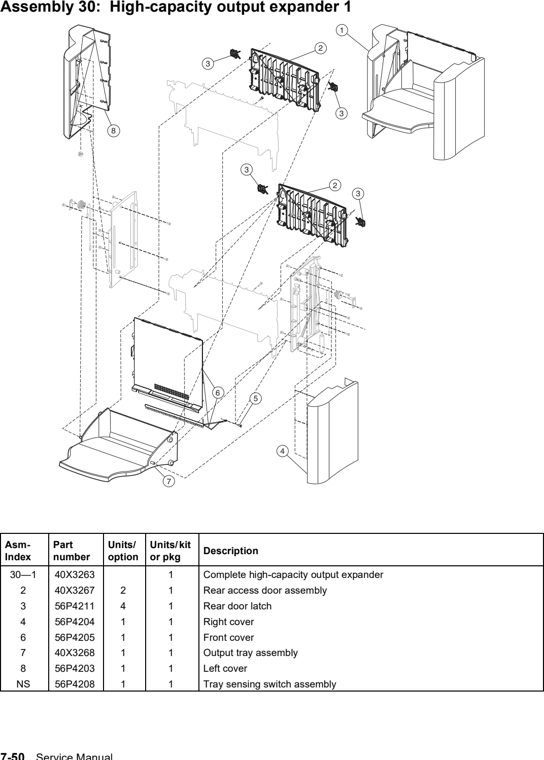

Assembly 30: High-capacity output expander 1 1 40X3263 Complete high-capacity output expander 2 40X3267 Rear access door assembly Lexmark 40X3267 Rear Access Door Assembly New 40X3267 (New) Retired, no longer available: Contact for alternatives Contact for Details 3 56P4211 Rear door latch 56P4211 Rear access door latch New 56P4211 (New) $28.00 56P4211 Rear access door latch Fully refurbished with 90-day warranty 56P4211 Contact for Details 4 56P4204 Right cover 6 56P4205 Front cover 7 40X3268 Output tray assembly 8 56P4203 Left cover NS 56P4208 Tray sensing switch assembly 56P4208 Switch (media bin HP) Fully refurbished with 90-day warranty 56P4208 Contact for Details

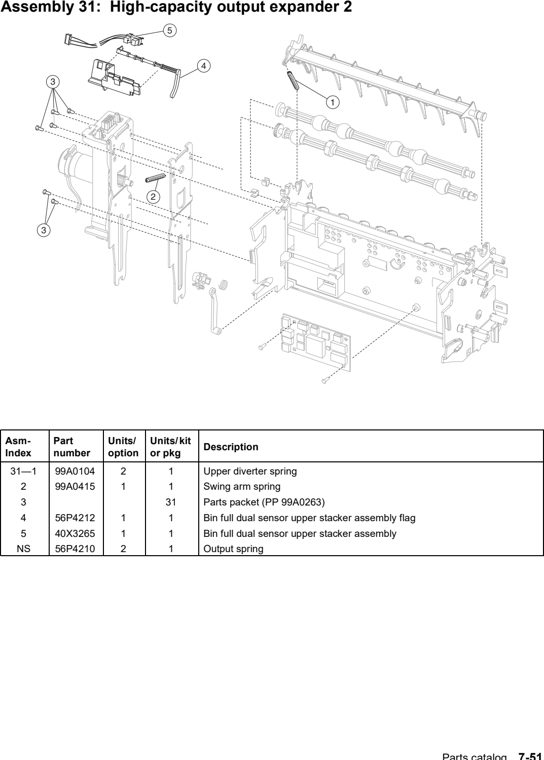

Assembly 31: High-capacity output expander 2 1 99A0104 Upper diverter spring Lexmark 99A0104 Spring, Upper Diverter New 99A0104 (New) $25.00 2 99A0415 Swing arm spring 4 56P4212 Bin full dual sensor upper stacker assembly flag 56P4212 Media bin full actuator New 56P4212 (New) $34.00 5 40X3265 Bin full dual sensor upper stacker assembly Lexmark 40X3265 Bin full sensor New 40X3265 (New) $53.00 NS 56P4210 Output spring Parts catalog 7-51 56P4210 Media output bin recoil spring Fully refurbished with 90-day warranty 56P4210 Contact for Details

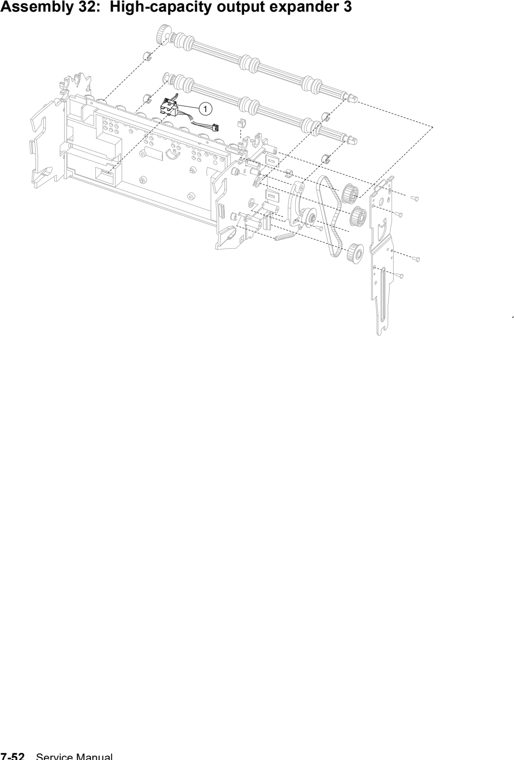

Assembly 32: High-capacity output expander 3 1 40X3264 Stacker pass thru sensor Parts catalog 7-53 Lexmark 40X3264 Sensor (pass through) New 40X3264 (New) $57.50

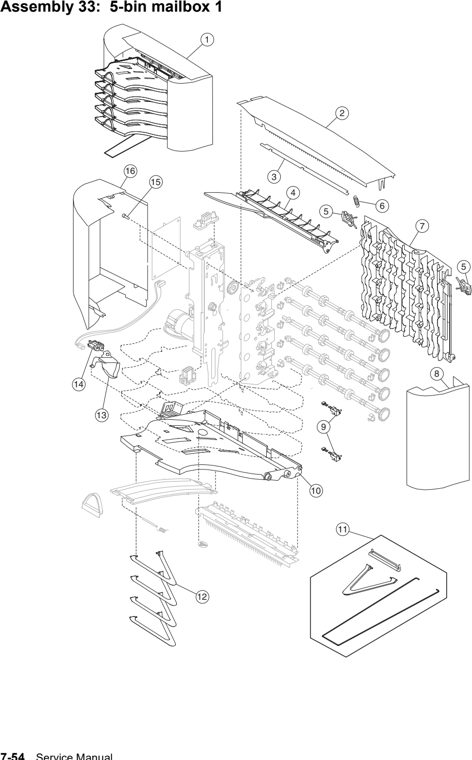

Assembly 33: 5-bin mailbox 1 1 40X3238 Complete 5-bin mailbox option Lexmark 40X3238 5-bin Mailbox, complete assembly New 40X3238 (New) $270.00 2 56P4176 Redrive cap cover 56P4176 Redrive cap cover New 56P4176 (New) $32.00 3 56P4180 Wire cover 4 56P4181 Top bin cover 5 56P4211 Rear access door latch 56P4211 Rear access door latch New 56P4211 (New) $28.00 56P4211 Rear access door latch Fully refurbished with 90-day warranty 56P4211 Contact for Details 6 99A0104 Upper diverter spring Lexmark 99A0104 Spring, Upper Diverter New 99A0104 (New) $25.00 7 56P4183 Rear access door 56P4183 5-Bin mailbox kit, T64x New 56P4183 (New) $114.00 8 56P4178 Right side cover 56P4178 Right side cover New 56P4178 40x4228 (New) $89.00 9 40X3242 5-bin mailbox pass thru sensor Lexmark 40X3242 Sensor (pass through) Fully refurbished with 90-day warranty 40X3242 $25.00 10 56P4182 Paper cap tray 11 56P4191 5-bin mailbox assembly kit 56P4191 5-bin mailbox assembly kit, T64x New 56P4191 (New) Contact for Details 56P4191 Media bail assembly Fully refurbished with 90-day warranty 56P4191 Contact for Details 13 56P4186 Bin full flag 14 40X3240 Dual paper height sensor Lexmark 40X3240 Sensor (media bin empty) Fully refurbished with 90-day warranty 40X3240 $30.10 16 56P4179 Left side cover Parts catalog 7-55
Assembly 34: 5-bin mailbox 2 2 40X2061 Diverter solenoid Parts catalog 7-57 Lexmark 40X2061 Diverter gate solenoid Fully refurbished with 90-day warranty 40X2061 $27.70
Assembly 35: High-capacity feeder 1 1 40X3249 Complete option assembly (A4) Lexmark 40X3249 2000-Sheet High Capacity Feeder (A4), complete assembly T64x, X642e, X644e, X646e New 40X3249 (New) $1247.75 2 99A1818 Wear dimple strip 3 99A0681 Wear strip 4 40X3254 Front door assembly Lexmark 40X3254 Front door assembly New 40X3254 56P4155 (New) $160.03 5 56P4157 Door hinge 9 40X3252 2000-sheet option control card assembly Lexmark 40X3252 2000-sheet HCF Lower control card assembly New 40X3252 (New) $101.70 10 99A0658 Door magnet Parts catalog 7-59
Assembly 36: High-capacity feeder 2 1 99A0654 Paper low switch Lexmark 99A0654 Paper low switch New 99A0654 (New) Contact for Details 3 40X3262 AC external jumper cord Lexmark 40X3262 AC External Jumper Cord New 40X3262 (New) $139.00 4 40X2669 Power supply board Parts catalog 7-61 Lexmark 40X2669 Power supply board Fully refurbished with 90-day warranty 40X2669 $105.10

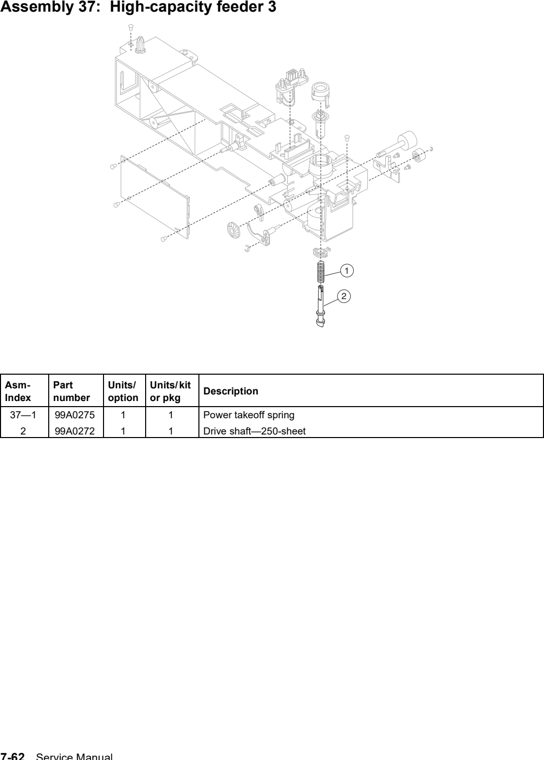

Assembly 37: High-capacity feeder 3 1 99A0275 Power takeoff spring 2 99A0272 Drive shaft—250-sheet

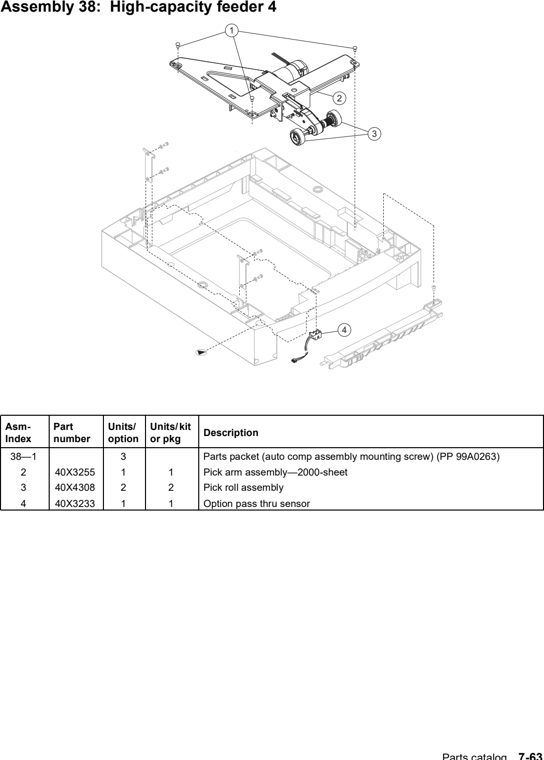

Assembly 38: High-capacity feeder 4 2 40X3255 Pick arm assembly—2000-sheet Lexmark 40X3255 Pick arm assembly - 2000-sheet New 40X3255 56P4162 (New) $136.97 3 40X4308 Pick roll assembly Lexmark 40X4308 Pick roll assembly (Set of 2) New 40X4308 CET5894 (New) $18.95 4 40X3233 Option pass thru sensor Parts catalog 7-63 Lexmark 40X3233 Option pass through sensor New 40X3233 (New) $24.71 Lexmark 40X3233 Option pass thru sensor Fully refurbished with 90-day warranty 40X3233 $25.00

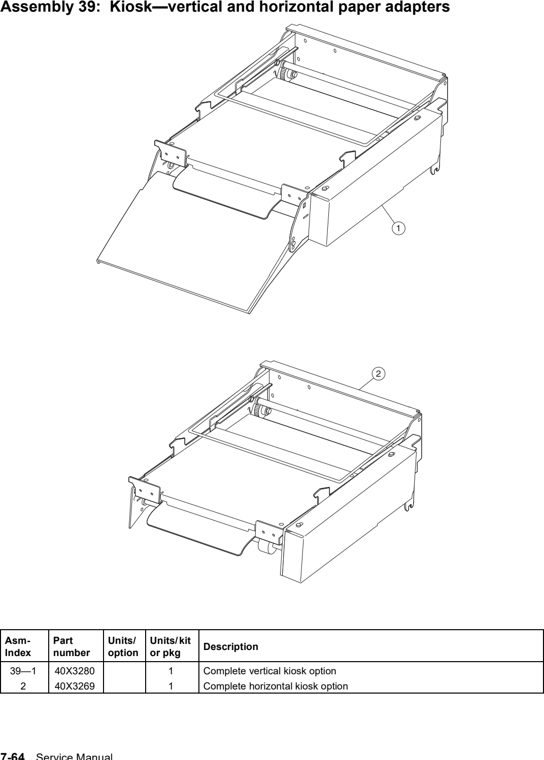

Assembly 39: Kiosk—vertical and horizontal paper adapters 1 40X3280 Complete vertical kiosk option Lexmark 40X3280 Vertical Kiosk, Complete Assembly T63x, T64x New 40X3280 (New) $1112.12 2 40X3269 Complete horizontal kiosk option Lexmark 40X3269 Horizontal Kiosk complete assembly T63x T64x New 40X3269 (New) $2658.24

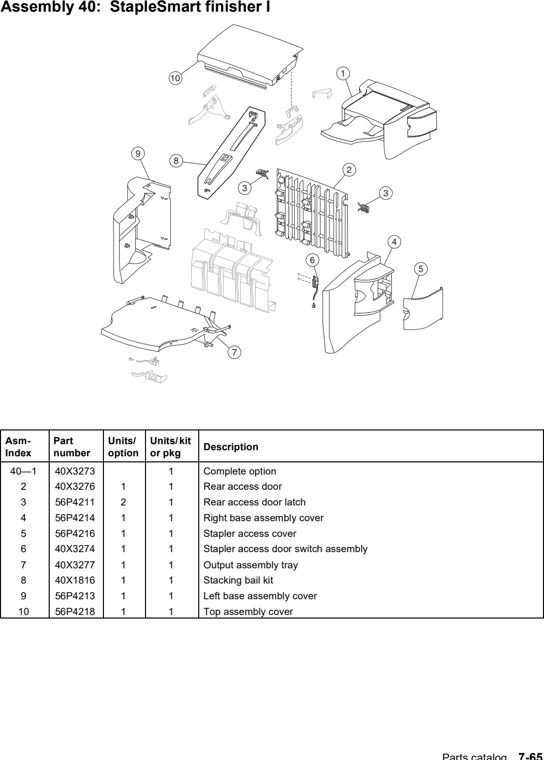

Assembly 40: StapleSmart finisher I 1 40X3273 Complete option SaleLexmark 40x3273 StapleSmart Finisher, Complete Assembly New 40x3273 (New) ~~$324.71~~ $250.00 2 40X3276 Rear access door Lexmark 40X3276 Rear access door New 40X3276 (New) $51.66 Lexmark 40X3276 Rear access door Fully refurbished with 90-day warranty 40X3276 $42.12 3 56P4211 Rear access door latch 56P4211 Rear access door latch New 56P4211 (New) $28.00 56P4211 Rear access door latch Fully refurbished with 90-day warranty 56P4211 Contact for Details 4 56P4214 Right base assembly cover 5 56P4216 Stapler access cover 6 40X3274 Stapler access door switch assembly Lexmark 40X3274 Stapler access door switch assembly New 40X3274 (New) $36.41 Lexmark 40X3274 Stapler access door switch assembly Fully refurbished with 90-day warranty 40X3274 $29.68 7 40X3277 Output assembly tray Lexmark 40X3277 Output assembly tray New 40X3277 (New) $72.49 Lexmark 40X3277 Output assembly tray Fully refurbished with 90-day warranty 40X3277 $59.12 8 40X1816 Stacking bail kit Lexmark 40X1816 Stacking Bail Kit New 40X1816 (New) $43.46 Lexmark 40X1816 Stacking Bail Kit Fully refurbished with 90-day warranty 40X1816 Contact for Details 9 56P4213 Left base assembly cover 10 56P4218 Top assembly cover Parts catalog 7-65

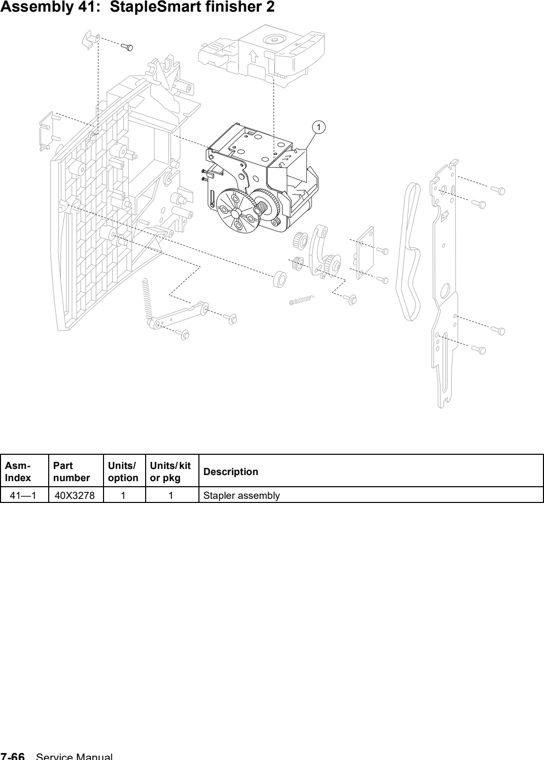

Assembly 41: StapleSmart finisher 2 1 40X3278 Stapler assembly Lexmark 40X3278 Stapler assembly New 40X3278 (New) $258.33 Lexmark 40X3278 Stapler assembly Fully refurbished with 90-day warranty 40X3278 $198.65

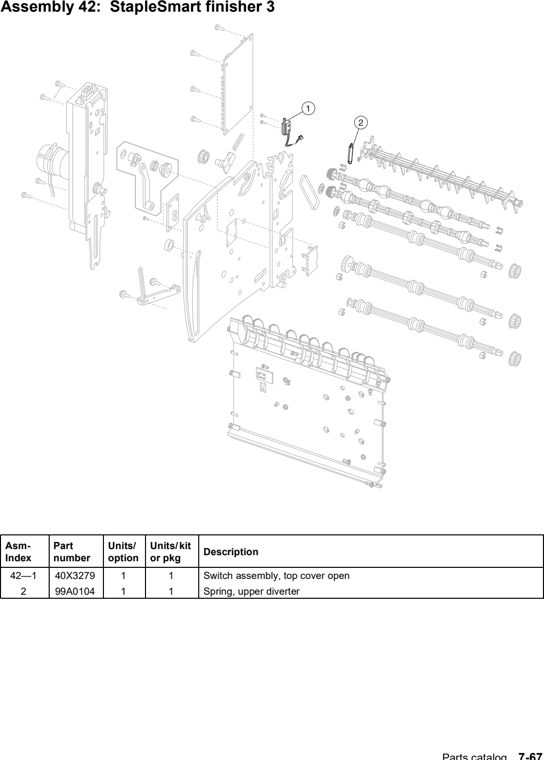

Assembly 42: StapleSmart finisher 3 1 40X3279 Switch assembly, top cover open Lexmark 40X3279 Switch assembly New 40X3279 (New) $130.12 Lexmark 40X3279 Switch assembly Fully refurbished with 90-day warranty 40X3279 $108.38 2 99A0104 Spring, upper diverter Parts catalog 7-67 Lexmark 99A0104 Spring, Upper Diverter New 99A0104 (New) $25.00

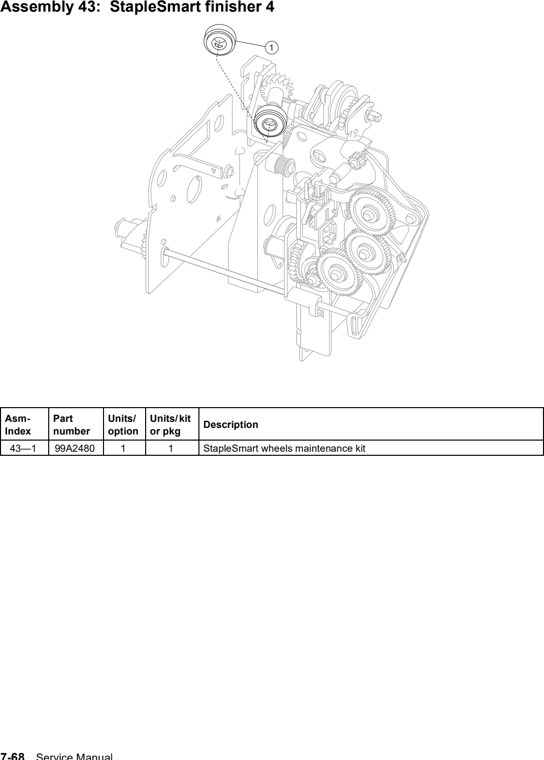

Assembly 43: StapleSmart finisher 4 1 99A2480 StapleSmart wheels maintenance kit

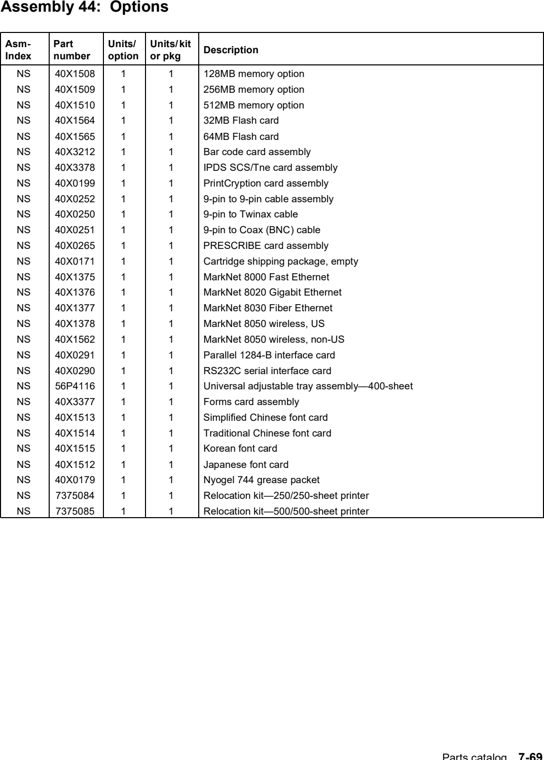

Assembly 44: Options NS 40X1508 128MB memory option Lexmark 40X1508 Lexmark Brand 128MB Memory New 40X1508 (New) $27.50 Lexmark 40X1508 Lexmark Brand 128MB Memory Fully refurbished with 90-day warranty 40X1508 $24.50 NS 40X1509 256MB memory option Lexmark 40X1509 Lexmark Brand 256 MB DIMM New 40X1509 (New) $71.21 Lexmark 40X1509 Lexmark Brand 256 MB DIMM Fully refurbished with 90-day warranty 40X1509 $69.71 NS 40X1510 512MB memory option Lexmark 40x1510 512MB DDR Memory New 40X1510 40X5939 (New) $199.00 Lexmark 40x1510 512MB DDR Memory Fully refurbished with 90-day warranty 40X1510 40X5939 Compatible $49.00 NS 40X1564 32MB Flash card Lexmark 40X1564 32MB Flash Fully refurbished with 90-day warranty 40X1564 $25.00 NS 40X1565 64MB Flash card NS 40X3212 Bar code card assembly NS 40X3378 IPDS SCS/Tne card assembly NS 40X0199 PrintCryption card assembly NS 40X0252 9-pin to 9-pin cable assembly Lexmark 40X0252 9-Pin To 9-Pin Cable New 40X0252 (New) Contact for Details NS 40X0250 9-pin to Twinax cable Lexmark 40X0250 9-pin to Twinax cable New 40X0250 (New) $30.06 Lexmark 40X0250 9-pin to Twinax cable Fully refurbished with 90-day warranty 40X0250 Contact for Details NS 40X0251 9-pin to Coax (BNC) cable Lexmark 40X0251 9-pin To Coax (BNC) Cable New 40X0251 (New) $30.06 Lexmark 40X0251 9-pin to Coax (BNC) cable Fully refurbished with 90-day warranty 40X0251 $24.49 NS 40X0265 PRESCRIBE card assembly NS 40X0171 Cartridge shipping package, empty NS 40X1375 MarkNet 8000 Fast Ethernet Lexmark 40X1375 MarkNet N8000 Fast Ethernet Fully refurbished with 90-day warranty 40X1375 $195.00 NS 40X1376 MarkNet 8020 Gigabit Ethernet Lexmark 40X1376 MarkNet N8020 GigaBit Ethernet New 40X1376 (New) $175.00 Lexmark 40X1376 MarkNet N8020 GigaBit Ethernet Fully refurbished with 90-day warranty 40X1376 $125.00 NS 40X1377 MarkNet 8030 Fiber Ethernet Lexmark 40X1377 MarkNet N8030 Fiber Ethernet 100BaseTX New 40X1377 (New) Contact for Details Lexmark 40X1377 MarkNet N8030 Fiber Ethernet 100BaseTX Fully refurbished with 90-day warranty 40X1377 Contact for Details NS 40X1378 MarkNet 8050 wireless, US Lexmark 40X1378 MarkNet N8050 802.11g Wireless Print Server US New 40X1378 (New) Contact for Details Lexmark 40X1378 MarkNet N8050 802.11g Wireless Print Server US Fully refurbished with 90-day warranty 40X1378 Contact for Details NS 40X1562 MarkNet 8050 wireless, non-US Lexmark 40X1562 MarkNet N8050 802.11g Wireless Print Server Not-US New 40X1562 (New) Contact for Details Lexmark 40X1562 MarkNet N8050 802.11g Wireless Print Server Not-US Fully refurbished with 90-day warranty 40X1562 Contact for Details NS 40X0291 Parallel 1284-B interface card Lexmark 40X0291 Parallel 1284B Card Assembly New 40X0291 (New) $15.00 NS 40X0290 RS232C serial interface card Lexmark 40X0290 Serial RS232C Card Assembly New 40X0290 56P1436 (New) $15.00 NS 56P4116 Universal adjustable tray assembly—400-sheet Lexmark 56P4116 400 Sheet Tray New 56P4116 (New) $299.00 NS 40X3377 Forms card assembly NS 40X1513 Simplified Chinese font card NS 40X1514 Traditional Chinese font card NS 40X1515 Korean font card NS 40X1512 Japanese font card NS 40X0179 Nyogel 744 grease packet NS 7375084 Relocation kit—250/250-sheet printer NS 7375085 Relocation kit—500/500-sheet printer Parts catalog 7-69
Other listed parts 20G0891 Envelope Feeder Lexmark 20G0891 Envelope Feeder New 20G0891 40x3248 (New) Contact for Details Lexmark 20G0891 Envelope Feeder Fully refurbished with 90-day warranty 20G0891 40x3248 $275.00 40X0055 Left side frame ground contact Lexmark 40X0055 Left side frame ground contact Fully refurbished with 90-day warranty 40X0055 $81.25 40X0070 Pick roll assembly - set of two Lexmark 40X0070 Pick roll assembly - set of two New 40X0070 40X4308 CET5894 (New) $18.95 40X0075 Multipurpose Feeder Arm Assembly Lexmark 40X0075 Multipurpose Feeder Arm Assembly Fully refurbished with 90-day warranty 40X0075 $23.83 40X0082 Pick roll shaft bushing Lexmark 40X0082 Pick roll shaft bushing Fully refurbished with 90-day warranty 40X0082 Contact for Details 40X0087 Integrated 250-sheet tray Lexmark 40X0087 Integrated 250-sheet tray Fully refurbished with 90-day warranty 40X0087 $89.00 Lexmark 40X0087 Integrated 250-sheet tray New 40X0087 (New) Contact for Details 40X0091 Restraint pad 40X0098 500 Sheet Tray Lexmark 40X0098 500 Sheet Tray New 40X0098 (New) $119.00 Lexmark 40X0098 500 Sheet Tray Fully refurbished with 90-day warranty 40X0098 $91.20 40X0113 Bevel Gear Kit Lexmark 40X0113 Bevel Gear Kit New 40X0113 (New) Contact for Details Lexmark 40X0113 Bevel Gear Kit Fully refurbished with 90-day warranty 40X0113 $24.47 40X0140 Lexmark System Board T640 Non-Network (RIP) Lexmark 40x0140 System Board T640 Non-Network (RIP) Fully refurbished with 90-day warranty 40x0140 56p4355 40x2522 40X3459 40x5026 40x5293 L This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $159.00 Lexmark 40x0140 System Board T640 Non-Network (RIP) New 40x0140 56p4355 40x2522 40X3459 40x5026 40x5293 L Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details 40X0141 Lexmark System Board T640n Network (RIP) Lexmark 40x0141 Lexmark System Board T640n Network (RIP) New 40x0141 L (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details Lexmark 40x0141 Lexmark System Board T640n Network (RIP) Fully refurbished with 90-day warranty 40x0141 L Exchange This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details 40X0142 Lexmark System Board T642 Non-Nnetwork (RIP) Lexmark 40x0142 Lexmark System Board T642 Non-Nnetwork (RIP) New 40x0142 L (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40x0142 Lexmark System Board T642 Non-Network (RIP) New 40x0142 L Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details 40X0143 Lexmark System Board T642N Network (RIP) Lexmark 40X0143 Lexmark System Board T642N Network (RIP) Fully refurbished with 90-day warranty 40X0143 L This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $159.00 Lexmark 40X0143 Lexmark System Board T642N Network (RIP) New 40X0143 L Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X0143 Lexmark System Board T642N Network (RIP) New 40X0143 L (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details 40X0144 Lexmark System board T644 Non-Network (RIP) Lexmark 40X0144 Lexmark System board T644 Non-Network (RIP) New 40X0144 L (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X0144 Lexmark System board T644 Non-Network (RIP) New 40X0144 L Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details 40X0145 Lexmark System board T644n network (RIP) Lexmark 40X0145 Lexmark System board T644n network (RIP) New 40x0145 53p4360 40X2527 40X3464 40X2742 40X5031 40x5298 40X5928 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details Lexmark 40X0145 Lexmark System board T644n network (RIP) New 40x0145 53p4360 40X2527 40X3464 40X2742 40X5031 40x5298 40X5928 Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details 40X0165 ) 40X0227 ) 40X0330 Exit sensor cable Lexmark 40X0330 Exit sensor cable Fully refurbished with 90-day warranty 40X0330 Contact for Details 40X0331 Left side hand holder Lexmark 40X0331 Left side hand holder Fully refurbished with 90-day warranty 40X0331 Contact for Details 40X2522 Lexmark System Board T640 Non-Network (RIP) Lexmark 40x2522 Lexmark System Board T640 Non-Network (RIP) New 40x2522 L Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $179.72 Retired, no longer available: Contact for alternatives Lexmark 40x2522 Lexmark System Board T640 Non-Network (RIP) New 40x2522 L (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $179.72 Retired, no longer available: Contact for alternatives 40X2523 Lexmark System Board T640n Network (RIP) Lexmark 40x2523 Lexmark System Board T640n Network (RIP) Fully refurbished with 90-day warranty 40x2523 L This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details Lexmark 40x2523 Lexmark System Board T640n Network (RIP) New 40x2523 L Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details 40X2524 Lexmark System Board T642 Non-Network (RIP) Lexmark 40x2524 Lexmark System Board T642 Non-Network (RIP) New 40x2524 L (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40x2524 Lexmark System Board T642 Non-Network (RIP) New 40x2524 L Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details 40X2525 Lexmark System Board T642n Network (RIP) Lexmark 40x2525 Lexmark System Board T642n Network (RIP) New 40x2525 L Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40x2525 Lexmark System Board T642n Network (RIP) Fully refurbished with 90-day warranty 40x2525 L This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $159.72 Lexmark 40x2525 Lexmark System Board T642n Network (RIP) New 40x2525 L (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40x2525 Lexmark System Board T642n Network (RIP) Fully refurbished with 90-day warranty 40x2525 L Advanced Exchange This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $159.72 40X2526 Lexmark System Board T644 Non-Network (RIP) Lexmark 40x2526 Lexmark System Board T644 Non-Network (RIP) New 40x2526 L (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40x2526 Lexmark System Board T644 Non-Network (RIP) New 40x2526 L Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details 40X2739 System Board Non-Network T642 (RIP) Lexmark 40x2739 System Board Non-Network T642 (RIP) New 40X2739 L (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40x2739 Lexmark System Board Non-Network T642 (RIP) New 40x2739 L Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details 40X3459 Lexmark System Card T640 Non-Network (RIP) Lexmark 40X3459 Lexmark System Card T640 Non-Network (RIP) New 40X3459 L (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X3459 Lexmark System Card T640 Non-Network (RIP) New 40X3459 L Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details 40X3460 Lexmark System Board T640n Network (RIP) Lexmark 40x3460 Lexmark System Board T640n Network (RIP) Fully refurbished with 90-day warranty 40x3460 L This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details Lexmark 40x3460 Lexmark System Board T640n Network (RIP) New 40x3460 L Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details 40X3461 Lexmark System Board T642 Non-Network (RIP) Lexmark 40x3461 Lexmark System Board T642 Non-Network (RIP) New 40x3461 L (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40x3461 Lexmark System Board T642 Non-Network (RIP) New 40x3461 L Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details 40X3462 Lexmark System Board T642n Network (RIP) Lexmark 40X3462 Advanced Exchange Lexmark System Board T642n Network (RIP) New 40X3462 L Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $224.72 Retired, no longer available: Contact for alternatives Lexmark 40X3462 L Advanced Exchange This part is exmark System Board T642n Network (RIP) Fully refurbished with 90-day warranty 40X3462 L Advanced Exchange This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $159.72 Lexmark 40X3462 Lexmark System Board T642n Network (RIP) New 40X3462 L (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X3462 Lexmark System Board T642n Network (RIP) Fully refurbished with 90-day warranty 40X3462 L This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $159.72 40X3463 Lexmark Network System Card T644 Non-Network (RIP) Lexmark 40X3463 Lexmark Network System Card T644 Non-Network (RIP) New 40X3463 L (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X3463 Lexmark Network System Card T644 Non-Network (RIP) New 40X3463 L Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details 40X3464 Lexmark System Board T644n network (RIP) Lexmark 40X3464 Lexmark System Board T644n network (RIP) New 40x0145 53p4360 40X2527 40X3464 40X2742 40X5031 40x5298 40X5928 L (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details Lexmark 40X3464 Lexmark System Board T644n network (RIP) New 40x0145 53p4360 40X2527 40X3464 40X2742 40X5031 40x5298 40X5928 L Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details Lexmark 40X3464 Lexmark System Board T644n network (RIP) Fully refurbished with 90-day warranty 40x0145 53p4360 40X2527 40X3464 40X2742 40X5031 40x5298 40X5928 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details 40X5026 Lexmark System Board T640 Non-Network (RIP) Lexmark 40x5026 Lexmark System Board T640 Non-Network (RIP) New 40x5026 L (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40x5026 Lexmark System Board T640 Non-Network (RIP) New 40x5026 L Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details 40X5027 Lexmark System Board T640n Network (RIP) Lexmark 40X5027 Lexmark System Board T640n Network (RIP) Fully refurbished with 90-day warranty 40x5027 L This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details Lexmark 40X5027 Lexmark System Board T640n Network (RIP) New 40X5027 L Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details 40X5028 Lexmark System Board Non-Network T642 (RIP) Lexmark 40x5028 Lexmark System Board Non-Network T642 (RIP) New 40X5028 L (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40x5028 Lexmark System Board Non-Network T642 (RIP) New 40x5028 L Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details 40X5029 Lexmark System Board T642n network (RIP) Lexmark 40x5029 Lexmark System Board T642n network (RIP) New 40X5029 L (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40x5029 Lexmark System Board T642n network (RIP) Fully refurbished with 90-day warranty 40x5029 L This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $159.72 Lexmark 40x5029 Lexmark System Board T642n network (RIP) New 40X5029 L Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40x5029 Lexmark System Board T642n network (RIP) Fully refurbished with 90-day warranty 40x5029 L Advanced Exchange This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $159.72 40X5030 Lexmark System Board T644n network (RIP) Lexmark 40X5030 Lexmark System Board T644n network (RIP) Fully refurbished with 90-day warranty 40x5030 L Advanced Exchange This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $109.71 Lexmark 40X5030 Lexmark System Board T644n network (RIP) New 40X5030 L Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details 40X5031 Lexmark System Board T644n network (RIP) Lexmark 40x5031 Lexmark System Board T644n network (RIP) New 40x0145 53p4360 40X2527 40X3464 40X2742 40X5031 40x5298 40X5928 L (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details 56P4112 High Capacity Output Expander 56p4112 High Capacity Output Expander New 56p4112 40x3263 (New) $667.42 56p4112 High Capacity Output Expander Fully refurbished with 90-day warranty 56p4112 40x3263 $513.17 56P4244 High Voltage Power Supply HVPS 56P4244 High Voltage Power Supply HVPS New 56P4244 (New) Contact for Details 56P4244 High Voltage Power Supply HVPS Fully refurbished with 90-day warranty 56P4244 $49.00 56P4355 Lexmark System Board T640 Non-Network (RIP) Lexmark 56p4355 System Board T640 Non-Network (RIP) New 56p4355 L (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $179.72 Retired, no longer available: Contact for alternatives Lexmark 56p4355 System Board T640 Non-Network (RIP) New 56p4355 L Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $179.72 Retired, no longer available: Contact for alternatives 56P4358 Lexmark System Board T642n network (RIP) Lexmark 56p4358 System Board T642n network (RIP) New 56p4358 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details Lexmark 56p4358 System Board T642n network (RIP) New 56p4358 L Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details Lexmark 56p4358 System Board T642n network (RIP) Fully refurbished with 90-day warranty 56p4358 L This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details 56P4359 Lexmark System Board T644 Non-Network (RIP) Lexmark 56p4359 System Board T644 Non-Network (RIP) New 56p4359 L (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details Lexmark 56p4359 System Board T644 Non-Network (RIP) New 56p4359 L Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details 56P4360 Lexmark System Board T644n network (RIP) Lexmark 56p4360 System Board T644n network (RIP) New 56p4360 L (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $184.72 Lexmark 56p4360 System Board T644n network (RIP) New 56p4360 L Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $184.72 Lexmark 56p4360 System Board T644n network (RIP) Fully refurbished with 90-day warranty 56p4360 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $124.71 56P5294 Lexmark System Board T640n network (RIP) Lexmark 56P5294 Lexmark System Board T640n network (RIP) Fully refurbished with 90-day warranty 56P5294 40X5294 L This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details Lexmark 56P5294 Lexmark System Board T640n network (RIP) New 56P5294 40X5294 L Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details 99A0263 Screws Parts Packet Lexmark 99A0263 Screws Parts Packet New 99A0263 (New) Contact for Details 99A0676 ) 99A0677 )
