Lexmark X204n Parts
Please call for parts assistance

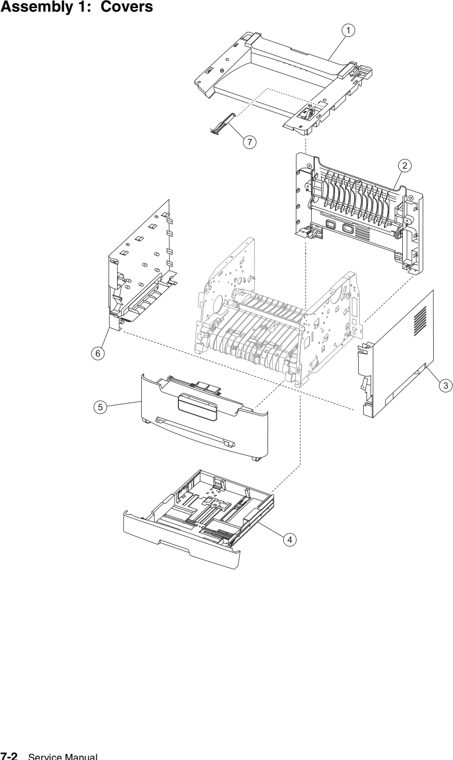

| Assembly 1: Covers 1 40X5635 Top cover 1 40X5764 Cam follower 2 40X5638 Rear cover assembly Lexmark 40X5638 Rear cover assembly New 40X5638 (New) Retired, no longer available: Contact for alternatives 3 40X5637 Right cover 4 40X5774 Main tray 5 40X5640 Front cover assembly Lexmark 40X5640 Front cover assembly New 40X5640 (New) Retired, no longer available: Contact for alternatives 6 40X5636 Left cover 7 40X5764 Cam follower w/spring Parts catalog 7-3 |  |

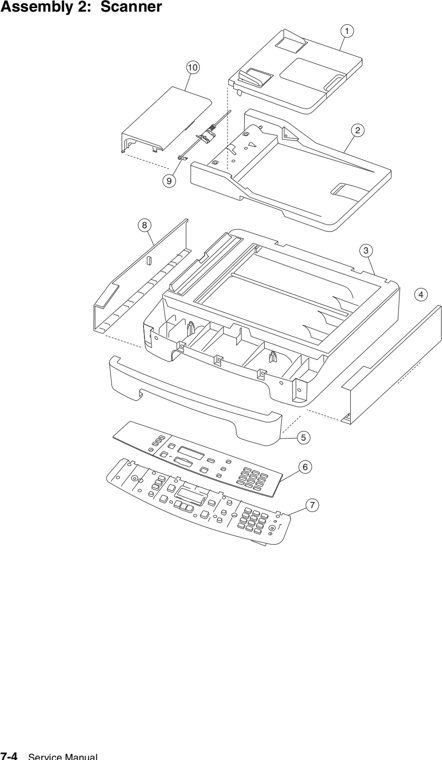

| Assembly 2: Scanner 1 40X5632 ADF input tray assembly Lexmark 40X5632 ADF input tray assembly, X204 New 40X5632 (New) Retired, no longer available: Contact for alternatives 2 40X5761 ADF assembly (X204 0nly) Lexmark 40X5761 ADF assembly, X204 New 40X5761 (New) Retired, no longer available: Contact for alternatives 3 40X5767 Flatbed assembly Lexmark 40X5767 Flatbed assembly New 40X5767 (New) Retired, no longer available: Contact for alternatives 4 40X5759 Right flatbed cover 5 40X5641 Scanner front cover 6 40X0384 X 203 Operator panel overlay (English) 6 40X0385 X 204 Operator panel overlay (English) 6 40X0354 X 203 Operator panel overlay (Spanish) 6 40X0355 X 204 Operator panel overlay (Spanish) 6 40X0348 X 203 Operator panel overlay (French) 6 40X0349 X 204 Operator panel overlay (French) 6 40X0356 X 203 Operator panel overlay (Brazilian Portuguese) 6 40X0357 X 204 Operator panel overlay (Brazilian Portuguese) 6 40X0352 X 203 Operator panel overlay (German) 6 40X0353 X 204 Operator panel overlay (German) 6 40X0350 X 203 Operator panel overlay (Italian) 6 40X0351 X 204 Operator panel overlay (Italian) 6 40X0358 X 203 Operator panel overlay (Dutch) 6 40X0359 X 204 Operator panel overlay (Dutch) 6 40X0360 X 203 Operator panel overlay (Danish) 6 40X0361 X 204 Operator panel overlay (Danish) 6 40X0362 X 203 Operator panel overlay (Norwegian) 6 40X0363 X 204 Operator panel overlay (Norwegian) 6 40X0364 X 203 Operator panel overlay (Swedish) 6 40X0365 X 204 Operator panel overlay (Swedish) 6 40X0366 X 203 Operator panel overlay (Finnish) 6 40X0367 X 204 Operator panel overlay (Finnish) 6 40X0370 X 203 Operator panel overlay (Russian) 6 40X0371 X 204 Operator panel overlay (Russian) 6 40X0368 X 203 Operator panel overlay (Polish) 6 40X0369 X 204Operator panel overlay (Polish) 6 40X0372 X 203 Operator panel overlay (Turkish) 6 40X0373 X 204Operator panel overlay (Turkish) 6 40X0374 X 203 Operator panel overlay (Hungarian) 6 40X0375 X 204Operator panel overlay (Hungarian) 6 40X0376 X 203 Operator panel overlay (Czech) 6 40X0377 X 204Operator panel overlay (Czech) 6 40X0378 X 203 Operator panel overlay (Simplified Chinese) 6 40X0379 X 204 Operator panel overlay (Simplified Chinese) Parts catalog 7-5 6 40X0380 X 203 Operator panel overlay (Traditional Chinese) 6 40X0381 X 204 Operator panel overlay (Traditional Chinese) 6 40X0382 X 203 Operator panel overlay (Korean) 6 40X0383 X 204 Operator panel overlay (Korean) 7 40X5627 Operator panel assembly X203 7 40X5628 Operator panel assembly X204 Lexmark 40X5628 Operator panel assembly, X204 New 40X5628 (New) Retired, no longer available: Contact for alternatives 8 40X5758 Left flatbed cover 9 40X5768 ADF separator roll assembly 10 40X5631 ADF top cover Lexmark 40x5631 X204 ADF Top Cover New 40x5631 (New) Retired, no longer available: Contact for alternatives 16 40X0386 Fax card NS 40X5770 ADF separator pad NS 40X5762 ADF cable NS 40X5963 Flatbed cover w/o ADF (X203 only) NS 40X5763 Operator panel cable Parts catalog 7-7 |  |

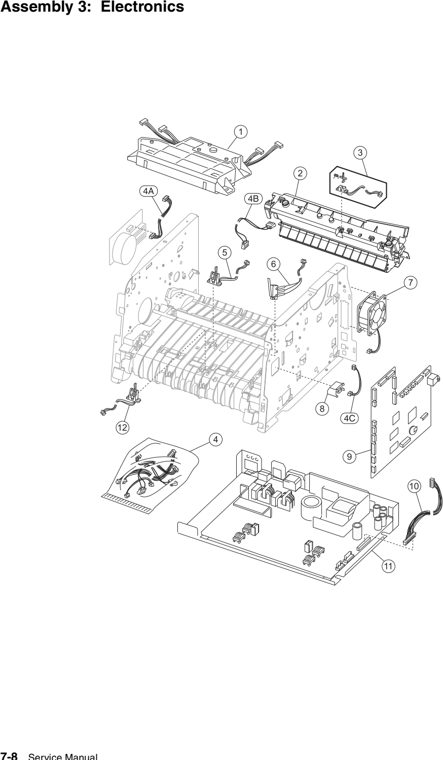

| Assembly 3: Electronics 1 40X1303 Laser/mirror print assembly, X203, X204 Lexmark 40X1303 Laser/Mirror Printhead Assembly E238 E240 E240n X203 X204 X340 X340n X342n Fully refurbished with 90-day warranty 40X1303 $123.49 Lexmark 40X1303 Laser/Mirror Printhead Assembly E238 E240 E240n X203 X204 X340 X340n X342n New 40X1303 (New) Retired, no longer available: Contact for alternatives 2 40X4194 Fuser assembly, 110V 2 40X4195 Fuser assembly, 220V 3 40X1325 Exit sensor assembly 4 40X1333 Miscellaneous cable assemblies. Note: Use the LVPS cable in part 40X5780. (cid:129) Toner sensor (not used on the X203, and X204) (cid:129) Fuser power (cid:129) Main drive motor Lexmark 40X1333 E34x SVC Cables MISC New 40X1333 (New) Retired, no longer available: Contact for alternatives 5 40X1323 Input #1 sensor assembly Lexmark 40X1323 Sensor Assembly Input #1 Fully refurbished with 90-day warranty 40X1323 $10.16 Retired, no longer available: Contact for alternatives 6 40X1326 Cover open sensor assembly 7 40X1328 Cooling fan Lexmark 40X1328 Cooling Fan Fully refurbished with 90-day warranty 40X1328 $12.44 Retired, no longer available: Contact for alternatives 9 40X5765 Controller card (X203) 9 40X5766 Controller card (X204) Lexmark 40X5766 Controller card, X204 New 40X5766 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Lexmark 40X5766 Controller card, X204 New 40X5766 Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives 10 40X5780 Cable kit (LVPS cable) 11 40X5630 LVPS/HVPS 110V card Lexmark 40X5630 Lvps/Hvps 110V Card New 40X5630 (New) Retired, no longer available: Contact for alternatives 11 40X5629 LVPS/HVPS 220V card 12 40X1324 Input #2 sensor assembly (manual feeder) NS 40X5625 Print engine cable kit (Laser diode cable, Mirror motor cable, motor cable) NS 40X0386 Fax card Parts catalog 7-9 |  |

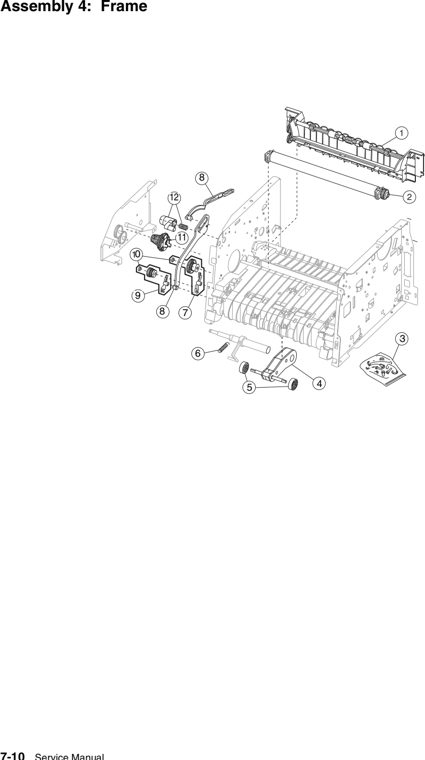

| Assembly 4: Frame 1 40X1334 Paper exit guide assembly Lexmark 40X1334 Paper Exit Guide Assembly Fully refurbished with 90-day warranty 40X1334 $10.91 Retired, no longer available: Contact for alternatives 2 40X2822 Transfer, roll, bearings, gear, spring Lexmark 40X2822 Transfer Roll Assembly New 40X2822 (New) Retired, no longer available: Contact for alternatives 3 40X1353 Screws, miscellaneous (actual size) TP2NC-3.0+6P-Ni (2) M3.0*0.5+6P-Ni Washer (2) MT3.0*0.5+6PF-Ni (5) TP2NC-3.0+6PF-Ni (4) 4 40X4731 ASM, Pick arm Lexmark 40X4731 Pick Arm Assembly New 40X4731 (New) Retired, no longer available: Contact for alternatives 5 40X1319 Paper feed, rubber tires 6 40X1354 Front door & ACM spring Lexmark 40X1354 Springs, ACM and front access door New 40X1354 (New) Retired, no longer available: Contact for alternatives 7 40X1331 Autocompensator clutch CBM 8 40X1338 Door-fuser idle gear link CBM 9 40X1330 Manual feed clutch CBM 10 40X1355 Plastic snap rings 11 40X1329 Developer drive coupling assembly 12 40X5760 Front access cover latch CBM Parts catalog 7-11 |  |

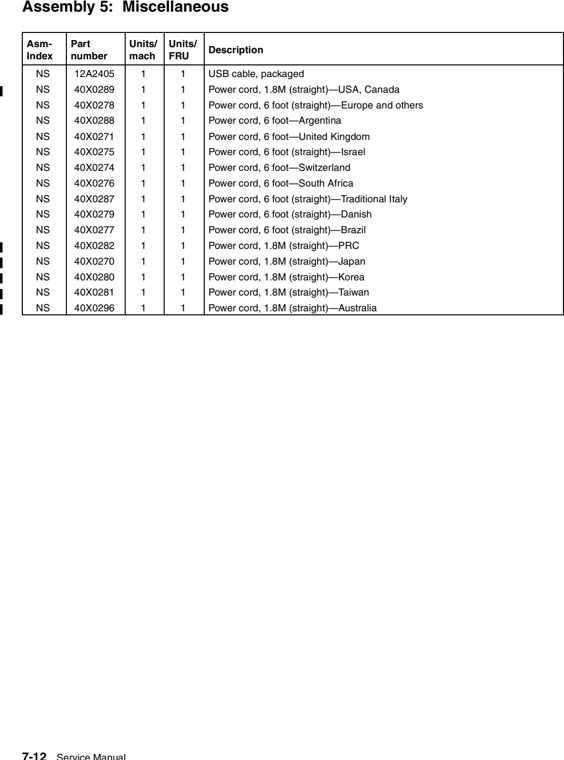

| Assembly 5: Miscellaneous NS 12A2405 USB cable, packaged NS 40X0289 Power cord, 1.8M (straight)—USA, Canada NS 40X0278 Power cord, 6 foot (straight)—Europe and others NS 40X0288 Power cord, 6 foot—Argentina Lexmark 40x0288 Power cord; 2.5m, 8ft. Straight, Argentina New 40x0288 (New) Retired, no longer available: Contact for alternatives NS 40X0271 Power cord, 6 foot—United Kingdom Lexmark 40x0271 Power Cord; 2.5m, 8ft. Straight, UK, Ireland, HK, IT New 40x0271 (New) Retired, no longer available: Contact for alternatives NS 40X0275 Power cord, 6 foot (straight)—Israel Lexmark 40x0275 Power cord; 1.8m, 6ft. Straight, Israel New 40x0275 (New) Retired, no longer available: Contact for alternatives NS 40X0274 Power cord, 6 foot—Switzerland NS 40X0276 Power cord, 6 foot—South Africa NS 40X0287 Power cord, 6 foot (straight)—Traditional Italy NS 40X0279 Power cord, 6 foot (straight)—Danish NS 40X0277 Power cord, 6 foot (straight)—Brazil NS 40X0282 Power cord, 1.8M (straight)—PRC NS 40X0270 Power cord, 1.8M (straight)—Japan Lexmark 40x0270 Power cord; 2.5m, 8ft. Straight, Japan New 40x0270 (New) Retired, no longer available: Contact for alternatives NS 40X0280 Power cord, 1.8M (straight)—Korea NS 40X0281 Power cord, 1.8M (straight)—Taiwan NS 40X0296 Power cord, 1.8M (straight)—Australia |  |
| Other listed parts 56P1820 Paper Feed Rubber Tires (Set of 2) Lexmark 56P1820 Paper Feed Rubber Tires (Set of 2) New 56P1820 40X1319 (New) Retired, no longer available: Contact for alternatives |
