Lexmark X642e X644e X646e XM642e XM644e XM646e Parts

Please call for parts assistance

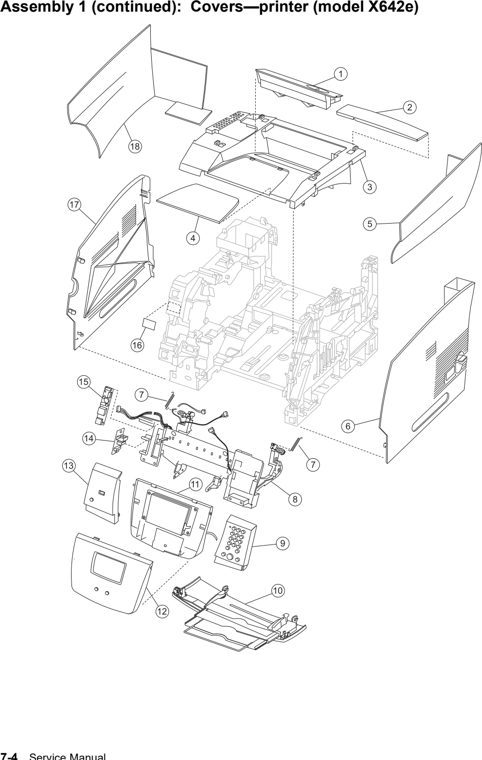

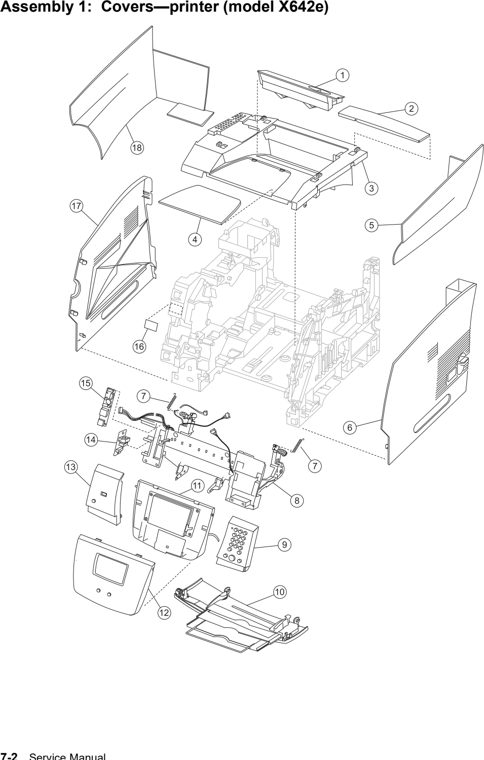

Assembly 1: Covers—printer (model X642e) 1 40X0001 Fuser wiper cover assembly Lexmark 40X0001 Fuser Wiper Cover Assembly New 40X0001 41X6400 (New) $25.00 Lexmark 40X0001 Fuser Wiper Cover Assembly Fully refurbished with 90-day warranty 40X0001 41X6400 Contact for Details 2 40X0469 Upper sub cover assembly Lexmark 40X0469 Upper Sub Cover Assembly New 40X0469 (New) $18.07 3 40X0467 Upper cover assembly Lexmark 40X0467 Upper Cover Assembly New 40X0467 (New) $24.71 Lexmark 40X0467 Upper Cover Assembly Fully refurbished with 90-day warranty 40X0467 Contact for Details 4 40X0468 Upper tray cover (paper support) Lexmark 40X0468 Upper Tray Cover (Paper Support) New 40X0468 (New) $22.48 5 40X0473 Right side cover Lexmark 40X0473 Right Side Cover Fully refurbished with 90-day warranty 40X0473 Contact for Details 6 40X0471 Right cover assembly Lexmark 40X0471 Right Cover Assembly New 40X0471 (New) $49.48 Lexmark 40X0471 Right Cover Assembly Fully refurbished with 90-day warranty 40X0471 Contact for Details 7 40X0516 Counterbalance spring 8 40X3309 Upper front cover hinge assembly—X642e, includes: • Operator panel frame (hinge) • UICC 18-pin cable • USB cable • Cover open sensor • Left hinge cable retainer • Right hinge cable retainer • Left hinge spring • Right hinge spring • Ground cable • Screw, M3x10 (3) • Screw, Sunk head (1) Lexmark 40X3309 Upper Front Cover Hinge Assembly Fully refurbished with 90-day warranty 40X3309 $24.50 9 40X3303 Operator panel right cover assembly—X642e, includes: • Operator panel right cover • Dial numeric pad key • Control 1—Stop key • Control 2—Go key • Control 3—Clear key • Hook, operator panel right assembly • Compression spring • LCD operator panel cap • UICC #1 card assembly • Screw, M3x8 (2) • Screw, M3x8 (2) Lexmark 40X3303 Operator Panel Right Cover Assembly New 40X3303 (New) $27.50 Lexmark 40X3303 Operator Panel Right Cover Assembly Fully refurbished with 90-day warranty 40X3303 $25.00 10 40X0493 Multipurpose tray assembly Lexmark 40X0493 Multipurpose Tray Assembly New 40X0493 (New) $27.50 Lexmark 40X0493 Multipurpose tray assembly Fully refurbished with 90-day warranty 40X0493 Contact for Details 11 40X3301 LCD mono touchscreen display assembly—X642e, includes: • LCD lower cover • Mono LCD assembly • LCD frame lever • LCD lever spring • Core • Screw, M3x8 (4) Lexmark 40X3301 LCD Mono Touchscreen Display Assembly Low Speed New 40X3301 (New) Contact for Details Lexmark 40X3301 LCD Mono Touchscreen Display Assembly Low Speed Fully refurbished with 90-day warranty 40X3301 $110.00 12 40X3299 Cover bezel with Lexmark logo—X642e, includes • Bezel • UICC #3 • Home key • M3x8 screws (2) Lexmark 40X3299 Cover bezel with logo - X642e New 40X3299 (New) $23.86 13 40X3302 Operator panel left cover assembly—X642e, includes • Operator left cover • Operator panel left hook • Admin key • UICC #2 card assembly • Compression spring • M3x18 screws (2) • M3x18 screws (2) Lexmark 40X3302 Operator Panel Left Cover Assembly New 40X3302 (New) $19.13 14 40X0151 USB board assembly Parts catalog 7-3 Lexmark 40X0151 USB Board Assembly Fully refurbished with 90-day warranty 40X0151 $15.69
Assembly 1: Covers—printer (model X642e) 15 40X3304 LCD (mono) touchscreen inverter card—X642e Lexmark 40X3304 LCD (Mono) Touchscreen Inverter Card New 40X3304 (New) $24.71 16 40X0009 TLI/ID/serial number label—blank Lexmark 40X0009 TLI ID serial number label -blank Fully refurbished with 90-day warranty 40X0009 Contact for Details 17 40X0470 Left cover assembly Lexmark 40X0470 Left Cover Assembly New 40X0470 (New) $51.00 Lexmark 40X0470 Left Cover Assembly Fully refurbished with 90-day warranty 40X0470 Contact for Details 18 40X0472 Left side cover Lexmark 40X0472 Left side cover Fully refurbished with 90-day warranty 40X0472 Contact for Details NS 40X0050 Counterbalance spring Lexmark 40X0050 Counterbalance spring Fully refurbished with 90-day warranty 40X0050 $7.00 NS 40X5651 Vent cover Parts catalog 7-5

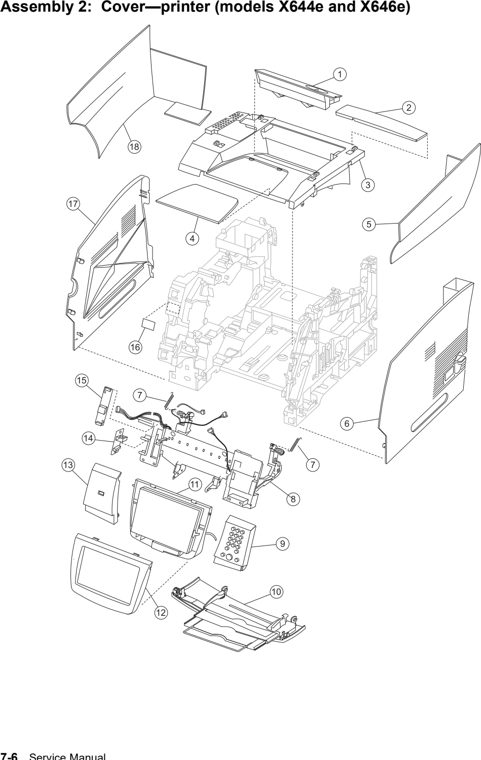

Assembly 2: Covers—printer (models X644e and X646e) 1 40X0001 Fuser wiper cover assembly Lexmark 40X0001 Fuser Wiper Cover Assembly New 40X0001 41X6400 (New) $25.00 Lexmark 40X0001 Fuser Wiper Cover Assembly Fully refurbished with 90-day warranty 40X0001 41X6400 Contact for Details 2 40X0469 Upper sub cover assembly Lexmark 40X0469 Upper Sub Cover Assembly New 40X0469 (New) $18.07 3 40X0467 Upper cover assembly Lexmark 40X0467 Upper Cover Assembly New 40X0467 (New) $24.71 Lexmark 40X0467 Upper Cover Assembly Fully refurbished with 90-day warranty 40X0467 Contact for Details 4 40X0468 Upper tray cover (paper support) Lexmark 40X0468 Upper Tray Cover (Paper Support) New 40X0468 (New) $22.48 5 40X0473 Right side cover Lexmark 40X0473 Right Side Cover Fully refurbished with 90-day warranty 40X0473 Contact for Details 6 40X0471 Right cover assembly Lexmark 40X0471 Right Cover Assembly New 40X0471 (New) $49.48 Lexmark 40X0471 Right Cover Assembly Fully refurbished with 90-day warranty 40X0471 Contact for Details 7 40X0516 Counterbalance spring 8 40X0515 Upper front cover hinge assembly—X644e/X646e, includes: • Cable, VICC 18-pin • Hinge, operator panel • USB cable (1) • Cover open switch and cable (1) • Left cable retainer (1) • Right cable retainer (1) • Left hinge spring (1) • Right hinge spring (1) Lexmark 40X0515 Upper Front Cover Hinge Assembly New 40X0515 (New) $45.71 Lexmark 40X0515 Upper Front Cover Hinge Assembly Fully refurbished with 90-day warranty 40X0515 $31.71 9 40X0496 Operator panel right cover assembly—X644e/X646e, includes: • Stop button (1) • Go button (1) • Clear button (1) • LED cap (1) • Dial number pad • User interface control card assembly • Compression spring • Operator panel right cover • Operator panel right side hook Lexmark 40X0496 Operator Panel Right Cover Assembly Fully refurbished with 90-day warranty 40X0496 $18.30 10 40X0493 Multipurpose tray assembly Lexmark 40X0493 Multipurpose Tray Assembly New 40X0493 (New) $27.50 Lexmark 40X0493 Multipurpose tray assembly Fully refurbished with 90-day warranty 40X0493 Contact for Details 11 40X0494 LCD touchscreen display assembly—X644e/X646e Lexmark 40X0494 LCD Touchscreen Display Assembly New 40X0494 (New) Contact for Details Lexmark 40X0494 LCD Touchscreen Display Assembly Fully refurbished with 90-day warranty 40X0494 $175.00 12 40X3313 Cover bezel with Lexmark logo—X644e Lexmark 40x3313 Cover bezel Infoprint 1570 MFP Fully refurbished with 90-day warranty 40x3313 I Contact for Details 12 40X0476 Cover bezel with Lexmark logo—X646e Lexmark 40X0476 Cover bezel with logo - X646e New 40X0476 L (New) $21.57 13 40X0495 Operator panel left cover assembly—X644e/X646e Lexmark 40X0495 Operator Panel Left Cover Assembly Fully refurbished with 90-day warranty 40X0495 $8.63 Lexmark 40X0495 Operator Panel Left Cover Assembly New 40X0495 (New) $26.50 14 40X0151 USB board assembly Lexmark 40X0151 USB Board Assembly Fully refurbished with 90-day warranty 40X0151 $15.69 15 40X0497 LCD touchscreen inverter card Lexmark 40X0497 LCD Touchscreen Inverter Card New 40X0497 (New) $24.50 Lexmark 40X0497 LCD Touchscreen Inverter Card Fully refurbished with 90-day warranty 40X0497 $22.00 16 40X0009 TLI/ID/serial number label—blank Lexmark 40X0009 TLI ID serial number label -blank Fully refurbished with 90-day warranty 40X0009 Contact for Details 17 40X0470 Left cover assembly Lexmark 40X0470 Left Cover Assembly New 40X0470 (New) $51.00 Lexmark 40X0470 Left Cover Assembly Fully refurbished with 90-day warranty 40X0470 Contact for Details 18 40X0472 Left side cover Lexmark 40X0472 Left side cover Fully refurbished with 90-day warranty 40X0472 Contact for Details NS 40X0050 Counterbalance spring Parts catalog 7-7 Lexmark 40X0050 Counterbalance spring Fully refurbished with 90-day warranty 40X0050 $7.00

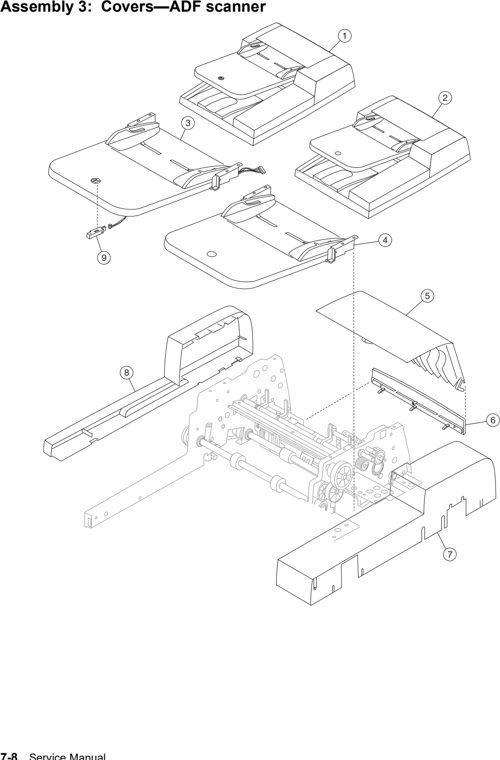

Assembly 3: Covers—ADF scanner 1 40X0450 Complete ADF assembly—X644e/X646e Lexmark 40X0450 Complete ADF Assembly (High Speed) New 40X0450 (New) $249.00 Lexmark 40X0450 Complete ADF Assembly (High Speed) New 40X0450 Advanced Exchange (New) Contact for Details Lexmark 40X0450 Complete ADF Assembly (High Speed) Fully refurbished with 90-day warranty 40X0450 $150.00 2 40X3296 Complete ADF assembly—X642e Lexmark 40X3296 Complete ADF Assembly (Low Speed) New 40X3296 (New) $799.28 Lexmark 40X3296 Complete ADF Assembly (Low Speed) Fully refurbished with 90-day warranty 40X3296 $155.72 3 40X0451 Document tray assembly—X644e/X646e Lexmark 40X0451 Document Tray Assembly Fully refurbished with 90-day warranty 40X0451 Contact for Details Lexmark 40X0451 Document Tray Assembly New 40X0451 (New) $24.50 4 40X3297 Document tray assembly—X642e Lexmark 40X3297 Document tray assembly New 40X3297 (New) $33.75 5 40X0452 ADF top cover assembly Lexmark 40X0452 ADF Top Cover Assembly New 40X0452 (New) Contact for Details Lexmark 40X0452 ADF Top Cover Assembly Fully refurbished with 90-day warranty 40X0452 Contact for Details 6 40X0463 ADF scan cover Lexmark 40X0463 ADF Scan Cover New 40X0463 (New) $26.12 7 40X0465 ADF rear cover Lexmark 40X0465 ADF Rear Cover New 40X0465 (New) $23.58 Lexmark 40X0465 ADF Rear Cover Fully refurbished with 90-day warranty 40X0465 Contact for Details 8 40X0464 ADF front cover Lexmark 40X0464 ADF Front Cover New 40X0464 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X0464 ADF Front Cover Fully refurbished with 90-day warranty 40X0464 Contact for Details

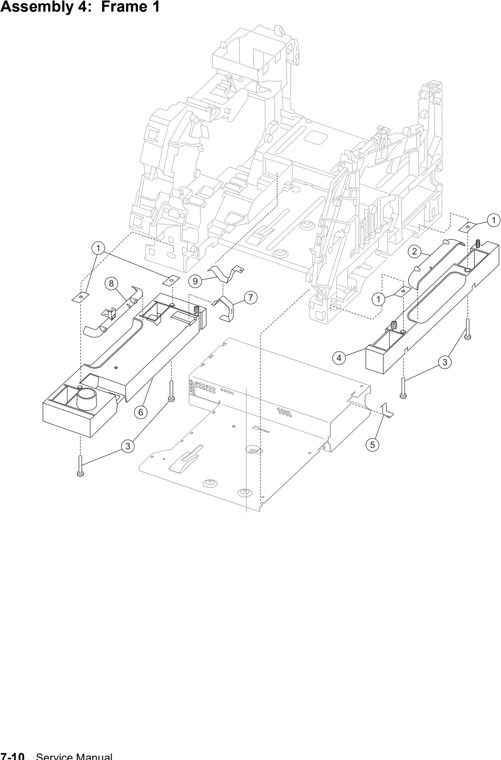

Assembly 4: Frame 1 1 40X0065 Frame extension, nut plate Lexmark 40X0065 Frame extension nut plate Fully refurbished with 90-day warranty 40X0065 Contact for Details 2 40X0225 Right side hand holder Lexmark 40X0225 Right side hand holder Fully refurbished with 90-day warranty 40X0225 Contact for Details 4 40X0024 Right frame extension Lexmark 40X0024 Right frame extension Fully refurbished with 90-day warranty 40X0024 $10.66 5 40X0026 Right side frame ground contact 6 40X0025 Left frame extension Lexmark 40X0025 Left frame extension Fully refurbished with 90-day warranty 40X0025 $12.91 7 40X0060 External ground clip Lexmark 40X0060 External ground clip Fully refurbished with 90-day warranty 40X0060 Contact for Details 8 40X0231 Left side hand holder 9 40X0285 Frame clip Parts catalog 7-11 Lexmark 40X0285 Frame clip Fully refurbished with 90-day warranty 40X0285 Contact for Details

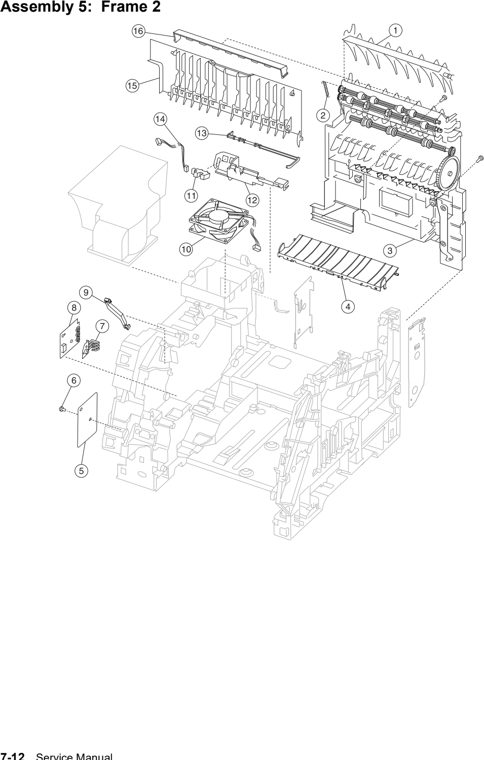

Assembly 5: Frame 2 1 40X0027 Upper redrive deflector Lexmark 40X0027 Upper Redrive Deflector Fully refurbished with 90-day warranty 40X0027 Contact for Details 2 40X0028 Upper diverter spring Lexmark 40X0028 Upper diverter spring New 40X0028 (New) $15.00 3 40X0030 Redrive assembly—500-sheet in/500 out Lexmark 40X0030 Redrive Assembly 500-Sheet In 500 Out New 40X0030 Includes Spring 40X0028 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X0030 Redrive Assembly 500-Sheet In 500 Out Fully refurbished with 90-day warranty 40X0030 Includes Spring 40X0028 $63.00 4 40X0032 Transfer deflector with brush Lexmark 40X0032 Transfer deflector New 40X0032 (New) $16.82 5 40X0044 Gear guard Lexmark 40X0044 Gear guard Fully refurbished with 90-day warranty 40X0044 Contact for Details 7 40X0048 Paper switch activate spring Lexmark 40X0048 Paper switch activate spring Fully refurbished with 90-day warranty 40X0048 $17.22 8 40X0046 Paper size sensing board assembly Lexmark 40X0046 Paper Size Sensing Board Assembly Fully refurbished with 90-day warranty 40X0046 UJ395 $19.00 9 40X0049 Gear release link Lexmark 40X0049 Gear release link Fully refurbished with 90-day warranty 40X0049 $26.47 10 40X0054 Main fan with cable—500-sheet output Lexmark 40X0054 Main Fan With Cable 500-Sheet New 40X0054 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X0054 Main Fan With Cable 500-Sheet Output Fully refurbished with 90-day warranty 40X0054 $20.00 11 40X0051 Standard bin level sensor Lexmark 40X0051 Standard bin level sensor Fully refurbished with 90-day warranty 40X0051 Contact for Details 12 40X0052 Standard bin level sensor bracket Lexmark 40X0052 Standard bin level sensor bracket Fully refurbished with 90-day warranty 40X0052 Contact for Details 13 40X0058 Output paper level flag Lexmark 40X0058 Output Paper Level Flag New 40X0058 (New) $7.75 14 40X0264 Standard bin level sensor cable Lexmark 40X0264 Standard Bin Level Sensor Cable New 40X0264 (New) $15.98 Lexmark 40X0264 Output Bin Level Sensor Cable Fully refurbished with 90-day warranty 40X0264 $12.00 15 40X0232 Redrive door assembly 500 sheet Lexmark 40X0232 Redrive Door Assembly 500 Sheet New 40X0232 Includes paper guide (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X0232 Redrive Door Assembly 500 Sheet Fully refurbished with 90-day warranty 40X0232 Includes paper guide $49.00 16 40X0059 Extension guide Lexmark 40X0059 Extension guide Fully refurbished with 90-day warranty 40X0059 Contact for Details

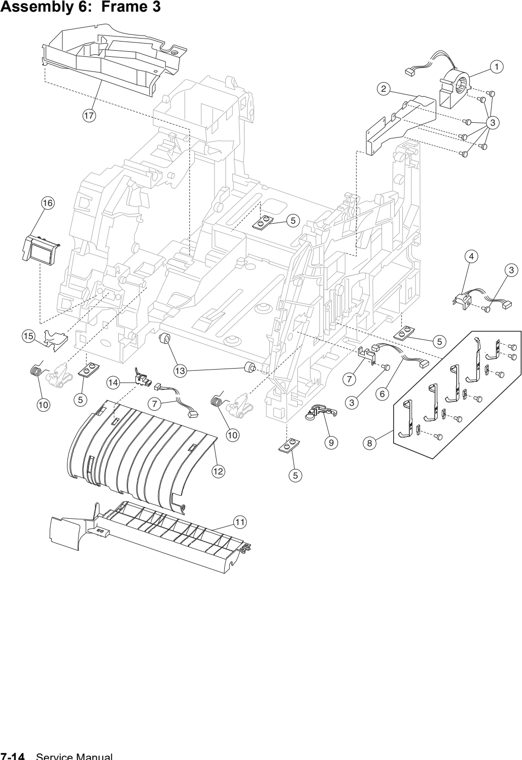

Assembly 6: Frame 3 1 40X0249 EP DC fan assembly Lexmark 40X0249 EP DC Fan Assembly With Cable - 500-Sheet New 40X0249 (New) $24.50 2 40X0208 Blower duct Lexmark 40X0208 Blower duct Fully refurbished with 90-day warranty 40X0208 Contact for Details 4 40X0034 Signature button contact assembly with cable Lexmark 40X0034 Signature button sensor assembly Fully refurbished with 90-day warranty 40X0034 Contact for Details 5 40X0033 Machine mounting pad Lexmark 40X0033 Machine mounting pad Fully refurbished with 90-day warranty 40X0033 Contact for Details 6 40X0223 HVPS/input sensor/toner sensor cable assembly Lexmark 40X0223 Front cable harness (HVPS input sensor toner sensor) Fully refurbished with 90-day warranty 40X0223 Contact for Details Lexmark 40X0223 Front cable harness (HVPS input sensor toner sensor) New 40X0223 (New) $22.11 7 40X0036 Toner sensor assembly Lexmark 40X0036 Toner Sensor Assembly New 40X0036 (New) $19.00 8 40X0306 High voltage contact kit, including: • Charge roll contact (1) • Doc/TAR/Dev contact (3) • PC drum contact (1) • Screw (5) • Screw block (4) Lexmark 40X0306 High Voltage Contact Kit Fully refurbished with 90-day warranty 40X0306 $19.71 Lexmark 40X0306 High Voltage Contact Kit New 40X0306 99a0585 (New) $34.71 9 40X0213 Tray bias assembly Lexmark 40X0213 Tray bias assembly Fully refurbished with 90-day warranty 40X0213 Contact for Details 10 40X0021 Cartridge holddown assembly 11 40X0040 Upper paper feed deflector Lexmark 40X0040 Upper Paper Feed Deflector Fully refurbished with 90-day warranty 40X0040 Contact for Details 12 40X0042 Inner paper feed deflector Lexmark 40X0042 Inner Paper Feed Deflector Fully refurbished with 90-day warranty 40X0042 $15.00 13 40X0039 Developer support roller Lexmark 40X0039 Developer support roller Fully refurbished with 90-day warranty 40X0039 Contact for Details 14 40X0043 Input sensor Lexmark 40X0043 Input Sensor New 40X0043 (New) $11.77 15 40X0209 Gear #60 MPF shield 16 40X0045 ESD shield with label Lexmark 40X0045 ESD shield with label Fully refurbished with 90-day warranty 40X0045 Contact for Details 17 40X0207 EP duct Parts catalog 7-15 Lexmark 40X0207 EP duct Fully refurbished with 90-day warranty 40X0207 Contact for Details

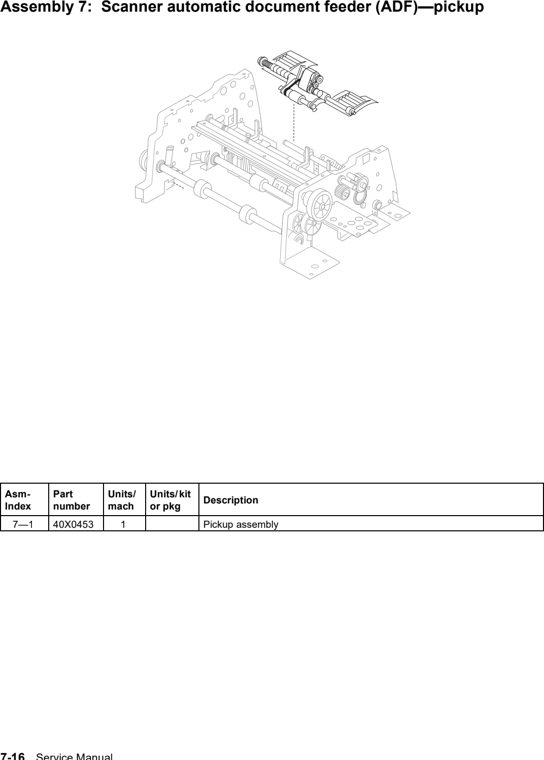

Assembly 7: Scanner automatic document feeder (ADF)—pickup 1 40X0453 Pickup assembly Lexmark 40X0453 ADF Pickup Assembly New 40X0453 (New) $69.49

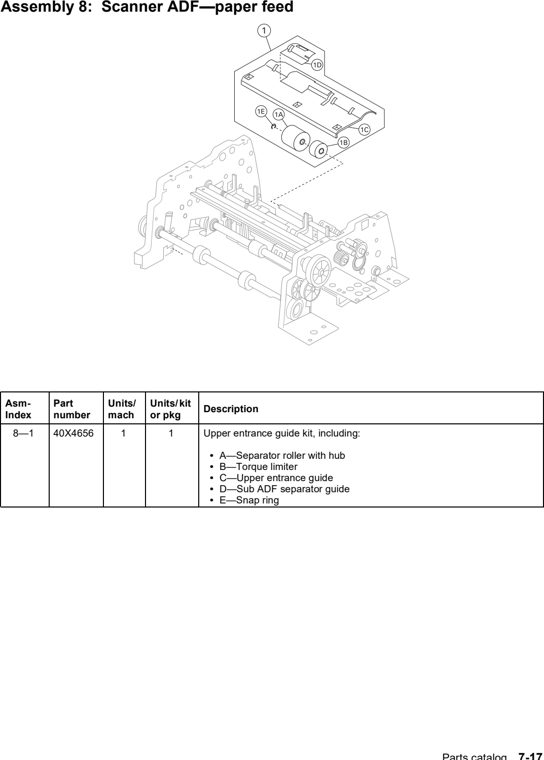

Assembly 8: Scanner ADF—paper feed 1 40X4656 Upper entrance guide kit, including: • A—Separator roller with hub • B—Torque limiter • C—Upper entrance guide • D—Sub ADF separator guide • E—Snap ring Parts catalog 7-17 Lexmark 40X4656 Upper Entrance Guide Kit Fully refurbished with 90-day warranty 40X4656 440x $45.69

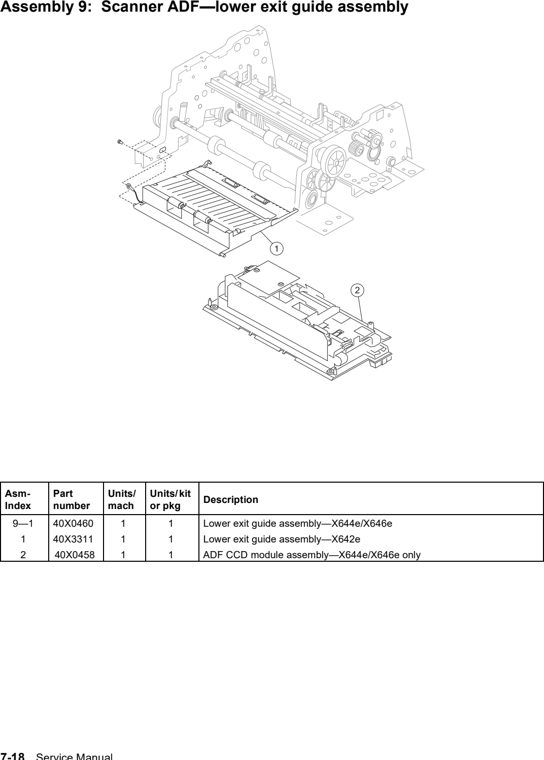

Assembly 9: Scanner ADF—lower exit guide assembly 1 40X0460 Lower exit guide assembly—X644e/X646e Lexmark 40X0460 Lower Exit Guide Assembly High Speed New 40X0460 (New) $29.71 Lexmark 40X0460 Exit Guide Assembly Fully refurbished with 90-day warranty 40X0460 Contact for Details 1 40X3311 Lower exit guide assembly—X642e Lexmark 40X3311 Lower exit guide assembly MFP New 40X3311 (New) $43.00 2 40X0458 ADF CCD module assembly—X644e/X646e only Lexmark 40X0458 ADF CCD Module Assembly New 40X0458 (New) $133.00 Lexmark 40X0458 ADF CCD Module Assembly Fully refurbished with 90-day warranty 40X0458 Contact for Details

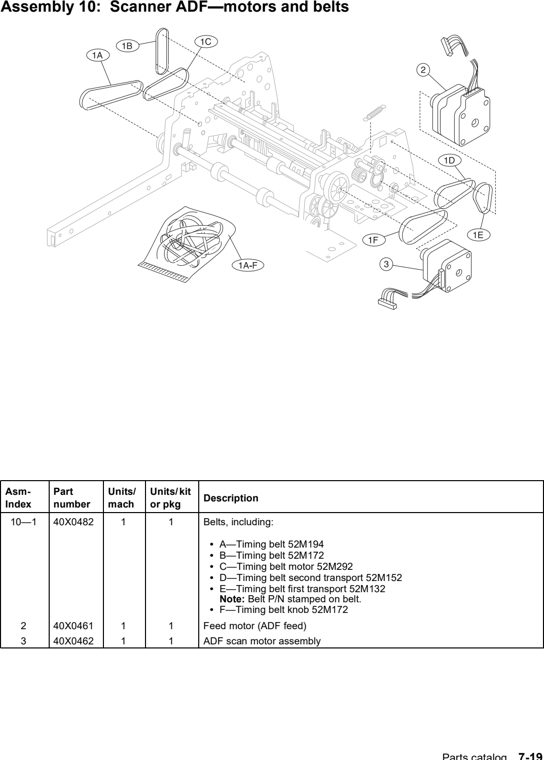

Assembly 10: Scanner ADF—motors and belts 1 40X0482 Belts, including: • A—Timing belt 52M194 • B—Timing belt 52M172 • C—Timing belt motor 52M292 • D—Timing belt second transport 52M152 • E—Timing belt first transport 52M132 Note: Belt P/N stamped on belt. • F—Timing belt knob 52M172 Lexmark 40X0482 Belts New 40X0482 (New) $17.24 2 40X0461 Feed motor (ADF feed) Lexmark 40X0461 Feed Motor (ADF Feed) Fully refurbished with 90-day warranty 40X0461 Contact for Details 3 40X0462 ADF scan motor assembly Parts catalog 7-19 Lexmark 40X0462 ADF Scan Motor Assembly New 40X0462 (New) $31.45 Lexmark 40X0462 ADF Scan Motor Assembly Fully refurbished with 90-day warranty 40X0462 Contact for Details

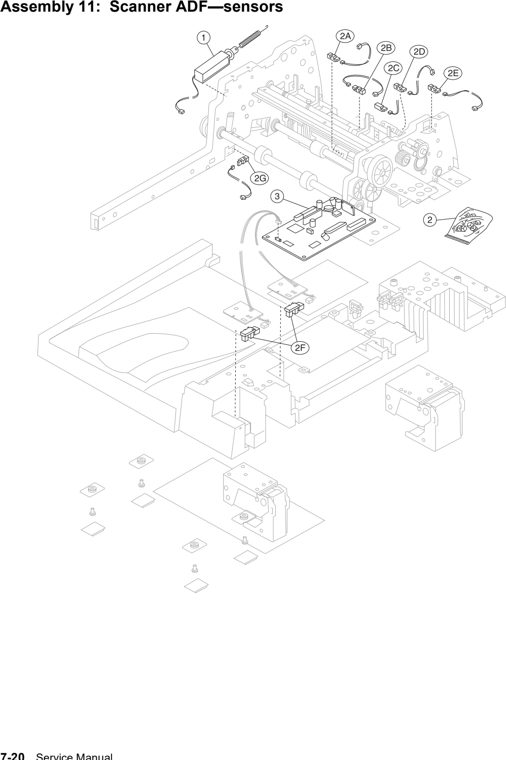

Assembly 11: ADF—sensors 1 40X0456 Pickup arm assembly solenoid Lexmark 40X0456 Pickup Arm Solenoid New 40X0456 (New) $17.38 2 40X0481 Parts packet, sensors • A—Second scan sensor • B—Paper present • C—Interval sensor • D—First scan sensor • E—ADF top cover open • F—Flatbed cover open • G—Jam access door Note: There are four different sensors in the parts packet, some of the same sensors are used in different locations. Lexmark 40X0481 Sensors Parts Packet New 40X0481 (New) $35.00 3 40X0486 Motor driver card Parts catalog 7-21 Lexmark 40X0486 Motor Driver Card New 40X0486 (New) $189.00 Lexmark 40X0486 Motor Driver Card Fully refurbished with 90-day warranty 40X0486 Contact for Details

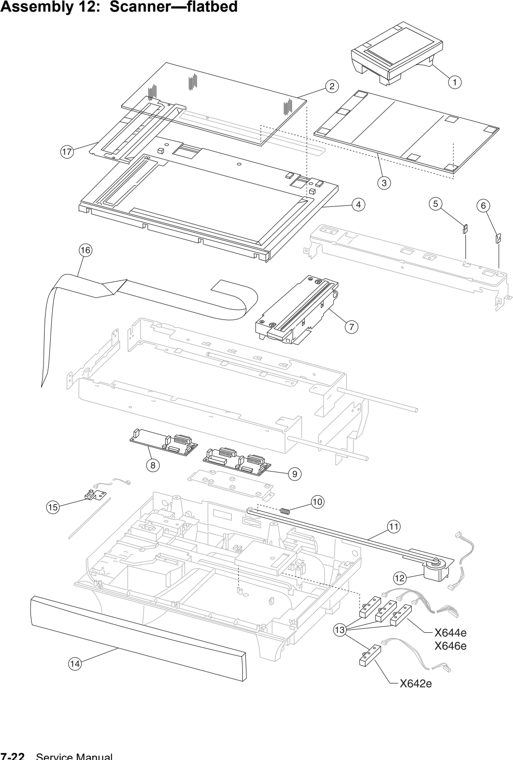

Assembly 12: Scanner—flatbed 1 40X3298 Complete flatbed scanner assembly—X642e Lexmark 40X3298 Complete Flatbed Scanner Assembly New 40x3298 L (New) $429.71 Lexmark 40X3298 Complete Flatbed Scanner Assembly Fully refurbished with 90-day warranty 40X3298 L $475.06 1 40X0457 Complete flatbed scanner assembly—X644e/X644e Lexmark 40X0457 Flatbed scanner complete assembly New 40X0457 (New) $760.48 Lexmark 40X0457 Flatbed Scanner Complete Assembly Fully refurbished with 90-day warranty 40X0457 Contact for Details 2 40X0483 Flatbed contact glass Lexmark 40X0483 Flatbed Contact Glass New 40X0483 (New) $25.21 Lexmark 40X0483 Flatbed contact glass Fully refurbished with 90-day warranty 40X0483 Contact for Details 3 40X0466 Flatbed white cushion Lexmark 40X0466 Cushion White Pressure Pad New 40X0466 (New) $11.12 4 40X0475 Scan cover Lexmark 40X0475 Scan Cover New 40X0475 (New) $17.15 5 40X0513 Flatbed cover closed actuator 6 40X0514 Flatbed cover closing actuator 7 40X0478 Flatbed CCD module assembly Lexmark 40X0478 Flatbed CCD Module Assembly New 40X0478 (New) Contact for Details Lexmark 40X0478 Flatbed CCD Module Assembly Fully refurbished with 90-day warranty 40X0478 $58.00 8 40X3312 Flatbed interconnect card assembly—X642e Lexmark 40X3312 Flatbed Interconnect Card Assembly New 40X3312 (New) $50.39 9 40X0485 Flatbed interconnect card assembly—X644e/X646e Lexmark 40X0485 Flatbed Interconnect Card Assembly New 40X0485 (New) $91.20 Lexmark 40X0485 Flatbed Interconnect Card Assembly Fully refurbished with 90-day warranty 40X0485 $60.00 10 40X0490 Belt tension spring 11 40X0479 Flatbed CCD drive belt Lexmark 40X0479 Flatbed CCD Drive Belt Fully refurbished with 90-day warranty 40X0479 Contact for Details 12 40X0480 Flatbed scan motor, including flatbed scan motor to flatbed interconnect card cable Lexmark 40X0480 Flatbed Scan Motor Assembly New 40X0480 (New) $42.73 Lexmark 40X0480 Flatbed Scan Motor Assembly Fully refurbished with 90-day warranty 40X0480 Contact for Details 13 40X0491 Flatbed paper size sensor assembly (assembly includes 3 sensors)— X644e/X646e Flatbed paper size sensor assembly (assembly includes 3 sensors but only one sensor is required)—X642e Lexmark 40X0491 Flatbed Paper Size Sensor Assembly Fully refurbished with 90-day warranty 40X0491 Contact for Details 14 40X0474 Front cover Lexmark 40X0474 Front Cover New 40X0474 (New) $20.28 Lexmark 40X0474 Front Cover Fully refurbished with 90-day warranty 40X0474 Contact for Details 15 40X0481 Parts packet, sensors (home sensor) Lexmark 40X0481 Sensors Parts Packet New 40X0481 (New) $35.00 16 40X0487 Flatbed CCD ribbon cable Lexmark 40X0487 Flatbed CCD Ribbon Cable New 40X0487 (New) $24.50 17 40X0484 Glass holder assembly Parts catalog 7-23 Lexmark 40X0484 Glass Holder Assembly New 40X0484 (New) $32.67

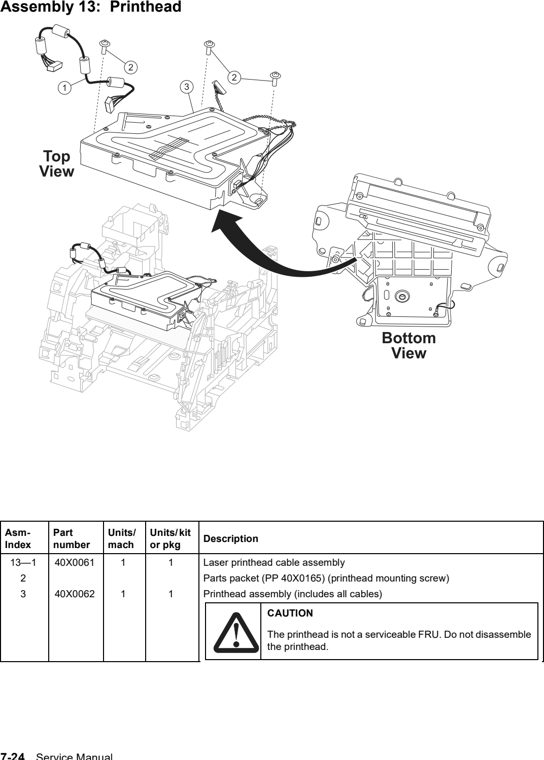

Assembly 13: Printhead 1 40X0061 Laser printhead cable assembly Lexmark 40X0061 Laser cable assembly New 40X0061 (New) $15.98 3 40X0062 Printhead assembly (includes all cables) CAUTION The printhead is not a serviceable FRU. Do not disassemble the printhead. Lexmark 40X0062 Printhead Assembly Fully refurbished with 90-day warranty 40X0062 20G0990 $45.00 Lexmark 40X0062 Printhead assembly New 40X0062 20G0990 (New) Contact for Details

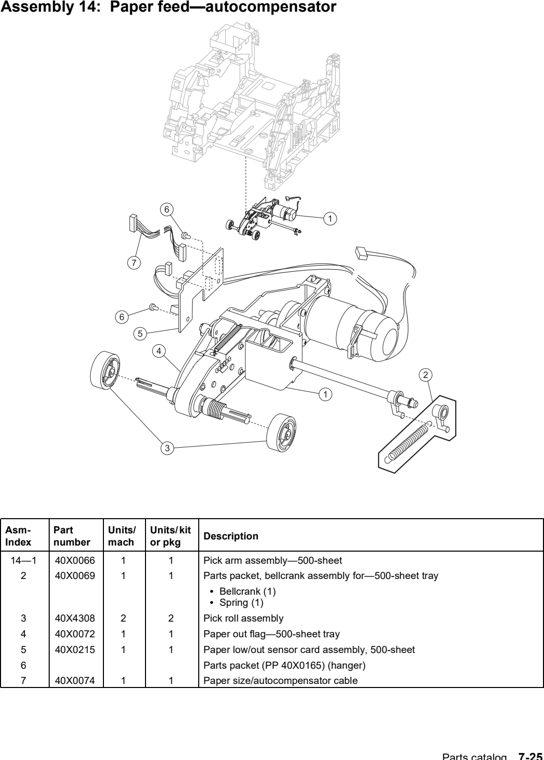

Assembly 14: Paper feed—autocompensator 1 40X0066 Pick arm assembly—500-sheet Lexmark 40X0066 500 Sheet Pick Arm Assembly New 40X0066 (New) Contact for Details Lexmark 40X0066 500 Sheet Pick Arm Assembly Fully refurbished with 90-day warranty 40X0066 $38.00 2 40X0069 Parts packet, bellcrank assembly for—500-sheet tray • Bellcrank (1) • Spring (1) Lexmark 40X0069 Parts packet bellcrank assembly, 500-sheet tray Fully refurbished with 90-day warranty 40X0069 Contact for Details 3 40X4308 Pick roll assembly Lexmark 40X4308 Pick roll assembly (Set of 2) New 40X4308 CET5894 (New) $18.95 4 40X0072 Paper out flag—500-sheet tray Lexmark 40X0072 Paper Out Flag 500-Sheet Tray Fully refurbished with 90-day warranty 40X0072 $10.00 5 40X0215 Paper low/out sensor card assembly, 500-sheet Lexmark 40X0215 Paper Out/Low Card Fully refurbished with 90-day warranty 40X0215 Contact for Details 7 40X0074 Paper size/autocompensator cable Parts catalog 7-25 Lexmark 40X0074 Paper size autocompensator cable Fully refurbished with 90-day warranty 40X0074 Contact for Details

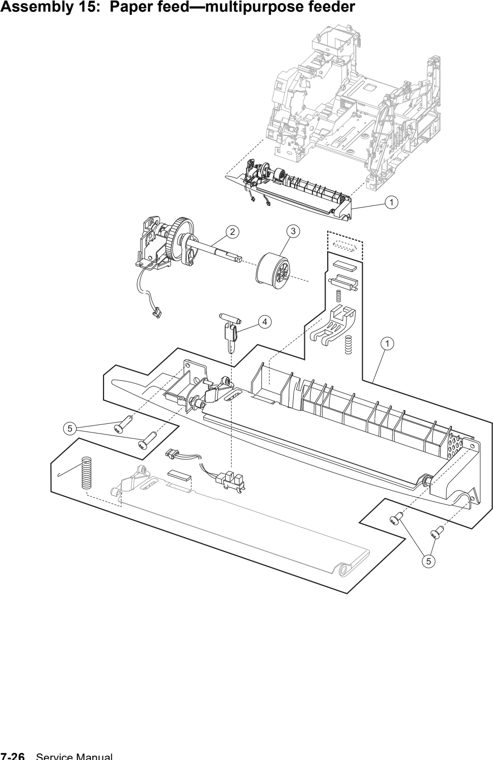

Assembly 15: Paper feed—multipurpose feeder 1 40X0079 Multipurpose feeder lower deflector assembly Lexmark 40X0079 Multipurpose Feeder Lower Deflector Assembly New 40X0079 (New) Contact for Details Lexmark 40X0079 Multipurpose Feeder Lower Deflector Assembly Fully refurbished with 90-day warranty 40X0079 $19.00 2 40X0310 Multipurpose feeder pick arm assembly with solenoid Lexmark 40X0310 Multipurpose Feeder Pick Arm Assembly With Solenoid Fully refurbished with 90-day warranty 40X0310 $20.00 3 40X0076 Pick roll assembly Lexmark 40X0076 Pick Roll Assembly New 40X0076 (New) $14.75 4 40X0077 Multipurpose feeder paper out flag Lexmark 40X0077 Multipurpose feeder paper out flag Fully refurbished with 90-day warranty 40X0077 Contact for Details

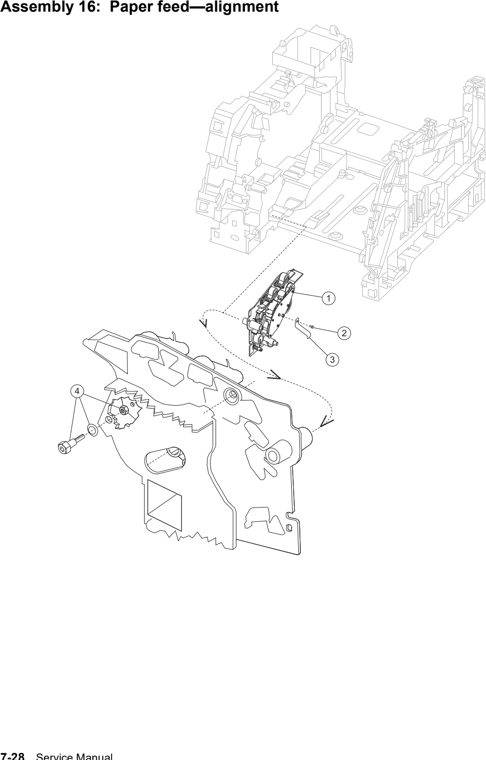

Assembly 16: Paper feed—alignment 1 40X0084 Paper feed alignment assembly paper feed Lexmark 40X0084 Paper Feed Alignment Assembly New 40X0084 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X0084 Paper Feed Alignment Assembly Fully refurbished with 90-day warranty 40X0084 $29.71 3 40X0085 Reference ground clip Lexmark 40X0085 Reference ground clip Fully refurbished with 90-day warranty 40X0085 Contact for Details 4 40X0086 Parts packet (reference adjust) • Screw, paper reference adjust (1) • Washer, paper reference adjust (1) • Nut, paper reference adjust (1) Lexmark 40X0086 Parts packet (reference adjust) Fully refurbished with 90-day warranty 40X0086 Contact for Details

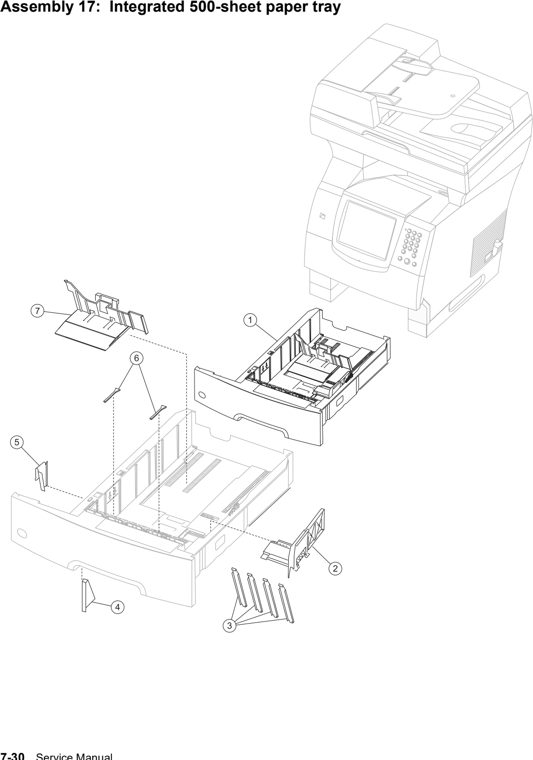

Assembly 17: Integrated 500-sheet paper tray 1 40X0098 Tray assembly—500-sheet tray Lexmark 40X0098 500 Sheet Tray New 40X0098 (New) $119.00 Lexmark 40X0098 500 Sheet Tray Fully refurbished with 90-day warranty 40X0098 $91.20 2 40X0099 Side restraint Lexmark 40X0099 Side Restraint Fully refurbished with 90-day warranty 40X0099 Contact for Details 3 40X0182 Wear strip Lexmark 40X0182 4 Wear Strips New 40X0182 (New) $13.00 4 40X0103 Pass thru plate—500-sheet tray Lexmark 40X0103 Pass thru plate 500-sheet tray Fully refurbished with 90-day warranty 40X0103 Contact for Details 5 40X0183 Wear plate—500-sheet tray Lexmark 40X0183 Wear plate 500-sheet tray Fully refurbished with 90-day warranty 40X0183 Contact for Details 6 40X0105 Restraint pad Lexmark 40X0105 Restraint pad Fully refurbished with 90-day warranty 40X0105 Contact for Details 7 40X0106 Back restraint Parts catalog 7-31 Lexmark 40X0106 Back restraint Fully refurbished with 90-day warranty 40X0106 Contact for Details

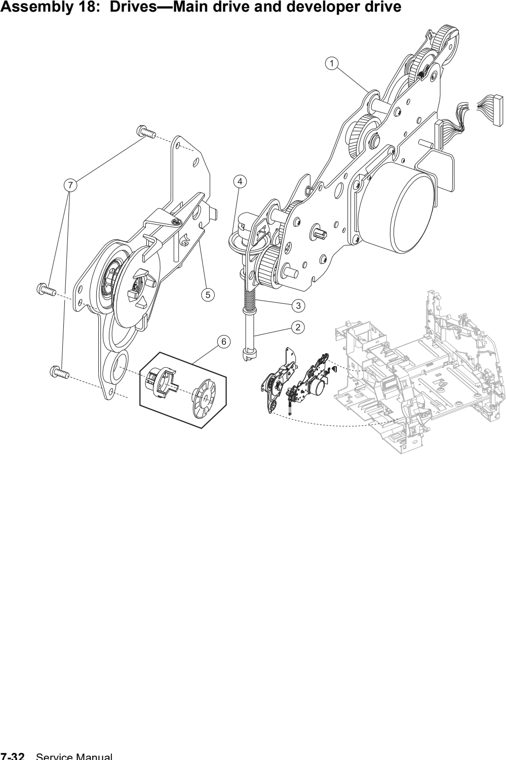

Assembly 18: Drives—Main drive and developer drive 1 40X0107 Gearbox with motor Lexmark 40X0107 Gearbox With Motor Fully refurbished with 90-day warranty 40X0107 $79.71 Lexmark 40X0107 Gearbox with motor New 40X0107 (New) Contact for Details 2 40X0111 Power takeoff shaft—500-sheet Lexmark 40X0111 Power takeoff shaft 500-sheet Fully refurbished with 90-day warranty 40X0111 Contact for Details 3 40X0112 Power takeoff shaft spring Lexmark 40X0112 Power Takeoff Shaft Spring Fully refurbished with 90-day warranty 40X0112 Contact for Details 4 99A0954 Bevel gear with grease packet and washer • Bevel gear (1) • Instruction sheet (1) • Grease packet (1) • washer (1) Lexmark 99A0954 Bevel Gear with grease packet, washer New 99A0954 (New) $12.31 5 40X0114 Developer drive assembly Lexmark 40X0114 Developer drive assembly Fully refurbished with 90-day warranty 40X0114 $29.00 6 40X0115 Parts packet, developer drive • Developer drive shaft (1) • shaft, coupler gear #55 (1) Lexmark 40X0115 Parts packet developer drive Fully refurbished with 90-day warranty 40X0115 Contact for Details

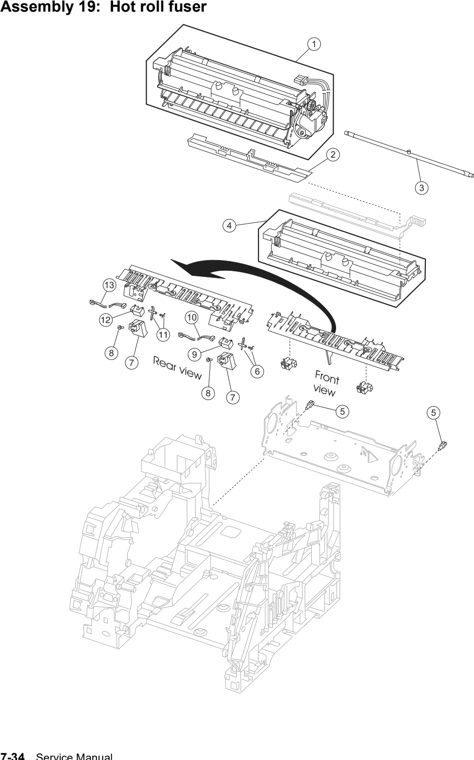

Assembly 19: Hot roll fuser 1 40X2592 Fuser assembly w/115 V lamp Lexmark 40x0116 Fuser Assembly New 40x2592 45U2820 40X0116 56P4243 Compatible (New) $199.00 1 40X2591 Fuser assembly w/100 V lamp Lexmark 40X2591 Fuser Assembly W/100 V Lamp New 40X2591 (New) Contact for Details 1 40X2590 Fuser assembly w/220 V lamp 2 40X0120 Fuser wiper cavity cover Lexmark 40X0120 Fuser wiper cavity cover Fully refurbished with 90-day warranty 40X0120 Contact for Details 3 40X0122 Fuser lamp, 115V Lexmark 40X0122 Fuser lamp 115V New 40X0122 (New) $35.00 3 40X0123 Fuser lamp, 220V 4 40X0121 Fuser cover assembly kit, including: • Thermistor (1) • Thermostat (1) • Left and right fuser lamp contact assemblies (1) Lexmark 40X0121 Fuser Cover Assembly Fully refurbished with 90-day warranty 40X0121 $7.00 6 40X0239 Exit sensor flag/spring kit, including: • Spring (1) • Flag (1) 7 40X0236 Exit/narrow media sensor cover Lexmark 40X0236 Exit Narrow Media Sensor Cover New 40X0236 (New) $35.23 9 40X0125 Exit sensor Lexmark 40X0125 Exit sensor Fully refurbished with 90-day warranty 40X0125 Contact for Details 10 40X0230 Exit sensor cable Lexmark 40X0230 Exit Sensor Cable Fully refurbished with 90-day warranty 40X0230 $31.94 11 40X0238 Narrow media flag/spring kit, including: Lexmark 40X0238 Narrow Media Flag/Spring Kit New 40X0238 (New) $20.08 12 40X0124 Narrow media sensor 13 40X0229 Narrow media sensor cable Lexmark 40X0229 Narrow Media Sensor Cable Fully refurbished with 90-day warranty 40X0229 $31.94 NS 40X0226 Fuser AC to fuser lamp cable Parts catalog 7-35

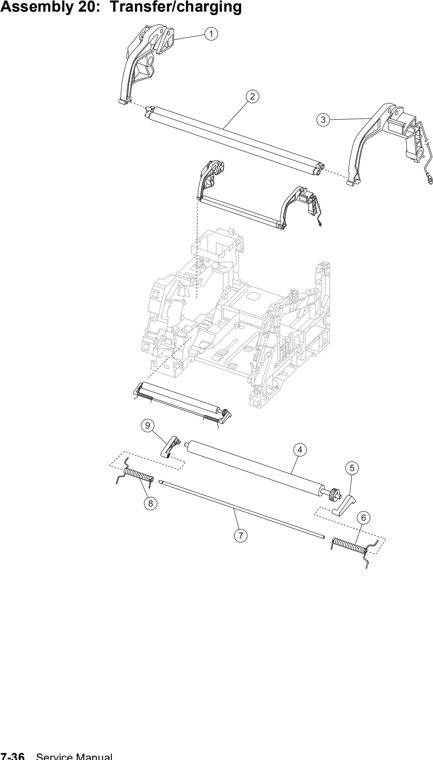

Assembly 20: Transfer/charging 1 40X0126 Parts kit, charge roll link asm, left side Lexmark 40X0126 Parts kit charge roll link asm left side Fully refurbished with 90-day warranty 40X0126 $18.00 2 40X0127 Charge roll assembly, dual Lexmark 40X0127 Charge Roll Assembly Dual New 40X0127 CET1448N (New) $68.00 3 40X0129 Parts kit, right side charge roll link assembly Lexmark 40X0129 Parts Kit Right Side Charge Roll Link Assembly Fully refurbished with 90-day warranty 40X0129 $19.00 4 40X0130 Transfer roll assembly Lexmark 40X0130 Transfer Roll New 40X0130 (New) $32.82 5 40X0131 Transfer roll assembly right arm Lexmark 40X0131 Transfer roll assembly right arm Fully refurbished with 90-day warranty 40X0131 Contact for Details 6 40X0132 Transfer roll right spring Lexmark 40X0132 Transfer roll right spring Fully refurbished with 90-day warranty 40X0132 Contact for Details 7 40X0133 Transfer pivot shaft Lexmark 40X0133 Transfer pivot shaft Fully refurbished with 90-day warranty 40X0133 Contact for Details 8 40X0134 Transfer roll left spring Lexmark 40X0134 Transfer roll left spring Fully refurbished with 90-day warranty 40X0134 Contact for Details 9 40X0135 Transfer roll left arm Lexmark 40X0135 Transfer roll left arm Fully refurbished with 90-day warranty 40X0135 Contact for Details

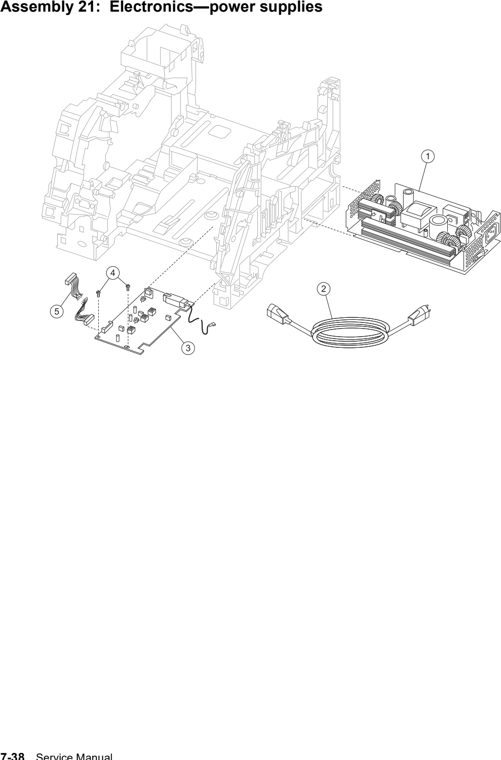

Assembly 21: Electronics—power supplies 1 40X3244 LVPS/AIO—115 V ac Lexmark 40X3244 LVPS/AIO 115 V ac New 40X3244 (New) Contact for Details Lexmark 40X3244 LVPS/AIO 115 V ac Fully refurbished with 90-day warranty 40X3244 $29.71 1 40X3245 LVPS/AIO—220 V ac Lexmark 40X3245 220V Power supply New 40X3245 (New) Contact for Details 2 40X0260 Power cord set (8 ft right angle, 13 amp)—United States, Canada, Caribbean countries, Colombia, Costa Rica, Dominican Republic, El Salvador, Equator, Guatemala, Honduras, Mexico, Nicaragua, Panama, Puerto Rico, Saudi Arabia, Venezuela, and Virgin Islands 2 40X0256 Power cord set (8 ft right angle)—Bolivia and Peru 2 40X0255 Power cord set (8 ft right angle)—Argentina 2 40X0257 Power cord set (8 ft right angle)—Chile, Uruguay 2 40X0258 Power cord set (8 ft right angle)—Arabic, Austria, Belgium, Bluemark, CIS, Czechoslovakia, Denmark, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Medmark, (1 and 2), Netherlands, Norway, Paraguay, Poland, Portugal, Russia, Slavic countries, Spain, Sweden, Turkey, and UK. 2 40X0293 Power cord set (8 ft right angle)—Anguilla (UK), Antigua and Barbuda, Bahrain, Botswana, Burma (Myanmar), Channel Islands, Cyprus, Dominica, Falkland Islands, Gambia, Ghana, Gibraltar, Grenada, Guyana, Hong Kong, Iraq, Ireland, Isle of Man, Jordan, Kenya, Kuwait, Lebanon, Liberia, Malawi, Malaysia, Malta, Mauritius, Montserrat, Nigeria, Oman, Pakistan, Pitcairn Island (UK), Qatar, Scotland, Seychelles, Sierra Leone, Singapore, St. Kitts and Nevis, St. Lucia, St. Vincent and Grenadines, Sudan, Tanzania, Trinidad and Tobago, Uganda, United Arab Emirates, United Kingdom, Vanuatu, Wales, Yemen, Zambia, Zimbabwe. 2 40X4596 Power cord set (6 ft right angle)—Brazil Lexmark 40x4596 Power cord; 2.5m, 8ft. Straight, Brazil New 40x4596 (New) Contact for Details 2 40X0301 Power cord set (8 ft straight)—AS/NZS Lexmark 40x0301 Power cord; 2.5m, 8ft. Straight, Australia, New Zealand New 40x0301 (New) Contact for Details 2 40X0271 Power cord set (8 ft straight)—Hong Kong Lexmark 40x0271 Power Cord; 2.5m, 8ft. Straight, UK, Ireland, HK, IT New 40x0271 (New) Retired, no longer available: Contact for alternatives Contact for Details 2 40X0272 Power cord set (8 ft right angle)—Japan 2 40X0280 Power cord set (6 ft straight)—Korea 2 40X0303 Power cord set (8 ft straight)—PRC Lexmark 40x0303 Power cord; 2.5m, 8ft. Straight, PR China New 40x0303 (New) Contact for Details 2 40X0281 Power cord set (6 ft right angle)—Taiwan 2 40X0294 Power cord set (8 ft right angle)—Denmark, Norway, and Sweden 2 40X0295 Power cord set (8 ft right angle)—Israel 2 40X0304 Power cord set (8 ft right angle)—Botswana, Lesotho, Namibia, Pakistan, and South Africa 2 40X0305 Power cord set (8 ft right angle)—Switzerland 3 40X4275 High voltage power supply Lexmark 40X4275 High Voltage Power Supply HVPS New 40X4275 40X0138 56P4239 (New) Contact for Details 5 40X0223 Front cable harness (HVPS/input sensor/toner sensor) Parts catalog 7-39 Lexmark 40X0223 Front cable harness (HVPS input sensor toner sensor) Fully refurbished with 90-day warranty 40X0223 Contact for Details Lexmark 40X0223 Front cable harness (HVPS input sensor toner sensor) New 40X0223 (New) $22.11

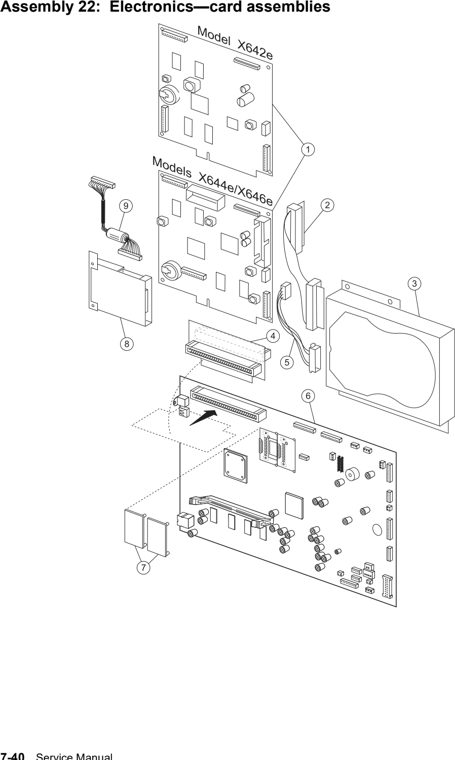

Assembly 22: Electronics—card assemblies 1 40X3305 Scanner control card—X642e Lexmark 40X3305 Scanner Control Card X642e New 40X3305 L 40X4845 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details Lexmark 40X3305 Scanner Control Card X642e Fully refurbished with 90-day warranty 40X3305 L 40X4845 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $45.00 1 40X0498 Scanner control card—X644e/X646e Lexmark 40X0498 Scanner Control Card New 40X0498 40X4844 (New) $432.86 Lexmark 40X0498 Scanner Control Card New 40X0498 40X4844 Advanced Exchange (New) Contact for Details Lexmark 40X0498 Scanner Control Card Fully refurbished with 90-day warranty 40X0498 40X4844 Contact for Details 2 40X0509 Hard disk IDE 50-pin cable—X646e Lexmark 40X0509 Hard disk IDE 50-pin cable Fully refurbished with 90-day warranty 40X0509 $11.00 3 40X0489 Hard disk assembly—X646e Lexmark 40X0489 Hard Disk Assembly New 40X0489 (New) $22.66 Lexmark 40X0489 Hard Disk Assembly Fully refurbished with 90-day warranty 40X0489 Contact for Details 4 40X0520 Interface card assembly Lexmark 40X0520 Interconnect Card Assembly New 40X0520 (New) $24.50 Lexmark 40X0520 Interconnect Card Assembly Fully refurbished with 90-day warranty 40X0520 $20.00 5 40X0510 Hard disk 4-pin power cable—X646e Lexmark 40X0510 Hard Disk 4-Pin Power Cable Fully refurbished with 90-day warranty 40X0510 $11.48 6 40X3310 System board assembly—X642e (Board ID M010 6030) Lexmark 40X3310 L System Board Assembly (Board ID M010 6030) New 40X3310 L (New) Contact for Details Lexmark 40X3310 L System Board Assembly (Board ID M010 6030) New 40X3310 L Advanced Exchange (New) Contact for Details 6 40X2722 System board assembly (network)—X644e/X646e (Board ID M010 6000) Lexmark 40X2722 System Board Assembly (Network) MFP Fully refurbished with 90-day warranty 40X2722 40X4211 40X2744 40X5033 40X4301 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details Lexmark 40X2722 L System Board Assembly (Network) X644e, X646e New 40X2722 40X4211 40X2744 40X5033 40X4301L Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details Lexmark 40X2722 L System Board Assembly (Network) X644e, X646e New 40X2722 40X4211 40X2744 40X5033 40X4301 L (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $245.00 7 40X3477 Bar code card assembly—X642e 7 40X2792 Bar code card assembly—X644e/X646e 7 40X2529 IPDS SCS/TNe card assembly—X644e/X646e Lexmark 40X2529 Card for IPDS New 40X2529 (New) $105.00 Lexmark 40X2529 Card for IPDS Fully refurbished with 90-day warranty 40X2529 $49.00 7 40X2793 PRESCRIBE card assembly—X644e/X646e 7 40X3479 PrintCryption card assembly—X642e 7 40X4178 PrintCryption card assembly—X644e/X646e 8 40X0519 Modem card assembly Lexmark 40X0519 Modem New 40X0519 (New) $156.00 Lexmark 40X0519 Modem Fully refurbished with 90-day warranty 40X0519 $63.00 9 40X0507 Modem 30-pin cable Lexmark 40X0507 Modem 30-pin cable New 40X0507 (New) $18.94 Lexmark 40X0507 Modem 30-pin cable Fully refurbished with 90-day warranty 40X0507 $19.22 NS 40X3478 Forms card assembly—X642e NS 40X4179 Forms card assembly—X644e/X646e

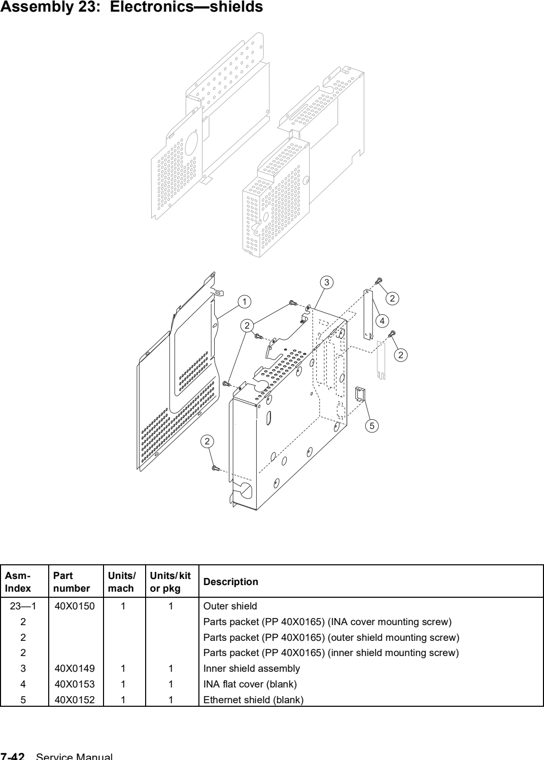

Assembly 23: Electronics—shields 1 40X0150 Outer shield 3 40X0149 Inner shield assembly Lexmark 40X0149 Inner shield assembly, 500-Sheet New 40X0149 (New) $14.94 4 40X0153 INA flat cover (blank) 5 40X0152 Ethernet shield (blank)

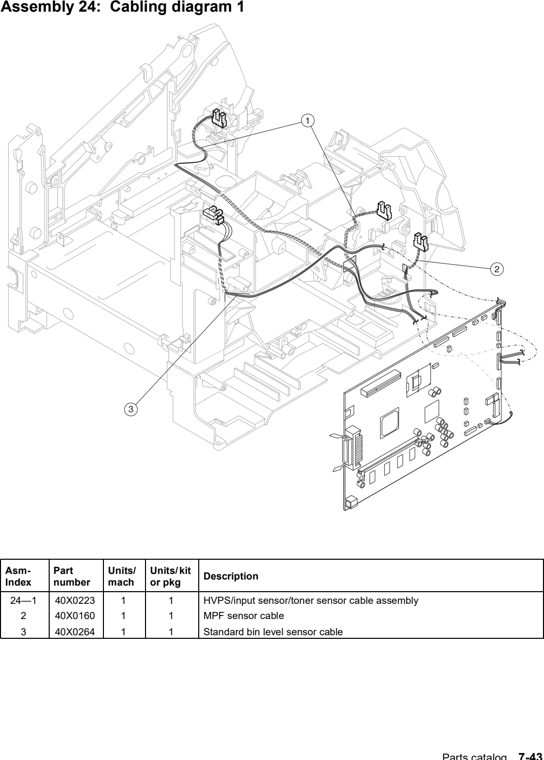

Assembly 24: Cabling diagram 1 1 40X0223 HVPS/input sensor/toner sensor cable assembly Lexmark 40X0223 Front cable harness (HVPS input sensor toner sensor) Fully refurbished with 90-day warranty 40X0223 Contact for Details Lexmark 40X0223 Front cable harness (HVPS input sensor toner sensor) New 40X0223 (New) $22.11 2 40X0160 MPF sensor cable 3 40X0264 Standard bin level sensor cable Parts catalog 7-43 Lexmark 40X0264 Standard Bin Level Sensor Cable New 40X0264 (New) $15.98 Lexmark 40X0264 Output Bin Level Sensor Cable Fully refurbished with 90-day warranty 40X0264 $12.00

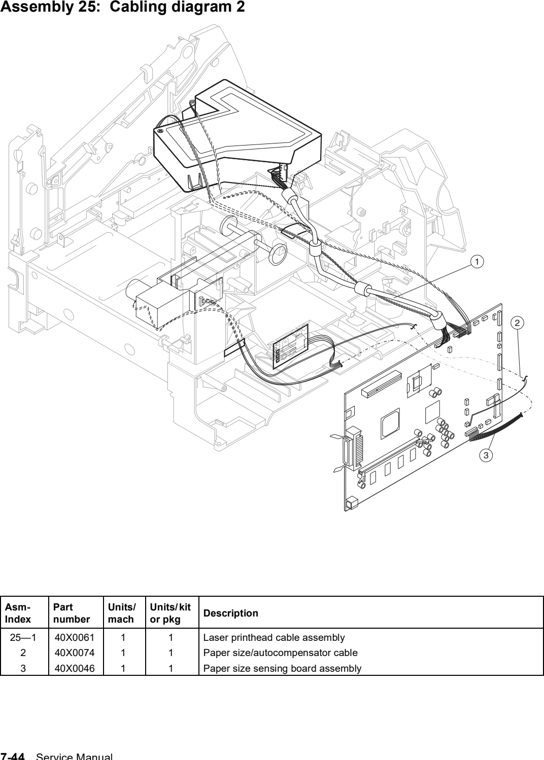

Assembly 25: Cabling diagram 2 1 40X0061 Laser printhead cable assembly Lexmark 40X0061 Laser cable assembly New 40X0061 (New) $15.98 2 40X0074 Paper size/autocompensator cable Lexmark 40X0074 Paper size autocompensator cable Fully refurbished with 90-day warranty 40X0074 Contact for Details 3 40X0046 Paper size sensing board assembly Lexmark 40X0046 Paper Size Sensing Board Assembly Fully refurbished with 90-day warranty 40X0046 UJ395 $19.00

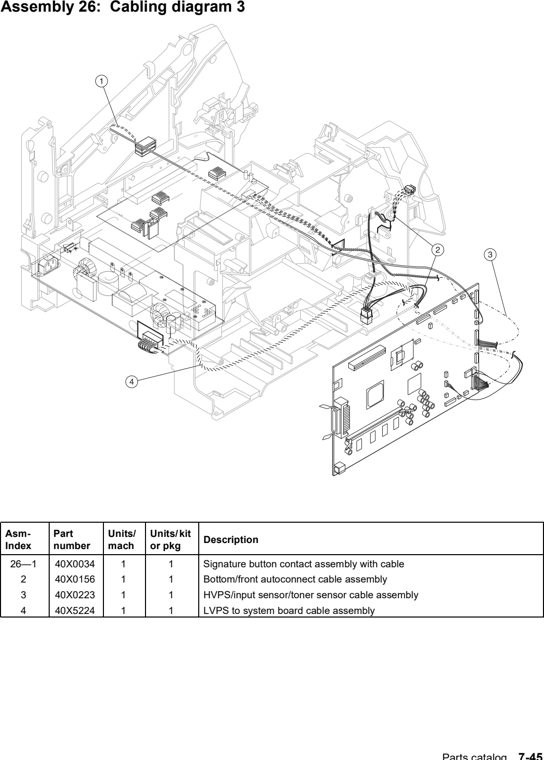

Assembly 26: Cabling diagram 3 1 40X0034 Signature button contact assembly with cable Lexmark 40X0034 Signature button sensor assembly Fully refurbished with 90-day warranty 40X0034 Contact for Details 2 40X0156 Bottom/front autoconnect cable assembly 3 40X0223 HVPS/input sensor/toner sensor cable assembly Lexmark 40X0223 Front cable harness (HVPS input sensor toner sensor) Fully refurbished with 90-day warranty 40X0223 Contact for Details Lexmark 40X0223 Front cable harness (HVPS input sensor toner sensor) New 40X0223 (New) $22.11 4 40X5224 LVPS to system board cable assembly Parts catalog 7-45

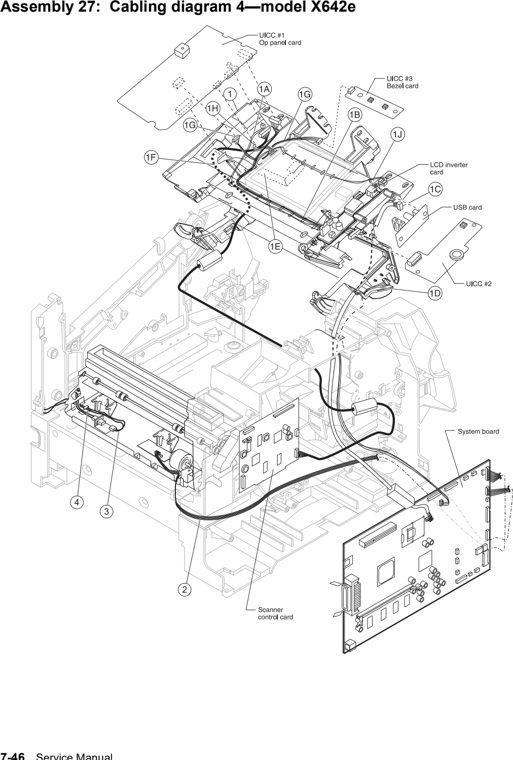

Assembly 27: Cabling diagram 4—model X642e 1 40X3309 Upper front cover hinge assembly—X642e, includes • 1A—Operator panel to LCD Inverter card cable (2-pin) • 1B—Operator panel card to UICC #2 card cable (8-pin) • 1C—USB cable (1) • 1D—Cover open switch/cable from system board • 1E—LCD display to operator panel card cable (14-pin ribbon) • 1F—Operator panel cable from SCC • 1G—Operator panel card to bezel card cable (4-pin) • 1H—LCD display to operator panel card cable (4-pin) • 1J—LCD display to LCD inverter card cable (2-pin) Lexmark 40X3309 Upper Front Cover Hinge Assembly Fully refurbished with 90-day warranty 40X3309 $24.50 2 40X0162 System board to fuser board cable assembly Lexmark 40X0162 System Board To Fuser Board Cable Assembly Fully refurbished with 90-day warranty 40X0162 Contact for Details 3 40X0163 Fuser AC lamp to LVPS cable assembly 4 40X0226 Fuser connector (fuser AC to fuser lamp) Parts catalog 7-47

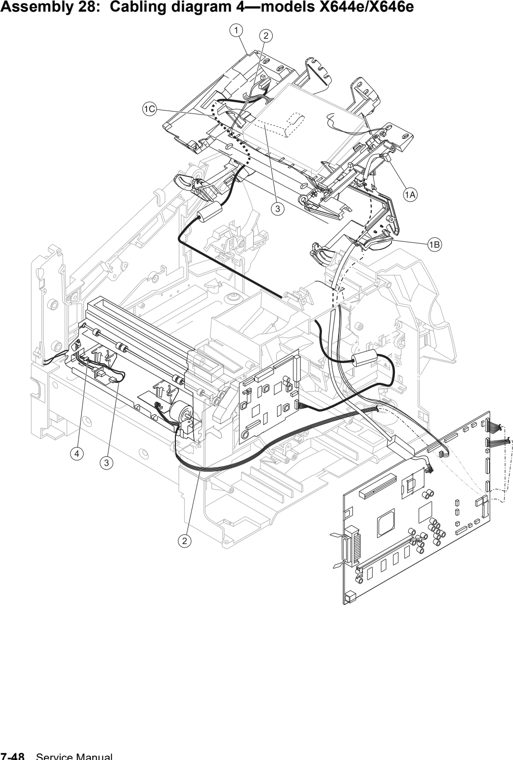

Assembly 28: Cabling diagram 4—models X644e/X646e 1 40X0515 Upper front cover hinge assembly—X644e/X646e, includes: • 1A—USB cable (1) • 1B—Cover open switch/cable (1) • 1C—Operator panel cable to SCC card (1) See full description of upper front cover hinge assembly on page7-7. Lexmark 40X0515 Upper Front Cover Hinge Assembly New 40X0515 (New) $45.71 Lexmark 40X0515 Upper Front Cover Hinge Assembly Fully refurbished with 90-day warranty 40X0515 $31.71 2 40X0511 Inverter 32-pin cable (operator panel card to LCD inverter card) Lexmark 40X0511 Inverter cable, 8-pin Fully refurbished with 90-day warranty 40X0511 Contact for Details 3 40X0512 32-pin cable (LCD display to operator panel cable) 4 40X0162 System board to fuser board cable assembly Lexmark 40X0162 System Board To Fuser Board Cable Assembly Fully refurbished with 90-day warranty 40X0162 Contact for Details 5 40X0163 Fuser AC lamp to LVPS cable assembly 6 40X0226 Fuser connector (fuser AC to fuser lamp) Parts catalog 7-49

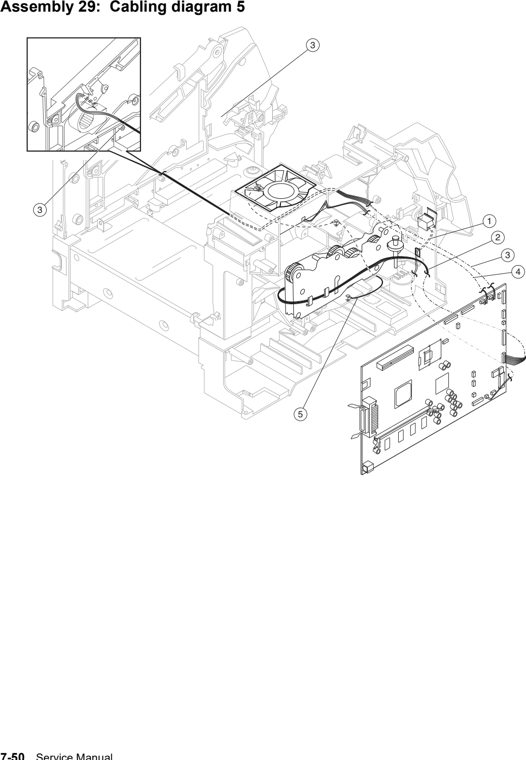

Assembly 29: Cabling diagram 5 1 40X0310 Multipurpose feeder pick arm assembly with solenoid Lexmark 40X0310 Multipurpose Feeder Pick Arm Assembly With Solenoid Fully refurbished with 90-day warranty 40X0310 $20.00 2 40X0159 Main drive motor cable assembly Lexmark 40X0159 Main drive motor cable assembly Fully refurbished with 90-day warranty 40x0159 Contact for Details 3 40X0249 EP DC fan assembly Lexmark 40X0249 EP DC Fan Assembly With Cable - 500-Sheet New 40X0249 (New) $24.50 4 40X0054 Main fan with cable, 500-sheet output Lexmark 40X0054 Main Fan With Cable 500-Sheet New 40X0054 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X0054 Main Fan With Cable 500-Sheet Output Fully refurbished with 90-day warranty 40X0054 $20.00 5 40X0161 Ground cable Parts catalog 7-51

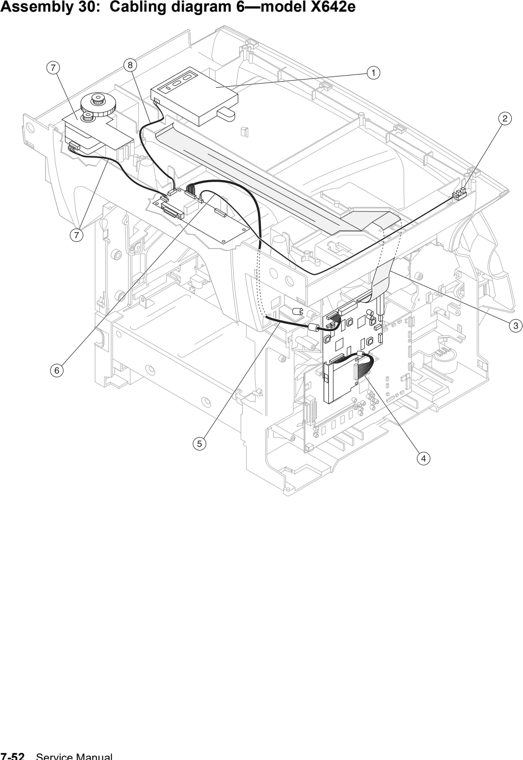

Assembly 30: Cabling diagram 6—model X642e 1 40X0491 Flatbed paper size sensor assembly (3 sensors are included in the assembly, model X642e uses only one) Lexmark 40X0491 Flatbed Paper Size Sensor Assembly Fully refurbished with 90-day warranty 40X0491 Contact for Details 2 40X0481 Parts packet, sensors (home sensor) Lexmark 40X0481 Sensors Parts Packet New 40X0481 (New) $35.00 3 40X0487 Flatbed CCD ribbon cable Lexmark 40X0487 Flatbed CCD Ribbon Cable New 40X0487 (New) $24.50 4 40X0507 Modem 30-pin cable Lexmark 40X0507 Modem 30-pin cable New 40X0507 (New) $18.94 Lexmark 40X0507 Modem 30-pin cable Fully refurbished with 90-day warranty 40X0507 $19.22 7 40X0480 Flatbed scan motor, including flatbed scan motor to flatbed interconnect card cable Lexmark 40X0480 Flatbed Scan Motor Assembly New 40X0480 (New) $42.73 Lexmark 40X0480 Flatbed Scan Motor Assembly Fully refurbished with 90-day warranty 40X0480 Contact for Details

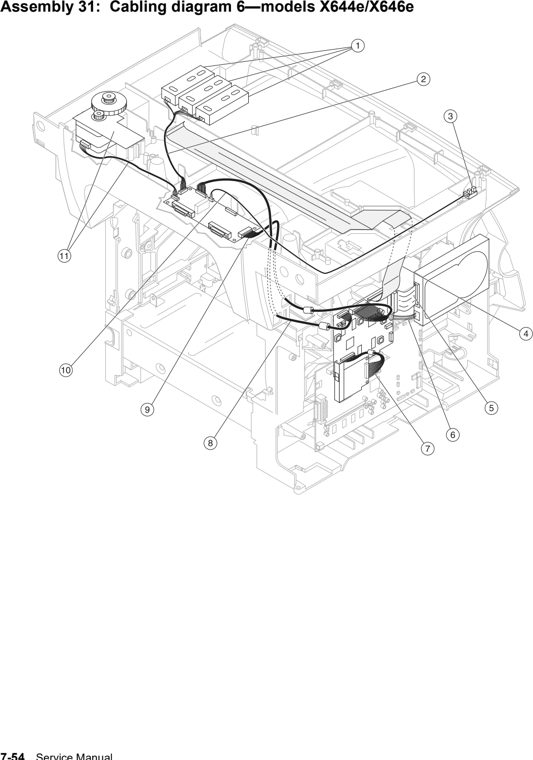

Assembly 31: Cabling diagram 6—models X644e/X646e 1 40X0491 Flatbed paper size sensor assembly (3 sensors are included in the assembly, model X642e uses only one) Lexmark 40X0491 Flatbed Paper Size Sensor Assembly Fully refurbished with 90-day warranty 40X0491 Contact for Details 3 40X0481 Parts packet, sensors (home sensor) Lexmark 40X0481 Sensors Parts Packet New 40X0481 (New) $35.00 4 40X0487 Flatbed CCD ribbon cable Lexmark 40X0487 Flatbed CCD Ribbon Cable New 40X0487 (New) $24.50 5 40X0509 Hard disk IDE 50-pin cable—X646e Lexmark 40X0509 Hard disk IDE 50-pin cable Fully refurbished with 90-day warranty 40X0509 $11.00 6 40X0510 Hard disk 4-pin power cable—X646e Lexmark 40X0510 Hard Disk 4-Pin Power Cable Fully refurbished with 90-day warranty 40X0510 $11.48 7 40X0507 Modem 30-pin cable Lexmark 40X0507 Modem 30-pin cable New 40X0507 (New) $18.94 Lexmark 40X0507 Modem 30-pin cable Fully refurbished with 90-day warranty 40X0507 $19.22 11 40X0480 Flatbed scan motor, including scan motor Parts catalog 7-55 Lexmark 40X0480 Flatbed Scan Motor Assembly New 40X0480 (New) $42.73 Lexmark 40X0480 Flatbed Scan Motor Assembly Fully refurbished with 90-day warranty 40X0480 Contact for Details

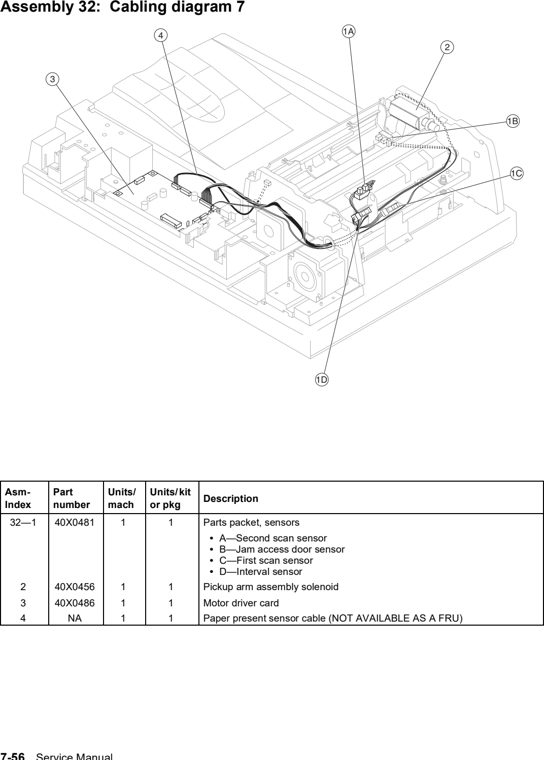

Assembly 32: Cabling diagram 7 1 40X0481 Parts packet, sensors • A—Second scan sensor • B—Jam access door sensor • C—First scan sensor • D—Interval sensor Lexmark 40X0481 Sensors Parts Packet New 40X0481 (New) $35.00 2 40X0456 Pickup arm assembly solenoid Lexmark 40X0456 Pickup Arm Solenoid New 40X0456 (New) $17.38 3 40X0486 Motor driver card Lexmark 40X0486 Motor Driver Card New 40X0486 (New) $189.00 Lexmark 40X0486 Motor Driver Card Fully refurbished with 90-day warranty 40X0486 Contact for Details

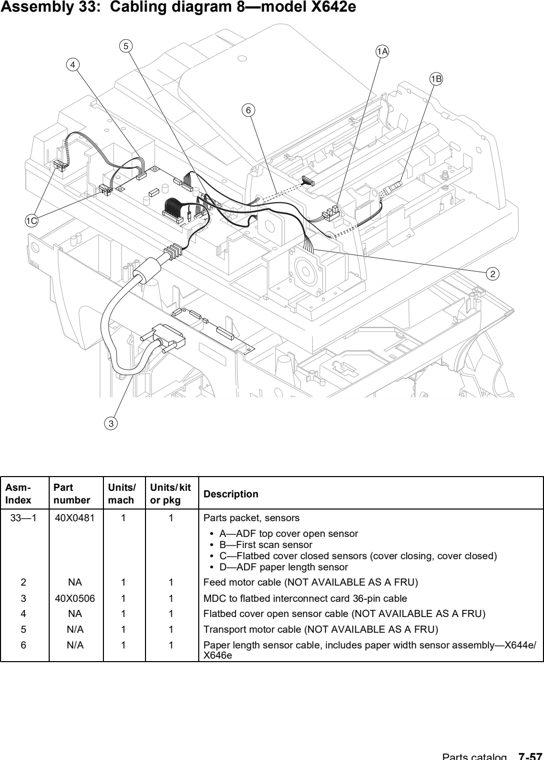

Assembly 33: Cabling diagram 8—model X642e 1 40X0481 Parts packet, sensors • A—ADF top cover open sensor • B—First scan sensor • C—Flatbed cover closed sensors (cover closing, cover closed) • D—ADF paper length sensor Lexmark 40X0481 Sensors Parts Packet New 40X0481 (New) $35.00 3 40X0506 MDC to flatbed interconnect card 36-pin cable Lexmark 40X0506 MDC to ICC 36-pin cable New 40X0506 (New) $50.50 Lexmark 40X0506 MDC to ICC 36-pin cable Fully refurbished with 90-day warranty 40X0506 $50.80

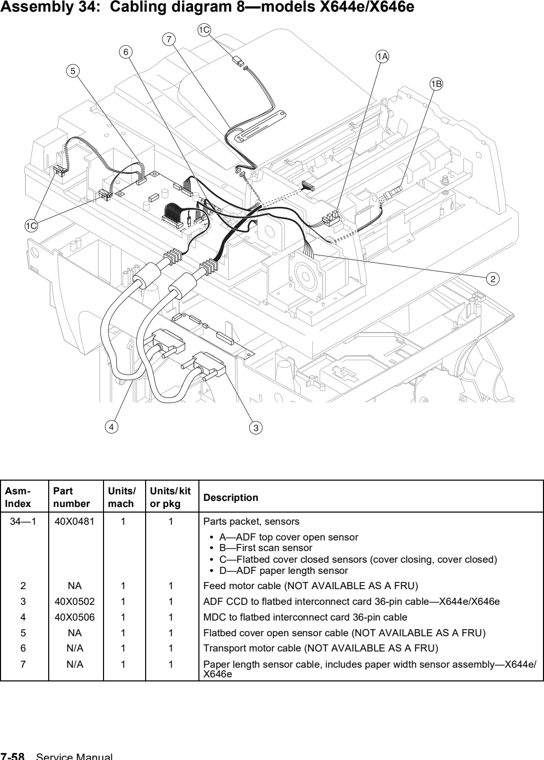

Assembly 34: Cabling diagram 8—models X644e/X646e 1 40X0481 Parts packet, sensors • A—ADF top cover open sensor • B—First scan sensor • C—Flatbed cover closed sensors (cover closing, cover closed) • D—ADF paper length sensor Lexmark 40X0481 Sensors Parts Packet New 40X0481 (New) $35.00 3 40X0502 ADF CCD to flatbed interconnect card 36-pin cable—X644e/X646e Lexmark 40X0502 ADF CCD to ICC 36-pin cable New 40X0502 (New) $75.87 Lexmark 40X0502 ADF CCD to ICC 36-pin cable 64 Fully refurbished with 90-day warranty 40X0502 $26.90 4 40X0506 MDC to flatbed interconnect card 36-pin cable Lexmark 40X0506 MDC to ICC 36-pin cable New 40X0506 (New) $50.50 Lexmark 40X0506 MDC to ICC 36-pin cable Fully refurbished with 90-day warranty 40X0506 $50.80

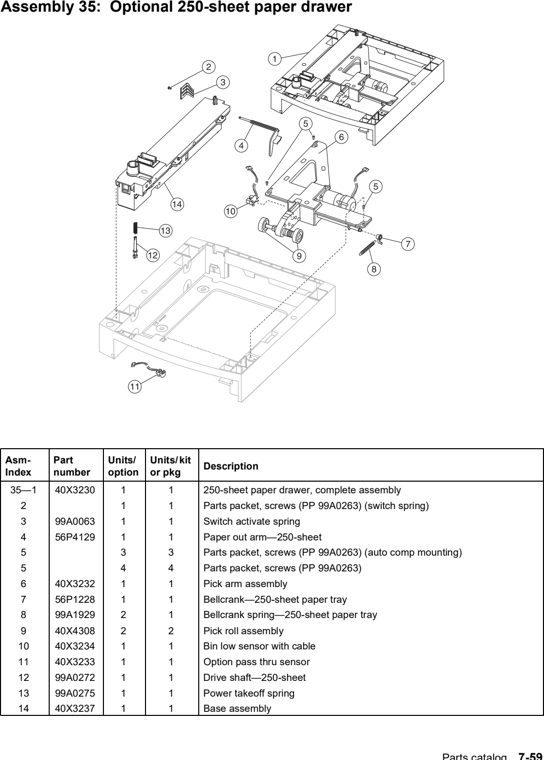

Assembly 35: Optional 250-sheet paper drawer 1 40X3230 250-sheet paper drawer, complete assembly Lexmark 40X3230 250-Sheet Drawer with Tray New 40X3230 (New) $159.50 3 99A0063 Switch activate spring Lexmark 99A0063 Switch Activate Spring Fully refurbished with 90-day warranty 99A0063 $14.62 4 56P4129 Paper out arm—250-sheet 56P4129 Paper out arm 250-sheet New 56P4129 (New) $44.00 56P4129 Paper out arm 250-sheet Fully refurbished with 90-day warranty 56P4129 $36.00 6 40X3232 Pick arm assembly Lexmark 40X3232 Pick arm assembly 250 New 40X3232 (New) $86.65 7 56P1228 Bellcrank—250-sheet paper tray 56P1228 Bellcrank Arm Assembly New 56P1228 (New) $19.00 56P1228 Bellcrank Arm Assembly Fully refurbished with 90-day warranty 56P1228 Contact for Details 8 99A1929 Bellcrank spring—250-sheet paper tray 9 40X4308 Pick roll assembly Lexmark 40X4308 Pick roll assembly (Set of 2) New 40X4308 CET5894 (New) $18.95 10 40X3234 Bin low sensor with cable Lexmark 40X3234 Bin low sensor with cable New 40X3234 (New) Contact for Details Lexmark 40X3234 Bin low sensor with cable Fully refurbished with 90-day warranty 40X3234 $34.14 11 40X3233 Option pass thru sensor Lexmark 40X3233 Option pass through sensor New 40X3233 (New) $24.71 Lexmark 40X3233 Option pass thru sensor Fully refurbished with 90-day warranty 40X3233 $25.00 12 99A0272 Drive shaft—250-sheet 13 99A0275 Power takeoff spring 14 40X3237 Base assembly Parts catalog 7-59 Lexmark 40X3237 Base assembly - 250-sheet New 40X3237 (New) $53.21

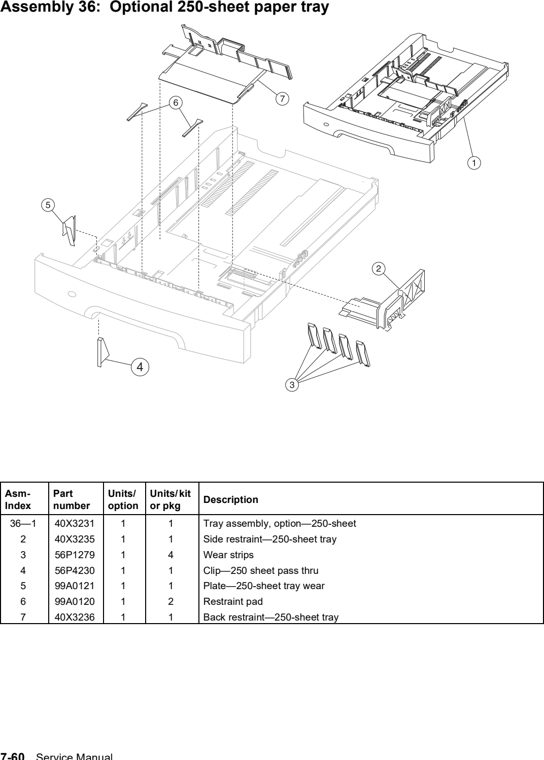

Assembly 36: Optional 250-sheet paper tray 1 40X3231 Tray assembly, option—250-sheet Lexmark 40X3231 250-Sheet Tray, complete assembly T64x, X642e, X644e, X646e New 40X3231 (New) $169.00 Lexmark 40X3231 250-Sheet Tray, complete assembly T64x, X642e, X644e, X646e Fully refurbished with 90-day warranty 40X3231 $89.00 2 40X3235 Side restraint—250-sheet tray Lexmark 40X3235 Side restraint - 250-sheet tray New 40X3235 (New) $59.82 3 56P1279 Wear strips 4 56P4230 Clip—250 sheet pass thru 5 99A0121 Plate—250-sheet tray wear 6 99A0120 Restraint pad 7 40X3236 Back restraint—250-sheet tray Lexmark 40X3236 Back restraint - 250-sheet tray New 40X3236 (New) $60.44 Lexmark 40X3236 Back restraint - 250-sheet tray Fully refurbished with 90-day warranty 40X3236 $49.28

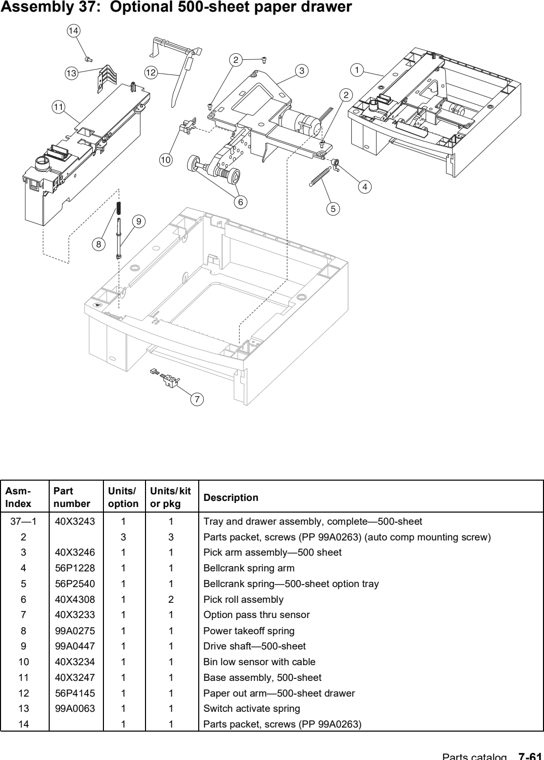

Assembly 37: Optional 500-sheet paper drawer 1 40X3243 Tray and drawer assembly, complete—500-sheet Lexmark 40X3243 500-Sheet Drawer with Tray, Complete Assembly New 40X3243 (New) $225.00 Lexmark 40X3243 500-Sheet Drawer with Tray, Complete Assembly Fully refurbished with 90-day warranty 40X3243 $179.00 3 40X3246 Pick arm assembly—500 sheet Lexmark 40X3246 Pick arm assembly - 500-sheet New 40X3246 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X3246 Pick arm assembly - 500-sheet Fully refurbished with 90-day warranty 40X3246 $125.00 4 56P1228 Bellcrank spring arm 56P1228 Bellcrank Arm Assembly New 56P1228 (New) $19.00 56P1228 Bellcrank Arm Assembly Fully refurbished with 90-day warranty 56P1228 Contact for Details 5 56P2540 Bellcrank spring—500-sheet option tray 6 40X4308 Pick roll assembly Lexmark 40X4308 Pick roll assembly (Set of 2) New 40X4308 CET5894 (New) $18.95 7 40X3233 Option pass thru sensor Lexmark 40X3233 Option pass through sensor New 40X3233 (New) $24.71 Lexmark 40X3233 Option pass thru sensor Fully refurbished with 90-day warranty 40X3233 $25.00 8 99A0275 Power takeoff spring 9 99A0447 Drive shaft—500-sheet 10 40X3234 Bin low sensor with cable Lexmark 40X3234 Bin low sensor with cable New 40X3234 (New) Contact for Details Lexmark 40X3234 Bin low sensor with cable Fully refurbished with 90-day warranty 40X3234 $34.14 11 40X3247 Base assembly, 500-sheet Lexmark 40X3247 Base assembly 500-sheet Fully refurbished with 90-day warranty 40X3247 $165.45 12 56P4145 Paper out arm—500-sheet drawer 56P4145 Paper out arm - 500-sheet drawer New 56P4145 (New) $25.00 56P4145 Paper out arm - 500-sheet drawer Fully refurbished with 90-day warranty 56P4145 Contact for Details 13 99A0063 Switch activate spring Lexmark 99A0063 Switch Activate Spring Fully refurbished with 90-day warranty 99A0063 $14.62

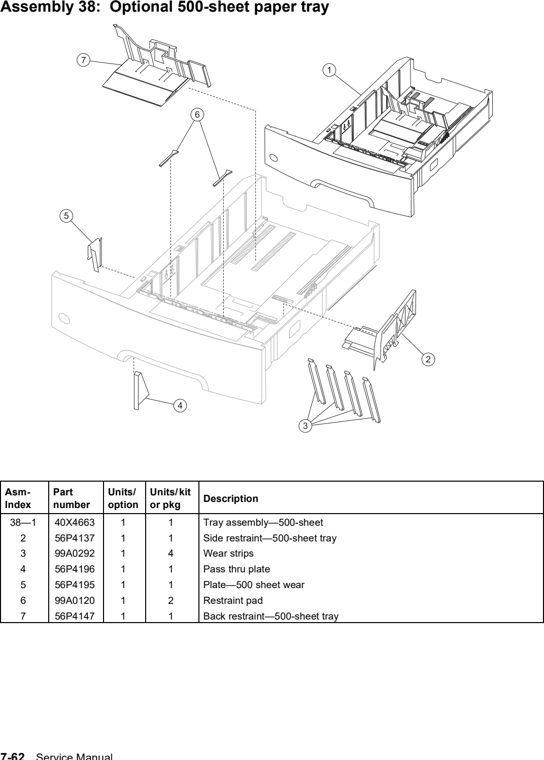

Assembly 38: Optional 500-sheet paper tray 1 40X4663 Tray assembly—500-sheet Lexmark 40X4663 500-Sheet Tray complete assembly New 40X4663 20G0084 (New) Contact for Details 2 56P4137 Side restraint—500-sheet tray 56P4137 Side restraint - 500-sheet tray New 56P4137 (New) $45.00 56P4137 Side restraint - 500-sheet tray Fully refurbished with 90-day warranty 56P4137 Contact for Details 3 99A0292 Wear strips 4 56P4196 Pass thru plate 56P4196 Pass thru plate New 56P4196 (New) $25.00 56P4196 Pass thru plate Fully refurbished with 90-day warranty 56P4196 Contact for Details 5 56P4195 Plate—500 sheet wear 56P4195 Wear plate - 500 sheet New 56P4195 (New) $44.00 56P4195 Wear plate - 500 sheet Fully refurbished with 90-day warranty 56P4195 Contact for Details 6 99A0120 Restraint pad 7 56P4147 Back restraint—500-sheet tray 56P4147 Back restraint - 500-sheet tray New 56P4147 (New) $47.00 56P4147 Back restraint - 500-sheet tray Fully refurbished with 90-day warranty 56P4147 Contact for Details

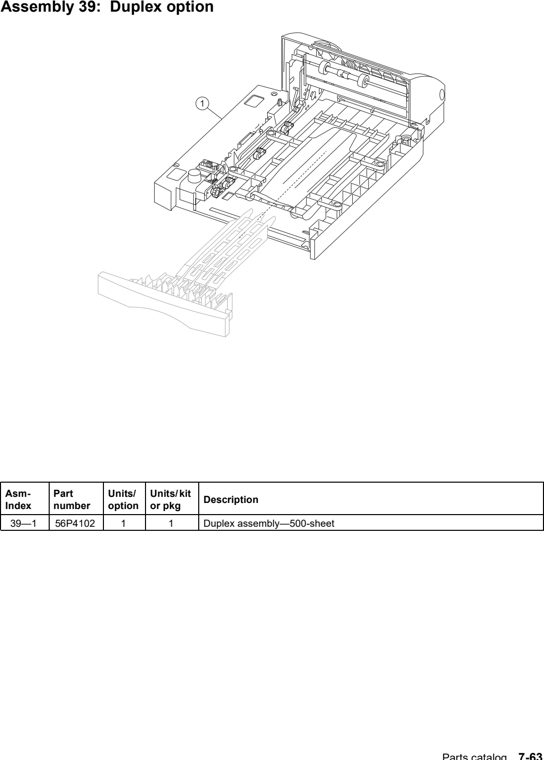

Assembly 39: Duplex option 1 56P4102 Duplex assembly—500-sheet Parts catalog 7-63 IBM 56P4102 500 Sheet Duplex Unit New 56P4102 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 56P4102 500 Sheet Duplex Unit Fully refurbished with 90-day warranty 56P4102 Retired, no longer available: Contact for alternatives Contact for Details

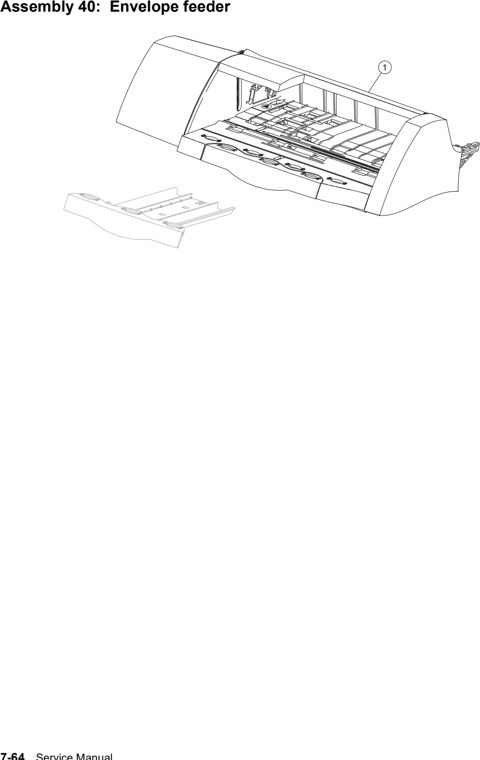

Assembly 40: Envelope feeder 1 40X3248 Complete envelope option Parts catalog 7-65

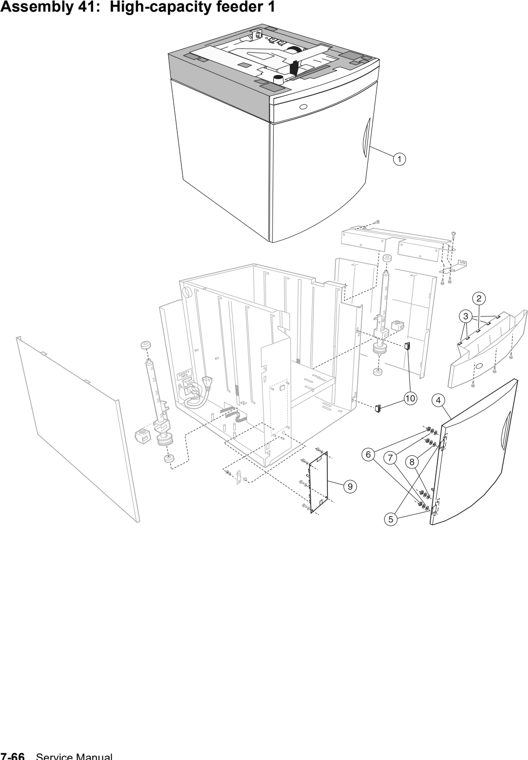

Assembly 41: High capacity feeder 1 1 40X3249 Complete option assembly (A4) Lexmark 40X3249 2000-Sheet High Capacity Feeder (A4), complete assembly T64x, X642e, X644e, X646e New 40X3249 (New) $1247.75 2 99A1818 Wear dimple strip 3 99A0681 Wear strip 4 40X3254 Front door assembly Lexmark 40X3254 Front door assembly New 40X3254 56P4155 (New) $160.03 5 56P4157 Door hinge 56P4157 Door hinge New 56P4157 (New) $52.00 9 40X3252 2000-sheet option control card assembly Lexmark 40X3252 2000-sheet HCF Lower control card assembly New 40X3252 (New) $101.70 10 99A0658 Door magnet Parts catalog 7-67

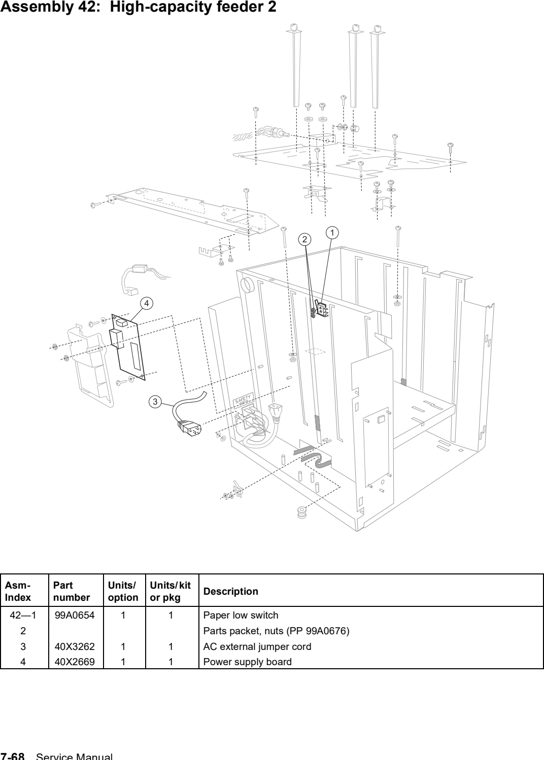

Assembly 42: High-capacity feeder 2 1 99A0654 Paper low switch Lexmark 99A0654 Paper low switch New 99A0654 (New) Contact for Details 3 40X3262 AC external jumper cord Lexmark 40X3262 AC External Jumper Cord New 40X3262 (New) $139.00 4 40X2669 Power supply board Lexmark 40X2669 Power supply board Fully refurbished with 90-day warranty 40X2669 $105.10

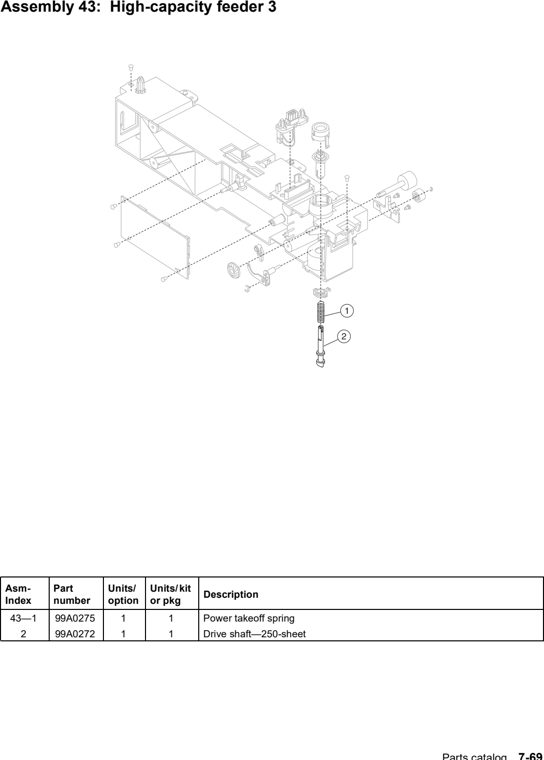

Assembly 43: High-capacity feeder 3 1 99A0275 Power takeoff spring 2 99A0272 Drive shaft—250-sheet Parts catalog 7-69

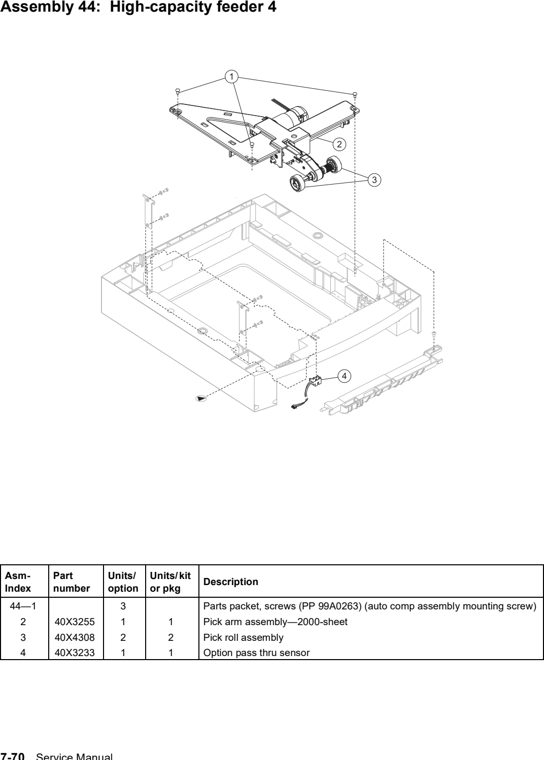

Assembly 44: High-capacity feeder 4 2 40X3255 Pick arm assembly—2000-sheet Lexmark 40X3255 Pick arm assembly - 2000-sheet New 40X3255 56P4162 (New) $136.97 3 40X4308 Pick roll assembly Lexmark 40X4308 Pick roll assembly (Set of 2) New 40X4308 CET5894 (New) $18.95 4 40X3233 Option pass thru sensor Lexmark 40X3233 Option pass through sensor New 40X3233 (New) $24.71 Lexmark 40X3233 Option pass thru sensor Fully refurbished with 90-day warranty 40X3233 $25.00

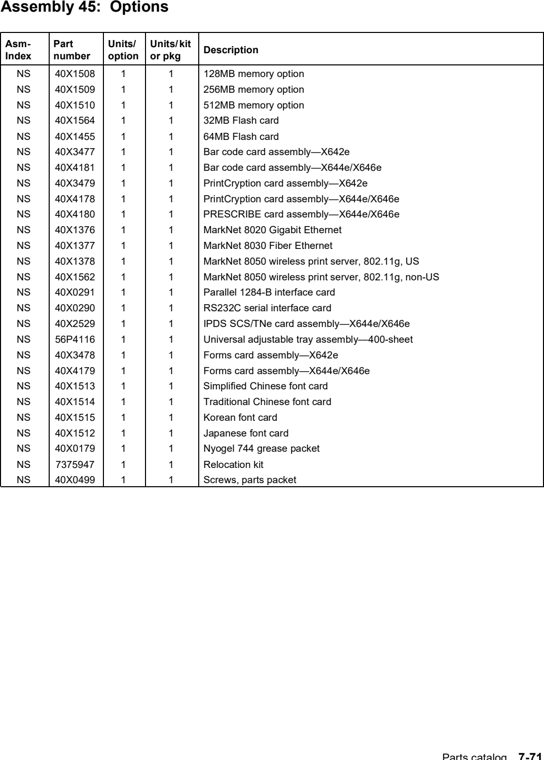

Assembly 45: Options NS 40X1508 128MB memory option Lexmark 40X1508 Lexmark Brand 128MB Memory New 40X1508 (New) $27.50 Lexmark 40X1508 Lexmark Brand 128MB Memory Fully refurbished with 90-day warranty 40X1508 $24.50 NS 40X1509 256MB memory option Lexmark 40X1509 Lexmark Brand 256 MB DIMM New 40X1509 (New) $71.21 Lexmark 40X1509 Lexmark Brand 256 MB DIMM Fully refurbished with 90-day warranty 40X1509 $69.71 NS 40X1510 512MB memory option Lexmark 40x1510 512MB DDR Memory New 40X1510 40X5939 (New) $199.00 Lexmark 40x1510 512MB DDR Memory Fully refurbished with 90-day warranty 40X1510 40X5939 Compatible $49.00 NS 40X1564 32MB Flash card Lexmark 40X1564 32MB Flash Fully refurbished with 90-day warranty 40X1564 $25.00 NS 40X1455 64MB Flash card Lexmark 40X1455 64MB Flash Memory Card New 40X1455 (New) Contact for Details Lexmark 40X1455 64MB Flash Memory Card Fully refurbished with 90-day warranty 40X1455 Contact for Details NS 40X3477 Bar code card assembly—X642e NS 40X4181 Bar code card assembly—X644e/X646e NS 40X3479 PrintCryption card assembly—X642e NS 40X4178 PrintCryption card assembly—X644e/X646e NS 40X4180 PRESCRIBE card assembly—X644e/X646e NS 40X1376 MarkNet 8020 Gigabit Ethernet Lexmark 40X1376 MarkNet N8020 GigaBit Ethernet New 40X1376 (New) $175.00 Lexmark 40X1376 MarkNet N8020 GigaBit Ethernet Fully refurbished with 90-day warranty 40X1376 $125.00 NS 40X1377 MarkNet 8030 Fiber Ethernet Lexmark 40X1377 MarkNet N8030 Fiber Ethernet 100BaseTX New 40X1377 (New) Contact for Details Lexmark 40X1377 MarkNet N8030 Fiber Ethernet 100BaseTX Fully refurbished with 90-day warranty 40X1377 Contact for Details NS 40X1378 MarkNet 8050 wireless print server, 802.11g, US Lexmark 40X1378 MarkNet N8050 802.11g Wireless Print Server US New 40X1378 (New) Contact for Details Lexmark 40X1378 MarkNet N8050 802.11g Wireless Print Server US Fully refurbished with 90-day warranty 40X1378 Contact for Details NS 40X1562 MarkNet 8050 wireless print server, 802.11g, non-US Lexmark 40X1562 MarkNet N8050 802.11g Wireless Print Server Not-US New 40X1562 (New) Contact for Details Lexmark 40X1562 MarkNet N8050 802.11g Wireless Print Server Not-US Fully refurbished with 90-day warranty 40X1562 Contact for Details NS 40X0291 Parallel 1284-B interface card Lexmark 40X0291 Parallel 1284B Card Assembly New 40X0291 (New) $15.00 NS 40X0290 RS232C serial interface card Lexmark 40X0290 Serial RS232C Card Assembly New 40X0290 56P1436 (New) $15.00 NS 40X2529 IPDS SCS/TNe card assembly—X644e/X646e Lexmark 40X2529 Card for IPDS New 40X2529 (New) $105.00 Lexmark 40X2529 Card for IPDS Fully refurbished with 90-day warranty 40X2529 $49.00 NS 56P4116 Universal adjustable tray assembly—400-sheet Lexmark 56P4116 400 Sheet Tray New 56P4116 (New) $299.00 NS 40X3478 Forms card assembly—X642e NS 40X4179 Forms card assembly—X644e/X646e NS 40X1513 Simplified Chinese font card NS 40X1514 Traditional Chinese font card NS 40X1515 Korean font card NS 40X1512 Japanese font card NS 40X0179 Nyogel 744 grease packet NS 7375947 Relocation kit NS 40X0499 Screws, parts packet Parts catalog 7-71
Other listed parts 20G0891 Envelope Feeder Lexmark 20G0891 Envelope Feeder New 20G0891 40x3248 (New) Contact for Details Lexmark 20G0891 Envelope Feeder Fully refurbished with 90-day warranty 20G0891 40x3248 $275.00 22G0320 Lexmark X644e MFP Laser Printer Lexmark X644e MFP Laser Printer Fully refurbished with 90-day warranty X644e 22G0320 7002-011 Contact for Details 22G0325 Lexmark X646e MFP Printer Lexmark X646e MFP Printer Fully refurbished with 90-day warranty X646e 22G0325 7002-111 Contact for Details 22G0550 Lexmark X642e MFP Laser Printer Lexmark X642e MFP Laser Printer Fully refurbished with 90-day warranty X642e 22G0550 Contact for Details 40X0070 Pick roll assembly - set of two Lexmark 40X0070 Pick roll assembly - set of two New 40X0070 40X4308 CET5894 (New) $18.95 40X0113 Bevel Gear Kit Lexmark 40X0113 Bevel Gear Kit New 40X0113 (New) Contact for Details 40X0138 High Voltage Power Supply (HVPS) Lexmark 40X0138 High Voltage Power Supply (HVPS) Fully refurbished with 90-day warranty 40X0138 40x4275 56P4239 $49.00 40X0165 ) 40X0174 ) 40X0234 Operator Panel Outer Bezel With Logo T644 Lexmark 40X0234 Operator Panel Outer Bezel With Logo T644 New 40X0234 L (New) $23.04 40X0254 ) 40X1525 Controller Board C544n C544dn C544dw Lexmark 40X1525 Controller Board C544n C544dn C544dw Fully refurbished with 90-day warranty 40X1525 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $224.92 40X2665 Oil Fuser Wiper (Wick), Black Housing Lexmark 40X2665 Oil Fuser Wiper (Wick), Black Housing New 40X2665 VXPFF (New) $26.00 40X2666 Wax Fuser Wiper (Gray) Lexmark 40x2666 Wax Fuser Wiper (Gray) New 40x2666 M4G25 (New) $26.00 40X2743 L System Board Assembly - X642e Lexmark 40X2743 L System Board Assembly - X642e New 40X2743 L Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $331.81 Lexmark 40X2743 System Board Assembly - X642e New 40X2743 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $331.81 40X2744 System Board Assembly - X644e/X646e (Board ID M010 6000) Lexmark 40X2744 System Board Assembly - X644e/X646e (Board ID M010 6000) New 40X2744 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details Lexmark 40X2744 L System Board Assembly - X644e/X646e (Board ID M010 6000) New 40X2744 L Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details 40X4211 System board assembly - X644e/X646e (Board ID M010 6000) Lexmark 40X4211 System board assembly - X644e/X646e (Board ID M010 6000) New 40X4211 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details Lexmark 40X4211 System board assembly - X644e/X646e (Board ID M010 6000) New 40X4211 Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details 40X4243 LVPS/AIO - 115 V ac Lexmark 40X4243 LVPS/AIO - 115 V ac New 40X4243 40X3244 (New) Contact for Details Lexmark 40X4243 LVPS/AIO - 115 V ac Fully refurbished with 90-day warranty 40X4243 40X3244 $29.71 40X4300 System Board Assembly, X642e Lexmark 40X4300 System Board Assembly, X642e New 40X4300 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details Lexmark 40X4300 L System Board Assembly, X642e Fully refurbished with 90-day warranty 40X4300 L Repair $70.68 Lexmark 40X4300 L System Board Assembly, X642e New 40X4300 L Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details 40X4301 System Board Assembly X644e, X646e Lexmark 40X4301 System Board Assembly X644e, X646e New 40X4301 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $245.00 Lexmark 40X4301 L System Board Assembly X644e, X646e Fully refurbished with 90-day warranty 40X4301 L Repair Contact for Details 40X4657 Entrance guide 40X4658 Sub ADF separator guide 40X4845 Scan Control Card X642e Lexmark 40X4845 Scan Control Card X642e New 40X4845 L (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details 40X5032 System Board Assembly - X642e Lexmark 40X5032 System Board Assembly - X642e New 40X5032 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $331.81 Lexmark 40X5032 L System Board Assembly - X642e New 40X5032 L Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $331.81 40X5033 System Board Assembly - X644e/X646e Lexmark 40X5033 System Board Assembly - X644e/X646e New 40X5033 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details Lexmark 40X5033 System Board Assembly - X644e/X646e New 40X5033 Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details 99A0263 Screws Parts Packet Lexmark 99A0263 Screws Parts Packet New 99A0263 (New) Contact for Details 99A0676 ) (6-32 hinge mounting nut) 99A0677 ) (hinge mounting flat washer)
