Xerox AltaLink B8145 B8155 B8170 & C8130 Parts
Please call for parts assistance
New and refurbished parts for the Xerox AltaLink B8145 / B8155 / B8170 / C8130, listed by the parts-list (PL) sections of the Xerox parts catalog. Please call 1-888-742-9565 for parts pricing and availability.

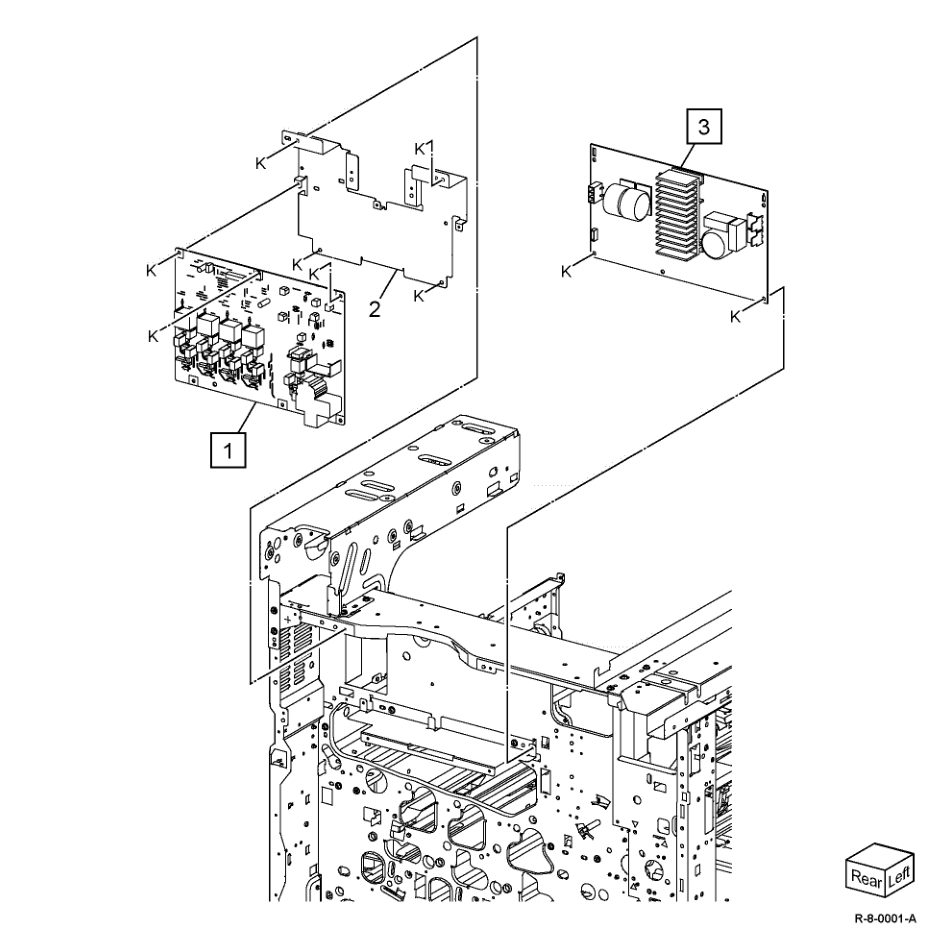

| PL 1.05 Electrical - Rear (1 of 3) 1 105E23490 BTR HVPS PWB (B8145/B8155) 105E23490 BTR High Voltage Power Supply (HVPS) (Mid) Fully refurbished with 90-day warranty 105E23490 (Refurbished) — 105E25370 BTR HVPS PWB (B8170) 105E25370 BTR High Voltage Power Supply (HVPS) PWB Fully refurbished with 90-day warranty 105E25370 (Refurbished) 2 - Bracket (Not Spared) 3 105E23510 Fuser heater power supply (110V) (B8145/B8155) 105E23510 Fuser Heater Power Supply - 110V Fully refurbished with 90-day warranty 105E23510 (Refurbished) — 105E23530 Fuser heater power supply (110V) (B8170) 105E23530 Fuser Heater Power Supply 110V Fully refurbished with 90-day warranty 105E23530 (Refurbished) — 105E23521 Fuser heater power supply (220V) (B8145/B8155) Xerox 105E23521 Fuser heater power supply (220V) (B8145/B8155) Fully refurbished with 90-day warranty 105E23521 (Refurbished) — 105E23541 Fuser heater power supply (220V) (B8170) 1 105E23241 BTR HVPS PWB (C8130/C8135/ C8145/C8155) — 105E23261 BTR HVPS PWB (C8170) 2 - Bracket (Not Spared) 3 105E23510 Fuser heater power supply (110V) (C8130/C8135/C8145/C8155) 105E23510 Fuser Heater Power Supply - 110V Fully refurbished with 90-day warranty 105E23510 (Refurbished) — 105E23530 Fuser heater power supply (110V) (C8170) 105E23530 Fuser Heater Power Supply 110V Fully refurbished with 90-day warranty 105E23530 (Refurbished) — 105E23521 Fuser heater power supply (220V) (C8130/C8135/C8145/C8155) Xerox 105E23521 Fuser heater power supply (220V) (B8145/B8155) Fully refurbished with 90-day warranty 105E23521 (Refurbished) — 105E23541 Fuser heater power supply (220V) (C8170) |  |

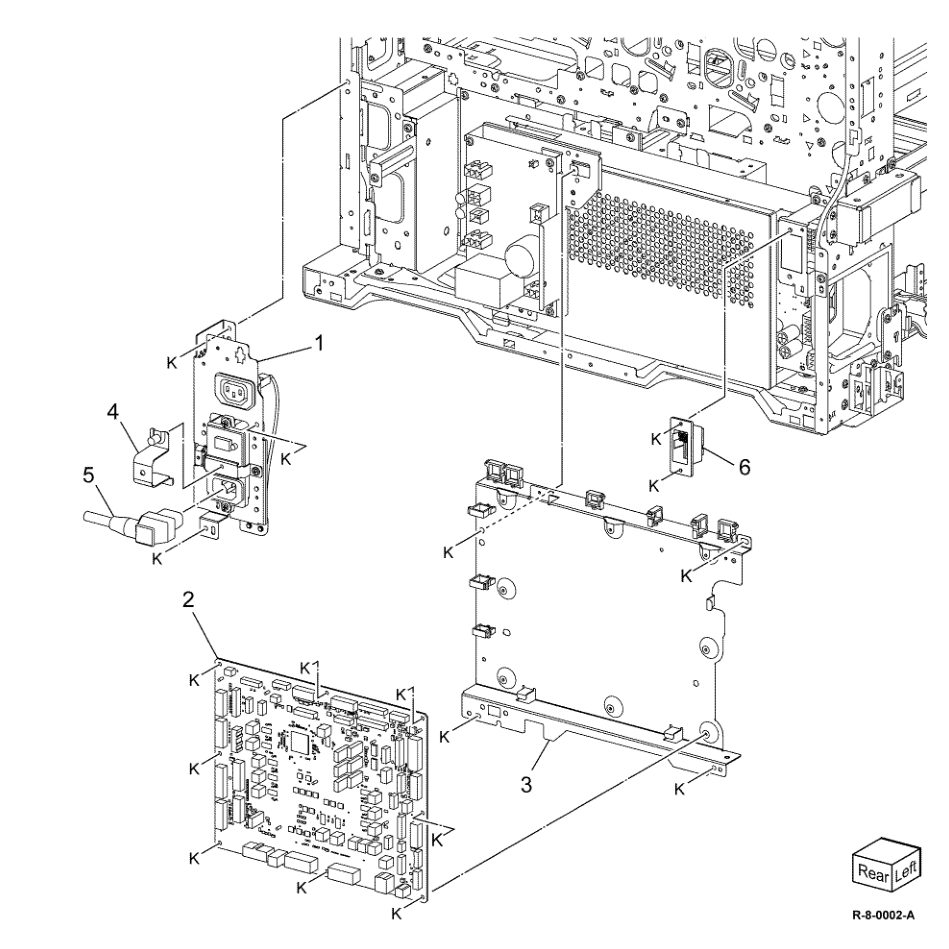

| PL 1.10 Electrical - Rear (2 of 3) 1 101K69950 GFI chassis assembly (B8130/ B8135/B8145/B8155) 101K69950 GFI Chassis Assembly Fully refurbished with 90-day warranty 101K69950 (Refurbished) $114.75 — 101K69960 GFI chassis assembly (B8170) 2 960K81550 Motor drive PWB 3 - Motor drive chassis assembly (Not Spared) 4 - Power cord bracket (Not Spared) 5 917W03005 Power cord (110V) (USSG/XCL) — 117E24670 Power cord (125V) (USSG/XCL) 6 - HCF conector switch 1 101K69950 GFI chassis assembly (C8130/ C8135/C8145/C8155) 101K69950 GFI Chassis Assembly Fully refurbished with 90-day warranty 101K69950 (Refurbished) $114.75 — 101K69960 GFI chassis assembly (C8170) 2 961K01400 Motor drive PWB 3 - Motor drive chassis assembly (Not Spared) 4 - Power cord bracket (Not Spared) 5 117E24670 Power cord (125V/20A) (USSG/ XCL) — 917W03005 Power cord (125V/15A) (USSG/ XCL) — 917W03102 Power cord (250V/10A) (XE) 6 - HCF connector switch |  |

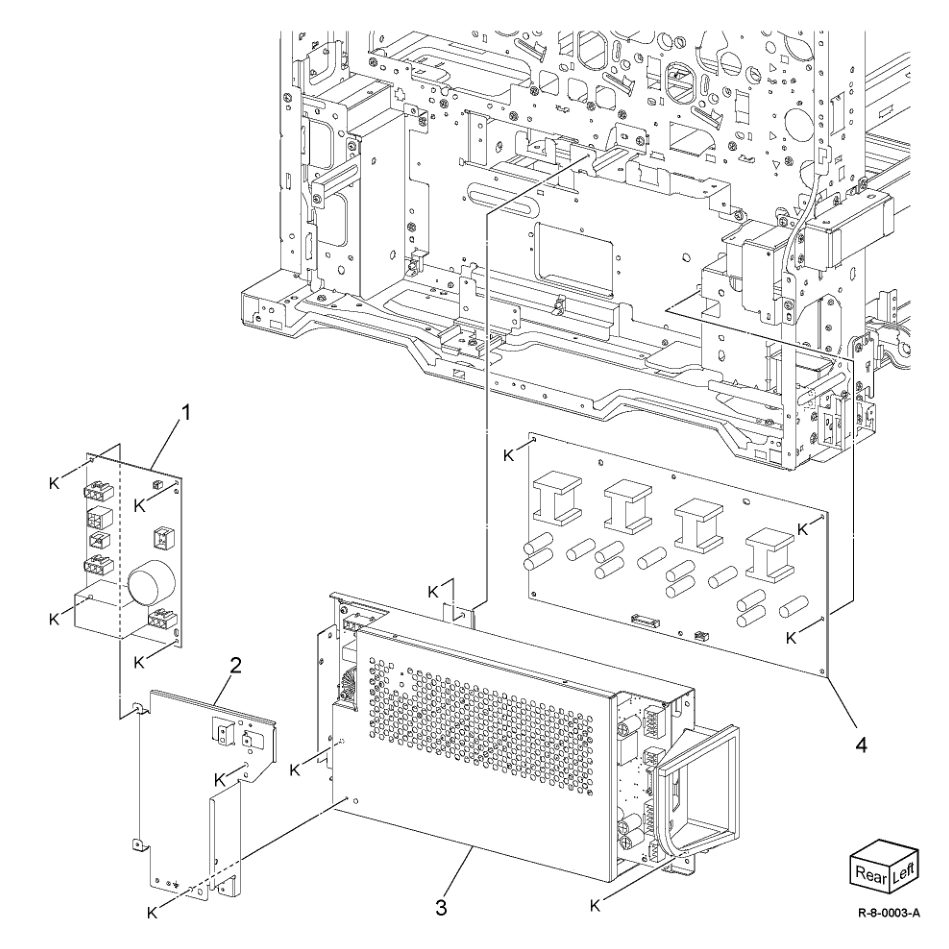

| PL 1.15 Electrical - Rear (3 of 3) 1 105K34181 AC Drive PWB (110V) (B8145/ B8155) — 105K34201 AC Drive PWB (110V) (B8170) Xerox 105K34201 AC Drive PWB (110V) (B8170) Fully refurbished with 90-day warranty 105K34201 (Refurbished) — 105K34191 AC Drive PWB (220V) 2 - AC bracket (Not Spared) 3 112K91400 LVPS 112K91400 Low Voltage Power Supply (LVPS) Assembly Fully refurbished with 90-day warranty 112K91400 (Refurbished) $251.60 4 105E23480 Developer bias HVPS PWB 105E23480 Developer Bias High Voltage Power Supply (HVPS) PWB New 105E23480 (New) 3-4 Day Lead $134.64 105E23480 Developer Bias High Voltage Power Supply (HVPS) PWB Fully refurbished with 90-day warranty 105E23480 (Refurbished) $66.64 1 105K34181 AC Drive PWB (110V) (C8130/ C8135/C8145/C8155) — 105K34200 AC Drive PWB (110V) (C8170) — 105K34191 AC Drive PWB (220V) 2 - AC bracket (Not Spared) 3 112K91400 LVPS 112K91400 Low Voltage Power Supply (LVPS) Assembly Fully refurbished with 90-day warranty 112K91400 (Refurbished) $251.60 4 105E22573 Developer bias HVPS PWB 105E22573 Developer Bias High Voltage Power Supply (HVPS) PWB Fully refurbished with 90-day warranty 105E22573 (Refurbished) |  |

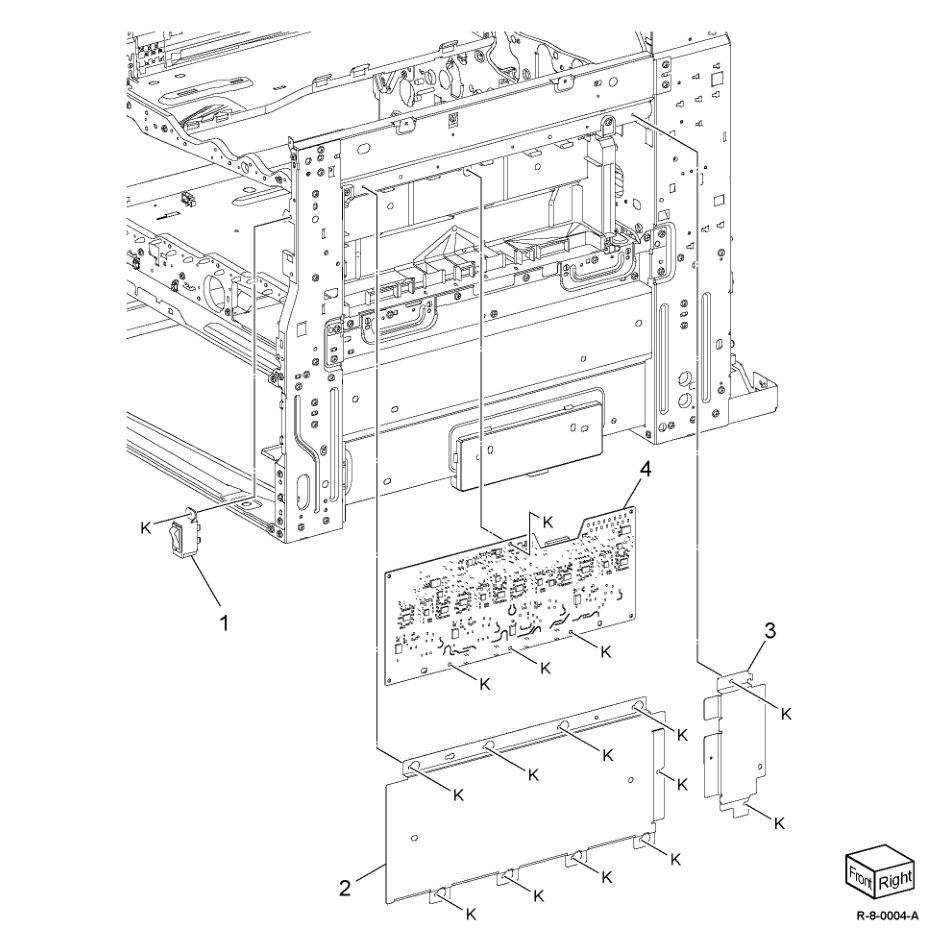

| PL 1.20 Electrical - Front/Right 1 049K46300 Main power switch 2 - BCR HVPS cover (Not Spared) 3 - Cover (Not Spared) 4 105K34171 BCR HVPS PWB (B8145/B8155) 105K34171 BCR High Voltage Power Supply (HVPS) PWB Fully refurbished with 90-day warranty 105K34171 (Refurbished) — 105E25360 BCR HVPS PWB (B8170) 105E25360 BCR High Voltage Power Supply (HVPS) PWB Fully refurbished with 90-day warranty 105E25360 (Refurbished) 1 049K46300 Main power switch 2 - BCR HVPS cover (Not Spared) 3 - Cover (Not Spared) 4 105E23230 BCR HVPS PWB (C8130/C8135/ C8145/C8155) 105E23230 BCR High Voltage Power Supply (HVPS) PWB Fully refurbished with 90-day warranty 105E23230 (Refurbished) — 105E23250 BCR HVPS PWB (C8170) 105E23250 BCR High Voltage Power Supply (HVPS) PWB Fully refurbished with 90-day warranty 105E23250 (Refurbished) |  |

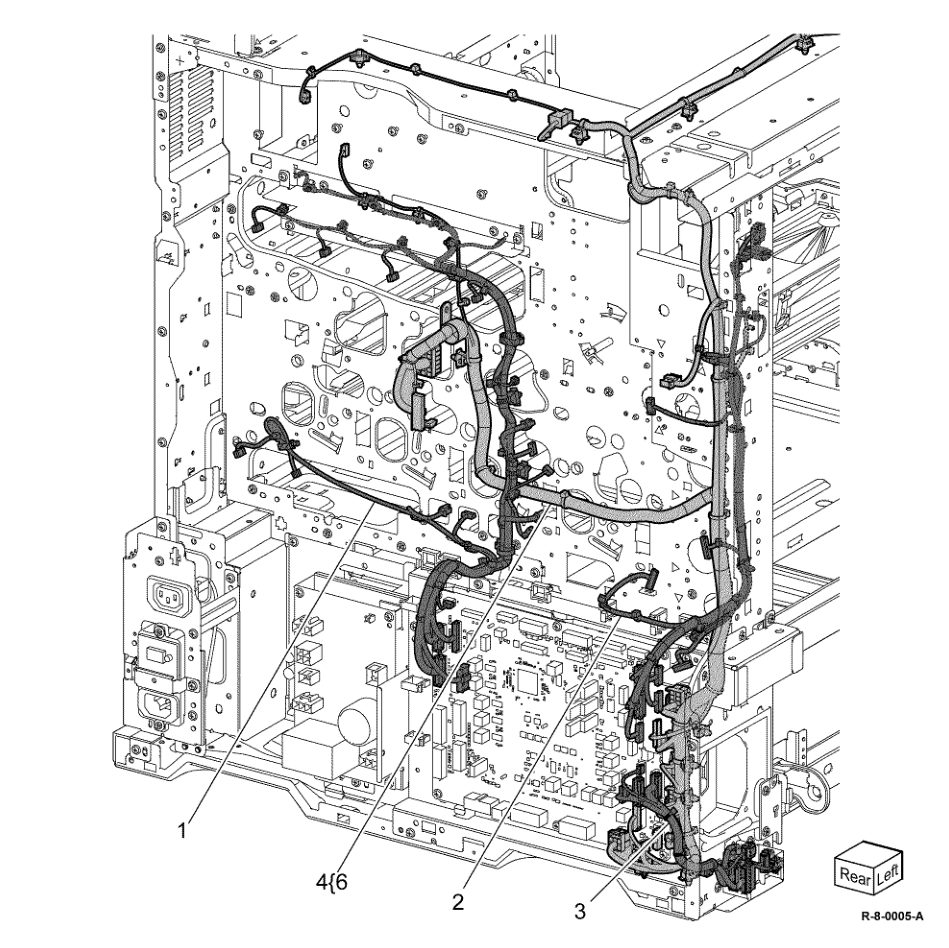

| PL 1.25 Wire Harness 1 - Drive harness (B8145/B8155) — - Drive Harness (B8170) 2 - PH drive harness (B8145/B8155) — - PH drive harness (B8170) 3 - LH harness (B8145/B8155) — - LH harness (B8170) 4 - DC power harness (B8145/B8155) — - DC power harness (B8170) 5 952K13252 HCF interface harness (Not shown) 6 952K44950 Fuser harness (B8145/B8155) (P/ O PL 1.25 Item 4) — 952K44960 Fuser harness (B8170) (P/O PL 1.25 Item 4) 1 - Drive harness (C8130/C8135/ C8145/C8155) — - Drive Harness (C8170) 2 - PH drive harness (C8130/C8135/ C8145/C8155) — - PH drive harness (C8170) 3 - LH harness (C8130/C8135) — - LH harness (C8145/C8155) — - LH harness (C8170) 4 - DC power harness (C8130/C8135) — - DC power harness (C8145/C8155) — - DC power harness (C8170) 5 952K13252 HCF interface harness (Not shown) 6 952K44950 Fuser harness (C8130/C8135/ C8145/C8155) (P/O PL 1.25 Item 4) — 952K44960 Fuser harness (C8170) (P/O PL 1.25 Item 4) |  |

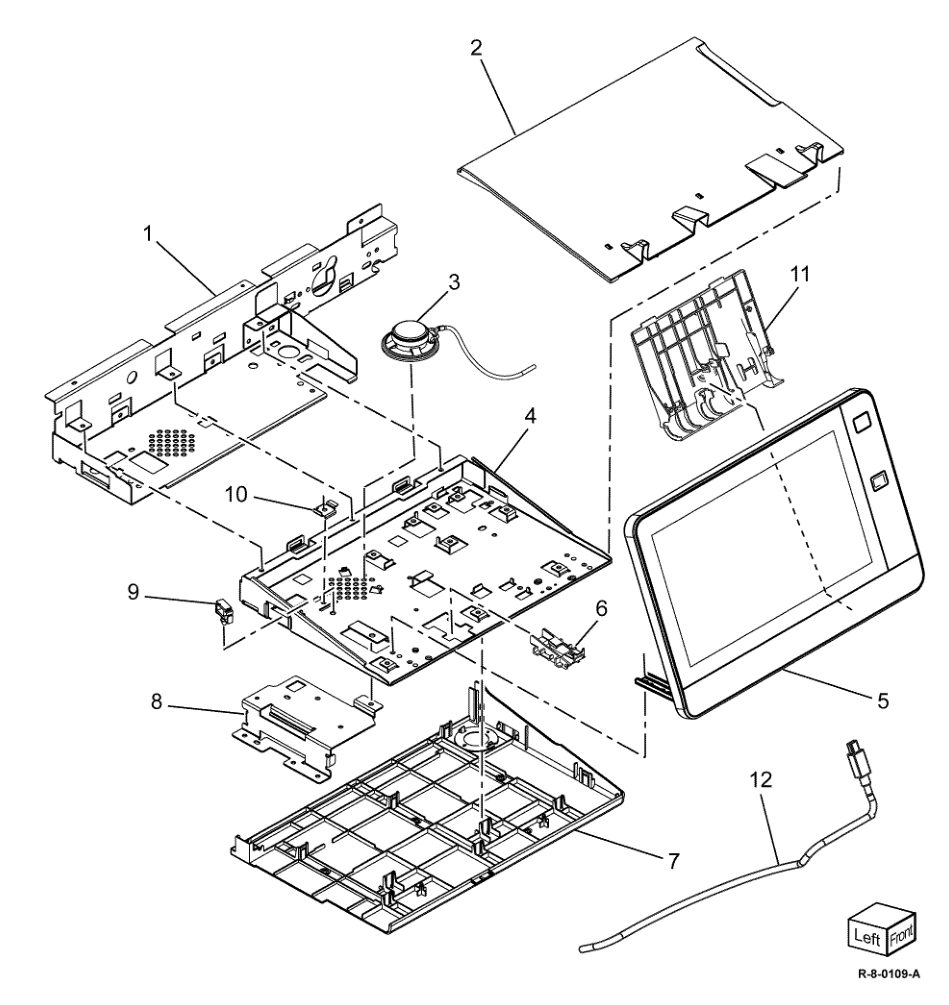

| PL 2.05 User Interface (B8145/B8155) 1 - Mounting bracket 2 - Top cover 3 930K00420 Speaker 4 - Base plate 5 084K43260 User interface assembly 084K43260 User Interface Assembly Fully refurbished with 90-day warranty 084K43260 (Refurbished) $238.00 6 - Cable bracket 7 - Base cover 8 - Bracket 9 - Cable clamp 10 - Speaker clamp plate 11 - Cable cover 12 952K36970 UI cable 1 - Mounting bracket 2 - Top cover 3 930K00420 Speaker 4 - Base plate 5 084K43260 User interface assembly 084K43260 User Interface Assembly Fully refurbished with 90-day warranty 084K43260 (Refurbished) $238.00 6 - Cable bracket 7 - Base cover 8 - Bracket 9 - Cable clamp 10 - Speaker clamp plate 11 - Cable cover (P/O PL 2.05 Item 5) 12 952K36970 UI cable |  |

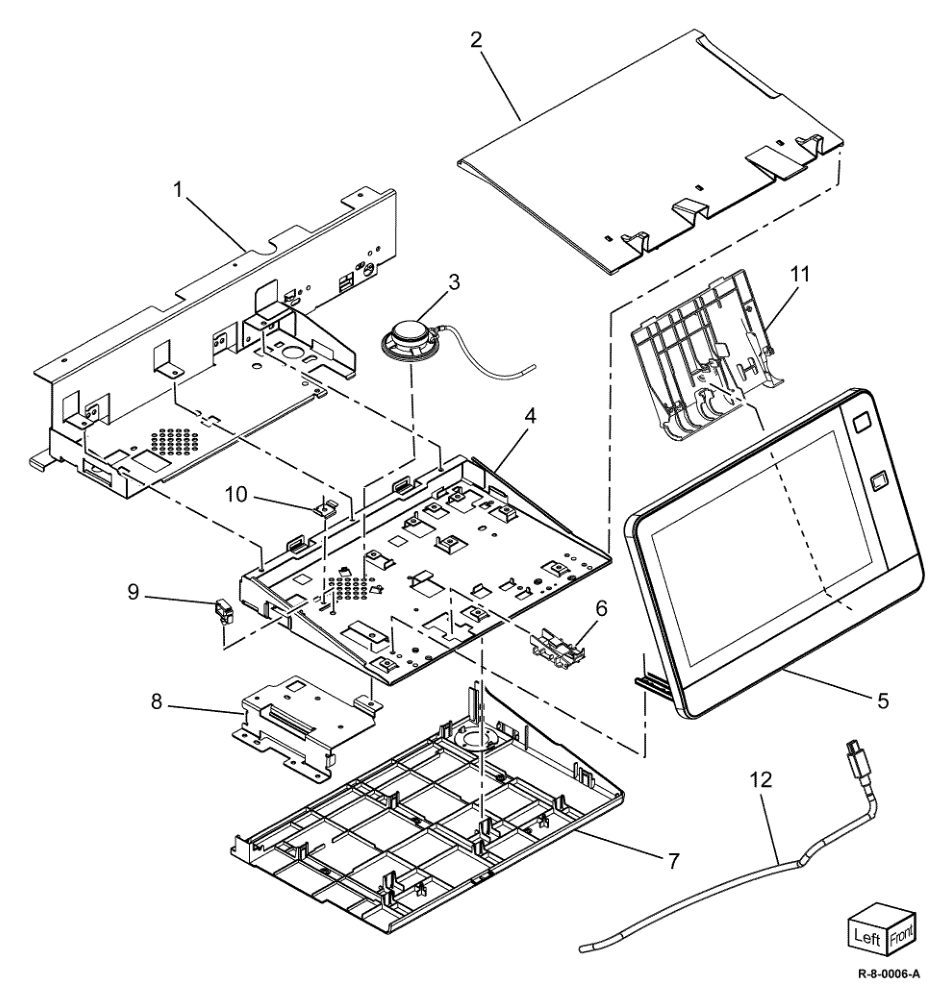

| PL 2.10 User Interface (B8170) 1 - Mounting bracket 2 - Top cover 3 930K00420 Speaker 4 - Base plate 5 084K43260 User interface assembly 084K43260 User Interface Assembly Fully refurbished with 90-day warranty 084K43260 (Refurbished) $238.00 6 - Cable bracket 7 - Base cover 8 - Bracket 9 - Cable clamp 10 - Speaker clamp plate 11 - Cable cover 12 952K36970 UI cable 1 - Mounting bracket 2 - Top cover 3 930K00420 Speaker 4 - Base plate 5 084K43260 User interface assembly 084K43260 User Interface Assembly Fully refurbished with 90-day warranty 084K43260 (Refurbished) $238.00 6 - Cable bracket 7 - Base cover 8 - Bracket 9 - Cable clamp 10 - Speaker clamp plate 11 - Cable cover (P/O PL 2.10 Item 5) 12 952K36970 UI cable |  |

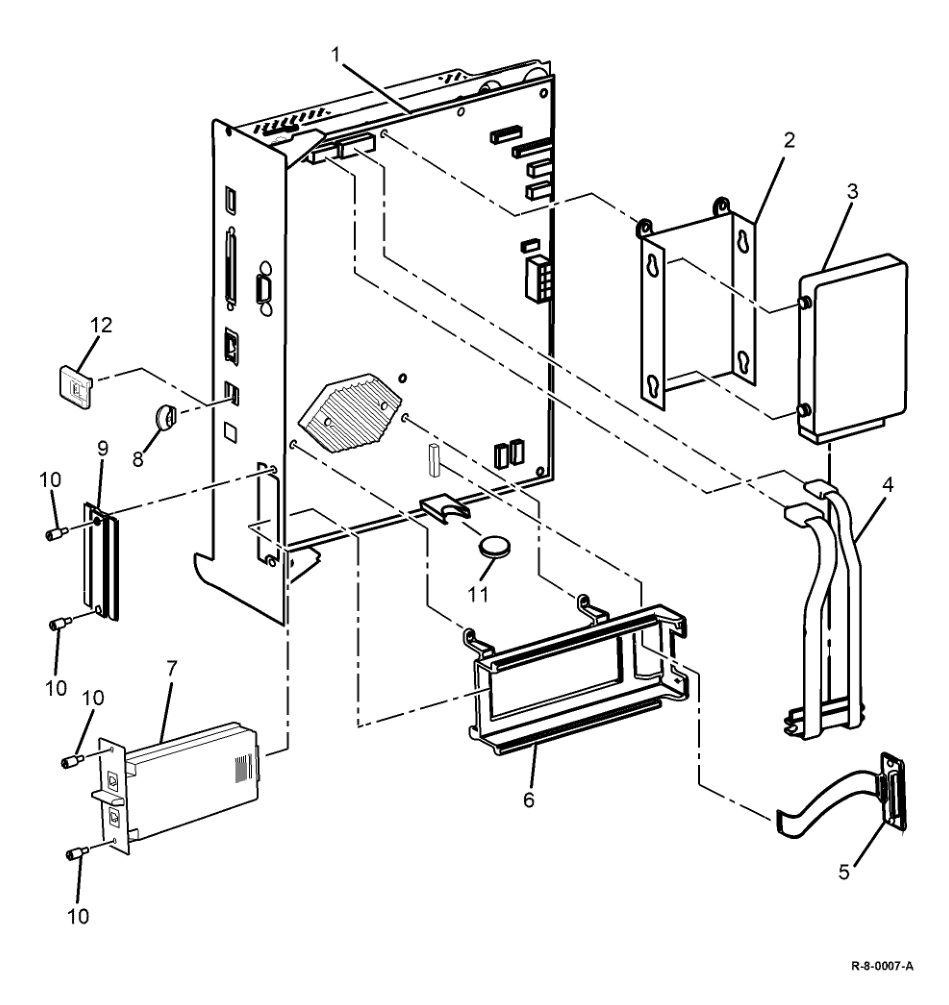

| PL 3.05 Control Unit (ESS PWB) 1 607K30340 Controller PWB assembly (B8145/ B8155) 607K30340 Controller PWB Fully refurbished with 90-day warranty 607K30340 3-4 Day Lead (Refurbished) $673.20 — 607K30111 Controller PWB assembly (B8170) 2 - HDD bracket 3 121E32860 HDD (500GB) (GSA- option) — 121E32820 SSD (128GB) 4 962K40460 Power/Data harness 5 112K01140 Riser PWB 6 - Fax cradle (Not Spared) 7 - Fax module (REF: PL 20.10) 8 - Bluetooth dongle (P/O PL 25.10 Item 4) 9 - Fax blanking plate 10 - Thumbscrew 11 207E22240 Battery (CR2032- 3V) 207E22240 Battery Lithium 3V 220 Mah Flat Coin Cell 20Mm Pb Free New 207E22240 (New) 3-4 Day Lead $72.08 207E22240 Battery Lithium 3V 220 Mah Flat Coin Cell 20Mm Pb Free Fully refurbished with 90-day warranty 207E22240 (Refurbished) 12 - Wi-fi dongle (P/O PL 25.10 Item 3) 1 607K30340 Controller PWB assembly (C8130/ C8135/C8145/C8155) 607K30340 Controller PWB Fully refurbished with 90-day warranty 607K30340 3-4 Day Lead (Refurbished) $673.20 — 607K30091 Controller PWB assembly (C8170) 2 - HDD bracket 3 121E32860 HDD (500GB) (GSA- option) — 121E32880 SSD (128GB) 4 962K40460 Power/Data harness 5 112K01140 Riser PWB 6 - Fax cradle (Not Spared) 7 - Fax module 8 - Bluetooth dongle (P/O PL 25.10 Item 4) 9 - Fax blanking plate 10 - Thumbscrew 11 207E22240 Battery (CR2032- 3V) 207E22240 Battery Lithium 3V 220 Mah Flat Coin Cell 20Mm Pb Free New 207E22240 (New) 3-4 Day Lead $72.08 207E22240 Battery Lithium 3V 220 Mah Flat Coin Cell 20Mm Pb Free Fully refurbished with 90-day warranty 207E22240 (Refurbished) 12 - Wi-fi dongle (P/O PL 25.10 Item 3) |  |

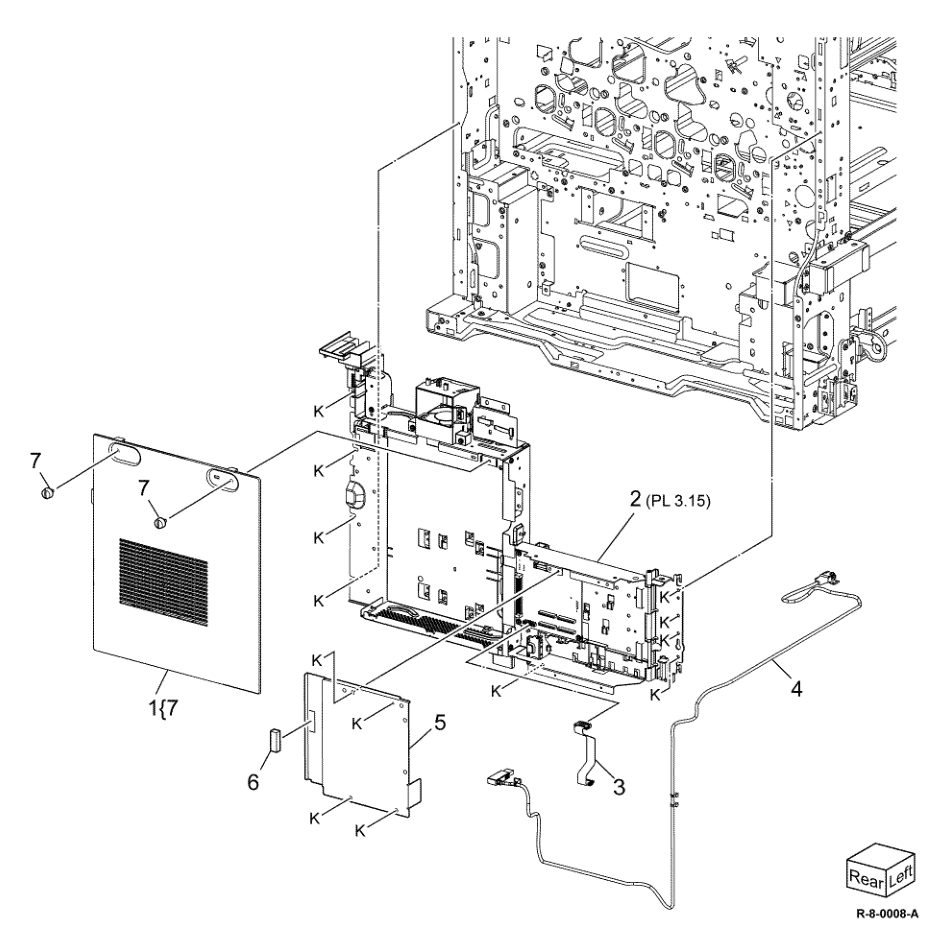

| PL 3.10 Video Contact Chassis Unit 1 - Controller cover assembly kit 2 - Video contact chassis assembly (Not Spared) 3 117K50450 Motor drive ribbon cable 4 117K50370 USB cable 5 - DFE cover (Not Spared) 6 - Shield gasket (Not Spared) 7 - Thumbscrew (P/O PL 3.10 Item 1) 1 - Controller cover assembly kit 2 - Video contact chassis assembly (Not Spared) 3 117K50450 Motor drive ribbon cable 4 117K50370 USB cable 5 - DFE cover (Not Spared) 6 - Shield gasket (Not Spared) 7 - Thumbscrew (P/O PL 3.10 Item 1) |  |

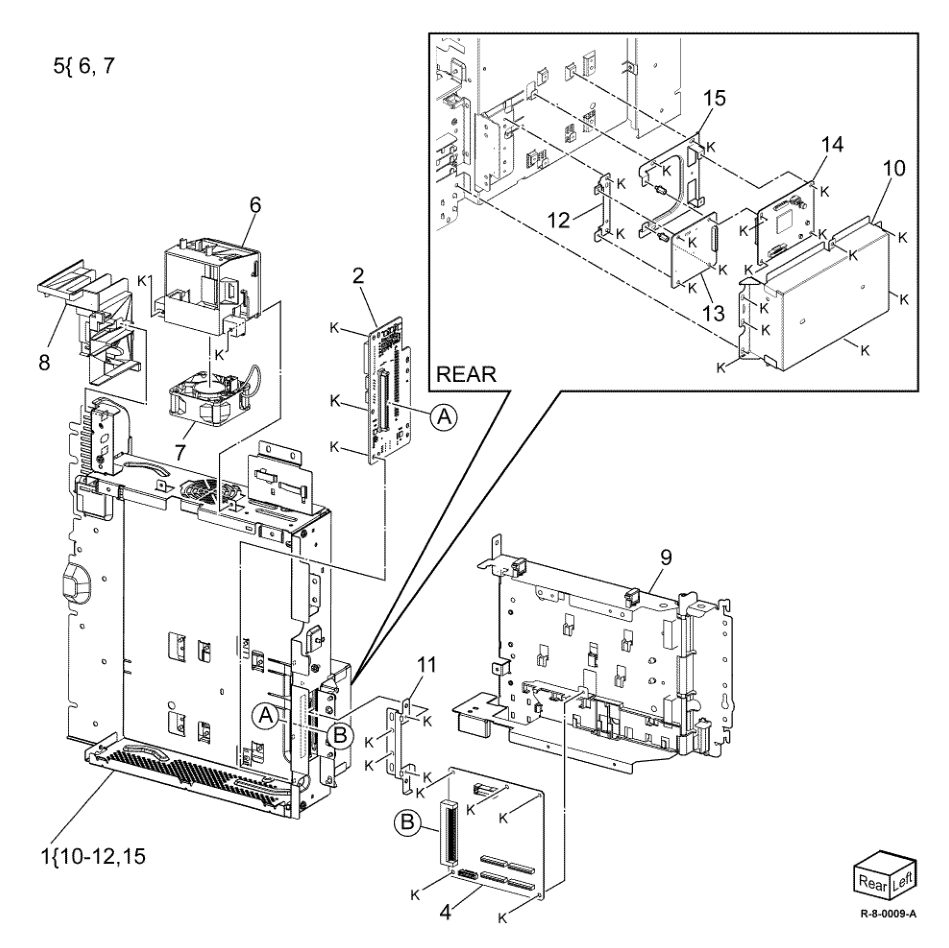

| PL 3.15 Video Contact Chassis Assembly 1 - Controller chassis assembly (Not Spared) 2 960K81580 Back plane PWB 3 - Not used 4 960K95650 Halftone PWB 5 054K55232 ESS duct assembly 6 - ESS duct (P/O PL 3.15 Item 5) 7 - ESS fan (P/O PL 3.15 Item 5) 8 - ESS inner cover (Not Spared) 9 - Video chassis assembly (P/O PL 3.15 Item 1) 10 - MCU PWB cover (P/O PL 3.15 Item 1) 11 - BP bracket (P/O PL 3.15 Item 1) 12 - Support bracket 13 960K81590 Relay PWB 14 961K02031 MCU PWB (B8145/B8155) — 961K02021 MCU PWB (B8170) 15 - MCU PWB support bracket (P/O PL 3.15 Item 1) 1 - Controller chassis assembly (Not Spared) 2 960K81580 Back plane PWB 3 - Not used 4 960K81372 Halftone PWB 5 054K55232 ESS duct assembly 6 - ESS duct (P/O PL 3.15 Item 5) 7 - ESS fan (P/O PL 3.15 Item 5) 8 - ESS inner cover 9 - Video chassis assembly (P/O PL 3.15 Item 1) 10 - MCU PWB cover (P/O PL 3.15 Item 1) 11 - BP bracket (P/O PL 3.15 Item 1) 12 - Support bracket 13 960K81590 Relay PWB 14 961K02011 MCU PWB (C8130/C8135) — 961K02001 MCU PWB (C8145/C8155) — 961K01991 MCU PWB (C8170) 15 - MCU PWB support bracket (P/O PL 3.15 Item 1) |  |

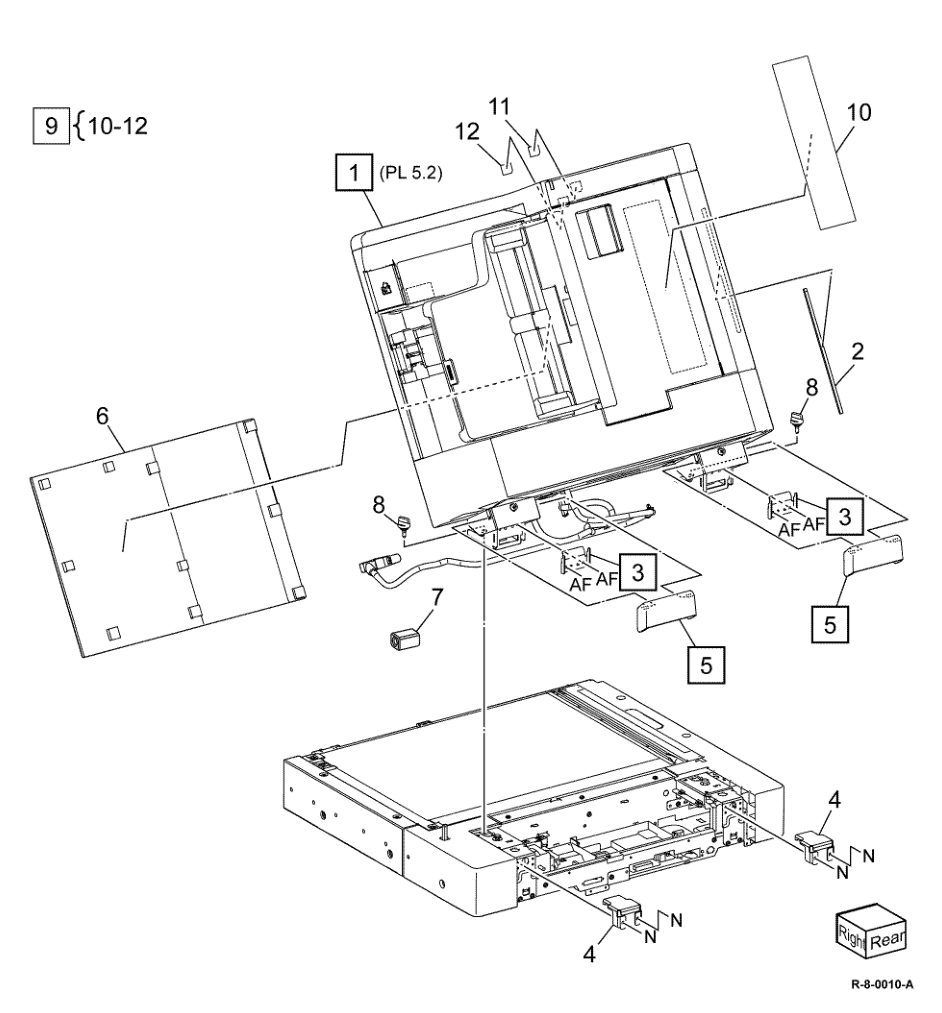

| PL 5.1 DADF Component (250) (B8170) 1 859K15665 DADF (DADF-250) (REF: PL 5.2) 2 - Seal (Not Spared) 3 - Counterbalance Bracket 4 - DADF Support (Not Spared) 5 - Counterbalance Cover 6 004K03761 DADF Platen Cushion 004K03761 DADF Platen Cushion 250 Sheet Fully refurbished with 90-day warranty 004K03761 (Refurbished) 7 - Ferrite Core (Not Spared) 8 003K91881 Thumbscrew 003k91881 Mounting Bracket Screws (Docking Plate Screw) Fully refurbished with 90-day warranty 003K91881 (Refurbished) 9 - Label Kit (Eng) 10 - Label (Instruction) (P/O PL 5.1 Item 9) 11 - Label (Clean) (P/O PL 5.1 Item 9) 12 - Label (Clean Point) (P/O PL 5.1 Item 9) 1 859K15665 DADF (DADF-250) (REF: PL 5.2) 2 - Seal (Not Spared) 3 - Counterbalance Bracket (Not Spared) 4 - DADF Support (Not Spared) 5 - Counterbalance Cover (Not Spared) 6 004K03761 DADF Platen Cushion 004K03761 DADF Platen Cushion 250 Sheet Fully refurbished with 90-day warranty 004K03761 (Refurbished) 7 - Ferrite Core (Not Spared) 8 003K91881 Thumbscrew 003k91881 Mounting Bracket Screws (Docking Plate Screw) Fully refurbished with 90-day warranty 003K91881 (Refurbished) 9 - Label Kit (Eng) 10 - Label (Instruction) (P/O PL 5.1 Item 9) 11 - Label (Clean) (P/O PL 5.1 Item 9) 12 - Label (Clean Point) (P/O PL 5.1 Item 9) |  |

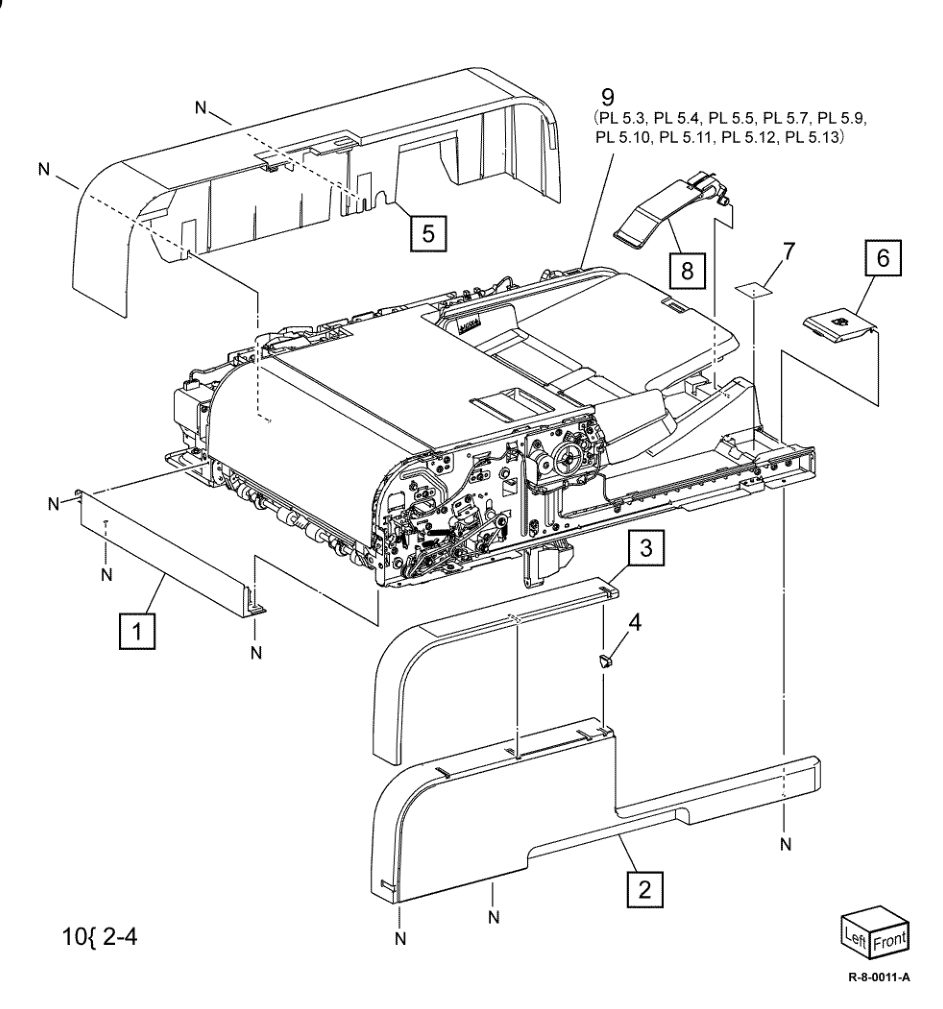

| PL 5.2 DADF, DADF Cover (250) (B8170) 1 822E38552 DADF Left Lower Cover 2 822E38503 DADF Front Cover 3 822E38511 DADF Front Top Cover 4 062E18370 LED Lens 5 822E38523 DADF Rear Cover 6 822E38581 Exit Cloth Cover 7 042E92802 Cloth Cleaner 8 003K22351 Stopper 9 - DADF (REF: PL 5.3, PL 5.4, PL 5.5, PL 5.7, PL 5.9, PL 5.10, PL 5.11, PL 5.12, PL 5.13) 10 948K35130 DADF Front Cover Assembly 948K35130 Front Cover Assembly DADF 250 Fully refurbished with 90-day warranty 948K35130 (Refurbished) 1 822E38552 DADF Left Lower Cover 2 822E38503 DADF Front Cover 3 822E38511 DADF Front Top Cover 4 062E18370 LED Lens 5 822E38523 DADF Rear Cover 6 822E38581 Exit Cloth Cover 7 042E92802 Cloth Cleaner 8 003K22351 Stopper 9 - DADF (REF: PL 5.3, PL 5.4, PL 5.5, PL 5.7, PL 5.9, PL 5.10, PL 5.11, PL 5.12, PL 5.13) 10 948K35130 DADF Front Cover Assembly 948K35130 Front Cover Assembly DADF 250 Fully refurbished with 90-day warranty 948K35130 (Refurbished) |  |

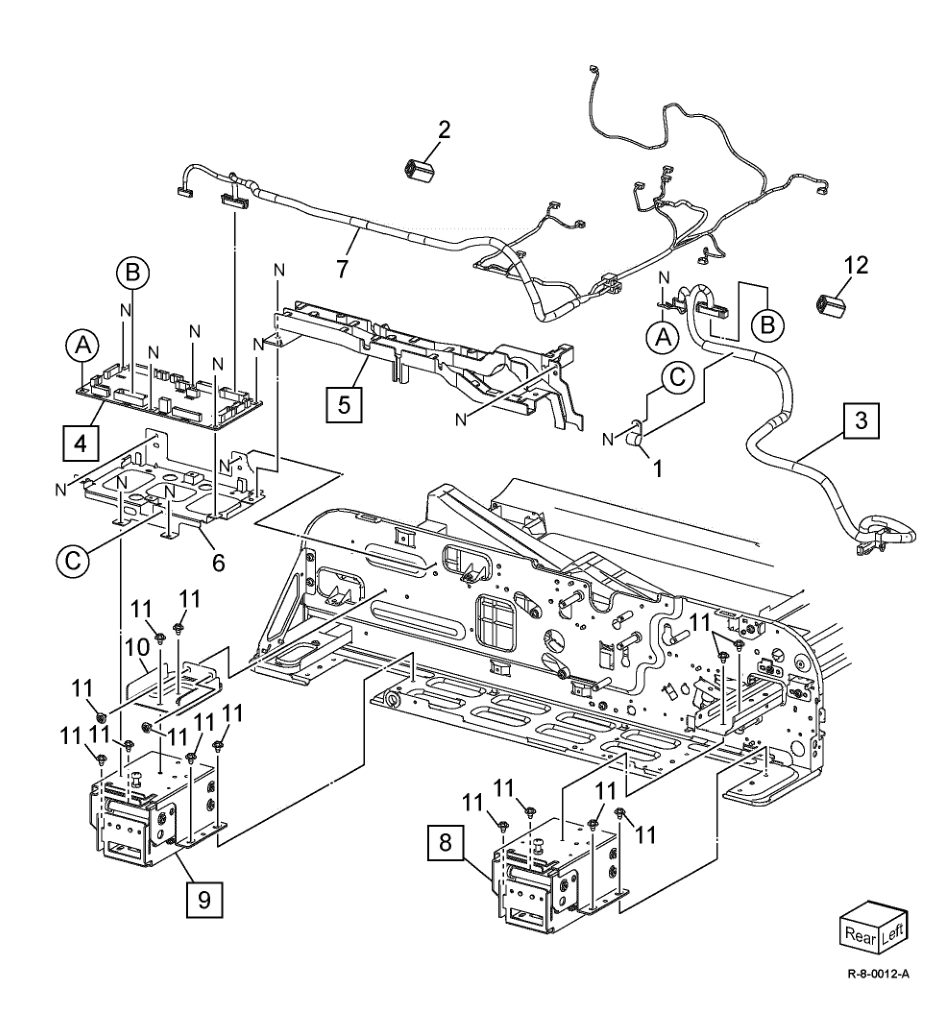

| PL 5.3 DADF PWB (250) (B8170) 1 - P Clamp (Not Spared) 2 121E25180 Core (NFT-10) 3 117K48791 IIT-DADF Cable 4 960K98360 DADF PWB 5 - Harness Guide (Not Spared) 6 - Bracket PWB (Not Spared) 7 952K37150 Wire Harness (Sig) 8 036K92480 Left Counter Balance 9 036K92490 Right Counter Balance 10 - Right Bracket (Not Spared) 11 - Screw (Not Spared) 12 121E88780 Core (TFT-10201ON) 1 - P Clamp (Not Spared) 2 121E25180 Core (NFT-10) 3 117K48791 IIT-DADF Cable 4 960K98360 DADF PWB 5 - Harness Guide 6 - Bracket PWB (Not Spared) 7 952K37150 Wire Harness (Sig) 8 036K92480 Left Counter Balance 9 036K92490 Right Counter Balance 10 - Right Bracket (Not Spared) 11 - Screw (Not Spared) 12 121E88780 Core (TFT-10201ON) |  |

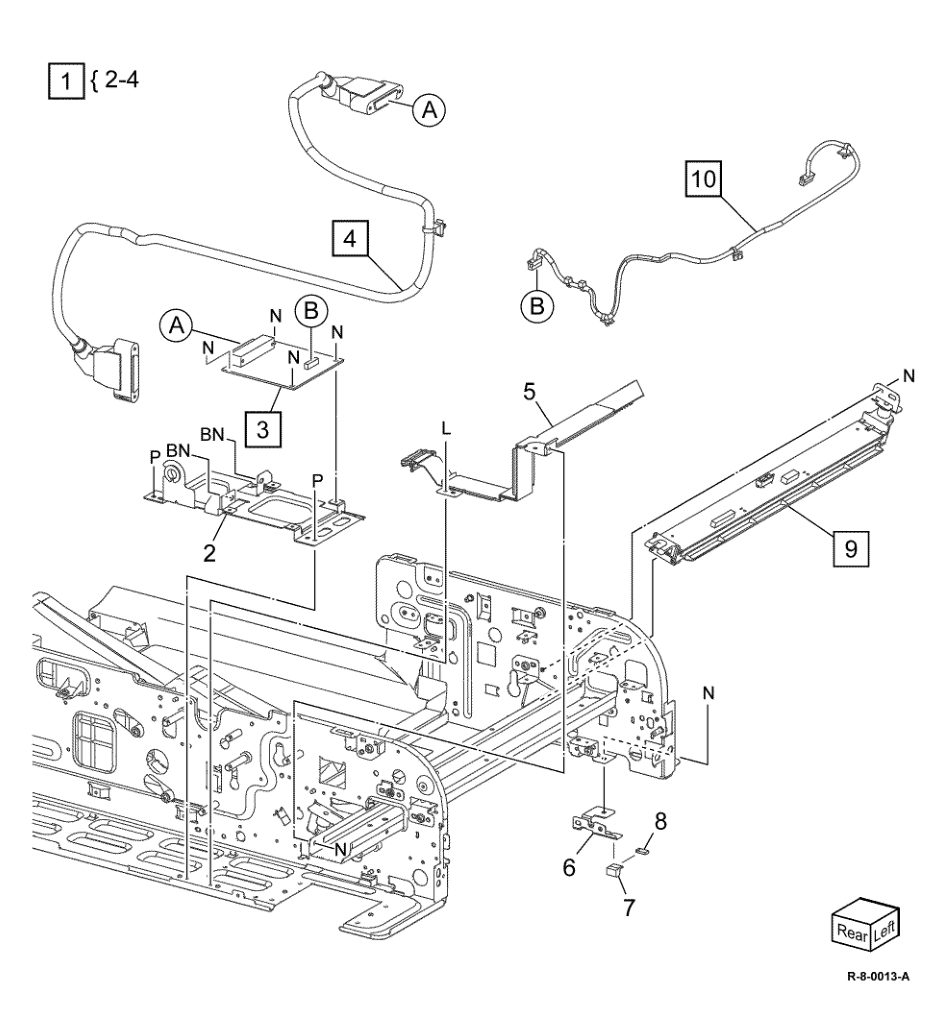

| PL 5.4 DCDC PWB (250) (B8170) 1 - DCDC PWB Assembly 2 - Bracket PWB (P/O PL 5.4 Item 1) 3 960K96780 DCDC PWB 4 117K50391 DADF-Controller Cable 5 049K45911 Flat Cable (DCDC-CIS) 6 - Stopper Bracket (Not Spared) 7 835E12131 Gasket 8 - Tape (Not Spared) 9 930K04140 CIS 10 952K47100 Wire Harness (DCDC-CIS) 1 - DCDC PWB Assembly 2 - Bracket PWB (Not Spared) 3 960K96780 DCDC PWB 4 117K50391 DADF-Controller Cable 5 049K45911 Flat Cable (DCDC-CIS) 6 - Stopper Bracket (Not Spared) 7 835E12131 Gasket 8 - Tape (Not Spared) 9 930K04140 CIS 10 952K47100 Wire Harness (DCDC-CIS) |  |

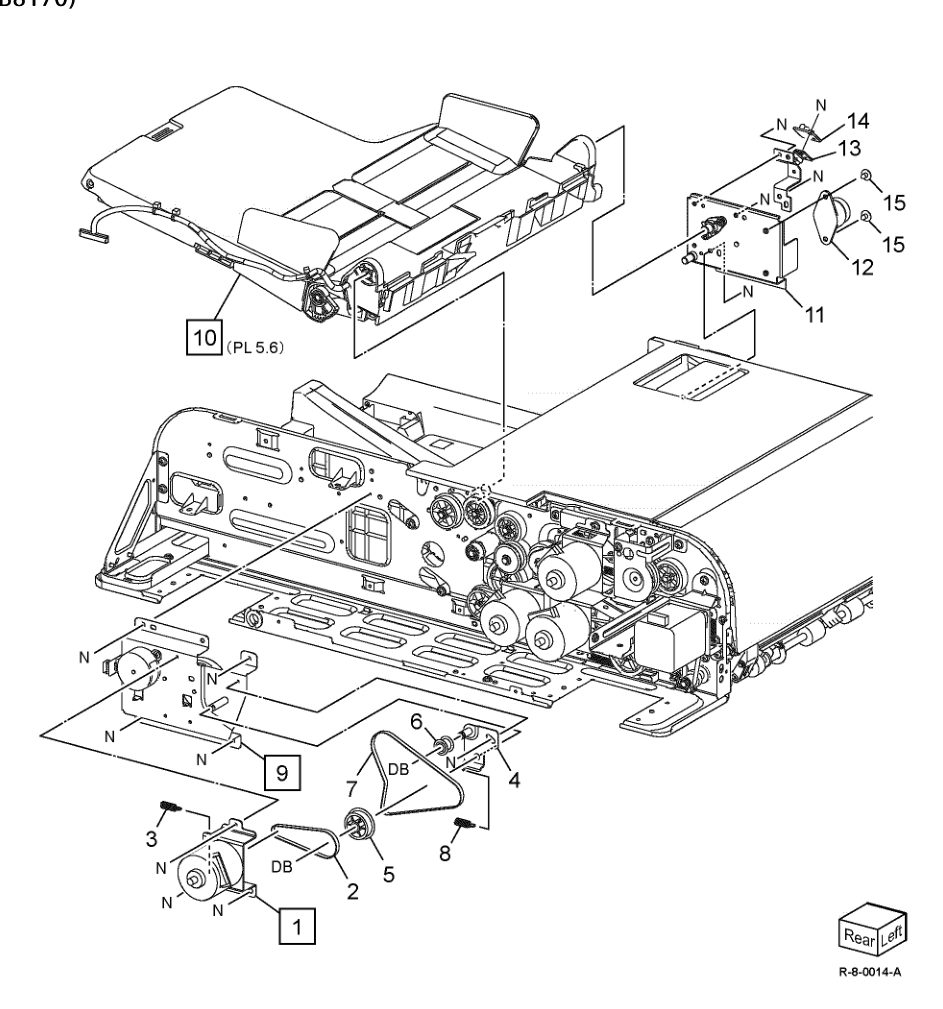

| PL 5.5 Document Tray, Tray Feed (250)(B8170) 1 127K74090 DADF Feed Motor (MOT05-001) 2 023E28620 Belt 3 899E14300 Tension Spring 4 - Feed Idler Bracket Assembly (Not Spared) 5 - Pulley (52T/23T) (Not Spared) 6 - Idler Roller (Not Spared) 7 023E28661 Belt 8 - Tension Spring (Not Spared) 9 127K74030 DADF Tray Motor Assembly (MOT05-051) 10 050K75074 DADF Document Tray (REF: PL 5.6) 11 - Tray Damper Bracket Assembly (Not Spared) 12 - Oil Damper 13 - LED Bracket (Not Spared) 14 - Document Set LED (Q05-084) 15 - Screw (Not Spared) 1 127K74090 DADF Feed Motor 2 023E28620 Belt 3 899E14300 Tension Spring 4 - Feed Idler Bracket Assembly (Not Spared) 5 - Pulley (52T/23T) (Not Spared) 6 - Idler Roller 7 023E28661 Belt 8 - Tension Spring (Not Spared) 9 127K74030 DADF Tray Motor Assembly 10 050K75074 DADF Document Tray (REF: PL 5.6) 11 - Tray Damper Bracket Assembly (Not Spared) 12 - Oil Damper 13 - LED Bracket (Not Spared) 14 - Document Set LED 15 - Screw (Not Spared) |  |

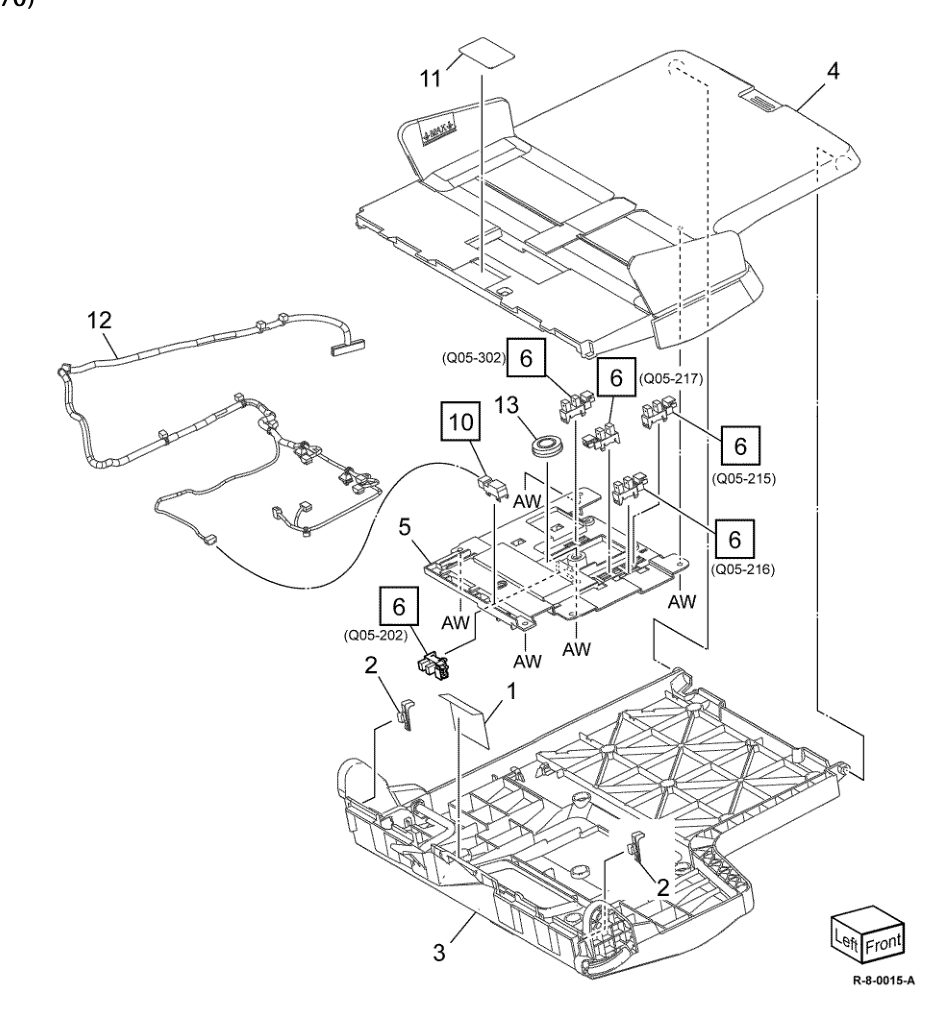

| PL 5.6 DADF Document Tray (250) (B8170) 1 063K00762 Film and Tape Assembly Xerox 063K00762 Film and Tape Assembly Fully refurbished with 90-day warranty 063K00762 (Refurbished) 2 - Tray Block (P/O PL 5.5 Item 10) 3 - Bottom Tray Assembly (P/O PL 5.5 Item 10) 4 - Upper Tray Assembly (P/O PL 5.5 Item 10) 5 - Inner Cover (P/O PL 5.5 Item 10) 6 930W00122 Tray APS Sensor 1 (Q05-215)/Tray APS Sensor 2 (Q05-216)/Tray APS Sensor 3 (Q05-217)/Tray APS Sen- sor 4 (Q05-302)/Bottom Sensor (Q05-202) 7 - Not Used 8 - Not Used 9 - Not Used 10 930W00212 DADF Document Set Sensor (Q05- 102) 930W00212 Tray 4 Feed Out Sensor Fully refurbished with 90-day warranty 930W00212 3-4 Day Lead (Refurbished) $36.00 11 019K99061 Retard Pad 12 - Wire Harness (Tray) (P/O PL 5.5 Item 10) 13 - Pinion Gear (P/O PL 5.5 Item 10) 1 063K00762 Film and Tape Assembly Xerox 063K00762 Film and Tape Assembly Fully refurbished with 90-day warranty 063K00762 (Refurbished) 2 - Tray Block (P/O PL 5.5 Item 10) 3 - Bottom Tray Assembly (P/O PL 5.5 Item 10) 4 - Upper Tray Assembly (P/O PL 5.5 Item 10) 5 - Inner Cover (P/O PL 5.5 Item 10) 6 930W00122 Tray APS Sensor 1 (Q05-215)/Tray APS Sensor 2 (Q05-216)/Tray APS Sensor 3 (Q05-217)/Tray APS Sen- sor 4 (Q05-302)/Bottom Sensor (Q05-202) 7 - Not Used 8 - Not Used 9 - Not Used 10 930W00212 DADF Document Set Sensor (Q05- 102) 930W00212 Tray 4 Feed Out Sensor Fully refurbished with 90-day warranty 930W00212 3-4 Day Lead (Refurbished) $36.00 11 019K99061 Retard Pad 12 - Wire Harness (Tray) (P/O PL 5.5 Item 10) 13 - Pinion Gear (P/O PL 5.5 Item 10) |  |

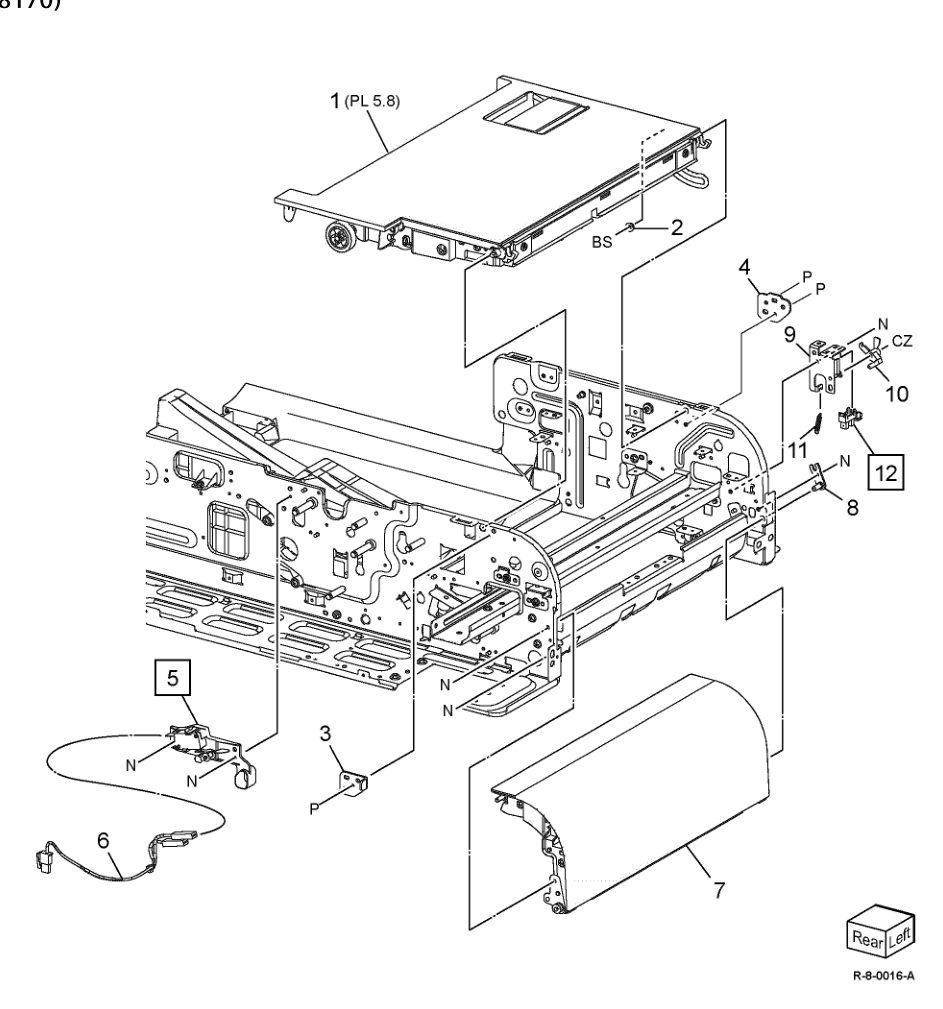

| PL 5.7 DADF Feeder Cover Unit (250) (B8170) 1 054K55155 DADF Feeder Cover Assembly (REF: PL 5.8) 2 - Stopper Roll (Not Spared) 3 - Rear Hinge (Not Spared) 4 - Front Hinge (Not Spared) 5 110K18130 DADF Feeder Cover Interlock Switch (S05-212) 110K18130 Feeder Cover Interlock Switch DADF Fully refurbished with 90-day warranty 110K18130 (Refurbished) 6 - Wire Harness (Interlock Switch) (Not Spared) 7 948K00991 DADF Left Cover Assembly 948K00991 Left Cover Assembly DADF 250 Fully refurbished with 90-day warranty 948K00991 (Refurbished) 8 - Front Bracket Assembly (Not Spared) 9 - Switch Bracket (Not Spared) 10 120E35980 Actuator 11 899E15560 Tension Spring 12 930W00122 DADF L/H Cover Interlock Sensor (Q05-223) 1 054K55155 DADF Feeder Cover Assembly (REF: PL 5.8) 2 - Stopper Roll (Not Spared) 3 - Rear Hinge (Not Spared) 4 - Front Hinge (Not Spared) 5 110K18130 DADF Feeder Cover Interlock Switch (S05-212) 110K18130 Feeder Cover Interlock Switch DADF Fully refurbished with 90-day warranty 110K18130 (Refurbished) 6 - Wire Harness (Interlock Switch) (Not Spared) 7 948K00991 DADF Left Cover Assembly 948K00991 Left Cover Assembly DADF 250 Fully refurbished with 90-day warranty 948K00991 (Refurbished) 8 - Front Bracket Assembly (Not Spared) 9 - Switch Bracket (Not Spared) 10 120E35980 Actuator 11 899E15560 Tension Spring 12 930W00122 DADF L/H Cover Interlock Sensor (Q05-212) |  |

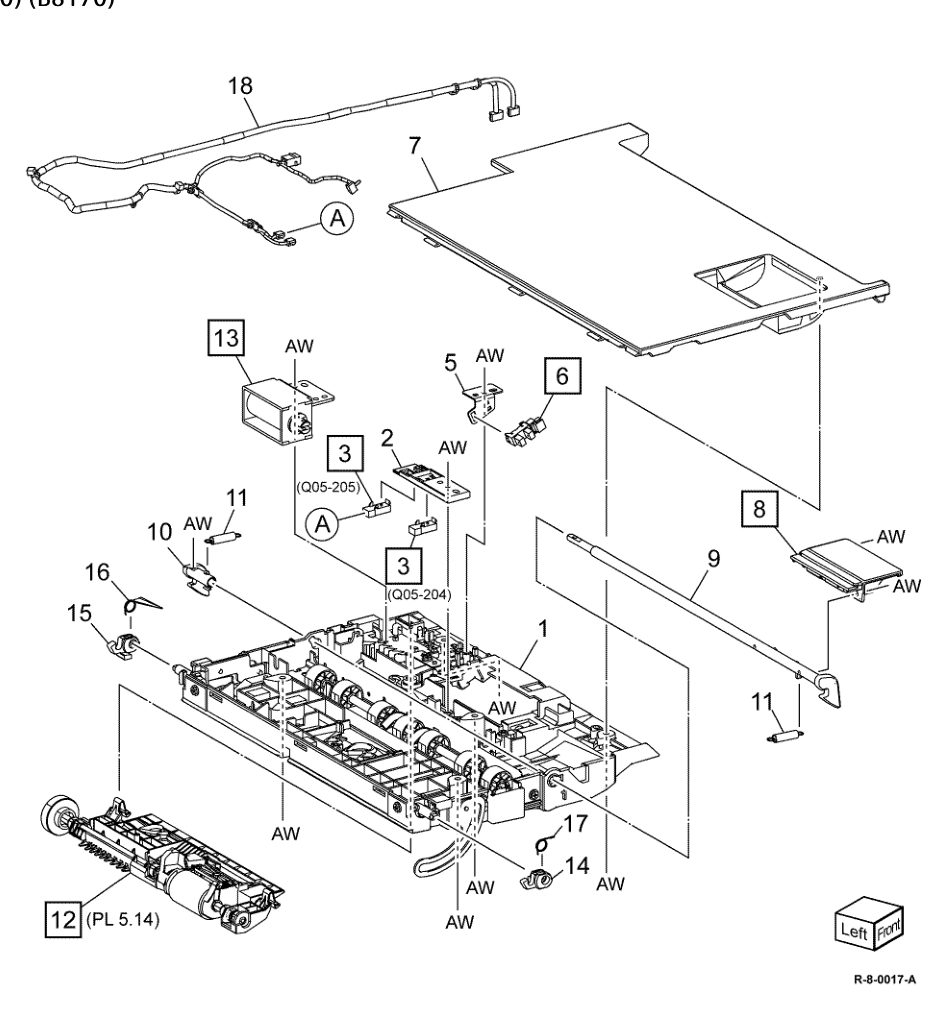

| PL 5.8 DADF Feeder Cover Assembly (250) (B8170) 1 - DADF Feeder Cover (P/O PL 5.7 Item 1) 2 - Feed Sensor Bracket (P/O PL 5.7 Item 1) 3 930W00222 DADF Feed In Sensor 1 (Q05-204) /DADF Feed In Sensor 2 (Q05- 205) 4 - Not Used 5 - DADF Level Sensor Bracket (P/O PL 5.7 Item 1) 6 930W00122 DADF Level Sensor (Q05-203) 7 - Upper Feeder Cover (P/O PL 5.7 Item 1) 8 011E29160 Latch Lever 9 806E47360 Latch Shaft 10 803E26090 Rear Latch 11 809E99510 Lever Spring 12 948K00881 DADF Nudger Housing Assembly (REF: PL 5.14) 948K00881 DADF Nudger Housing Assembly DADF 250 Fully refurbished with 90-day warranty 948K00881 (Refurbished) 13 121K57831 DADF Nudger Solenoid Assembly (SOL05-086) 121K57831 Nudger Solenoid Assembly DADF Fully refurbished with 90-day warranty 121K57831 (Refurbished) 14 803E08630 Left Latch Front Cover 15 803E08640 Left Latch Rear Cover 16 - Rear Spring (P/O PL 5.7 Item 1) 17 - Front Spring (P/O PL 5.7 Item 1) 18 - Wire Harness (Top Sig) (P/O PL 5.7 Item 1) 1 - DADF Feeder Cover (P/O PL 5.7 Item 1) 2 - Feed Sensor Bracket (P/O PL 5.7 Item 1) 3 930W00222 DADF Feed In Sensor 1 (Q05-204) /DADF Feed In Sensor 2 (Q05- 205) 4 - Not Used 5 - DADF Level Sensor Bracket (P/O PL 5.7 Item 1) 6 930W00122 DADF Level Sensor (Q05-203) 7 - Upper Feeder Cover (P/O PL 5.7 Item 1) 8 011E29160 Latch Lever 9 806E47360 Latch Shaft 10 803E26090 Rear Latch 11 809E99510 Lever Spring 12 948K00881 DADF Nudger Housing Assembly (REF: PL 5.14) 948K00881 DADF Nudger Housing Assembly DADF 250 Fully refurbished with 90-day warranty 948K00881 (Refurbished) 13 121K57831 DADF Nudger Solenoid Assembly 121K57831 Nudger Solenoid Assembly DADF Fully refurbished with 90-day warranty 121K57831 (Refurbished) 14 803E08630 Left Latch Front Cover 15 803E08640 Left Latch Rear Cover 16 - Rear Spring (P/O PL 5.7 Item 1) 17 - Front Spring (P/O PL 5.7 Item 1) 18 - Wire Harness (Top Sig) (P/O PL 5.7 Item 1) |  |

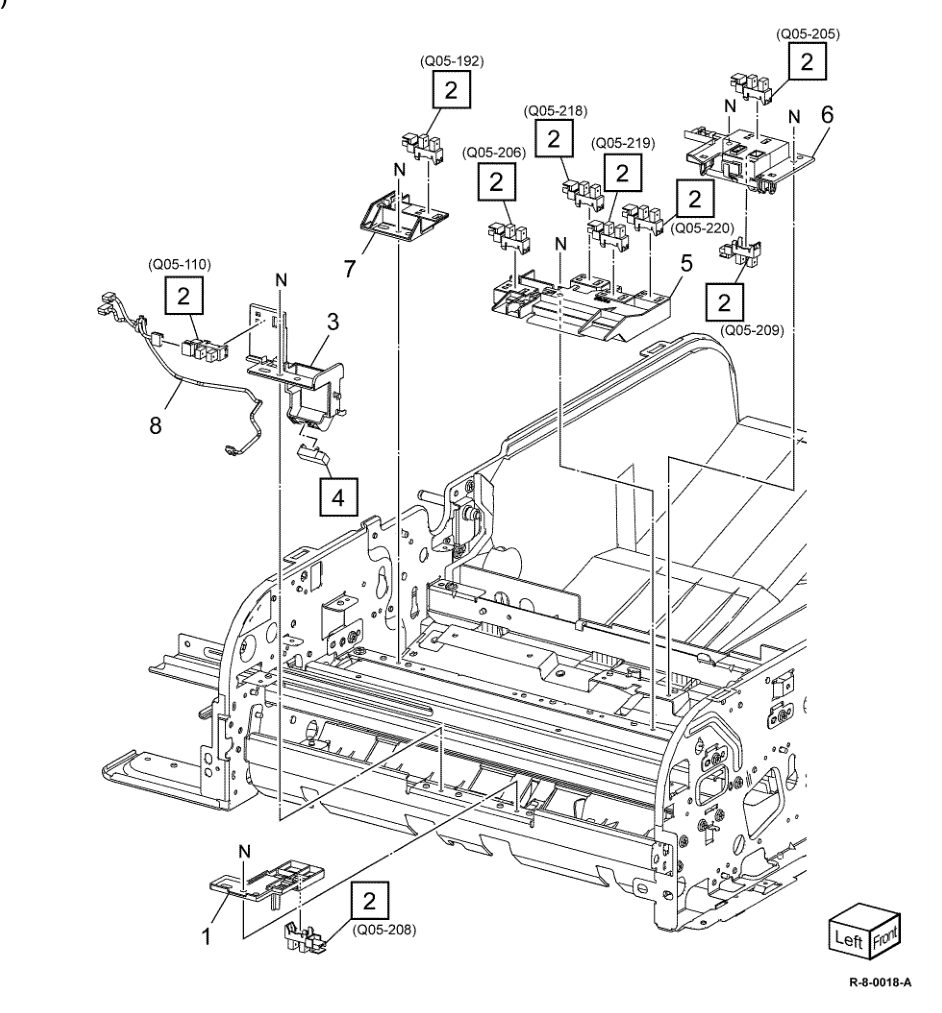

| PL 5.9 Sensor Component (250) (B8170) 1 - Out Sensor Bracket (Not Spared) 2 930W00122 DADF Out Sensor (Q05-208)/DADF Registration Sensor (Q05-110)/DADF Pre Registration Sensor (Q05-206)/DADF APS Sensor 1 (Q05-218),DADF APS Sensor 2 (Q05-219), DADF APS Sensor 3 (Q05-220)/DADF Feed Out Sensor (Q05-205)/ DADF Exit Sensor (Q05-209)/Skew Detect Sensor (Q05- 192) 3 - DADF Lead Registration Sensor Bracket (Not Spared) 4 930W00222 DADF Lead Registration Sensor (Q05-207) 5 - APS Sensor Bracket (Not Spared) 6 - Exit Sensor Assembly (Not Spared) 7 - Skew Sensor Bracket (Not Spared) 8 - Wire Harness (DADF Regi. Sensor) 1 - Out Sensor Bracket (Not Spared) 2 930W00122 DADF Out Sensor (Q05-208)/DADF Registration Sensor (Q05-110)/DADF Pre Registration Sensor (Q05-206)/DADF APS Sensor 1 (Q05-218),DADF APS Sensor 2 (Q05-219), DADF APS Sensor 3 (Q05-220)/DADF Feed Out Sensor (Q05-205)/ DADF Exit Sensor (Q05-209)/Skew Detect Sensor (Q05- 192) 3 - DADF Lead Registration Sensor Bracket (Not Spared) 4 930W00222 DADF Lead Registration Sensor (Q05-207) 5 - APS Sensor Bracket (Not Spared) 6 - Exit Sensor Assembly (Not Spared) 7 - Skew Sensor Bracket (Not Spared) 8 - Wire Harness (DADF Regi. Sensor) |  |

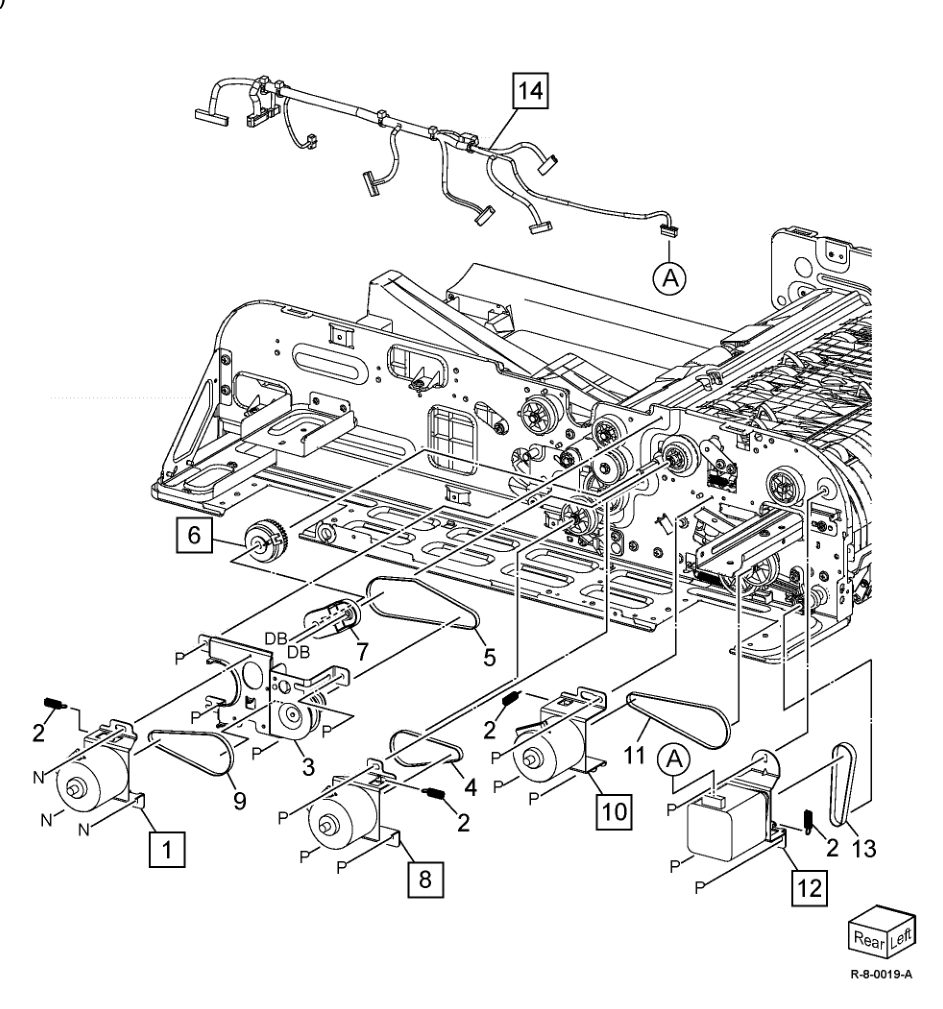

| PL 5.10 Drive Component (250) (B8170) 1 127K75920 DADF Pre Registration Motor (MOT05-011) 127K75920 Pre Registration Motor DADF Fully refurbished with 90-day warranty 127K75920 (Refurbished) 2 899E15560 Tension Spring 3 - Drive Bracket Assembly (Not Spared) 4 023E28620 Belt (DADF Exit) 5 - Belt (DADF Take Away Clutch) 6 121K52310 DADF Take Away Clutch Assembly (CL05-087) 121K52310 DADF feed clutch Takeaway clutch Fully refurbished with 90-day warranty 121K52310 (Refurbished) 7 - DADF Take Away Clutch Stopper (Not Spared) 8 127K74121 DADF Exit Motor (MOT05-041) 9 023E28630 Belt (DADF Pre Regi.) 10 127K74101 DADF Platen Motor (MOT05-031) 11 023E28640 Belt (DADF Platen) 12 127K74000 DADF Regi. Motor (MOT05-021) 13 023E28760 Belt (DADF Regi.) 14 - Motor Assembly Harness (Not Spared) 1 127K75920 DADF Pre Registration Motor (MOT05-011) 127K75920 Pre Registration Motor DADF Fully refurbished with 90-day warranty 127K75920 (Refurbished) 2 899E15560 Tension Spring 3 - Drive Bracket Assembly (Not Spared) 4 023E28620 Belt (DADF Exit) 5 - Belt (DADF Take Away Clutch) 6 121K52310 DADF Take Away Clutch Assembly (CL05-087) 121K52310 DADF feed clutch Takeaway clutch Fully refurbished with 90-day warranty 121K52310 (Refurbished) 7 - DADF Take Away Clutch Stopper (Not Spared) 8 127K74121 DADF Exit Motor (MOT05-041) 9 023E28630 Belt (DADF Pre Regi.) 10 127K74101 DADF Platen Motor (MOT05-031) 11 023E28640 Belt (DADF Platen) 12 127K74000 DADF Regi. Motor (MOT05-021) 13 023E28760 Belt (DADF Regi.) 14 - Motor Assembly Harness (Not Spared) |  |

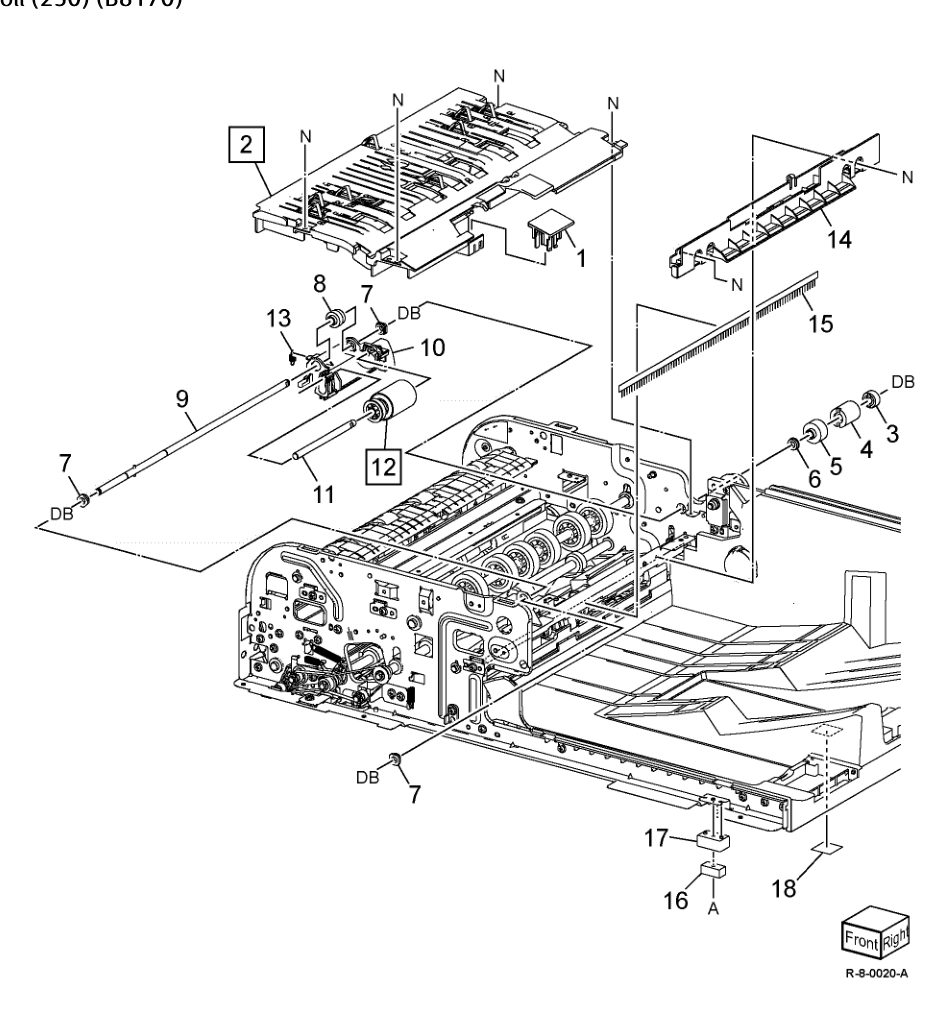

| PL 5.11 Lower Chute Assembly, Retard Roll (250) (B8170) 1 054E60531 Retard Chute Cover 2 054K55143 Lower Chute Assembly 3 - Clutch Stopper (Not Spared) 4 005K14230 Friction Clutch 5 - Gear (21T) (Not Spared) 6 - Ball Bearing (Not Spared) 7 - Sleeve Bearing (Not Spared) 8 - Pivot Gear (Not Spared) 9 - Pivot Shaft (Not Spared) 10 - Retard Holder (Not Spared) 11 - Retard Shaft (Not Spared) 12 859K02461 Retard Roll 859K02461 Retard Roll Lower Chute Assembly Fully refurbished with 90-day warranty 859K02461 (Refurbished) 13 899E13651 Retard Spring 14 - Exit Guide (Not Spared) 15 105E22470 Exit Eliminator 16 921W20101 Magnet Interlock 17 - Magnet Cover (Not Spared) 18 063E07290 Cushion Fastener Tape Xerox 063E07290 Cushion Fastener Tape Fully refurbished with 90-day warranty 063E07290 (Refurbished) 1 054E60531 Retard Chute Cover 2 054K55143 Lower Chute Assembly 3 - Clutch Stopper (Not Spared) 4 005K14230 Friction Clutch 5 - Gear (21T) (Not Spared) 6 - Ball Bearing (Not Spared) 7 - Sleeve Bearing (Not Spared) 8 - Pivot Gear (Not Spared) 9 - Pivot Shaft (Not Spared) 10 - Retard Holder (Not Spared) 11 - Retard Shaft (Not Spared) 12 859K02461 Retard Roll 859K02461 Retard Roll Lower Chute Assembly Fully refurbished with 90-day warranty 859K02461 (Refurbished) 13 899E13651 Retard Spring 14 - Exit Guide (Not Spared) 15 105E22470 Exit Eliminator 16 921W20101 Magnet Interlock 17 - Magnet Cover (Not Spared) 18 063E07290 Cushion Fastener Tape Xerox 063E07290 Cushion Fastener Tape Fully refurbished with 90-day warranty 063E07290 (Refurbished) |  |

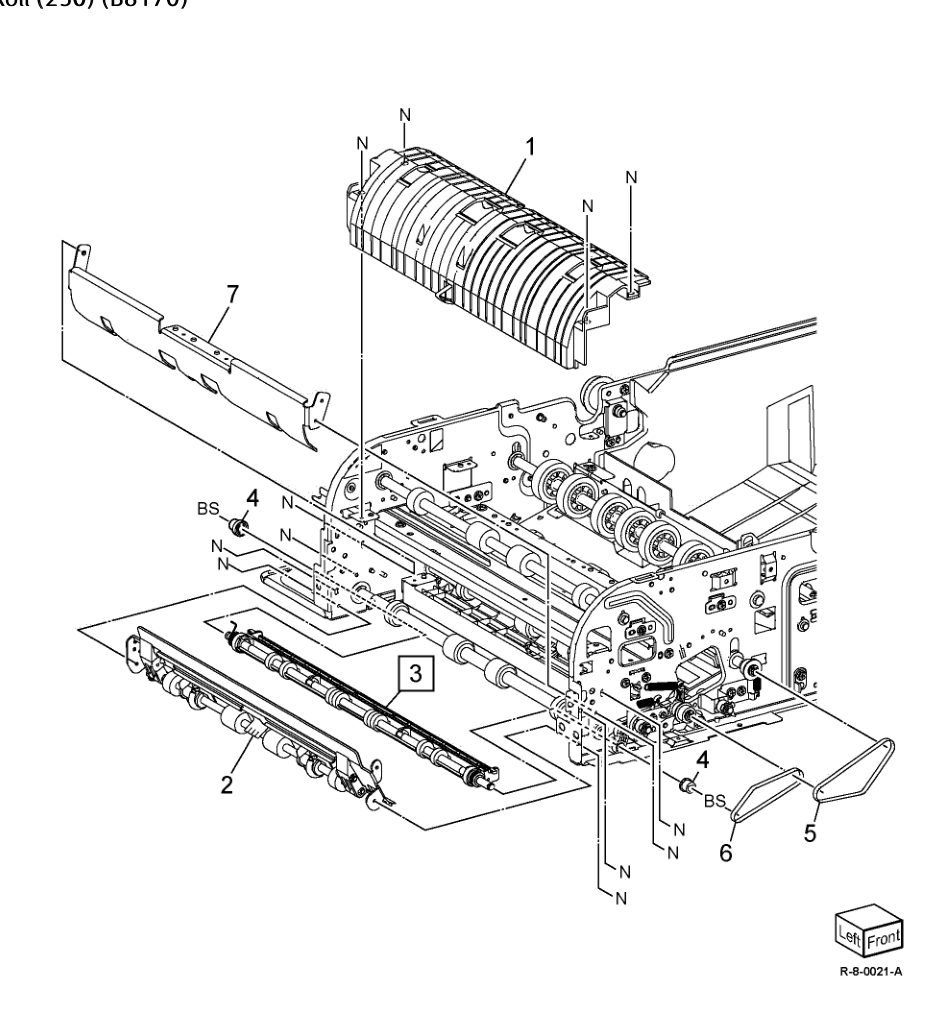

| PL 5.12 Pre Regi. In Chute, Platen High Roll (250) (B8170) 1 054K55160 Pre Registration In Chute Assem- bly 2 054K55100 Regisration Out Chute Assembly 3 859K02620 Platen High Roll Assembly 859K02620 Platen High Roller Assembly Fully refurbished with 90-day warranty 859K02620 (Refurbished) 4 - Pulley (20T) (Not Spared) 5 023E28630 Belt (Exit 1) 6 023E28620 Belt (Platen) 7 - Regi. In Chute (Not Spared) 1 054K55160 Pre Registration In Chute Assem- bly 2 054K55100 Registration Out Chute Assembly 3 859K02620 Platen High Roll Assembly 859K02620 Platen High Roller Assembly Fully refurbished with 90-day warranty 859K02620 (Refurbished) 4 - Pulley (20T) (Not Spared) 5 023E28630 Belt (Exit 1) 6 023E28620 Belt (Platen) 7 - Regi. In Chute (Not Spared) |  |

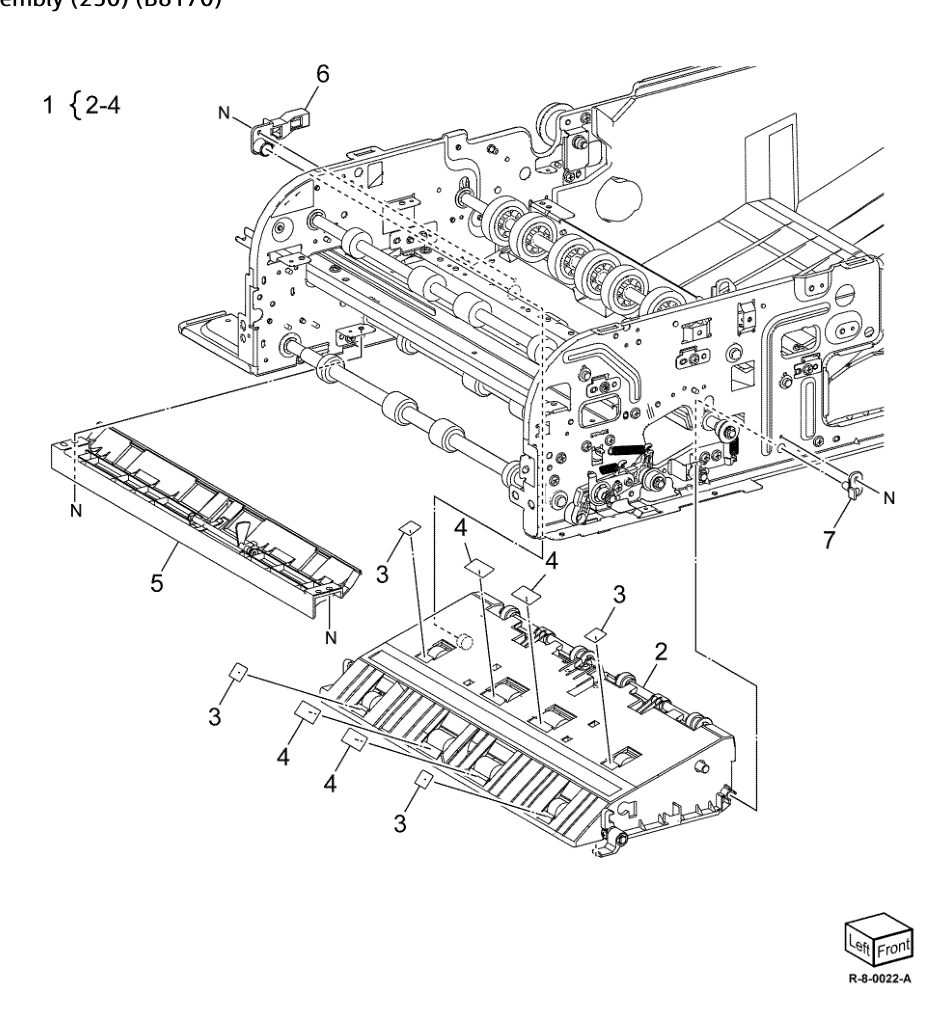

| PL 5.13 Exit Lower Chute, Out Chute Assembly (250) (B8170) 1 054K60741 Exit Lower Chute Assembly 2 - Exit Lower Chute (P/O PL 5.13 Item 1) 3 - Film S 4 - Film W 5 - Out Chute Assembly 6 - Exit Rear Hinge (Not Spared) 7 - Front Hinge (Not Spared) 1 054K60741 Exit Lower Chute Assembly 2 - Exit Lower Chute (P/O PL 5.13 Item 1) 3 063K00710 Film S 4 063K00720 Film W 5 054K55130 Out Chute Assembly 6 - Exit Rear Hinge (Not Spared) 7 - Front Hinge (Not Spared) |  |

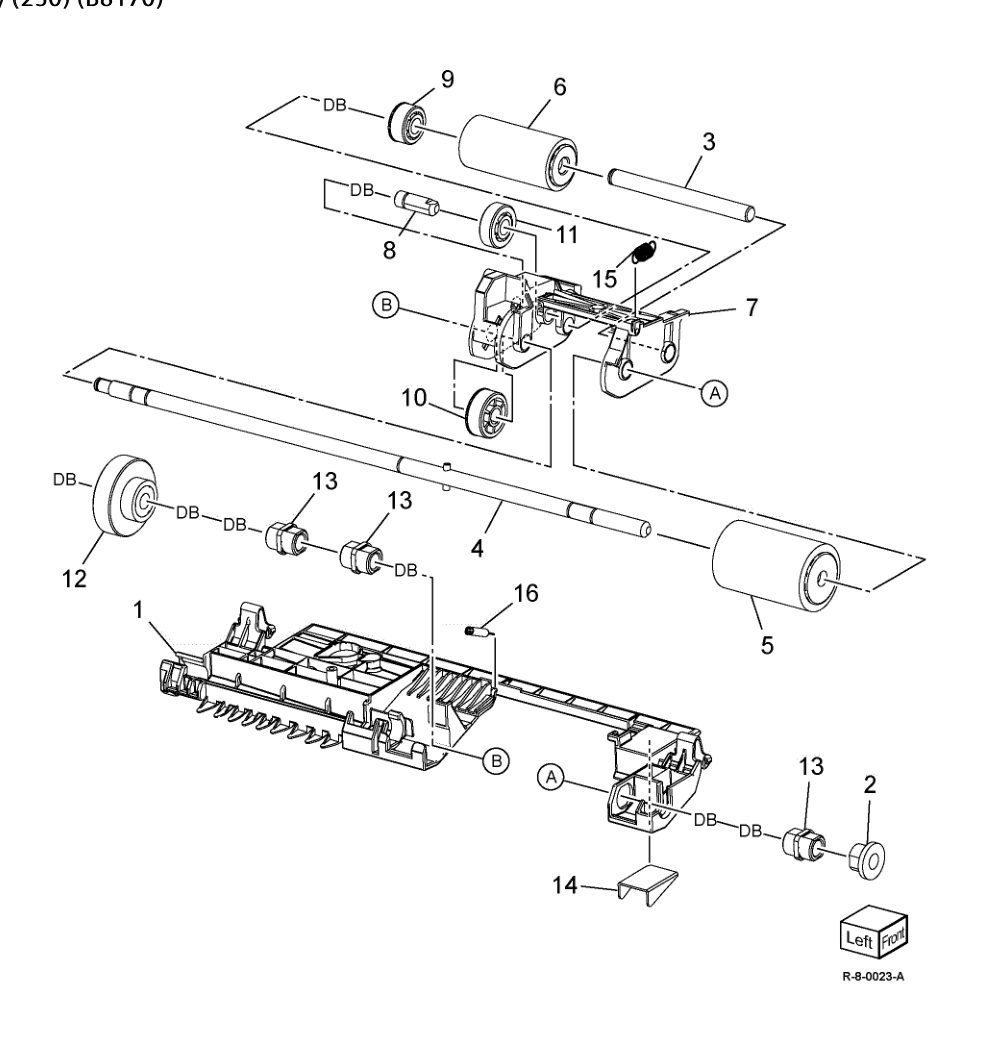

| PL 5.14 DADF Nudger Housing Assembly (250) (B8170) 1 - Feeder Chute Cover (Not Spared) 2 - Bearing (Not Spared) 3 - Nudger Shaft (Not Spared) 4 - Feed Shaft (Not Spared) 5 059K29520 Feed Roll 6 059K31270 Nudger Roll 7 - Nudger Housing (Not Spared) 8 - Idler Gear Shaft (Not Spared) 9 - Gear (27T) (Not Spared) 10 - Gear (33T) (Not Spared) 11 - Gear (31T) (Not Spared) 12 - Gear Assembly (26T) (Not Spared) 13 - Bearing (PF101) (Not Spared) 14 - Sensor Shield (Not Spared) 15 - Front Nudger Spring (Not Spared) 16 - Rear Nudger Spring (Not Spared) 1 - Feeder Chute Cover (Not Spared) 2 - Bearing (Not Spared) 3 - Nudger Shaft (Not Spared) 4 - Feed Shaft (Not Spared) 5 059K29520 Feed Roll 6 059K31270 Nudger Roll 7 - Nudger Housing (Not Spared) 8 - Idler Gear Shaft (Not Spared) 9 - Gear (27T) (Not Spared) 10 - Gear (33T) (Not Spared) 11 - Gear (31T) (Not Spared) 12 - Gear Assembly (26T) (Not Spared) 13 - Bearing (PF101) (Not Spared) 14 - Sensor Shield (Not Spared) 15 - Front Nudger Spring (Not Spared) 16 - Rear Nudger Spring (Not Spared) |  |

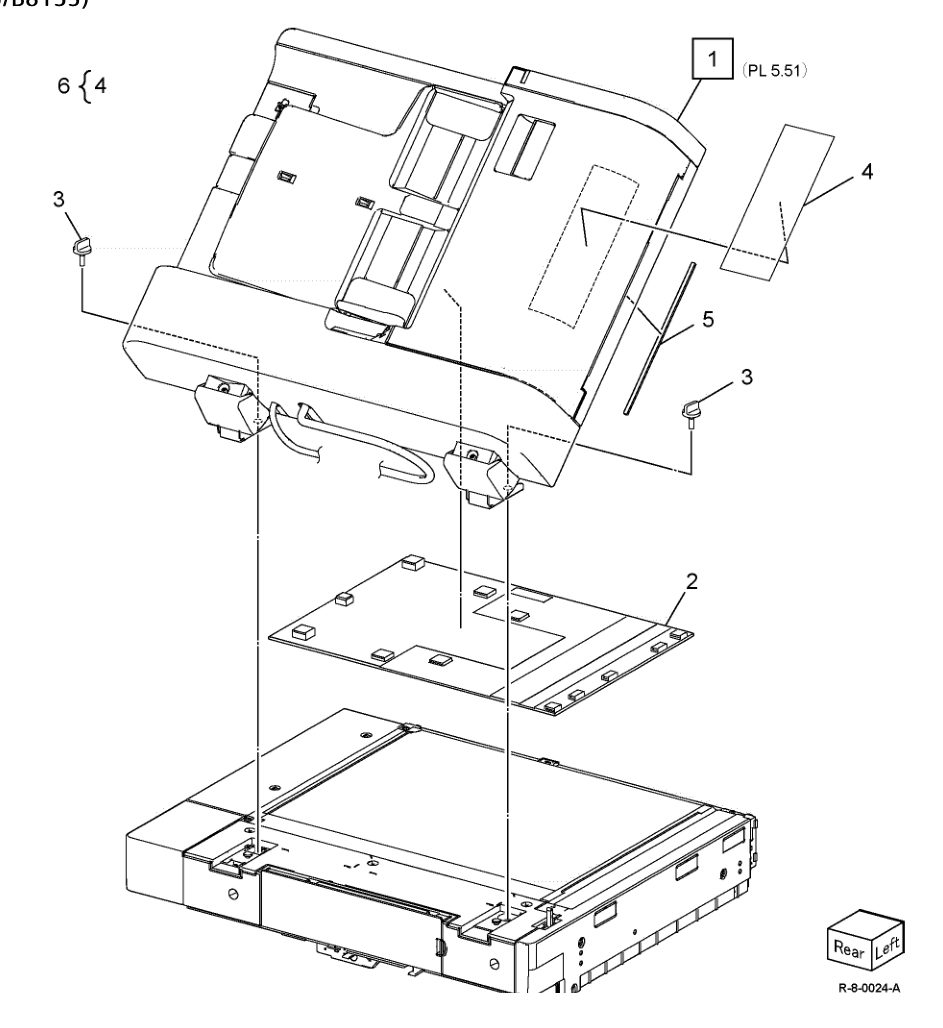

| PL 5.50 DADF Component (130) (B8145/B8155) 1 859K16553 DADF (130) 2 004K03890 DADF platen cushion 004K03890 DADF Platen Cushion 130 Sheet Fully refurbished with 90-day warranty 004K03890 (Refurbished) 3 003K91881 Thumbscrew 003k91881 Mounting Bracket Screws (Docking Plate Screw) Fully refurbished with 90-day warranty 003K91881 (Refurbished) 4 - Label (instruction) (P/O PL 5.50 Item 6) 5 - Seal base frame 6 - DADF label kit 1 859K16553 DADF (130) 2 004K03890 DADF platen cushion 004K03890 DADF Platen Cushion 130 Sheet Fully refurbished with 90-day warranty 004K03890 (Refurbished) 3 003K91881 Thumbscrew 003k91881 Mounting Bracket Screws (Docking Plate Screw) Fully refurbished with 90-day warranty 003K91881 (Refurbished) 4 - Label (instruction) (P/O PL 5.50 Item 6) 5 - Seal base frame 6 - DADF label kit |  |

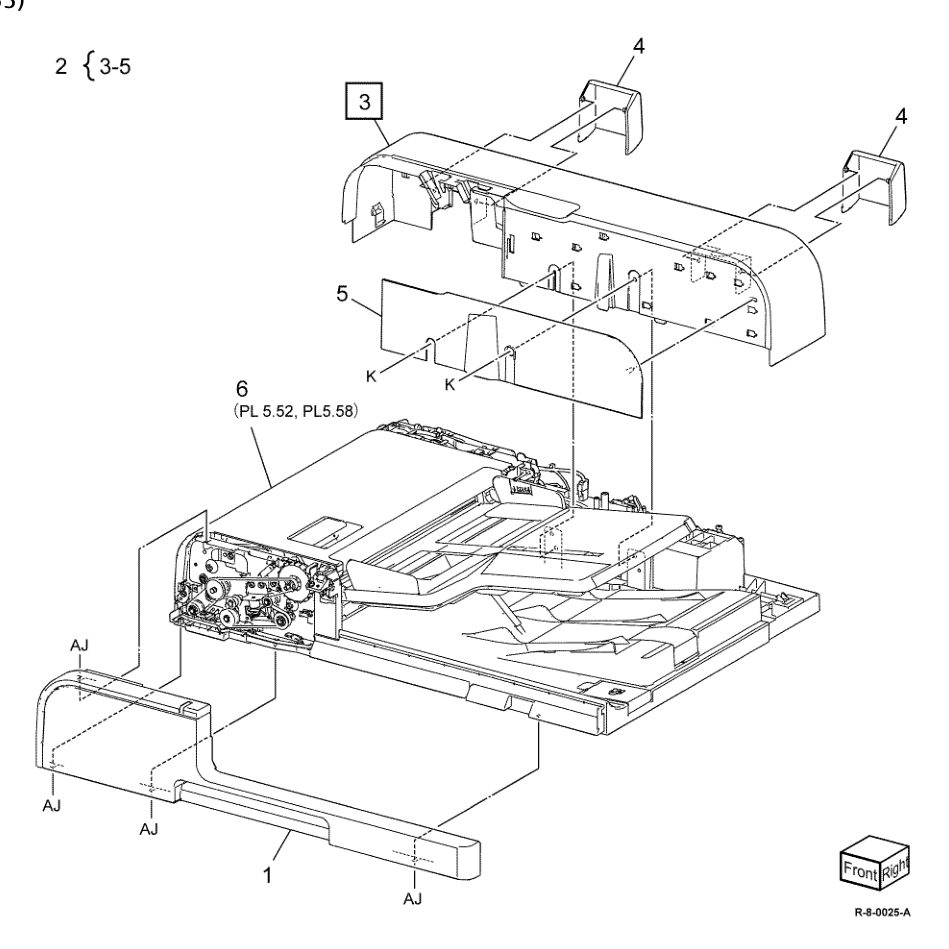

| PL 5.51 DADF Cover (130) (B8145/B8155) 1 948K26800 Front cover 2 - Rear cover assembly 3 - Rear cover (P/O PL 5.51 Item 2) 4 - Counter balance cover (P/O PL 5.51 Item 2) 5 - Rear cover base (P/O PL 5.51 Item 2) 6 - Feeder assembly 1 948K26800 Front cover 2 - Rear cover assembly 3 - Rear cover (P/O PL 5.51 Item 2) 4 - Counter balance cover (P/O PL 5.51 Item 2) 5 - Rear cover base (P/O PL 5.51 Item 2) 6 - Feeder assembly |  |

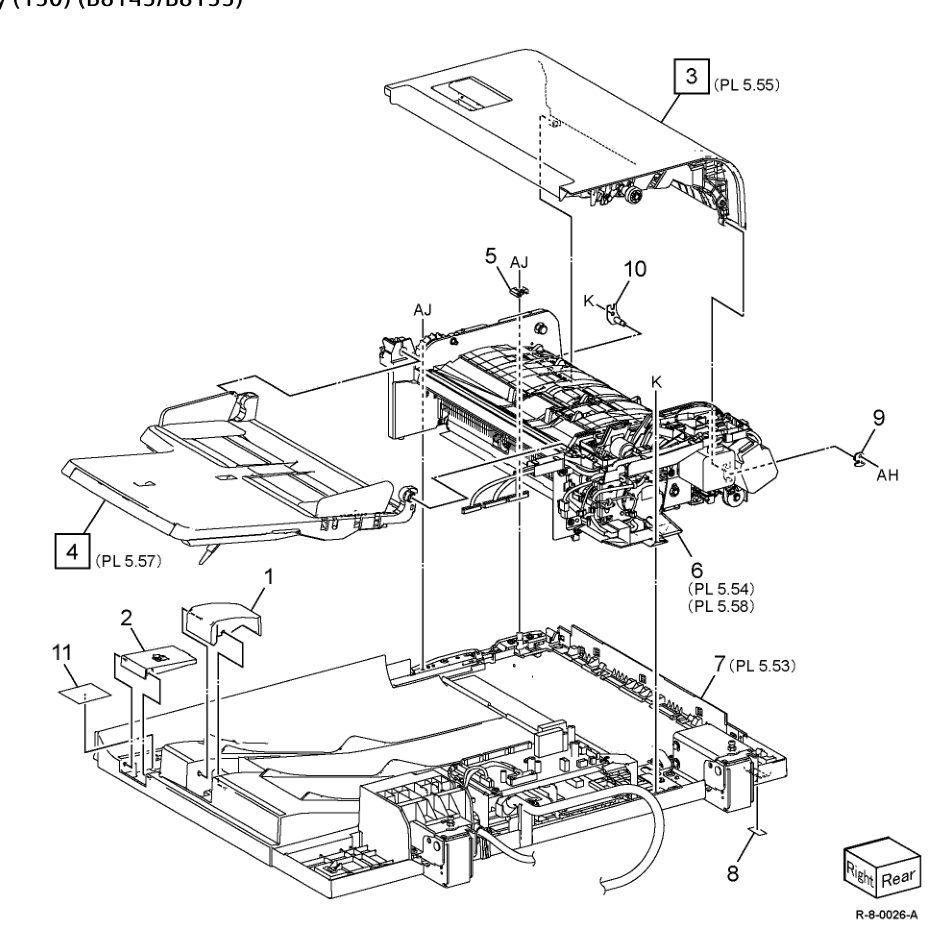

| PL 5.52 DADF Top Cover, Document Tray (130) (B8145/B8155) 1 803E30190 Stopper 2 819E01660 Cloth holder 3 859K02254 Top cover 4 050K79643 Document tray 5 - Collar 6 - Regi./Retard chute/Invert unit 7 - Base frame unit 8 - Label (Clean) 9 - Stud bracket (rear) 10 - Stud bracket (front) 11 042E92802 Cloth cleaner 1 803E30190 Stopper 2 819E01660 Cloth holder 3 859K02254 Top cover 4 050K79643 Document tray 5 - Collar 6 - Regi./Retard chute/Invert unit 7 - Base frame unit 8 - Label (Clean) 9 - Stud bracket (rear) 10 - Stud bracket (front) 11 042E92802 Cloth cleaner |  |

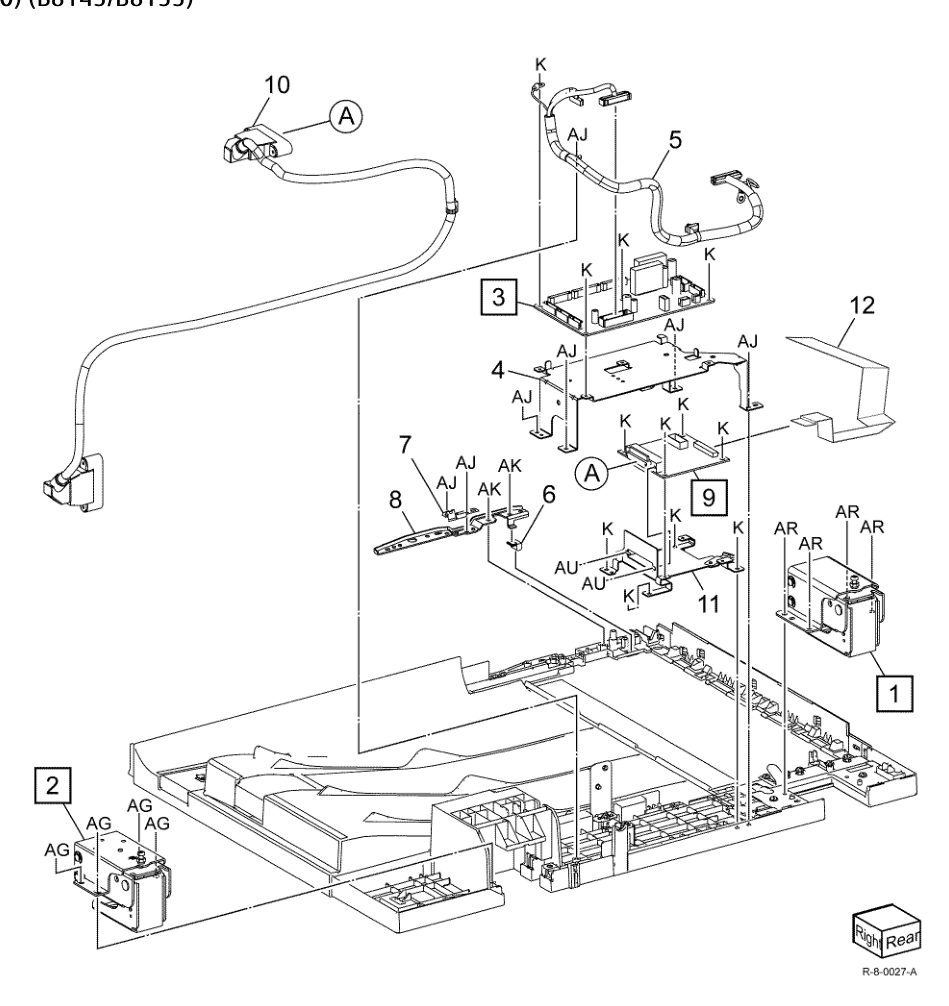

| PL 5.53 DADF Base Frame Assembly (130) (B8145/B8155) 1 036K92372 Left counter balance 2 036K92382 Right counter balance — 036K92091 Right counter balance (alternative) 3 960K97240 DADF PWB 960K97240 (SCC) DADF PWB Fully refurbished with 90-day warranty 960K97240 3-4 Day Lead (Refurbished) $134.64 4 - PWB bracket 5 117K48791 DADF signal cable assembly (DADF-IIT) 6 835E12131 Gasket 7 - Ground plate 8 - Front base bracket 9 960K81482 DCDC PWB 10 117K50441 DADF controller cable 11 - PWB bracket 12 - Flat Cable (DCDC-CIS) 1 036K92372 Left counter balance 2 036K92382 Right counter balance — 036K92091 Right counter balance (alternative) 3 960K97240 DADF PWB 960K97240 (SCC) DADF PWB Fully refurbished with 90-day warranty 960K97240 3-4 Day Lead (Refurbished) $134.64 4 - PWB bracket 5 117K48791 DADF signal cable assembly (DADF-IIT) 6 835E12131 Gasket 7 - Ground plate 8 - Front base bracket 9 960K81482 DCDC PWB 10 117K50441 DADF controller cable 11 - PWB bracket 12 - Flat Cable (DCDC-CIS) |  |

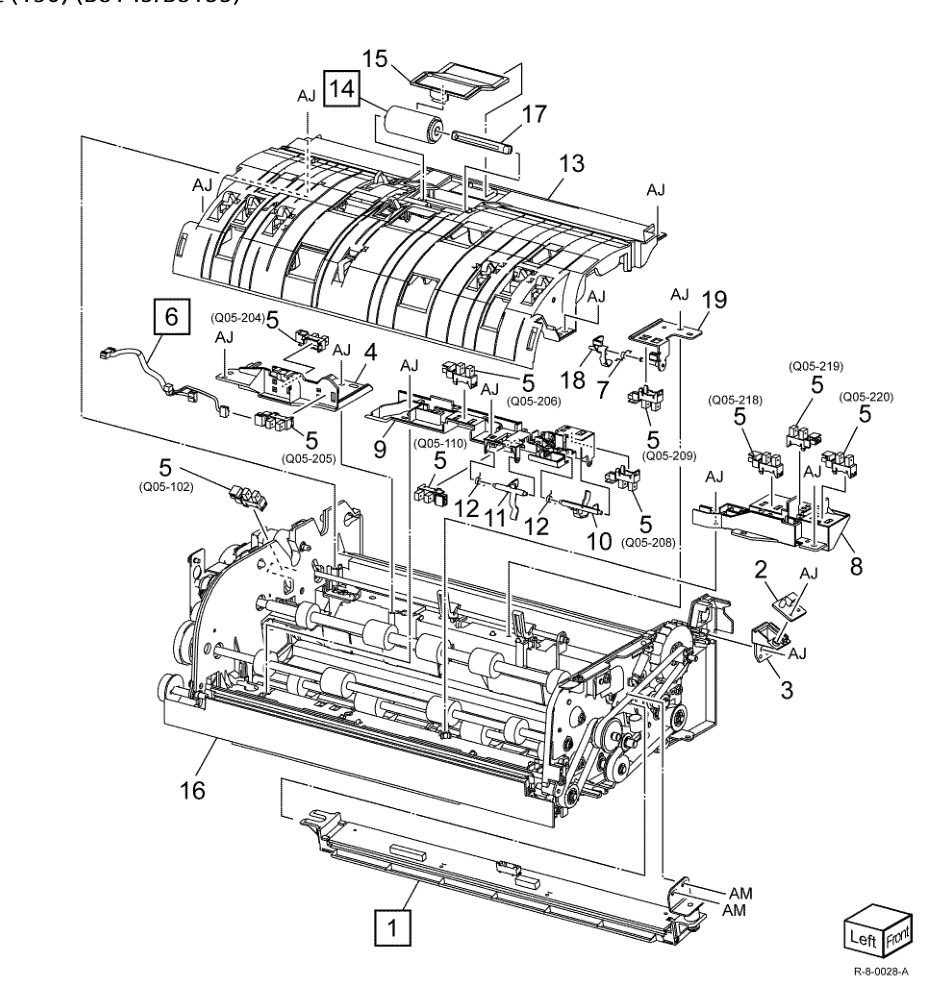

| PL 5.54 Regi. / Retard Chute/ Invert Unit (130) (B8145/B8155) 1 930K04170 CIS 2 - Document set LED 3 - Document set LED PWB 4 869E17370 LED bracket 5 930W00122 DADF feed out sensor (Q05-205)/DADF feed in sensor (Q05-204)/DADF Exit sensor (Q05-209)/ DADF APS sensor 1 (Q05-218)/DADF APS sensor 2 (Q05-219)/DADF APS sensor 3 (Q05-220)/ DADF Regi.sensor (Q05-110)/DADF Out sensor (Q05-208)/DADF Pre Regi. sensor (Q05-206)/ DADF Document set sensor (Q05-102) (RE 6 - Wire harness (DADF feed out sensor) 7 - Spring 8 - DADF APS sensor guide 9 - DADF sensor guide 10 - Actuator (Out) 11 - Actuator (Regi.) 12 - Spring 13 - Retard chute assembly 14 059K78301 Retard roll 15 848K99190 Retard roll cover 16 - Frame assembly 17 - Retard shaft 18 - Actuator 19 - Bracket 1 930K04170 CIS 2 - Document set LED 3 - Document set LED PWB 4 869E17370 LED bracket 5 930W00122 DADF feed out sensor (Q05-205)/DADF feed in sensor (Q05-204)/DADF Exit sensor (Q05-209)/ DADF APS sensor 1 (Q05-218)/DADF APS sensor 2 (Q05-219)/DADF APS sensor 3 (Q05-220)/ DADF Regi.sensor (Q05-110)/DADF Out sensor (Q05-208)/DADF Pre Regi. sensor (Q05-206)/ DADF Document set sensor (Q05-102) (RE 6 - Wire harness (DADF feed out sensor) 7 - Spring 8 - DADF APS sensor guide 9 - DADF sensor guide 10 - Actuator (Out) 11 - Actuator (Regi.) 12 - Spring 13 - Retard chute assembly 14 059K78301 Retard roll 15 848K99190 Retard roll cover 16 - Frame assembly 17 - Retard shaft 18 - Actuator 19 - Bracket |  |

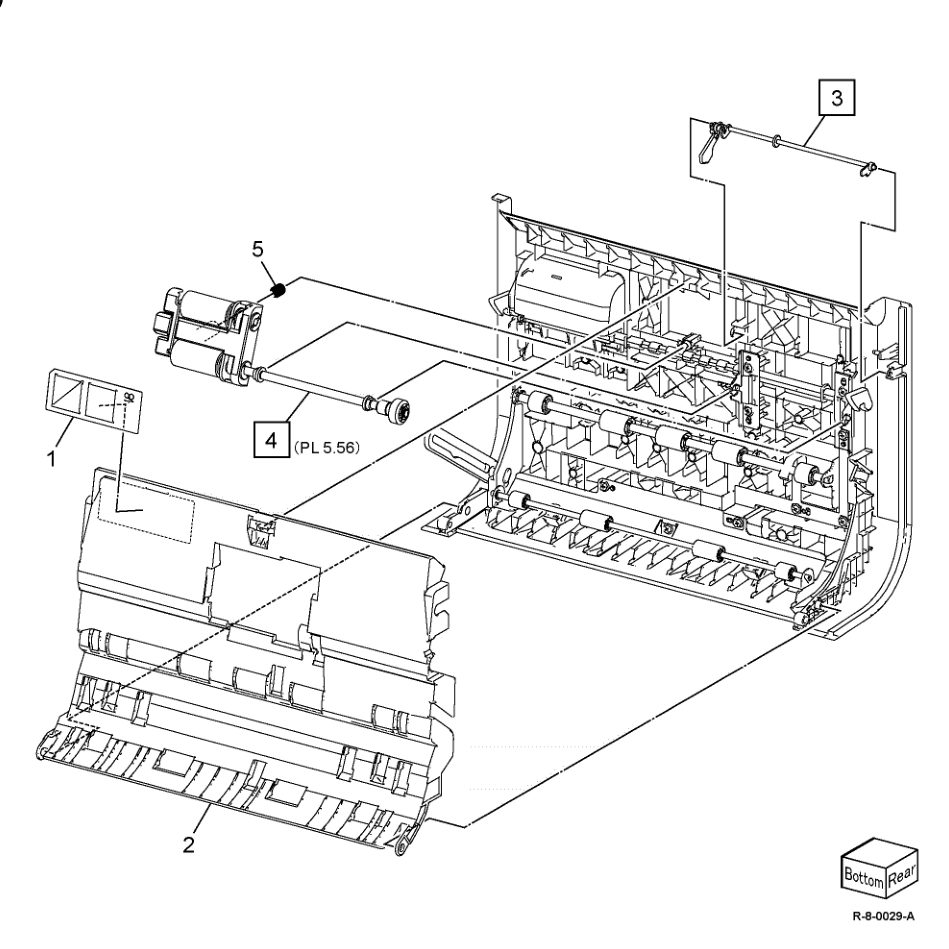

| PL 5.55 Top Cover (130) (B8145/B8155) 1 - Label (Jam clear) 2 - Feed upper chute 3 120K92810 Document set actuator 4 059K73511 Feed/Nudger roll assembly 5 - Spring 1 - Label (Jam clear) 2 - Feed upper chute 3 120K92810 Document set actuator 4 059K73511 Feed/Nudger roll assembly 5 - Spring |  |

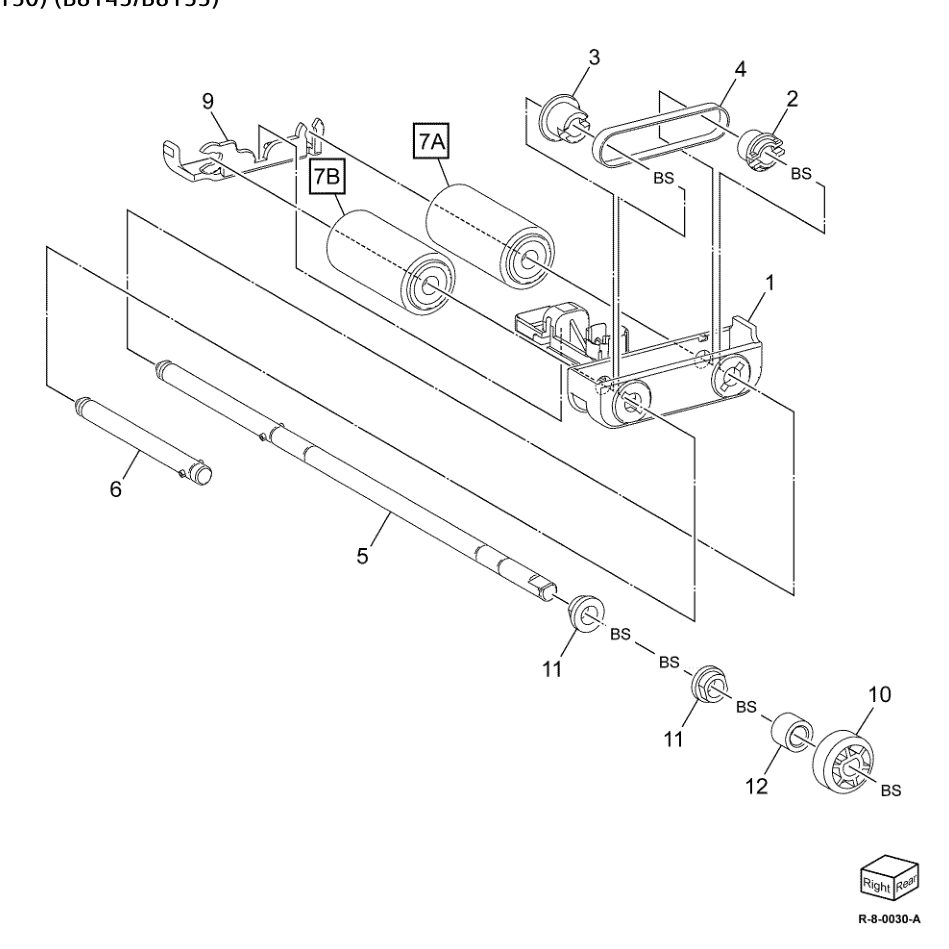

| PL 5.56 Feeder / Nudger Roll Assembly (130) (B8145/B8155) 1 - Housing 2 - Feed pulley 3 - Nudger pulley 4 - Belt 5 - Feed shaft 6 - Nudger shaft 7 859K23440 Feed roll (A)/Nudger roll (B) 8 - Not used 9 - Housing 10 - Gear 11 - Bearing 12 - Collar 1 - Housing 2 - Feed pulley 3 - Nudger pulley 4 - Belt 5 - Feed shaft 6 - Nudger shaft 7 859K23440 Feed roll (A)/Nudger roll (B) 8 - Not used 9 - Housing 10 - Gear 11 - Bearing 12 - Collar |  |

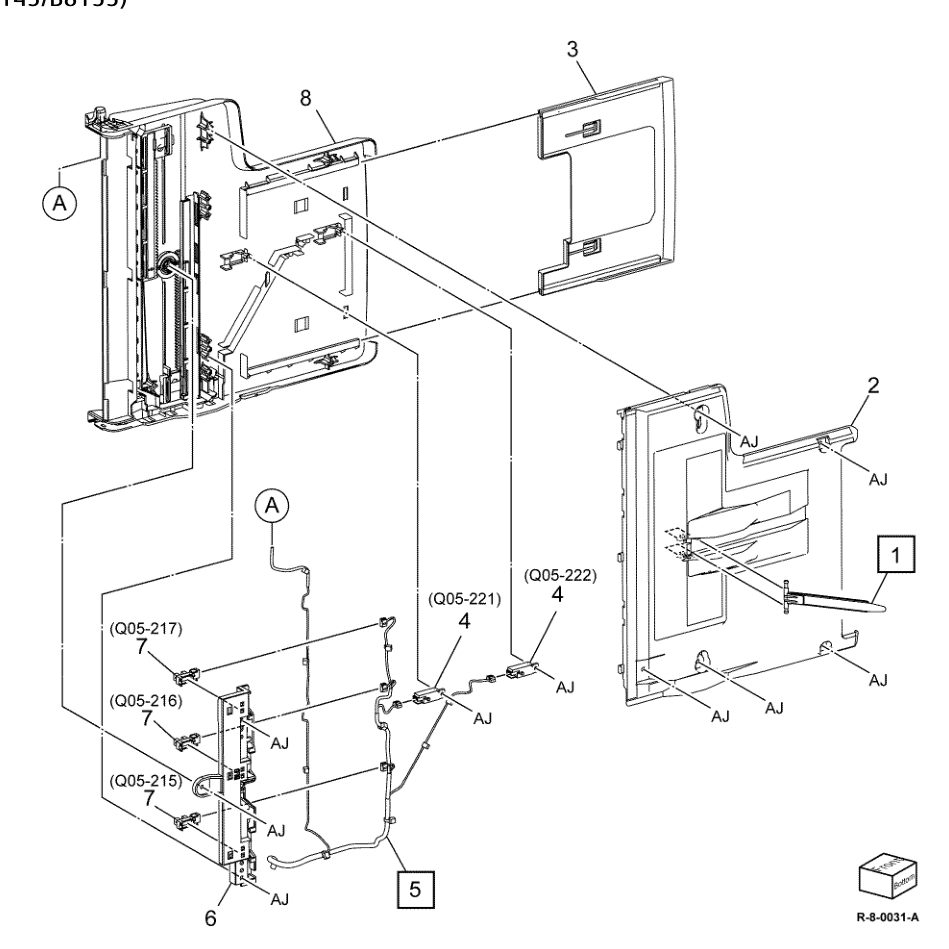

| PL 5.57 DADF Document Tray (130) (B8145/B8155) 1 - Guide 2 - Tray cover 3 - End tray 4 930W00241 Document tray size sensor 1 (Q05-221) /Document tray size sensor 2 (Q05-222) 5 - Tray wire harness 6 - DADF Tray APS sensor bracket 7 930W00121 DADF Tray APS sensor 1 (Q05- 215)/DADF Tray APS sensor 2 (Q05-216)/DADF Tray APS sensor 3 (Q05-217) 8 - Upper tray assembly 1 - Guide 2 - Tray cover 3 - End tray 4 930W00241 Document tray size sensor 1 (Q05-221) /Document tray size sensor 2 (Q05-222) 5 - Tray wire harness 6 - DADF Tray APS sensor bracket 7 930W00121 DADF Tray APS sensor 1 (Q05- 215)/DADF Tray APS sensor 2 (Q05-216)/DADF Tray APS sensor 3 (Q05-217) 8 - Upper tray assembly |  |

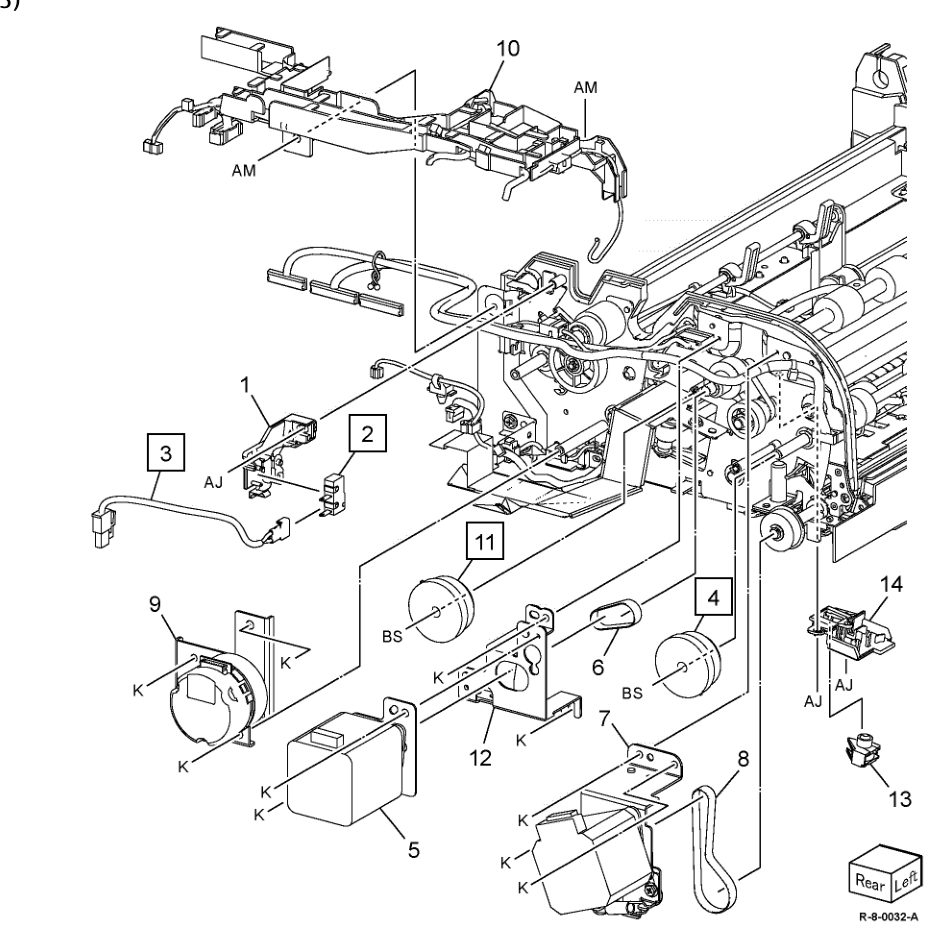

| PL 5.58 DADF Drive (130) (B8145/B8155) 1 - Interlock bracket 2 110K16320 DADF interlock switch 3 952K08300 Harness assembly 4 - Holder 5 127K79230 DADF Pre Regi. motor 127K79230 Pre Registration Motor DADF Fully refurbished with 90-day warranty 127K79230 (Refurbished) 6 423W23654 Belt 7 127K73990 DADF Regi. motor 8 423W28155 Belt 9 127K75780 DADF feed motor 10 - Harness guide 11 121K53461 DADF take away clutch (A)/DADF Pre Regi. clutch (B) 12 - Bracket assembly 13 - Stamp solenoid 1 - Interlock bracket 2 110K16320 DADF interlock switch 3 952K08300 Harness assembly 4 - Holder 5 127K79230 DADF Pre Regi. motor 127K79230 Pre Registration Motor DADF Fully refurbished with 90-day warranty 127K79230 (Refurbished) 6 423W23654 Belt 7 127K73990 DADF Regi. motor 8 423W28155 Belt 9 127K75451 DADF feed motor 10 - Harness guide 11 121K53461 DADF take away clutch (A)/DADF Pre Regi. clutch (B) 12 - Bracket assembly 13 - Stamp solenoid |  |

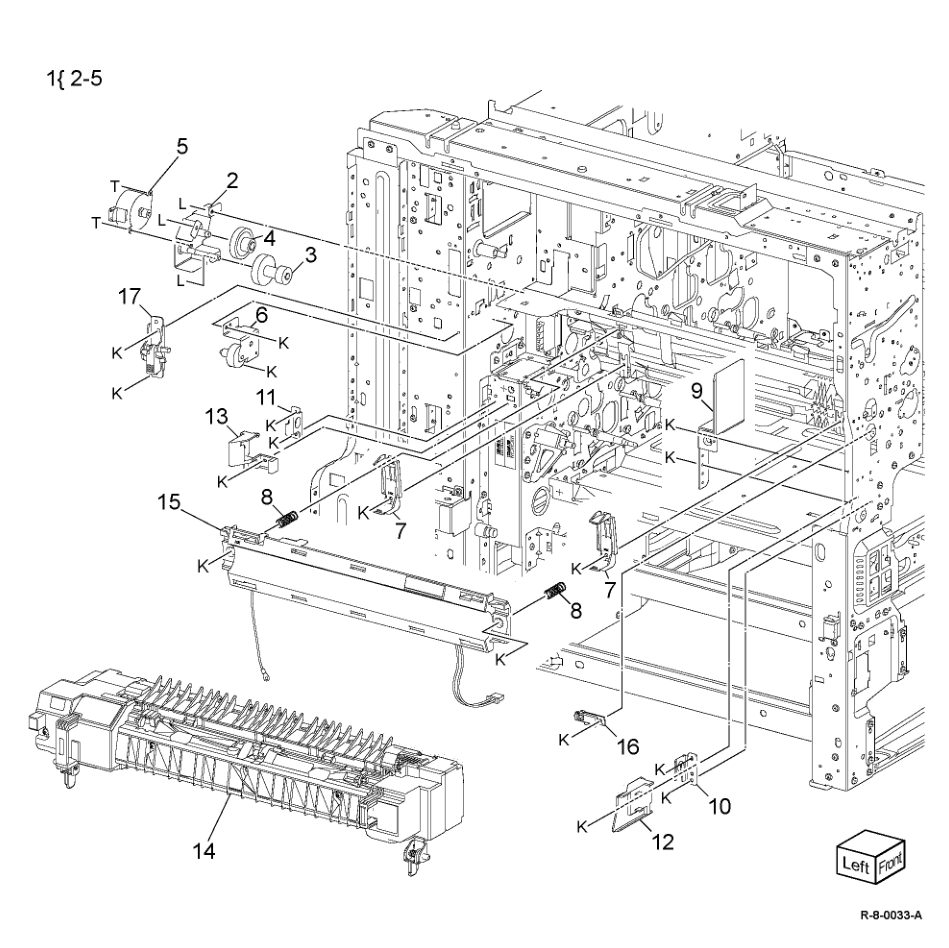

| PL 10.05 Fuser 1 007K21640 Retract motor assembly 2 - Motor bracket (P/O PL 10.05 Item 1) 3 - Gear (17/40T) (P/O PL 10.05 Item 1) 4 - Gear (17/54T) (P/O PL 10.05 Item 1) 5 - Roll latch motor (P/O PL 10.05 Item 1) 6 007K21650 Retract gear assembly 7 - Support (Not Spared) 8 - Spring (Not Spared) 9 - Adjust plate (Not Spared) 10 - Front fuser bracket (Not Spared) 11 - Rear fuser bracket (Not Spared) 12 - Front stopper lever (Not Spared) 13 - Rear stopper lever (Not Spared) 14 607K22320 Fuser (110/220V) (B8145/B8155) 607K22320 Fuser Unit - Unversal Voltage Fully refurbished with 90-day warranty 607K22320 (Refurbished) — 607K22330 Fuser (110/220V) (B8170) 15 - Fuser heater coil - see below for variants — 104K91480 110V (B8145/B8155) 104K91480 Fuser Coil Unit - 110-120V Fully refurbished with 90-day warranty 104K91480 (Refurbished) $115.60 — 104K91294 110V (B8170) 104K91294 Fuser Coil Assembly 110V Fully refurbished with 90-day warranty 104K91294 (Refurbished) $210.80 — 104K91279 220V (B8145/B8155) — 104K91304 220V (B8170) 16 - Holder (Not Spared) 17 011K05090 Stopper lever assembly 011K05090 Fuser Stopper Lever Assembly Fully refurbished with 90-day warranty 011K05090 (Refurbished) 1 007K21640 Retract motor assembly 2 - Motor bracket (P/O PL 10.05 Item 1) 3 - Gear (17/40T) (P/O PL 10.05 Item 1) 4 - Gear (17/54T) (P/O PL 10.05 Item 1) 5 - Roll latch motor (P/O PL 10.05 Item 1) 6 007K21650 Retract gear assembly 7 - Support (Not Spared) 8 - Spring (Not Spared) 9 - Adjust plate (Not Spared) 10 - Front fuser bracket (Not Spared) 11 - Rear fuser bracket (Not Spared) 12 - Front stopper lever (Not Spared) 13 - Rear stopper lever (Not Spared) 14 607K22310 Fuser (C8130/C8135) — 607K22320 Fuser (C8145/C8155) 607K22320 Fuser Unit - Unversal Voltage Fully refurbished with 90-day warranty 607K22320 (Refurbished) — 607K22330 Fuser (C8170) 15 - Fuser heater coil - see below for variants — 104K91480 110V (C8130/C8135/C8145/ C8155) 104K91480 Fuser Coil Unit - 110-120V Fully refurbished with 90-day warranty 104K91480 (Refurbished) $115.60 — 104K91294 110V (C8170) 104K91294 Fuser Coil Assembly 110V Fully refurbished with 90-day warranty 104K91294 (Refurbished) $210.80 — 104K91279 220V (C8130/C8135/C8145/ C8155) — 104K91304 220V (C8170) 16 - Holder (Not Spared) 17 011K05090 Stopper lever assembly 011K05090 Fuser Stopper Lever Assembly Fully refurbished with 90-day warranty 011K05090 (Refurbished) |  |

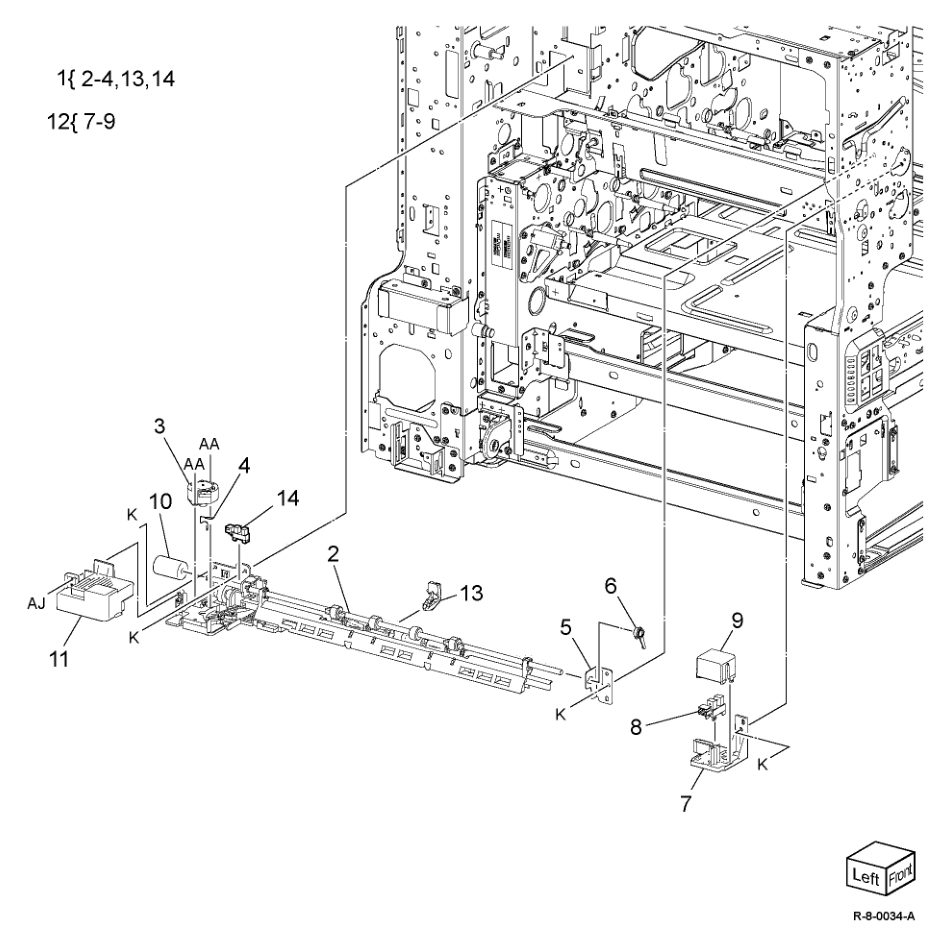

| PL 10.10 Exit 1 Transport Components 1 859K03381 Exit 1 transport assembly 859K03381 Exit 1 Transport Assembly - High Fully refurbished with 90-day warranty 859K03381 3-4 Day Lead (Refurbished) $134.64 2 - Exit 1 transport (P/O PL 10.10 Item 1) 3 127K60880 Exit 1 OCT motor (MOT77-040) 127K60880 Exit 1 OCT Motor (7545 7556) (Offset Catch Tray) Fully refurbished with 90-day warranty 127K60880 (Refurbished) 4 - Ground spring (P/O PL 10.10 Item 1) 5 - Bracket (Not Spared) 6 013E46800 Bearing 7 - Front guide (P/O PL 10.10 Item 12) 8 930W00113 Exit 1 OCT home position sensor (Q77-109) 9 - Exit 1 OCT home position sensor cover (P/O PL 10.10 Item 12) 10 807E20620 Exit 1 drive gear 11 948K02070 Motor cover 12 032K10662 Exit 1 sensor guide assembly 032K10662 Exit 1 Sensor Guide Assembly Fully refurbished with 90-day warranty 032K10662 (Refurbished) 13 055E58970 Guard 14 - Exit 1 OCT full stack sensor (Q77- 124) 1 859K03371 Exit 1 transport assembly (C8130/ C8135) 859K03371 Exit 1 Transport Assembly - Low Fully refurbished with 90-day warranty 859K03371 (Refurbished) — 859K03381 Exit 1 transport assembly (C8145/ C8155/C8170) 859K03381 Exit 1 Transport Assembly - High Fully refurbished with 90-day warranty 859K03381 3-4 Day Lead (Refurbished) $134.64 2 - Exit 1 transport (P/O PL 10.10 Item 1) 3 127K52280 Exit 1 OCT motor (C8130/C8135) (MOT77-040) 127K52280 Exit 1 OCT Motor (7525 7530 7535) (Offset Catch Tray) New 127K52280 (New) 3-4 Day Lead $66.64 127K52280 Exit 1 OCT Motor (7525 7530 7535) (Offset Catch Tray) Fully refurbished with 90-day warranty 127K52280 (Refurbished) — 127K60880 Exit 1 OCT motor (C8145/C8155/ C8170) 127K60880 Exit 1 OCT Motor (7545 7556) (Offset Catch Tray) Fully refurbished with 90-day warranty 127K60880 (Refurbished) 4 - Ground spring (P/O PL 10.10 Item 1) 5 - Bracket (Not Spared) 6 013E46800 Bearing 7 - Front guide (P/O PL 10.10 Item 12) 8 930W00113 Exit 1 OCT home position sensor (Q77-109) 9 - Exit 1 OCT home position sensor cover (P/O PL 10.10 Item 12) 10 807E20620 Exit 1 drive gear 11 948K02070 Motor cover 12 032K10662 Exit 1 sensor guide assembly 032K10662 Exit 1 Sensor Guide Assembly Fully refurbished with 90-day warranty 032K10662 (Refurbished) 13 055E58970 Guard 14 - Exit 1 OCT full stack sensor (Q77- 124) (P/O PL 10.10 Item 1) |  |

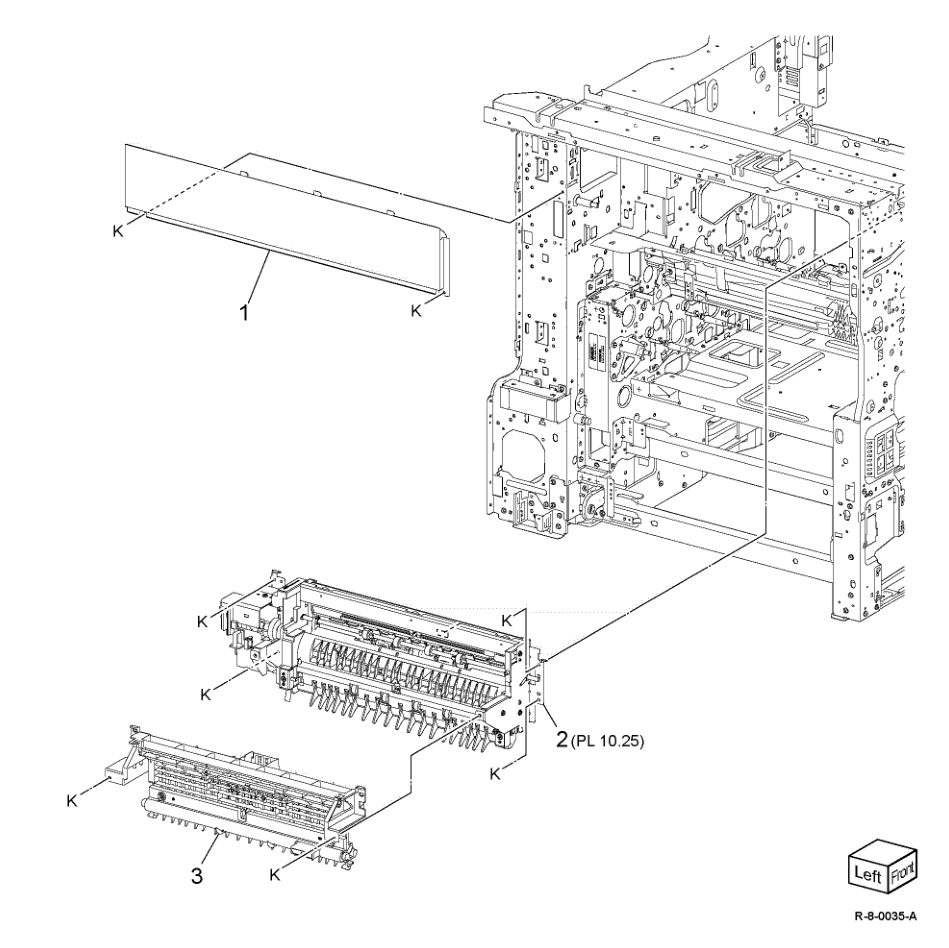

| PL 10.15 Exit 2 Transport Components 1 822E33800 Left top cover 2 - Exit 2 transport assembly 3 - Top chute assembly (Not Spared) 1 822E33800 Left top cover 2 - Exit 2 transport assembly (C8130/ C8135) — - Exit 2 transport assembly (C8145/ C8155/C8170) 3 - Top chute assembly (Not Spared) |  |

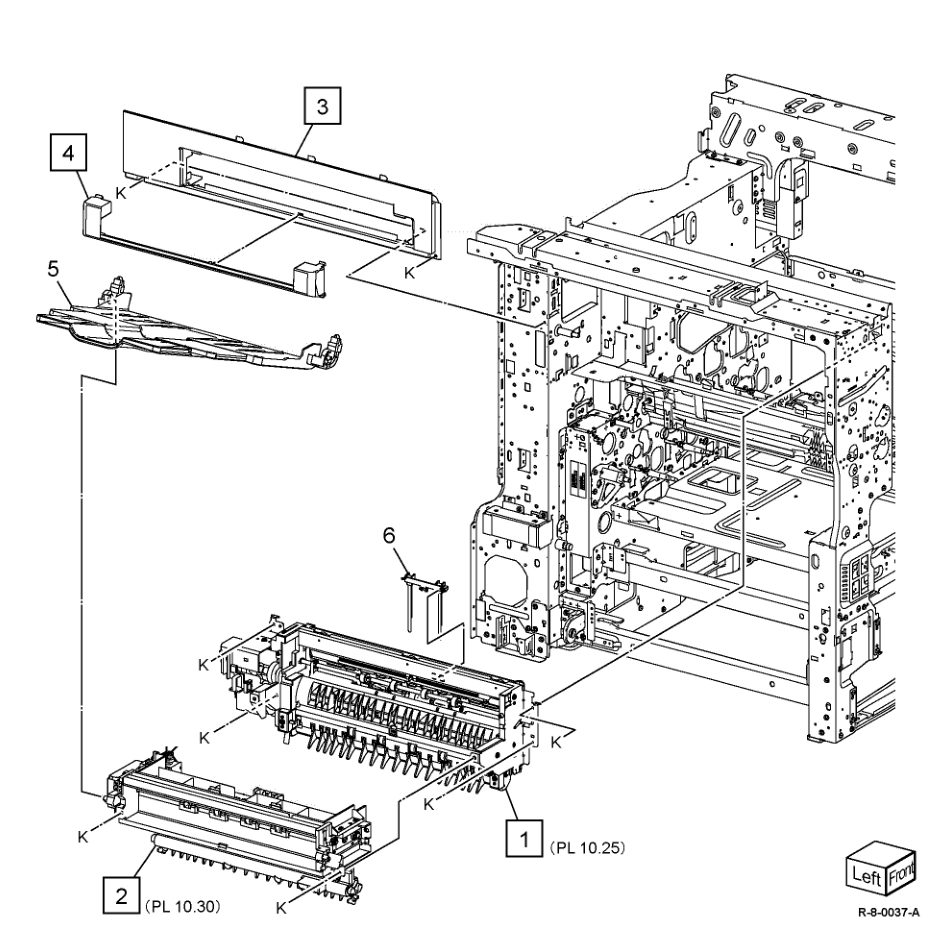

| PL 10.20 Face Up Tray Assembly 1 859K03419 Exit 2 transport assembly Xerox 859K03419 Exit 2 transport assembly Fully refurbished with 90-day warranty 859K03419 (Refurbished) 2 054K56102 Face up chute assembly 054K56102 Face Up Chute Assembly Fully refurbished with 90-day warranty 054K56102 (Refurbished) $115.60 3 - Left hand top cover 4 822E39130 Face up tray cover 5 050K75161 Face up tray 6 - Exit 2 paper weight assembly 1 859K03409 Exit 2 transport assembly (C8130/ C8135) 859K03409 Exit 2 Transport Assembly - Low Fully refurbished with 90-day warranty 859K03409 (Refurbished) — 859K03419 Exit 2 transport assembly (C8145/ C8155/C8170) Xerox 859K03419 Exit 2 transport assembly Fully refurbished with 90-day warranty 859K03419 (Refurbished) 2 054K56102 Face up chute assembly 054K56102 Face Up Chute Assembly Fully refurbished with 90-day warranty 054K56102 (Refurbished) $115.60 3 - Left hand top cover 4 822E39130 Face up tray cover 5 050K75161 Face up tray 6 - Exit 2 paper weight assembly |  |

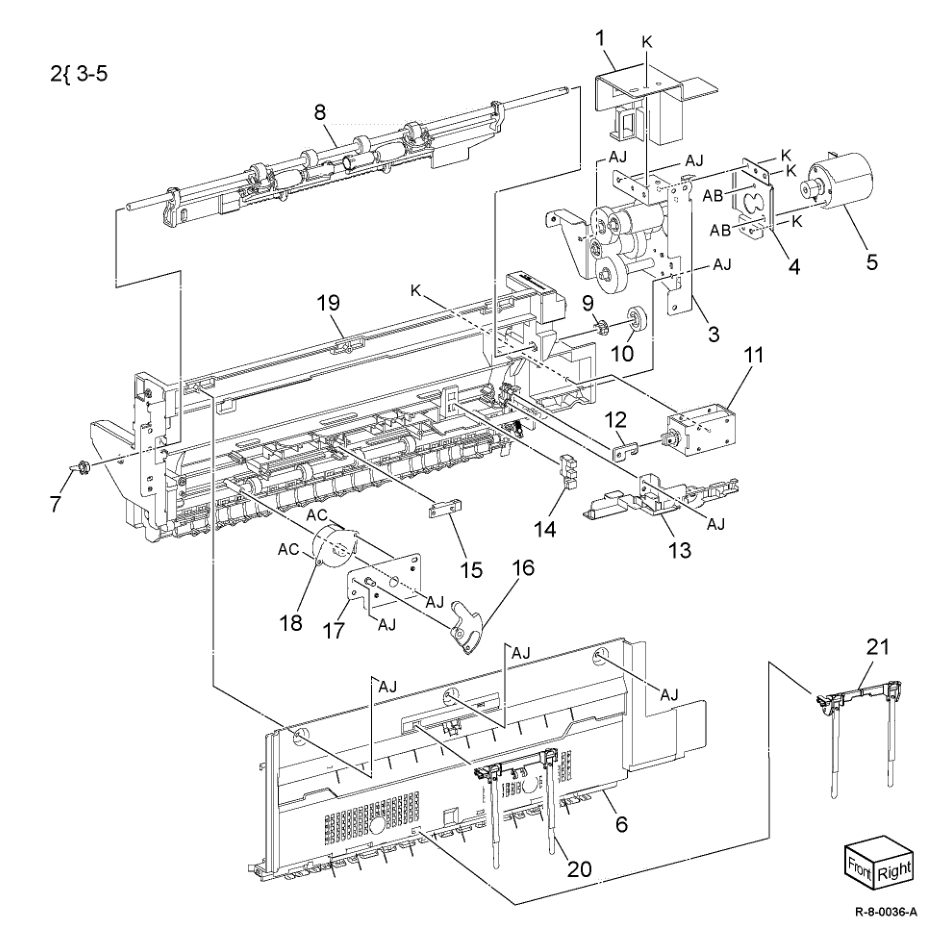

| PL 10.25 Exit 2 Transport Assembly 1 - Harness guide (P/O PL 10.15 Item 2) 2 007K21701 Exit 2 drive assembly 3 - Exit 2 drive bracket assembly (P/O PL 10.25 Item 2) 4 - Motor bracket (P/O PL 10.25 Item 2) 5 - Exit 2 drive motor (MOT77-060) (P/O PL 10.25 Item 2) 6 - Exit 2 guide assembly (P/O PL 10.15 Item 2) 7 - Bearing (P/O PL 10.15 Item 2) 8 - Exit 2 chute assembly (P/O PL 10.15 Item 2) 9 - Bearing (P/O PL 10.15 Item 2) 10 - Gear (P/O PL 10.15 Item 2) 11 121K58240 Exit 1 gate solenoid (SOL77-003) 12 - Link (P/O PL 10.15 Item 2) 13 - Harness guide (P/O PL 10.15 Item 2) 14 930W00113 Exit 2 OCT home position sensor (Q77-110) 15 930W00211 Exit 2 sensor (Q77-113) 16 - Offset gear (P/O PL 10.15 Item 2) 17 - Motor bracket (P/O PL 10.15 Item 2) 18 127K60880 Exit 2 OCT motor (MOT77-045) 127K60880 Exit 1 OCT Motor (7545 7556) (Offset Catch Tray) Fully refurbished with 90-day warranty 127K60880 (Refurbished) 19 - Exit 2 transport chassis (P/O PL 10.15 Item 2) 20 036K92441 Exit 2 bail arm assembly 21 036K92411 Exit 1 bail arm assembly 036K92411 Exit 1 Bail Arm Assembly Exit 2 Transport Fully refurbished with 90-day warranty 036K92411 (Refurbished) 1 - Harness guide (P/O PL 10.15 Item 2) 2 007K21701 Exit 2 drive assembly 3 - Exit 2 drive bracket assembly (P/O PL 10.25 Item 2) 4 - Motor bracket (P/O PL 10.25 Item 2) 5 - Exit 2 drive motor (MOT77-060) (P/O PL 10.25 Item 2) 6 - Exit 2 guide assembly (P/O PL 10.15 Item 2) 7 - Bearing (P/O PL 10.15 Item 2) 8 - Exit 2 chute assembly (P/O PL 10.15 Item 2) 9 - Bearing (P/O PL 10.15 Item 2) 10 - Gear (P/O PL 10.15 Item 2) 11 121K58240 Exit 1 gate solenoid (SOL77-003) 12 - Link (P/O PL 10.15 Item 2) 13 - Harness guide (P/O PL 10.15 Item 2) 14 930W00113 Exit 2 OCT home position sensor (Q77-110) 15 930W00211 Exit 2 sensor (Q77-100) 16 - Offset gear (P/O PL 10.15 Item 2) 17 - Motor bracket (P/O PL 10.15 Item 2) 18 127K52280 Exit 2 OCT motor (C8130/C8135) (MOT77-045) 127K52280 Exit 1 OCT Motor (7525 7530 7535) (Offset Catch Tray) New 127K52280 (New) 3-4 Day Lead $66.64 127K52280 Exit 1 OCT Motor (7525 7530 7535) (Offset Catch Tray) Fully refurbished with 90-day warranty 127K52280 (Refurbished) — 127K60880 Exit 2 OCT motor (C8145/C8155/ C8170) (MOT77-045) 127K60880 Exit 1 OCT Motor (7545 7556) (Offset Catch Tray) Fully refurbished with 90-day warranty 127K60880 (Refurbished) 19 - Exit 2 transport chassis (P/O PL 10.15 Item 2) 20 036K92441 Exit 2 bail arm assembly 21 036K92411 Exit 1 bail arm assembly 036K92411 Exit 1 Bail Arm Assembly Exit 2 Transport Fully refurbished with 90-day warranty 036K92411 (Refurbished) |  |

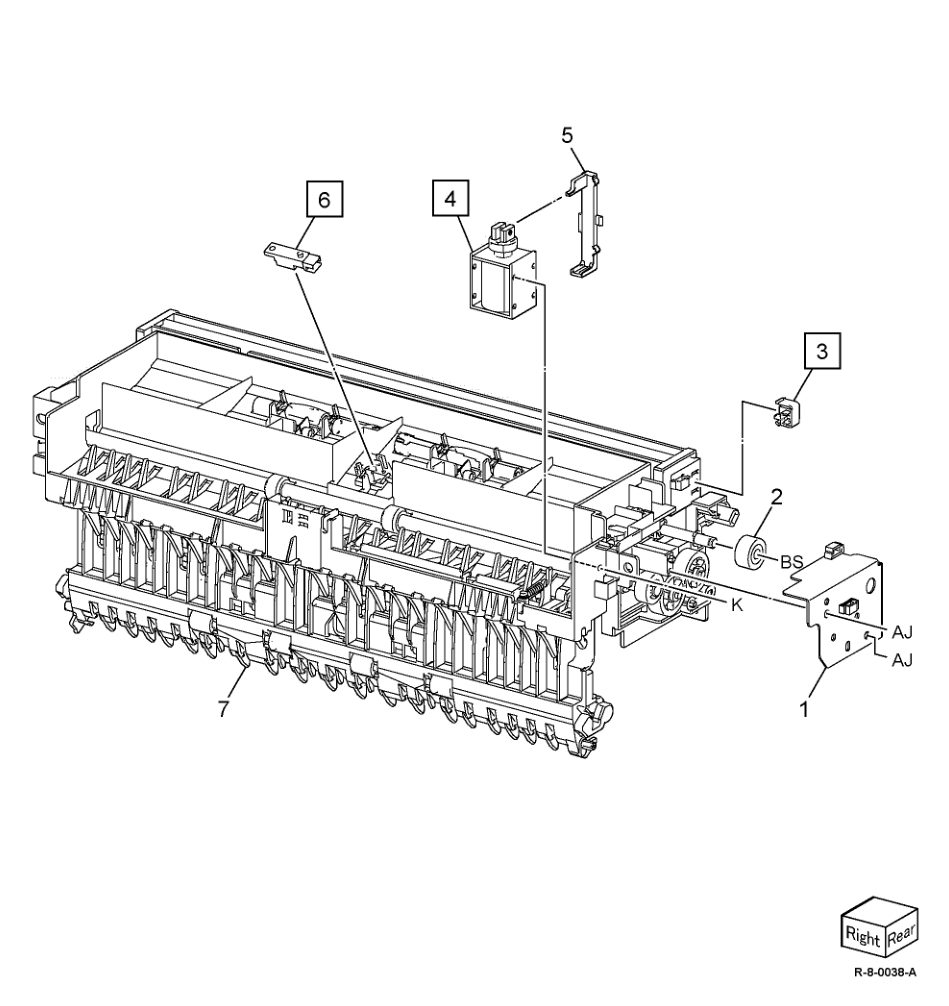

| PL 10.30 Face Up Chute Assembly 1 - Gear bracket 2 007K23630 One way gear 3 110E11580 Face up tray switch 110E11580 Switch- Cab (Door B Interlock Switch) Fully refurbished with 90-day warranty 110E11580 (Refurbished) 4 921W11601 Face up gate solenoid 5 - Solenoid link 6 930W00211 Face up exit sensor 7 - Face up chute 1 - Gear bracket 2 007K23630 One way gear 3 110E11580 Face up tray switch (S77-201) 110E11580 Switch- Cab (Door B Interlock Switch) Fully refurbished with 90-day warranty 110E11580 (Refurbished) 4 921W11601 Face up gate solenoid (SOL77- 004) 5 - Solenoid link 6 930W00211 Face up exit sensor (Q77-112) 7 - Face up chute |  |

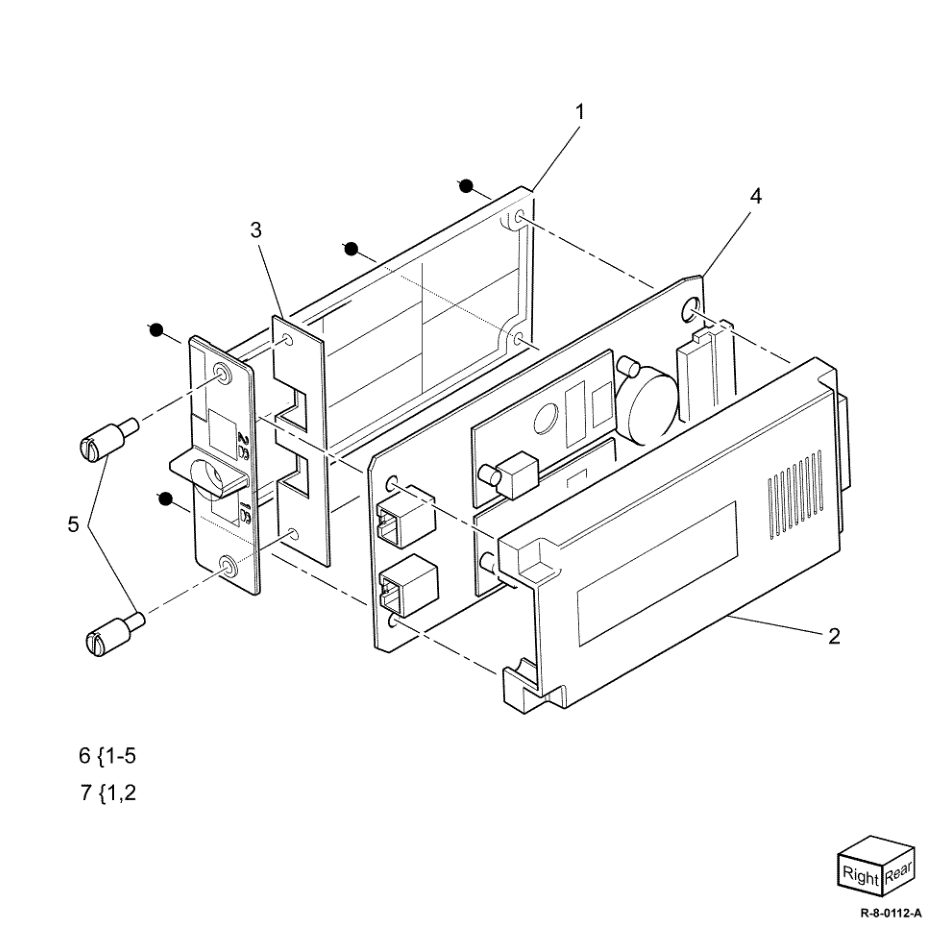

| PL 20.10 Fax Module 1 - Front cover (P/O PL 20.10 Item 7) 2 - Rear Cover (P/O PL 20.10 Item 7) 3 - Ground Plate (P/O PL 20.10 Item 6) 4 - Fax PWB (P/O PL 20.10 Item 6) 5 - Thumbscrew (P/O PL 20.10 Item 6) 6 497K16440 2 Line fax kit (XC) — 497K16430 1 Line Fax kit (XC) — 497K16420 2 Line fax kit (XE) — 497K16410 1 Line fax kit (XE) — 497K16560 2 Line fax kit (CFax 34) Xerox 497K16560 2 Line fax kit (CFax 34) Fully refurbished with 90-day warranty 497K16560 (Refurbished) — 497K16550 1 line fax kit (CFax 34) Xerox 497K16550 1 line fax kit (CFax 34) Fully refurbished with 90-day warranty 497K16550 (Refurbished) — - Fax Module 7 - Fax Covers Assembly 1 - Front cover (P/O PL 20.10 Item 7) 2 - Rear Cover (P/O PL 20.10 Item 7) 3 - Ground Plate (P/O PL 20.10 Item 6) 4 - Fax PWB (P/O PL 20.10 Item 6) 5 - Thumbscrew (P/O PL 20.10 Item 6) 6 497K16440 2 Line fax kit (XC) — 497K16430 1 Line Fax kit (XC) — 497K16420 2 Line fax kit (XE) — 497K16410 1 Line fax kit (XE) — 497K16560 2 Line fax kit (CFax 34) Xerox 497K16560 2 Line fax kit (CFax 34) Fully refurbished with 90-day warranty 497K16560 (Refurbished) — 497K16550 1 line fax kit (CFax 34) Xerox 497K16550 1 line fax kit (CFax 34) Fully refurbished with 90-day warranty 497K16550 (Refurbished) — - Fax Module 7 - Fax Covers Assembly |  |
| PL 25.10 Accessories 1 498K08260 Convenience stapler (XE) Xerox 498K08260 Convenience stapler kit (XE) Fully refurbished with 90-day warranty 498K08260 (Refurbished) 2 498K08250 Convenience stapler (XC) 3 497K21540 Wireless kit 497K21540 Interface 802.11b/g/n/ac / Wireless Kit Fully refurbished with 90-day warranty 497K21540 (Refurbished) 4 497K21550 Bluetooth kit 5 - HDD / IJO kit 6 - RFID Reader 7 - USB keyboard/ Shelf kit 8 - Banner feed kit 9 - Foreign device interface kit 1 498K08260 Convenience stapler (XE) Xerox 498K08260 Convenience stapler kit (XE) Fully refurbished with 90-day warranty 498K08260 (Refurbished) 2 498K08250 Convenience stapler (XC) 3 497K21540 Wireless kit 497K21540 Interface 802.11b/g/n/ac / Wireless Kit Fully refurbished with 90-day warranty 497K21540 (Refurbished) 4 497K21550 Bluetooth kit 5 - HDD / IJO kit 6 - RFID Reader 7 - USB keyboard/ Shelf kit 8 - Long sheet feed kit 9 - Foreign device interface kit |  |
| PL 26.10 Consumables and Tools 1 - Toner cartridge (K)- see below for variants — 006R01770 Worldwide (Metered) — 006R01771 NASG/XE 006R01771 Black Toner Cartridge Altalink B8145, B8155, B8170, B8245, B8255, B8270 New 006R01771 (New) 006R01771 Black Toner Cartridge Altalink B8145, B8155, B8170, B8245, B8255, B8270 Fully refurbished with 90-day warranty 006R01771 (Refurbished) — 006R01772 DMO (B8145/B8155) — 006R01773 DMO (B8170) 1 - Toner cartridge (Y)- see below for variants — 006R01745 Worldwide (Metered) — 006R01749 NASG/XE 006R01749 Yellow Toner Cartridge Altalink C8130, 35, 45, 55, 70 C8230, 35, 45, 55, 70 New 006R01749 (New) 006R01749 Yellow Toner Cartridge Altalink C8130, 35, 45, 55, 70 C8230, 35, 45, 55, 70 Fully refurbished with 90-day warranty 006R01749 (Refurbished) — 006R01757 DMO (C8130/C8135) — 006R01761 DMO (C8145/C8155/C8170) Xerox 006R01761 DMO (C8145/C8155/C8170) Fully refurbished with 90-day warranty 006R01761 (Refurbished) 2 - Toner cartridge (M)- see below for variants — 006R01744 Worldwide (Metered) — 006R01748 NASG/XE 006R01748 Magenta Toner Cartridge Altalink C8130, 35, 45, 55, 70 C8230, 35, 45, 55, 70 New 006R01748 (New) 006R01748 Magenta Toner Cartridge Altalink C8130, 35, 45, 55, 70 C8230, 35, 45, 55, 70 Fully refurbished with 90-day warranty 006R01748 (Refurbished) — 006R01760 DMO (C8145/C8155/C8170) Xerox 006R01760 DMO (C8145/C8155/C8170) Fully refurbished with 90-day warranty 006R01760 (Refurbished) 3 - Toner cartridge (C)- see below for variants — 006R01743 Worldwide (Metered) — 006R01747 NASG/XE 006R01747 Cyan Toner Cartridge Altalink C8130, 35, 45, 55, 70 C8230, 35, 45, 55, 70 New 006R01747 (New) 006R01747 Cyan Toner Cartridge Altalink C8130, 35, 45, 55, 70 C8230, 35, 45, 55, 70 Fully refurbished with 90-day warranty 006R01747 (Refurbished) — 006R01756 DMO (C8130/C8135) — 006R01755 DMO (C8130/C8135) — 006R01759 DMO (C8145/C8155/C8170) Xerox 006R01759 DMO (C8145/C8155/C8170) Fully refurbished with 90-day warranty 006R01759 (Refurbished) 4 - Toner cartridge (K)- see below for variants — 006R01742 Worldwide (Metered) — 006R01746 NASG/XE 006R01746 Black Toner Cartridge Altalink C8130, 35, 45, 55, 70 Speed C8230, 35, 45, 55, 70 New 006R01746 (New) 006R01746 Black Toner Cartridge Altalink C8130, 35, 45, 55, 70 Speed C8230, 35, 45, 55, 70 Fully refurbished with 90-day warranty 006R01746 (Refurbished) — 006R01754 DMO (C8130/C8135) — 006R01758 DMO (C8145/C8155/C8170) Xerox 006R01758 DMO (C8145/C8155/C8170) Fully refurbished with 90-day warranty 006R01758 (Refurbished) |  |

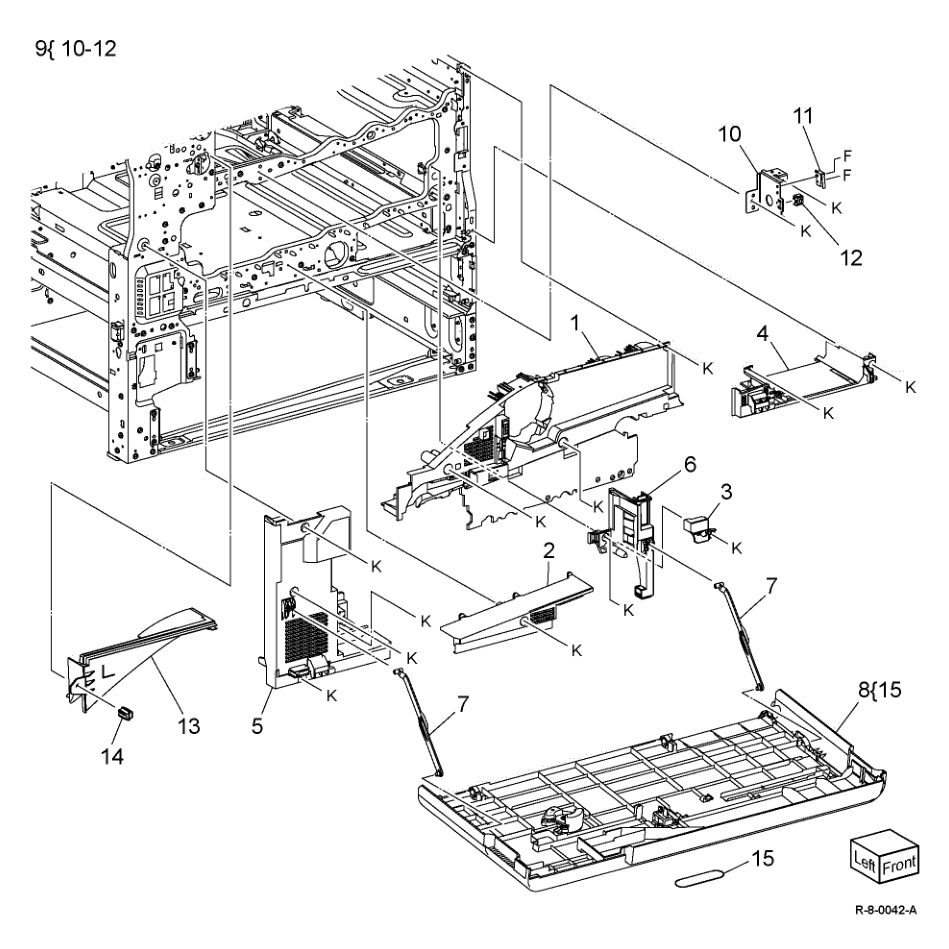

| PL 28.05 Covers (Front) 1 948K24100 Inner cover assembly 2 822E35582 Inner lower cover 3 - Inner right cap cover (Not Spared) 4 - Inner hinge cover assembly (Not Spared) 5 - Inner left cover (Not Spared) 6 - Inner right cover (Not Spared) 7 674K05081 Front cover strap kit – 948K32931 Front cover assembly (B8145/ B8155) Xerox 948K32931 Front cover assembly (B8145/ B8155) Fully refurbished with 90-day warranty 948K32931 (Refurbished) 9 110K18350 Front cover interlock switch as- sembly (S77-303) 110K18350 Front cover interlock switch Fully refurbished with 90-day warranty 110K18350 (Refurbished) 10 - Bracket (P/O PL 28.05 Item 9) 11 - Front cover interlock switch (P/O PL 28.05 Item 9) 12 - Front cover open switch (P/O PL 28.05 Item 9) 13 822E25031 Inner upper cover 14 003K23140 Knob 15 971E14990 Logo badge 1 948K00255 Inner cover assembly 2 822E35582 Inner lower cover 3 - Inner right cap cover (Not Spared) 4 - Inner hinge cover assembly (Not Spared) 5 - Inner left cover (Not Spared) 6 - Inner right cover (Not Spared) 7 674K05081 Front cover strap kit 8 948K32930 Front cover assembly 948K32930 Front Cover Assembly Fully refurbished with 90-day warranty 948K32930 (Refurbished) $142.80 9 110K18350 Front cover interlock switch as- sembly (S77-303) 110K18350 Front cover interlock switch Fully refurbished with 90-day warranty 110K18350 (Refurbished) 10 - Bracket (P/O PL 28.05 Item 9) 11 - Front cover interlock switch (P/O PL 28.05 Item 9) 12 - Front cover open switch (P/O PL 28.05 Item 9) 13 822E25031 Inner upper cover 14 003K23140 Knob 15 971E14990 Logo badge |  |

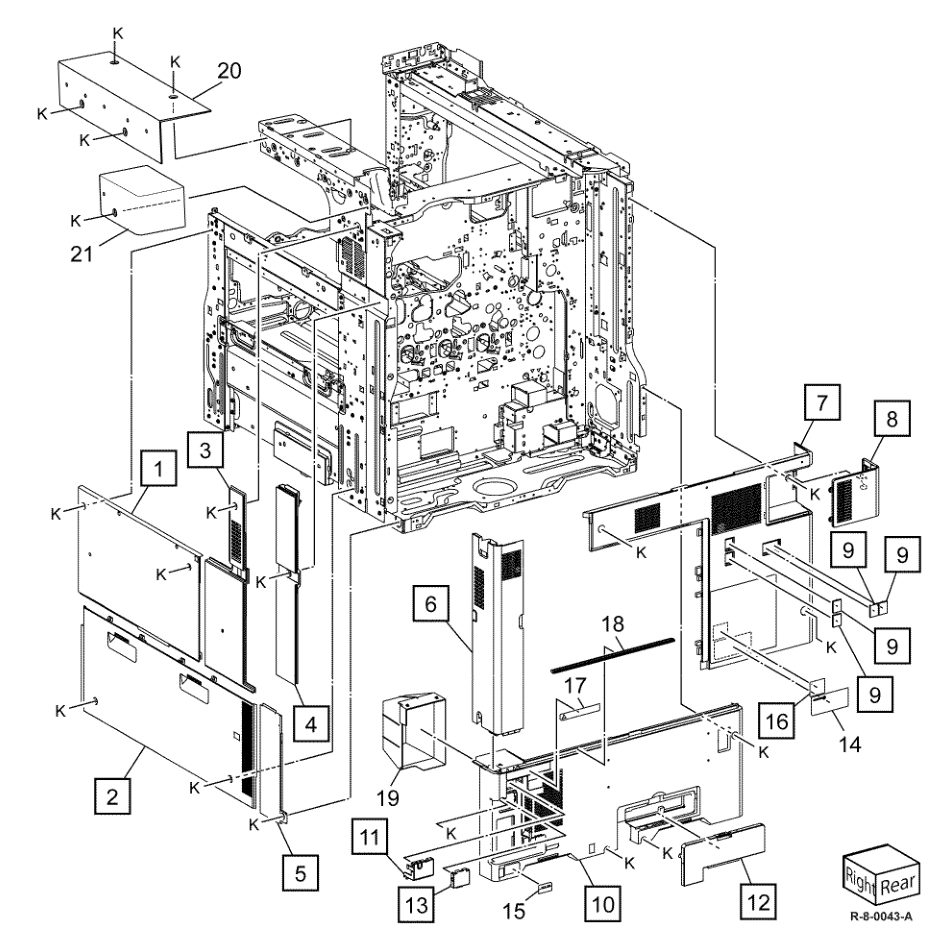

| PL 28.10 Covers (Rear) 1 822E25191 Upper right front cover 2 822E25133 Lower right front cover 3 822E33951 Upper right rear cover 1 4 - Upper right rear cover 2 (B8170) 5 - Upper rear cover (B8170) 6 822E25311 ESS rear cover 7 - Upper rear cover 8 822E25420 Left rear cover 9 - Cap cover (Not Spared) 10 822E25443 Lower rear cover 11 - EPSV cover (Not Spared) 12 822E25602 MCU cover 13 - Outlet cover (Not Spared) 14 - Label (Date) (Not Spared) 15 - Label (GFI) (Not Spared) 16 - Label (Warning) (Not Spared) 17 - Label (Earth) (Not Spared) 18 - Gasket (Not Spared) 19 - Rear suction duct (B8170) (Not Spared) 20 - Right cover (Blue) (B8145/B8155) 21 - Rear right cover (White) (B8145/ B8155) 1 822E25191 Upper right front cover 2 822E25133 Lower right front cover 3 822E33951 Upper right rear cover 1 4 - Upper right rear cover 2 (C8170) 5 - Upper rear cover (C8170) 6 822E25311 ESS rear cover 7 - Upper rear cover 8 822E25420 Left rear cover 9 - Cap cover (Not Spared) 10 822E25443 Lower right rear cover 11 - EPSV cover (Not Spared) 12 822E25602 MCU cover 13 - Outlet cover (Not Spared) 14 - Label (Date) (Not Spared) 15 - Label (GFI) (Not Spared) 16 - Label (Warning) (Not Spared) 17 - Label (Earth) (Not Spared) 18 - Gasket (Not Spared) 19 - Rear suction duct (C8170) (Not Spared) 20 - Right cover (Blue) (C8130/C8135/ C8145/C8155) 21 - Rear right cover (White) (C8130/ C8135/C8145/C8155) |  |

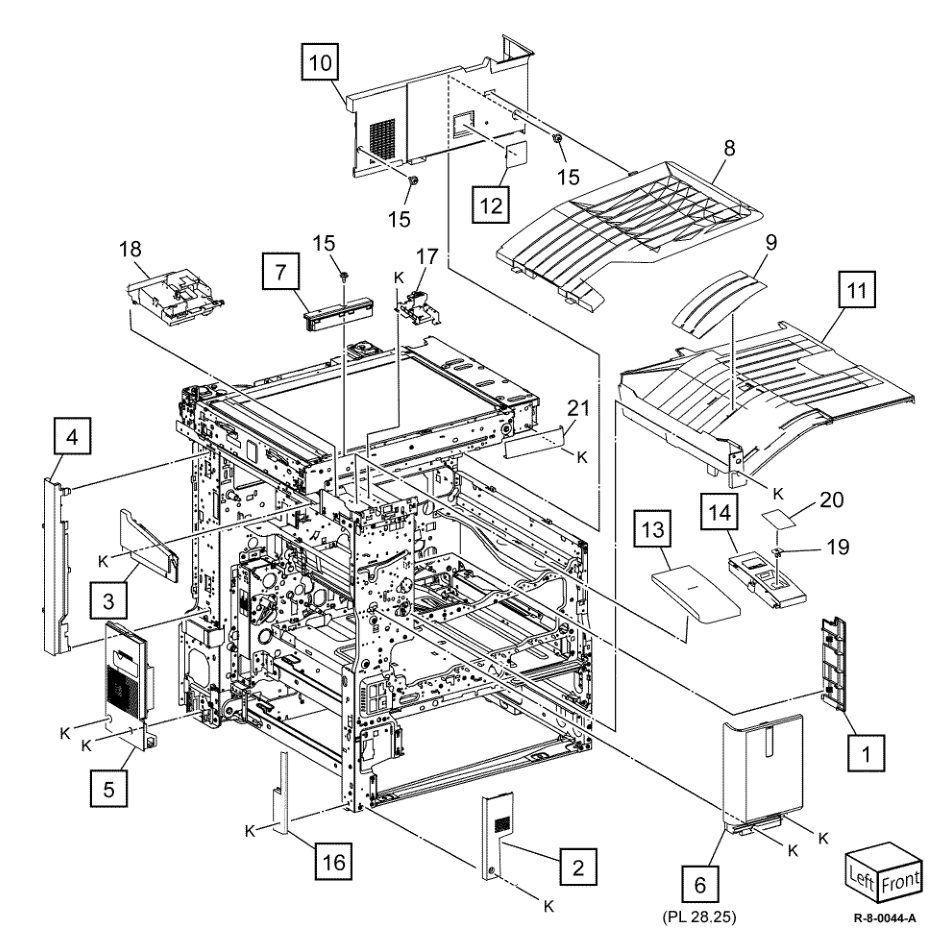

| PL 28.15 Covers (B8145/B8155) 1 - Front exit cover (Not Spared) 2 - Tray inner cover (Not Spared) 3 - Pillar cover 4 822E25072 Upper left cover 5 822E25112 Lower left cover 6 - Front Left Cover (with Human Mo- tion Sensor) 7 - IIT front cover 8 050E32924 Exit 2 tray 9 - Add tray 10 - Top rear cover (Not Spared) 11 - Top cover 12 - Blind cover 13 - Card reader cover 14 - SWEA cover 2 15 - Thumbscrew (Not Spared) 16 - Inner tray LH cover 17 - USB bracket 18 - Inner cover 19 - Icon USB cover 20 822E35423 USB cover 21 - IIT Lower front right cover 1 - Front exit cover (Not Spared) 2 - Tray inner cover (Not Spared) 3 - Pillar cover 4 822E25072 Upper left cover 5 822E25112 Lower left cover 6 - Front left cover (with Human Mo- tion Sensor) (REF: PL 28.25) 7 - IIT front cover 8 050E32924 Exit 2 tray 9 - Add tray 10 - Top rear cover (Not Spared) 11 - Top cover (C8130/C8135) — - Top cover (C8145/C8155) 12 - Blind cover 13 - Card reader cover 14 - SWEA cover 2 15 - Screw (Not Spared) 16 - Inner tray LH cover 17 - USB bracket assembly 18 - Inner cover 19 - Icon USB cover 20 822E35423 USB cover 21 - IIT Lower front right cover |  |

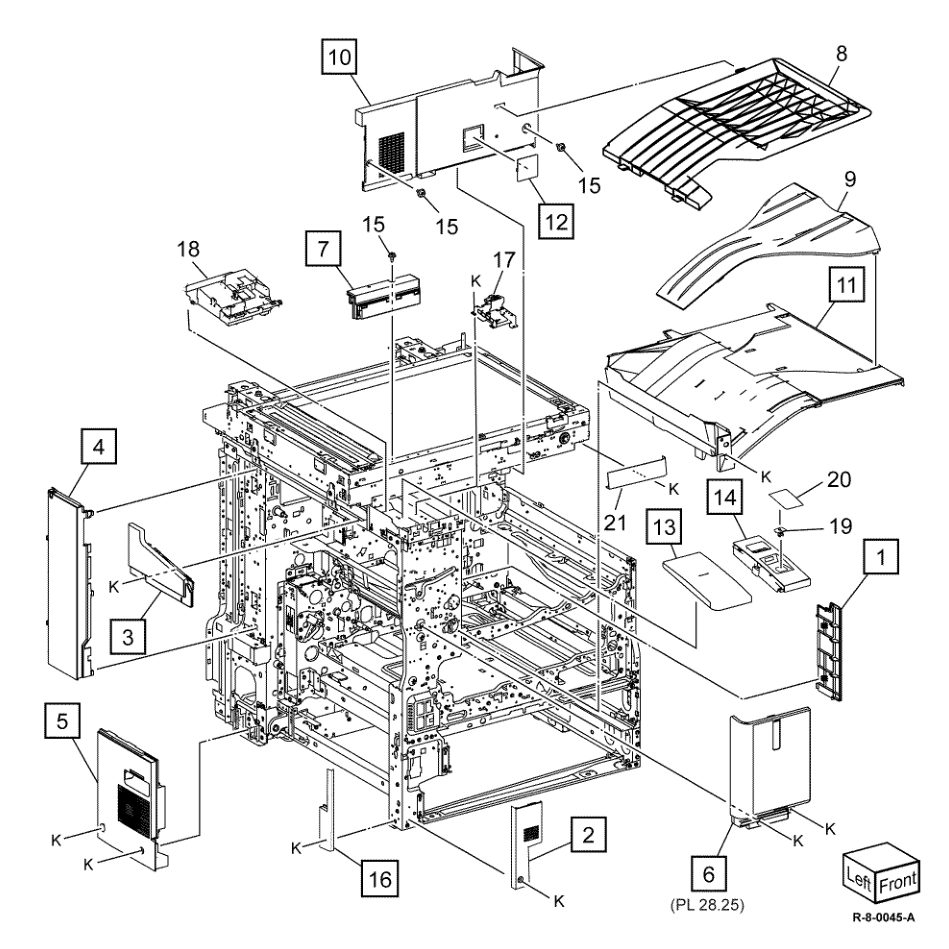

| PL 28.20 Covers (B8170) 1 - Front exit cover 2 - Tray inner front cover 3 - Top pillar cover 4 - L/H upper cover 5 - L/H lower cover 6 948K23770 Front left cover (with Human Mo- tion Sensor) (REF: PL 28.25) 7 - IIT front cover 8 - Exit 2 tray 9 - Add tray 10 - Top rear cover 11 - Top cover 12 - Blind cover 13 - IC card reader cover 14 - SWEA cover 2 15 - Thumbscrew (Not Spared) 16 - Tray inner LH cover 17 - USB bracket assembly 18 - Inner cover 19 - Icon USB cover 20 822E35423 USB cover 21 - IIT Lower front right cover 1 - Front exit cover 2 - Tray inner front cover 3 - Top pillar cover 4 - L/H upper cover 5 - L/H lower cover 6 948K23770 Front left cover (with Human Mo- tion Sensor) (REF: PL 28.25) 7 - IIT front cover 8 - Exit 2 tray 9 - Add tray 10 - Top rear cover 11 - Top cover 12 - Blind cover 13 - IC card reader cover 14 - SWEA cover 2 15 - Screw (Not Spared) 16 - Tray inner LH cover 17 - USB bracket assembly 18 - Inner cover 19 - Icon USB cover 20 822E35423 USB cover 21 - IIT Lower front right cover |  |

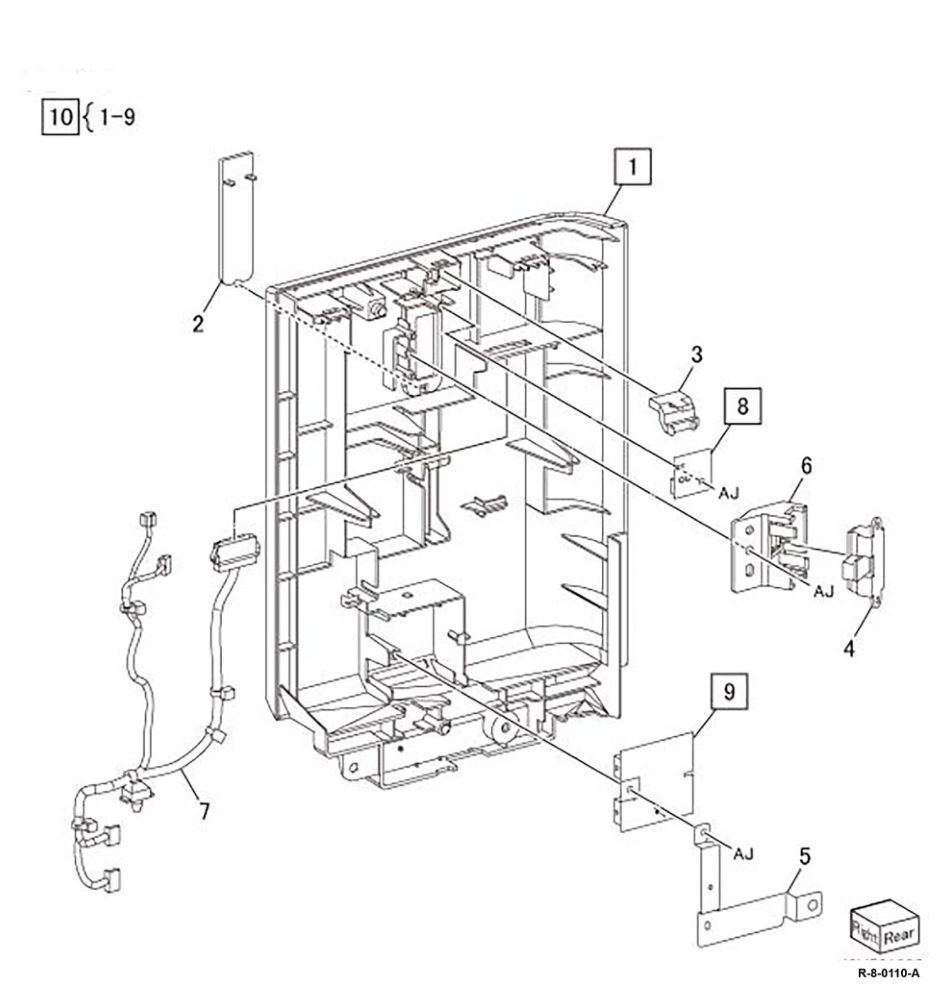

| PL 28.25 Front Left Cover Compartment 1 - Front left cover (P/O PL 28.25 Item 10) 2 - Lens (P/O PL 28.25 Item 10) 3 - LED lens (P/O PL 28.25 Item 10) 4 130E20270 Human motion sensor 5 - Ground plate (P/O PL 28.25 Item 10) 6 - Human motion sensor bracket (P/ O PL 28.25 Item 10) 7 - Wire harness (P/O PL 28.25 Item 10) 8 960K76290 Human motion LED 9 960K86660 Human motion sensor PWB 10 - Pillar cover assembly 1 - Front left cover (P/O PL 28.25 Item 10) 2 - Lens (P/O PL 28.25 Item 10) 3 - LED lens (P/O PL 28.25 Item 10) 4 130E20270 Human motion sensor 5 - Ground plate (P/O PL 28.25 Item 10) 6 - Human motion sensor bracket (P/ O PL 28.25 Item 10) 7 - Wire harness (P/O PL 28.25 Item 10) 8 960K76290 Human motion LED 9 960K86660 Human motion sensor PWB 10 - Pillar cover assembly |  |

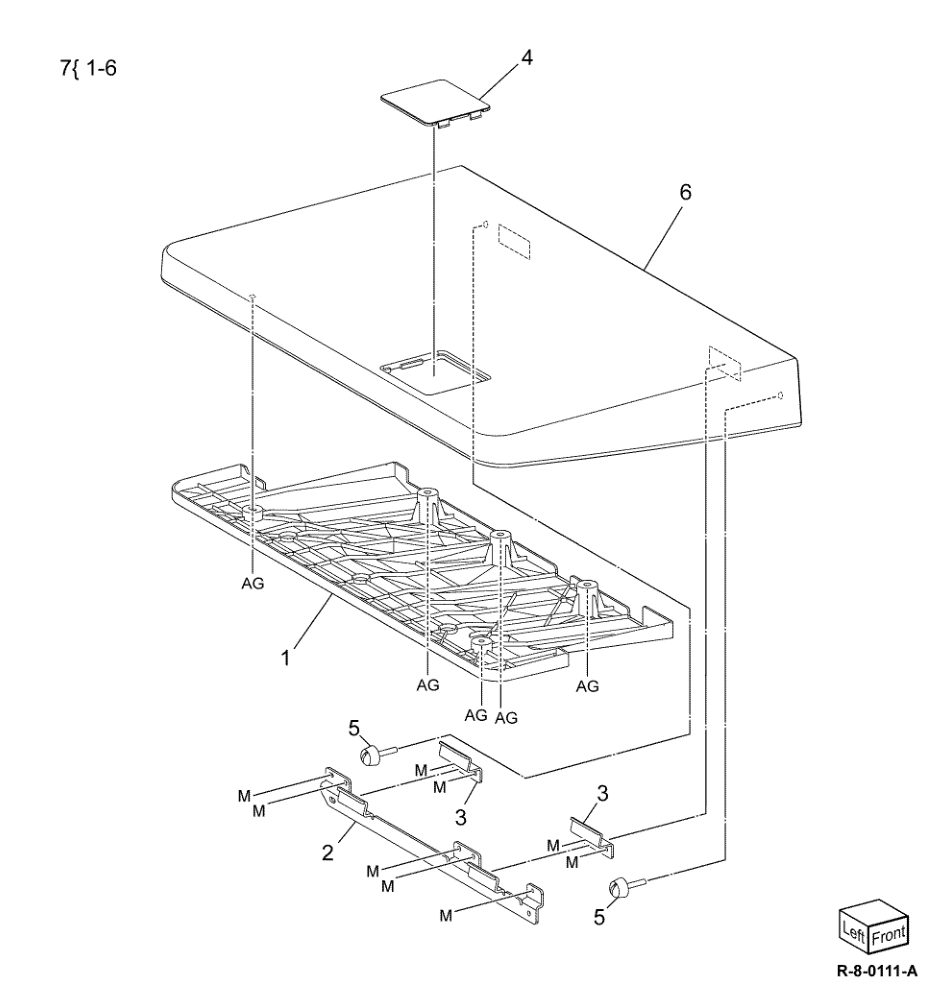

| PL 28.30 Workshelf 1 - Workshelf base cover (P/O PL 28.30 Item 7) 2 - Bracket (P/O PL 28.30 Item 7) 3 - Workshelf bracket (P/O PL 28.30 Item 7) 4 - Blind cover (P/O PL 28.30 Item 7) 5 - Thumbscrew (P/O PL 28.30 Item 7) 6 - Workshelf top cover (P/O PL 28.30 Item 7) 7 497K20750 Workshelf kit 1 - Workshelf base cover (P/O PL 28.30 Item 7) 2 - Bracket (P/O PL 28.30 Item 7) 3 - Workshelf bracket (P/O PL 28.30 Item 7) 4 - Blind cover (P/O PL 28.30 Item 7) 5 - Thumbscrew (P/O PL 28.30 Item 7) 6 - Workshelf top cover (P/O PL 28.30 Item 7) 7 497K20750 Workshelf kit |  |

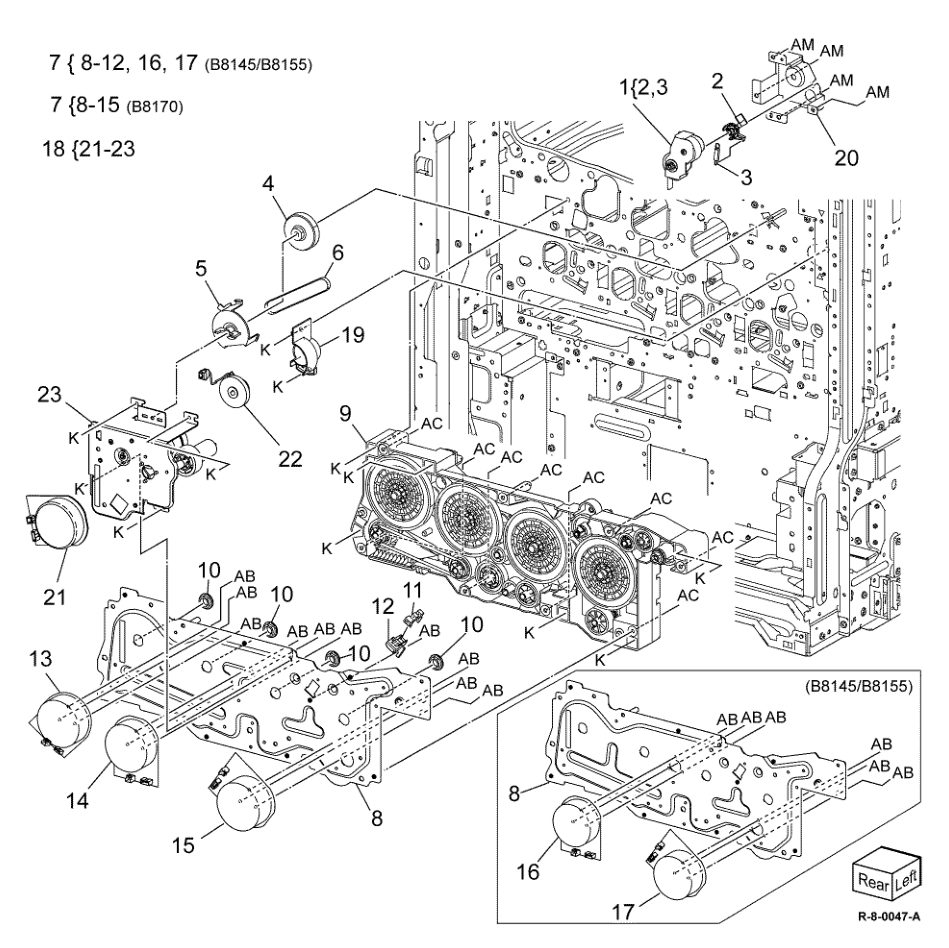

| PL 40.05 Main Drive Assembly 1 607K20470 Fuser input bracket assembly (B8145/B8155) 607K20470 Fuser Input Bracket Assembly Fully refurbished with 90-day warranty 607K20470 (Refurbished) — 607K20480 Fuser input bracket assembly (B8170) 607K20480 Fuser Input Bracket Assembly High Speed Models Fully refurbished with 90-day warranty 607K20480 (Refurbished) 2 - Spacer (Not Spared) 3 - Spring (Not Spared) 4 807E51730 Helical gear 5 005E38390 Flange 6 423W10354 Drive belt 423W10354 Drive Belt-Synchronous - Bare Back Fully refurbished with 90-day warranty 423W10354 (Refurbished) — 423W10355 Drive belt (alternative) 7 007K23920 Main drive assembly (B8145/ B8155) (MOT42-018) 007K23920 Main Drive - Low Speed Fully refurbished with 90-day warranty 007K23920 (Refurbished) $189.04 — 007K23940 Main drive assembly (B8170) — 007K21553 Main drive assembly (B8170- TTM) 007K21553 Main Drive Assembly High Speed Fully refurbished with 90-day warranty 007K21553 (Refurbished) 8 - Drum drive bracket assembly (P/O PL 40.05 Item 7) 9 - Drum drive housing assembly (P/ O PL 40.05 Item 7) 10 - Bearing (P/O PL 40.05 Item 7) 11 930W00121 BTR contact/retract sensor (Q94- 200) 12 - Sensor bracket (P/O PL 40.05 Item 7) 13 - Drum (K) motor (B8170) (MOT42- 007) (P/O PL 40.05 Item 7) 14 - Developer (K) motor (B8170) (P/O PL 40.05 Item 7) 15 - Drum/Developer (K)/ IBT Motor (B8170) (P/O PL 40.05 Item 7) 16 - Drum (K) motor (B8145/B8155) (P/O PL 40.05 Item 7) 17 - Drum/developer (K)/ IBT motor (B8145/B8155) (MOT42-001) (P/ O PL 40.05 Item 7) 18 007K23960 Fuser drive assembly 19 - Gear lever (Not Spared) 20 - Bracket (Not Spared) 21 - Fuser unit drive motor (P/O PL 40.05 Item 16) 22 - BTR contact/retract clutch assem- bly (P/O PL 40.05 Item 16) 23 - Fuser drive bracket asembly (P/O PL 40.05 Item 18) 1 607K20460 Fuser input bracket assembly (C8130/C8135) 607K20460 Fuser Input Bracket Assembly Fully refurbished with 90-day warranty 607K20460 (Refurbished) — 607K20470 Fuser input bracket assembly (C8145/C8155) 607K20470 Fuser Input Bracket Assembly Fully refurbished with 90-day warranty 607K20470 (Refurbished) — 607K20480 Fuser input bracket assembly (C8170) 607K20480 Fuser Input Bracket Assembly High Speed Models Fully refurbished with 90-day warranty 607K20480 (Refurbished) 2 - Spacer (P/O PL 40.05 Item 1) 3 - Spring (P/O PL 40.05 Item 1) 4 807E51730 Helical gear 5 005E38390 Flange 6 423W10354 Drive belt 423W10354 Drive Belt-Synchronous - Bare Back Fully refurbished with 90-day warranty 423W10354 (Refurbished) — 423W10355 Drive belt (alternative) 7 007K21545 Main drive assembly (C8130/ C8135) 007K21545 Main Drive Assembly - Low Speed Fully refurbished with 90-day warranty 007K21545 (Refurbished) — 007K22595 Main drive assembly (C8145/ C8155) (MOT42-018) — 007K21554 Main drive assembly (C8170) 007K21554 Main Drive Assembly High Speed Fully refurbished with 90-day warranty 007K21554 (Refurbished) 8 - Drum drive bracket assembly (P/O PL 40.05 Item 7) 9 - Drum drive housing assembly (P/ O PL 40.05 Item 7) 10 - Bearing (P/O PL 40.05 Item 7) 11 930W00121 BTR contact/retract sensor (Q94- 200) 12 - Sensor bracket (P/O PL 40.05 Item 7) 13 - Drum (C, M, Y) motor (C8170) (MOT42-007) (P/O PL 40.05 Item 7) 14 - Developer motor (C8170) (P/O PL 40.05 Item 7) 15 - Drum/developer (K)/ IBT motor (C8170) (P/O PL 40.05 Item 7) 16 - Drum (C, M, Y) motor (C8130/ C8135/C8145/C8155) (P/O PL 40.05 Item 7) 17 - Drum/developer (K)/ IBT motor (C8130/C8135/C8145/C8155) (MOT42-001) (P/O PL 40.05 Item 7) 18 007K21444 Fuser drive assembly 19 - Gear cover (Not Spared) 20 - Bracket (Not Spared) 21 - Fuser unit drive motor (P/O PL 40.05 Item 16) 22 - BTR contact/retract clutch assem- bly (P/O PL 40.05 Item 16) 23 - Fuser drive bracket asembly (P/O PL 40.05 Item 18) |  |

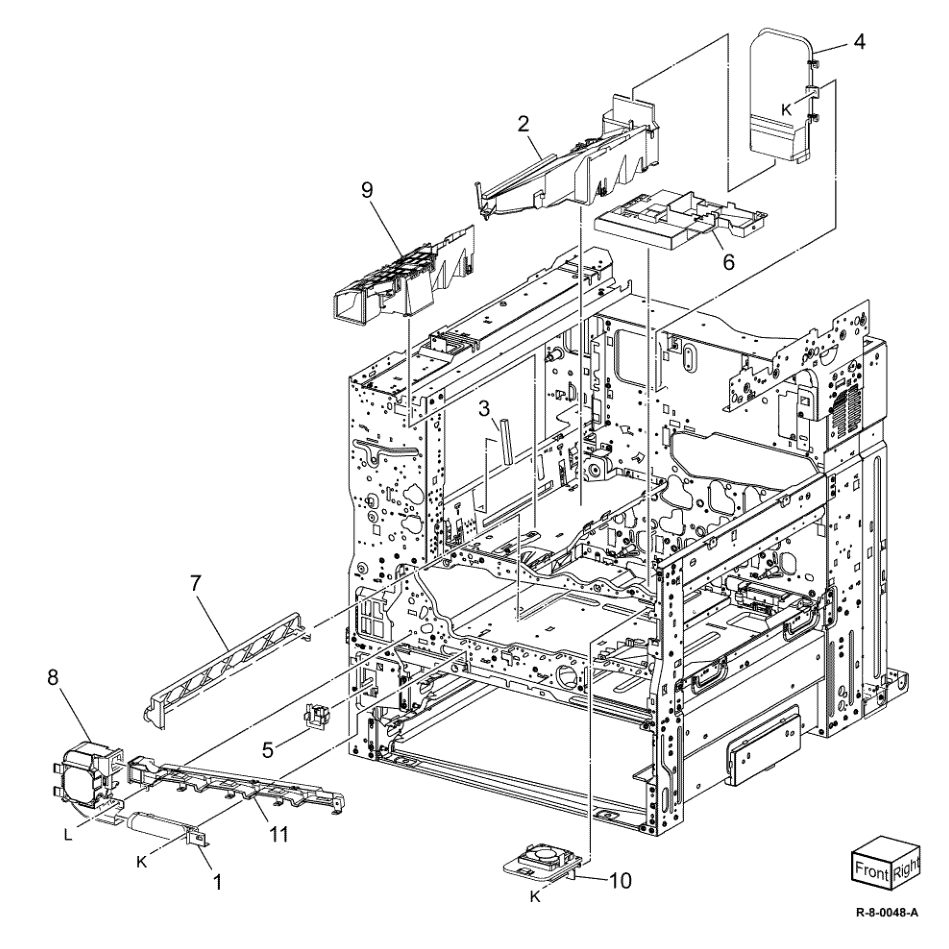

| PL 40.10 NOHAD (front) 1 054E59370 Duct 2 - Fuser duct assembly (Not Spared) 3 - Fuser seal (Not Spared) 4 - Fuser duct (Not Spared) 5 930K00500 Temp/Humidity sensor (external) 6 - Rear duct (Not Spared) 7 - Housing toner cartridge side 8 054K55030 Front/left marking fan assembly (MOT42-067) 054K55030 Front/Left Marking Fan Assembly (Mot42-067) Fully refurbished with 90-day warranty 054K55030 (Refurbished) 9 054K54981 Toner cartridge cooling fan assembly 054K54981 Toner Cartridge Cooling Fan Assembly Fully refurbished with 90-day warranty 054K54981 (Refurbished) 10 054K55060 Marking fan duct assembly (MOT42-025) 054K55060 Marking Fan Duct Assembly (Mot42-025) Fully refurbished with 90-day warranty 054K55060 (Refurbished) 11 - Front duct (Not Spared) 1 054E59370 Duct 2 - Fuser duct assembly (Not Spared) 3 - Fuser seal (Not Spared) 4 - Fuser duct (Not Spared) 5 930K00500 Temp/Humidity sensor (external) 6 - Rear duct (Not Spared) 7 054E58001 P1 duct 8 054K55040 Duct assembly (C8145/C8155/ C8170) 9 - Front/right marking fan (C8145/ C8155/C8170) (P/O PL 40.10 Item 8) 10 - Screw (P/O PL 40.10 Item 8) 11 - Connector (P/O PL 40.10 Item 8) 12 - Not used 13 054K55030 Front/left marking fan assembly (C8145/C8155/C8170) (MOT42- 067) 054K55030 Front/Left Marking Fan Assembly (Mot42-067) Fully refurbished with 90-day warranty 054K55030 (Refurbished) 14 054K54981 Toner cartridge cooling fan assem- bly (C8145/C8155/C8170) 054K54981 Toner Cartridge Cooling Fan Assembly Fully refurbished with 90-day warranty 054K54981 (Refurbished) 15 054K55060 Marking fan duct assembly (C8145/C8155/C8170) (MOT42- 025) 054K55060 Marking Fan Duct Assembly (Mot42-025) Fully refurbished with 90-day warranty 054K55060 (Refurbished) 16 - Front duct (C8145/C8155/C8170) (Not Spared) |  |

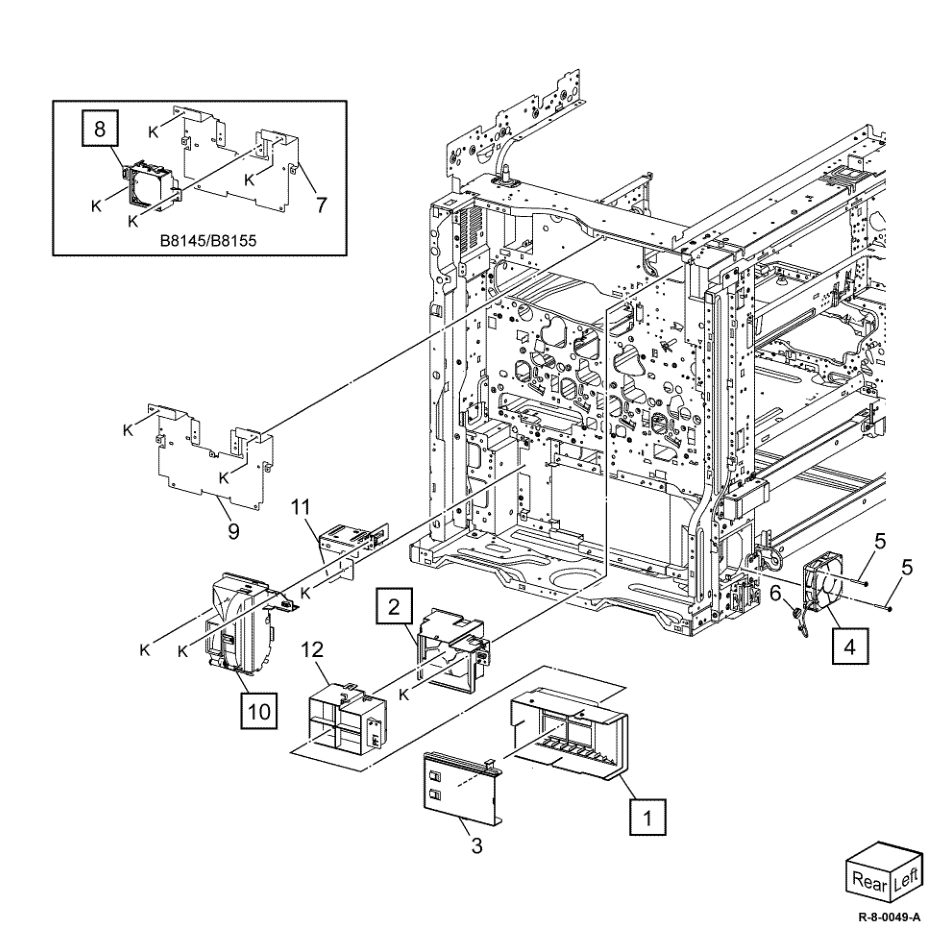

| PL 40.15 NOHAD (rear) 1 054K55010 Rear fuser duct assembly 2 054K55050 Fuser unit exhaust fan assembly (MOT42-058) 054K55050 Fuser Unit Exhaust Fan Assembly (Mot42-058) Fully refurbished with 90-day warranty 054K55050 (Refurbished) 3 815K16761 Side plate 4 127K74210 LVPS fan assembly (MOT42-052) 5 - Screw (P/O PL 40.15 Item 4) 6 - Connector (P/O PL 40.15 Item 4) 7 - Bracket (B8145/B8155) (P/O PL 40.15 Item 8) 8 054K55210 IHPS intake duct assembly (B8145/B8155) (MOT42-069) 054K55210 IHPS Intake Duct Assembly (Mot42-069) Fully refurbished with 90-day warranty 054K55210 (Refurbished) 9 - Bracket (B8170) 10 054K60390 Suction fan duct assembly (B8170) 11 - Suction base plate assembly (B8170) 12 054E58220 Fusing unit exhaust duct (B8170) 1 054K55010 Rear fuser duct assembly 2 054K55050 Fuser unit exhaust fan assembly (MOT42-058) 054K55050 Fuser Unit Exhaust Fan Assembly (Mot42-058) Fully refurbished with 90-day warranty 054K55050 (Refurbished) 3 815K16761 Side plate 4 127K74210 LVPS fan assembly (MOT42-052) 5 - Screw (P/O PL 40.15 Item 4) 6 - Connector (P/O PL 40.15 Item 4) 7 - Bracket (C8130/C8135/C8145/ C8155) (P/O PL 40.15 Item 8) 8 054K55210 IHPS intake duct assembly (C8130/C8135/C8145/C8155) (MOT42-069) 054K55210 IHPS Intake Duct Assembly (Mot42-069) Fully refurbished with 90-day warranty 054K55210 (Refurbished) 9 - Bracket (C8170) 10 008R08104 UFP filter assembly (C8170) 008R08104 Fan Filter Estimated Yield: 500K Fully refurbished with 90-day warranty 008R08104 (Refurbished) 11 054K54990 Toner cartridge exhaust fan as- sembly (C8145/C8155/C8170) 054K54990 Toner Cartridge Exhaust Fan Assembly Fully refurbished with 90-day warranty 054K54990 (Refurbished) 12 054K60390 Suction fan duct assembly (C8170) 13 - Suction base plate assembly (C8170) 14 054E58220 Fusing unit exhaust duct (C8170) |  |

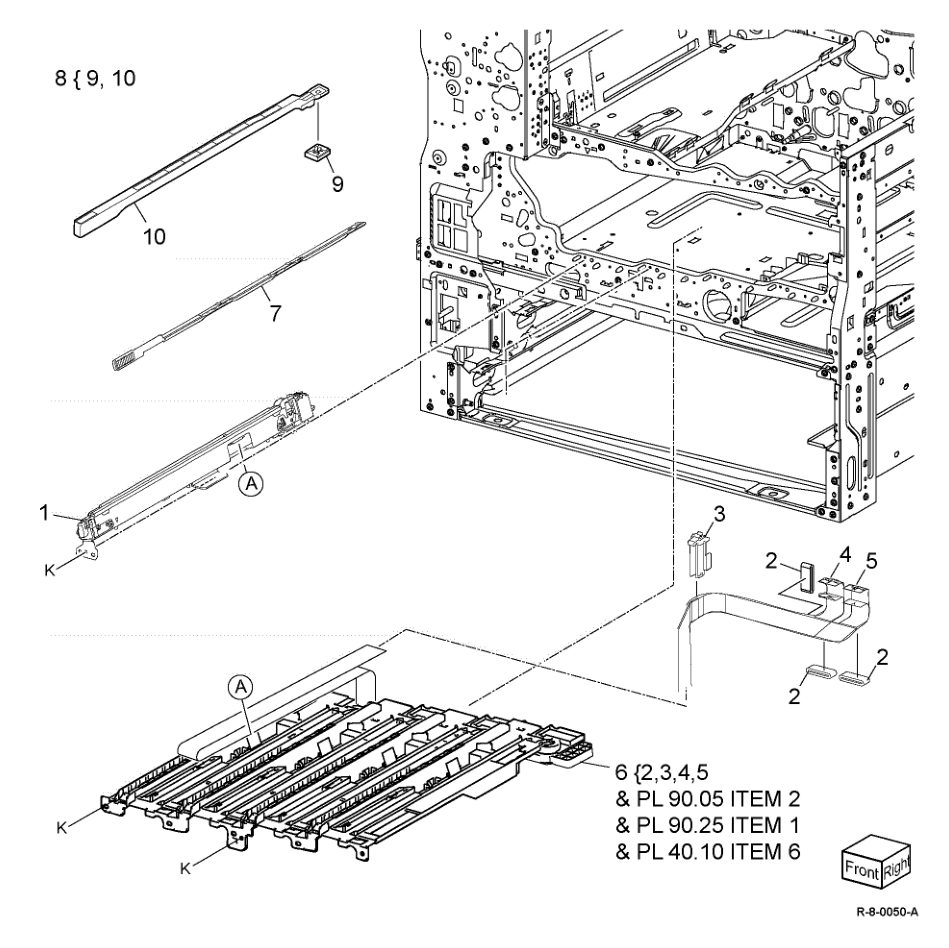

| PL 60.05 LPH Module 1 930K00722 LPH assembly (B8145/B8155) — - LPH assembly (B8170) 2 121E24600 Core ferrite 3 - FFC guide (P/O PL 60.05 Item 6) 4 - FFC cable (P/O PL 60.05 Item 6) 5 - FFC cable (P/O PL 60.05 Item 6) 6 607K14370 FFC cable assembly kit (B8145/ B8155) — 607K14360 FFC cable assembly kit (B8170) 7 042K94930 LPH cleaner 8 042K95890 Cleaner assembly kit 9 - Cleaner base assembly (P/O PL 60.05 Item 8) 10 - Cleaner rod (P/O PL 60.05 Item 8) 1 930K00722 LPH assembly (Y, M, C, K) (C8130/ C8135/C8145/C8155) — 930K02795 LPH assembly (Y, M, C, K) (C8170) 2 - LPH assembly (C) 3 - LPH assembly (M) 4 - LPH assembly (Y) 5 121E24600 Core ferrite 6 - FFC guide (P/O PL 60.05 Item 9) 7 - FFC cable (P/O PL 60.05 Item 9) 8 - FFC cable (P/O PL 60.05 Item 9) 9 607K02720 FFC cable assembly kit (C8130/ C8135/C8145/C8155) — 607K02730 FFC cable assembly kit (C8170) 10 042K94930 LPH cleaner 11 042K95890 Cleaner assembly kit 12 - Cleaner base assembly (P/O PL 60.05 Item 11) 13 - Cleaner rod (P/O PL 60.05 Item 11) |  |

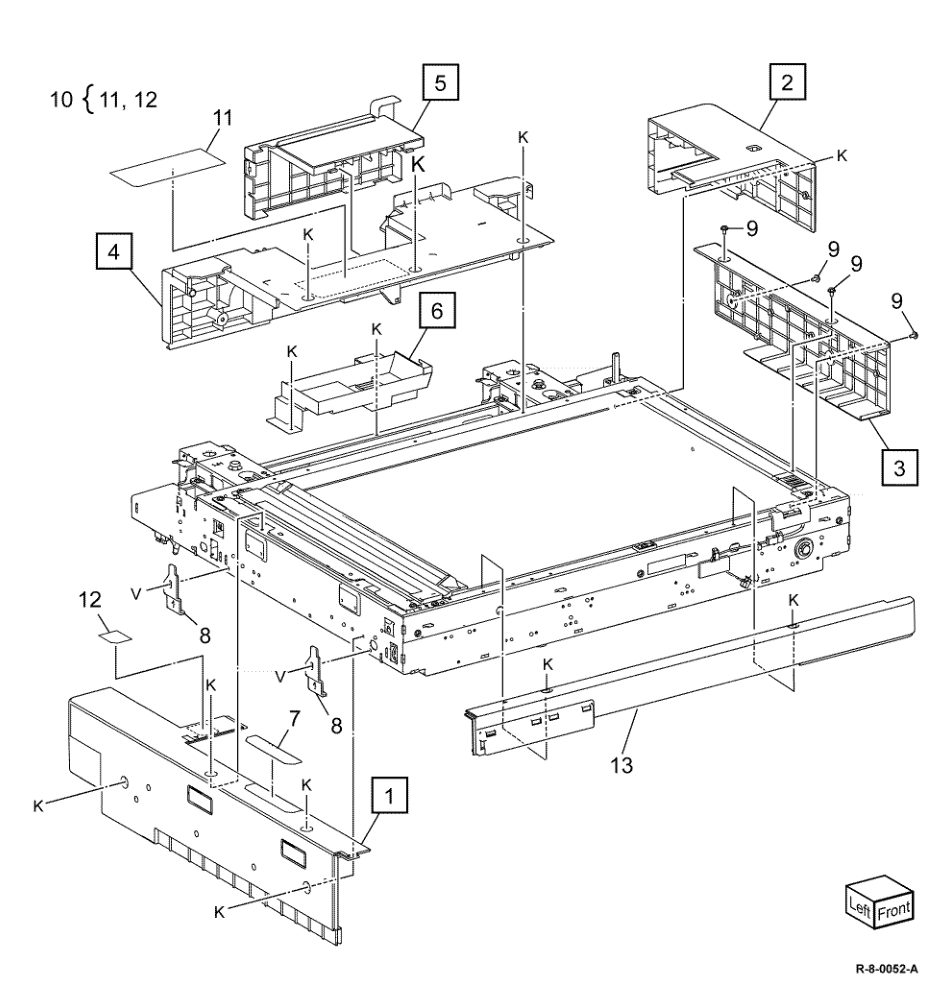

| PL 60.10 Platen/IIT Cover (B8170) 1 - IIT Left cover 2 - IIT Right cover (W) 3 - IIT Right cover (B) 4 - IIT Rear cover 5 822E26471 DADF IF cover 6 - IIT Trans PWB cover 7 - Sensor shield 8 - Left stopper 9 - Screw (Black) 10 - Label kit 11 - Label (Caution) (P/O PL 60.10 Item 10) 12 - Label (Clean) (P/O PL 60.10 Item 10) 13 - IIT Front cover 1 - IIT Left cover 2 - IIT Right cover (W) 3 - IIT Right cover (B) 4 - IIT Rear cover 5 822E26471 DADF IF cover 6 - IIT Trans PWB cover 7 - Sensor shield 8 - Left stopper 9 - Screw (Black) 10 - Label kit 11 - Label (Caution) (P/O PL 60.10 Item 10) 12 - Label (Clean) (P/O PL 60.10 Item 10) 13 - IIT Front cover |  |

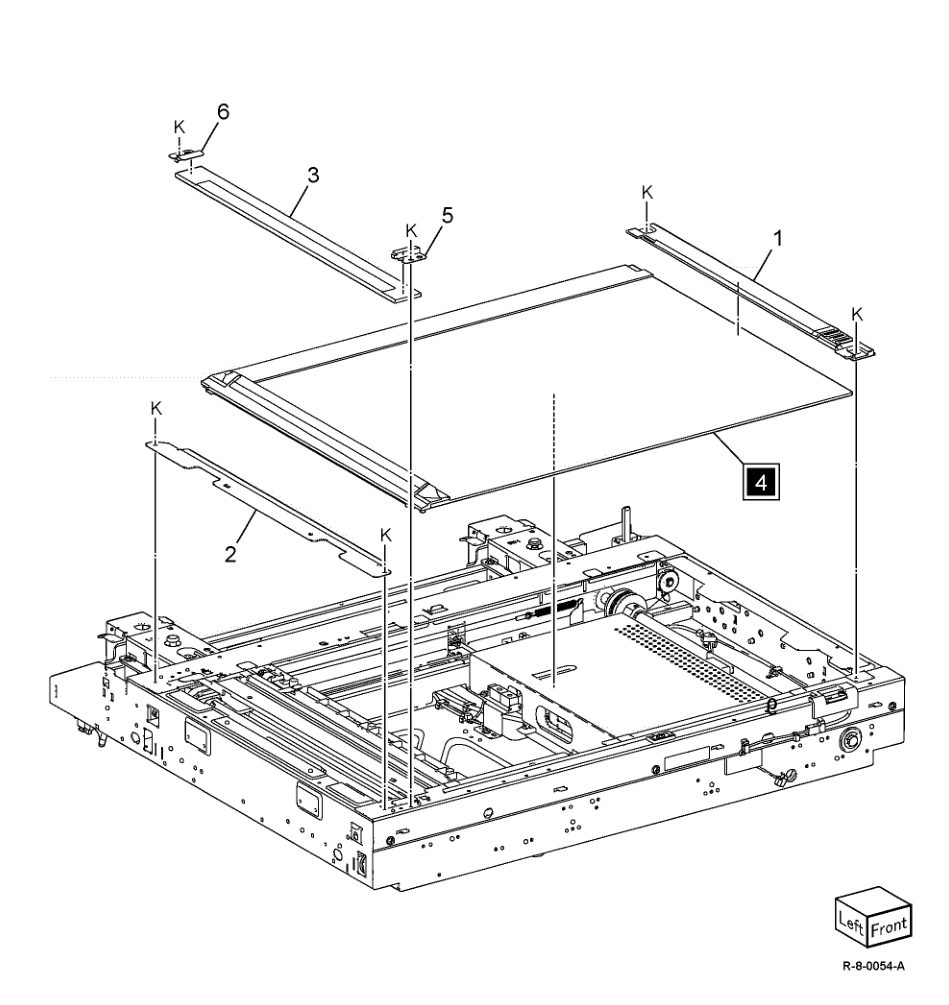

| PL 60.15 Platen Glass (B8170) 1 815K10441 Right Plate 2 - CVT Glass Plate 3 090K93660 CVT Platen Glass 4 090K93570 Platen Glass 5 - Front Glass Support 6 - Rear Glass Support 1 815K10441 Right Plate 2 - CVT Glass Plate 3 090K93660 CVT Platen Glass 4 090K93570 Platen Glass 5 - Front Glass Support 6 - Rear Glass Support |  |

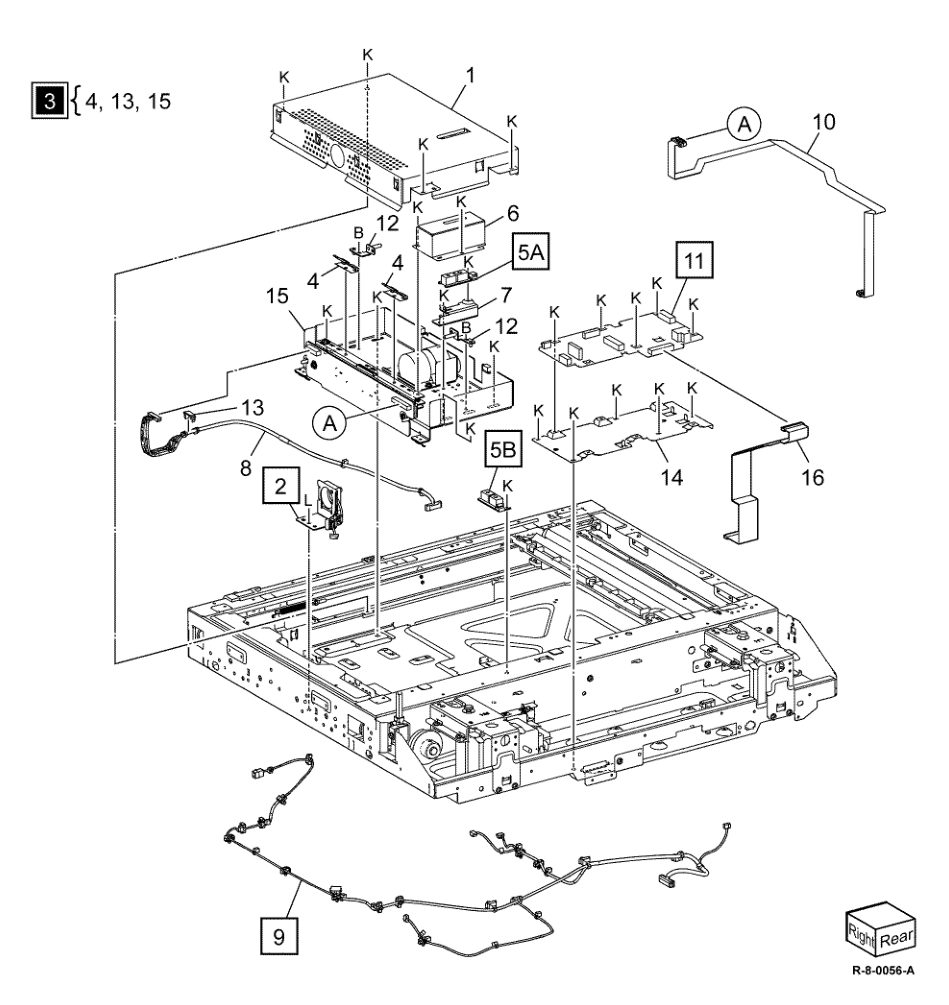

| PL 60.20 CCD Lens (B8170) 1 - CCD Lens cover assembly 2 - CCD Fan assembly 3 607K02350 CCD Lens kit 4 - Conductor (P/O PL 60.20 Item 3) 5 130K64150 APS Sensor 1 (A)/ APS Sensor 2 (B) 6 - APS Sensor cover 7 - APS Sensor bracket 8 952K35020 CCD Power harness 9 952K45130 Signal harness 10 952K31270 CCD Cont video ribbon cable 952K31270 CCD Cont Video Ribbon Cable Fully refurbished with 90-day warranty 952K31270 (Refurbished) 11 960K98030 IIT Trans PWB 12 - Pin assembly (P/O PL 60.20 Item 3) 13 - Clamp 14 - PWB bracket 15 - Lens assembly (P/O PL 60.20 Item 3) 16 117K49220 IIT Cont I/O ribbon cable 117K49220 IIT Cont I/O Ribbon Cable CCD Lens Fully refurbished with 90-day warranty 117K49220 (Refurbished) 1 - CCD Lens cover assembly 2 - CCD Fan assembly 3 607K02350 CCD Lens kit 4 - Conductor (P/O PL 60.20 Item 3) 5 130K64150 APS Sensor 1 (A)/ APS Sensor 2 (B) 6 - APS Sensor cover 7 - APS Sensor bracket 8 952K35020 CCD Power harness 9 952K45130 Signal harness 10 952K31270 CCD Cont video ribbon cable 952K31270 CCD Cont Video Ribbon Cable Fully refurbished with 90-day warranty 952K31270 (Refurbished) 11 960K98030 IIT Trans PWB 12 - Pin assembly (P/O PL 60.20 Item 3) 13 - Clamp 14 - PWB bracket 15 - Lens assembly (P/O PL 60.20 Item 3) 16 117K49220 IIT Cont I/O ribbon cable 117K49220 IIT Cont I/O Ribbon Cable CCD Lens Fully refurbished with 90-day warranty 117K49220 (Refurbished) |  |

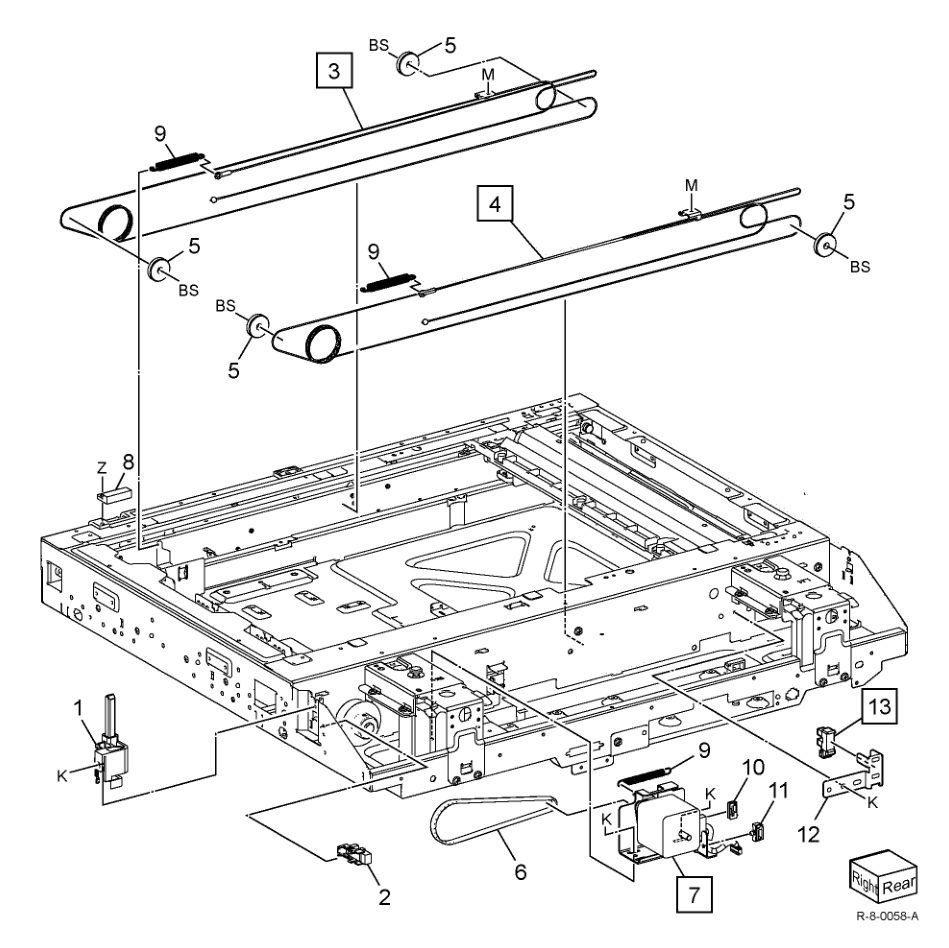

| PL 60.25 Carriage Cable/Motor (B8170) 1 - Actuator assembly 2 130E87280 Platen Angle Sensor 3 - Front Carriage Cable 4 - Rear Carriage Cable 5 - Idler Pulley 6 023E26740 Drive Belt 7 127K77850 Carriage Motor 8 - Platen Interlock Switch 9 - Tension Spring 10 - Clamp 11 - Clamp 12 - IIT Regi. Sensor Bracket 13 930W00112 IIT Regi. Sensor 930w00112 Sensor-Photo In (No Paper And Level Sensor) Fully refurbished with 90-day warranty 930W00112 (Refurbished) 1 - Actuator assembly 2 130E87280 Platen Angle Sensor 3 - Front Carriage Cable 4 - Rear Carriage Cable 5 - Idler Pulley 6 023E26740 Drive Belt 7 127K77850 Carriage Motor 8 - Platen Interlock Switch 9 - Tension Spring 10 - Clamp 11 - Clamp 12 - IIT Regi. Sensor Bracket 13 930W00112 IIT Regi Sensor 930w00112 Sensor-Photo In (No Paper And Level Sensor) Fully refurbished with 90-day warranty 930W00112 (Refurbished) |  |

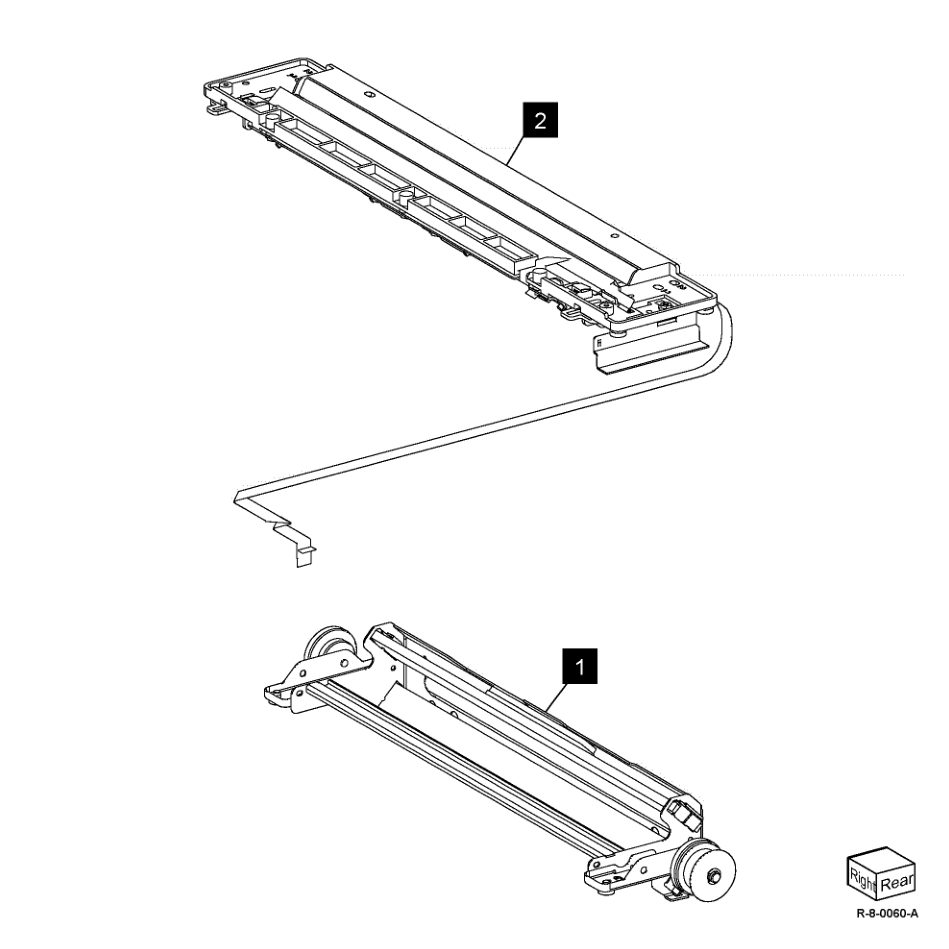

| PL 60.30 Full/Half Carriage (B8170) 1 041K95850 Half Rate Carriage Assembly 041K95850 Half Rate Carriage Assembly Fully refurbished with 90-day warranty 041K95850 (Refurbished) 2 041K96632 Full Rate Carriage Assembly 041K96632 Full Rate Carriage Assembly Fully refurbished with 90-day warranty 041K96632 (Refurbished) 1 041K95850 Half Rate Carriage Assembly 041K95850 Half Rate Carriage Assembly Fully refurbished with 90-day warranty 041K95850 (Refurbished) 2 041K96632 Full Rate Carriage Assembly 041K96632 Full Rate Carriage Assembly Fully refurbished with 90-day warranty 041K96632 (Refurbished) |  |

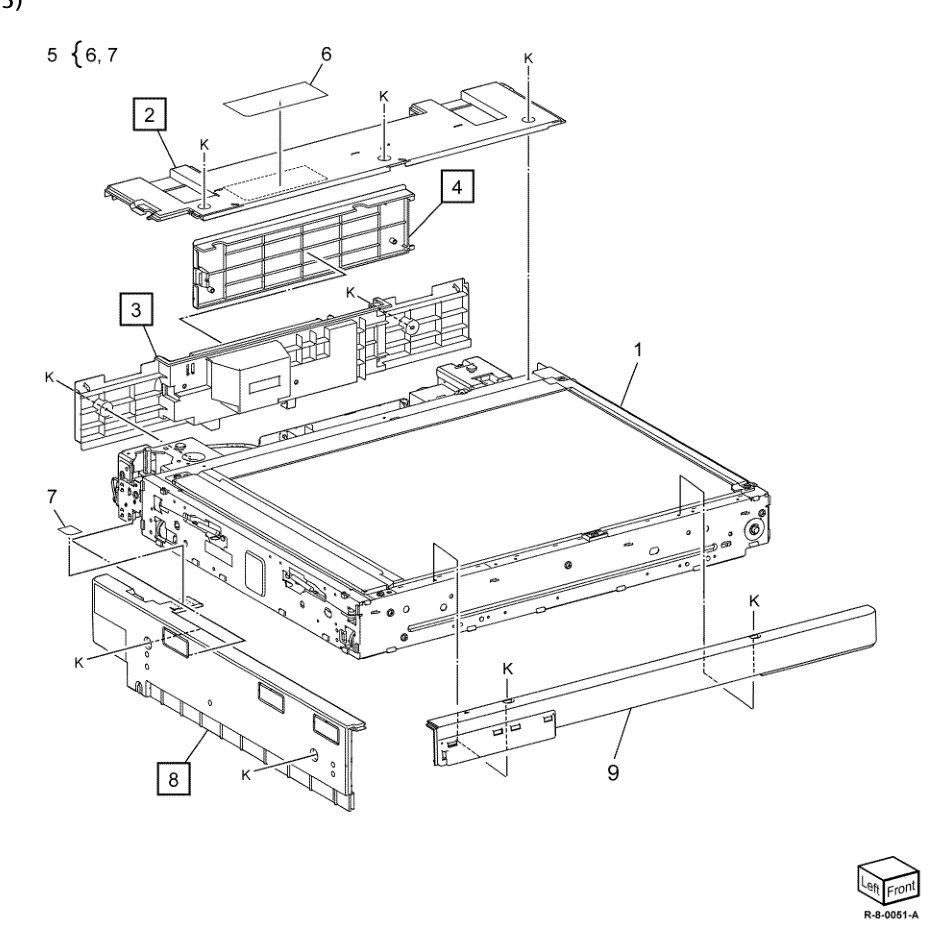

| PL 60.35 Platen/IIT Cover (B8145/B8155) 1 - IITassembly 2 - IIT Top cover 3 - IIT Rear cover 4 822E26611 DADF IF cover 5 - Label kit 6 - Label (Caution) (P/O PL 60.35 Item 5) 7 - Label (Clean) (P/O PL 60.35 Item 5) 8 - IIT Left cover 9 - IIT Front cover 1 - IITassembly 2 - IIT Top cover 3 - IIT Rear cover 4 822E26611 DADF IF cover 5 - Label kit 6 - Label (Caution) (P/O PL 60.35 Item 5) 7 - Label (Clean) (P/O PL 60.35 Item 5) 8 - IIT Left cover 9 - IIT Front cover |  |

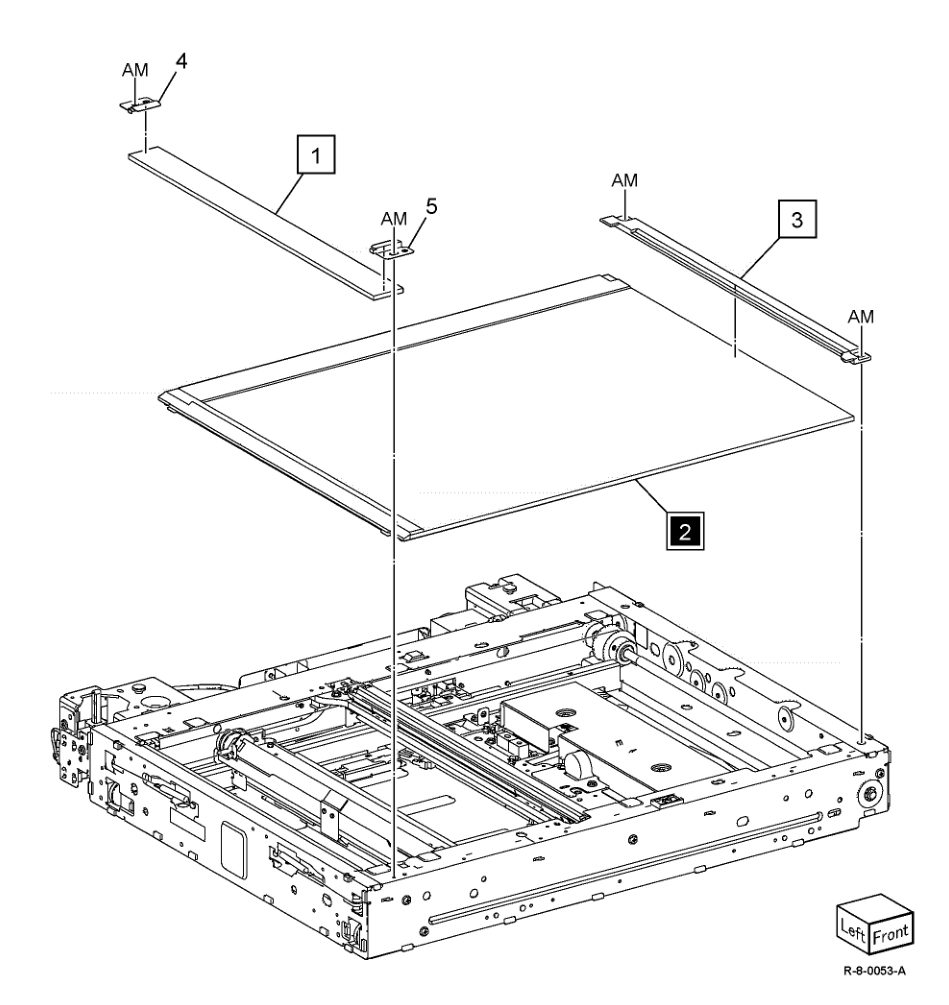

| PL 60.40 Platen Glass (B8145/B8155) 1 090K93650 CVT platen glass 2 090K93580 Platen glass 090K93580 Document glass Fully refurbished with 90-day warranty 090K93580 3-4 Day Lead (Refurbished) 3 815E58942 Right plate 4 - Rear glass support 5 - Front glass support 1 090K93650 CVT platen glass 2 090K93580 Platen glass 090K93580 Document glass Fully refurbished with 90-day warranty 090K93580 3-4 Day Lead (Refurbished) 3 815E58942 Right plate 4 - Rear glass support 5 - Front glass support |  |

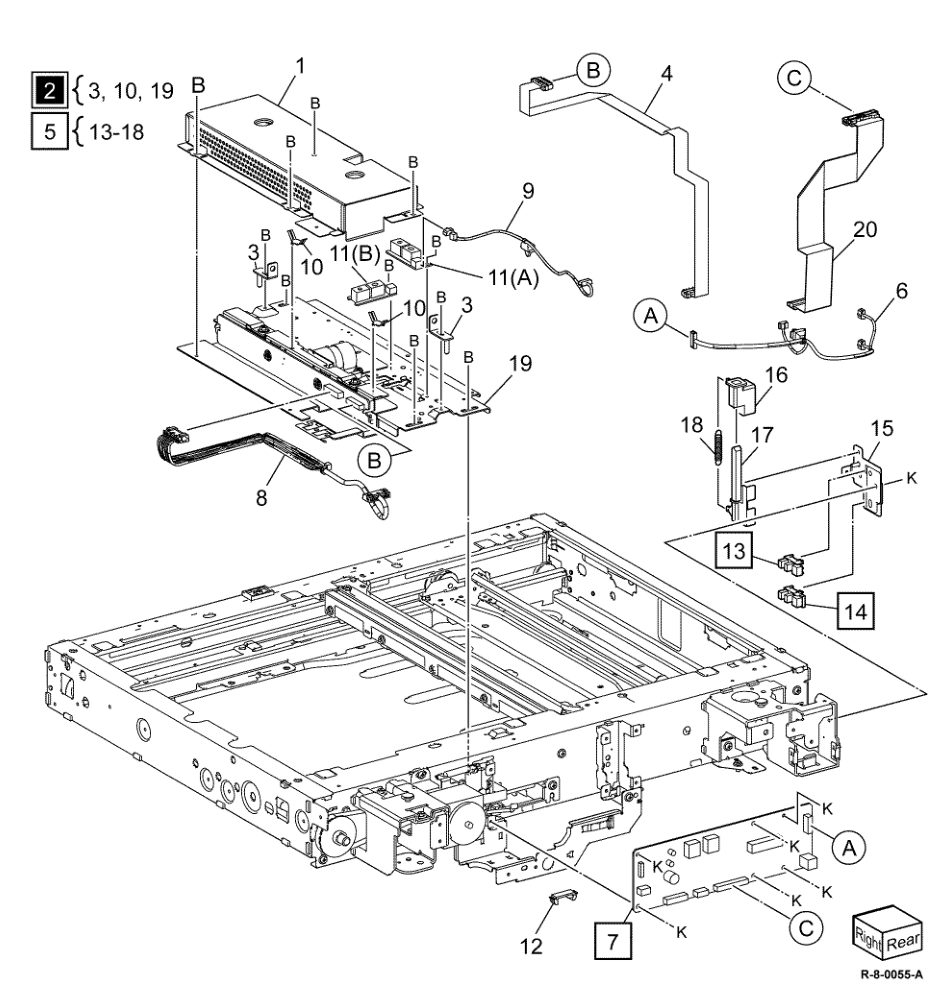

| PL 60.45 CCD Lens (B8145/B8155) 1 - CCD Lens cover 2 607K13310 CCD Lens kit 3 - Pin assembly (P/O PL 60.45 Item 2) 4 952K31240 CCD Cont video ribbon cable 952K31240 CCD Cont Video Ribbon Cable Fully refurbished with 90-day warranty 952K31240 (Refurbished) 5 120K93101 Actuator assembly 6 952K31662 Platen angle sensor/Platen sensor harness 952K31662 Platen Angle Sensor Harness Fully refurbished with 90-day warranty 952K31662 (Refurbished) 7 960K97880 IIT Trans PWB 8 952K31301 CCD Power harness 9 952K36950 APS Sensor harness 10 - Conductor (P/O PL 60.45 Item 2) 11 130K64150 APS Sensor 1 (A)/ APS Sensor 2 (B) 12 - Clamp 13 - Platen angle sensor (P/O PL 60.45 Item 5) 14 - Platen close sensor (P/O PL 60.45 Item 5) 15 - Angle sensor bracket (P/O PL 60.45 Item 5) 16 - Actuator support (P/O PL 60.45 Item 5) 17 - Actuator (P/O PL 60.45 Item 5) 18 - Extension spring (P/O PL 60.45 Item 5) 19 - Lens assembly (P/O PL 60.45 Item 2) 20 117K48921 IIT Cont I/O Ribbon Cable 117K48921 IIT Cont I/O Ribbon Cable CCD Lens Fully refurbished with 90-day warranty 117K48921 (Refurbished) 1 - CCD Lens cover 2 607K13310 CCD Lens kit 3 - Pin assembly (P/O PL 60.45 Item 2) 4 952K31240 CCD Cont video ribbon cable 952K31240 CCD Cont Video Ribbon Cable Fully refurbished with 90-day warranty 952K31240 (Refurbished) 5 120K93101 Actuator assembly 6 952K31662 Platen angle sensor/Platen sensor harness 952K31662 Platen Angle Sensor Harness Fully refurbished with 90-day warranty 952K31662 (Refurbished) 7 960K97880 IIT Trans PWB 8 952K31301 CCD Power harness 9 952K36950 APS Sensor harness 10 - Conductor (P/O PL 60.45 Item 2) 11 130K64150 APS Sensor 1 (A)/ APS Sensor 2 (B) 12 - Clamp 13 - Platen angle sensor (P/O PL 60.45 Item 5) 14 - Platen close sensor (P/O PL 60.45 Item 5) 15 - Angle sensor bracket (P/O PL 60.45 Item 5) 16 - Actuator support (P/O PL 60.45 Item 5) 17 - Actuator (P/O PL 60.45 Item 5) 18 - Extension spring (P/O PL 60.45 Item 5) 19 - Lens assembly (P/O PL 60.45 Item 2) 20 117K48921 IIT Cont I/O Ribbon Cable 117K48921 IIT Cont I/O Ribbon Cable CCD Lens Fully refurbished with 90-day warranty 117K48921 (Refurbished) |  |

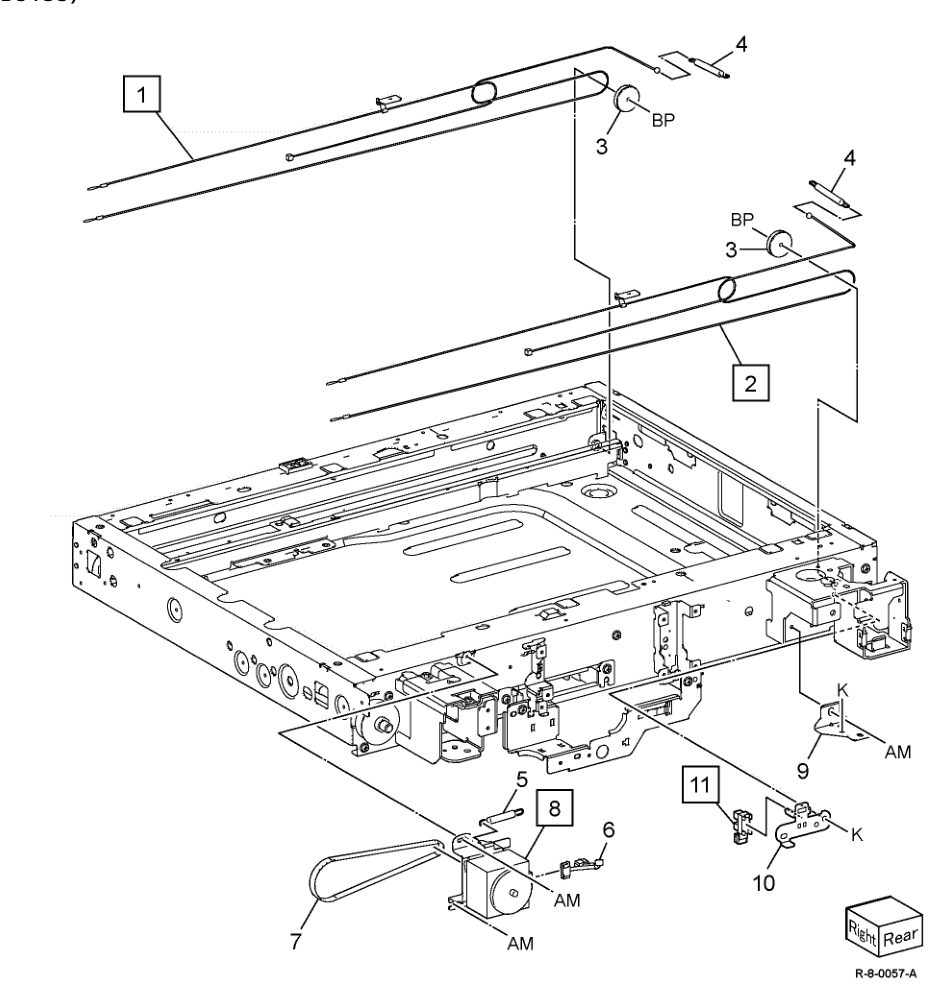

| PL 60.50 Carriage Cable/Motor (B8145/B8155) 1 - Front carriage cable 2 - Rear carriage cable 3 - Idler Pulley 4 - Tension Spring 5 - Tension Spring 6 952K31250 Carriage Motor Harness 7 023E27590 Timing Belt 8 127K61330 Carriage Motor 9 - Bracket 10 - IIT Regi. Sensor bracket 11 930W00123 IIT Regi Sensor 1 - Front carriage cable 2 - Rear carriage cable 3 - Idler Pulley 4 - Tension Spring 5 - Tension Spring 6 952K31250 Carriage Motor Harness 7 023E27590 Timing Belt 8 127K61330 Carriage Motor 9 - Bracket 10 - IIT Regi. Sensor bracket 11 930W00123 IIT Regi Sensor |  |

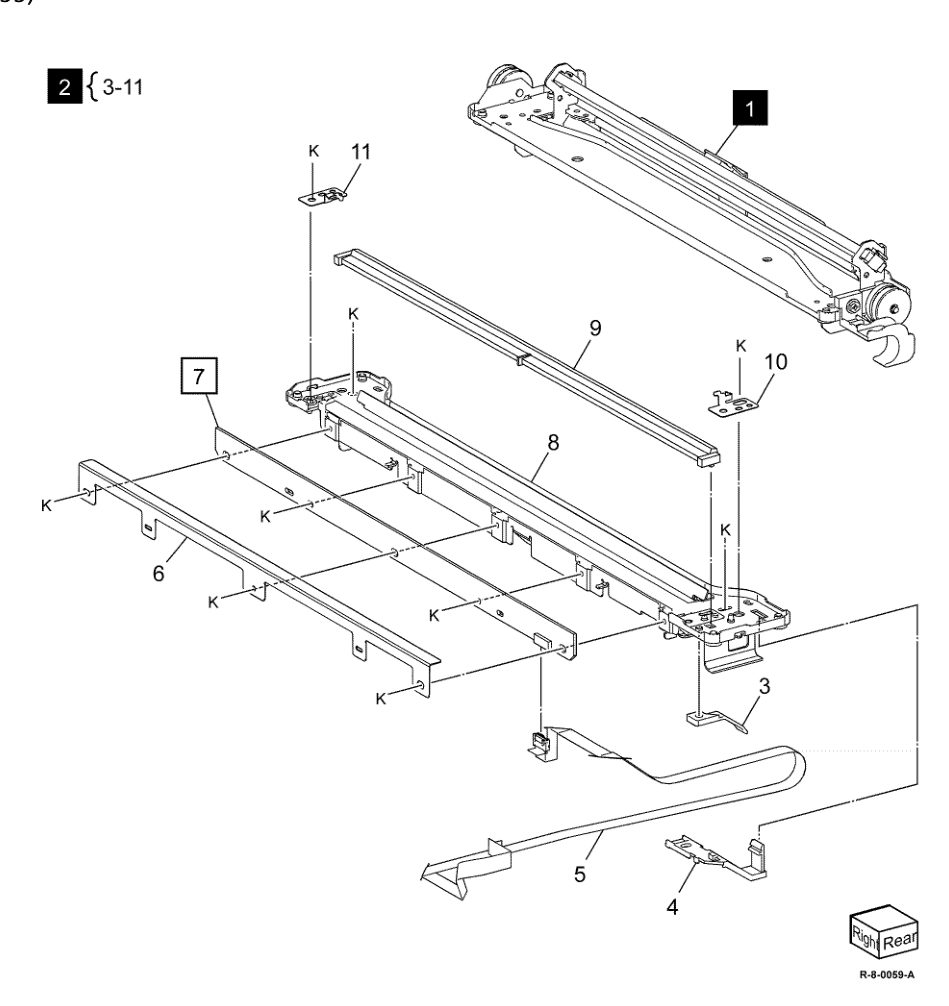

| PL 60.55 Full/Half Carriage (B8145/B8155) 1 041K96431 Half rate carriage assembly 041K96431 Half rate carriage Fully refurbished with 90-day warranty 041K96431 3-4 Day Lead (Refurbished) $39.44 2 041K96641 Full rate carriage assembly 041K96641 Full Rate Carriage Assembly Fully refurbished with 90-day warranty 041K96641 (Refurbished) 3 - Cord guide (P/O PL 60.55 Item 2) 4 - Cord guide (P/O PL 60.55 Item 2) 5 952K43480 LED ribbon cable 952K43480 LED Ribbon Cable Full/Half Carriage Fully refurbished with 90-day warranty 952K43480 (Refurbished) 6 - LED bracket (P/O PL 60.55 Item 2) 7 960K81532 LED PWB 8 - LED lamp assembly (P/O PL 60.55 Item 2) 9 - Light guide (P/O PL 60.55 Item 2) 10 - Rear securing plate (P/O PL 60.55 Item 2) 11 - Front securing plate 1 041K96431 Half Rate Carriage Assembly 041K96431 Half rate carriage Fully refurbished with 90-day warranty 041K96431 3-4 Day Lead (Refurbished) $39.44 2 041K96641 Full Rate Carriage Assembly 041K96641 Full Rate Carriage Assembly Fully refurbished with 90-day warranty 041K96641 (Refurbished) 3 - Cord Guide (P/O PL 60.55 Item 2) 4 - Cord Guide (P/O PL 60.55 Item 2) 5 952K31260 LED Ribbon Cable — 952K43480 LED Ribbon cable (Alternative) 952K43480 LED Ribbon Cable Full/Half Carriage Fully refurbished with 90-day warranty 952K43480 (Refurbished) 6 - LED Bracket (P/O PL 60.55 Item 2) 7 960K81532 LED PWB 8 - LED Lamp Assembly (P/O PL 60.55 Item 2) 9 - Light guide (P/O PL 60.55 Item 2) 10 - Rear securing plate (P/O PL 60.55 Item 2) 11 - Front securing plate (P/O PL 60.55 Item 2) |  |

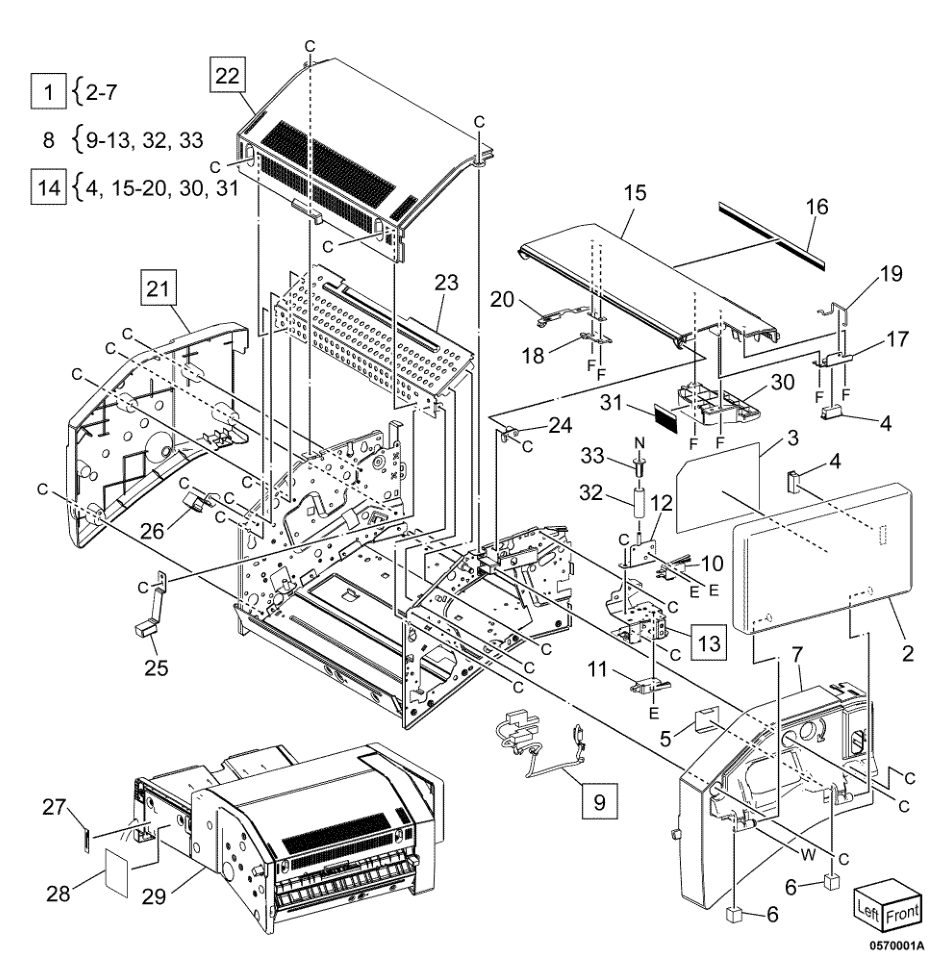

| PL 70.1 Finisher Assembly 1 948K10750 Front Cover Assembly 948K10750 Front Cover Assembly Integrated Office Finisher Fully refurbished with 90-day warranty 948K10750 (Refurbished) 2 - Front Cover (P/O PL 70.1 Item 1) 3 - Stapler Label (P/O PL 70.1 Item 1) 4 - Box Catch Magnet (P/O PL 70.1 Item 1, 14) 5 - Cover Inner Tape (P/O PL 70.1 Item 1) 6 - Cover Inner Pad (P/O PL 70.1 Item 1) 7 - Front Inner Cover (P/O PL 70.1 Item 1) 8 049K45130 Front Interlock Bracket Assembly 049K45130 Front Interlock Bracket Assembly Integrated Office Finisher New 049K45130 (New) 3-4 Day Lead $102.00 049K45130 Front Interlock Bracket Assembly Integrated Office Finisher Fully refurbished with 90-day warranty 049K45130 (Refurbished) 9 - Wire Harness (Interlock) (P/O PL 70.1 Item 8) 10 - Finisher Top Cover Interlock Switch (P/O PL 70.1 Item 8) 11 - Finisher Front Door Interlock Switch (P/O PL 70.1 Item 8) 12 - Top Interlock Bracket (P/O PL 70.1 Item 8) 13 - Front Interlock Bracket (P/O PL 70.1 Item 8) 14 948K23920 Top Eject Cover Sub Assembly 15 - Top Eject Cover Assembly (P/O PL 70.1 Item 14) 16 - Eject Eliminator (P/O PL 70.1 Item 14) 17 - Magnet Bracket (P/O PL 70.1 Item 14) 18 - Stopper Bracket (P/O PL 70.1 Item 14) 19 - Top Cover Support (P/O PL 70.1 Item 14) 20 - FG Spring (P/O PL 70.1 Item 14) 21 - Rear Cover 22 - Top LH Cover 23 - Upper Tie Plate 24 - Front Hinge Bracket 25 049K37110 Front Ground Bracket Assembly 049K37110 Front Ground Bracket Assembly Integrated Office Finisher New 049K37110 (New) 3-4 Day Lead $69.36 049K37110 Front Ground Bracket Assembly Integrated Office Finisher Fully refurbished with 90-day warranty 049K37110 (Refurbished) 26 049K37121 Rear Ground Bracket Assembly 049K37121 Rear Ground Bracket Assembly Integrated Office Finisher New 049K37121 (New) 3-4 Day Lead $133.28 049K37121 Rear Ground Bracket Assembly Integrated Office Finisher Fully refurbished with 90-day warranty 049K37121 (Refurbished) 27 - Data Plate Label 28 - Serial Label 29 - Transport Assembly 30 - IEC Eject Chute (P/O PL 70.1 Item 14) 31 - IEC Eject Eliminator (P/O PL 70.1 Item 14) 32 - IEC Spring (P/O PL 70.1 Item 8) 33 - IEC Collar (P/O PL 70.1 Item 8) |  |

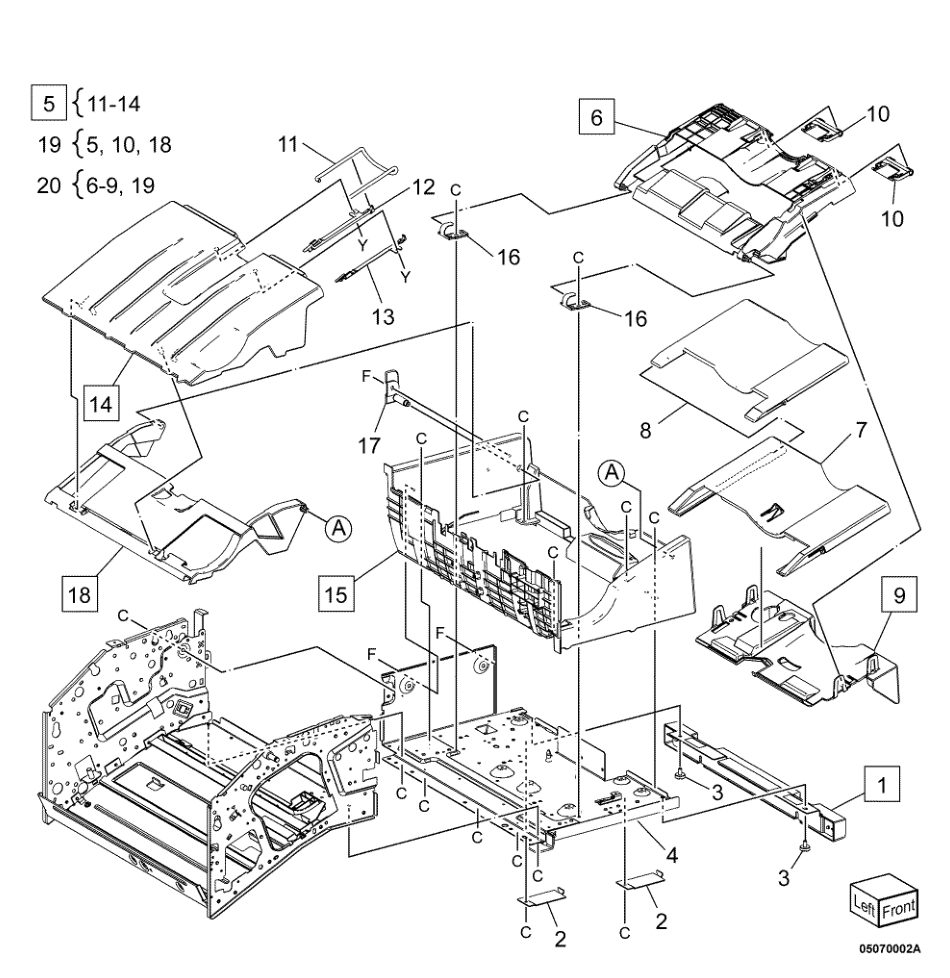

| PL 70.2 Stacker Base Assembly (1 of 2) 1 049K44580 Docking Bracket Assembly 049K44580 Docking Bracket Assembly Integrated Office Finisher New 049K44580 (New) 3-4 Day Lead $63.92 049K44580 Docking Bracket Assembly Integrated Office Finisher Fully refurbished with 90-day warranty 049K44580 (Refurbished) 2 - Tray Guide Bracket 3 - Docking Screw 4 - Bottom Plate Assembly 5 050K78870 Base Tray Assembly 6 - Extension Base Tray (P/O PL 70.2 Item 20) 7 - Stacker Extension Tray (P/O PL 70.2 Item 20) 8 - Stacker Extension Tray 2 (P/O PL 70.2 Item 20) 9 - Stacker Cover (P/O PL 70.2 Item 20) 10 012E22851 Link C 012E22851 Stacker Base Assembly Link C Integrated Office Finisher New 012E22851 (New) 3-4 Day Lead $59.84 012E22851 Stacker Base Assembly Link C Integrated Office Finisher Fully refurbished with 90-day warranty 012E22851 (Refurbished) 11 - Paper Guide (P/O PL 70.2 Item 5) 12 - Rear Stacker Rail (P/O PL 70.2 Item 5) 13 - Front Stacker Rail (P/O PL 70.2 Item 5) 14 - Base Tray (P/O PL 70.2 Item 5) 15 - Stacker Base Tray 16 - Tray Hinge 17 - Tray Hinge 2 18 - Tray Stacker (Link A) (P/O PL 70.2 Item 19) 19 - Base Tray Unit (P/O PL 70.2 Item 20) 20 050K79550 GAR SP Stacker Tray Assembly 050K79550 GAR SP Stacker Tray Assembly Integrated Office Finisher New 050K79550 (New) 3-4 Day Lead $161.84 050K79550 GAR SP Stacker Tray Assembly Integrated Office Finisher Fully refurbished with 90-day warranty 050K79550 (Refurbished) |  |

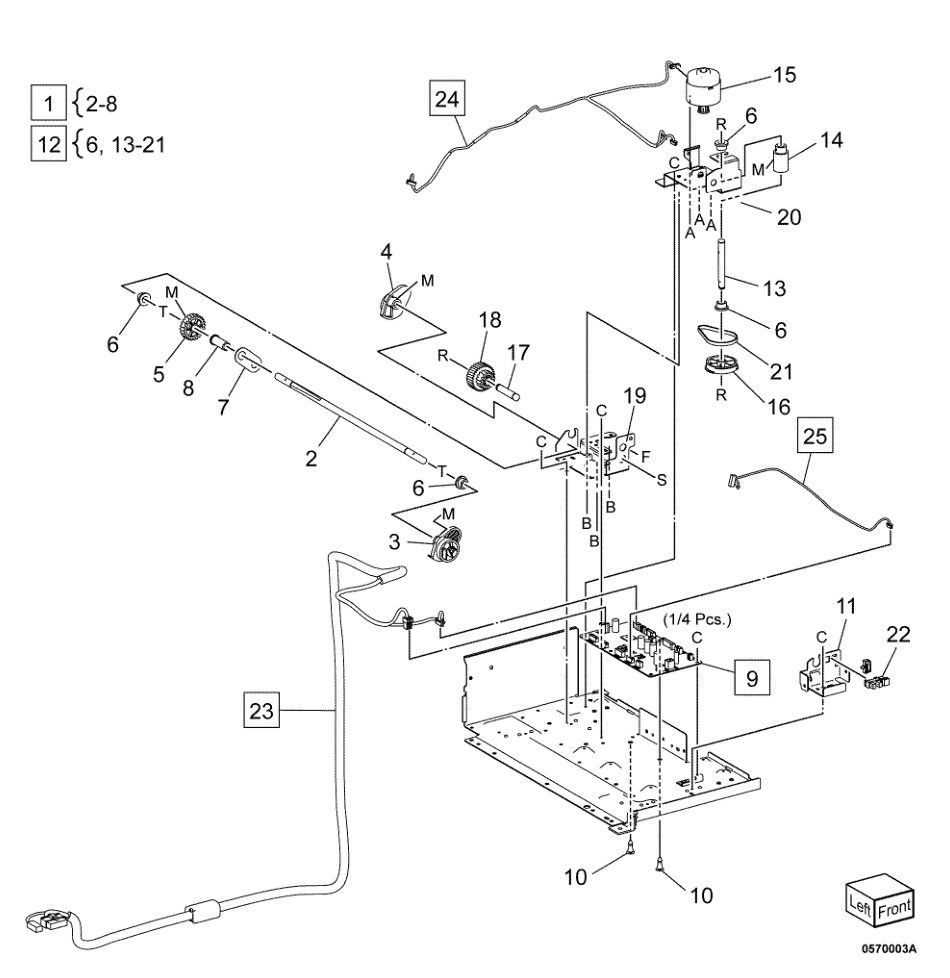

| PL 70.3 Stacker Base Assembly (2 of 2) 1 006K35691 Lift Shaft Assembly 2 - Lift Shaft (P/O PL 70.3 Item 1) 3 - Cam (P/O PL 70.3 Item 1) 4 - Rear Cam (P/O PL 70.3 Item 1) 5 - Gear (Z24) (P/O PL 70.3 Item 1) 6 - Powdered Metal Bearing (P/O PL 70.3 Item 1 & 12) 7 - Shaft Bracket (P/O PL 70.3 Item 1) 8 - Latch Bearing (P/O PL 70.3 Item 1) 9 960K93602 Finisher PWB 960K93602 Finisher PWB Integrated Office Finisher Fully refurbished with 90-day warranty 960K93602 (Refurbished) 10 - PWB Cap Supplement 11 - Lift Bracket 12 049K44590 Lift Motor Bracket Assembly 049K44590 Lift Motor Bracket Assembly Integrated Office Finisher New 049K44590 (New) 3-4 Day Lead $152.32 049K44590 Lift Motor Bracket Assembly Integrated Office Finisher Fully refurbished with 90-day warranty 049K44590 (Refurbished) 13 - Worm Shaft (P/O PL 70.3 Item 12) 14 - Worm Gear (P/O PL 70.3 Item 12) 15 - Stacker Motor (P/O PL 70.3 Item 12) 16 - Pulley (T60) (P/O PL 70.3 Item 12) 17 - Worm Wheel Shaft (P/O PL 70.3 Item 12) 18 - Gear (Z16/Z32) (P/O PL 70.3 Item 12) 19 - Lift Bracket (P/O PL 70.3 Item 12) 20 - Lift Motor Bracket (P/O PL 70.3 Item 12) 21 - Synchronous Bare Back Belt (P/O PL 70.3 Item 12) 22 - Stacker No Paper Sensor 23 952K43340 Wire Harness (IF) 952K43340 Wire Harness IF Integrated Office Finisher Fully refurbished with 90-day warranty 952K43340 (Refurbished) 24 952K41460 Wire Harness (Stacker Motor) 952K41460 Wire Harness Stacker Motor Integrated Office Finisher New 952K41460 (New) 3-4 Day Lead $69.36 952K41460 Wire Harness Stacker Motor Integrated Office Finisher Fully refurbished with 90-day warranty 952K41460 (Refurbished) 25 - Wire Harness (Eject Motor) |  |

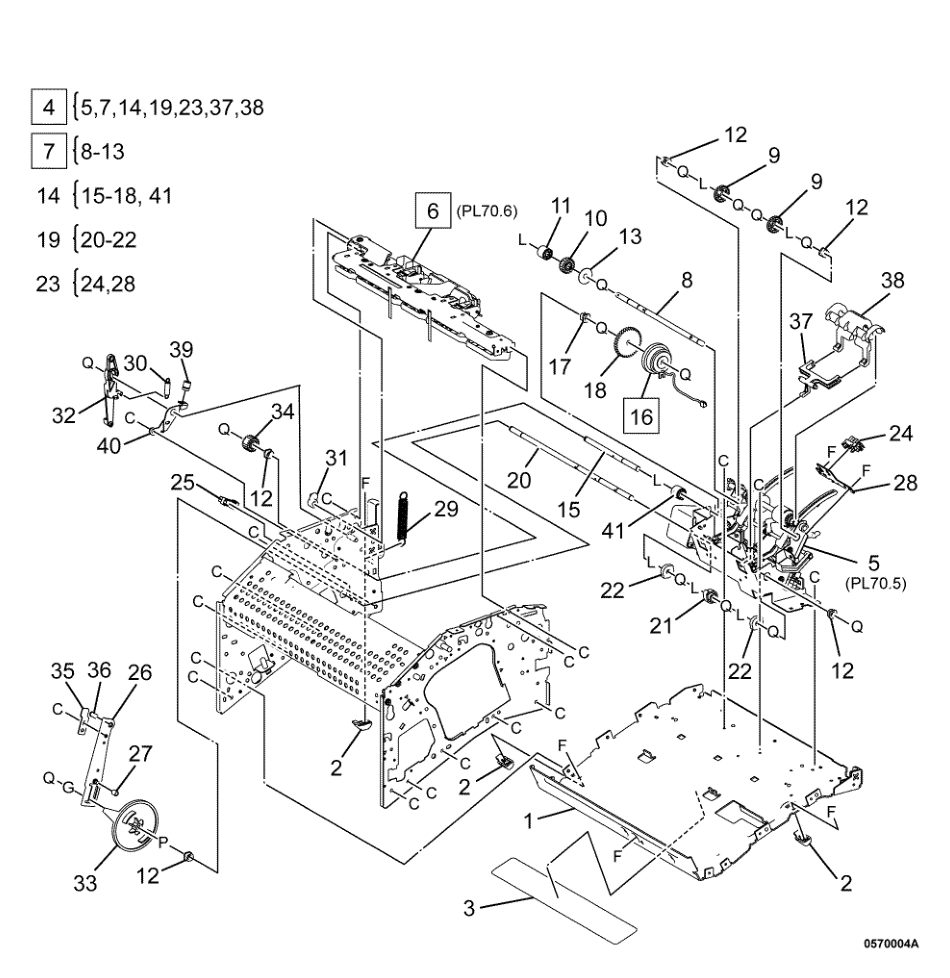

| PL 70.4 Eject Assembly (1 of 3) 1 - Bottom Frame Assembly 2 - Bottom Spacer 3 - Hole Guide 4 019K18880 Low Eject Clamp Assembly 019K18880 Eject Assembly Low Eject Clamp Integrated Office Finisher New 019K18880 (New) 3-4 Day Lead $252.96 019K18880 Eject Assembly Low Eject Clamp Integrated Office Finisher Fully refurbished with 90-day warranty 019K18880 (Refurbished) 5 - Eject Clamp Assembly (P/O PL 70.4 Item 4) 6 815K17653 Upper Eject Plate Assembly Xerox 815K17653 Upper Eject Plate Assembly Fully refurbished with 90-day warranty 815K17653 (Refurbished) 7 006K35201 Set Clamp Shaft Assembly 2 8 - Set Clamp Shaft 2 (P/O PL 70.4 Item 7) 9 - Shelf Set Clamp Gear (Z24) (P/O PL 70.4 Item 7) 10 - Gear (Z17) (P/O PL 70.4 Item 7) 11 - Brake Assembly (P/O PL 70.4 Item 7) 12 013E88260 Bearing 13 - Eject Roll Collar (P/O PL 70.4 Item 7) 14 006K35440 Clutch Shaft Assembly 15 - Clutch Shaft (P/O PL 70.4 Item 14) 16 - Eject Cam Clutch (P/O PL 70.4 Item 14) 17 - Brake Bearing (P/O PL 70.4 Item 14) 18 - Gear (Z36) (P/O PL 70.4 Item 14) 19 - Eject Cam Assembly (P/O PL 70.4 Item 4) 20 - Cam Shaft (P/O PL 70.4 Item 19) 21 - Paper Guide Cam (P/O PL 70.4 Item 19) 22 - Shelf Lock Cam (P/O PL 70.4 Item 19) 23 - Sensor Bracket Assembly (P/O PL 70.4 Item 4) 24 930W00121 Stacker Height Sensor 25 - Eject Cam Home Sensor 26 012K97270 Cam Link Assembly 27 022E33741 Cam Roll 28 - Sensor Bracket (P/O PL 70.4 Item 23) 29 899E16580 Eject Pinch Spring 30 899E16590 Link Spring 31 012E20400 Sub Shaft Link 32 012E20413 Sub Paddle Link 33 008E98951 Eject Clamp Cam 34 807E55721 Cam Clutch Gear (Z21) 35 869E28310 Stopper Bracket 36 806E48690 Cam Upper Shaft |  |

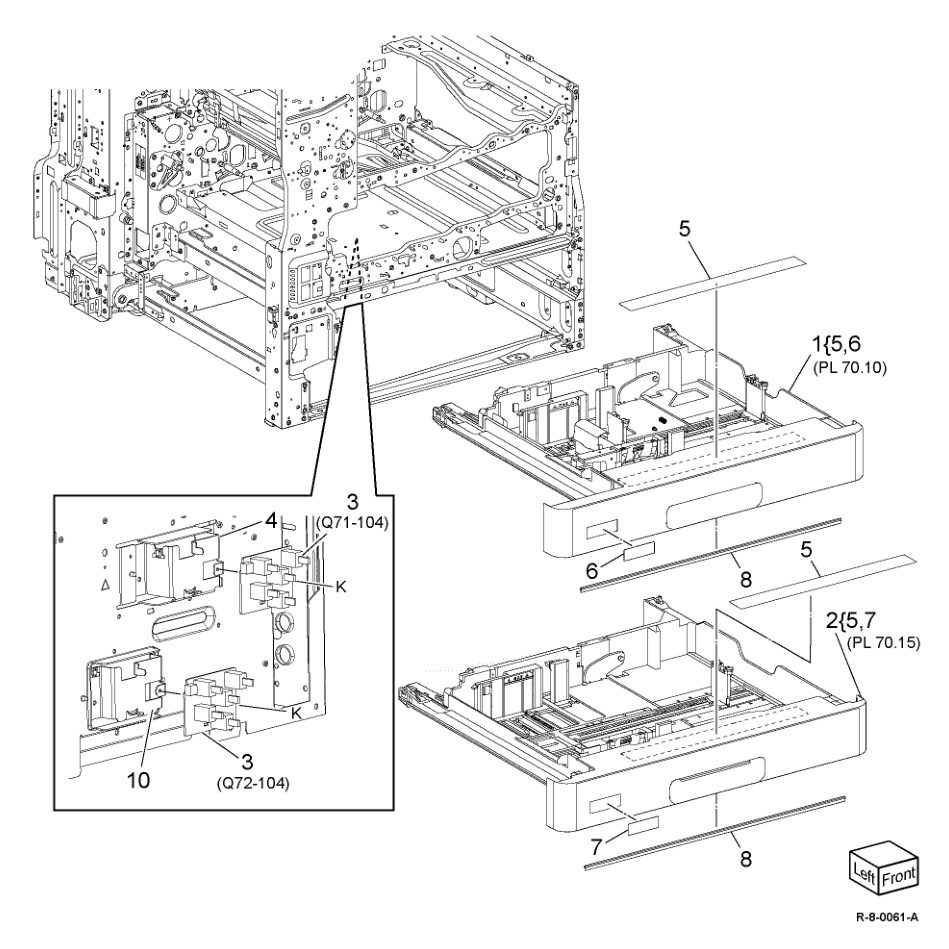

| PL 70.05 Tray 1 2 Assembly 1 607K10600 Tray 1 assembly 2 607K10610 Tray 2 assembly 3 110K11680 Tray 1 paper size sensor (Q71- 104) / Tray 2 paper size sensor (Q72-104) 110K11680 Tray 1 Paper Size Switch Fully refurbished with 90-day warranty 110K11680 (Refurbished) $46.24 4 - Bracket (Not Spared) 5 - Label (instruction) (P/O PL 70.05 Item 1, PL 70.05 item 2) 6 - Label (No. 1) (P/O PL 70.05 Item 1) 7 - Label (No. 2) (P/O PL 70.05 Item 2) 8 - Gasket (Not Spared) 9 - Not used 10 - Bracket (Not Spared) 1 607K10600 Tray 1 assembly 2 607K10610 Tray 2 assembly 3 110K11680 Tray 1 paper size sensor (Q71- 104) / Tray 2 paper size sensor (Q72-104) 110K11680 Tray 1 Paper Size Switch Fully refurbished with 90-day warranty 110K11680 (Refurbished) $46.24 4 - Bracket (Not Spared) 5 - Label (instruction) (P/O PL 70.05 Item 1 PL 70.05 item 2) 6 - Label (No. 1) (P/O PL 70.05 Item 1) 7 - Label (No. 2) (P/O PL 70.05 Item 2) 8 - Gasket (Not Spared) 9 - Not used 10 - Bracket (Not Spared) |  |

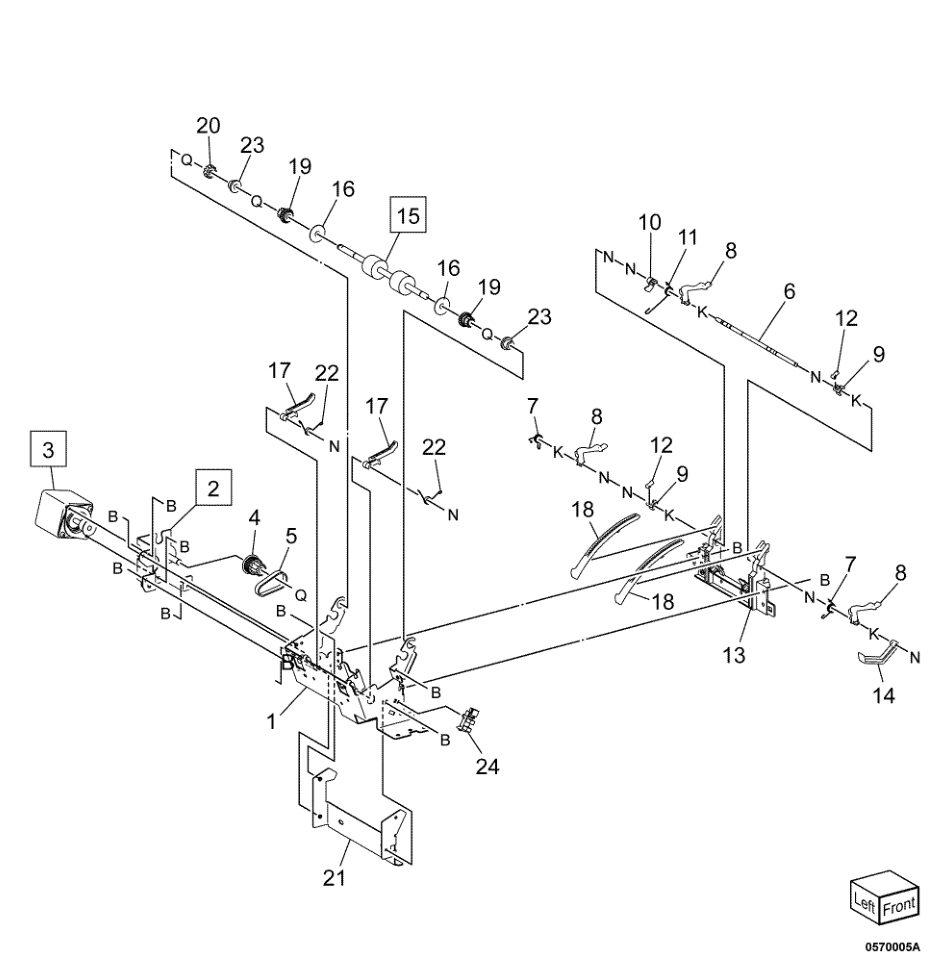

| PL 70.5 Eject Assembly (2 of 3) 1 - Eject Drive Bracket Assembly 2 - Eject Motor Bracket Assembly 3 127K76510 Eject Motor 127K76510 Eject Motor Assembly Office Finisher Fully refurbished with 90-day warranty 127K76510 (Refurbished) 4 - Gear Pulley (Z12/T30) 5 - Synchronous Bare Back Belt 6 - Set Clamp Shaft 7 - Set Clamp Spring 8 - Set Clamp Holder Assembly 9 - Set Clamp Link 10 - Set Clamp Actuator Link 11 - Set Clamp L Spring 12 - Set Clamp Link 13 - Shelf Guide 14 - Set Clamp Actuator 15 859K06140 Roll Assembly 16 - Eject Roll Collar 17 - Stopper Link 18 - Shelf Guide 19 - Shelf Eject Gear (Z12/Z18) 20 - Eject Roll Gear (Z12) 21 - Tie Eject Bracket 22 - Stopper Spring 23 - Powdered Metal Bearing 24 930W00121 Set Clamp Home Sensor |  |

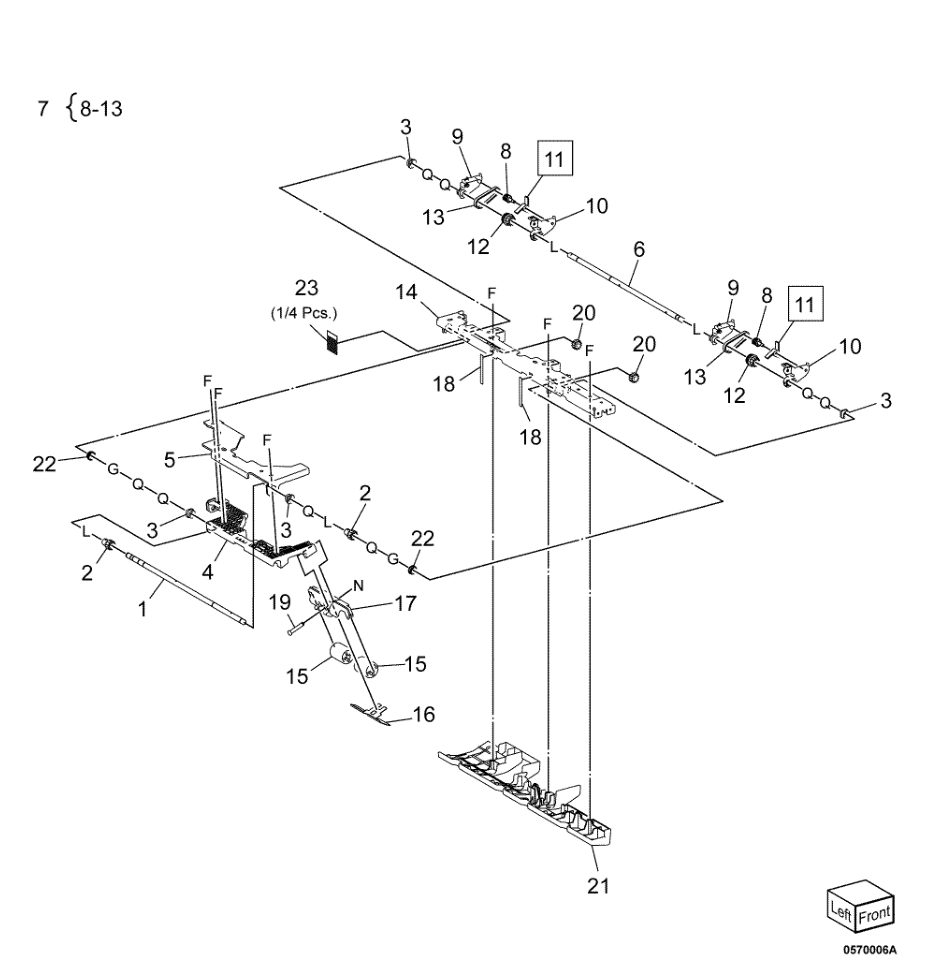

| PL 70.6 Eject Assembly (3 of 3) 1 - Sub Paddle Drive Shaft 2 - Gear (Z12) 3 013E88260 Bearing 4 - Eject Clamp Arm 5 - Pinch Arm Bracket 6 - Sub Paddle Arm Shaft 7 - Sub Paddle Arm Assembly 8 - Sub Paddle Pulley (T14) (P/O PL 70.6 Item 7) 9 - Sub Paddle Arm (P/O PL 70.6 Item 7) 10 - Sub Paddle Arm 2 (P/O PL 70.6 Item 7) 11 - Sub Paddle (P/O PL 70.6 Item 7) 12 - Gear (Z12) (P/O PL 70.6 Item 7) 13 - Synchronous Bare Back Belt (P/O PL 70.6 Item 7) 14 - Tie Eject Plate Assembly 15 - Roll Bearing Assembly 16 - Paper Eject Clamp Guide 17 - Pinch Exit Holder 18 - Paper Exit Guide 19 - Pinch Eject L Shaft 20 - Gear (Z12) 21 - Eject Cover 22 - Ball Bearing 23 - Compile Eject Eliminator |  |

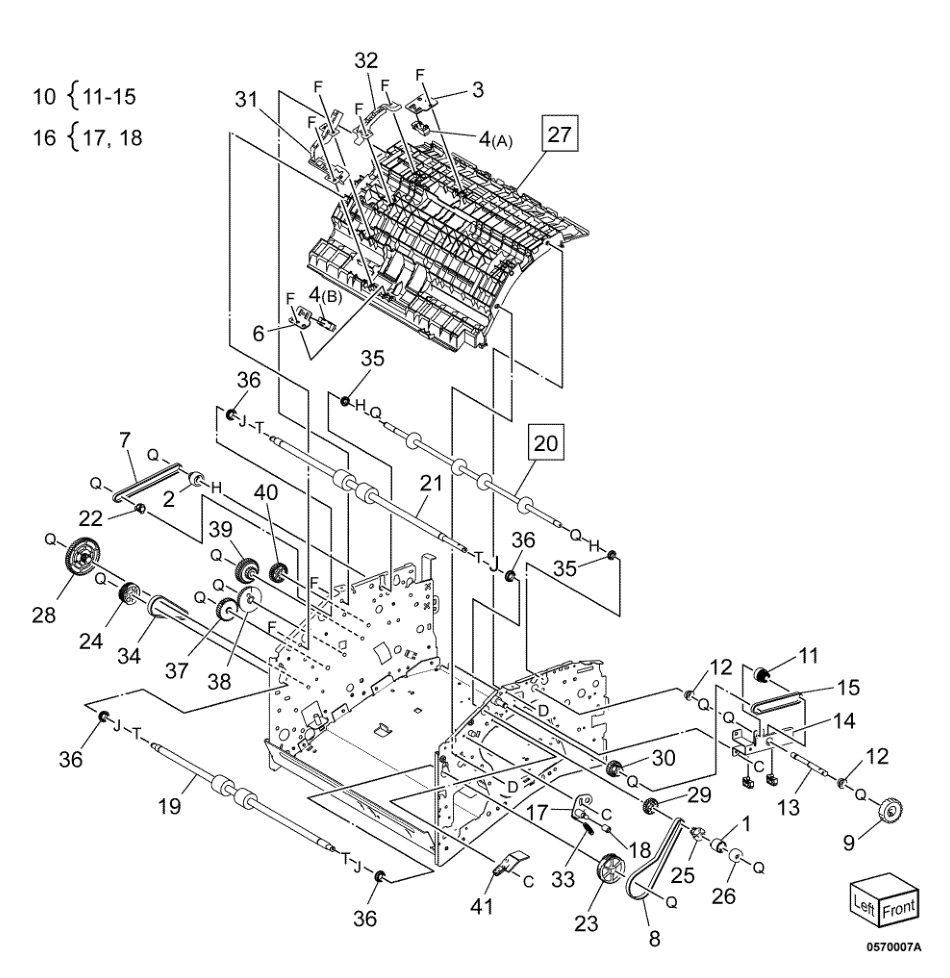

| PL 70.7 Export Assembly (1 of 2) 1 019K17541 400 Brake Assembly 2 020K18860 Oneway Pulley (T16) Assembly 3 - Out Sensor Bracket 4 930W00212 Compile Exit Sensor (A) / Finisher Entrance Sensor (B) 930W00212 Tray 4 Feed Out Sensor Fully refurbished with 90-day warranty 930W00212 3-4 Day Lead (Refurbished) $36.00 5 - Not used 6 - In Sensor Bracket 7 423W10654 Synchronous Bare Back Belt 423W10654 Synchronous Bare Back Belt Export Assembly Integrated Office Finisher New 423W10654 (New) 3-4 Day Lead $48.96 423W10654 Synchronous Bare Back Belt Export Assembly Integrated Office Finisher Fully refurbished with 90-day warranty 423W10654 (Refurbished) 8 - Synchronous Bare Back Belt 9 803E26931 Roll Knob 10 049K35250 Jam Shaft Bracket Assembly 049K35250 Jam Shaft Bracket Assembly Integrated Office Finisher New 049K35250 (New) 3-4 Day Lead $78.88 049K35250 Jam Shaft Bracket Assembly Integrated Office Finisher Fully refurbished with 90-day warranty 049K35250 (Refurbished) 11 - Jam Pulley (T20) Assembly (P/O PL 70.7 Item 10) 12 013E88260 Bearing 13 - Jam Knob Shaft (P/O PL 70.7 Item 10) 14 - Jam Shaft Bracket (P/O PL 70.7 Item 10) 15 - Synchronous Bare Back Belt (P/O PL 70.7 Item 10) 16 049K36910 Tension Belt Bracket Assembly 049K36910 Tension Belt Bracket Assembly Integrated Office Finisher New 049K36910 (New) 3-4 Day Lead $39.44 049K36910 Tension Belt Bracket Assembly Integrated Office Finisher Fully refurbished with 90-day warranty 049K36910 (Refurbished) 17 - Tension Belt Bracket (P/O PL 70.7 Item 16) 18 - Pulley (P/O PL 70.7 Item 16) 19 859K05200 Transport Roll 1 Assembly 20 859K05340 Compile Exit Roll Assembly 859K05340 Compile Exit Roller Assembly Fully refurbished with 90-day warranty 859K05340 (Refurbished) 21 859K06130 Transport Roll 2 Assembly 22 020E49970 Main Idler Pulley 23 020E52380 Transport Roll 1 Pulley (T55) 24 020E52390 Transport Roll 1 Rear Pulley (T40) 25 020E52470 Clutch Pulley (T16) 26 - Clutch Lock Cap 27 - Upper Chute 28 807E55080 Motor Idler Gear 2 (Z55L/T17) 29 807E56170 Clutch Gear (Z22) 30 807E56180 Gear (Z22/T20) 31 - Lower Export Harness Support 32 - Upper Export Harness Support 33 899E16870 Tension Spring 34 423W27154 Synchronous Bare Back Belt 423W27154 Synchronous Bare Back Belt Export Assembly Integrated Office Finisher New 423W27154 (New) 3-4 Day Lead $48.96 423W27154 Synchronous Bare Back Belt Export Assembly Integrated Office Finisher Fully refurbished with 90-day warranty 423W27154 (Refurbished) 35 - Ball Bearing 36 - Ball Bearing 37 007E78040 Gear (32T) 38 807E20870 Gear (Z34) 39 807E55250 Paddle Idler Gear (Z16/Z35) 40 807E13240 Gear (Z27L) 41 - Xport Harness Guide |  |

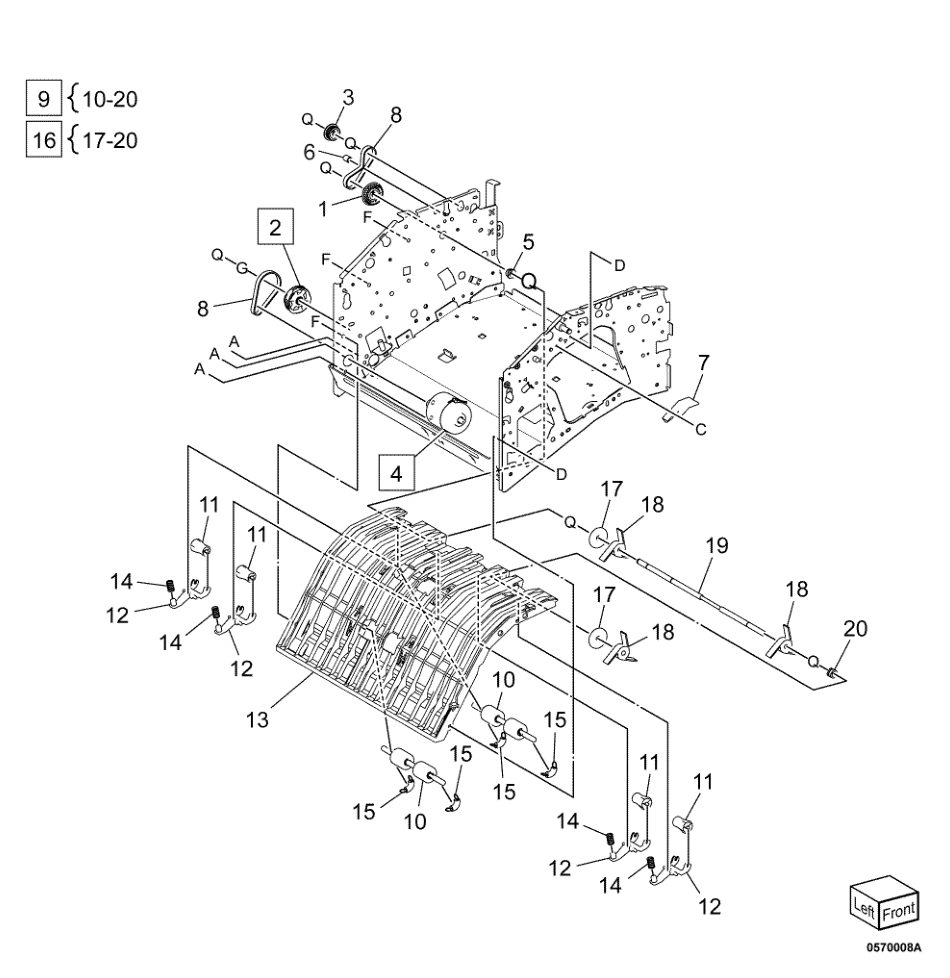

| PL 70.8 Export Assembly (2 of 2) 1 007K22400 Main Paddle Gear (Z29/T28) Assembly 2 007K23720 Motor Idler Gear 1 (Z21/T43) As- sembly 007K23720 Motor Idler Gear 1 (Z21/T43) Assembly Fully refurbished with 90-day warranty 007K23720 (Refurbished) 3 020K18971 Oneway Pulley (28T) Assembly 4 127K75550 Finisher Transport Motor 127K75550 Finisher Transport Motor Integrated Office Finisher New 127K75550 (New) 3-4 Day Lead $138.72 127K75550 Finisher Transport Motor Integrated Office Finisher Fully refurbished with 90-day warranty 127K75550 (Refurbished) 5 013E88260 Bearing 6 - Pulley 7 - Export Harness Guide 8 - Synchronous Bare Back Belt 9 054K56612 Lower Chute Assembly 10 - Pinch Roll Shaft Assembly (P/O PL 70.8 Item 9) 11 - Pinch Exit Out Roller (P/O PL 70.8 Item 9) 12 - Pinch Exit Out Holder (P/O PL 70.8 Item 9) 13 - Lower Chute (P/O PL 70.8 Item 9) 14 - Pinch Exit Spring (P/O PL 70.8 Item 9) 15 - Pinch No.1 No.2 Roll Spring (P/O PL 70.8 Item 9) 16 033K99051 Main Sub Paddle Assembly 17 - Collar (P/O PL 70.8 Item 9 & 16) 18 - Cyclone Paddle (P/O PL 70.8 Item 9 & 16) 19 - Main Paddle Shaft (P/O PL 70.8 Item 9 & 16) 20 - Plastic Sleeve Bearing (P/O PL 70.8 Item 9 & 16) |  |

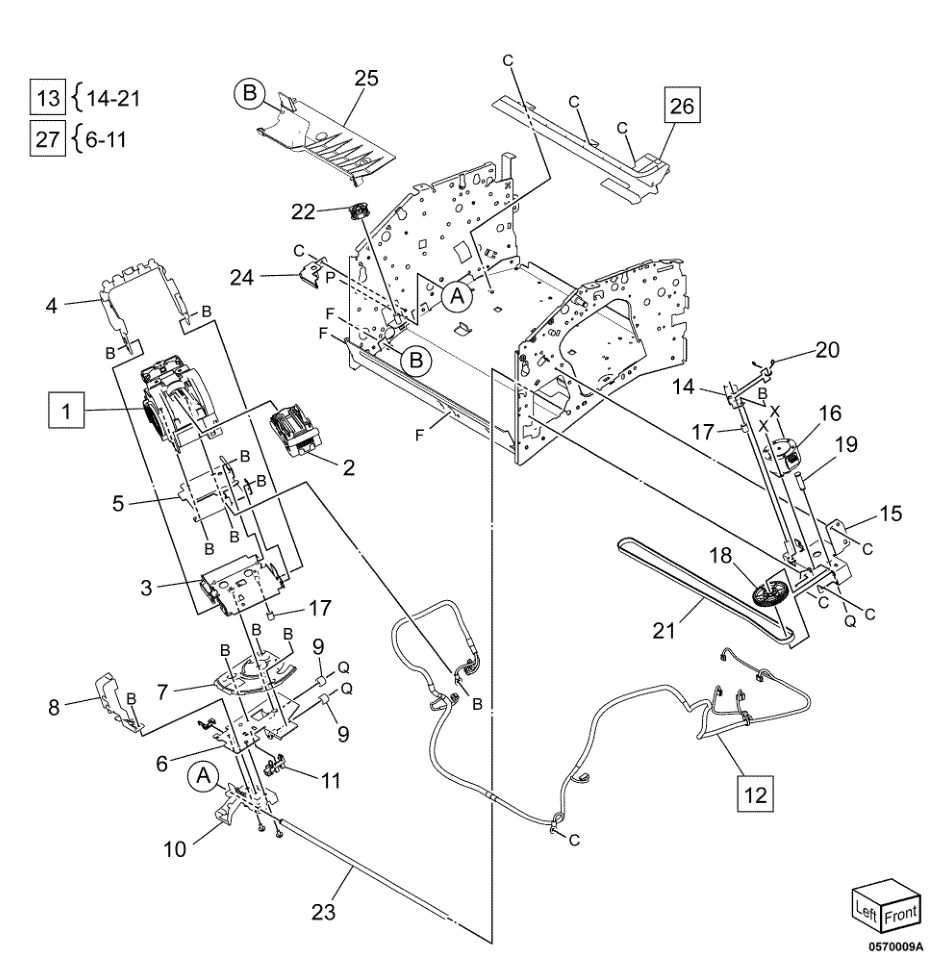

| PL 70.9 Stapler Assembly 1 029K93260 Staple Assembly 2 050K51250 Cartridge Assembly 3 - Holder Bracket Assembly 4 - Staple Harness Guide 2 5 - Holder Bracket 2 6 - Move Bracket Assembly (P/O PL 70.9 Item 27) 7 - Move Staple Spacer (P/O PL 70.9 Item 27) 8 - Staple Harness Guide (P/O PL 70.9 Item 27) 9 - Roller (P/O PL 70.9 Item 27) 10 - Belt Clamp (P/O PL 70.9 Item 27) 11 930W00121 Stapler Move Position Sensor 12 952K34072 Wire Harness (Staple) 952K34072 Wire Harness Staple Integrated Office Finisher Fully refurbished with 90-day warranty 952K34072 (Refurbished) 13 049K36723 Staple Drive Bracket Assembly 049K36723 Staple Drive Bracket Assembly Integrated Office Finisher New 049K36723 (New) 3-4 Day Lead $89.76 049K36723 Staple Drive Bracket Assembly Integrated Office Finisher Fully refurbished with 90-day warranty 049K36723 (Refurbished) 14 - Tension Bracket Assembly (P/O PL 70.9 Item 13) 15 - Motor Bracket Assembly (P/O PL 70.9 Item 13) 16 - Stapler Move Motor (P/O PL 70.9 Item 13) 17 - Pulley (P/O PL 70.9 Item 13) 18 - Gear (Z50L/T33) (P/O PL 70.9 Item 13) 19 - Staple Move Belt Stud (P/O PL 70.9 Item 13) 20 - Tension Spring (P/O PL 70.9 Item 13) 21 - Synchronous Bare Back Belt (P/O PL 70.9 Item 13) 22 - Pulley (T33/S2M) 23 - Staple Move Shaft 24 - Tension Bracket 2 25 - Staple Harness Guide 3 26 - Staple Move Rail 27 049K35160 Move Staple Bracket Assembly 049K35160 Move Staple Bracket Assembly Integrated Office Finisher New 049K35160 (New) 3-4 Day Lead $96.56 049K35160 Move Staple Bracket Assembly Integrated Office Finisher Fully refurbished with 90-day warranty 049K35160 (Refurbished) |  |

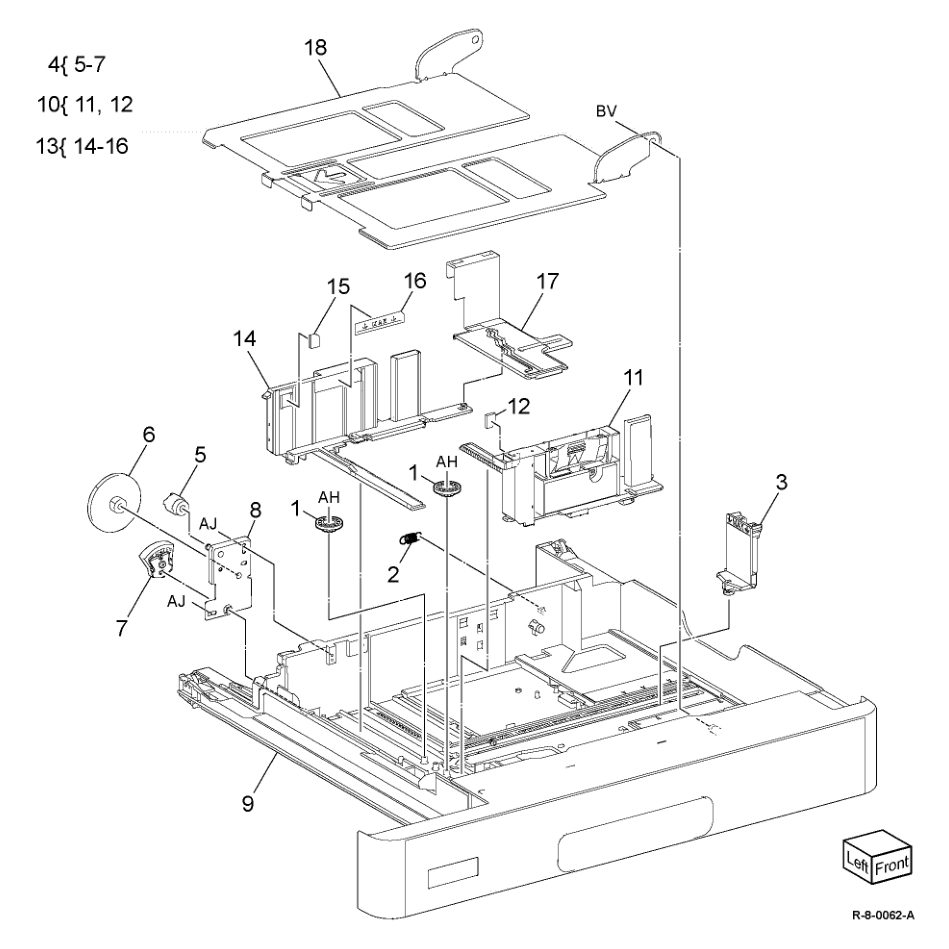

| PL 70.10 Tray 1 Assembly 1 807E13521 Pinion 2 809E89880 Spring 3 - End guide kit (Not Spared) 4 - Tray gear kit 5 - Gear (13) (P/O PL 70.10 Item 4) 6 - Gear (13/60) (P/O PL 70.10 Item 4) 7 - Gear assembly (P/O PL 70.10 Item 4) 8 - Bracket (P/O PL 70.05 Item 1) 9 - Cassette assembly (P/O PL 70.05 Item 1) 10 - Front side guide kit (Not Spared) 11 - Front side guide (P/O PL 70.10 Item 10) 12 - Pad (P/O PL 70.10 Item 10) 13 - Rear side guide kit (Not Spared) 14 - Rear side guide (P/O PL 70.10 Item 13) 15 - Pad (P/O PL 70.10 Item 13) 16 - Label (MAX) (P/O PL 70.10 Item 13) 17 - Side actuator (P/O PL 70.05 Item 1) 18 - Lift plate (P/O PL 70.05 Item 1) 1 807E13521 Pinion 2 809E89880 Spring 3 607K02250 End guide kit 4 604K20542 Tray gear kit 604K20542 Kit - Tray Gear Fully refurbished with 90-day warranty 604K20542 3-4 Day Lead (Refurbished) $32.00 5 - Gear (13) (P/O PL 70.10 Item 4) 6 - Gear (13/60) (P/O PL 70.10 Item 4) 7 - Gear assembly (P/O PL 70.10 Item 4) 8 - Bracket (P/O PL 70.05 Item 1) 9 - Cassette assembly (P/O PL 70.05 Item 1) 10 607K02261 Front side guide kit 11 - Front side guide (P/O PL 70.10 Item 10) 12 - Pad (P/O PL 70.10 Item 10) 13 607K02274 Rear side guide kit 14 - Rear side guide (P/O PL 70.10 Item 13) 15 - Pad (P/O PL 70.10 Item 13) 16 - Label (MAX) (P/O PL 70.10 Item 13) 17 - Side actuator (P/O PL 70.05 Item 1) 18 - Lift plate (P/O PL 70.05 Item 1) 1 050K79370 Compile Tray Assembly 2 - Front Tamper Guide (P/O PL 70.10 Item 1) 3 - Front Tamper Base (P/O PL 70.10 Item 1) 4 - Tamper Rack (P/O PL 70.10 Item 1) 5 - Tamper Spring (P/O PL 70.10 Item 1) 6 - Rear Tamper Guide (P/O PL 70.10 Item 1) 7 - End Wall Guide (P/O PL 70.10 Item 1) 8 - Paper End Wall Guide (P/O PL 70.10 Item 1) 9 - Rear Tamper Motor (P/O PL 70.10 Item 1) 10 - Front Tamper Motor (P/O PL 70.10 Item 1) 11 - Paper Compile Guide (P/O PL 70.10 Item 1) 12 - Compile Tray Harness Guide (P/O PL 70.10 Item 1) 13 - Rear Paper Compile Guide (P/O PL 70.10 Item 1) 14 - Compile Tray (P/O PL 70.10 Item 1) 15 - Shelf Stopper (P/O PL 70.10 Item 1) 16 - Tamper Motor Bracket (P/O PL 70.10 Item 1) 17 - Rear End Wall Spring (P/O PL 70.10 Item 1) 18 - End Wall Spring (P/O PL 70.10 Item 1) 19 930W00121 Front Tamper Home Sensor (A)/ Rear Tamper home Sensor (B) 20 - Not used 21 952K34092 Wire Harness (Tamper Motor) 952K34092 Wire Harness Tamper Motor Integrated Office Finisher New 952K34092 (New) 3-4 Day Lead $63.92 952K34092 Wire Harness Tamper Motor Integrated Office Finisher Fully refurbished with 90-day warranty 952K34092 (Refurbished) 22 952K34111 Wire Harness (Sensor) 952K34111 Wire Harness Sensor Integrated Office Finisher Fully refurbished with 90-day warranty 952K34111 (Refurbished) |  |

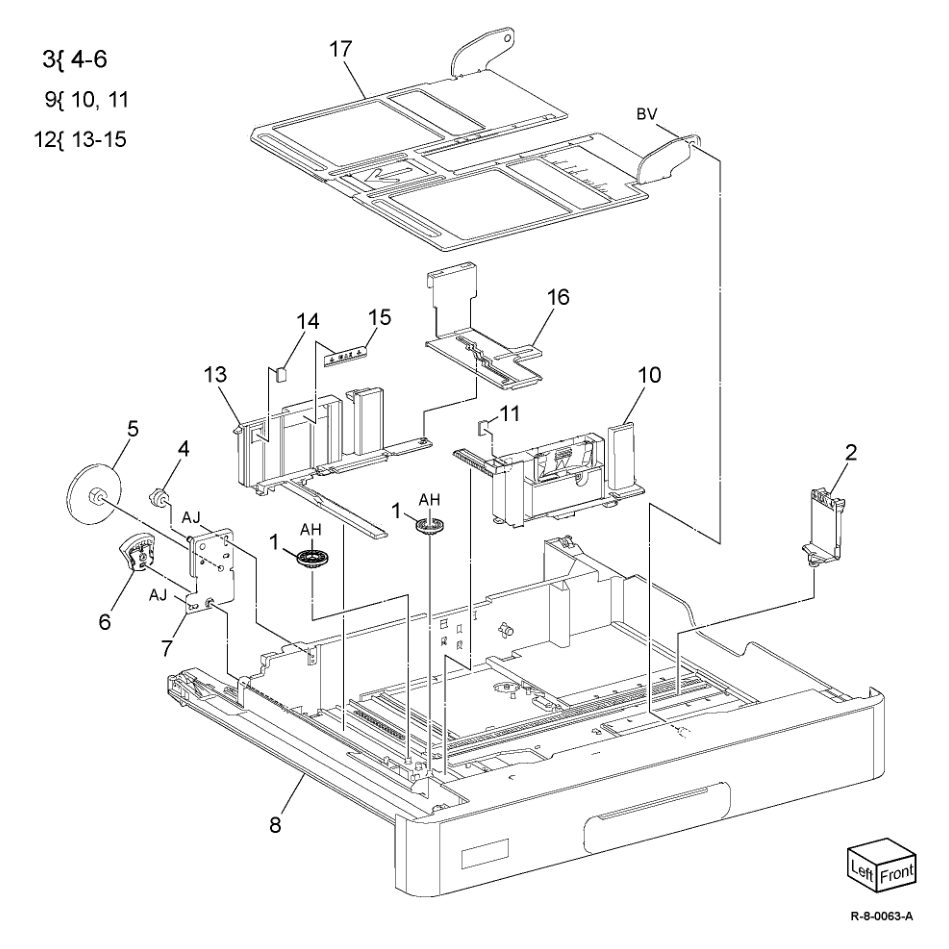

| PL 70.15 Tray 2 Assembly 1 807E13521 Pinion 2 - End guide kit (Not Spared) 3 - Tray gear kit (Not Spared) 4 - Gear (13) (P/O PL 70.15 Item 3) 5 - Gear (13/60) (P/O PL 70.15 Item 3) 6 - Gear assembly (P/O PL 70.15 Item 3) 7 - Bracket (P/O PL 70.05 Item 2) 8 - Cassette assembly (P/O PL 70.05 Item 2) 9 - Front side guide kit (Not Spared) 10 - Front side guide (P/O PL 70.15 Item 9) 11 - Pad (P/O PL 70.15 Item 9) 12 - Rear side guide kit (Not Spared) 13 - Rear side guide (P/O PL 70.15 Item 12) 14 - Pad (P/O PL 70.15 Item 12) 15 - Label (MAX) (P/O PL 70.15 Item 12) 16 - Side actuator (P/O PL 70.05 Item 2) 17 - Lift plate (P/O PL 70.05 Item 2) 1 807E13521 Pinion 2 607K02250 End guide kit 3 - Tray gear kit (Not Spared) 4 - Gear (13) (P/O PL 70.15 Item 3) 5 - Gear (13/60) (P/O PL 70.15 Item 3) 6 - Gear assembly (P/O PL 70.15 Item 3) 7 - Bracket (P/O PL 70.05 Item 2) 8 - Cassette assembly (P/O PL 70.05 Item 2) 9 607K02261 Front side guide kit 10 - Front side guide (P/O PL 70.15 Item 9) 11 - Pad (P/O PL 70.15 Item 9) 12 607K02274 Rear side guide kit 13 - Rear side guide (P/O PL 70.15 Item 12) 14 - Pad (P/O PL 70.15 Item 12) 15 - Label (MAX) (P/O PL 70.15 Item 12) 16 - Side actuator (P/O PL 70.05 Item 2) 17 - Lift plate (P/O PL 70.05 Item 2) |  |

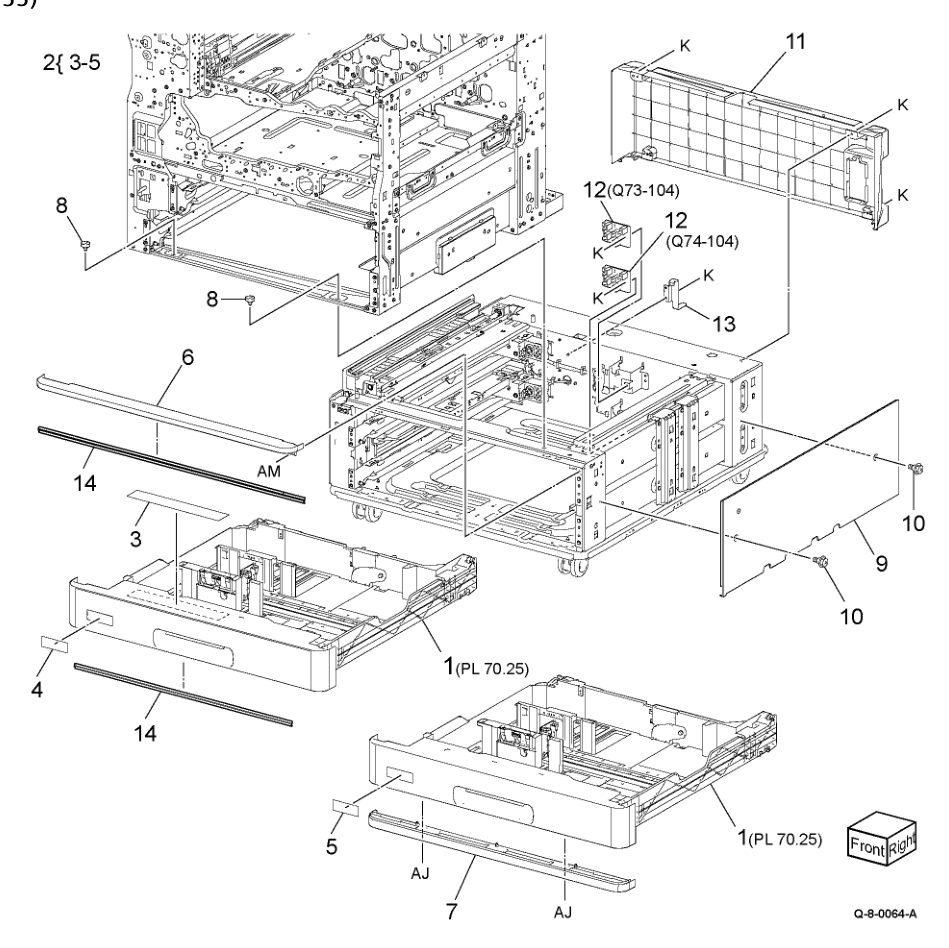

| PL 70.20 2TM Components (C8130/C8135) 1 607K10610 Tray 3 4 assembly (REF: PL 70.25) 2 - 2TM tray label kit 3 - Label (instruction) (P/O PL 70.20 Item 2) 4 - Label (No. 3) (P/O PL 70.20 Item 2) 5 - Label (No. 4) (P/O PL 70.20 Item 2) 6 - Top cover (Not Spared) 7 822E41111 Foot cover 8 - Docking screw (Not Spared) 9 822E41071 Right cover 10 - Shoulder screw (Not Spared) 11 822E41013 Rear cover 12 110K11680 Tray 3 paper size sensor (Q73- 104) / Tray 4 paper size sensor (Q74-104) 110K11680 Tray 1 Paper Size Switch Fully refurbished with 90-day warranty 110K11680 (Refurbished) $46.24 13 - Joint bracket (Not Spared) 14 - Gasket (Not Spared) |  |

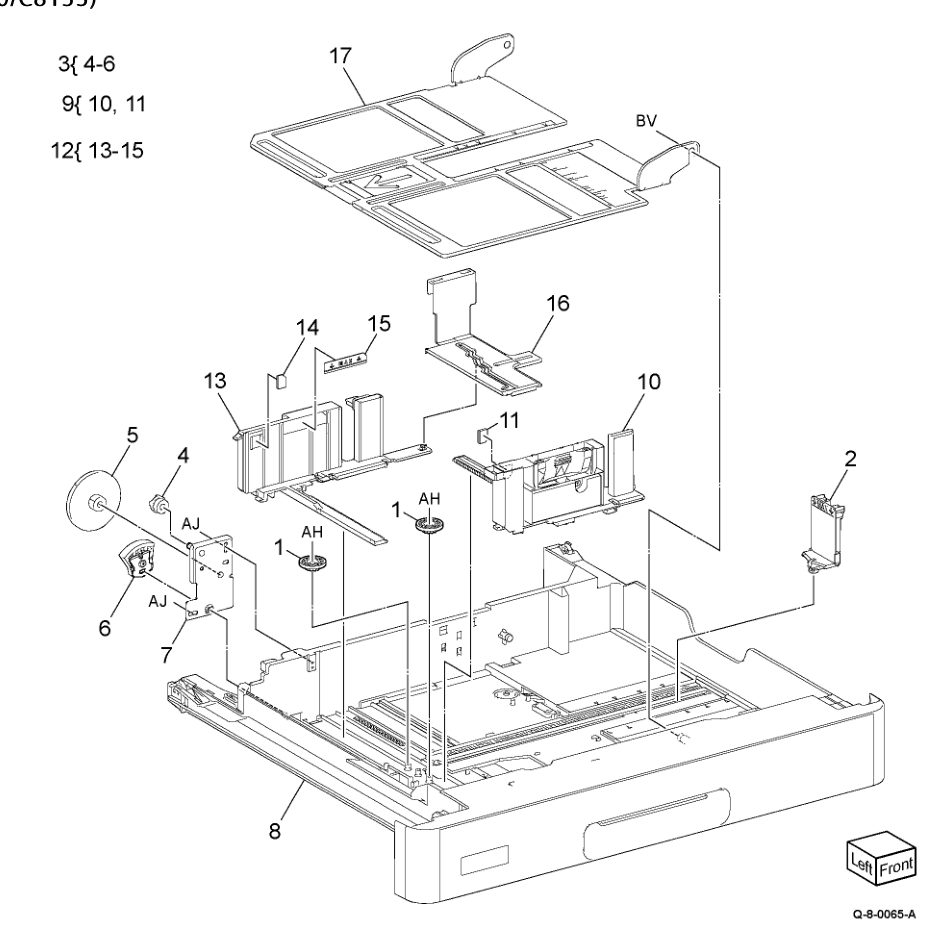

| PL 70.25 2TM Tray 3/4 Assembly (C8130/C8135) 1 807E13521 Pinion 2 607K02250 End guide kit 3 604K20542 Tray gear kit 604K20542 Kit - Tray Gear Fully refurbished with 90-day warranty 604K20542 3-4 Day Lead (Refurbished) $32.00 4 - Gear (13) (P/O PL 70.25 Item 3) 5 - Gear (13/60) (P/O PL 70.25 Item 3) 6 - Gear assembly (P/O PL 70.25 Item 3) 7 - Bracket (P/O PL 70.20 Item 1) 8 - Tray assembly (P/O PL 70.20 Item 1) 9 607K02261 Front side guide kit 10 - Front side guide (P/O PL 70.25 Item 9) 11 - Pad (P/O PL 70.25 Item 9) 12 607K02274 Rear side guide kit 13 - Rear side guide (P/O PL 70.25 Item 12) 14 - Pad (P/O PL 70.25 Item 12) 15 - Label (MAX) (P/O PL 70.25 Item 12) 16 - Side actuator (P/O PL 70.20 Item 1) 17 - Lift plate (P/O PL 70.20 Item 1) |  |

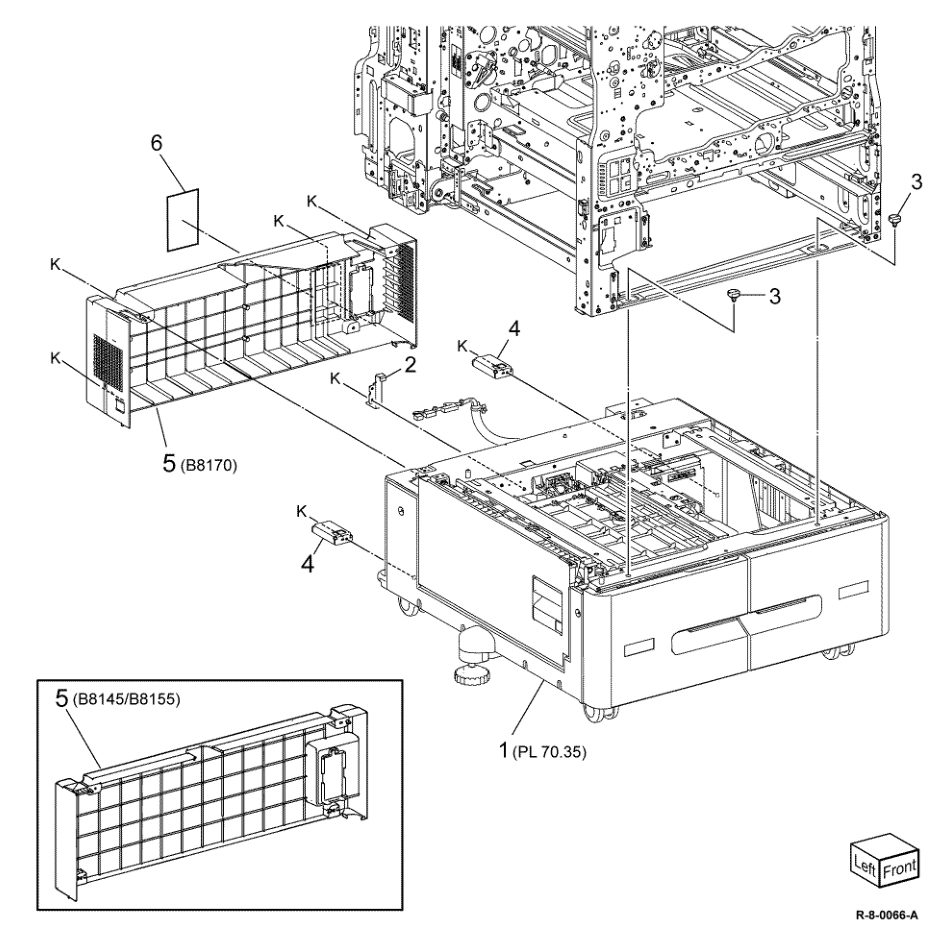

| PL 70.30 TTM Components 1 - TTM module 2 - Joint bracket (Not Spared) 3 - Docking screw (Not Spared) 4 - Cover bracket (Not Spared) 5 822E41013 Rear cover (B8145/B8155) — - Rear cover (B8170) 6 - Label (Caution) (B8170) 1 - TTM module 2 - Joint bracket (Not Spared) 3 - Docking screw (Not Spared) 4 - Cover bracket (Not Spared) 5 822E41013 Rear cover (C8130/C8135/C8145/ C8155) — - Rear cover (C8170) 6 - Label (Caution) (C8170) |  |

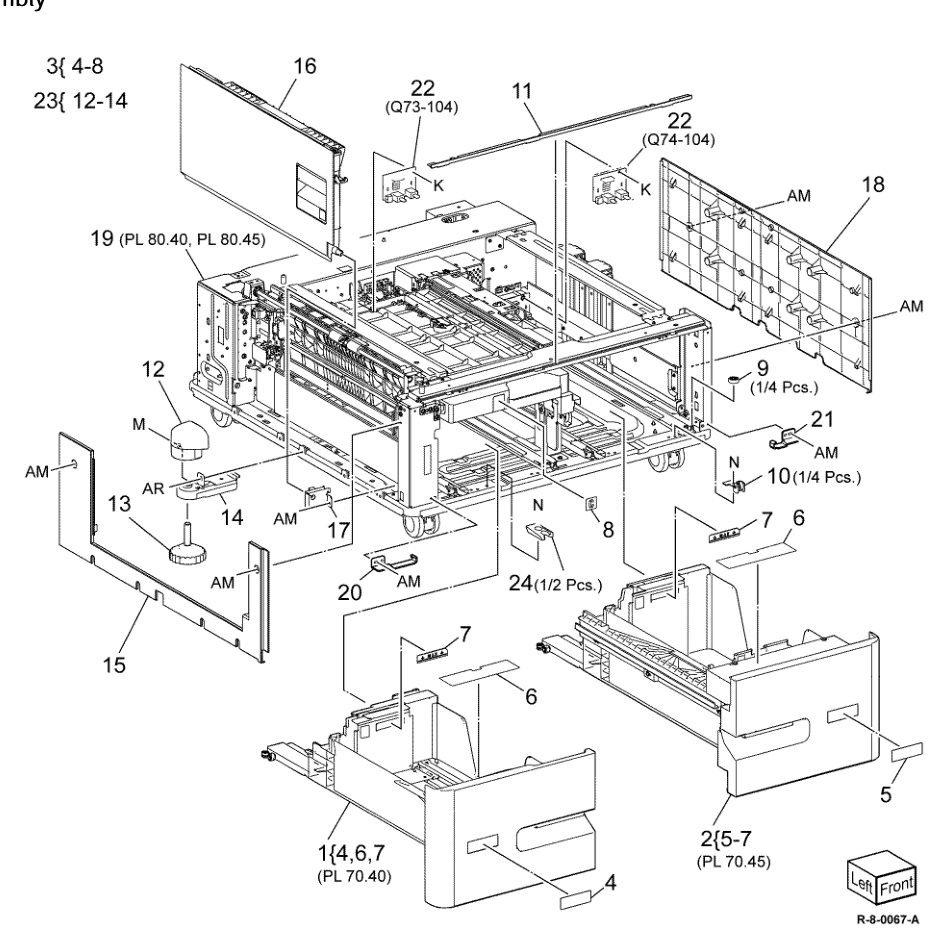

| PL 70.35 TTM Covers and Tray 3/4 Assembly 1 607K10500 TTM Tray 3 assembly 607K10500 Tray 3 Assembly - Left - TTM Fully refurbished with 90-day warranty 607K10500 (Refurbished) $238.00 2 607K10491 TTM Tray 4 assembly 607K10491 Tray 4 Assembly - Right - TTM Fully refurbished with 90-day warranty 607K10491 (Refurbished) $265.20 3 607K02290 TTM label kit 4 - Label (No. 3) (P/O PL 70.35 Item 1) 5 - Label (No. 4) (P/O PL 70.35 Item 2) 6 - Label (instruction) (P/O PL 70.35 Item 1, PL 70.35 Item 2) 7 - Label (MAX) (P/O PL 70.35 Item 1, PL 70.35 Item 2) 8 - Label (C) (Not Spared) 9 059E05060 Upper roller 10 - Roller bracket assembly (Not Spared) 11 - Top cover (Not Spared) 12 822E41860 Foot cover 13 - Adjuster foot (P/O PL 70.35 Item 23) 14 869E29540 Foot bracket 15 822E41053 Left cover 16 948K12040 Left door assembly 17 - Pivot bracket (Not Spared) 18 822E41071 Right cover 19 - TTM frame assembly (Not Spared) 20 803E25172 Left stopper 21 803E25161 Right stopper 22 110K11820 Tray 3 paper size sensor (Q73- 104)/ Tray 4 paper size sensor (Q74-104) (alternative) 110K11820 Tray 3 - Tray 4 Size Sensor Fully refurbished with 90-day warranty 110K11820 (Refurbished) $39.44 — 110K17961 Tray 3 paper size sensor (Q73- 104)/ Tray 4 paper size sensor (Q74-104) Xerox 110K17961 Tray 3 paper size sensor (Q73- 104)/ Tray 4 paper size sensor (Q74-104) New 110K17961 (New) Xerox 110K17961 Tray 3 paper size sensor (Q73- 104)/ Tray 4 paper size sensor (Q74-104) Fully refurbished with 90-day warranty 110K17961 (Refurbished) 23 - Adjuster foot assembly 24 803E01200 Tray stopper 1 607K10500 TTM Tray 3 assembly 607K10500 Tray 3 Assembly - Left - TTM Fully refurbished with 90-day warranty 607K10500 (Refurbished) $238.00 2 607K10491 TTM Tray 4 assembly 607K10491 Tray 4 Assembly - Right - TTM Fully refurbished with 90-day warranty 607K10491 (Refurbished) $265.20 3 607K02290 TTM label kit 4 - Label (No. 3) (P/O PL 70.35 Item 1) 5 - Label (No. 4) (P/O PL 70.35 Item 2) 6 - Label (instruction) (P/O PL 70.35 Item 1 PL 70.35 Item 2) 7 - Label (MAX) (P/O PL 70.35 Item 1 PL 70.35 Item 2) 8 - Label (C) (Not Spared) 9 059E05060 Upper roller 10 - Roller bracket assembly (Not Spared) 11 - Top cover (Not Spared) 12 822E41860 Foot cover 13 - Adjuster foot (P/O PL 70.35 Item 23) 14 869E29540 Foot bracket 15 822E41053 Left cover 16 948K12040 Left door assembly 17 - Pivot bracket (Not Spared) 18 822E41071 Right cover 19 - TTM frame assembly (Not Spared) 20 803E25172 Left stopper 21 803E25161 Right stopper 22 110K11820 Tray 3 paper size sensor (Q73- 104)/ Tray 4 paper size sensor (Q74-104) (alternative) 110K11820 Tray 3 - Tray 4 Size Sensor Fully refurbished with 90-day warranty 110K11820 (Refurbished) $39.44 — 110K17960 Tray 3 paper size sensor (Q73- 104)/ Tray 4 paper size sensor (Q74-104) 23 - Adjuster foot assembly 24 803E01200 Tray stopper |  |

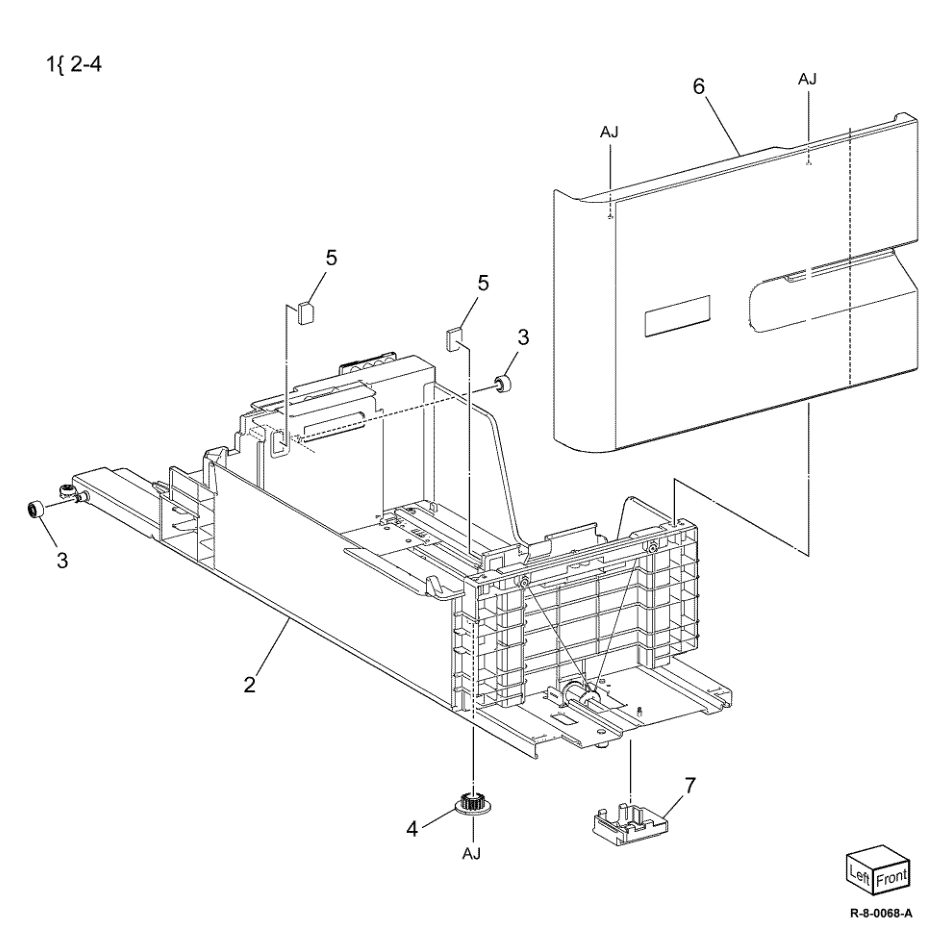

| PL 70.40 TTM Tray 3 Assembly 1 - Tray 3 chassis assembly 2 - Tray 3 chassis (P/O PL 70.40 Item 1) 3 059E13120 Upper roller 4 807E55441 Pinion 5 019E71680 Pad 6 948K01846 Tray 3 cover assembly 7 822E45010 Plate cover 1 - Tray 3 chassis assembly 2 - Tray 3 chassis (P/O PL 70.40 Item 1) 3 059E13120 Upper roller 4 807E55441 Pinion 5 019E71680 Pad 6 948K01846 Tray 3 cover assembly 7 822E45010 Plate cover |  |

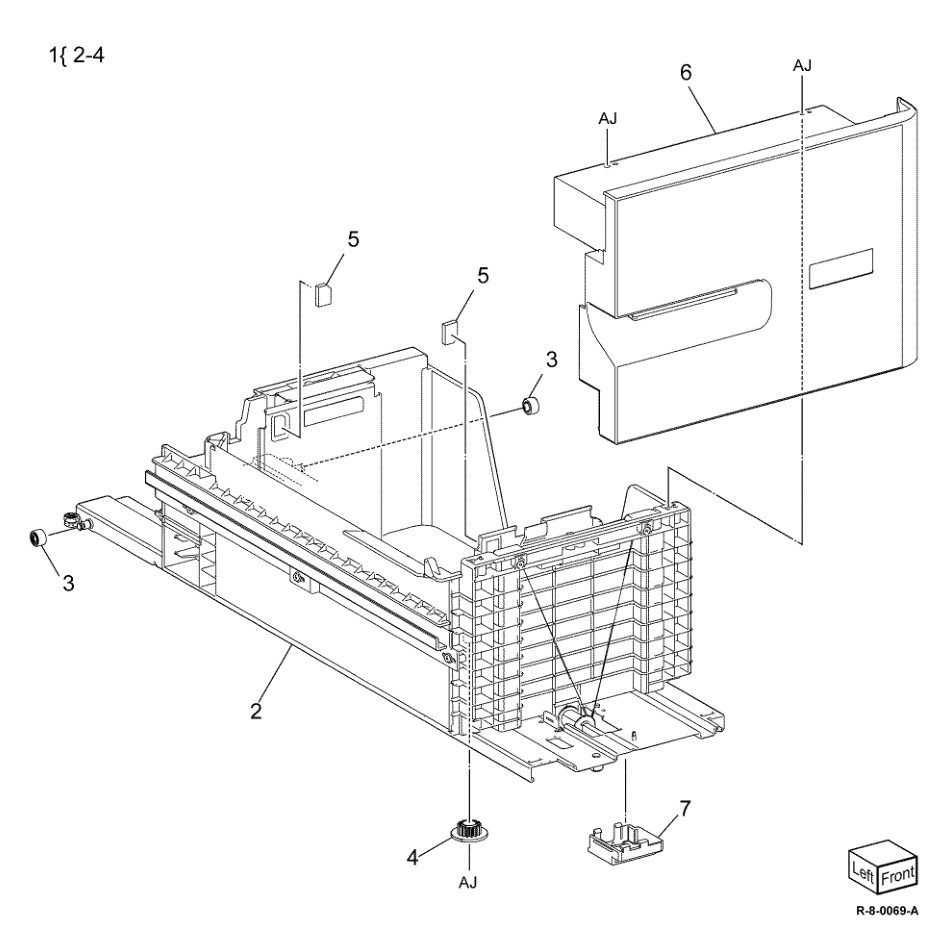

| PL 70.45 TTM Tray 4 Assembly 1 - Tray 4 chassis assembly (P/O PL 70.35 Item 2) 2 - Tray 4 chassis (P/O PL 70.45 Item 1) 3 059E13120 Upper roller 4 807E55441 Pinion 5 019E71680 Pad 6 948K01835 Tray 4 cover assembly 7 822E45010 Plate cover 1 - Tray 4 chassis assembly (P/O PL 70.35 Item 2) 2 - Tray 4 chassis (P/O PL 70.45 Item 1) 3 059E13120 Upper roller 4 807E55441 Pinion 5 019E71680 Pad 6 948K01835 Tray 4 cover assembly 7 822E45010 Plate cover |  |

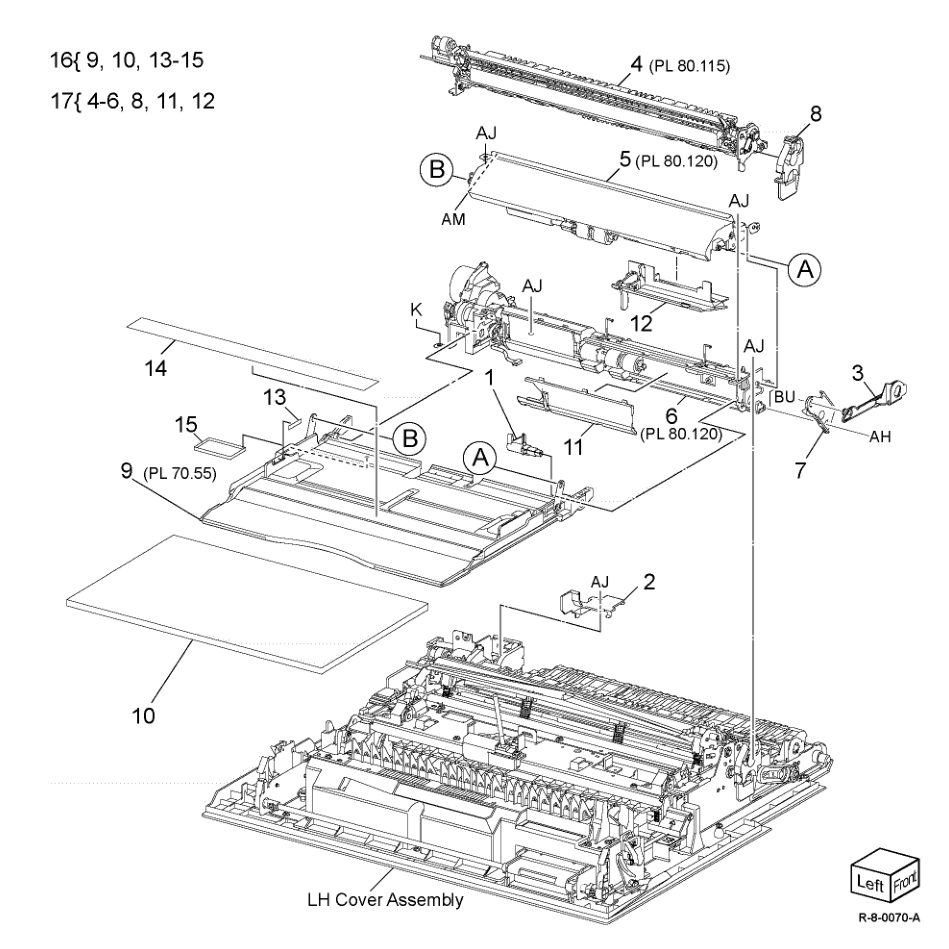

| PL 70.50 Bypass Tray Components 1 029E54810 Pivot 2 - Harness guide (Not Spared) 3 - Stopper link (Not Spared) 4 054K59296 Takeaway assembly 5 - Upper feedhead assembly (P/O PL 70.50 Item 17) 6 - Lower feedhead assembly (P/O PL 70.50 Item 17) 7 - Stopper plate (Not Spared) 8 - Knob (P/O PL 70.50 Item 17) 9 - Tray assembly (P/O PL 70.50 Item 16) 10 - Extension tray (P/O PL 70.50 Item 16) 11 - Chute front (P/O PL 70.50 Item 17) 12 - Top chute assembly (P/O PL 70.50 Item 17) 13 - Label (MAX) (P/O PL 70.50 Item 16) 14 - Label (instruction) (P/O PL 70.50 Item 16) 15 - Harness cover (P/O PL 70.50 Item 16) 16 607K10633 Bypass tray kit 17 607K15040 Bypass feeder kit 1 029E54810 Pivot 2 - Harness guide (Not Spared) 3 - Stopper link (Not Spared) 4 054K59296 Takeaway assembly 5 - Upper feedhead assembly (P/O PL 70.50 Item 17) 6 - Lower feedhead assembly (P/O PL 70.50 Item 17) 7 - Stopper plate (Not Spared) 8 - Knob (P/O PL 70.50 Item 17) 9 - Tray assembly (P/O PL 70.50 Item 16) 10 - Extension tray (P/O PL 70.50 Item 16) 11 - Chute front (P/O PL 70.50 Item 17) 12 - Top chute assembly (P/O PL 70.50 Item 17) 13 - Label (MAX) (P/O PL 70.50 Item 16) 14 - Label (instruction) (P/O PL 70.50 Item 16) 15 - Harness cover (P/O PL 70.50 Item 16) 16 607K10633 Bypass tray kit 17 607K15040 Bypass feeder kit |  |

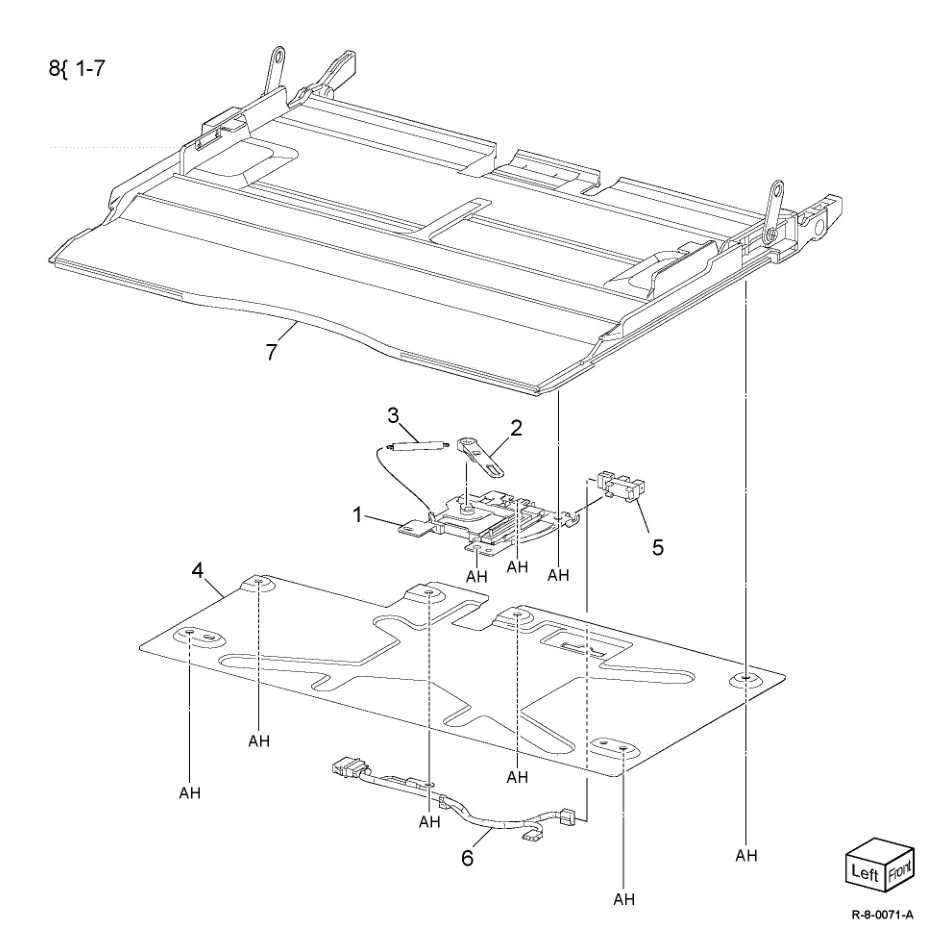

| PL 70.55 Bypass Tray Assembly 1 930K01010 Paper size sensor assembly 930K01010 Paper Size Sensor Assembly Bypass Tray Fully refurbished with 90-day warranty 930K01010 (Refurbished) 2 - Link (P/O PL 70.55 Item 8) 3 - Spring (P/O PL 70.55 Item 8) 4 - Tray plate (P/O PL 70.55 Item 8) 5 930W00113 No paper sensor (Q75-101) 6 - No paper sensor harness (P/O PL 70.55 Item 8) 7 - Bypass tray (P/O PL 70.55 Item 8) 8 050K78354 Bypass tray assembly 1 930K01010 Paper size sensor assembly 930K01010 Paper Size Sensor Assembly Bypass Tray Fully refurbished with 90-day warranty 930K01010 (Refurbished) 2 - Link (P/O PL 70.55 Item 8) 3 - Spring (P/O PL 70.55 Item 8) 4 - Tray plate (P/O PL 70.55 Item 8) 5 930W00113 No paper sensor (Q75-101) 6 - No paper sensor harness (P/O PL 70.55 Item 8) 7 - Bypass tray (P/O PL 70.55 Item 8) 8 050K78354 Bypass tray assembly |  |

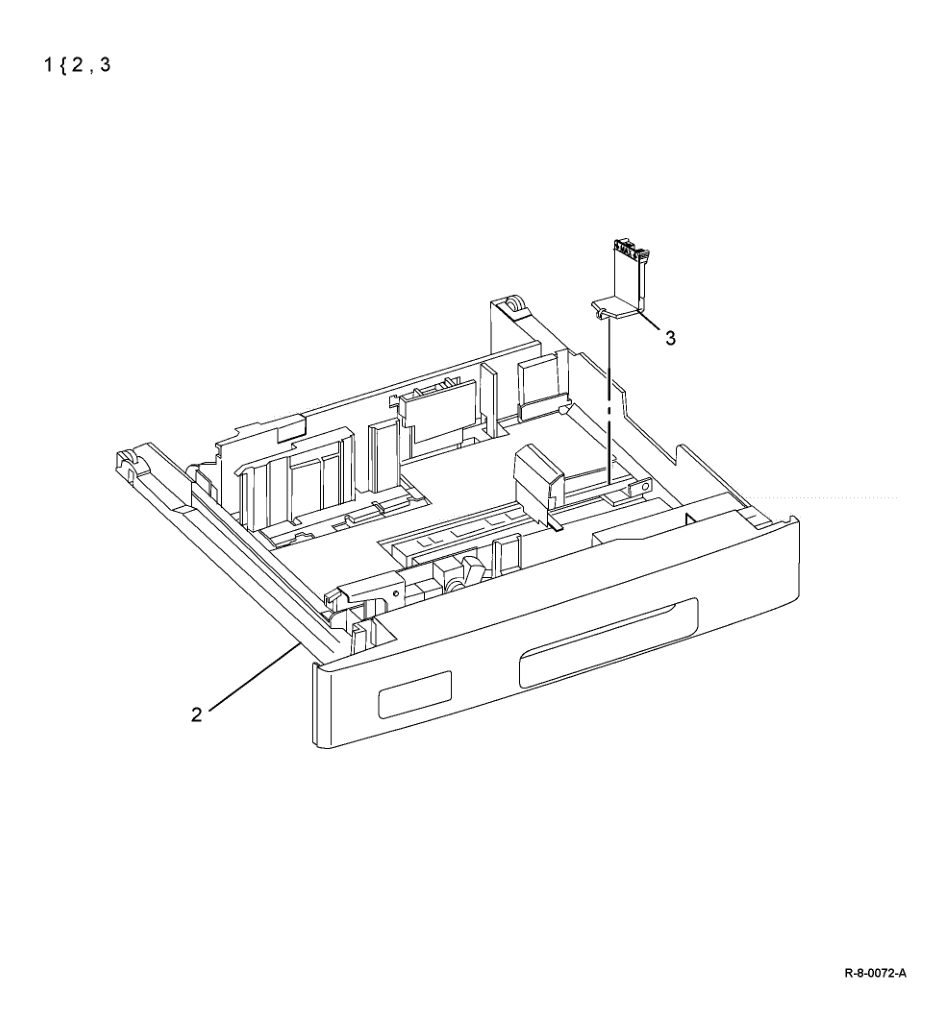

| PL 70.70 Envelope Tray 1 497K17880 Envelope tray assembly 2 - Envelope tray (P/O PL 70.70 Item 1) 3 - End guide (P/O PL 70.70 Item 1) 1 497K17880 Envelope tray assembly 2 - Envelope tray (P/O PL 70.70 Item 1) 3 - End guide (P/O PL 70.70 Item 1) |  |

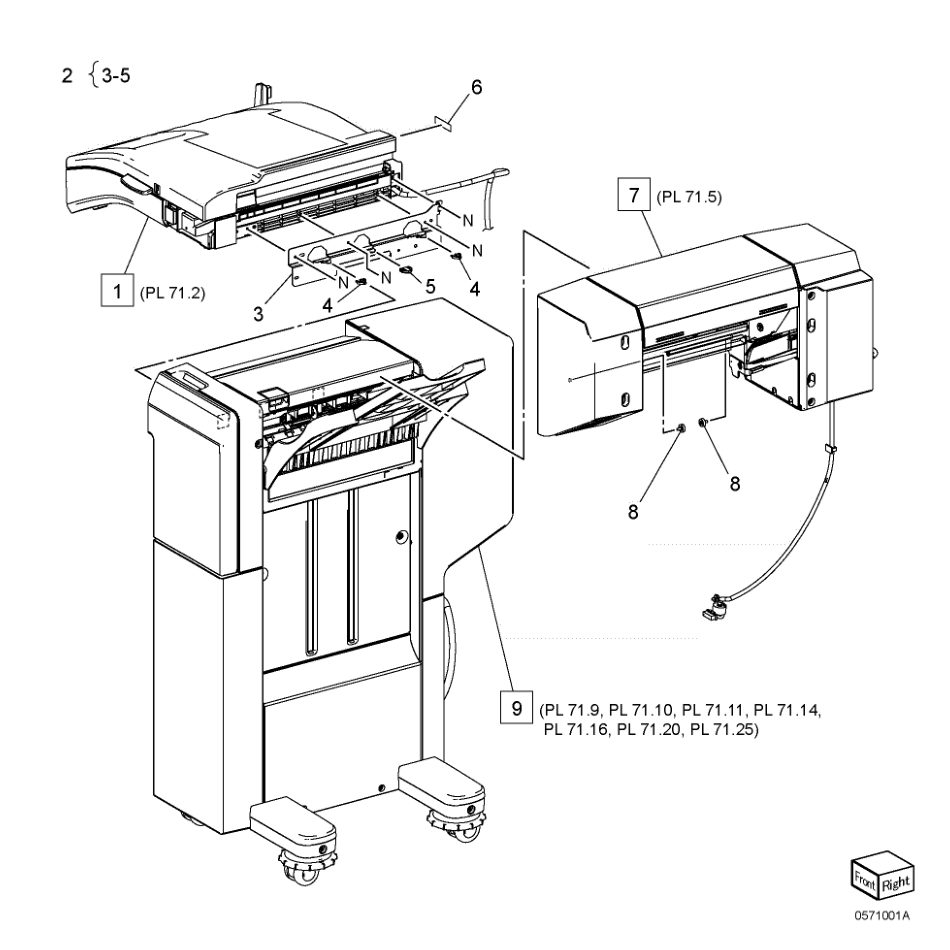

| PL 71.1 Finisher-B3 1 859K13283 H-Transport Assembly (REF: PL 71.2) 2 049K44680 Docking Bracket Assembly 3 - Docking Bracket (P/O PL 71.1 Item 2) 4 - Side Guide (P/O PL 71.1 Item 2) 5 - Center Guide (P/O PL 71.1 Item 2) 6 - Label (H-Transport Serial) 7 497K20590 Booklet Assembly (Option) (REF: PL 71.5) 497K20590 Booklet Maker Unit for Office Finisher Fully refurbished with 90-day warranty 497K20590 (Refurbished) 8 826E31870 Thumb Screw (Option) 9 - Finisher-B3 Assembly (REF: PL 71.9, PL 71.10, PL 71.11, PL 71.14, PL 71.16, PL 71.20, PL 71.25) |  |

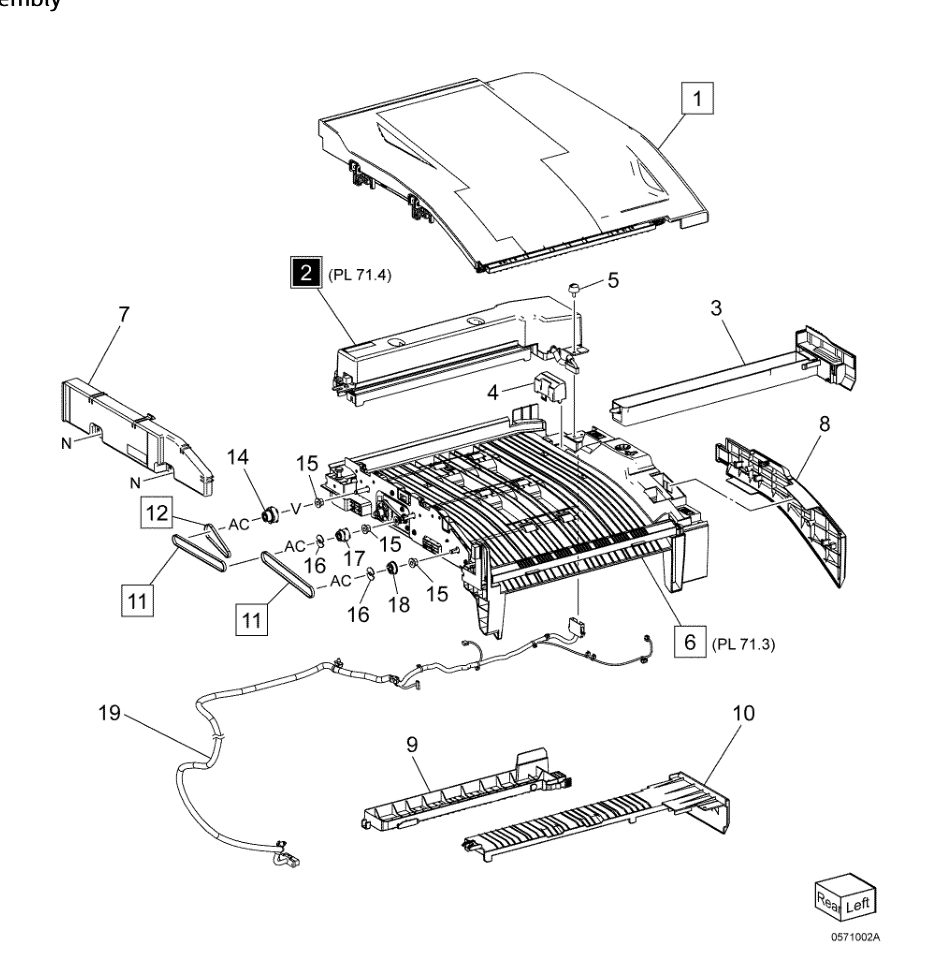

| PL 71.2 H-Transport Assembly, Punch Assembly 1 948K20940 Top Cover Assembly 2 497K20600 Punch Assembly (2/3 Hole) (Op- tion) (REF: PL 71.4) (ADJ 2.1) 497K20600 2/3 Hole Punch Unit for Office Finisher Fully refurbished with 90-day warranty 497K20600 (Refurbished) — 497K20610 Punch Assembly (2/4 Hole) (Op- tion) (REF: PL 71.4) (ADJ 2.1) Xerox 497K20610 Punch Assembly (2/4 Hole) (Op- tion) (REF: PL 71.4) (ADJ 2.1) Fully refurbished with 90-day warranty 497K20610 (Refurbished) 3 948K21970 Dust Box Cover Assembly (Option) 948K21970 Dust Box Cover Assembly H-Transport Fully refurbished with 90-day warranty 948K21970 (Refurbished) 4 822E55780 Connector Cover 5 026K81200 Thumb Screw 6 054K59882 Lower Chute Assembly (REF: PL 71.3) 7 - Rear Cover 8 822E53650 Front Cover 9 054E63081 Top Dummy Chute 10 822E53141 Lower Dummy Chute 11 423W15054 Belt 423W15054 Belt H-Transport Assembly Office Finisher Fully refurbished with 90-day warranty 423W15054 (Refurbished) 12 423W08054 Idler Belt 423W08054 Idler Belt H-Transport Assembly Office Finisher Fully refurbished with 90-day warranty 423W08054 (Refurbished) 13 - Not used 14 020K19201 Pulley (Exit) 020K19201 H-Transport Assembly Pulley Exit Office Finisher Fully refurbished with 90-day warranty 020K19201 (Refurbished) 15 413W75959 Bearing 16 - Collar 17 - Pulley (Middle) 18 - Pulley (Entrance) 19 117K50350 Wire Harness (H-Transport) |  |

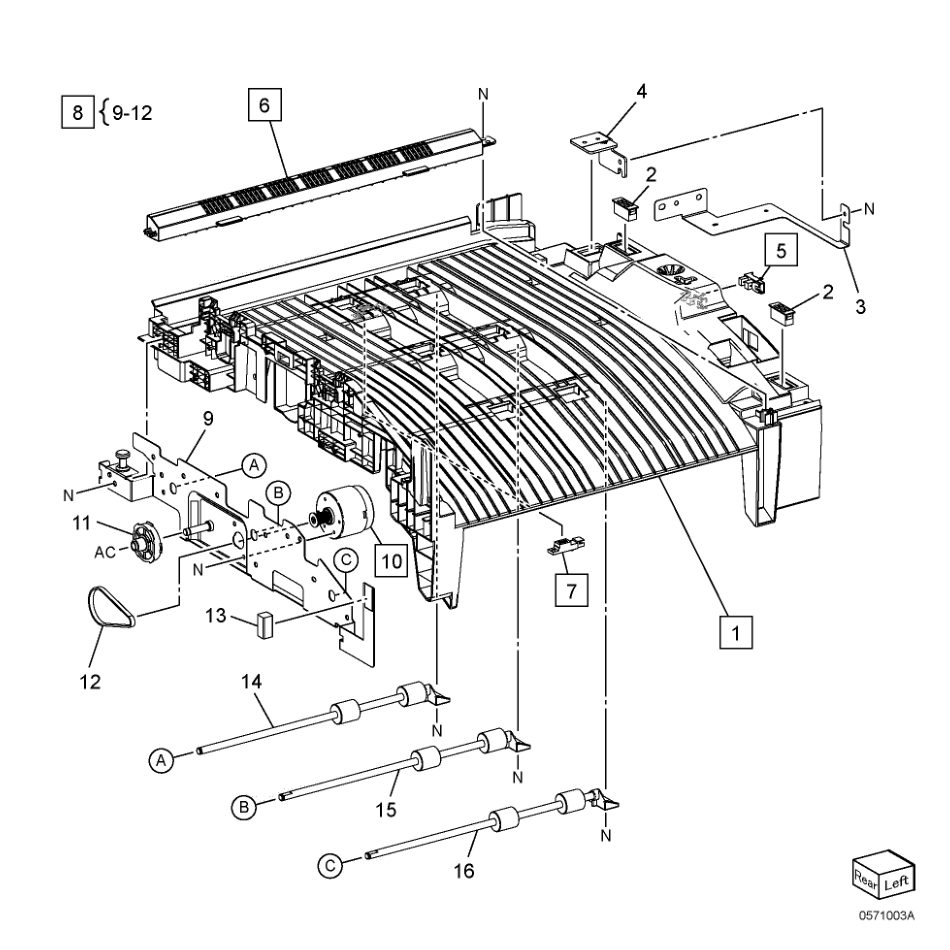

| PL 71.3 Lower Chute Assembly 1 - H-Transport Lower Chute 2 421W00101 Magnet Box 3 - Earth Ground Plate 4 - Punch Bracket 5 930W00122 H-Transport Open Sensor 6 - H-Transport In Lower Chute 7 130E21140 H-Transport Entrance Sensor 130E21140 H-Transport Entrance Sensor Office Finisher Fully refurbished with 90-day warranty 130E21140 (Refurbished) 8 049K44660 Cover Bracket Assembly 049K44660 Cover Bracket Assembly Office Finisher Fully refurbished with 90-day warranty 049K44660 (Refurbished) 9 - Drive Bracket Assembly (P/O PL 71.3 Item 8) 10 - H-Transport Motor Assembly (P/O PL 71.3 Item 8) 11 - Idler Pulley (P/O PL 71.3 Item 8) 12 - Idler Belt (P/O PL 71.3 Item 8) 13 - Shield Gasket 14 859K13651 Bearing Exit Roll Assembly 859K13651 Bearing Exit Roller Assembly Office Finisher Fully refurbished with 90-day warranty 859K13651 (Refurbished) 15 859K13151 Bearing Middle Roll Assembly 859K13151 Bearing Middle Roll Assembly Office Finisher Fully refurbished with 90-day warranty 859K13151 (Refurbished) 16 859K13131 Bearing Entrance Roll Assembly 859K13131 Bearing Entrance Roll Assembly Office Finisher Fully refurbished with 90-day warranty 859K13131 (Refurbished) |  |

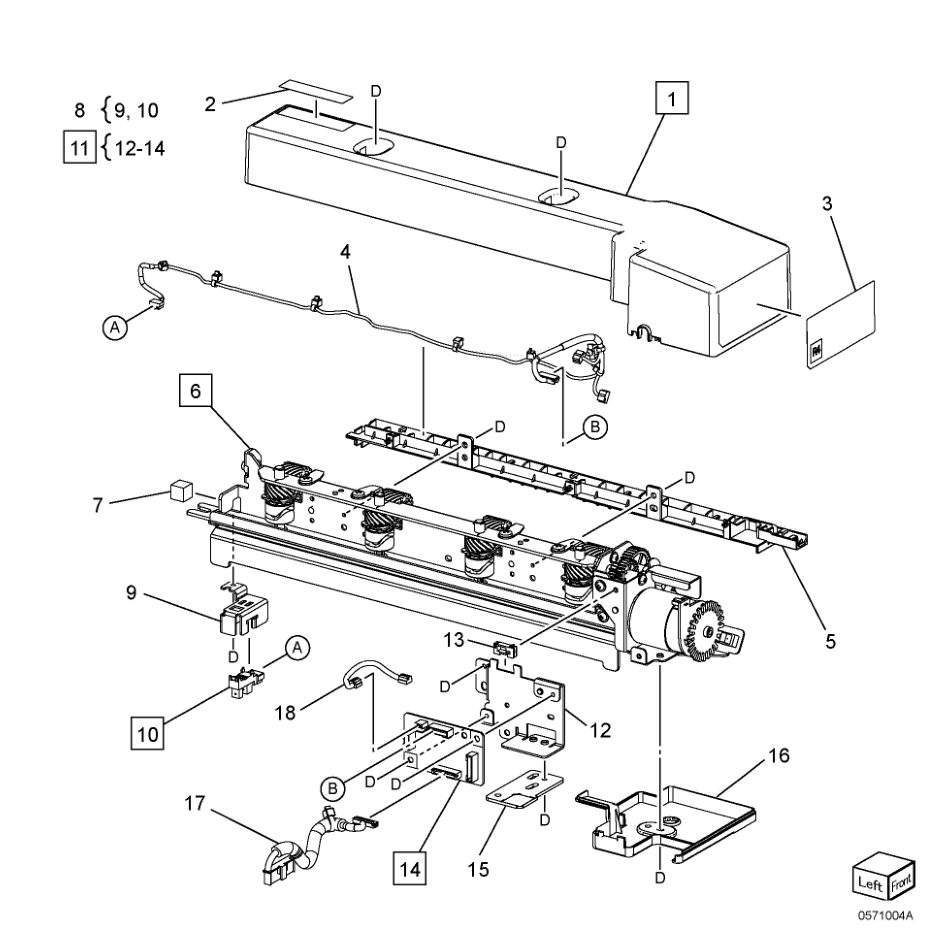

| PL 71.4 Punch Assembly (Option) 1 - Top Punch Cover 2 - Label (Punch Serial 2/4 Hole) 3 - Label (R4) 4 - Wire Harness (Punch Sensor) 5 - Punch Harness Chute 6 - Punch Frame Assembly (2/4 Hole) 7 - Shield Gasket 8 - Dust Box Set Sensor Bracket Assembly 9 - Dust Box Set Sensor Bracket (P/O PL 71.4 Item 8) 10 930W00122 Punch Dust Box Set Sensor 11 - Punch PWB Assembly 12 - Punch PWB Bracket (P/O PL 71.4 Item 11) 13 - Bush (P/O PL 71.4 Item 11) 14 - Punch PWB (P/O PL 71.4 Item 11) 15 - Docking Punch Bracket Assembly 16 - Punch Cover Motor 17 - Wire Harness (Punch Interface) 18 - Wire Harness (Punch Motor) 2A - Label (Punch Serial 2/3 Hole) 6A - Punch Frame Assembly (2/3 Hole) |  |

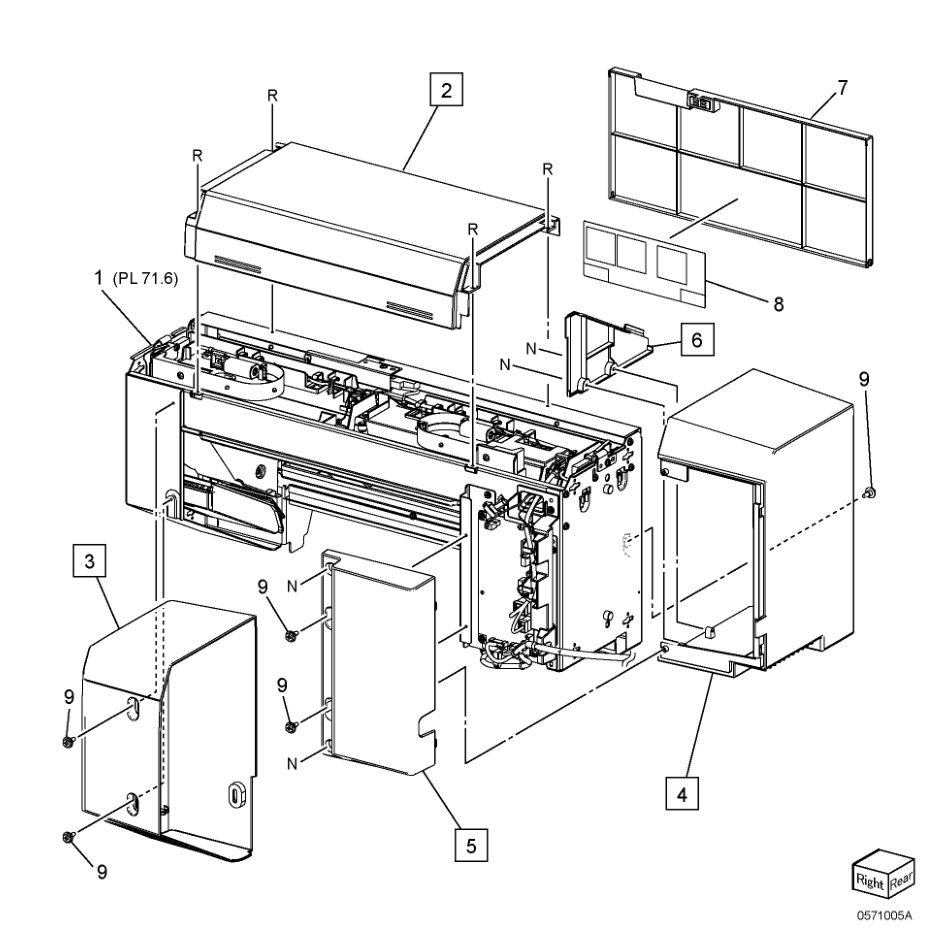

| PL 71.5 Booklet Cover (Option) 1 - Booklet Frame Unit (REF: PL 71.6) 2 - Top Cover 3 - Front Cover 4 - Rear Cover 5 - PWB Cover 6 - Rear Side Cover 7 - Left Cover Assembly 8 - Label (Book 1) 9 - Shoulder Screw |  |

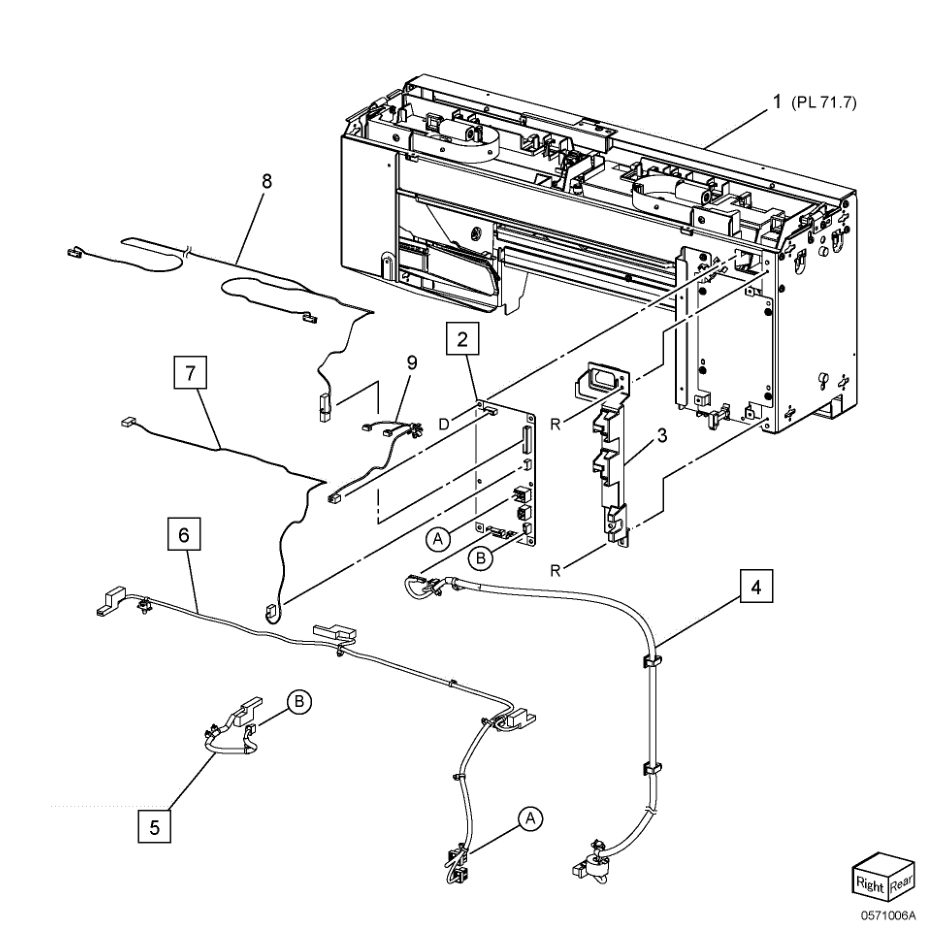

| PL 71.6 Booklet Electrical (Option) 1 - Frame Assembly (REF: PL 71.7) 2 960K92082 Booklet PWB 960K92082 Booklet PWB Office Finisher Fully refurbished with 90-day warranty 960K92082 (Refurbished) 3 - Booklet PWB Harness Guide 4 952K43250 Wire Harness (Booklet Interface) 952K43250 Wire Harness Booklet Interface Office Finisher Fully refurbished with 90-day warranty 952K43250 (Refurbished) 5 - Wire Harness (Booklet Interlock 1) 6 - Wire Harness (Booklet Interlock 2) 7 - Wire Harness (Booklet Motor) 8 - Wire Harness (Booklet Staple) 9 - Wire Harness (Booklet Sensor) |  |

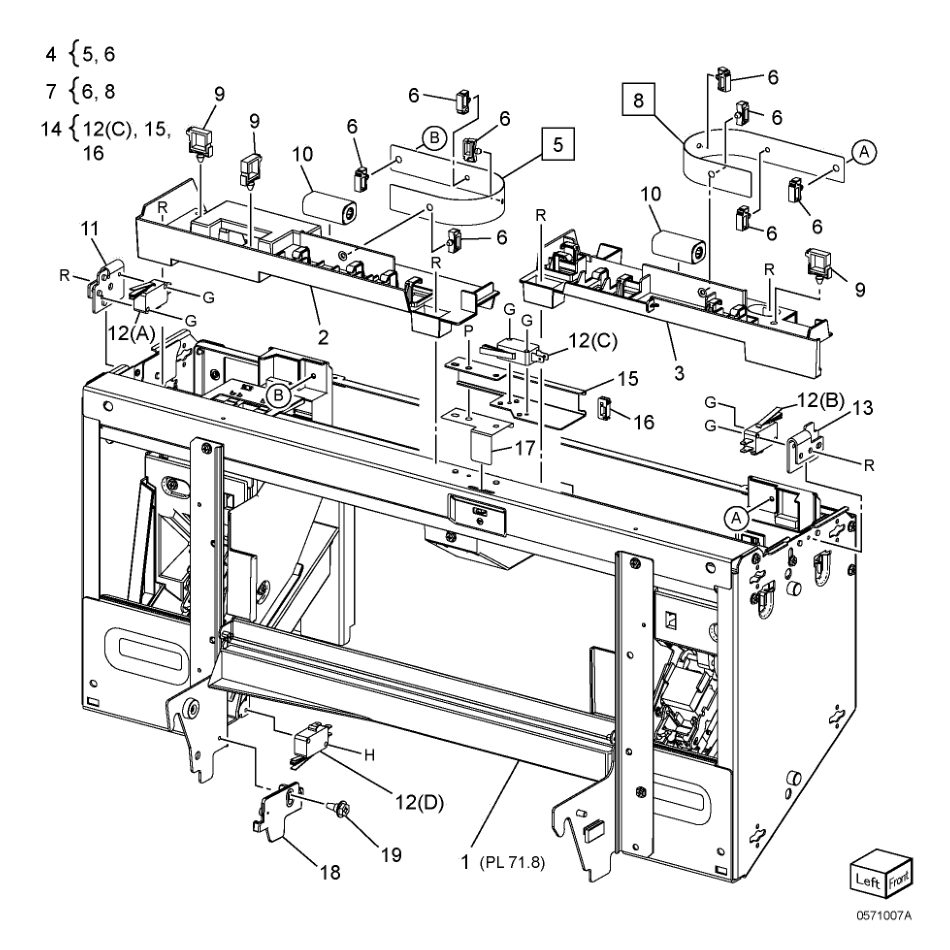

| PL 71.7 Booklet Stapler Assembly (Option) (1 of 2) 1 - Booklet Frame Assembly (REF: PL 71.8) 2 - Rear Harness Guide 3 - Front Harness Guide 4 - Rear Stapler Harness Guide Assembly 5 - Rear Stapler Harness Guide (P/O PL 71.7 Item 4) 6 - Clamp 7 - Front Stapler Harness Guide Assembly 8 - Front Stapler Harness Guide (P/O PL 71.7 Item 7) 9 - Clamp 10 - Core 11 - Rear Interlock Bracket 12 110E15060 Booklet Rear Safety Switch (A)/ Booklet Front Safety Switch (B)/ Booklet Cover Open Switch (C)/ Option Switch (D) 13 - Front Interlock Bracket 14 - Booklet Interlock Bracket Assembly 15 - Booklet Interlock Bracket (P/O PL 71.7 Item 14) 16 - Bush (P/O PL 71.7 Item 14) 17 - Switch Plate 18 120E39372 Interlock Actuator 120E39372 Interlock Actuator Office Finisher Fully refurbished with 90-day warranty 120E39372 (Refurbished) 19 - Shoulder Screw |  |

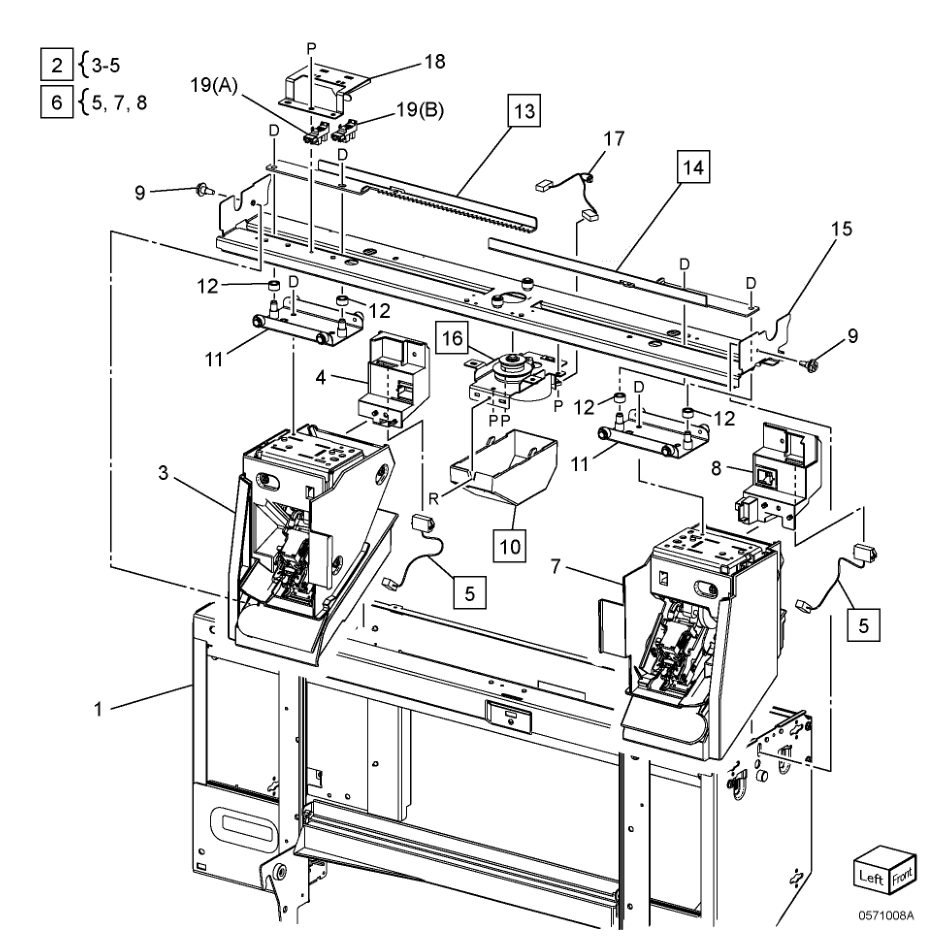

| PL 71.8 Booklet Stapler Assembly (Option) (2 of 2) 1 - Booklet Frame 2 029K93591 Rear Stapler Assembly 3 - Rear Stapler Bracket Assembly (P/ O PL 71.8 Item 2) 4 - Rear Booklet Stapler Harness Guide (P/O PL 71.8 Item 2) 5 - Wire Harness (Booklet Stapler Ex- it) (P/O PL 71.8 Item 2) 6 029K93581 Front Stapler Assembly 7 - Front Stapler Bracket Assembly (P/ O PL 71.8 Item 6) 8 - Front Booklet Stapler Harness Guide (P/O PL 71.8 Item 6) 9 - Shoulder Screw 10 - Center Cover 11 - Carriage Assembly 12 - Core 13 - Rear Rack Gear 14 - Front Rack Gear 15 - Carriage Rail Assembly 16 - Booklet Staple Move Motor As- sembly 17 962K64630 Wire Harness (Booklet Staple Move Motor) 18 - Sensor Bracket 19 930W00122 Booklet Stapler Move Home Sen- sor (A)/ Booklet Stapler Move Posi- tion Sensor (B) |  |

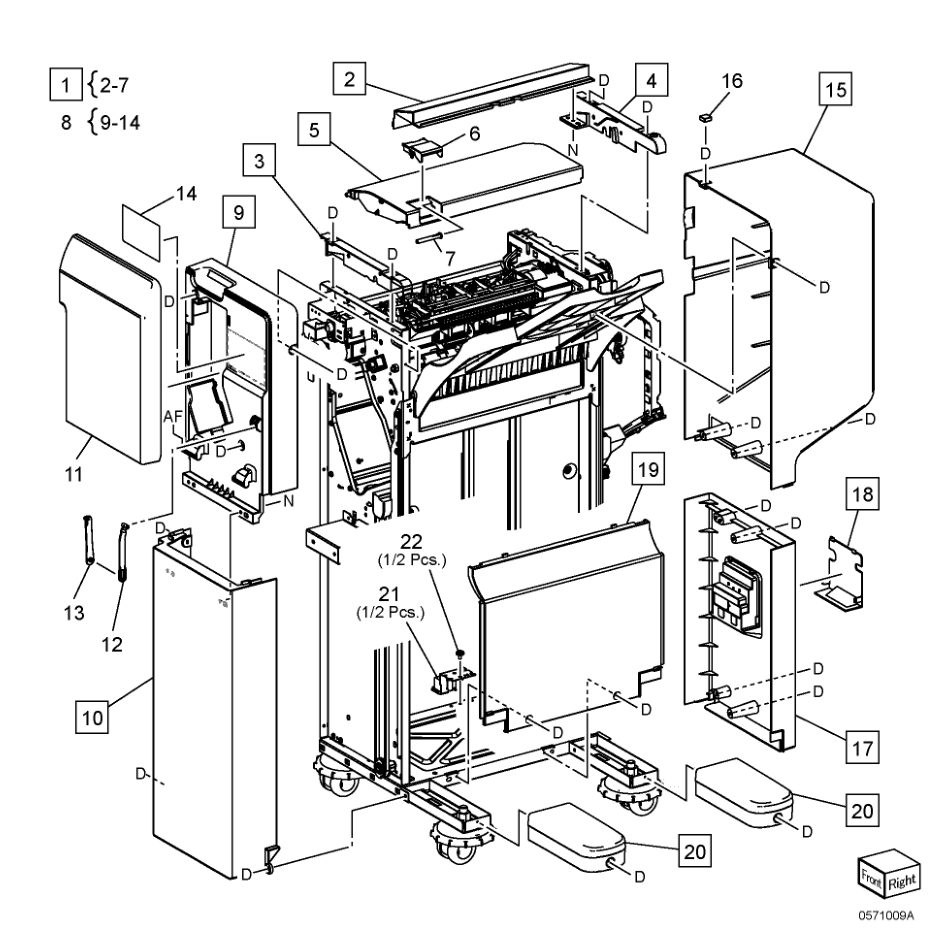

| PL 71.9 Finisher Cover 1 948K20552 Top Cover Assembly 948K20552 Top Cover Assembly Office Finisher Fully refurbished with 90-day warranty 948K20552 (Refurbished) 2 - LH Top Cover (P/O PL 71.9 Item 1) 3 - Front Top Cover (P/O PL 71.9 Item 1) 4 - Rear Top Cover (P/O PL 71.9 Item 1) 5 - RH Top Cover (P/O PL 71.9 Item 1) 6 - Eject Top Lever (P/O PL 71.9 Item 1) 7 - Top Lever Shaft (P/O PL 71.9 Item 1) 8 948K20560 Front Cover Assembly 948K20560 Front Cover Assembly Office Finisher Fully refurbished with 90-day warranty 948K20560 (Refurbished) 9 - Front Inner Cover (P/O PL 71.9 Item 8) 10 - Front Lower Cover (P/O PL 71.9 Item 8) 11 - Door Cover Assembly (P/O PL 71.9 Item 8) 12 822E24391 Strip C1 13 822E24401 Strip C2 14 - Label (Caution) 15 - Rear Upper Cover 16 - Cap Screw 17 - Rear Lower Cover 18 - Connector Cover 19 - RH Cover 20 - Foot Cover 21 815K22210 VCCI Plate Assembly 815K22210 VCCI Plate Assembly Office Finisher Fully refurbished with 90-day warranty 815K22210 (Refurbished) 22 - Docking Screw |  |

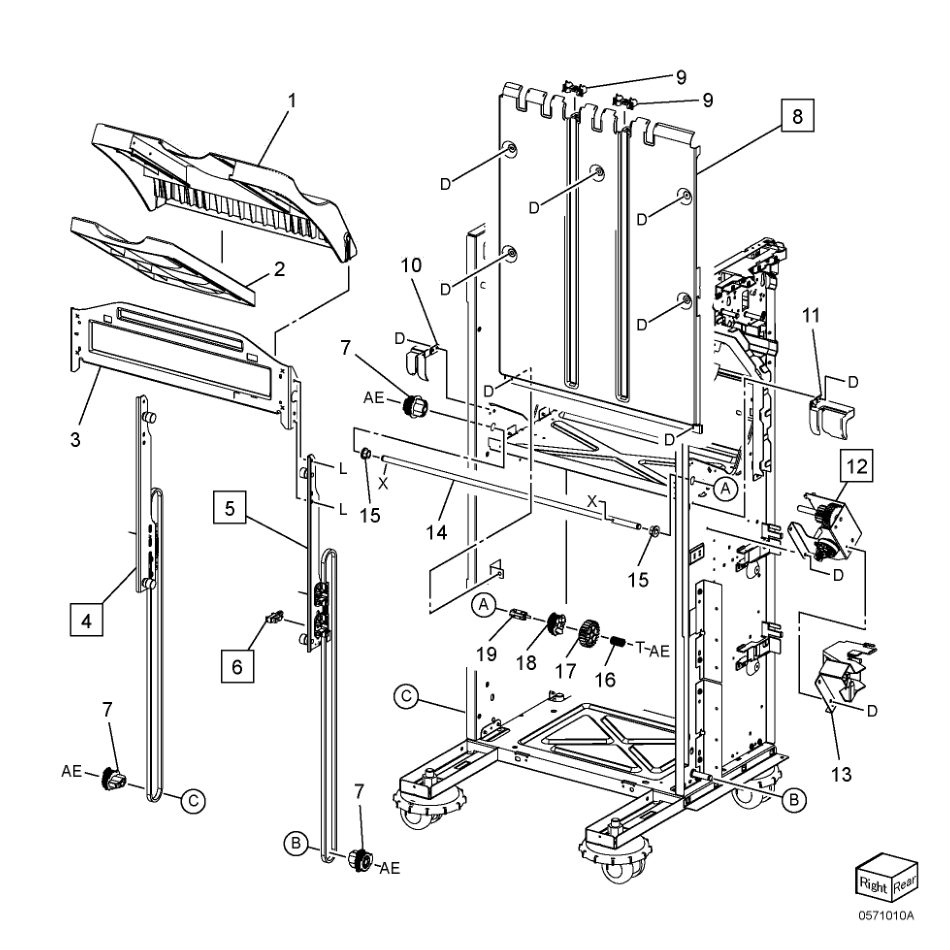

| PL 71.10 Stacker Assembly 1 050E33870 Stacker Tray 2 050E27481 Extension Tray 3 - Carriage Tray Assembly 4 041K96720 Front Clamp Belt Carriage Assem- bly 041K96720 Front Clamp Belt Carriage Assembly Office Finisher New 041K96720 (New) 3-4 Day Lead $96.56 041K96720 Front Clamp Belt Carriage Assembly Office Finisher Fully refurbished with 90-day warranty 041K96720 (Refurbished) 5 041K96740 Rear Clamp Belt Carriage Assem- bly 041K96740 Rear Clamp Belt Carriage Assembly Office Finisher New 041K96740 (New) 3-4 Day Lead $102.00 041K96740 Rear Clamp Belt Carriage Assembly Office Finisher Fully refurbished with 90-day warranty 041K96740 (Refurbished) 6 930W00122 Stacker Home Sensor 7 - Pulley (T18) 8 - Tray Guide 9 032E51562 Roller Guide 10 - Front Pulley Cover 11 - Rear Pulley Cover 12 127K77832 Stacker Motor Assembly 127K77832 Stacker Motor Assembly Office Finisher Fully refurbished with 90-day warranty 127K77832 (Refurbished) 13 - Lower Harness Guide 14 - Shaft 15 - Bearing 16 - Spring 17 - Gear 18 - Pulley 19 - Stopper |  |

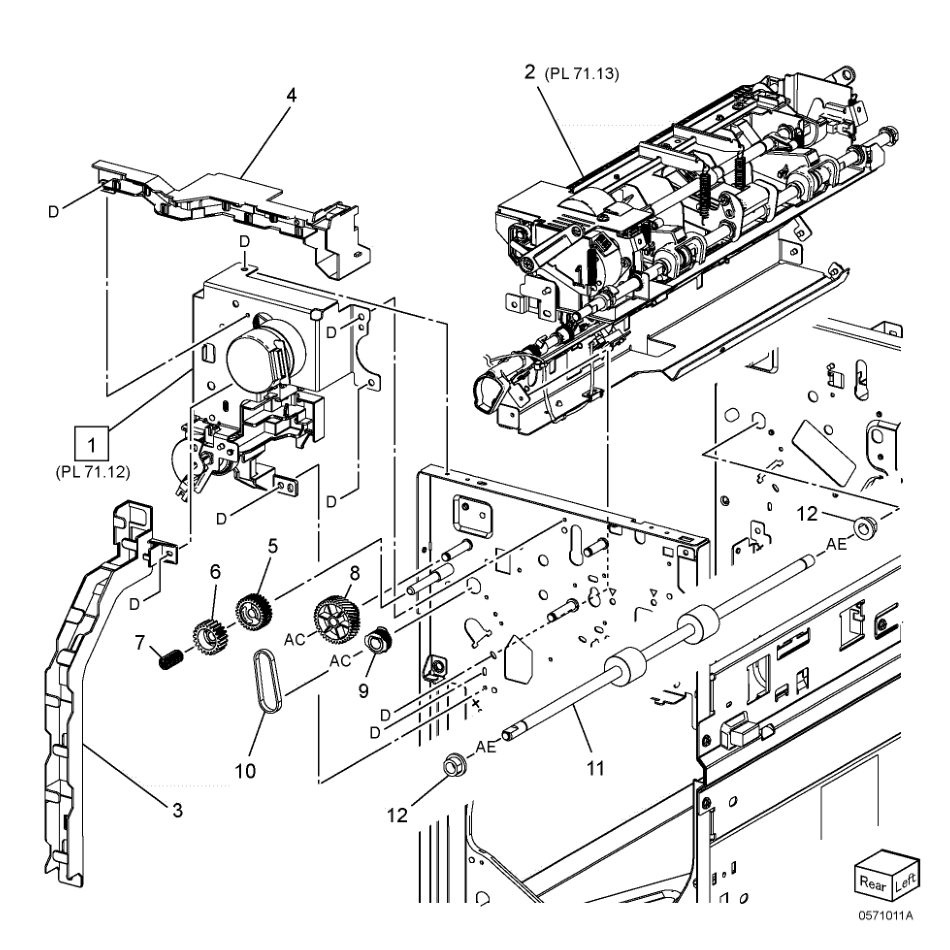

| PL 71.11 Eject Assembly 1 049K44380 Eject Motor Drive Bracket Assem- bly (REF: PL 71.12) 049K44380 Eject Motor Drive Bracket Assembly Office Finisher New 049K44380 (New) 3-4 Day Lead $212.16 049K44380 Eject Motor Drive Bracket Assembly Office Finisher Fully refurbished with 90-day warranty 049K44380 (Refurbished) 2 054K62970 Eject Assembly (REF: PL 71.13) 3 - Upper Harness Guide 4 - Interlock Harness Guide 5 807E60770 Gear (Z28) 6 807E60780 Gear (Z21) 7 899E21521 Spring 8 807E60480 Gear (Z37/T22) 9 020E53610 Pulley (T25) 10 423W05455 Belt 11 859K13090 Eject Roller Assembly 859K13090 Eject Roller Assembly Office Finisher Fully refurbished with 90-day warranty 859K13090 (Refurbished) 12 - Bearing |  |

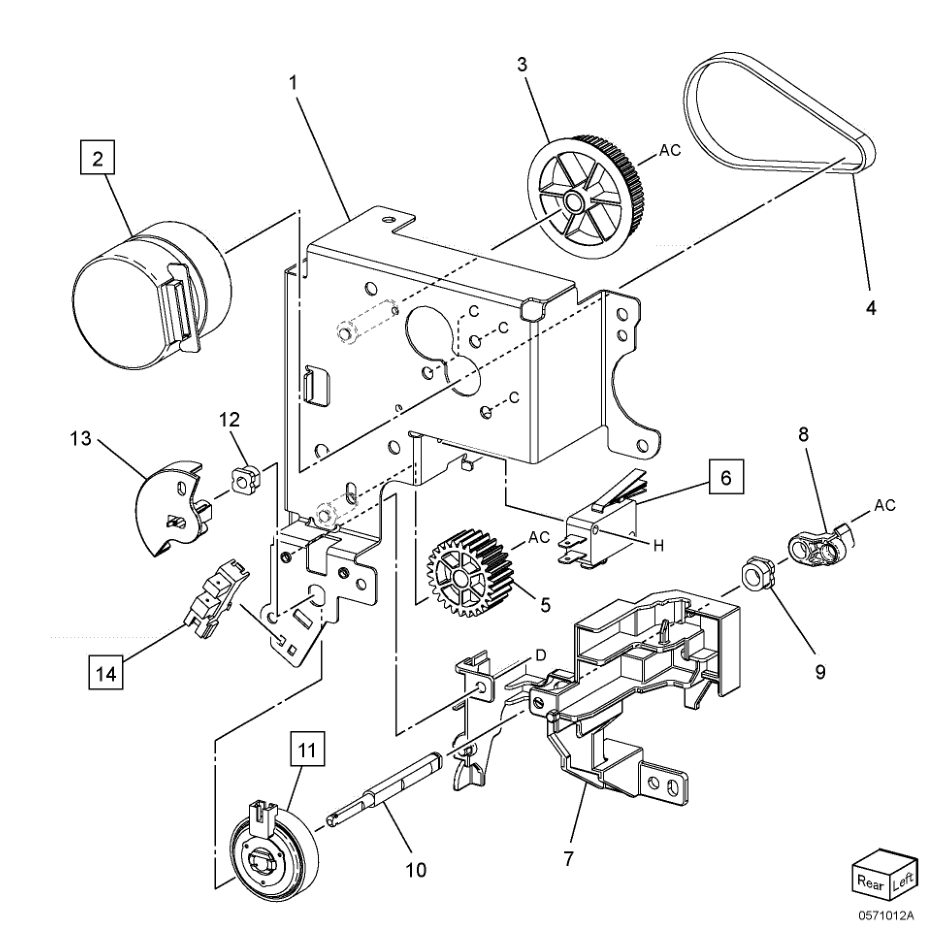

| PL 71.12 Eject Motor Drive Assembly 1 - Eject Drive Bracket Assembly 2 127K76510 Eject Motor Assembly 127K76510 Eject Motor Assembly Office Finisher Fully refurbished with 90-day warranty 127K76510 (Refurbished) 3 - Pulley (T63/Z24) 4 - Belt 5 - Gear (Z26) 6 110E15060 Eject Cover Switch 7 - Clutch Cover 8 - Clamp Set Link 9 413W14660 Bearing 10 - Link Shaft 11 005K84450 Set Clamp Clutch Assembly 12 - Bearing 13 120E39352 Set Clamp Home Actuator 120E39352 Set Clamp Home Actuator Office Finisher Fully refurbished with 90-day warranty 120E39352 (Refurbished) 14 930W00122 Set Clamp Home Sensor |  |

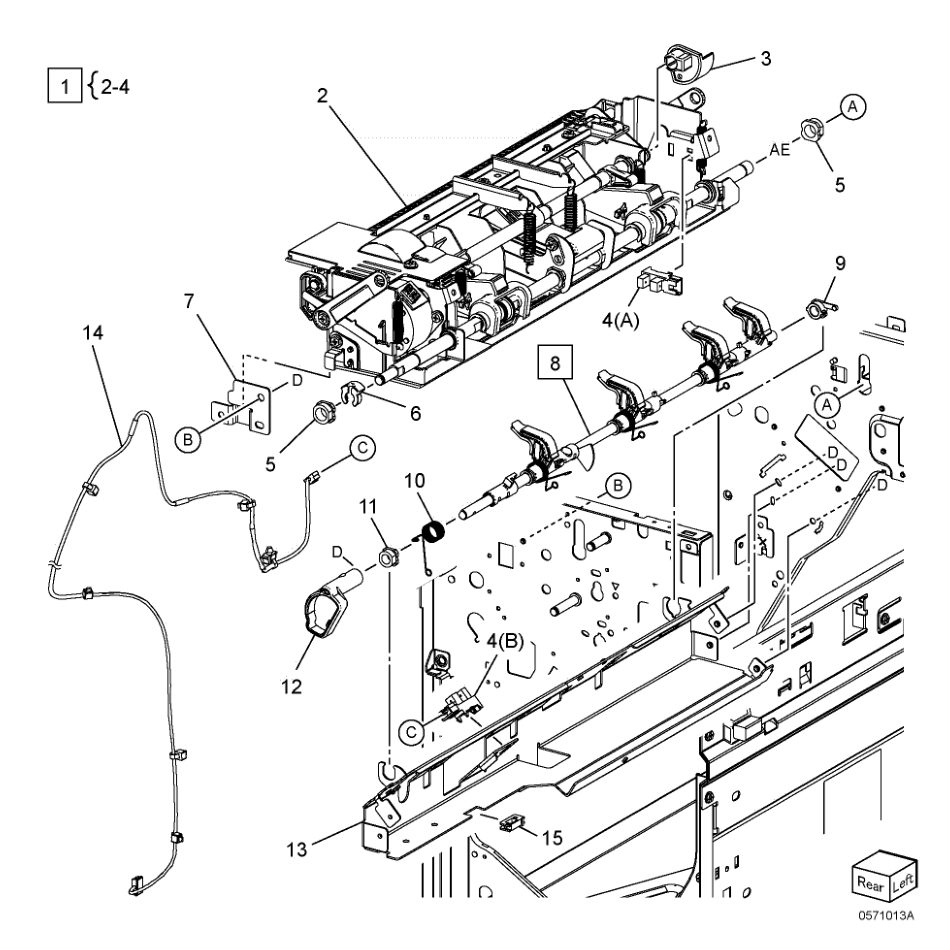

| PL 71.13 Eject Chute Assembly 1 - Eject Chute Assembly 2 - Eject Clamp Assembly (P/O PL 71.13 Item 1) 3 - Sub Paddle Actuator (P/O PL 71.13 Item 1) 4 930W00122 Eject Cam Home Sensor (A)/ Stacker Height Sensor (B) 5 - Bearing 6 - KL-Clip (6) 7 - Interlock Guide 8 006K35810 Set Clamp Main Shaft Assembly 006K35810 Set Clamp Main Shaft Assembly Fully refurbished with 90-day warranty 006K35810 (Refurbished) 9 013E40770 TA Bearing 013E40770 Eject Chute TA Bearing Office Finisher Fully refurbished with 90-day warranty 013E40770 (Refurbished) 10 006K35201 Set Clamp Spring Shaft 11 413W14660 Bearing 12 - Set Clamp Holder 13 - Set Clamp Bracket 14 - Wire Harness (Sensor 2) 15 - Bush |  |

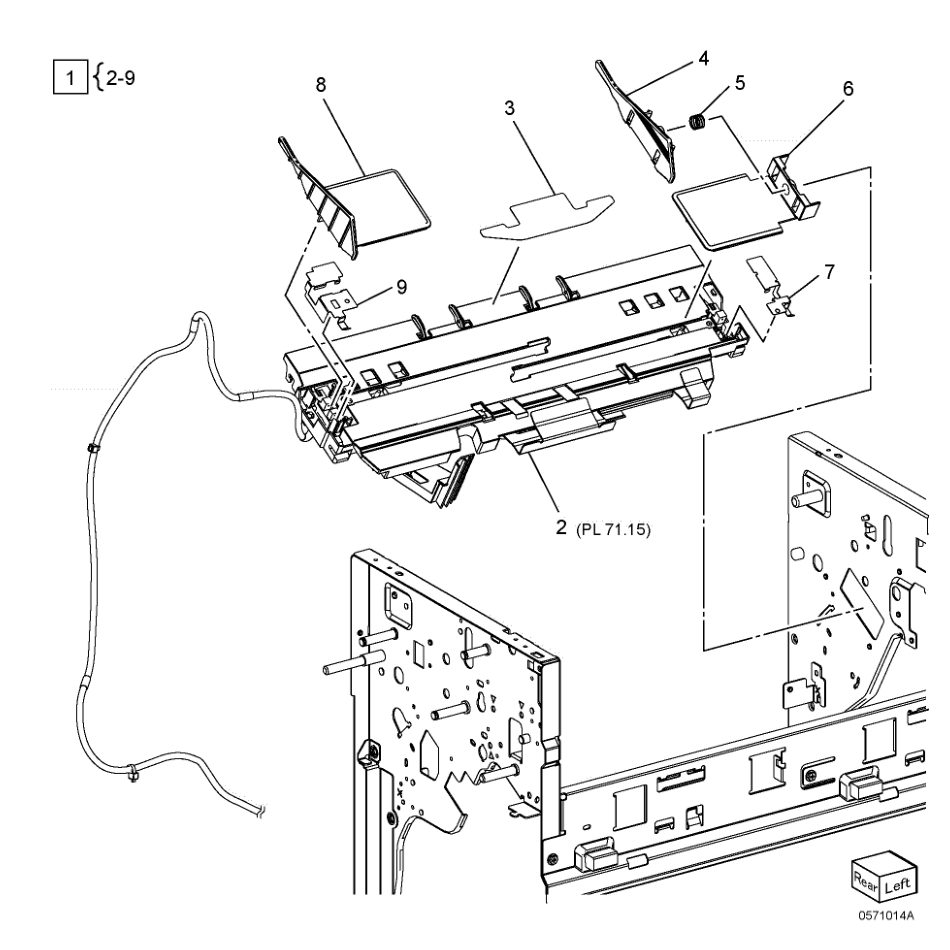

| PL 71.14 Compile Tray Assembly (1 of 2) 1 050K78310 Compile Tray Assembly 050K78310 Compile Tray Assembly Office Finisher Fully refurbished with 90-day warranty 050K78310 (Refurbished) 2 - Compile Guide Tray (REF: PL 71.15, PL 71.15 Item 1) 3 - Lower Eject Guide (P/O PL 71.14 Item 1) 4 - Front Tamper Guide (P/O PL 71.14 Item 1) 5 - Spring (P/O PL 71.14 Item 1) 6 - Front Tamper Base (P/O PL 71.14 Item 1) 7 - Front Earth Plate (P/O PL 71.14 Item 1) 8 - Rear Tamper Base (P/O PL 71.14 Item 1) 9 - Rear Earth Plate (P/O PL 71.14 Item 1) |  |

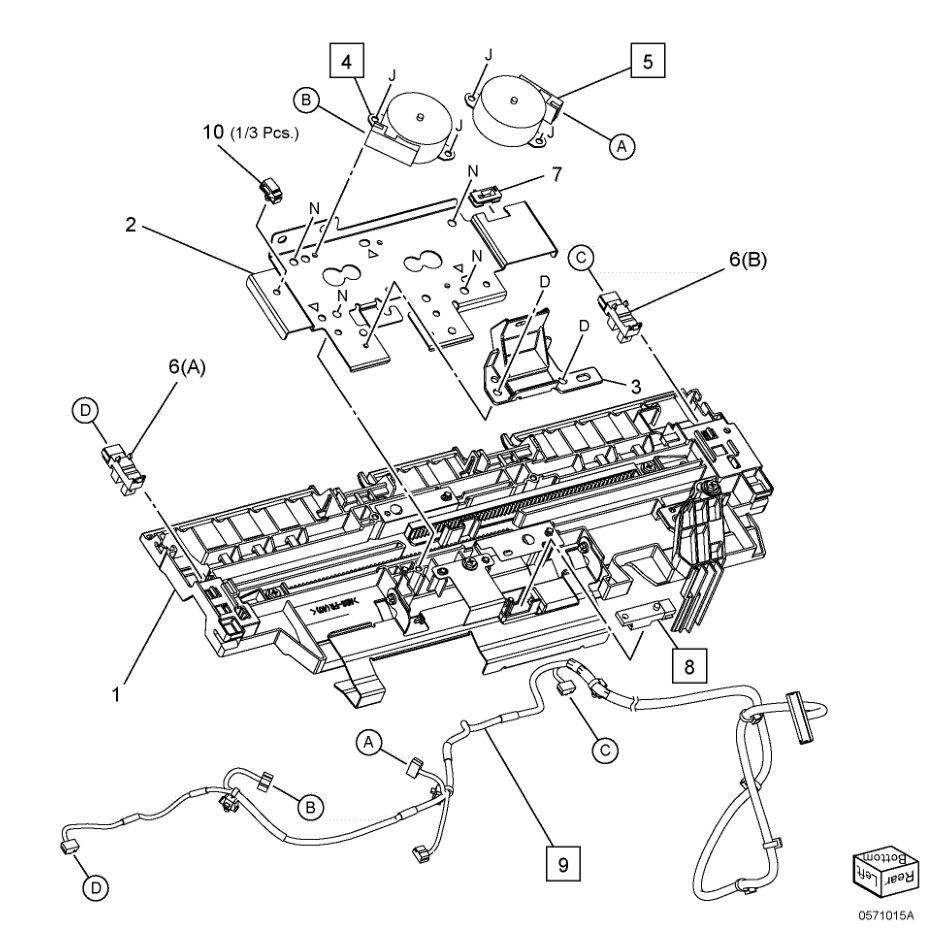

| PL 71.15 Compile Tray Assembly (2 of 2) 1 - Compile Tray 2 - Tamper Motor Bracket 3 - Compile Guide 4 - Rear Tamper Motor Assembly 5 - Front Tamper Motor Assembly 6 930W00122 Front Tamper Home Sensor (A)/ Rear Tamper Home Sensor (B) 7 - Bush 8 130E21140 Compile Tray No Paper Sensor 130E21140 H-Transport Entrance Sensor Office Finisher Fully refurbished with 90-day warranty 130E21140 (Refurbished) 9 - Wire Harness (Compile) 10 - Clamp |  |

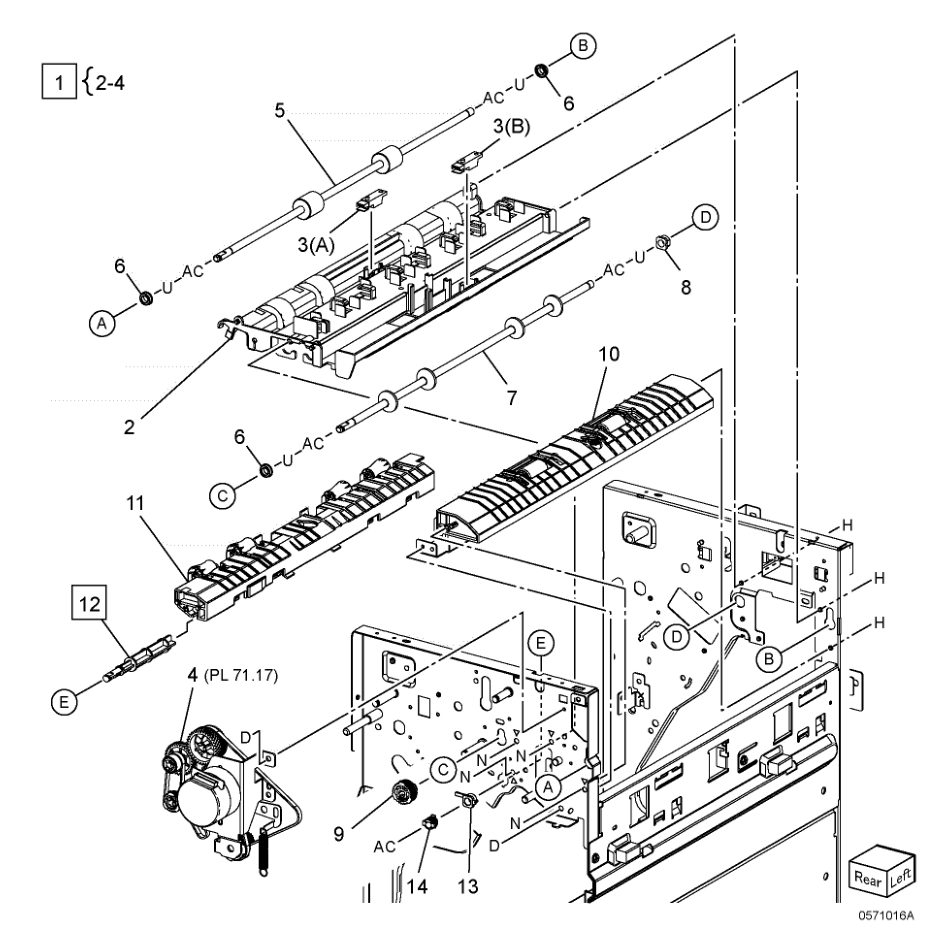

| PL 71.16 Transport Assembly 1 054K59750 Upper Chute Assembly 2 - Upper Entrance Chute Assembly (P/O PL 71.16 Item 1) 3 130E21140 Compile Exit Sensor (A)/ Finisher Entrance Sensor (B) 130E21140 H-Transport Entrance Sensor Office Finisher Fully refurbished with 90-day warranty 130E21140 (Refurbished) 4 859K23380 Transport Main Drive Assembly (REF: PL 71.17) 859K23380 Transport Main Drive Assembly Office Finisher Fully refurbished with 90-day warranty 859K23380 (Refurbished) 5 859K13051 Entrance Roll Assembly 859K13051 Entrance Roll Assembly Office Finisher Fully refurbished with 90-day warranty 859K13051 (Refurbished) 6 - Bearing 7 859K13063 Exit Roll Assembly 859K13063 Roll Assembly Exit Office Finisher Fully refurbished with 90-day warranty 859K13063 (Refurbished) 8 413W14660 Bearing 9 - Pulley (T30) 10 054K59760 Lower Entrance Chute Assembly 054K59760 Lower Entrance Chute Assembly Fully refurbished with 90-day warranty 054K59760 (Refurbished) 11 054K59770 Lower Exit Chute Assembly 12 806E51680 Main Paddle Shaft 13 013E40770 TA Bearing 013E40770 Eject Chute TA Bearing Office Finisher Fully refurbished with 90-day warranty 013E40770 (Refurbished) 14 020E49970 Main Idler Pulley |  |

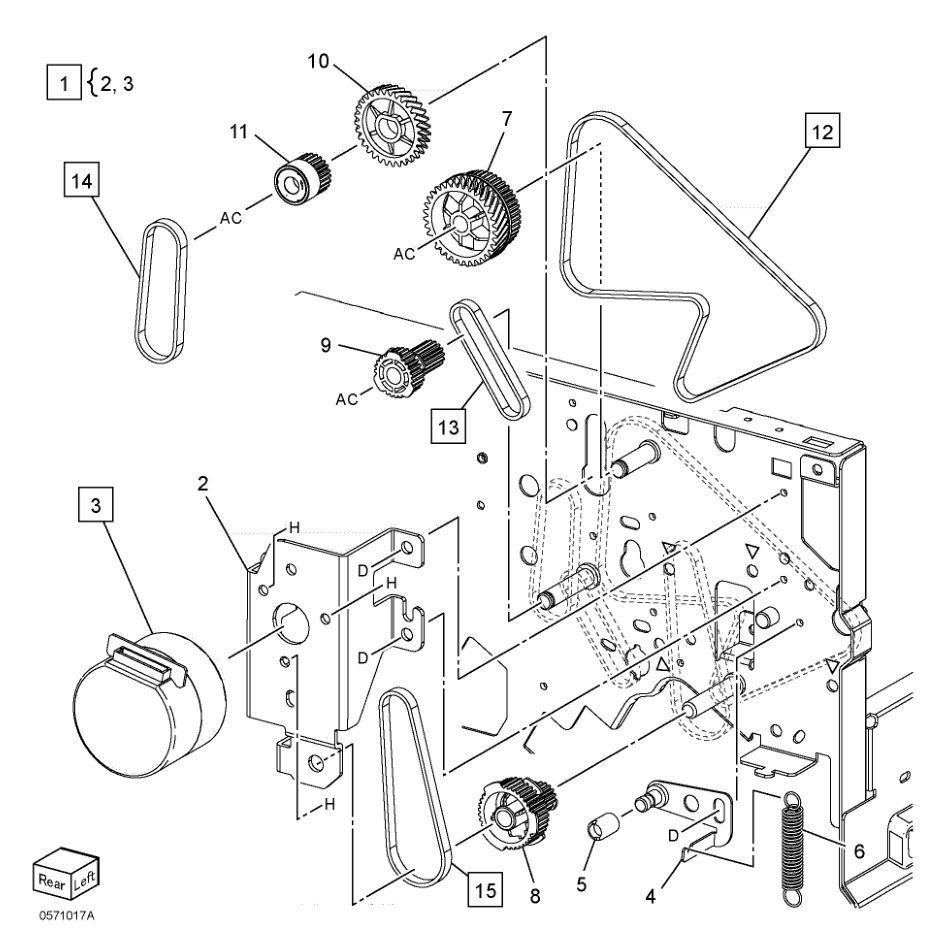

| PL 71.17 Finisher Transport Motor Assembly 1 - Finisher Transport Motor Assem- bly 2 - Transport Bracket (P/O PL 71.17 Item 1) 3 - Finisher Transport Motor (P/O PL 71.17 Item 1) 4 049K36910 Tension Bracket Assembly 049K36910 Tension Belt Bracket Assembly Integrated Office Finisher New 049K36910 (New) 3-4 Day Lead $39.44 049K36910 Tension Belt Bracket Assembly Integrated Office Finisher Fully refurbished with 90-day warranty 049K36910 (Refurbished) 5 - Pulley 6 - Tension Spring 7 - Pulley Gear (Z34/T45) 8 - Pulley (T37/T17) 9 - Pulley (T26/T16) 10 - Gear (Z31) 11 020K19240 One Way Pulley Assembly (T23) 020K19240 Finisher Transport Motor Assembly One Way Pulley Office Finsher New 020K19240 (New) $70.20 020K19240 Finisher Transport Motor Assembly One Way Pulley Office Finsher Fully refurbished with 90-day warranty 020K19240 (Refurbished) 12 - Transport Belt 13 - Belt 14 - Belt 15 - Belt |  |

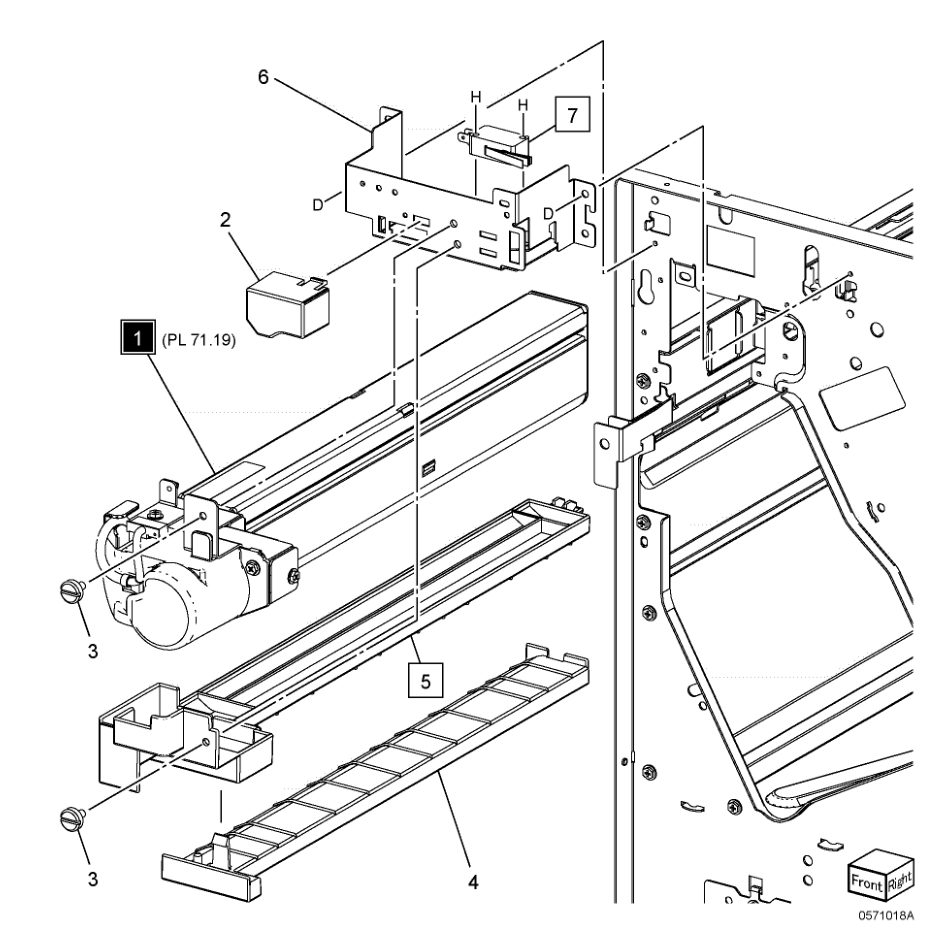

| PL 71.18 Folder Assembly (1 of 2) 1 695K34130 Folder Assembly (Option) (REF: PL 71.19) 695K34130 Folder Assembly Office Finisher Fully refurbished with 90-day warranty 695K34130 (Refurbished) 2 - Connector Cover 3 826E07210 Docking Screw 4 054E34691 Lower Fold Dummy Chute 5 054E34702 Upper Fold Dummy Chute 6 - Interlock Bracket 7 110E15060 Finisher Front Door Switch |  |

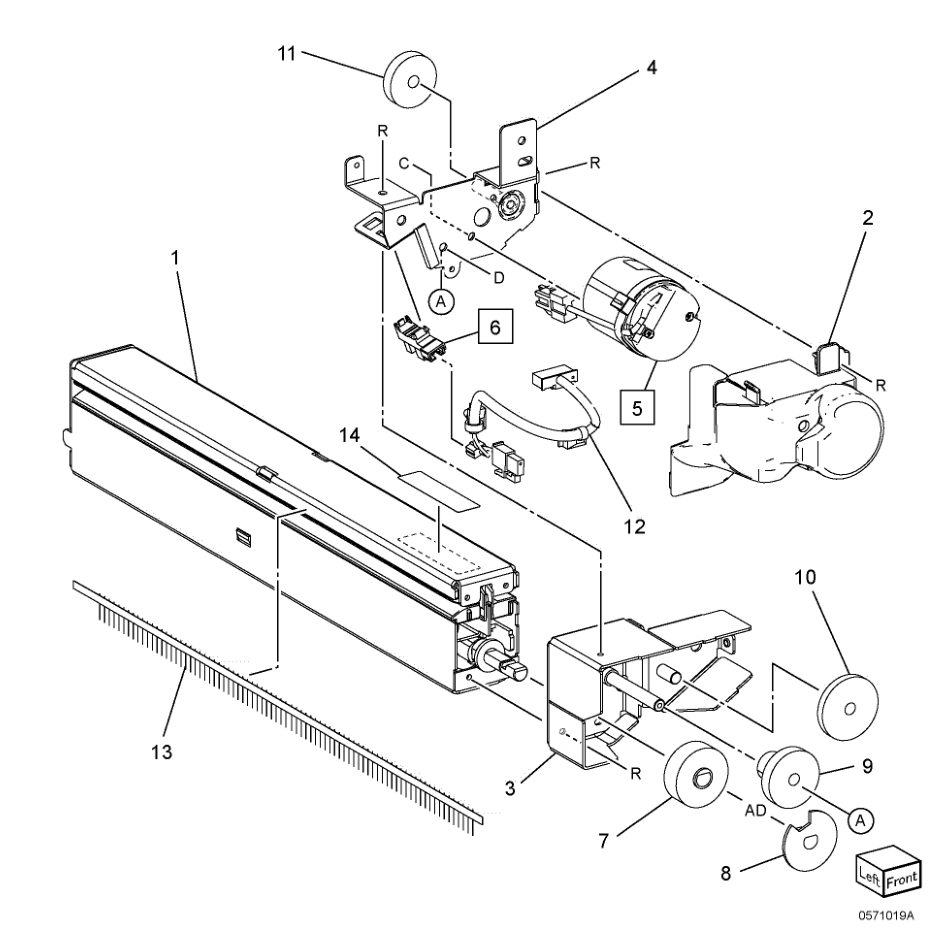

| PL 71.19 Folder Assembly (2 of 2) 1 - Folder Bracket Assembly 2 - Front Cover 3 - Front Frame Assembly 4 - Folder Knife Motor Bracket Assembly 5 - Folder Knife Motor Assembly 6 930W00122 Folder Knife Home Sensor 7 - Gear (28) 8 - Encoder 9 - Gear (12/27) 10 - Gear (12/30) 11 - Gear (12/51) 12 - Wire Harness (Folder) 13 - Eliminator 14 - Label (Traceability) |  |

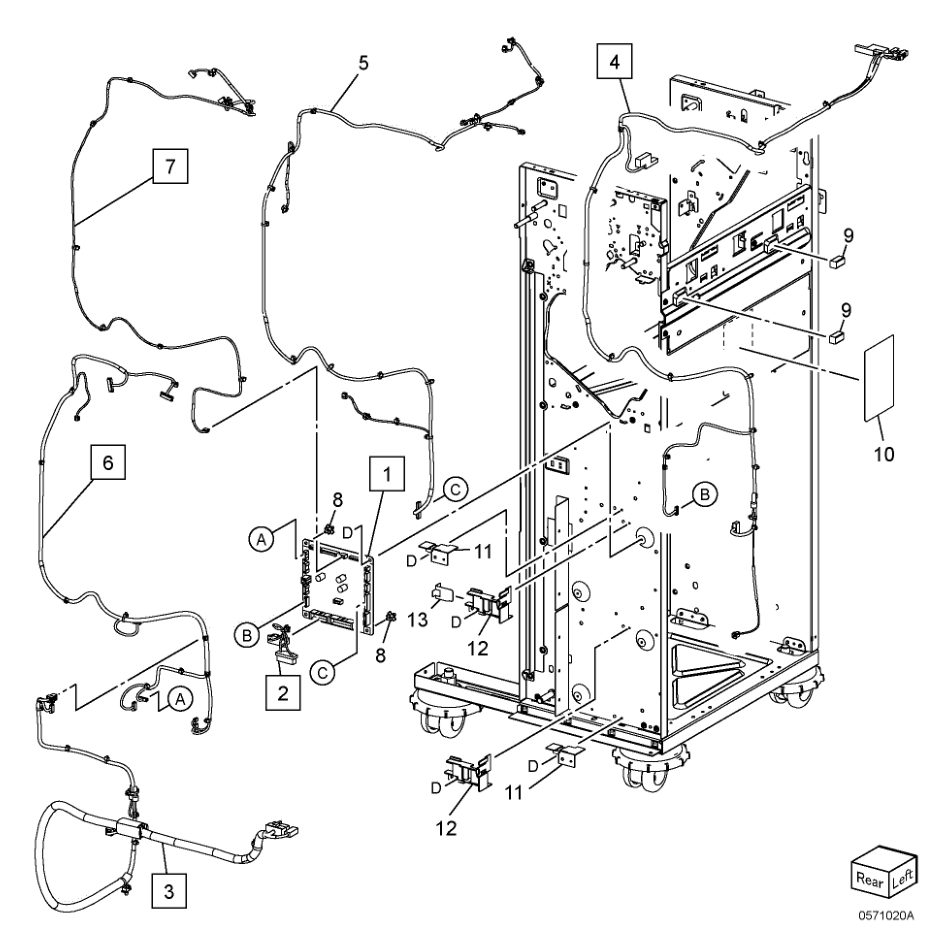

| PL 71.20 Finisher-B3 Electrical 1 960K92066 Finisher Main PWB 2 - Wire Harness (Booklet Chute) 3 952K42940 Wire Harness (Interface) 952K42940 Wire Harness Interface Office Finisher Fully refurbished with 90-day warranty 952K42940 (Refurbished) 4 - Wire Harness (Interlock) 5 - Wire Harness (Sensor 1) 6 - Wire Harness (Drive) 7 - Wire Harness (Eject) 8 - PWB Support 9 - Shield Gasket 10 - Label (Caution) 11 - Rear Lower Bracket 12 - Flat Cable Harness Guide 13 - Flat Cable Guide |  |

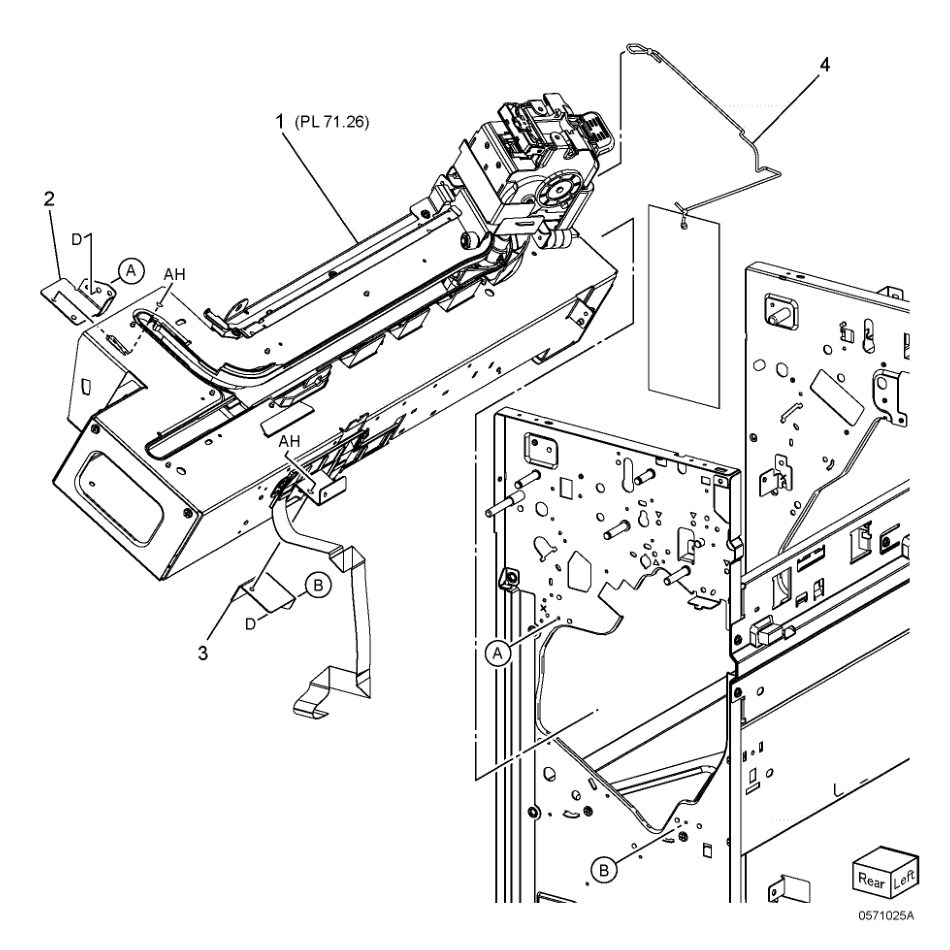

| PL 71.25 Stapler Assembly 1 - Stapler Assembly (REF: PL 71.26) 2 - Staple Connect Bracket 3 - Lower Staple Connect Bracket 4 - Front Side Plate Assembly |  |

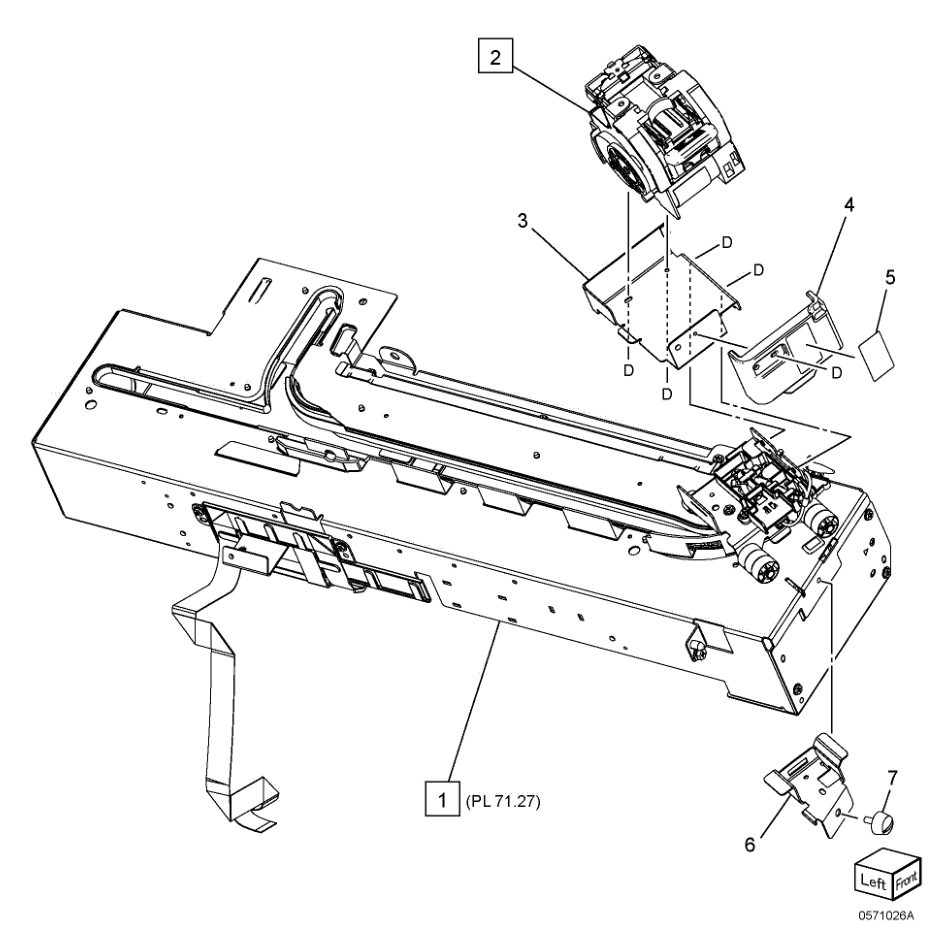

| PL 71.26 Staple Holder Assembly 1 - Rail Assembly (REF: PL 71.27) 2 029K93260 Stapler Assembly 3 - Holder Stapler Bracket 4 - Stapler Connector Cover 5 - Label (R1 XE) 6 - Staple Stopper Bracket 7 026K81200 Thumb Screw |  |

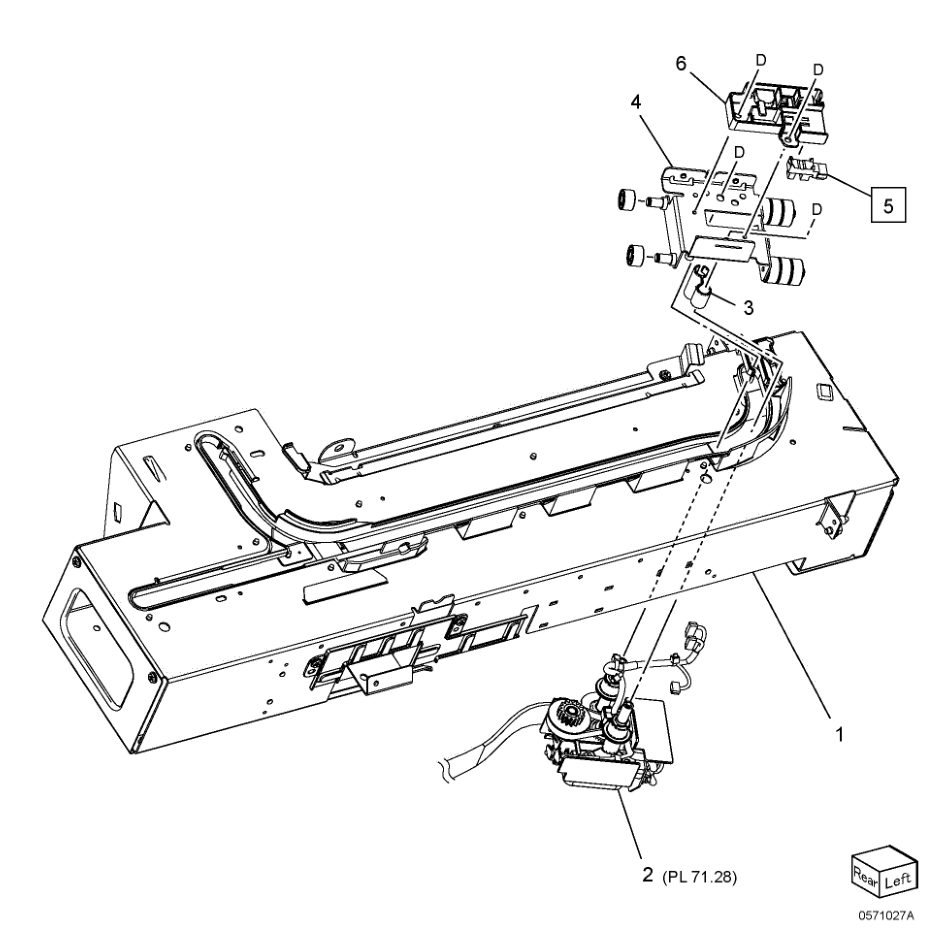

| PL 71.27 Stapler Rail Assembly 1 - Rail Base Plate Assembly 2 049K44430 Staple Drive Bracket Assembly (Stapler) (REF: PL 71.28) 049K44430 Staple Drive Bracket Assembly Office Finisher Fully refurbished with 90-day warranty 049K44430 (Refurbished) 3 - Stud Harness Guide 4 - Staple Carrier Bracket Assembly (Stapler) 5 930W00122 Stapler Move Position Sensor (Stapler) 6 - Upper Staple Harness Guide |  |

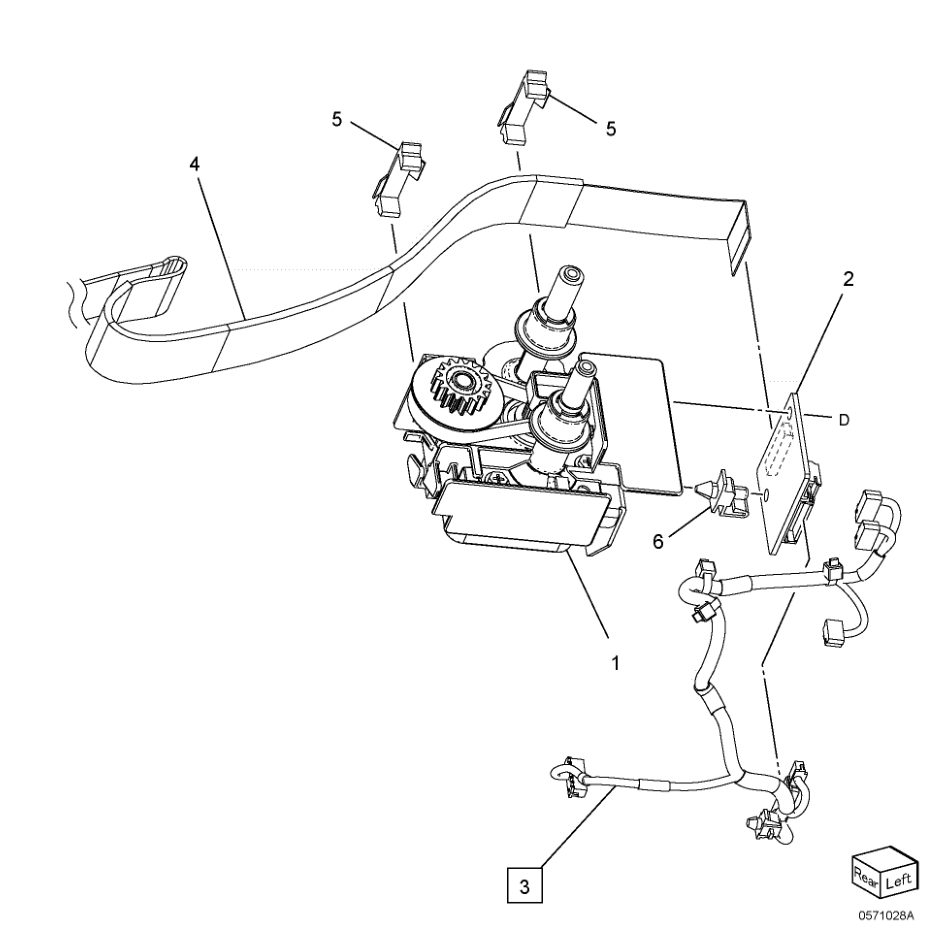

| PL 71.28 Stapler Drive Assembly 1 - Staple Move Motor Assembly 2 960K92140 Staple FFC PWB 960K92140 Staple FFC PWB Office Finisher Fully refurbished with 90-day warranty 960K92140 (Refurbished) 3 952K42970 Wire Harness (Stapler) 952K42970 Wire Harness Stapler Intergrated Office Finisher Fully refurbished with 90-day warranty 952K42970 (Refurbished) 4 117E42800 Flat Cable (Stapler) 5 019E66920 Press Clamp 6 - PWB Support 2020 - Global B Office Finisher 133 |  |

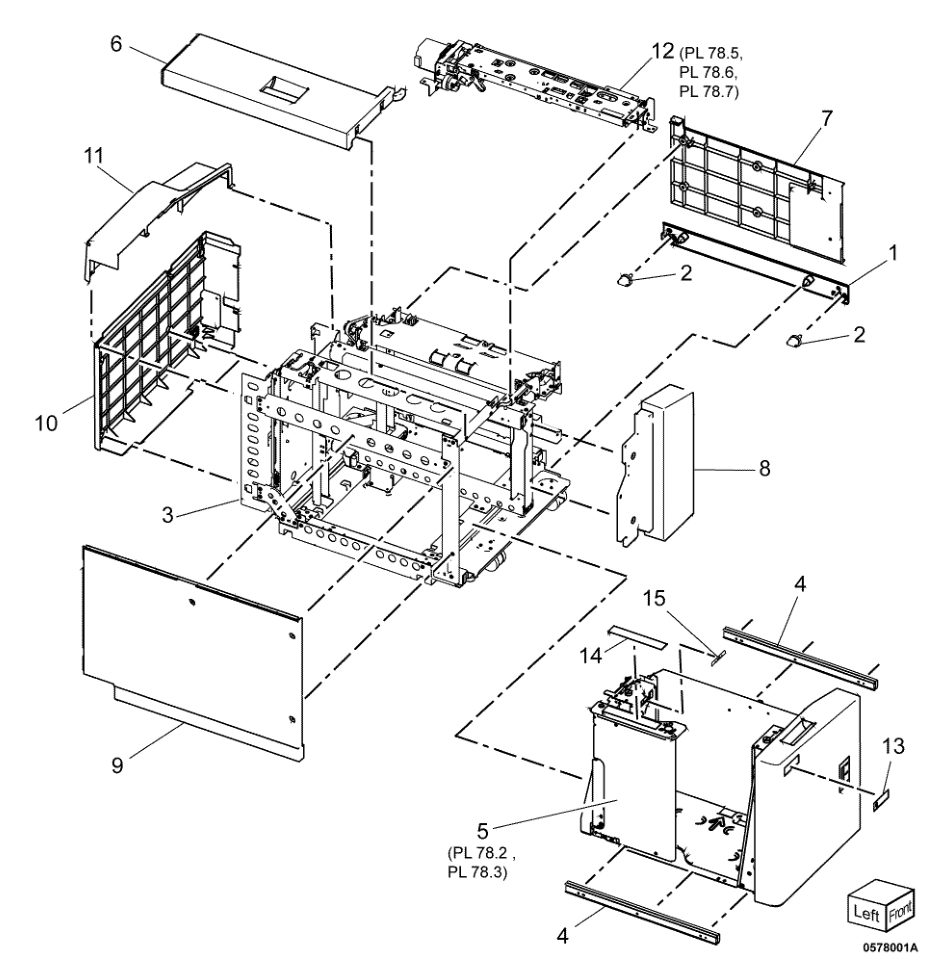

| PL 78.1 HCF Unit 1 815K17621 Docking plate 2 - Knob (Not Spared) 3 - Frame assembly (Not Spared) 4 801K68380 Tray rail 5 050K75051 HCF tray assembly 6 948K01900 Top cover assembly 7 - Right cover (Not Spared) 8 - Front right cover (Not Spared) 9 - Left cover (Not Spared) 10 - Lower rear cover (Not Spared) 11 - Upper rear cover 12 859K02872 HCF feed head 13 890E86280 Label (Tray No.) 14 890E86291 Label (End top) 15 890E92600 Label (Max) |  |

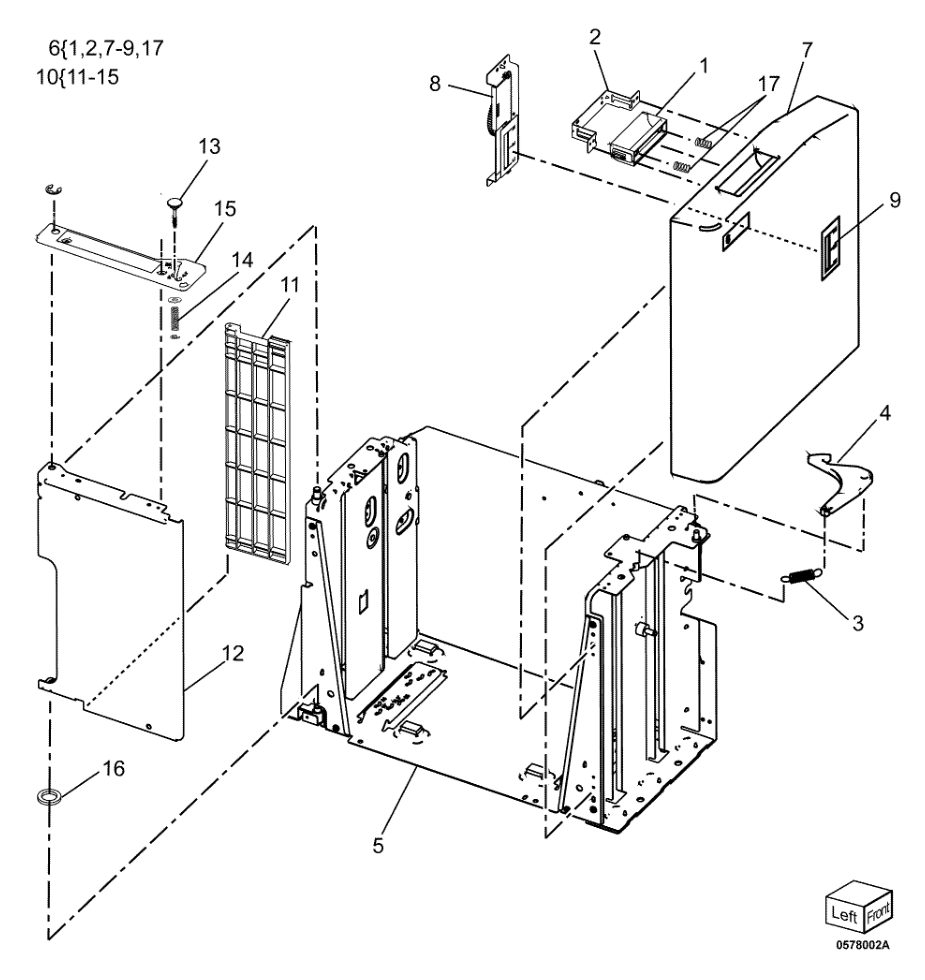

| PL 78.2 HCF Tray 6 (1 of 2) 1 - Tray handle assembly (P/O PL 78.2 Item 6) 2 - Bracket (P/O PL 78.2 Item 6) 3 899E14080 Spring 4 803E25850 Latch lever 5 - Tray frame assembly (Not Spared) 6 948K01860 Front cover assembly 7 - Front cover (P/O PL 78.2 Item 6) 8 - Gear bracket (P/O PL 78.2 Item 6) 9 - Label (Gauge) (P/O PL 78.2 Item 6) 10 032K09310 End guide assembly 11 - End guide (P/O PL 78.2 Item 10) 12 - End guide bracket (P/O PL 78.2 Item 10) 13 - Pin (P/O PL 78.2 Item 10) 14 - Spring (P/O PL 78.2 Item 10) 15 - End guide support (P/O PL 78.2 Item 10) 16 028E93800 Wave washer 17 - Spring (P/O PL 78.2 Item 6) |  |

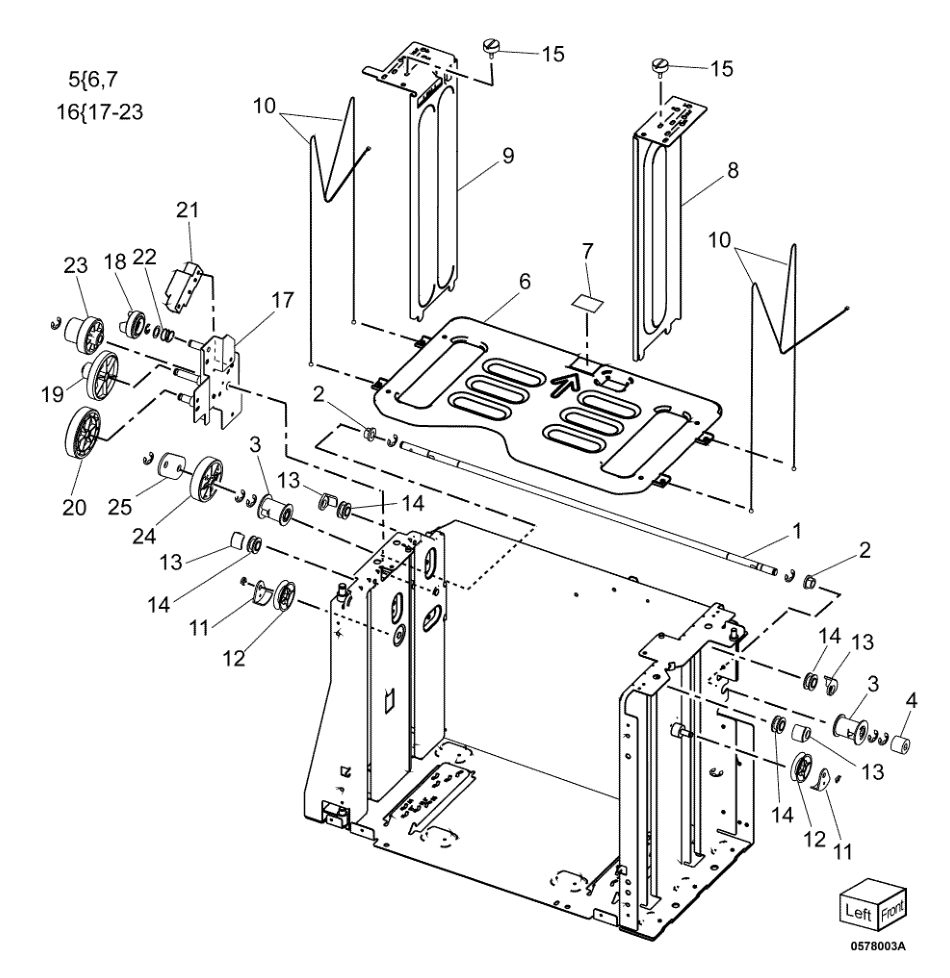

| PL 78.3 HCF Tray 6 (2 of 2) 1 - Lift shaft 2 - Bearing 3 020E51830 Pulley 4 - Gear (Not Spared) 5 815K17410 Bottom plate assembly 6 - Bottom plate (P/O PL 78.3 Item 5) 7 - Pad (P/O PL 78.3 Item 5) 8 032K09320 Front side guide 9 032K09330 Rear side guide 10 012E20120 Cable — 012E20620 Cable (Black) 11 - Long wire guide (Not Spared) 12 - Pulley (Not Spared) 13 - Short wire guide (Not Spared) 14 020E36830 Pulley 15 - Screw (Not Spared) 16 049K33260 Gear bracket assembly 049K33260 Grear Bracket Assembly 3000 Sheet High-Capacity Feeder New 049K33260 (New) 3-4 Day Lead $78.88 049K33260 Grear Bracket Assembly 3000 Sheet High-Capacity Feeder Fully refurbished with 90-day warranty 049K33260 (Refurbished) 17 - Gear bracket (P/O PL 78.3 Item 16) 18 - Contact gear (P/O PL 78.3 Item 16) 19 - Gear (P/O PL 78.3 Item 16) 20 - Gear (P/O PL 78.3 Item 16) 21 - Brake (P/O PL 78.3 Item 16) 22 - Spring (P/O PL 78.3 Item 16) 23 807E52710 Gear 24 807E52730 Lift gear 25 - Plate (Not Spared) |  |

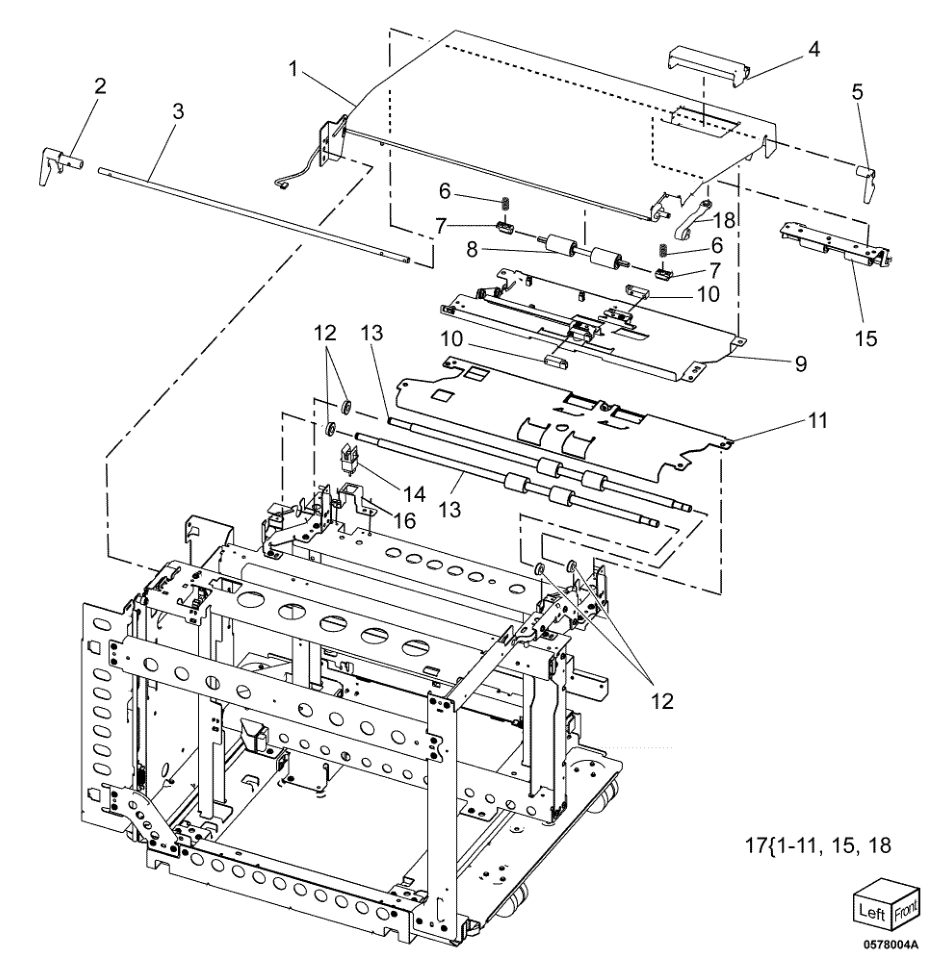

| PL 78.4 HCF Top Chute Cover 1 - Top chute cover (P/O PL 78.4 Item 17) 2 - Rear latch (P/O PL 78.4 Item 17) 3 - Shaft (P/O PL 78.4 Item 17) 4 - Handle (P/O PL 78.4 Item 17) 5 - Front latch (P/O PL 78.4 Item 17) 6 - Spring (P/O PL 78.4 Item 17) 7 - Bearing (P/O PL 78.4 Item 17) 8 - Pinch roll assembly (P/O PL 78.4 Item 17) 9 - Upper chute assembly (P/O PL 78.4 Item 17) 10 130E89381 Sensor 11 054K55270 Lower chute assembly 12 413W08350 Bearing — 413W82370 Bearing (alternative) Xerox 413W82370 Bearing (alternative) Fully refurbished with 90-day warranty 413W82370 (Refurbished) 13 859K02890 Takeaway roll assembly 14 - Interlock switch 15 - Roller assembly (P/O PL 78.4 Item 17) 16 674E05980 Bracket 17 948K01851 Top chute cover assembly 948K01851 Top Chute Cover Assembly HCF Fully refurbished with 90-day warranty 948K01851 (Refurbished) 18 - Strap (P/O PL 78.4 Item 17) |  |

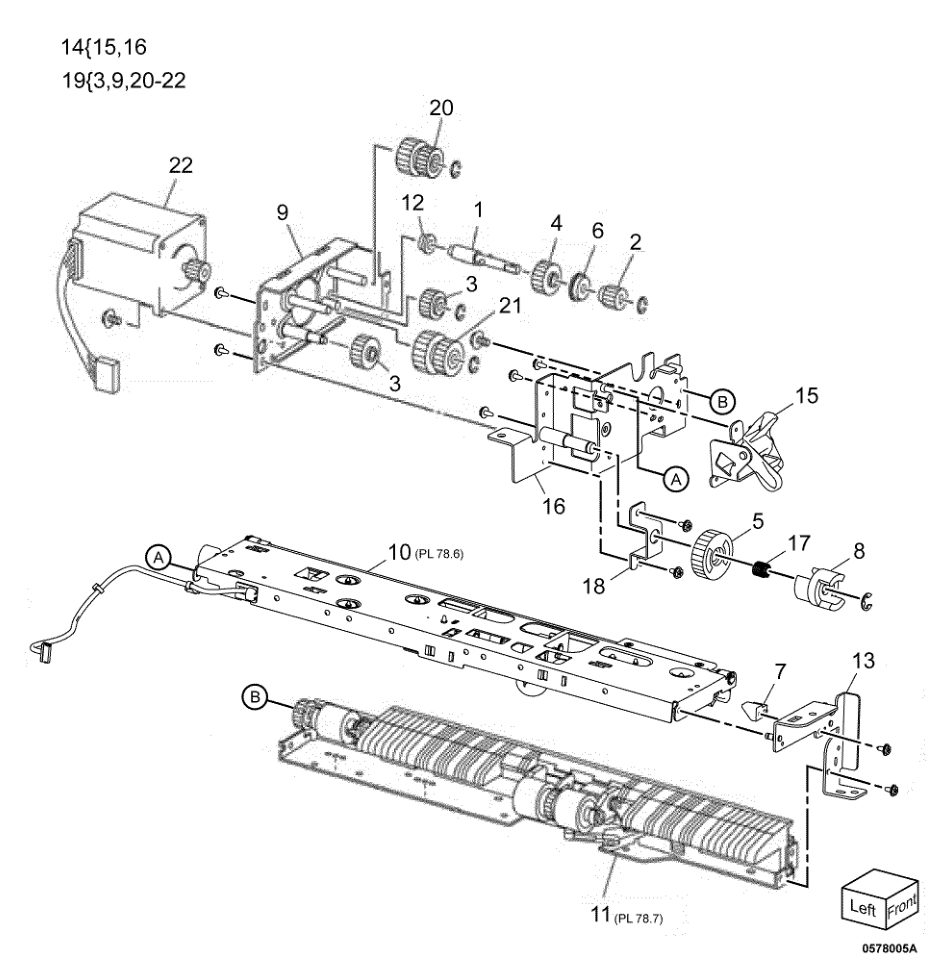

| PL 78.5 HCF Feeder (1 of 3) 1 006K23112 Shaft 2 - Gear (19T) 3 007E78770 Gear (25T) 4 007E78780 Gear (25T) 5 - Gear (40T) (P/O PL 78.1 Item 12) 6 - Bearing (P/O PL 78.1 Item 12) 7 - Block (P/O PL 78.1 Item 12) 8 - Spacer (P/O PL 78.1 Item 12) 9 - Motor frame (P/O PL 78.5 Item 19) 10 - Upper feeder assembly (REF: PL 78.6) 11 - Lower feeder assembly (REF: PL 78.7) 12 413W66250 Ball bearing 13 - Front feeder frame assembly (P/O PL 78.1 Item 12) 14 - Rear frame assembly (P/O PL 78.1 Item 12) 15 - Link assembly (P/O PL 78.5 Item 14) 16 - Rear frame (P/O PL 78.5 Item 14) 17 - Spring (P/O PL 78.1 Item 12) 18 - Bracket (P/O PL 78.1 Item 12) 19 801K70190 Drive gear assembly 20 - Gear (23T/27T) (P/O PL 78.5 Item 19) 21 - Gear (31T/36T) (P/O PL 78.5 Item 19) 22 - HCF feed lift motor (MOT78-003) (P/O PL 78.5 Item 19) |  |

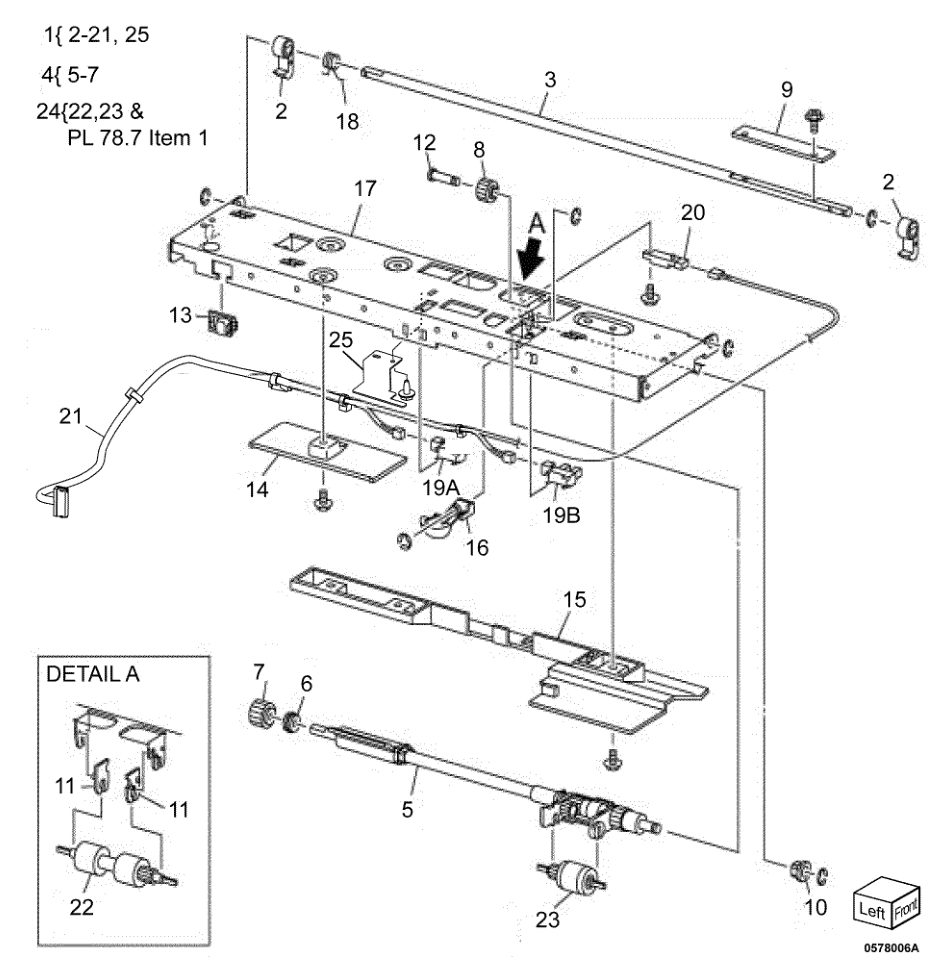

| PL 78.6 HCF Feeder (2 of 3) 1 859K05270 Upper feeder assembly 2 - Latch (P/O PL 78.6 Item 1) 3 - Shaft latch (P/O PL 78.6 Item 1) 4 006K23124 Feed shaft assembly 5 - Feed shaft (P/O PL 78.6 Item 4) 6 413W66250 Ball bearing 7 - Gear (20T) (P/O PL 78.6 Item 4) 8 007E78180 Feed gear (25T) 9 - Lever (P/O PL 78.6 Item 1) 10 - Bearing (P/O PL 78.6 Item 1) 11 - Spacer (P/O PL 78.6 Item 1) 12 - Pin drive (P/O PL 78.6 Item 1) 13 - Guide (P/O PL 78.6 Item 1) 14 - Rear upper chute (P/O PL 78.6 Item 1) 15 - Upper chute (P/O PL 78.6 Item 1) 16 - Actuator 17 - Upper Frame (P/O PL 78.6 Item 1) 18 - Spring (P/O PL 78.6 Item 1) 19 930W00112 HCF level sensor/ HCF no paper sensor 930w00112 Sensor-Photo In (No Paper And Level Sensor) Fully refurbished with 90-day warranty 930W00112 (Refurbished) 20 930W00211 HCF pre feed sensor 21 - Wire harness (P/O PL 78.6 Item 1) 22 - Feed roll (P/O PL 78.6 Item 24) 23 - Nudger roll (P/O PL 78.6 Item 24) 24 604K23660 Feed roll kit 25 - Sensor bracket (P/O PL 78.6 Item 1) |  |

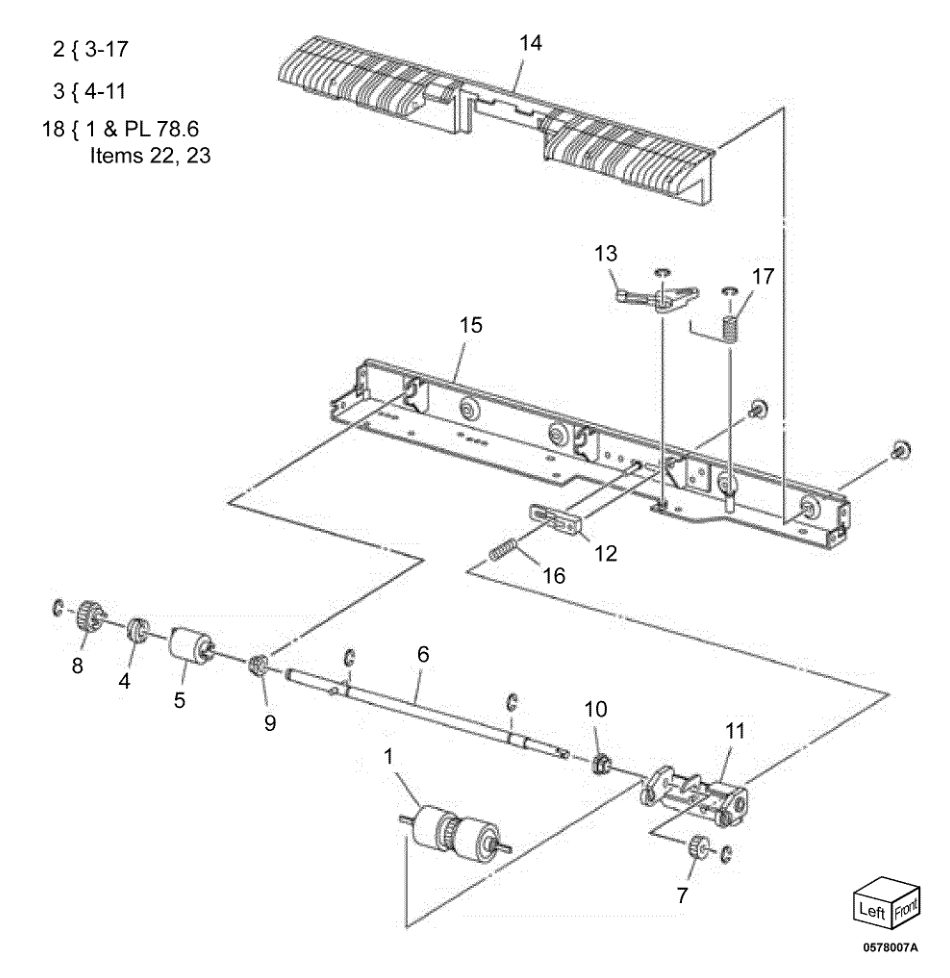

| PL 78.7 HCF Feeder (3 of 3) 1 - Retard roll (P/O PL 78.7 Item 18) 2 059K26687 Lower feeder assembly 3 006K23135 Retard shaft assembly 4 - Collar (P/O PL 78.7 Item 3) 5 005K06701 Friction clutch 6 - Shaft (P/O PL 78.7 Item 3) 7 007E78170 Gear (15T) 8 007E89760 Gear (22T) 9 - Bearing 10 - Bearing 11 - Retard bracket (P/O PL 78.7 Item 3) 12 - Slide (P/O PL 78.7 Item 2) 13 - Lever (P/O PL 78.7 Item 2) 14 - Lower chute (P/O PL 78.7 Item 2) 15 - Lower frame (P/O PL 78.7 Item 2) 16 - Spring (P/O PL 78.7 Item 2) 17 - Spring (P/O PL 78.7 Item 2) 18 604K23660 Feed roll kit |  |

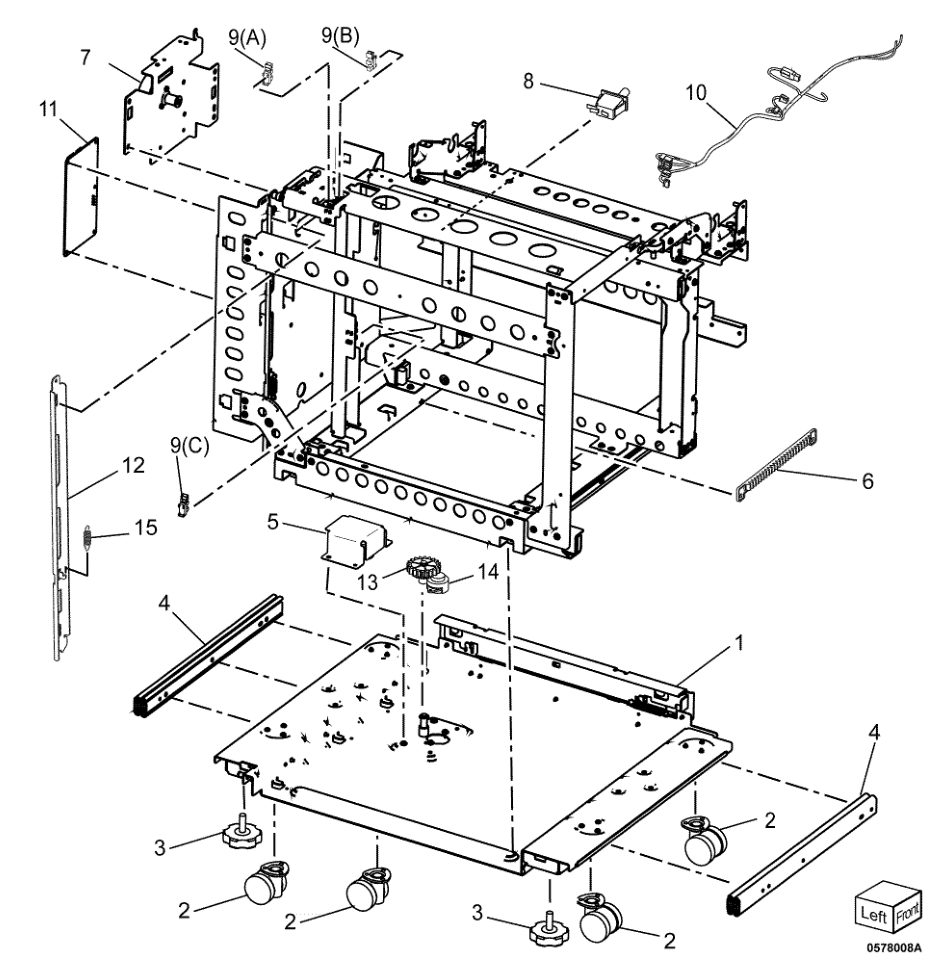

| PL 78.8 HCF Electrical and Rail 1 - Plate (Not Spared) 2 017E92820 Rack caster 3 017E14140 Adjuster foot 4 801K67280 Rail assembly 801K67280 Rail Assembly 3000 Sheet High-Capacity Feeder Fully refurbished with 90-day warranty 801K67280 (Refurbished) 5 - Bracket (Not Spared) 6 807E53510 Gear rack 7 007K21610 Drive assembly 8 - Docking switch 9 930W00111 HCF paper size sensor (Letter) (Q78-202) / HCF paper size sensor (A4) (Q78-203)/HCF In sensor (Q78-xxx) 10 117K49400 Cable assembly 11 960K86530 HCF PWB 12 - Latch Plate (Not Spared) 13 807E55980 Pinion 14 004E24810 Damper 15 - Latch Spring (Not Spared) |  |

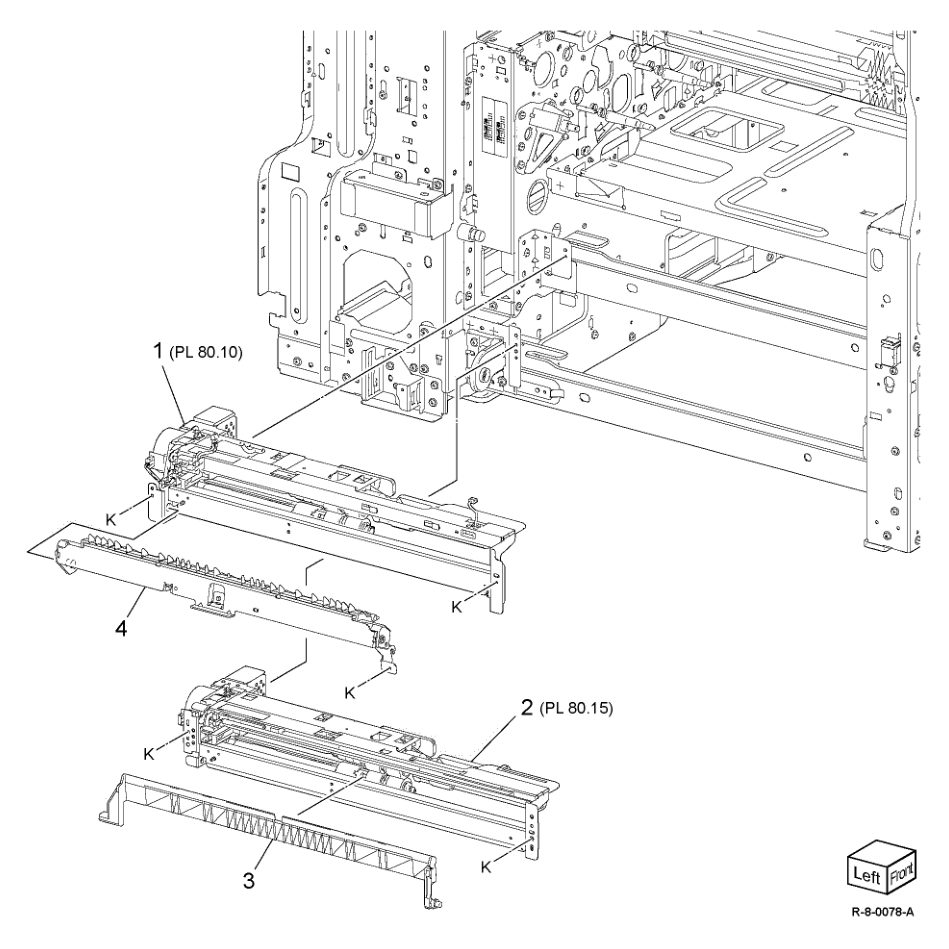

| PL 80.05 Tray 1 2 Feedhead Assembly 1 859K14321 Tray 1 feedhead assembly 2 859K14340 Tray 2 feedhead assembly 3 054E36442 Feed out chute 4 054K55444 Feedhead chute assembly 1 859K14371 Tray 1 feedhead assembly (C8130/C8135) — 859K14321 Tray 1 feedhead assembly (C8145/C8155/C8170) 2 859K14390 Tray 2 feedhead assembly (C8130/C8135) — 859K14340 Tray 2 feedhead assembly (C8145/C8155/C8170) 3 054E36442 Feed out chute 4 054K55444 Feedhead chute assembly |  |

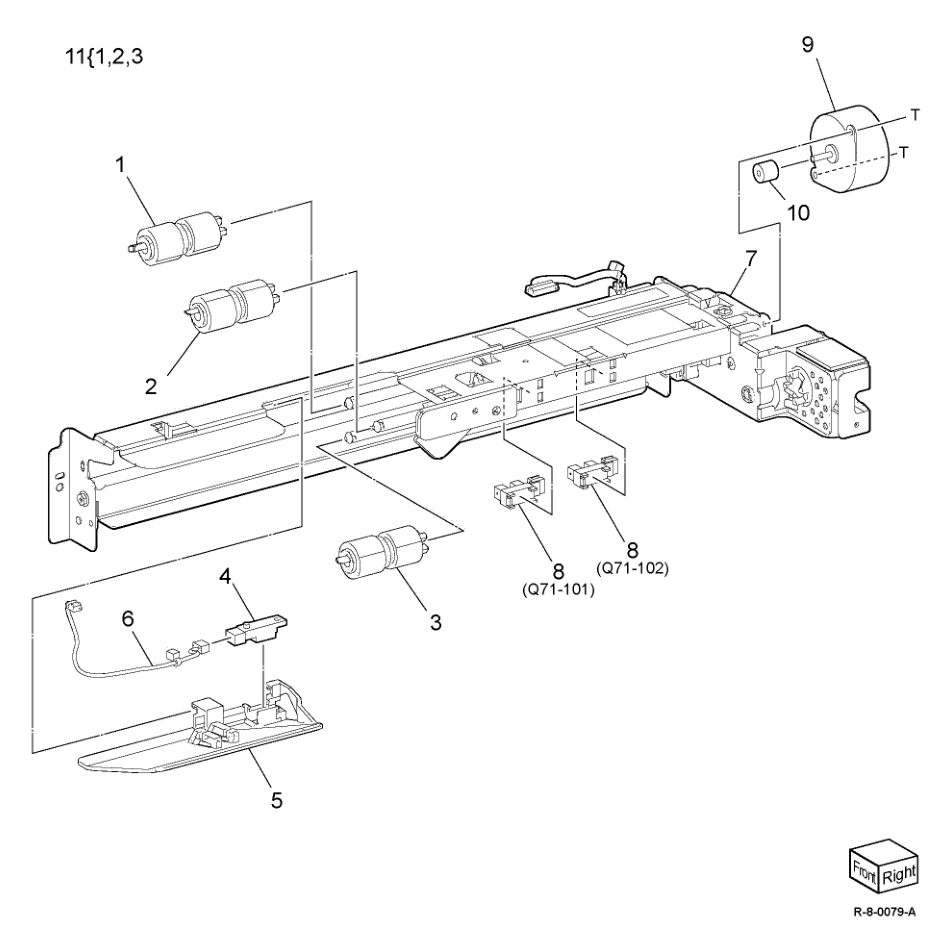

| PL 80.10 Tray 1 Feedhead Assembly 1 - Feed roll (P/O PL 80.10 Item 11) 2 - Nudger roll (P/O PL 80.10 Item 11) 3 - Retard roll (P/O PL 80.10 Item 11) 4 930W00211 Tray 1 pre-feed sensor (Q71-105) 5 054E49660 Chute 6 - Wire harness (P/O PL 80.10 Item 7) 7 - Feedhead frame assembly (P/O PL 80.05 Item 1) 8 930W00113 Tray 1 no paper sensor (Q71- 101)/ Tray 1 level sensor (Q71- 102) 9 127K52790 Tray 1 feed /lift motor (MOT71- 001) 127K52790 Lift Up Motor Fully refurbished with 90-day warranty 127K52790 3-4 Day Lead (Refurbished) $59.84 10 - Gear (P/O PL 80.10 Item 9) 11 676K12691 Tray 1-4 feed rolls 1 - Feed roll (P/O PL 80.10 Item 11) 2 - Nudger roll (P/O PL 80.10 Item 11) 3 - Retard roll (P/O PL 80.10 Item 11) 4 930W00211 Tray 1 pre-feed sensor (Q71-105) 5 054E49660 Chute 6 - Wire harness (P/O PL 80.10 Item 7) 7 - Feedhead frame assembly (P/O PL 80.05 Item 1) 8 930W00113 Tray 1 no paper sensor (Q71- 101)/ Tray 1 level sensor (Q71- 102) 9 127K52790 Tray 1 feed /lift motor (MOT71- 001) 127K52790 Lift Up Motor Fully refurbished with 90-day warranty 127K52790 3-4 Day Lead (Refurbished) $59.84 10 - Gear (P/O PL 80.10 Item 9) 11 676K12691 Tray 1-4 feed rolls |  |

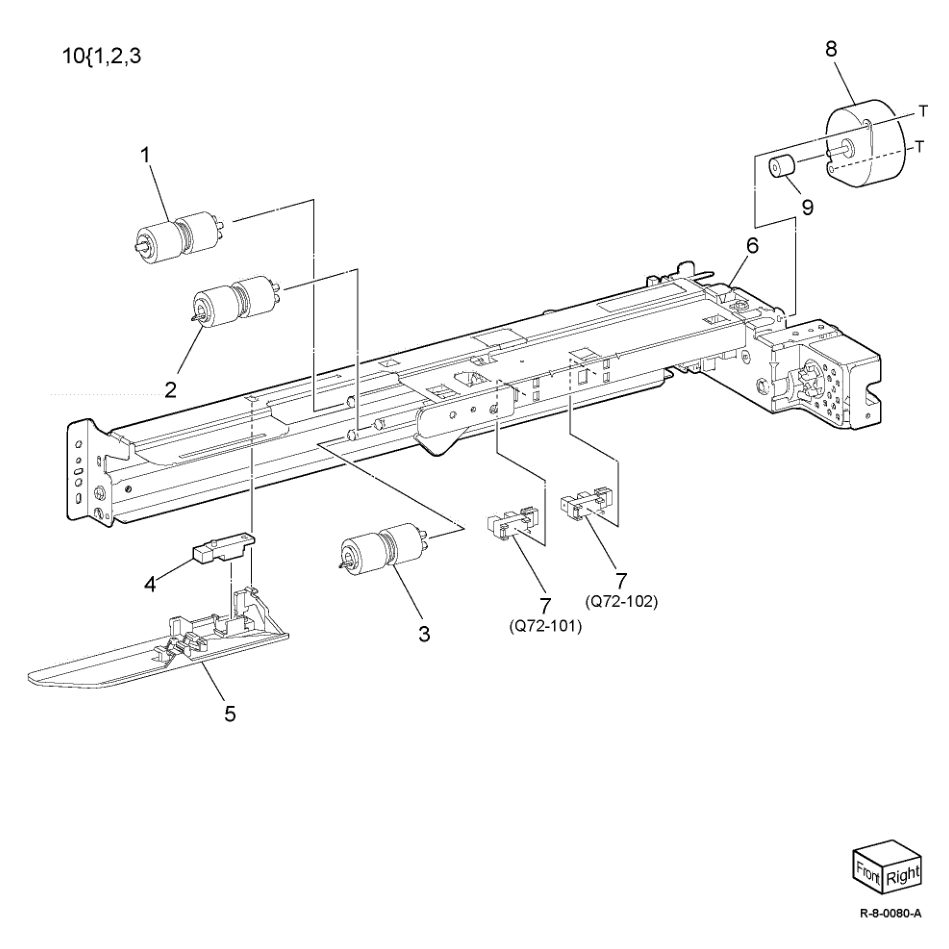

| PL 80.15 Tray 2 Feedhead Assembly 1 - Feed roll (P/O PL 80.15 Item 10) 2 - Nudger roll (P/O PL 80.15 Item 10) 3 - Retard roll (P/O PL 80.15 Item 10) 4 930W00211 Tray 2 pre-feed sensor (Q72-105) 5 - Chute (P/O PL 80.15 Item 6) 6 - Feedhead frame assembly (P/O PL 80.05 Item 2) 7 930W00113 Tray 2 no paper sensor (Q72-101) / Tray 2 level sensor (Q72-102) 8 127K52790 Tray 2 feed/lift motor (MOT72- 001) 127K52790 Lift Up Motor Fully refurbished with 90-day warranty 127K52790 3-4 Day Lead (Refurbished) $59.84 9 - Gear (P/O PL 80.15 Item 8) 10 676K12691 Tray 1-4 feed rolls 1 - Feed roll (P/O PL 80.15 Item 10) 2 - Nudger roll (P/O PL 80.15 Item 10) 3 - Retard roll (P/O PL 80.15 Item 10) 4 930W00211 Tray 2 pre-feed sensor (Q72-105) 5 - Chute (P/O PL 80.15 Item 6) 6 - Feedhead frame assembly (P/O PL 80.05 Item 2) 7 930W00113 Tray 2 no paper sensor (Q72-101) / Tray 2 level sensor (Q72-102) 8 127K52790 Tray 2 feed/lift motor (MOT72- 001) 127K52790 Lift Up Motor Fully refurbished with 90-day warranty 127K52790 3-4 Day Lead (Refurbished) $59.84 9 - Gear (P/O PL 80.15 Item 8) 10 676K12691 Tray 1-4 feed rolls |  |

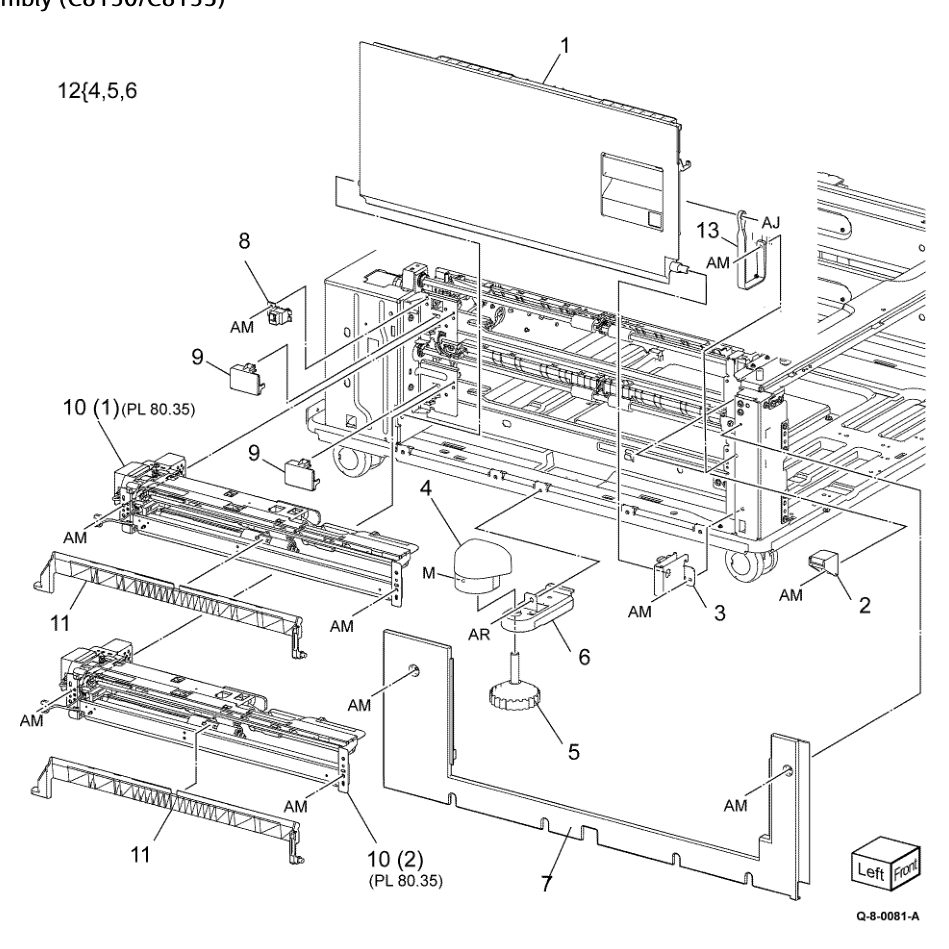

| PL 80.20 2TM Left Cover Feedhead Assembly (C8130/C8135) 1 948K12050 Left door assembly 2 - Latch holder (Not Spared) 3 - Pivot bracket (Not Spared) 4 822E41860 Foot cover 5 - Adjuster foot (P/O PL 80.20 Item 12) 6 869E29540 Foot bracket 7 822E41053 Left cover 8 948K01811 2TM left door interlock switch (S77-306) 948K01811 2Tm Left Door Interlock Switch (S77-306) Fully refurbished with 90-day warranty 948K01811 (Refurbished) 9 822E27982 Connector cover 10 859K14410 2TM feedhead 1 assembly/ 2TM feedhead 2 assembly (REF: PL 80.35) 11 054E36442 Feed out chute 12 607K11480 Adjuster foot assembly 13 - L/H cover support |  |

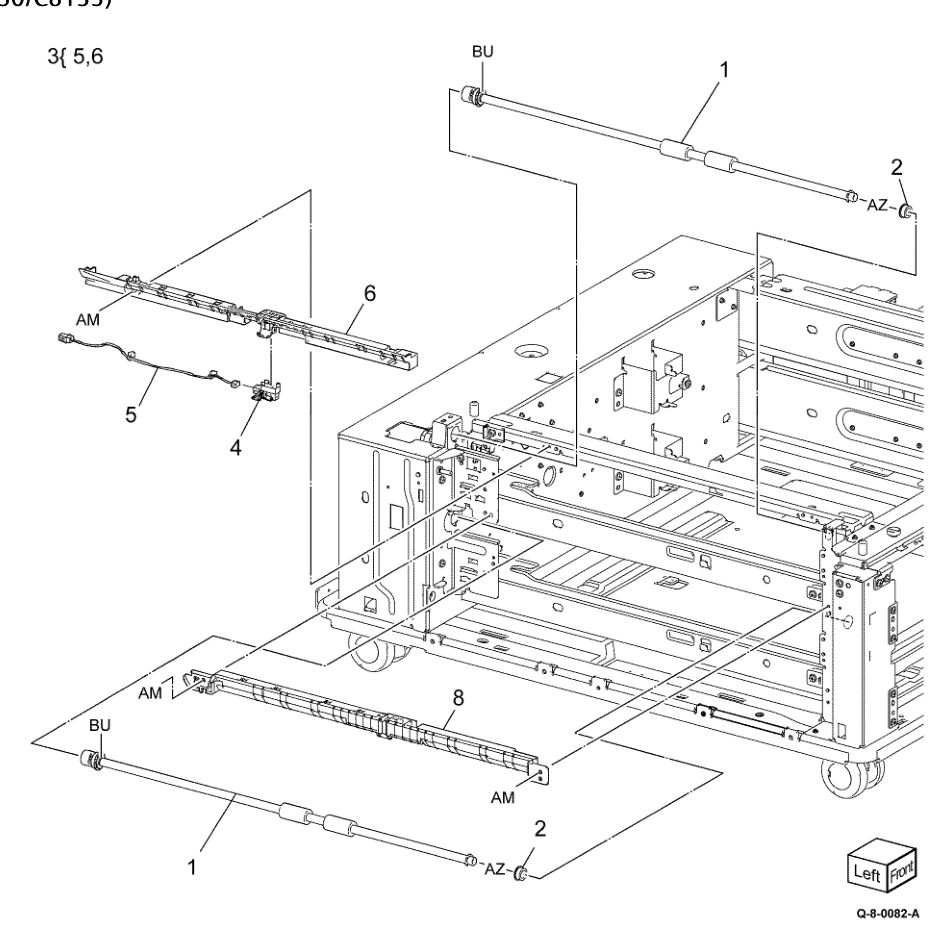

| PL 80.25 2TM Takeaway Assembly (C8130/C8135) 1 859K07790 Takeaway roll assembly (upper)/ Takeaway roll assem- bly (lower) 859K07790 Takeaway Roll Assembly (Upper) Fully refurbished with 90-day warranty 859K07790 (Refurbished) 2 413W88650 Bearing 3 054K55191 Tray 3 chute assembly 4 930W00123 Tray 3 feed out sensor 5 - Tray 3 feed out sensor harness (P/ O PL 80.25 Item 3) 6 - Tray 3 chute (P/O PL 80.25 Item 3) 7 - Not used 8 054E59620 Tray 4 chute assembly |  |

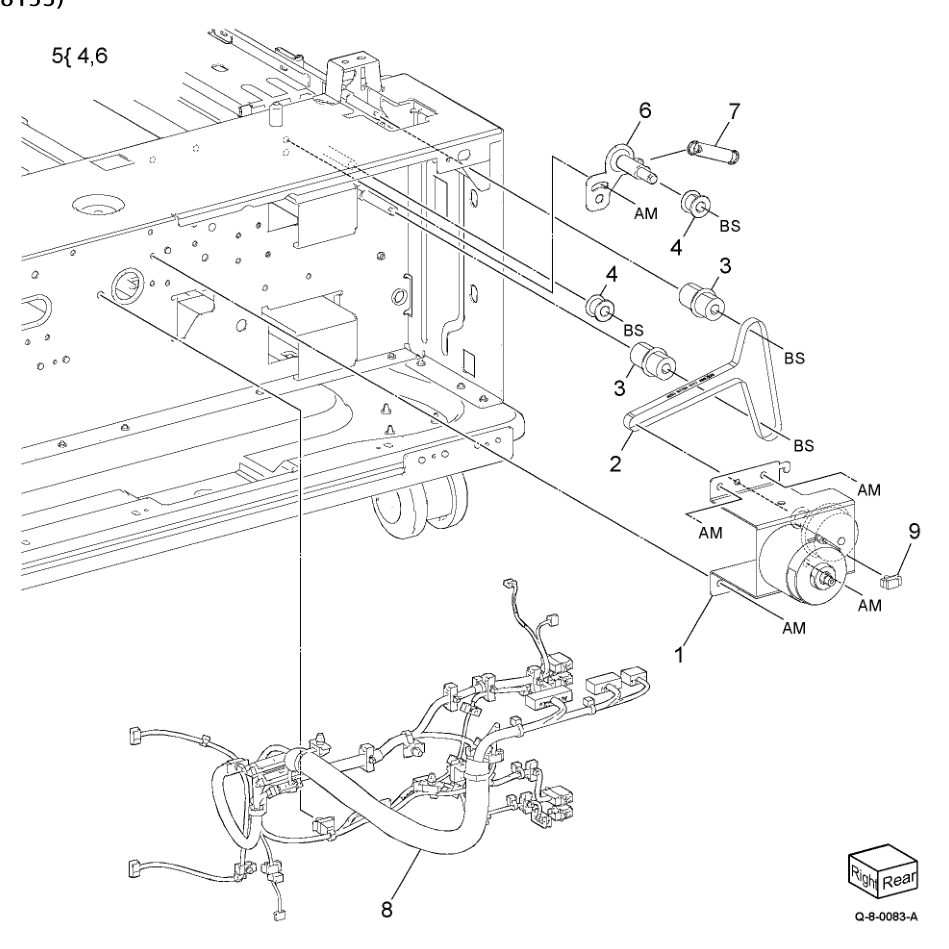

| PL 80.30 2TM Drive Assembly (C8130/C8135) 1 049K41791 Takeaway motor assembly 2 423W37754 Belt 423W37754 Belt-Synchronous - Bare Back Fully refurbished with 90-day warranty 423W37754 (Refurbished) 3 020E51630 Pulley (24T) 4 059E03590 Roller 5 049K31890 Tension bracket assembly 6 - Tension bracket (P/O PL 80.30 Item 5) 7 899E15320 Spring 8 952K45580 Wire harness assembly 9 - Clamp (Not Spared) |  |

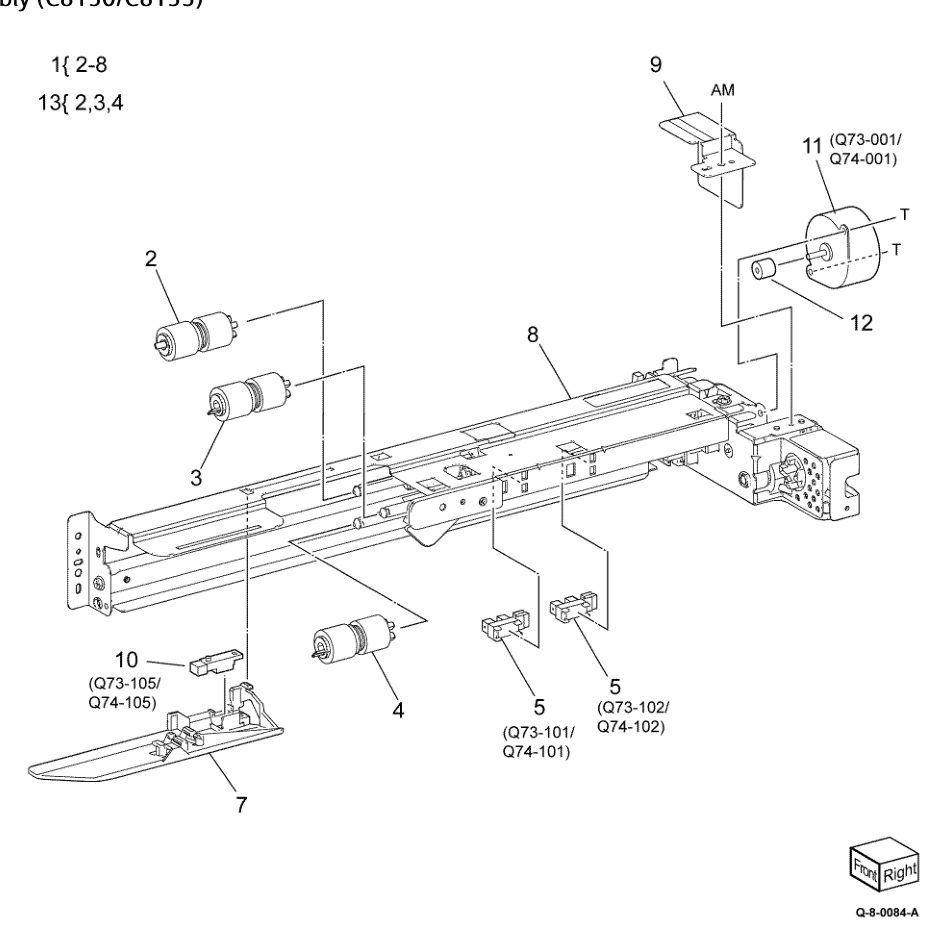

| PL 80.35 2TM Tray 3 4 Feedhead Assembly (C8130/C8135) 1 859K14410 Feedhead assembly (REF: PL 80.40 Item 3 PL 80.40 Item 7) 2 - Feed roll (P/O PL 80.35 Item 13) 3 - Nudger roll (P/O PL 80.35 Item 13) 4 - Retard roll (P/O PL 80.35 Item 13) 5 930W00113 Tray 3 no paper sensor (Q73- 101)/ Tray 4 no paper sensor (Q74-101)/Tray 3 level sensor (Q73-102)/ Tray 4 level sensor (Q74-102) 6 - Not used 7 - Chute 8 - Feedhead frame (P/O PL 80.35 Item 1) 9 - Bracket (Not Spared) 10 930W00211 Tray 3 pre-feed sensor (Q73-105)/ Tray 4 pre-feed sensor (Q74-105) 11 127K52790 Tray 3 lift motor (MOT73-001)/ Tray 4 lift motor (MOT74-001) 127K52790 Lift Up Motor Fully refurbished with 90-day warranty 127K52790 3-4 Day Lead (Refurbished) $59.84 12 - Gear (P/O PL 80.35 Item 11) 13 676K12691 Tray 1-4 feed rolls |  |

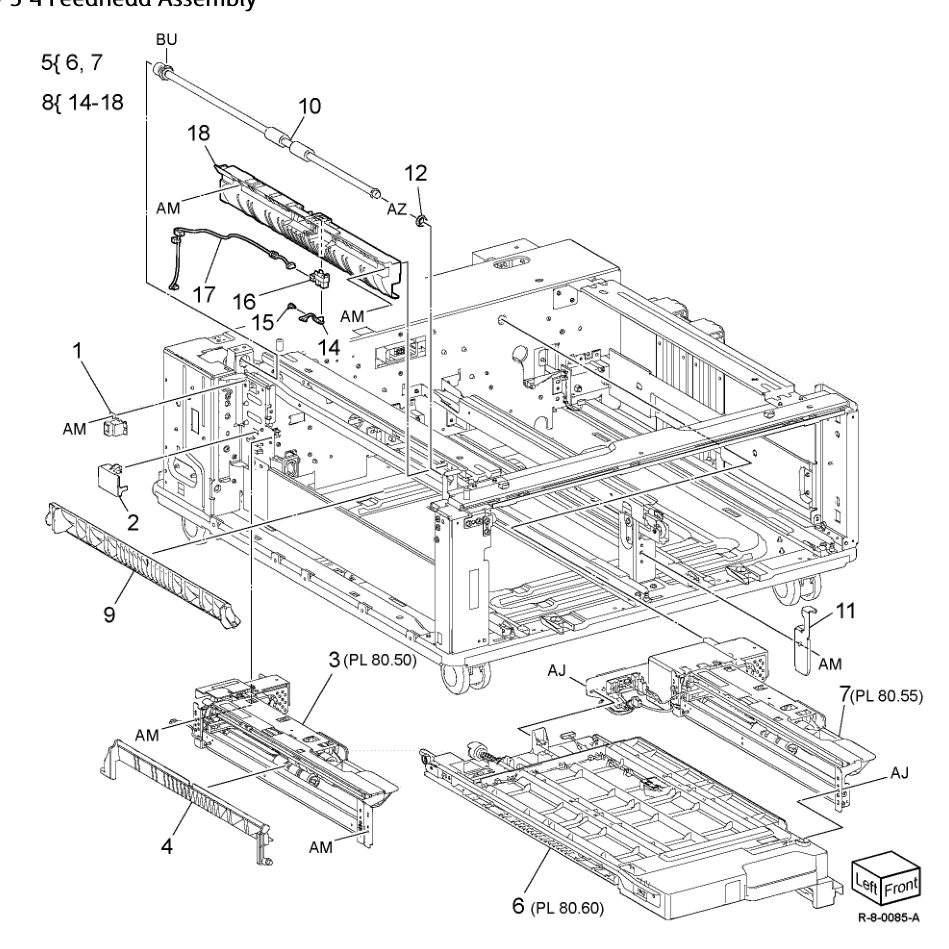

| PL 80.40 TTM Transport Assembly / Tray 3 4 Feedhead Assembly 1 948K01811 TTM left door interlock switch (S77-306) 948K01811 2Tm Left Door Interlock Switch (S77-306) Fully refurbished with 90-day warranty 948K01811 (Refurbished) 2 - Connector cover (Not Spared) 3 859K14420 Tray 3 feedhead assembly 859K14420 Tray 3 Feedhead Assembly - TTM Fully refurbished with 90-day warranty 859K14420 (Refurbished) 4 054E33803 Feed out chute 5 859K14440 Transport assembly (REF: PL 80.60) 6 - TTM transport assembly 7 859K17810 Tray 4 feedhead assembly 859K17810 Tray 4 Feedhead Assembly - TTM Fully refurbished with 90-day warranty 859K17810 (Refurbished) $129.20 8 - Takeaway chute assembly 9 054E39560 Transport feed chute 10 859K07790 Takeaway roll assembly 859K07790 Takeaway Roll Assembly (Upper) Fully refurbished with 90-day warranty 859K07790 (Refurbished) 11 - Transport stopper (Not Spared) 12 413W88650 Bearing 13 - Not used 14 - Actuator (P/O PL 80.40 Item 8) 15 - Spring (P/O PL 80.40 Item 8) 16 - Feed out sensor 3 (Q73-103) (P/O PL 80.40 Item 8) 17 - Harness assembly (P/O PL 80.40 Item 8) 18 - Takeaway chute (P/O PL 80.40 Item 8) 1 948K01811 TTM left door interlock switch (S77-306) 948K01811 2Tm Left Door Interlock Switch (S77-306) Fully refurbished with 90-day warranty 948K01811 (Refurbished) 2 - Connector cover (Not Spared) 3 859K14420 Tray 3 feedhead assembly 859K14420 Tray 3 Feedhead Assembly - TTM Fully refurbished with 90-day warranty 859K14420 (Refurbished) 4 054E33803 Feed out chute 5 859K14440 Transport assembly (REF: PL 80.60) 6 - TTM transport assembly (P/O PL 80.40 Item 5) 7 859K17810 Tray 4 feedhead assembly 859K17810 Tray 4 Feedhead Assembly - TTM Fully refurbished with 90-day warranty 859K17810 (Refurbished) $129.20 8 - Takeaway chute assembly 9 054E39560 Transport feed chute 10 859K07790 Takeaway roll assembly 859K07790 Takeaway Roll Assembly (Upper) Fully refurbished with 90-day warranty 859K07790 (Refurbished) 11 - Transport stopper (Not Spared) 12 413W88650 Bearing 13 - Not used 14 - Actuator (P/O PL 80.40 Item 8) 15 - Spring (P/O PL 80.40 Item 8) 16 - Feed out sensor 3 (Q73-103) (P/O PL 80.40 Item 8) 17 - Harness assembly (P/O PL 80.40 Item 8) 18 - Takeaway chute (P/O PL 80.40 Item 8) |  |

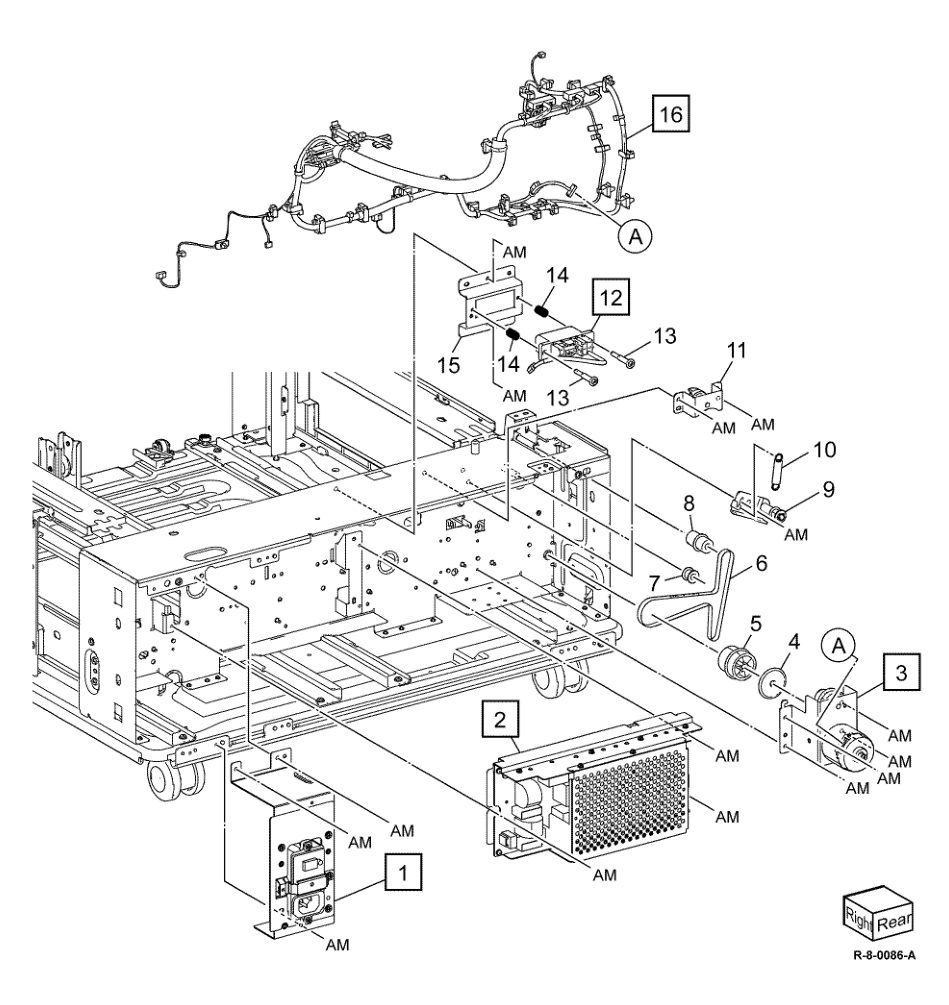

| PL 80.45 TTM Drive Assembly 1 101K69981 GFI chassis assembly 2 105E21602 LVPS CC4 (B8170) 3 049K31911 Takeaway motor bracket assembly (MOT77-035) 049K31911 Takeaway Motor Bracket Assembly TTM Fully refurbished with 90-day warranty 049K31911 (Refurbished) 4 005E37900 Collar 5 020E51640 Pulley (48T) 6 - Belt 7 059E03590 Roller 8 020E51630 Pulley (24T) 9 - Tension bracket assembly (Not Spared) 10 899E15320 Spring 11 049K35270 Transport bracket assembly 049K35270 Transport Bracket Assembly TTM Fully refurbished with 90-day warranty 049K35270 (Refurbished) 12 952K31631 Drawer harness 13 - Shoulder screw (Not Spared) 14 - Spring (Not Spared) 15 - Connector bracket (Not Spared) 16 952K45380 Wire harness 1 101K69981 GFI chassis assembly 2 105E21602 LVPS CC4 (C8170) 3 049K31911 Takeaway motor bracket assembly (MOT77-035) 049K31911 Takeaway Motor Bracket Assembly TTM Fully refurbished with 90-day warranty 049K31911 (Refurbished) 4 005E37900 Collar 5 020E51640 Pulley (48T) 6 - Belt 7 059E03590 Roller 8 020E51630 Pulley 9 - Tension bracket assembly (Not Spared) 10 899E15320 Spring 11 049K35270 Transport bracket assembly 049K35270 Transport Bracket Assembly TTM Fully refurbished with 90-day warranty 049K35270 (Refurbished) 12 952K31631 Drawer harness 13 - Shoulder screw (Not Spared) 14 - Spring (Not Spared) 15 - Connector bracket (Not Spared) 16 952K45380 Wire harness |  |

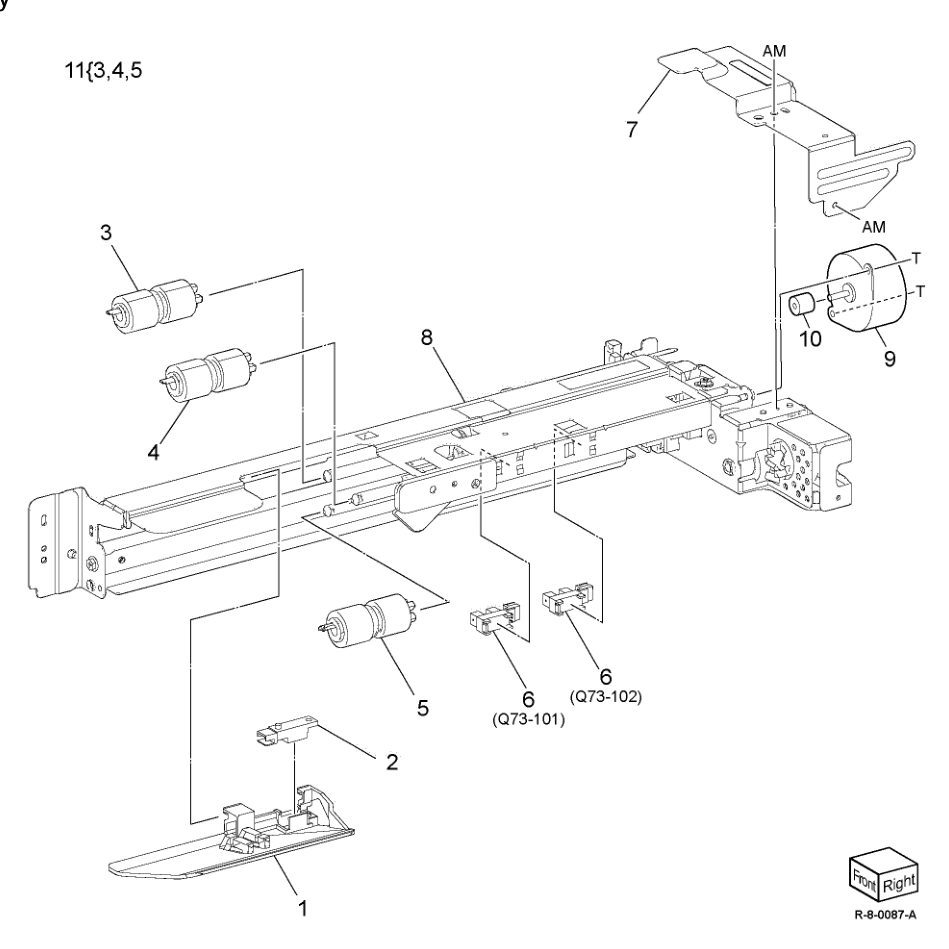

| PL 80.50 TTM Tray 3 Feedhead Assembly 1 054E23461 Chute 2 930W00211 Tray 3 pre-feed sensor (Q73-105) 3 - Feed roll (P/O PL 80.50 Item 11) 4 - Nudger roll (P/O PL 80.50 Item 11) 5 - Retard roll (P/O PL 80.50 Item 11) 6 930W00113 Tray 3 no paper sensor (Q73- 101)/ Tray 3 level sensor (Q73- 102) 7 - Feedhead cover (P/O PL 80.40 Item 3) 8 - Feedhead frame (P/O PL 80.40 Item 3) 9 - Tray 3 feed/lift motor (MOT73- 001) (P/O PL 80.40 Item 3) 10 - Gear (P/O PL 80.50 Item 9) 11 676K12691 Tray 1-4 feed rolls 1 054E23461 Chute 2 930W00211 Tray 3 pre-feed sensor (Q73-105) 3 - Feed roll (P/O PL 80.50 Item 11) 4 - Nudger roll (P/O PL 80.50 Item 11) 5 - Retard roll (P/O PL 80.50 Item 11) 6 930W00113 Tray 3 no paper sensor (Q73- 101)/ Tray 3 level sensor (Q73- 102) 7 - Feedhead cover (P/O PL 80.40 Item 3) 8 - Feedhead frame (P/O PL 80.40 Item 3) 9 - Tray 3 feed/lift motor (MOT73- 001) (P/O PL 80.40 Item 3) 10 - Gear (P/O PL 80.50 Item 9) 11 676K12691 Tray 1-4 feed rolls |  |

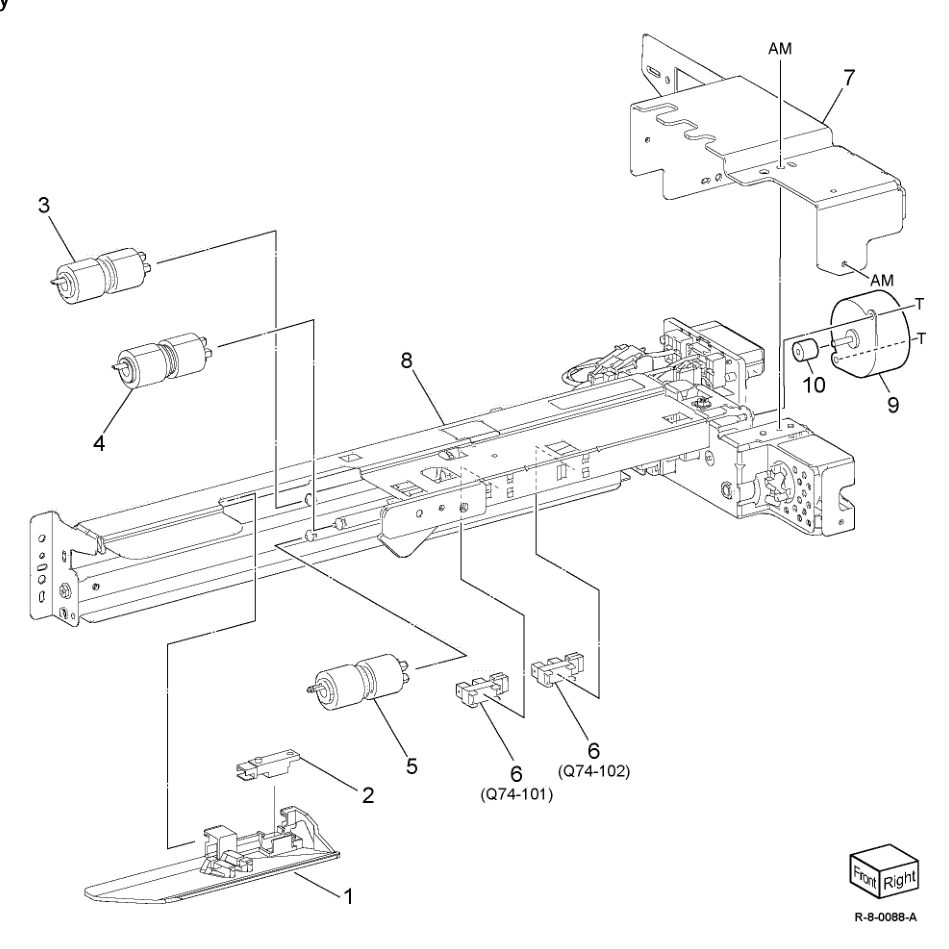

| PL 80.55 TTM Tray 4 Feedhead Assembly 1 054E23461 Chute 2 930W00211 Tray 4 pre-feed sensor (Q74-105) 3 - Feed roll (P/O PL 80.55 Item 11) 4 - Nudger roll (P/O PL 80.55 Item 11) 5 - Retard roll (P/O PL 80.55 Item 11) 6 930W00113 Tray 4 no paper sensor (Q74- 101)/ Tray 4 level sensor (Q74- 102) 7 - Feedhead cover (P/O PL 80.40 Item 7) 8 - Feedhead frame (P/O PL 80.40 Item 7) 9 - Tray 4 feed/lift motor (MOT74- 001) (P/O PL 80.40 Item 7) 10 - Gear (P/O PL 80.55 Item 9) 11 676K12691 Tray 1-4 feed rolls 1 054E23461 Chute 2 930W00211 Tray 4 pre-feed sensor (Q74-105) 3 - Feed roll (P/O PL 80.55 Item 11) 4 - Nudger roll (P/O PL 80.55 Item 11) 5 - Retard roll (P/O PL 80.55 Item 11) 6 930W00113 Tray 4 no paper sensor (Q74- 101)/ Tray 4 level sensor (Q74- 102) 7 - Feedhead cover (P/O PL 80.40 Item 7) 8 - Feedhead frame (P/O PL 80.40 Item 7) 9 - Tray 4 feed/lift motor (MOT74- 001) (P/O PL 80.40 Item 7) 10 - Gear (P/O PL 80.55 Item 9) 11 676K12691 Tray 1-4 feed rolls |  |

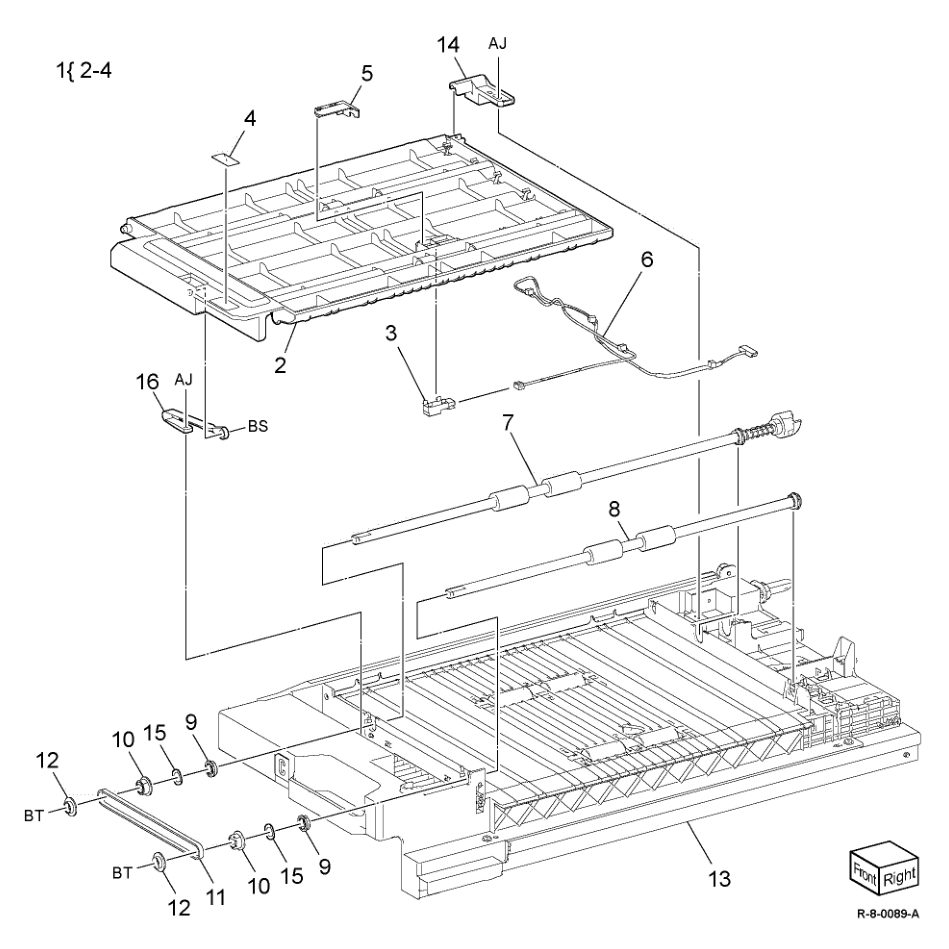

| PL 80.60 TTM Transport Assembly 1 607K02280 Upper chute transport kit (REF: PL 80.40 Item 5) 2 - Upper chute transport (P/O PL 80.60 Item 1) 3 930W00212 Feed out sensor 4 (Q74-103) 930W00212 Tray 4 Feed Out Sensor Fully refurbished with 90-day warranty 930W00212 3-4 Day Lead (Refurbished) $36.00 4 - Label (Transport) (P/O PL 80.60 Item 1) 5 - Feed out sensor cover (Not Spared) 6 - Feed out sensor harness (Not Spared) 7 859K02971 Transport roll assembly 859K02971 Transport Roll Assembly TTM Fully refurbished with 90-day warranty 859K02971 (Refurbished) 8 859K07801 Transport roll 9 413W88650 Bearing 10 - Pulley (Not Spared) 11 - Belt (Not Spared) 12 - Collar (Not Spared) 13 - Lower chute transport (Not Spared) 14 - Rear jam clearance handle (Not Spared) 15 - Washer (Not Spared) 16 - Front jam clearance handle (Not Spared) 1 607K02280 Upper chute transport kit 2 - Upper chute transport (P/O PL 80.60 Item 1) 3 930W00212 Feed out sensor 4 (Q74-103) (P/O PL 80.60 Item 1) 930W00212 Tray 4 Feed Out Sensor Fully refurbished with 90-day warranty 930W00212 3-4 Day Lead (Refurbished) $36.00 4 - Label (Transport) (P/O PL 80.60 Item 1) 5 - Feed out sensor cover (Not Spared) 6 - Feed out sensor harness (Not Spared) 7 859K02971 Transport roll assembly 859K02971 Transport Roll Assembly TTM Fully refurbished with 90-day warranty 859K02971 (Refurbished) 8 859K07801 Transport roll 9 413W88650 Bearing 10 - Pulley (Not Spared) 11 - Belt (Not Spared) 12 - Collar (Not Spared) 13 - Lower chute transport (Not Spared) 14 - Rear jam clearance handle (Not Spared) 15 - Washer (Not Spared) 16 - Front jam clearance handle (Not Spared) |  |

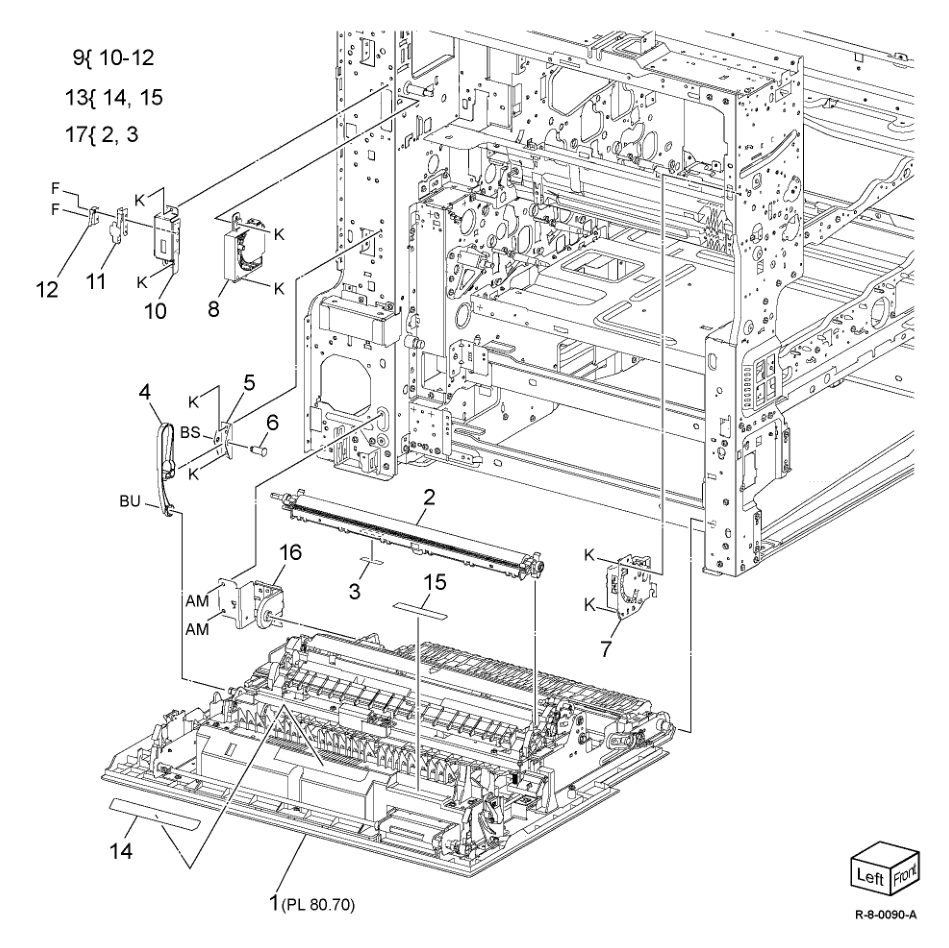

| PL 80.65 Left Cover Components 1 859K17554 Left cover assembly (B8145/ B8155) 859K17554 Left Hand Cover Assembly Fully refurbished with 90-day warranty 859K17554 (Refurbished) $510.00 — 859K24470 Left cover assembly (B8170) 2 008R08103 2nd BTR roll assembly 008R08103 Transfer Roll Second Bias - Estimated Yield: 200,000 Fully refurbished with 90-day warranty 008R08103 (Refurbished) 3 - Label (P/O PL 80.65 Item 17) 4 869E24730 Rear left support 5 - Support bracket (Not Spared) 6 - Shaft (Not Spared) 7 011K04800 Front lever assembly 8 011K04810 Rear lever assembly 9 110K18150 Interlock switch assembly (S77- 300) 10 - Switch bracket (P/O PL 80.65 Item 9) 11 - Switch plate (P/O PL 80.65 Item 9) 12 - Left cover interlock switch (P/O PL 80.65 Item 9) 13 - Caution label kit (Not Spared) 14 - Label (Finger caution) (P/O PL 80.65 Item 1) 15 - Label (Caution) (P/O PL 80.65 Item 1) 16 - Rear bracket (Not Spared) 17 - 2nd BTR assembly 1 859K24470 Left cover assembly (C8170) — 859K24460 Left cover asembly (C8130/ C8135/C8145/C8155) 2 008R08103 2nd BTR roll assembly 008R08103 Transfer Roll Second Bias - Estimated Yield: 200,000 Fully refurbished with 90-day warranty 008R08103 (Refurbished) 3 - Label (P/O PL 80.65 Item 17) 4 869E24730 Rear left support 5 - Support bracket (Not Spared) 6 - Shaft (Not Spared) 7 011K04800 Front lever assembly 8 011K04810 Rear lever assembly 9 110K18150 Interlock switch assembly (S77- 300) 10 - Switch bracket (P/O PL 80.65 Item 9) 11 - Switch plate (P/O PL 80.65 Item 9) 12 - Left cover interlock switch (P/O PL 80.65 Item 9) 13 - Caution label kit (Not Spared) 14 - Label (Finger caution) (P/O PL 80.65 Item 1) 15 - Label (Caution) (P/O PL 80.65 Item 1) 16 - Rear bracket (Not Spared) 17 - 2nd BTR assembly |  |

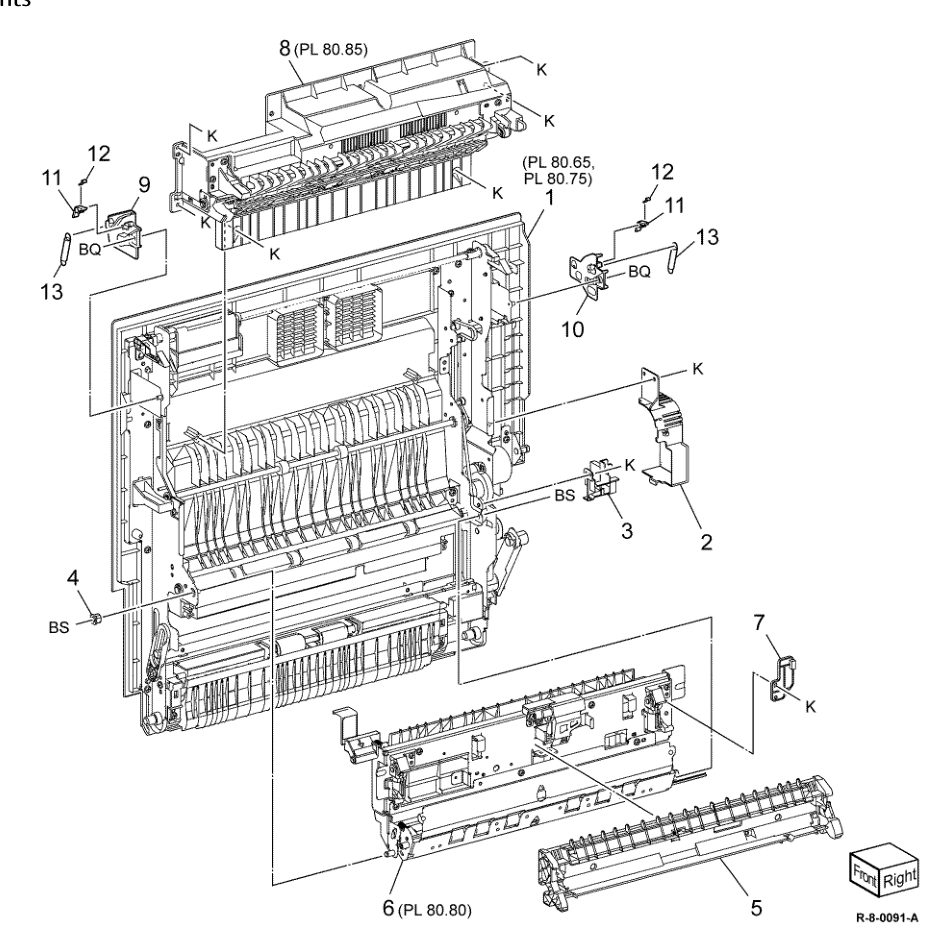

| PL 80.70 Left Cover Transport Components 1 - Left cover asembly (REF: PL 80.75) 2 - Duplex motor cover 3 - Harness guide 4 - Bearing 5 948K01623 2nd BTR housing assembly (REF: PL 80.65 Item 17) 6 - Duplex inner chute assembly (REF: PL 80.80) 7 - Link (P/O PL 80.70 Item 6) 8 054K56213 Duplex chute assembly (B8145/ B8155) (REF: PL 80.85) — 054K57964 Duplex chute assembly (B8170) (REF: PL 80.85) 9 - Front toggle guide 10 - Rear toggle guide 11 - Toggle gate 12 - Spring 13 - Toggle spring 1 - Left cover asembly (REF: PL 80.75) 2 - Duplex motor cover 3 - Harness guide 4 - Bearing 5 948K01623 2nd BTR housing assembly (REF: PL 80.65 Item 17) 6 - Duplex inner chute assembly (REF: PL 80.80) 7 - Link (P/O PL 80.70 Item 6) 8 054K56213 Duplex chute assembly (C8130/ C8135/C8145/C8155) (REF: PL 80.85) — 054K57964 Duplex chute assembly (C8170) 9 - Front toggle guide 10 - Rear toggle guide 11 - Toggle gate 12 - Spring 13 - Toggle spring |  |

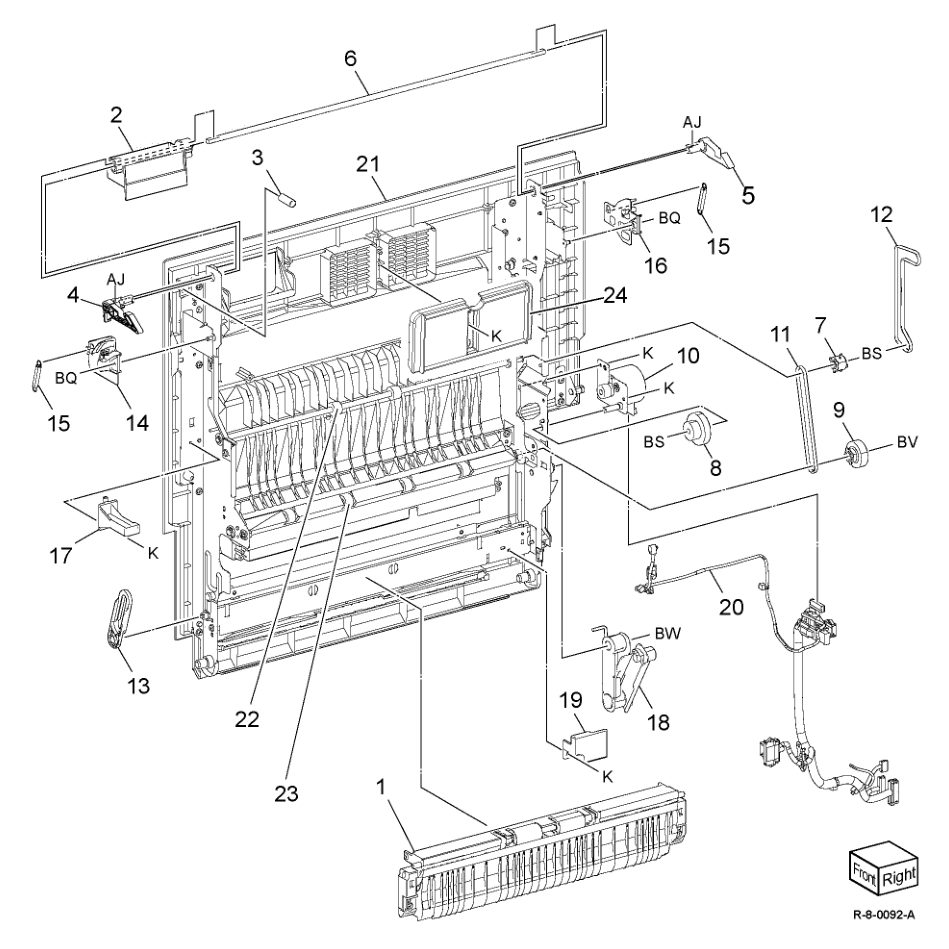

| PL 80.75 Left Cover Transport Assembly 1 054K56131 Lower chute assembly 2 011E28973 Handle 011E28973 Transport Assembly Left Cover Handle Fully refurbished with 90-day warranty 011E28973 (Refurbished) 3 - Spring 4 011E28993 Front latch 5 011E29000 Rear latch 6 - Shaft 7 - Pulley 8 - Gear 9 - Gear/pulley 10 - Duplex motor (MOT77-071) 11 - Belt 12 - Belt 13 869E18601 Front support 14 - Front toggle guide assembly 15 - Spring 16 - Rear toggle guide assembly 17 - Close stopper 18 - Link assembly 19 - Connector cover 20 - Harness assembly 21 - Left cover assembly 22 - Mid duplex roll asembly 23 - Lower duplex roll assembly 24 - Bracket (P/O PL 80.75 Item 27) 25 - Belt (P/O PL 80.75 Item 27) 26 - Pad (P/O PL 80.75 Item 27) 27 049K45260 Duplex drive assembly 1 054K56131 Lower chute assembly 2 011E28973 Handle 011E28973 Transport Assembly Left Cover Handle Fully refurbished with 90-day warranty 011E28973 (Refurbished) 3 - Spring 4 011E28993 Front latch 5 011E29000 Rear latch 6 - Shaft 7 - Pulley 8 - Gear (P/O PL 80.75 Item 27) 9 - Gear/pulley 10 - Duplex motor (MOT77-071) (P/O PL 80.75 Item 27) 11 - Belt 12 - Belt 13 869E18601 Front support 14 - Front toggle guide assembly 15 - Spring 16 - Rear toggle guide assembly 17 - Close stopper 18 - Link assembly 19 - Connector cover 20 - Harness assembly 21 - Left cover assembly 22 - Mid duplex roll asembly 23 - Lower duplex roll assembly 24 - Bracket (P/O PL 80.75 Item 27) 25 - Belt (P/O PL 80.75 Item 27) 26 - Pad (P/O PL 80.75 Item 27) 27 049K45260 Duplex drive assembly |  |

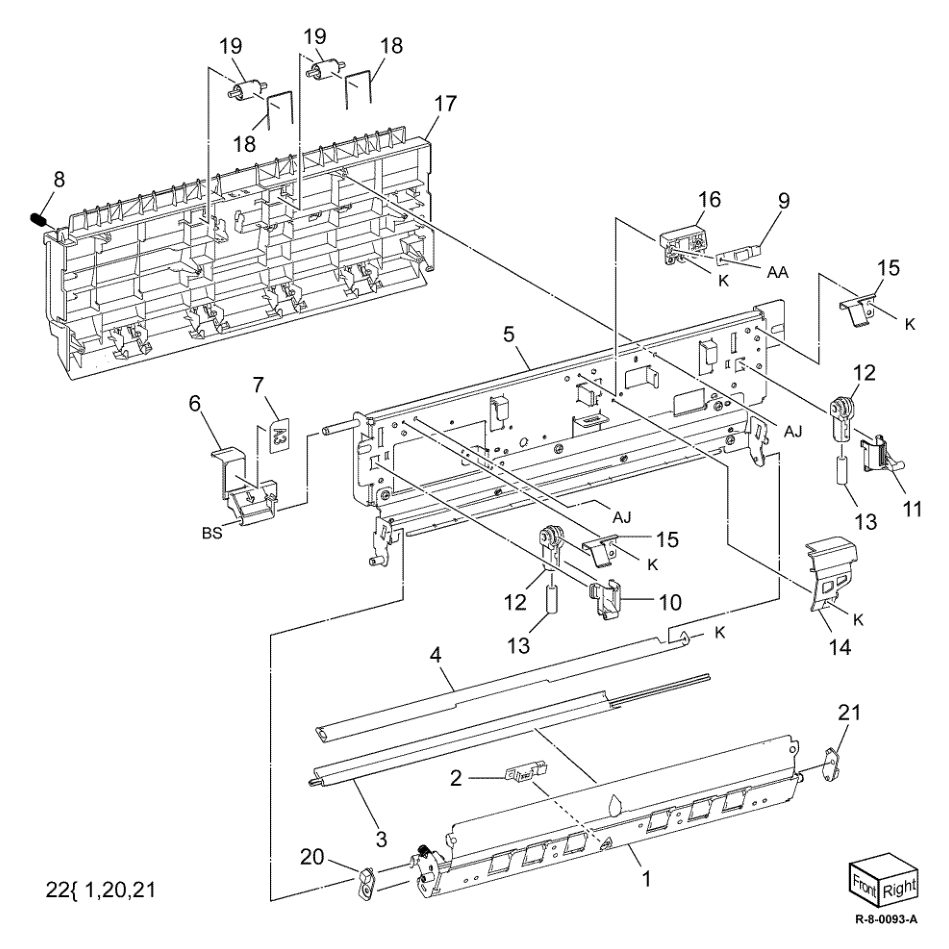

| PL 80.80 Duplex Inner Chute Assembly 1 - Registration chute assembly (P/O PL 80.80 Item 22) 2 930W00211 Registration sensor (Q77-103) 3 - Registration heater assembly 4 - Registration heater bracket 5 - Registration tie plate 6 - Handle 7 - Label (A3) 8 - Spring 9 130E87410 POB jam sensor (Q94-201) 10 - Front spring housing 11 - Rear spring housing 12 - 2nd roller assembly 13 - Spring 14 - Harness cover 15 - BTR bracket 16 - POB jam sensor holder 17 - Duplex inner chute 18 899E15700 Pinch spring 19 607K20560 Pinch roller 20 - Registration front pinch plate (P/O PL 80.80 Item 22) 21 - Registration rear pinch plate (P/O PL 80.80 Item 22) 22 607K14930 Registration chute assembly kit 607K14930 Registration Chute Assembly Fully refurbished with 90-day warranty 607K14930 (Refurbished) 1 - Registration chute assembly (P/O PL 80.80 Item 22) 2 930W00211 Registration sensor (Q77-103) 3 - Registration heater assembly 4 - Registration heater bracket 5 - Registration tie plate 6 - Handle 7 - Label (A3) 8 - Spring 9 130E87410 POB jam sensor (Q94-201) 10 - Front spring housing 11 - Rear spring housing 12 - 2nd roller assembly 13 - Spring 14 - Harness cover 15 - BTR bracket 16 - POB jam sensor holder 17 - Duplex inner chute 18 899E15700 Pinch spring 19 607K20560 Pinch roller 20 - Registration front pinch plate (P/O PL 80.80 Item 22) 21 - Registration rear pinch plate (P/O PL 80.80 Item 22) 22 607K14930 Registration chute assembly kit 607K14930 Registration Chute Assembly Fully refurbished with 90-day warranty 607K14930 (Refurbished) |  |

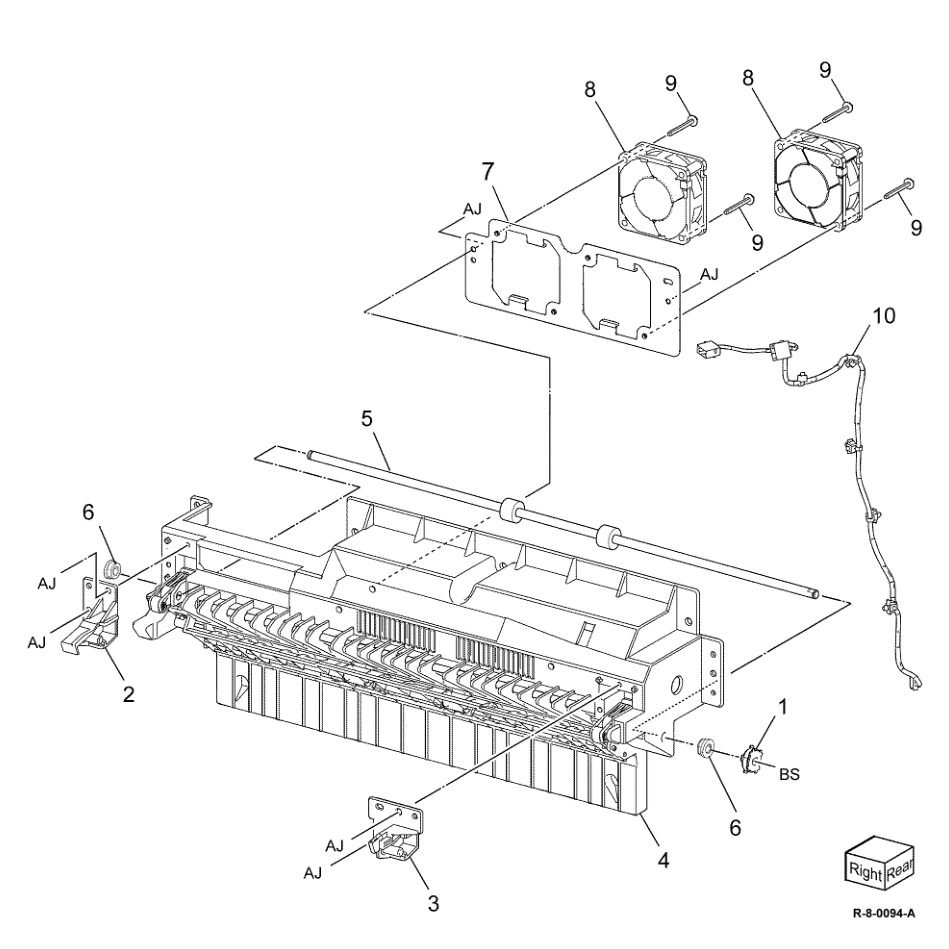

| PL 80.85 Duplex Chute Assembly 1 - Pulley 2 - Front holder assembly 3 - Rear holder assembly 4 - Duplex chute housing assembly 5 - Upper duplex roll assembly 6 - Bearing 7 - Fan bracket (B8170) 8 127K74180 L/H Fan (B8170) 9 - Screw (B8170) 10 - Wire harness (B8170) 1 - Pulley 2 - Front holder assembly 3 - Rear holder assembly 4 - Duplex chute housing assembly 5 - Upper duplex roll assembly 6 - Bearing 7 - Fan bracket (C8170) 8 127K74180 L/H Fan (C8170) 9 - Screw (C8170) 10 - Wire harness (C8170) |  |

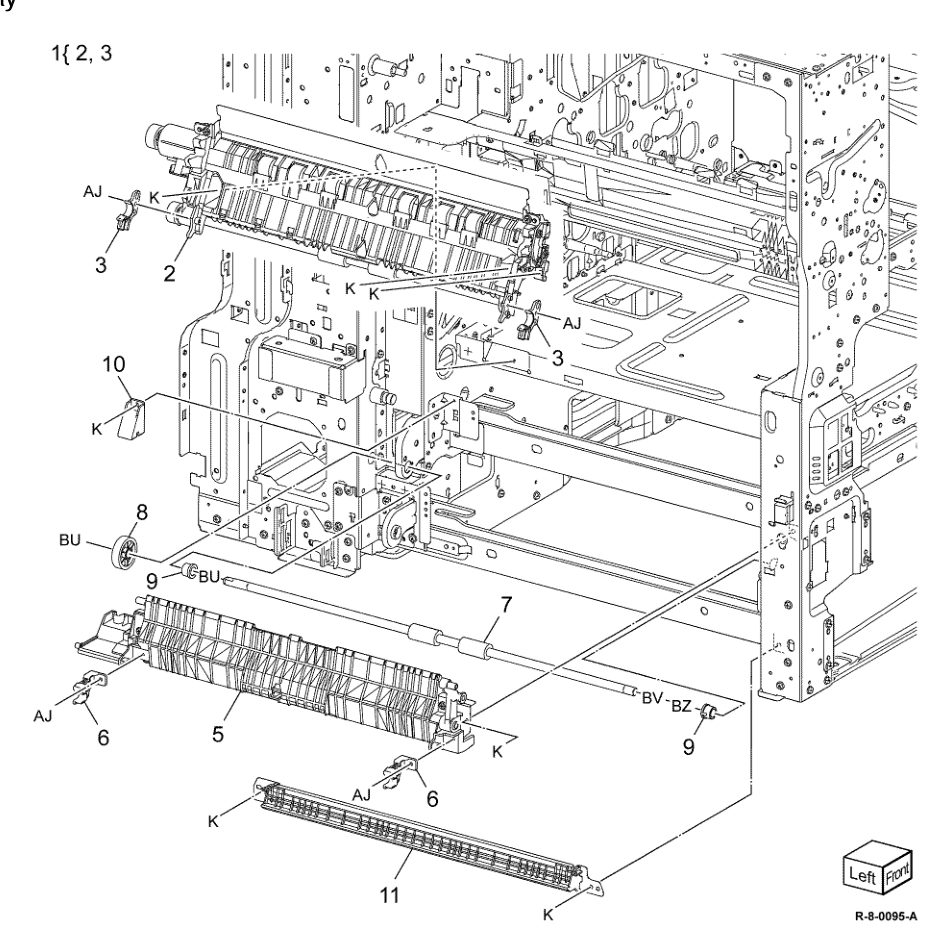

| PL 80.90 Registration Transport Assembly 1 859K15190 Registration transport assembly 859K15190 Registration Transport Assy Fully refurbished with 90-day warranty 859K15190 3-4 Day Lead (Refurbished) $66.64 2 - Registration transport (P/O PL 80.90 Item 1) 3 - Chute holder (P/O PL 80.90 Item 1) 4 - Not used 5 054K55492 Chute 6 032E48421 Chute guide 7 859K02290 Takeaway roll 2 assembly (alter- native) — 859K07200 Takeaway roll 2 assembly 8 807E52000 Drive gear 9 013E46820 Bearing 10 - Connector cover (Not Spared) 11 054K56173 Upper chute assembly 1 859K15190 Registration transport assembly 859K15190 Registration Transport Assy Fully refurbished with 90-day warranty 859K15190 3-4 Day Lead (Refurbished) $66.64 2 - Registration transport (P/O PL 80.90 Item 1) 3 - Chute holder (P/O PL 80.90 Item 1) 4 - Not used 5 054K55492 Chute 6 032E48421 Chute guide 7 859K02290 Takeaway roll 2 assembly (alter- native) — 859K07200 Takeaway roll 2 assembly 8 807E52000 Drive gear 9 013E46820 Bearing 10 - Connector cover (Not Spared) 11 054K56173 Upper chute assembly |  |

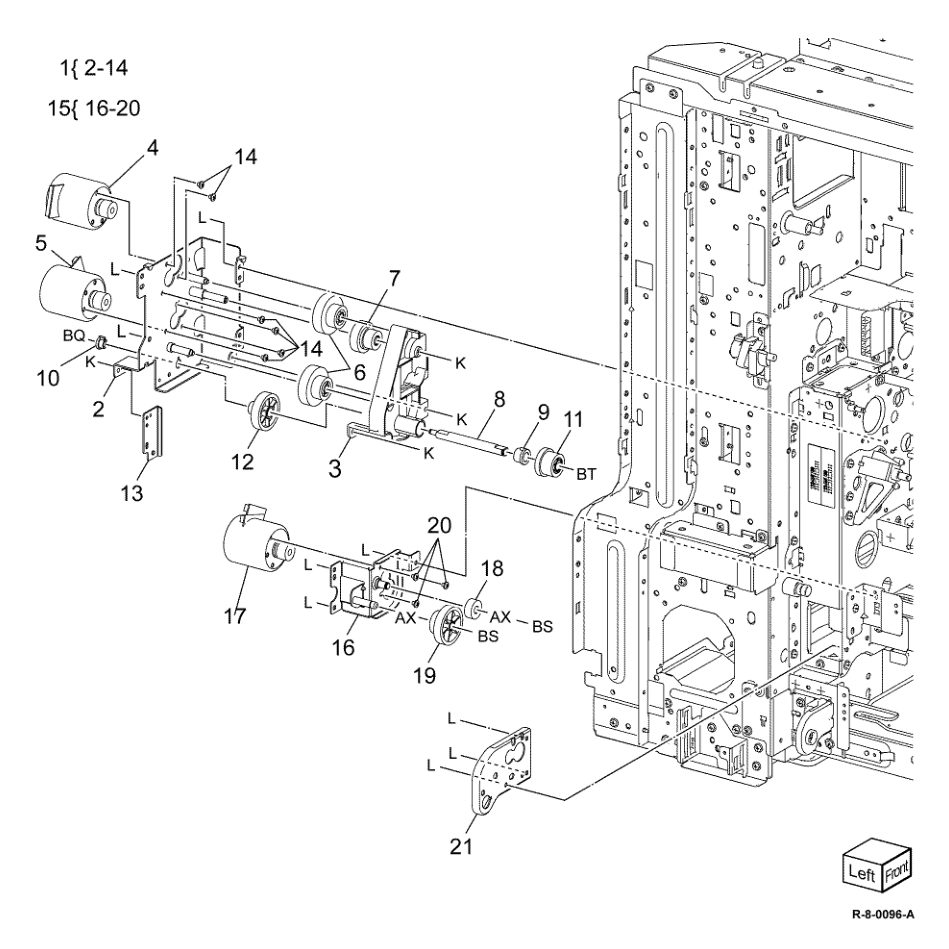

| PL 80.95 Registration Drive Assembly 1 007K23700 Registration drive assembly 007K23700 Registration Drive Assembly Fully refurbished with 90-day warranty 007K23700 3-4 Day Lead (Refurbished) $121.04 2 - Motor bracket (P/O PL 80.95 Item 1) 3 - Block (P/O PL 80.95 Item 1) 4 - Registration motor (MOT77-055) (P/O PL 80.95 Item 1) 5 - Takeaway motor 1 (MOT77-050) (P/O PL 80.95 Item 1) 6 - Gear (39/22) (P/O PL 80.95 Item 1) 7 - Gear (30/18) (P/O PL 80.95 Item 1) 8 - Shaft (P/O PL 80.95 Item 1) 9 - Bearing 10 - Bearing (P/O PL 80.95 Item 1) 11 - Gear (37) (P/O PL 80.95 Item 1) 12 - Gear (25) (P/O PL 80.95 Item 1) 13 - Bracket (P/O PL 80.95 Item 1) 14 - Screw (P/O PL 80.95 Item 1) 15 007K22022 Takeaway drive assembly 16 - Takeaway motor 2 bracket (P/O PL 80.95 Item 15) 17 - Takeaway motor 2 (MOT77-051) (P/O PL 80.95 Item 15) 18 - Gear (18) (P/O PL 80.95 Item 15) 19 - Gear (Z39/22) (P/O PL 80.95 Item 15) 20 - Screw (P/O PL 80.95 Item 15) 21 - Drive bracket (Not Spared) 1 007K23700 Registration drive assembly 007K23700 Registration Drive Assembly Fully refurbished with 90-day warranty 007K23700 3-4 Day Lead (Refurbished) $121.04 2 - Motor bracket (P/O PL 80.95 Item 1) 3 - Block (P/O PL 80.95 Item 1) 4 - Registration motor (MOT77-055) (P/O PL 80.95 Item 1) 5 - Takeaway motor 1 (MOT77-050) (P/O PL 80.95 Item 1) 6 - Gear (39/22) (P/O PL 80.95 Item 1) 7 - Gear (30/18) (P/O PL 80.95 Item 1) 8 - Shaft (P/O PL 80.95 Item 1) 9 - Bearing (P/O PL 80.95 Item 1) 10 - Bearing (P/O PL 80.95 Item 1) 11 - Gear (37) (P/O PL 80.95 Item 1) 12 - Gear (25) (P/O PL 80.95 Item 1) 13 - Bracket (P/O PL 80.95 Item 1) 14 - Screw (P/O PL 80.95 Item 1) 15 007K22022 Takeaway drive assembly 16 - Takeaway motor 2 bracket (P/O PL 80.95 Item 15) 17 - Takeaway motor 2 (MOT77-051) (P/O PL 80.95 Item 15) 18 - Gear (18) (P/O PL 80.95 Item 15) 19 - Gear (Z39/22) (P/O PL 80.95 Item 15) 20 - Screw (P/O PL 80.95 Item 15) 21 - Drive bracket (Not Spared) |  |

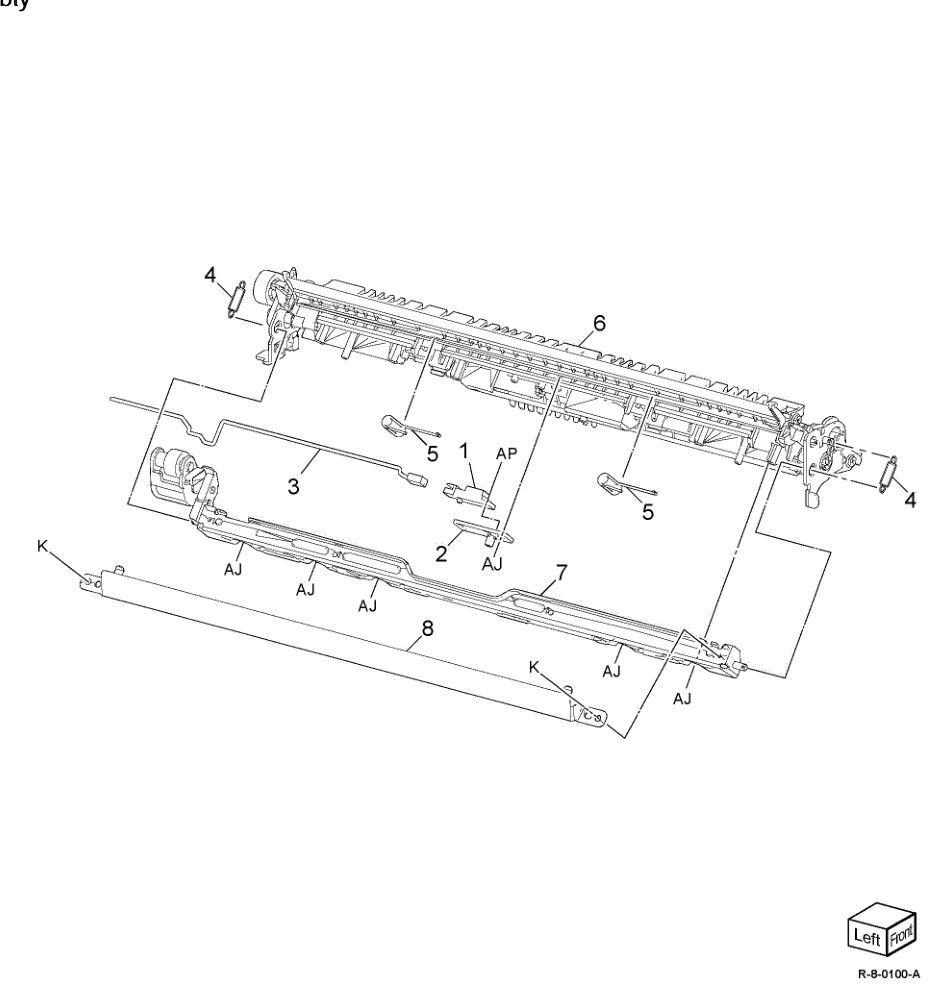

| PL 80.115 Bypass Tray Takeaway Assembly 1 930W00211 Feed out sensor (Q77-104) 2 - Feed out sensor holder 3 - Feed out sensor harness 4 - Spring 5 - Spring 6 - Pinch chute 7 - Tie plate 8 - Miler plate 1 930W00211 Feed out sensor (Q77-104) 2 - Feed out sensor holder 3 - Feed out sensor harness 4 - Spring 5 - Spring 6 - Pinch chute 7 - Tie plate 8 - Miler plate |  |

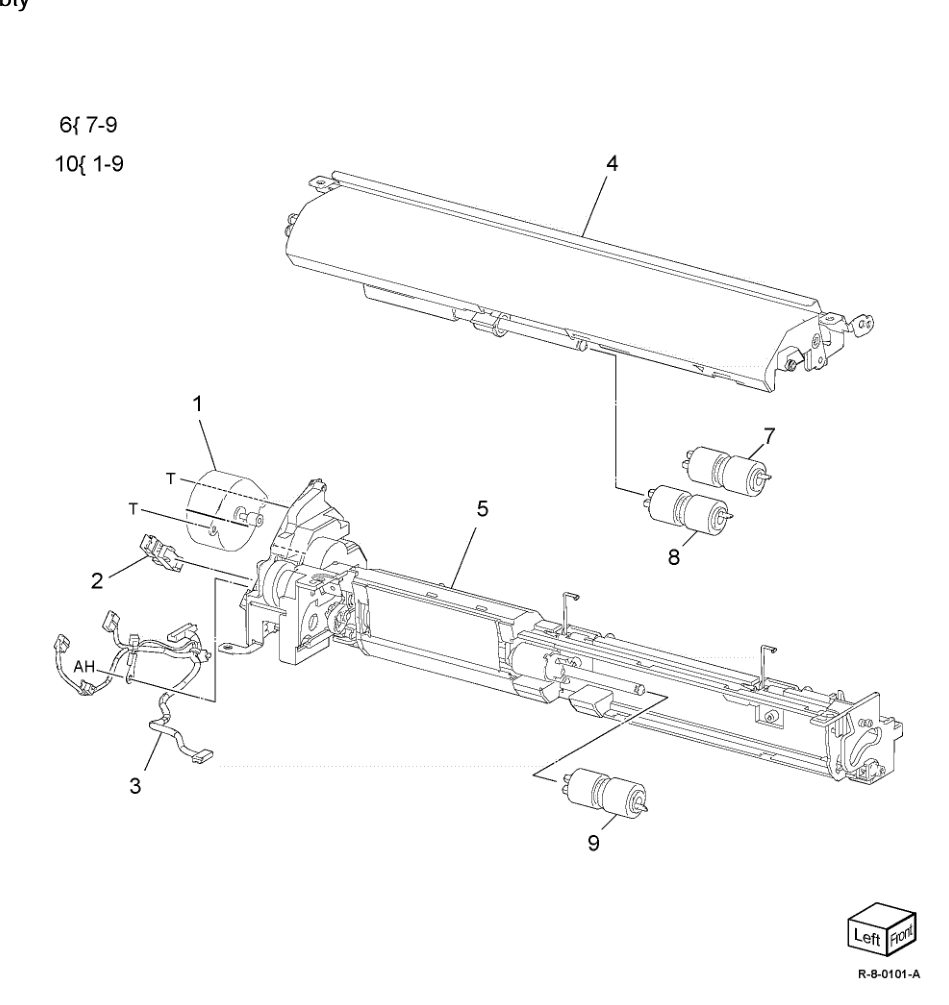

| PL 80.120 Bypass Tray Feedhead Assembly 1 127K52790 Bypass tray feed/lift motor (MOT75-003) 127K52790 Lift Up Motor Fully refurbished with 90-day warranty 127K52790 3-4 Day Lead (Refurbished) $59.84 2 930W00113 Bypass tray nudger position sen- sor (Q75-102) 3 952K30302 Harness assembly 952K30302 Harness Assembly Bypass Tray Fully refurbished with 90-day warranty 952K30302 (Refurbished) 4 - Upper feedhead assembly (P/O PL 80.120 Item 10) 5 - Lower frame (P/O PL 80.120 Item 10) 6 607K12430 Bypass tray roll kit 7 - Feed roll (P/O PL 80.120 Item 6) 8 - Nudger roll (P/O PL 80.120 Item 6) 9 - Retard roll (P/O PL 80.120 Item 6) 10 607K15040 Bypass tray feedhead kit 1 127K52790 Bypass tray feed/lift motor (MOT75-003) 127K52790 Lift Up Motor Fully refurbished with 90-day warranty 127K52790 3-4 Day Lead (Refurbished) $59.84 2 930W00113 Bypass tray nudger position sen- sor (Q75-102) 3 952K30302 Harness assembly 952K30302 Harness Assembly Bypass Tray Fully refurbished with 90-day warranty 952K30302 (Refurbished) 4 - Upper feedhead assembly (P/O PL 80.120 Item 10) 5 - Lower frame (P/O PL 80.120 Item 10) 6 676K61351 Bypass tray roll kit 676K61351 Feed Rollers - Tray 5 (MPT) Fully refurbished with 90-day warranty 676K61351 (Refurbished) 7 - Feed roll (P/O PL 80.120 Item 6) 8 - Nudger roll (P/O PL 80.120 Item 6) 9 - Retard roll (P/O PL 80.120 Item 6) 10 607K15040 Bypass tray feeder kit |  |

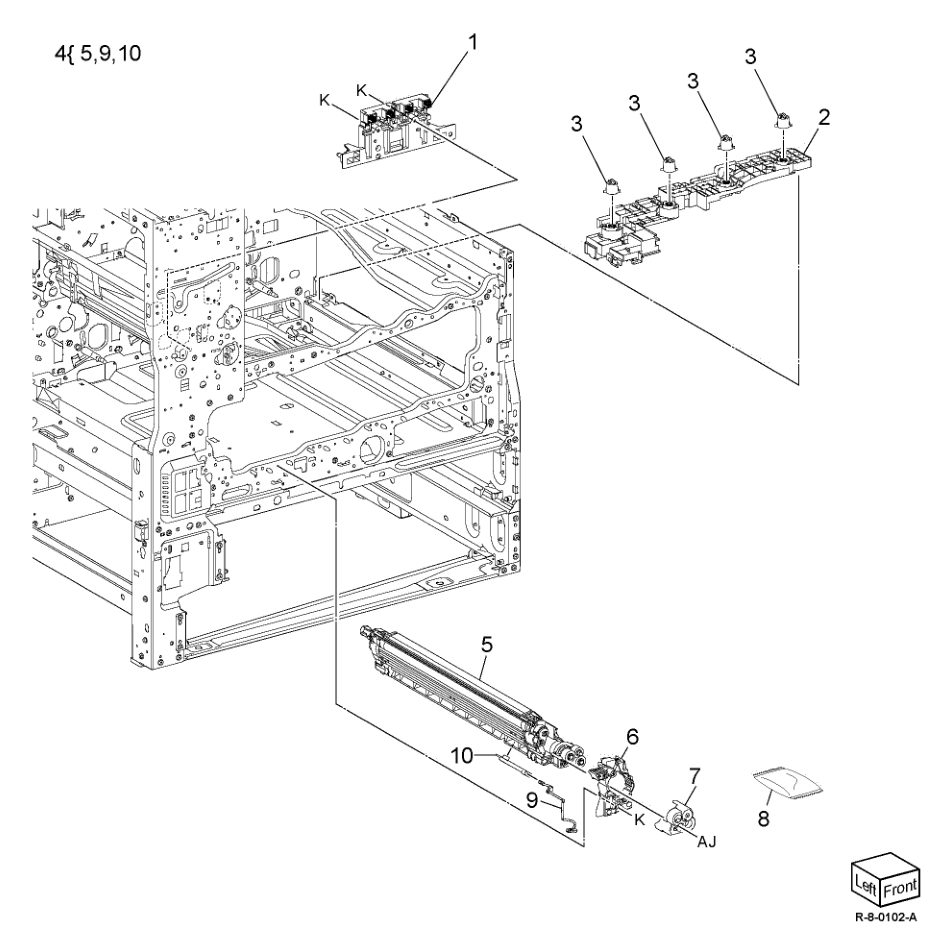

| PL 90.05 Developer Unit 1 948K28430 Conductor housing assembly 2 948K28420 Developer conductor housing assembly 948K28420 Developer Conductor Housing Fully refurbished with 90-day warranty 948K28420 (Refurbished) 3 010E96730 Plunger 4 948K13034 Developer housing kit (See NOTE) 948K13034 Developer Housing Kit Fully refurbished with 90-day warranty 948K13034 (Refurbished) $225.00 5 - Developer assembly (P/O PL 90.05 Item 4) (See NOTE) 6 815K16910 Developer plate assembly 815K16910 Developer Plate Assembly Black Fully refurbished with 90-day warranty 815K16910 (Refurbished) 7 - Gear cover (Not Spared) 8 676K51531 Developer material (K) 9 - Wire harness (P/O PL 90.05 Item 4) 10 - ATC sensor (P/O PL 90.05 Item 4) 1 948K01510 Conductor housing assembly 2 948K01530 Developer conductor housing assembly 948K01530 Developer conductor housing Fully refurbished with 90-day warranty 948K01530 (Refurbished) 3 010E96730 Plunger 4 948K13034 Developer housing kit (C8145/ C8155/C8170) 948K13034 Developer Housing Kit Fully refurbished with 90-day warranty 948K13034 (Refurbished) $225.00 — 948K13024 Developer housing kit (C8130/ C8135) 5 - Developer assembly (P/O PL 90.05 Item 4) (See NOTE) 6 815K16880 Developer plate assembly (Y) 815K16880 Developer Plate Assembly Yellow Fully refurbished with 90-day warranty 815K16880 (Refurbished) — 815K16910 Developer plate assembly (K) 815K16910 Developer Plate Assembly Black Fully refurbished with 90-day warranty 815K16910 (Refurbished) — 815K16900 Developer plate assembly (C) 815K16900 Developer Plate Assembly Cyan Fully refurbished with 90-day warranty 815K16900 (Refurbished) — 815K16890 Developer plate assembly (M) 815K16890 Developer Plate Assembly Magenta Fully refurbished with 90-day warranty 815K16890 (Refurbished) 7 948K11800 Gear cover 8 676K51561 Developer material (Y) 9 676K51551 Developer material (M) 10 676K51541 Developer material (C) 11 676K51531 Developer material (K) 12 - Harness guide (Not Spared) 13 - Wire harness (P/O PL 90.05 Item 4) 14 930K00330 ATC sensor |  |

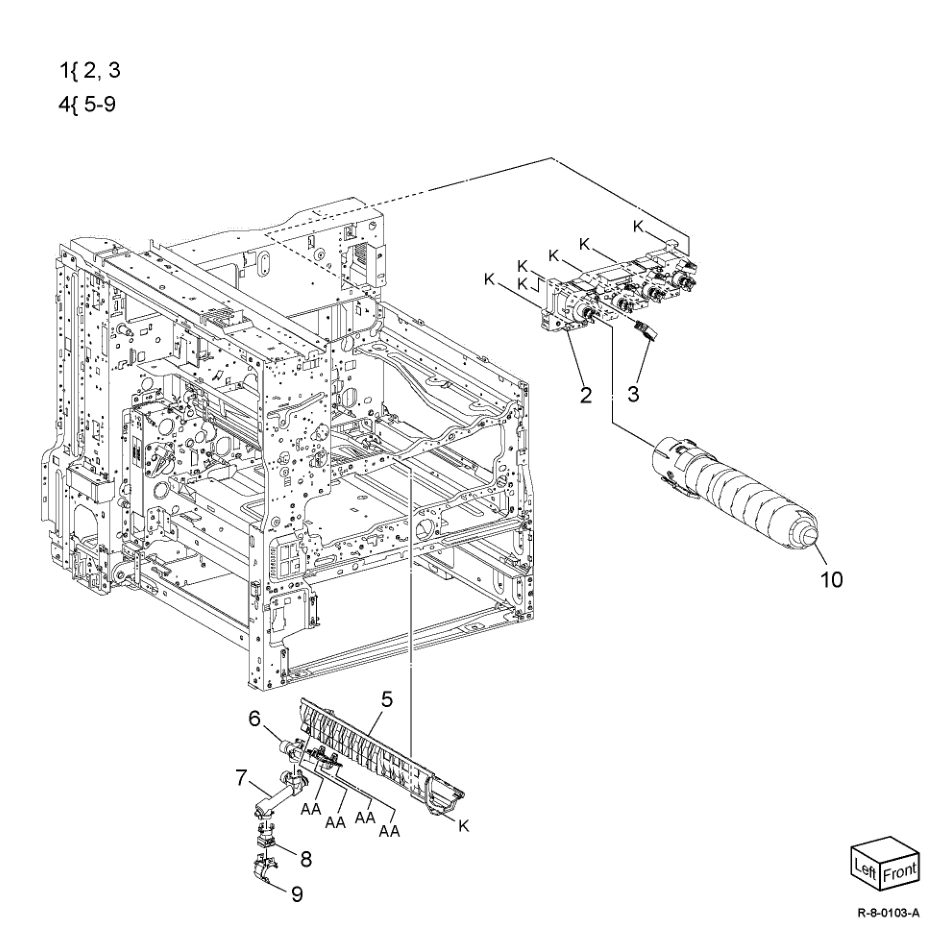

| PL 90.10 Toner Dispense 1 007K23950 Toner dispense motor assembly (MOT92-005) 007K23950 Toner Dispense Motor Assembly Fully refurbished with 90-day warranty 007K23950 (Refurbished) 2 - Drive assembly (P/O PL 90.10 Item 1) 3 019K16490 Toner CRUM connector assembly 019K16490 Toner CRUM connector assembly Fully refurbished with 90-day warranty 019K16490 (Refurbished) 4 094K94171 Dispenser assembly (K) 5 - Toner guide assembly (K) (P/O PL 90.10 Item 4) 6 - Main pipe (K) (P/O PL 90.10 Item 4) 7 - Sub pipe (K) (P/O PL 90.10 Item 4) 8 - Lower pipe (K) (P/O PL 90.10 Item 4) 9 - Shutter (K) (P/O PL 90.10 Item 4) 10 - Toner cartridge (K) (REF: PL 25.10 Item 2) 1 007K21500 Toner dispense motor assembly (MOT92-005) 007K21500 Toner Dispense Motor Assembly Fully refurbished with 90-day warranty 007K21500 (Refurbished) $179.00 2 - Drive assembly (P/O PL 90.10 Item 1) 3 019K16490 Toner CRUM connector assembly 019K16490 Toner CRUM connector assembly Fully refurbished with 90-day warranty 019K16490 (Refurbished) 4 094K94141 Dispenser assembly (Y) 094K94141 Dispenser Assembly - Yellow Fully refurbished with 90-day warranty 094K94141 (Refurbished) 5 - Toner guide assembly (P/O PL 90.10 Item 4) 6 - Main pipe (Y) (P/O PL 90.10 Item 4) 7 - Lower pipe (Y) (P/O PL 90.10 Item 4) 8 - Shutter (Y) (P/O PL 90.10 Item 4) 9 094K94151 Dispenser assembly (M) 094K94151 Dispenser Assembly - Magenta Fully refurbished with 90-day warranty 094K94151 (Refurbished) 10 - Toner guide assembly (M) (P/O PL 90.10 Item 9) 11 - Main pipe (M) (P/O PL 90.10 Item 9) 12 - Sub pipe (M) (P/O PL 90.10 Item 9) 13 - Lower pipe (M) (P/O PL 90.10 Item 9) 14 - Shutter (M) (P/O PL 90.10 Item 9) 15 094K94161 Dispenser assembly (C) 16 - Toner guide assembly (C) (P/O PL 90.10 Item 15) 17 - Main pipe (C) (P/O PL 90.10 Item 15) 18 - Sub pipe (C) (P/O PL 90.10 Item 15) 19 - Lower pipe (C) (P/O PL 90.10 Item 15) 20 - Shutter (C) (P/O PL 90.10 Item 15) 21 094K94171 Dispenser assembly (K) 22 - Toner guide assembly (K) (P/O PL 90.10 Item 21) 23 - Main pipe (K) (P/O PL 90.10 Item 21) 24 - Sub pipe (K) (P/O PL 90.10 Item 21) 25 - Lower pipe (K) (P/O PL 90.10 Item 21) 26 - Shutter (K) (P/O PL 90.10 Item 21) 27 - Toner cartridge (Y) (REF: PL 26.10 Item 1) 28 - Toner cartridge (M) (REF: PL 26.10 Item 2) 29 - Toner cartridge (C) (REF: PL 26.10 Item 3) |  |

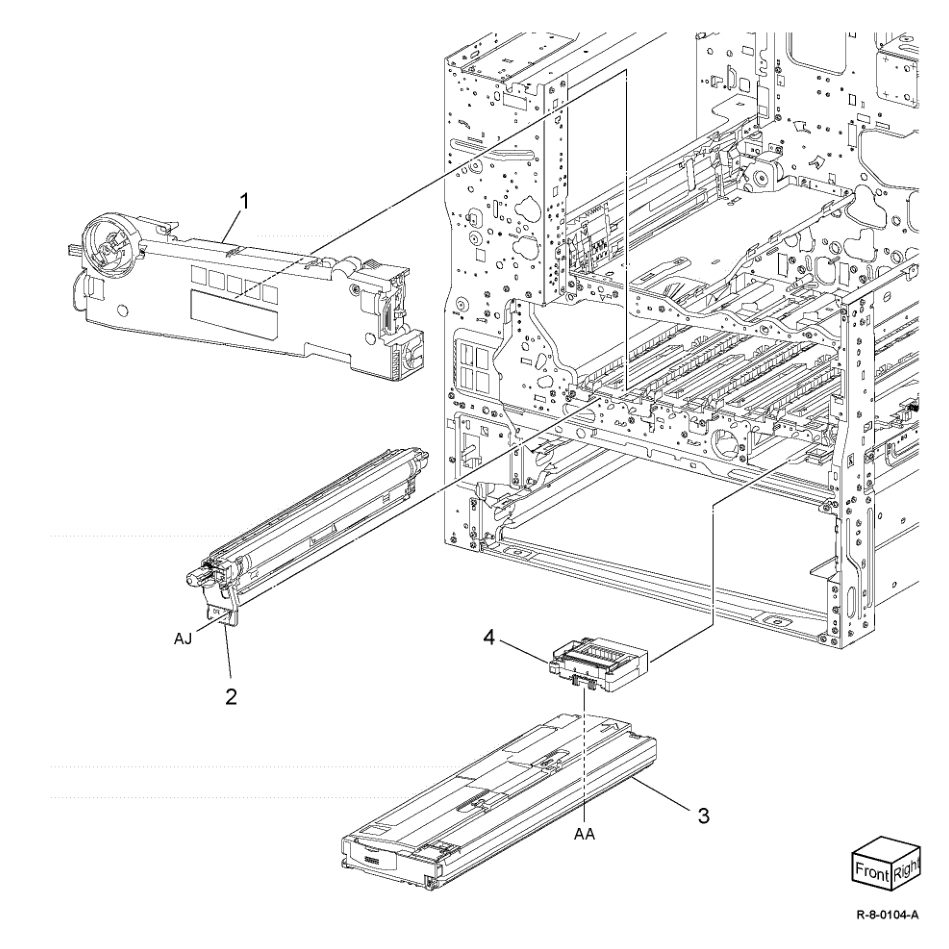

| PL 90.15 Xerographic Components 1 948K28412 Waste toner transport assembly 948K28412 Waste Toner Transport Assembly Fully refurbished with 90-day warranty 948K28412 (Refurbished) 2 013R00686 Drum assembly (K) (NOTE) 013R00686 Black Drum Cartridge - Estimated Yield: 198,000 Fully refurbished with 90-day warranty 013R00686 (Refurbished) 3 008R08101 Waste cartridge (B8145/B8155) 008R08101 Waste Toner Container - Estimated Yield: 69,000 Fully refurbished with 90-day warranty 008R08101 (Refurbished) — 008R08102 Waste cartridge (B8170) 008R08102 Waste Toner Container - Estimated Yield: 69,000 Fully refurbished with 90-day warranty 008R08102 (Refurbished) 4 - Suction Case (B8170) 1 948K00016 Waste toner transport assembly 948K00016 Waste Toner Transport Assembly Fully refurbished with 90-day warranty 948K00016 (Refurbished) 2 - Drum assembly (K) (NOTE) 3 - Drum assembly (C) (NOTE) 4 - Drum assembly (M) (NOTE) 5 - Drum assembly (Y) (NOTE) 6 008R08101 Waste cartridge (C8130/C8135/ C8145/C8155) 008R08101 Waste Toner Container - Estimated Yield: 69,000 Fully refurbished with 90-day warranty 008R08101 (Refurbished) — 008R08102 Waste cartridge (C8170) 008R08102 Waste Toner Container - Estimated Yield: 69,000 Fully refurbished with 90-day warranty 008R08102 (Refurbished) 7 - Suction case (C8170) |  |

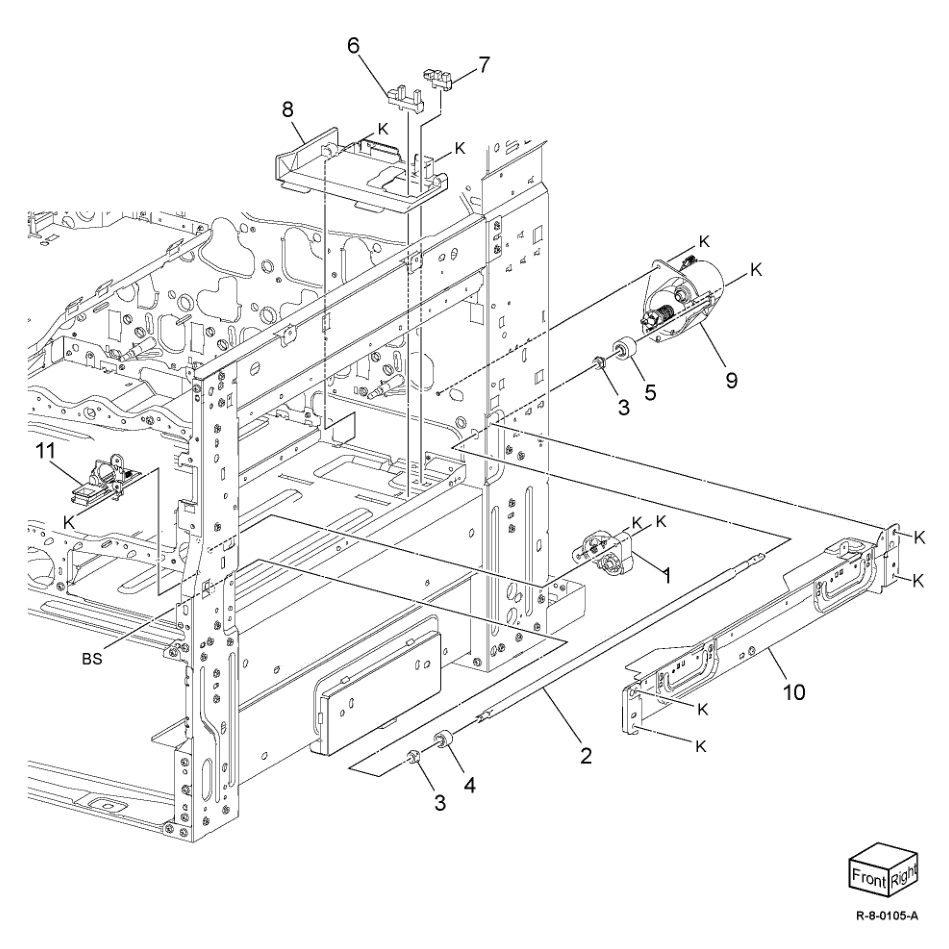

| PL 90.20 Xerographic Assembly (1 of 2) 1 948K02890 Gear housing assembly 2 806E47221 Drive shaft 3 413W11660 Sleeve bearing 4 807E52060 Gear 5 807E51980 Helical gear 6 930W00511 Waste toner bottle full sensor (Q91-201) 7 130E81600 Waste toner bottle position sensor (Q91-200) 8 032E47030 Bottle guide 9 948K00350 Agitator motor assembly (MOT91- 006) 10 - Handle assembly (Not Spared) 11 052K14000 Joint pipe assembly 1 948K02890 Gear housing assembly 2 806E47221 Drive shaft 3 413W11660 Sleeve bearing 4 807E52060 Gear 5 807E51980 Helical gear 6 930W00511 Waste toner bottle full sensor (Q91-201) 7 130E81600 Waste toner bottle position sensor (Q91-200) 8 032E47030 Bottle guide 9 948K00350 Agitator motor assembly (MOT91- 006) 10 - Handle assembly (Not Spared) 11 052K14000 Joint pipe assembly |  |

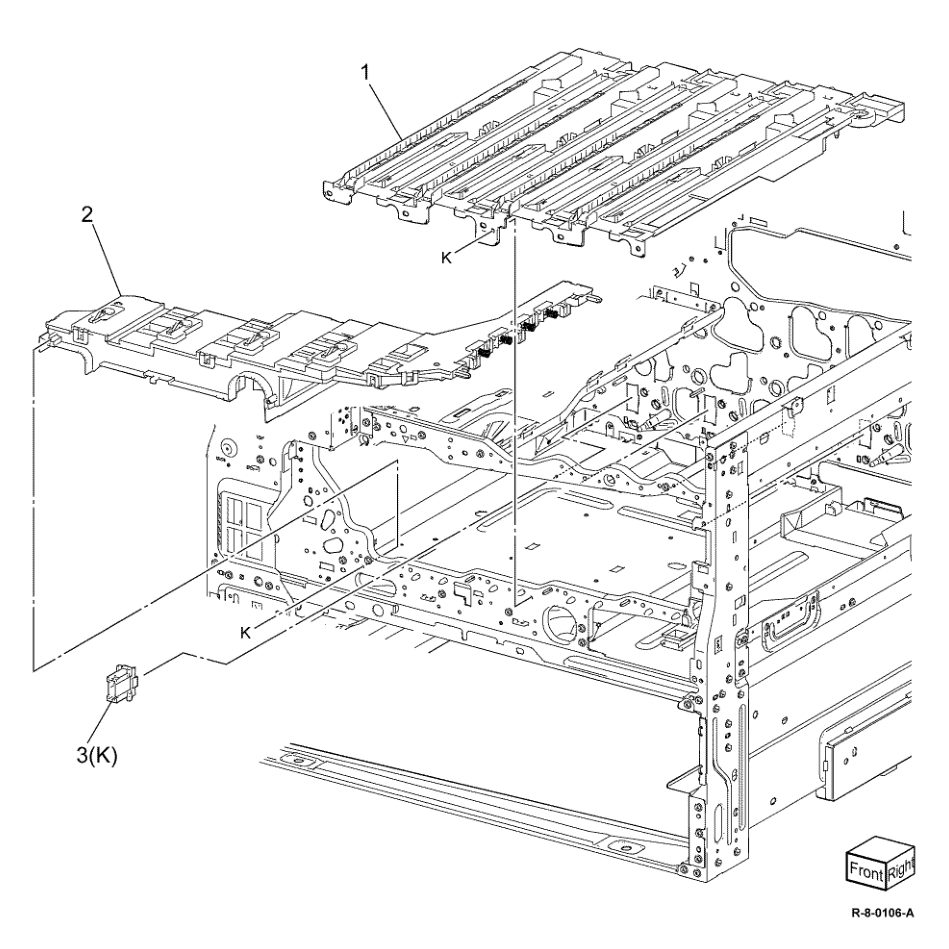

| PL 90.25 Xerographic Assembly (2 of 2) 1 - Marking guide (P/O PL 60.05 Item 1) 2 948K29050 Housing assembly 948K29050 Housing Assembly Xerographic Fully refurbished with 90-day warranty 948K29050 (Refurbished) 3 113E48880 Drum CRUM connector 1 - Marking guide (P/O PL 60.05 Item 1) 2 948K00060 Housing assembly 3 113E48880 Drum CRUM connector |  |

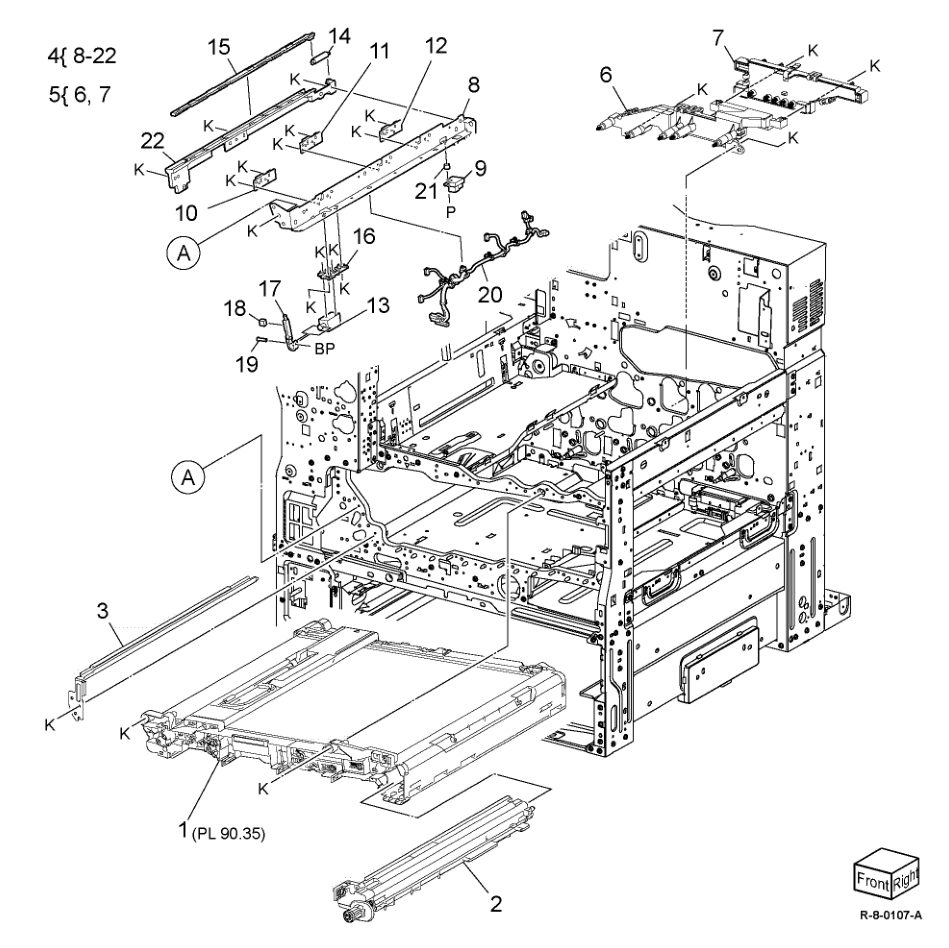

| PL 90.30 IBT Belt Unit Components 1 064K02774 IBT belt assembly 064K02774 IBT Belt Assembly Fully refurbished with 90-day warranty 064K02774 3-4 Day Lead (Refurbished) 2 001R00623 IBT belt cleaner assembly 3 - IBT lower guide (Not Spared) 4 930K02760 MOB/ADC Assembly 5 948K05250 Conductor housing assembly Xerox 948K05250 Conductor housing assembly Fully refurbished with 90-day warranty 948K05250 (Refurbished) 6 - Lower conductor housing assem- bly (P/O PL 90.30 Item 5) 7 - Upper conductor housing assem- bly (P/O PL 90.30 Item 5) 8 - Bracket (P/O PL 90.30 Item 4) 9 - Temp/Humidity sensor (internal) (P/O PL 90.30 Item 4) 10 - Front MOB sensor (P/O PL 90.30 Item 4) 11 - ADC sensor (Q92-029) (P/O PL 90.30 Item 4) 12 - Rear MOB sensor (P/O PL 90.30 Item 4) 13 - Shutter solenoid (P/O PL 90.30 Item 4) 14 - Spring (P/O PL 90.30 Item 4) 15 - Shutter (P/O PL 90.30 Item 4) 16 - Solenoid holder (P/O PL 90.30 Item 4) 17 - Arm (P/O PL 90.30 Item 4) 18 - Cushion (P/O PL 90.30 Item 4) 19 - Pin (P/O PL 90.30 Item 4) 20 - MOBC harness assembly (P/O PL 90.30 Item 4) 21 - Humidity spacer (P/O PL 90.30 Item 4) 22 - Cover (P/O PL 90.30 Item 4) 1 607K08607 IBT belt assembly 2 001R00623 IBT belt cleaner assembly 3 - IBT lower guide (Not Spared) 4 930K02752 MOB/ADC Assembly 5 948K01955 Conductor housing assembly 6 - Lower conductor housing assem- bly (P/O PL 90.30 Item 5) 7 - Upper conductor housing assem- bly (P/O PL 90.30 Item 5) 8 - Bracket (P/O PL 90.30 Item 4) 9 - Temp/Humidity sensor (internal) (P/O PL 90.30 Item 4) 10 - Front MOB sensor (P/O PL 90.30 Item 4) 11 - ADC sensor (Q92-029) (P/O PL 90.30 Item 4) 12 - Rear MOB sensor (P/O PL 90.30 Item 4) 13 - Shutter solenoid (P/O PL 90.30 Item 4) 14 - Spring (P/O PL 90.30 Item 4) 15 - Shutter (P/O PL 90.30 Item 4) 16 - Solenoid holder (P/O PL 90.30 Item 4) 17 - Arm (P/O PL 90.30 Item 4) 18 - Cushion (P/O PL 90.30 Item 4) 19 - Pin (P/O PL 90.30 Item 4) 20 - MOBC harness assembly (P/O PL 90.30 Item 4) 21 - Humidity spacer (P/O PL 90.30 Item 4) 22 - Cover (P/O PL 90.30 Item 4) |  |

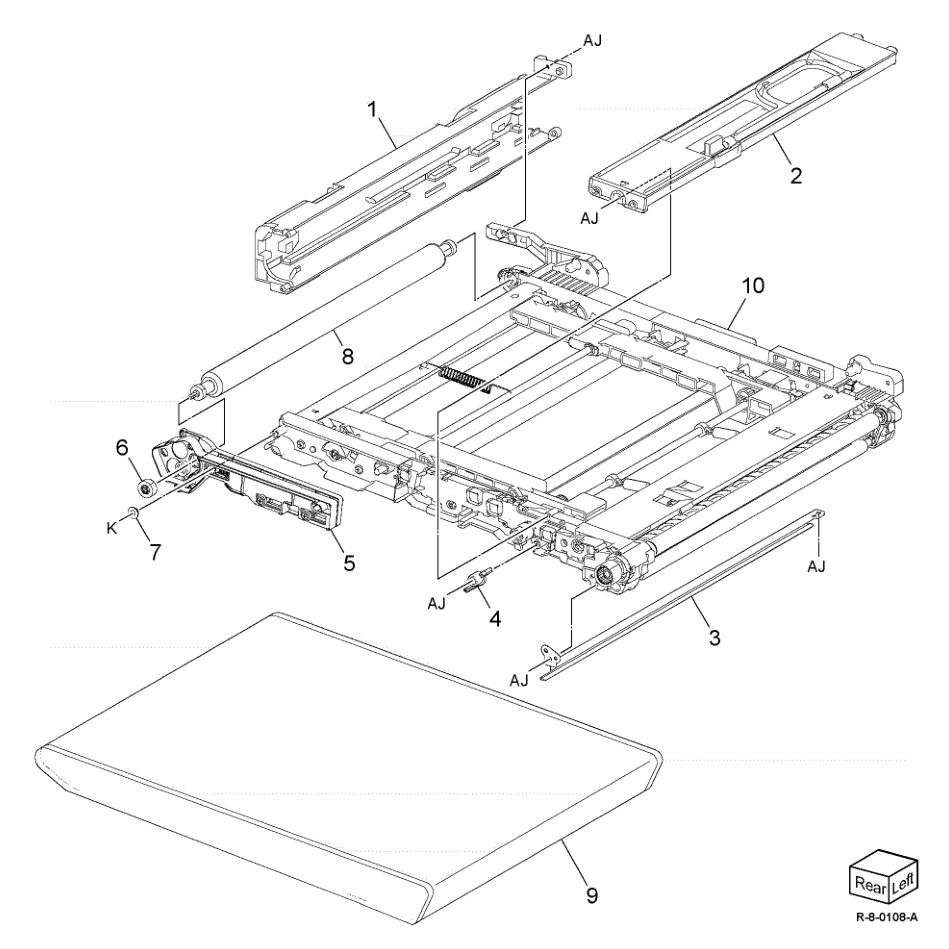

| PL 90.35 IBT Belt Unit Assembly 1 - Cleaner housing guide 2 - Handle holder 3 - IBT upper guide 4 - Belt arm 5 - Tension holder asembly 6 - Tension gear 7 - Tension collar 8 859K02811 Tension roller assembly 859K02811 Tension Roller Assembly IBT Fully refurbished with 90-day warranty 859K02811 (Refurbished) 9 064K94660 IBT belt 10 - IBT handle unit 1 - Cleaner housing guide 2 - Handle holder 3 - IBT upper guide 4 - Belt arm 5 - Tension holder assembly 6 - Tension gear 7 - Tension collar 8 859K02811 Tension roller assembly 859K02811 Tension Roller Assembly IBT Fully refurbished with 90-day warranty 859K02811 (Refurbished) 9 064K94660 IBT belt 10 - IBT handle unit |  |
