Lexmark X463 X464 X466 Parts







Please call for parts assistance

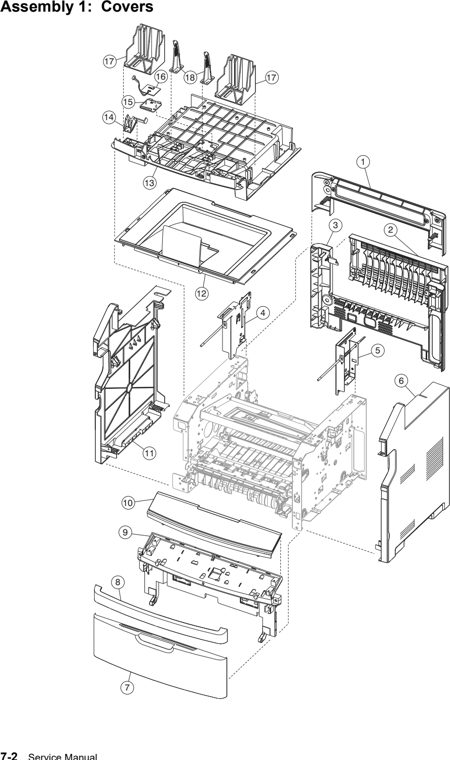

Assembly 1: Covers
1 40X5827 Mid rear cover
2 40X5839 Rear door
Lexmark 40X5839 Rear door
Fully refurbished with 90-day warranty
40X5839
$15.16



3 40X5838 Rear cover
Lexmark 40X5838 Rear Cover
Fully refurbished with 90-day warranty
40X5838
$18.92


Lexmark 40X5838 Rear cover
New
40X5838 (New)
$43.74



4 40X5820 Rear left frame assembly
Lexmark 40X5820 Rear left frame assembly
Fully refurbished with 90-day warranty
40X5820
$16.44



5 40X5821 Rear right frame assembly
Lexmark 40X5821 Rear right frame assembly
Fully refurbished with 90-day warranty
40X5821
$15.58



6 40X5822 Right side cover
Lexmark 40X5822 Right side cover
Fully refurbished with 90-day warranty
40X5822
$25.86


Lexmark 40X5822 Right side cover
New
40X5822 (New)
$25.33



7 40X5379 Front door cover
Lexmark 40X5379 Front door cover
Fully refurbished with 90-day warranty
40X5379
$15.07



8 40X5359 Nameplate cover
Lexmark 40X5359 Nameplate cover
New
40X5359 (New)
$23.50


Lexmark 40X5359 Nameplate cover
Fully refurbished with 90-day warranty
40X5359
$13.86



9 40X5806 Lower AIO access assembly
Lexmark 40X5806 Lower AIO access assembly
Fully refurbished with 90-day warranty
40X5806
$14.72



10 40X5778 Front access door cover
Lexmark 40X5778 Front access door cover
New
40X5778 (New)
$12.60


Lexmark 40X5778 Front access door cover
Fully refurbished with 90-day warranty
40X5778



11 40X5823 Left side cover
Lexmark 40X5823 Left side cover
Fully refurbished with 90-day warranty
40X5823
$26.38


Lexmark 40X5823 Left side cover
New
40X5823 (New)
$25.85



12 40X5614 Top cover assembly
Lexmark 40X5614 Top cover assembly
New
40X5614 (New)
$20.04



13 40X5811 Tub cover assembly
Lexmark 40X5811 Tub cover assembly
New
40X5811 (New)
$23.68


Lexmark 40X5811 Tub cover assembly
Fully refurbished with 90-day warranty
40X5811
$32.32



14 40X5809 USB cable mount bracket
15 40X5834 Output bin LED lens
16 40X5835 Output bin LED
Lexmark 40X5835 Output bin LED
New
40X5835 F5JJ9 (New)
$15.72



17 40X5815 Op panel support
18 40X5814 Display rotation support
NS 40X5381 Primary tray Parts Catalog 7-3
Lexmark 40X5381 Primary Tray
New
40X5381 (New)
$46.00


Lexmark 40X5381 Primary tray
Fully refurbished with 90-day warranty
40X5381
$34.00



Assembly 1: Covers parts diagram - Lexmark X463 X464 X466 Parts

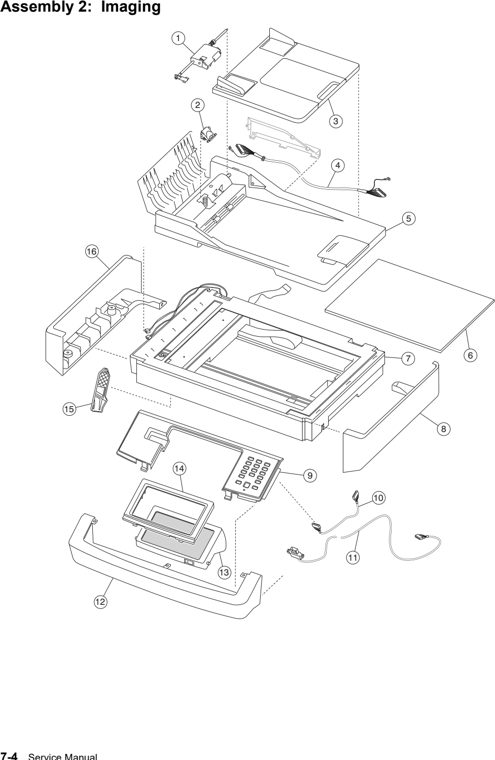

Assembly 2: Imaging
1 40X7545 ADF Separator roll
Lexmark 40X7545 ADF Separator roll
Fully refurbished with 90-day warranty
40X7545



2 40X8419 ADF Separator pad
3 40X5470 ADF input tray
Lexmark 40X5470 ADF Input Tray
Fully refurbished with 90-day warranty
40X5470


Lexmark 40X5470 ADF Input Tray
New
40X5470 (New)
$98.05



4 40X5540 ADF cable
5 40X5824 Duplex ADF unit
Lexmark 40X5824 Duplex ADF unit
Fully refurbished with 90-day warranty
40X5824
$155.00



6 40X5804 Flatbed cushion
Lexmark 40X5804 X46x SVC Pad Scanner
New
40X5804 (New)
$21.19


Lexmark 40X5804 Flatbed Cushion - Legal
Fully refurbished with 90-day warranty
40X5804 0TJ75
$11.82



7 40X5825 Flatbed module
Lexmark 40X5825 Flatbed module
New
40X5825 (New)

Retired, no longer available: Contact for alternatives


Lexmark 40X5825 Flatbed module
Fully refurbished with 90-day warranty
40X5825



8 40X5818 Right scanner cover
9 40X5743 Operator panel button assembly

10 40X5810 UICC Cable (Operator panel cable)

11 40X5831 Operator panel USB cable
12 40X5826 Scanner front cover
13 40X5837 Op panel display
Lexmark 40X5837 Operator Panel Display
Fully refurbished with 90-day warranty
40X5837



14 40X0399 Op panel display bezel X463
14 40X0400 Op panel display bezel X464
14 40X0401 Op panel display bezel X466
15 40X5813 Kickstand support
16 40X5819 Left scanner cover
NS 40X5807 ADF maintenance kit
Lexmark 40X5807 ADF Maintenance Kit
New
40X5807 (New)
$99.29


Lexmark 40X5807 ADF maintenance kit
Fully refurbished with 90-day warranty
40X5807



NS 40X7546 ADF hinge, right
Lexmark 40X7546 ADF Right hinge
New
40X7546 (New)
$17.95



NS 40X7547 ADF hinge, left Parts Catalog 7-5
Assembly 2: Imaging parts diagram - Lexmark X463 X464 X466 Parts

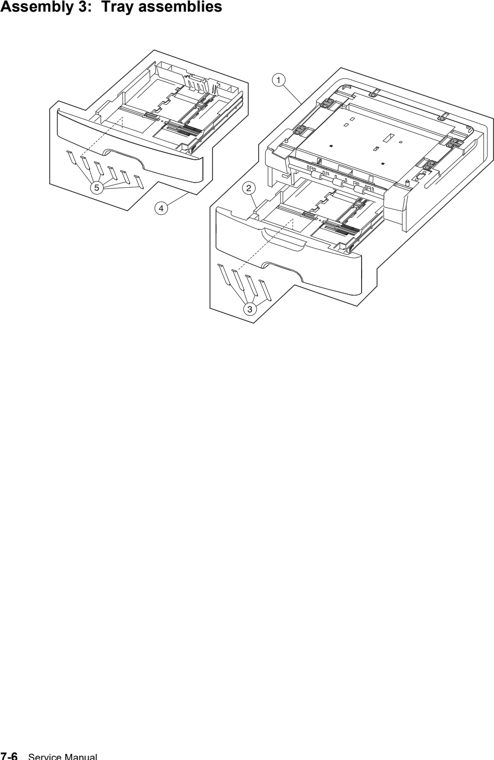

Assembly 3: Tray assemblies
1 40X5398 Optional 250-sheet tray (new asm)
Lexmark 40x5398 Optional 250-Sheet Drawer with Tray
Fully refurbished with 90-day warranty
40X5398
$99.00



1 40X5399 Optional 550-sheet tray(new asm)

2 40X5394 250-sheet (Tray 2) assembly (new asm)
Lexmark 40X5394 250-sheet tray assembly
Fully refurbished with 90-day warranty
40X5394


Lexmark 40X5394 250-Sheet Tray Assembly
New
40X5394 (New)

Retired, no longer available: Contact for alternatives



2 40X5395 550-sheet (Tray 2) assembly (new asm)
Lexmark 40X5395 550-sheet tray assembly
Fully refurbished with 90-day warranty
40X5395
$47.00


Lexmark 40X5395 550-Sheet Paper Tray
New
40X5395 (New)
$57.71



3 40X2855 Tray 2 wear strips (550-sheet tray only) (new asm)
Lexmark 40X2855 Tray 2 wear strips 550-sheet
New
40X2855 (New)
$16.56

Retired, no longer available: Contact for alternatives



4 40X5381 Primary tray
Lexmark 40X5381 Primary Tray
New
40X5381 (New)
$46.00


Lexmark 40X5381 Primary tray
Fully refurbished with 90-day warranty
40X5381
$34.00



5 40X5382 Wear strips (250-sheet trays, optional and primary) (new asm) Parts Catalog 7-7

Assembly 3: Tray assemblies parts diagram - Lexmark X463 X464 X466 Parts

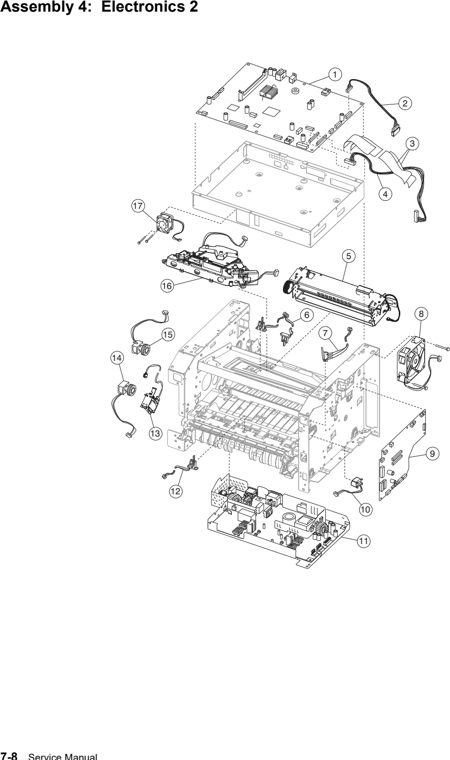

Assembly 4: Electronics 2
1 40X5829 Controller board
Lexmark 40x5829 Controller Board
New
40X5829 Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED


Lexmark 40X5829 Controller Board
New
40X5829 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED


Lexmark 40X5829 Controller card
Fully refurbished with 90-day warranty
40X5829 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED



2 40X5816 LSU hsync extension cable
3 40X5832 Stairway cable
4 40X5833 Controller board cable
5 40X5344 Fuser assembly, 115 V
Lexmark 40X5344 Fuser assembly 110-120V
New
40X5344 Compatible (New)
$99.00



5 40X5345 Fuser assembly, 230 V
5 40X5346 Fuser assembly, 100 V
6 40X5365 Duplex and media sensor assembly
Lexmark 40X5365 Duplex and media sensor assembly
Fully refurbished with 90-day warranty
40X5365



7 40X5360 Access door open sensor assembly
Lexmark 40X5360 Access door open sensor assembly
Fully refurbished with 90-day warranty
40X5360



8 40X5392 Cooling fan (screws included)
Lexmark 40X5392 Cooling fan (screws included)
Fully refurbished with 90-day warranty
40X5392



9 40X5830 Engine board,
Lexmark 40X5830 Engine board
New
40X5830 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$64.71


Lexmark 40X5830 Engine board
Fully refurbished with 90-day warranty
40X5830 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$44.71



10 40X5385 Toner low sensor
Lexmark 40X5385 Toner low sensor
New
40X5385 (New)
$11.07


Lexmark 40X5385 Toner low sensor
Fully refurbished with 90-day warranty
40X5385



11 40X5842 LVPS/HVPS card assembly, 110 V
Lexmark 40X5842 LVPS/HVPS card assembly 110 V
New
40X5842 (New)

Retired, no longer available: Contact for alternatives


Lexmark 40X5842 LVPS/HVPS card assembly 110 V
New
40X5842 Advanced Exchange (New)

Retired, no longer available: Contact for alternatives



11 40X5841 LVPS/HVPS card assembly, 220 V
12 40X5366 Manual input sensor assembly
Lexmark 40X5366 Manual input sensor assembly
Fully refurbished with 90-day warranty
40X5366



13 40X5369 Manual feed solenoid
Lexmark 40X5369 Manual feed solenoid
New
40X5369 (New)
$13.72


Lexmark 40X5369 Manual feed solenoid
Fully refurbished with 90-day warranty
40X5369
$10.86



14 40X5371 MPF feed clutch
Lexmark 40X5371 MPF feed clutch
New
40X5371 (New)
$20.00


Lexmark 40X5371 MPF feed clutch
Fully refurbished with 90-day warranty
40X5371



15 40X5370 Media feed (ACM) clutch
Lexmark 40X5370 Media feed (ACM) clutch
New
40X5370 (New)
$19.00


Lexmark 40X5370 Media feed (ACM) clutch
Fully refurbished with 90-day warranty
40X5370



16 40X5387 LSU, (printhead)
Lexmark 40X5387 34S4095 LSU (Printhead)
New
40X5387 34S4095 (New)
$129.72


Lexmark 40X5387 LSU (printhead)
New
40X5387 Advanced Exchange (New)


Lexmark 40X5387 LSU (printhead)
Fully refurbished with 90-day warranty
40X5387 34S4095
$42.50



17 40X5805 Controller board fan
Lexmark 40X5805 Controller Board Fan
New
40X5805 8XG3Y (New)
$41.71


Lexmark 40X5805 Controller Board Fan
Fully refurbished with 90-day warranty
40X5805
$29.71



NS 40X5817 LSU laser diode cable Parts Catalog 7-9
Assembly 4: Electronics 2 parts diagram - Lexmark X463 X464 X466 Parts

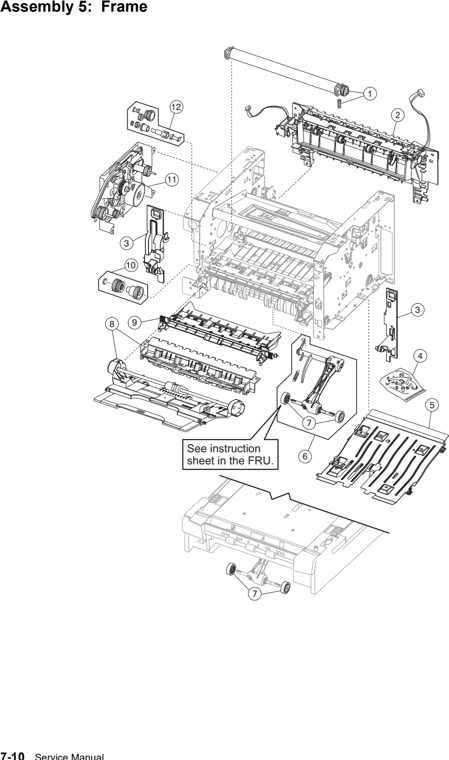

Assembly 5: Frame
1 40X5364 Transfer roll, bearings, gear, spring (CBM)
Lexmark 40X5364 Transfer Roll.
New
40X5364 (New)
$19.95



2 40X5372 Media exit guide assembly (redrive)
Lexmark 40X5372 Media Exit Guide Assembly (Redrive)
New
40X5372 (New)

Retired, no longer available: Contact for alternatives


Lexmark 40X5372 Media Exit Guide Assembly (Redrive)
Fully refurbished with 90-day warranty
40X5372
$49.00



3 40X5397 Front mounts
Lexmark 40X5397 Front mounts
New
40X5397 (New)
$14.94


Lexmark 40X5397 Front mounts
Fully refurbished with 90-day warranty
40X5397
$13.41



4 40X5396 Screws, miscellaneous
Lexmark 40X5396 Screws miscellaneous
New
40X5396 (New)
$19.07


Lexmark 40X5396 Screws miscellaneous
Fully refurbished with 90-day warranty
40X5396



5 40X5380 Complete duplex assembly
Lexmark 40X5380 Complete duplex assembly
Fully refurbished with 90-day warranty
40X5380




6 40X5453 Media (ACM) drive assembly

7 40X5451 Paper feed, ACM tires
Lexmark 40X5451 Paper Feed, ACM Tires
New
40X5451 (New)

Retired, no longer available: Contact for alternatives



7 40X5440 Tray 2 paper feed tires
Lexmark 40X5440 Tray 2 paper feed tires
New
40X5440 (New)
$17.00



8 40X5358 MPF tray assembly
Lexmark 40X5358 MPF tray assembly
Fully refurbished with 90-day warranty
40X5358
$21.71


Lexmark 40X5358 MPF Tray Assembly
New
40X5358 (New)
$54.00



9 40X5383 Upper front frame assembly
Lexmark 40X5383 Upper front frame assembly
Fully refurbished with 90-day warranty
40X5383
$12.72




10 40X5368 Manual feed clutch CBM
Lexmark 40X5368 Manual feed clutch CBM
New
40X5368 (New)
$13.41



11 40X5367 Main drive gearbox (in motor)
Lexmark 40X5367 Main Drive Gearbox (In Motor)
Fully refurbished with 90-day warranty
40X5367
$78.50



12 40X5363 Duplex gear drive CBM
Lexmark 40X5363 Duplex gear drive CBM
New
40X5363 WVYVK (New)
$24.65


Lexmark 40X5363 Duplex gear drive CBM
Fully refurbished with 90-day warranty
40X5363
$18.66



NS 40X5400 110 V maintenance kit
Lexmark 40X5400 Maintenance Kit
New
40X5400 D2230-Z1 (New)
$189.00


Lexmark 40X5400 Maintenance Kit
Fully refurbished with 90-day warranty
40X5400
$144.72



NS 40X5401 220 V maintenance kit
NS 40X5402 100 V maintenance kit
NS 40X0016 Motor spacer washer kit Parts Catalog 7-11
Assembly 5: Frame parts diagram - Lexmark X463 X464 X466 Parts

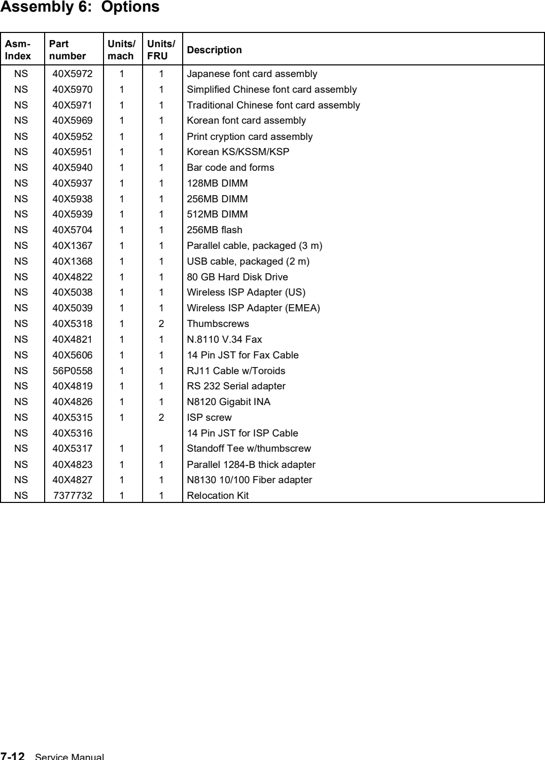

Assembly 6: Options
NS 40X5972 Japanese font card assembly
NS 40X5970 Simplified Chinese font card assembly
NS 40X5971 Traditional Chinese font card assembly
NS 40X5969 Korean font card assembly
NS 40X5952 Print cryption card assembly
NS 40X5951 Korean KS/KSSM/KSP
NS 40X5940 Bar code and forms
NS 40X5937 128MB DIMM
Lexmark 40X5937 128MB DDR Memory
New
40X5937 (New)
$157.23


Lexmark 40X5937 128MB DDR Memory
Fully refurbished with 90-day warranty
40X5937
$225.00



NS 40X5938 256MB DIMM
NS 40X5939 512MB DIMM
NS 40X5704 256MB flash
Lexmark 40X5704 256MB Flash Memory Card
New
40X5704 11B75N-00 (New)
$38.50


Lexmark 40X5704 256MB Flash Memory Card
Fully refurbished with 90-day warranty
40X5704 11B75N-00
$25.00



NS 40X1367 Parallel cable, packaged (3 m)
Lexmark 40X1367 Parallel Cable Packaged (3 m)
New
40X1367 (New)
$26.03

Retired, no longer available: Contact for alternatives



NS 40X1368 USB cable, packaged (2 m)
Lexmark 40X1368 2-Meter USB Cable
New
40X1368 (New)
$23.70

Retired, no longer available: Contact for alternatives



NS 40X4822 80 GB Hard Disk Drive
Lexmark 40X4822 Hard disk
New
40X4822 (New)
$359.00


Lexmark 40X4822 Hard disk
Fully refurbished with 90-day warranty
40X4822



NS 40X5038 Wireless ISP Adapter (US)
Lexmark 40X5038 MarkNet N8150 802.11b/g/n Wireless Print Server (US/Americas)
New
40X5038 (New)

Retired, no longer available: Contact for alternatives



NS 40X5039 Wireless ISP Adapter (EMEA)
NS 40X5318 Thumbscrews
NS 40X4821 N.8110 V.34 Fax
Lexmark 40X4821 Fax Interface Card
New
40X4821 (New)
$63.00


Lexmark 40X4821 Fax Interface Card
Fully refurbished with 90-day warranty
40X4821
$45.00



NS 40X5606 14 Pin JST for Fax Cable
NS 56P0558 RJ11 Cable w/Toroids
NS 40X4819 RS 232 Serial adapter

NS 40X4826 N8120 Gigabit INA
Lexmark 40x4826 MarkNet N8120 GigaBit Ethernet
Fully refurbished with 90-day warranty
40X4826
$145.00



NS 40X5315 ISP screw
Lexmark 40X5315 Screw shipped with ISP (2PER)
Fully refurbished with 90-day warranty
40X5315
$18.50



NS 40X5316 14 Pin JST for ISP Cable
Lexmark 40X5316 14-pin JST cable assembly for ISP interface cable
Fully refurbished with 90-day warranty
40X5316 I
$18.50



NS 40X5317 Standoff Tee w/thumbscrew

NS 40X4823 Parallel 1284-B thick adapter
Lexmark 40X4823 Parallel 1284-B interface card
Fully refurbished with 90-day warranty
40X4823
$80.00



NS 40X4827 N8130 10/100 Fiber adapter

NS 7377732 Relocation Kit
Assembly 6: Options parts diagram - Lexmark X463 X464 X466 Parts

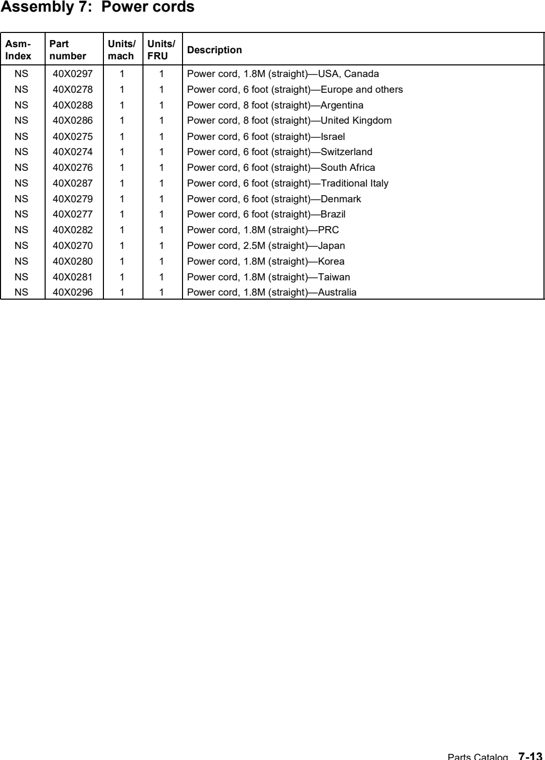

Assembly 7: Power cords
NS 40X0297 Power cord, 1.8M (straight)—USA, Canada


NS 40X0278 Power cord, 6 foot (straight)—Europe and others
NS 40X0288 Power cord, 8 foot (straight)—Argentina
Lexmark 40x0288 Power cord; 2.5m, 8ft. Straight, Argentina
New
40x0288 (New)

Retired, no longer available: Contact for alternatives



NS 40X0286 Power cord, 8 foot (straight)—United Kingdom
NS 40X0275 Power cord, 6 foot (straight)—Israel
Lexmark 40x0275 Power cord; 1.8m, 6ft. Straight, Israel
New
40x0275 (New)

Retired, no longer available: Contact for alternatives



NS 40X0274 Power cord, 6 foot (straight)—Switzerland
NS 40X0276 Power cord, 6 foot (straight)—South Africa
NS 40X0287 Power cord, 6 foot (straight)—Traditional Italy
NS 40X0279 Power cord, 6 foot (straight)—Denmark
NS 40X0277 Power cord, 6 foot (straight)—Brazil
NS 40X0282 Power cord, 1.8M (straight)—PRC
NS 40X0270 Power cord, 2.5M (straight)—Japan
Lexmark 40x0270 Power cord; 2.5m, 8ft. Straight, Japan
New
40x0270 (New)

Retired, no longer available: Contact for alternatives



NS 40X0280 Power cord, 1.8M (straight)—Korea
NS 40X0281 Power cord, 1.8M (straight)—Taiwan
NS 40X0296 Power cord, 1.8M (straight)—Australia Parts Catalog 7-13
Assembly 7: Power cords parts diagram - Lexmark X463 X464 X466 Parts
Other listed parts
13C1100 Lexmark X463de MFP Printer
Lexmark X463de MFP Printer
Fully refurbished with 90-day warranty
X463de 13C1100
$425.00



13C1101 Lexmark X464de MFP Laser Printer
Lexmark X464de MFP Laser Printer
Fully refurbished with 90-day warranty
X464de 13C1101


Lexmark X464de MFP Laser Printer
New
X464de 13C1101 (New)

Retired, no longer available: Contact for alternatives



13C1265 Lexmark X466de MFP Laser Printer
Lexmark X466de MFP Laser Printer
Fully refurbished with 90-day warranty
X466de 13C1265



40X1475 Card reader cable
40X1476 Lower card reader cover
40X1477 Card reader light pipe
40X1478 Upper card reader cover
40X1479 Screw kit (for card reader)
40X4602 Card reader assembly (3121 contact)

40X4603 Card reader assembly (5121 contact/RFID)

40X4604 Card reader assembly (5125 contact/HID)

40X5836 Operator Panel Button Assembly

Lexmark X40X5830 Engine board
Lexmark X40X5830 Engine board
Fully refurbished with 90-day warranty
X40X5830 Advanced Exchange This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED



X40X5829 Controller card
Lexmark X40X5829 Controller card
Fully refurbished with 90-day warranty
X40X5829 Advanced Exchange This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
